Page 1897 of 2898

NISSAN ALMERA 2001 Service Manual FIG. 5NJEL0511S05 HEL455B POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð/Sedan (Contd) EL-339

Page 1898 of 2898

NISSAN ALMERA 2001 Service Manual Trouble Diagnoses/SedanNJEL0512SYMPTOM CHARTNJEL0512S02 REFERENCE PAGE (EL- ) 341 342 343 344 346 347 348 SYMPTOM Main power supply and ground circuit check Door lock/unlock switch check Door key cyli

Page 1899 of 2898

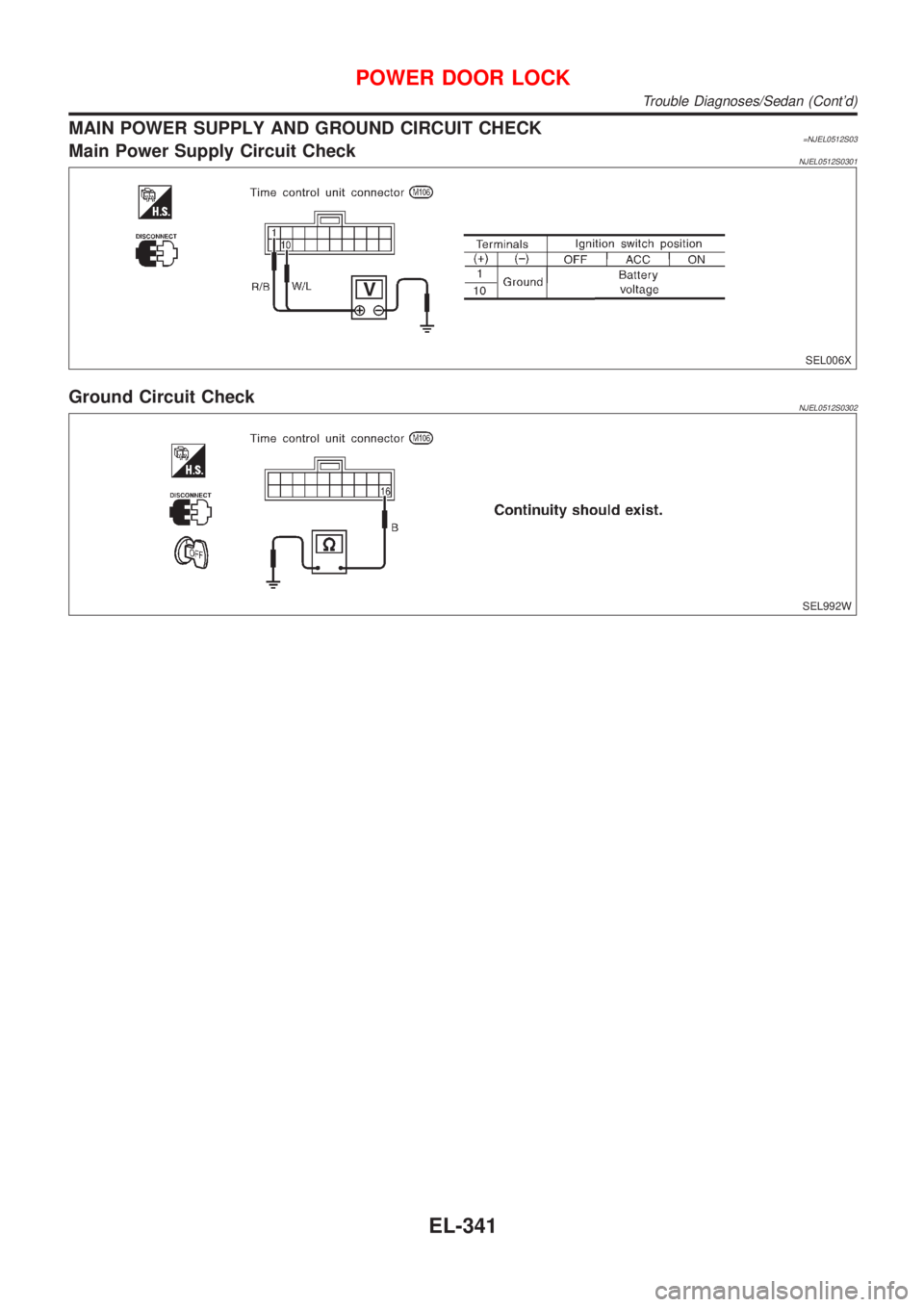

NISSAN ALMERA 2001 Service Manual MAIN POWER SUPPLY AND GROUND CIRCUIT CHECK=NJEL0512S03Main Power Supply Circuit CheckNJEL0512S0301 SEL006X Ground Circuit CheckNJEL0512S0302 SEL992W POWER DOOR LOCK Trouble Diagnoses/Sedan (Contd) EL

Page 1900 of 2898

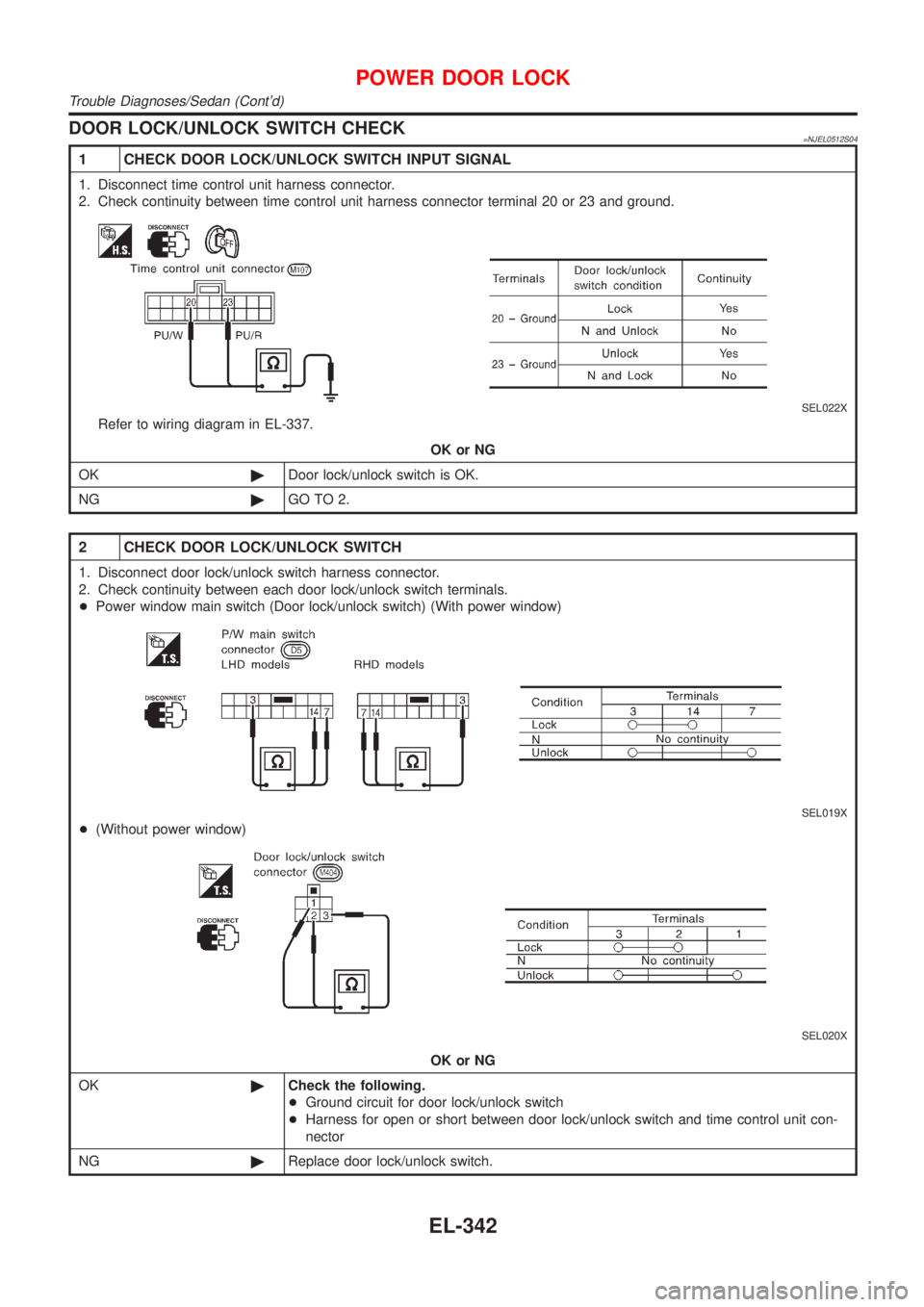

NISSAN ALMERA 2001 Service Manual DOOR LOCK/UNLOCK SWITCH CHECK=NJEL0512S04 1 CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL 1. Disconnect time control unit harness connector. 2. Check continuity between time control unit harness connecto

Page 1901 of 2898

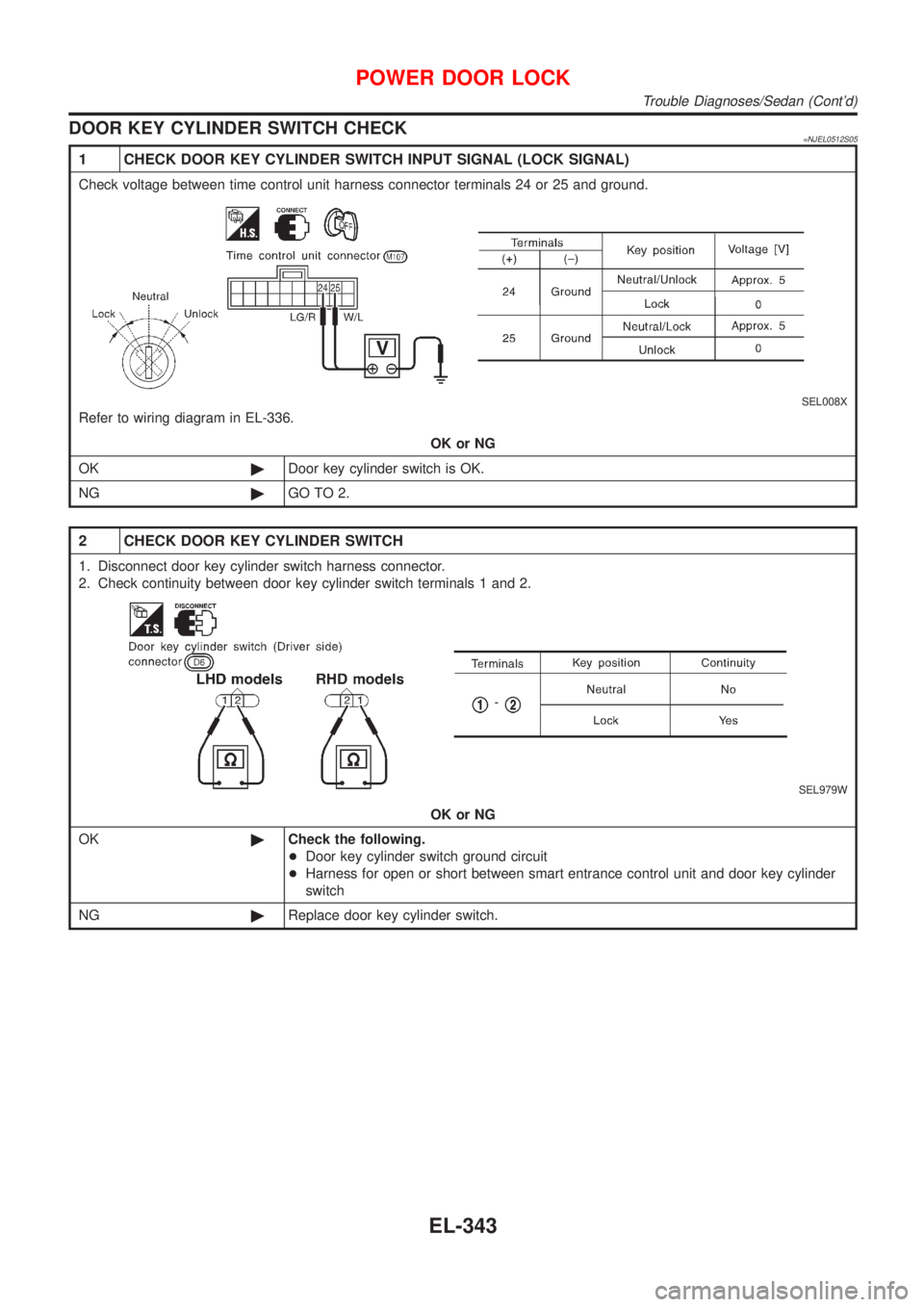

NISSAN ALMERA 2001 Service Manual DOOR KEY CYLINDER SWITCH CHECK=NJEL0512S05 1 CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK SIGNAL) Check voltage between time control unit harness connector terminals 24 or 25 and ground. SEL008X

Page 1902 of 2898

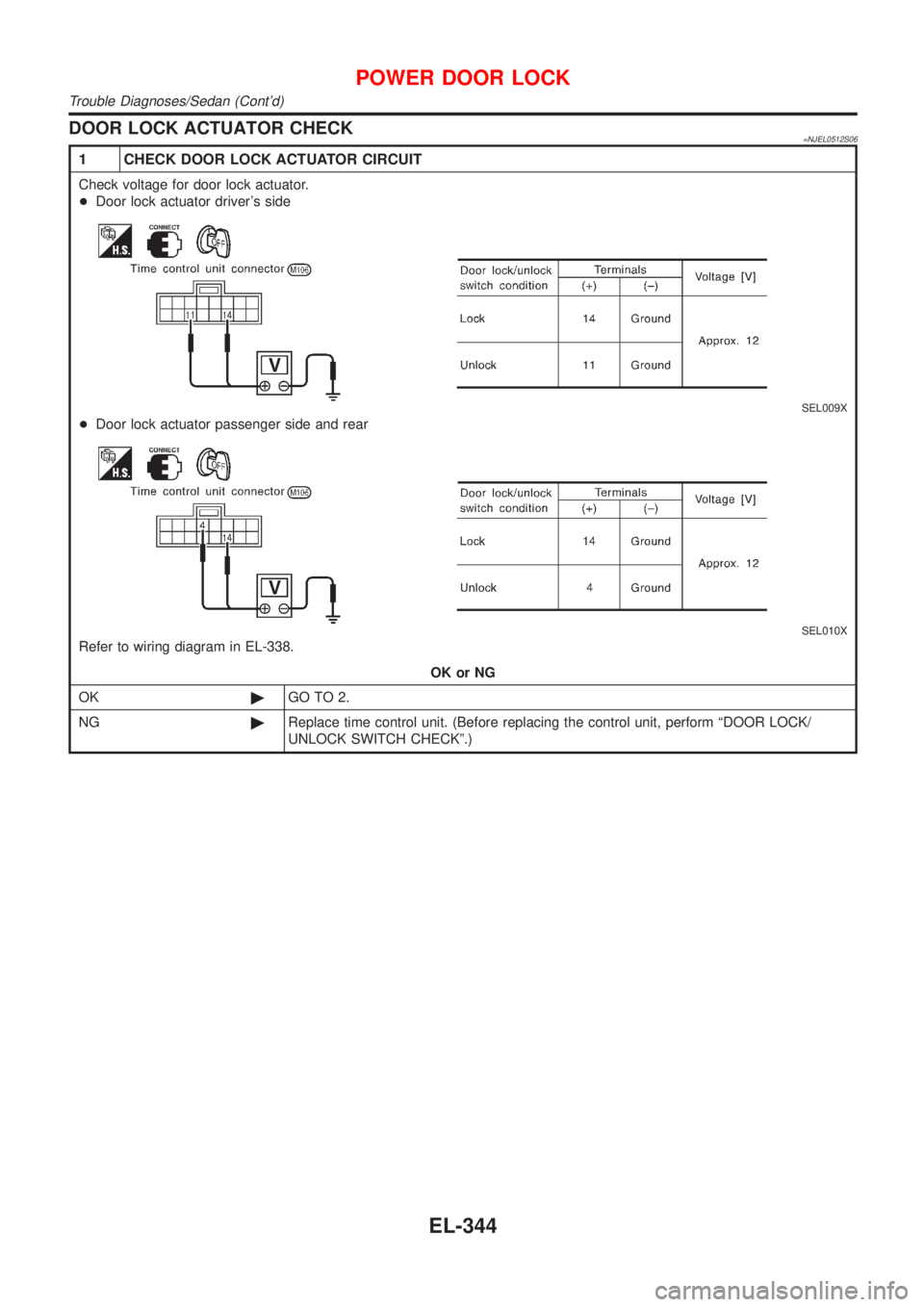

NISSAN ALMERA 2001 Service Manual DOOR LOCK ACTUATOR CHECK=NJEL0512S06 1 CHECK DOOR LOCK ACTUATOR CIRCUIT Check voltage for door lock actuator. +Door lock actuator drivers side SEL009X +Door lock actuator passenger side and rear SEL0

Page 1903 of 2898

NISSAN ALMERA 2001 Service Manual 2 CHECK DOOR LOCK ACTUATOR 1. Disconnect door lock actuator harness connector. 2. Apply 12V direct current to door lock actuator and check operation. SEL662X OK or NG OK©Check harness for open or sho

Page 1904 of 2898

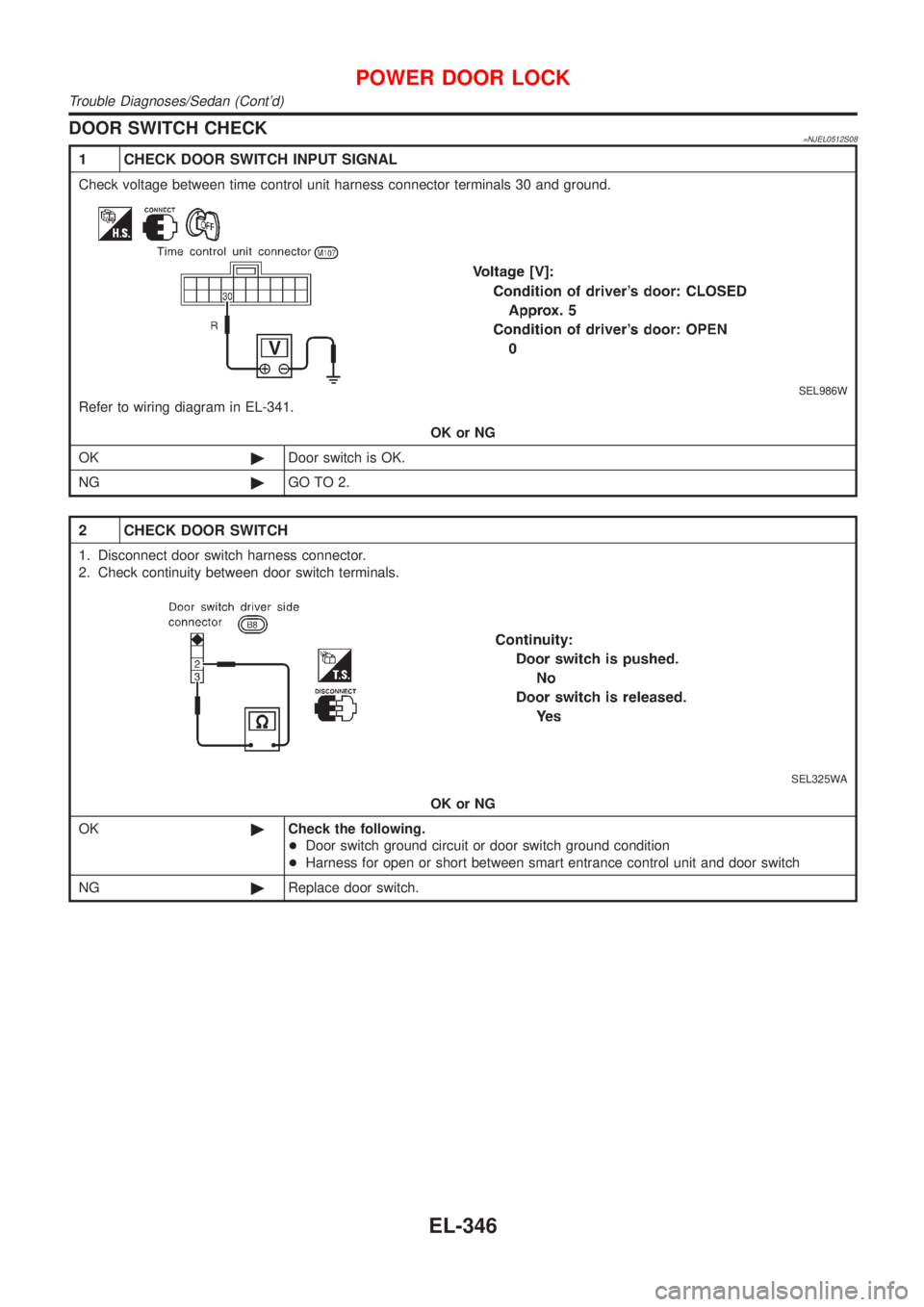

NISSAN ALMERA 2001 Service Manual DOOR SWITCH CHECK=NJEL0512S08 1 CHECK DOOR SWITCH INPUT SIGNAL Check voltage between time control unit harness connector terminals 30 and ground. SEL986W Refer to wiring diagram in EL-341. OK or NG OK
