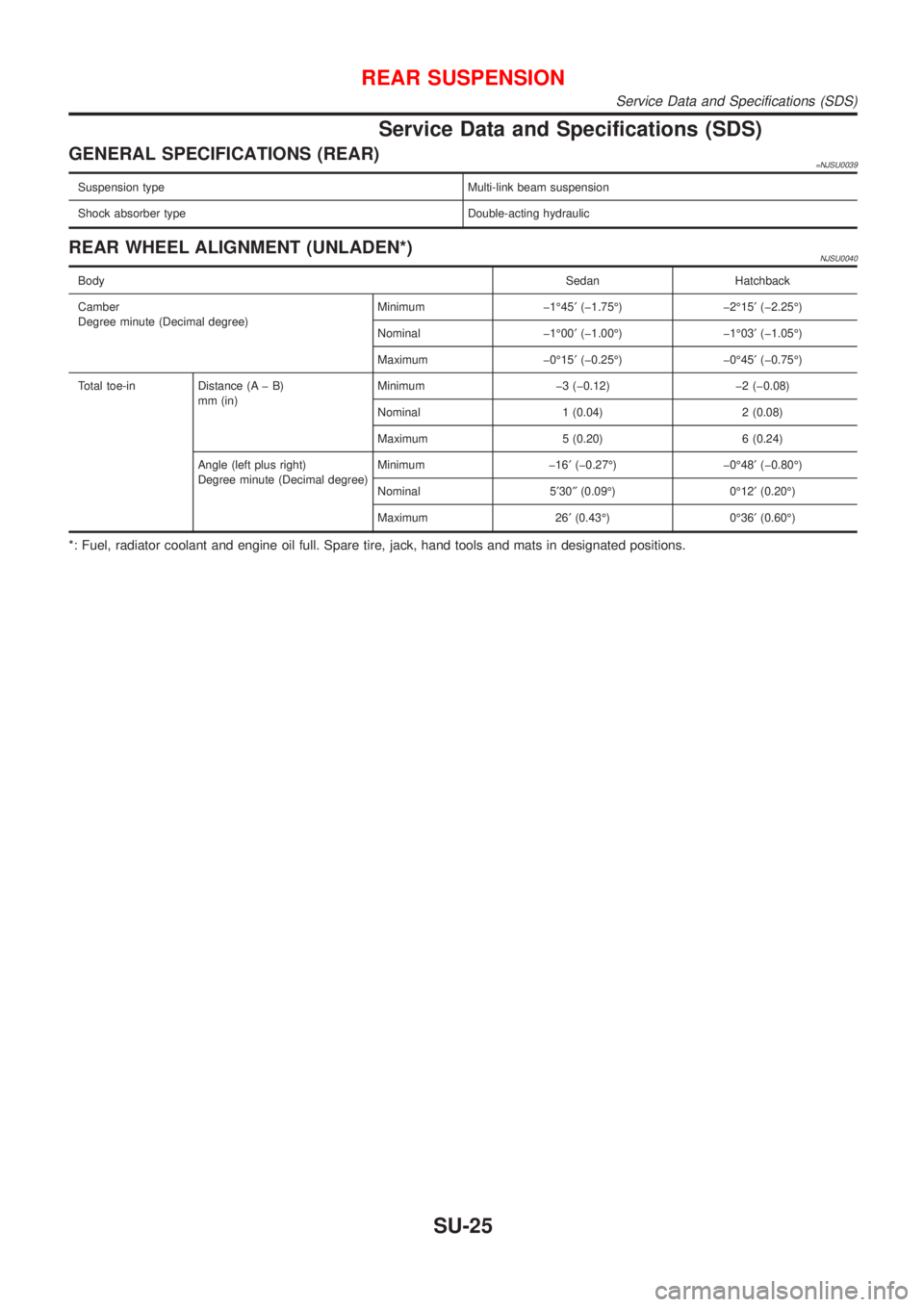

Service Data and Specifications (SDS)
GENERAL SPECIFICATIONS (REAR)=NJSU0039
Suspension type Multi-link beam suspension
Shock absorber type Double-acting hydraulic
REAR WHEEL ALIGNMENT (UNLADEN*)NJSU0040
BodySedan Hatchback
Camber
Degree minute (Decimal degree)Minimum þ1É45¢(þ1.75É) þ2É15¢(þ2.25É)
Nominal þ1É00¢(þ1.00É) þ1É03¢(þ1.05É)
Maximum þ0É15¢(þ0.25É) þ0É45¢(þ0.75É)
Total toe-in Distance (A þ B)
mm (in)Minimum þ3 (þ0.12) þ2 (þ0.08)
Nominal 1 (0.04) 2 (0.08)
Maximum 5 (0.20) 6 (0.24)
Angle (left plus right)
Degree minute (Decimal degree)Minimum þ16¢(þ0.27É) þ0É48¢(þ0.80É)
Nominal 5¢30²(0.09É) 0É12¢(0.20É)
Maximum 26¢(0.43É) 0É36¢(0.60É)
