Page 1729 of 2898

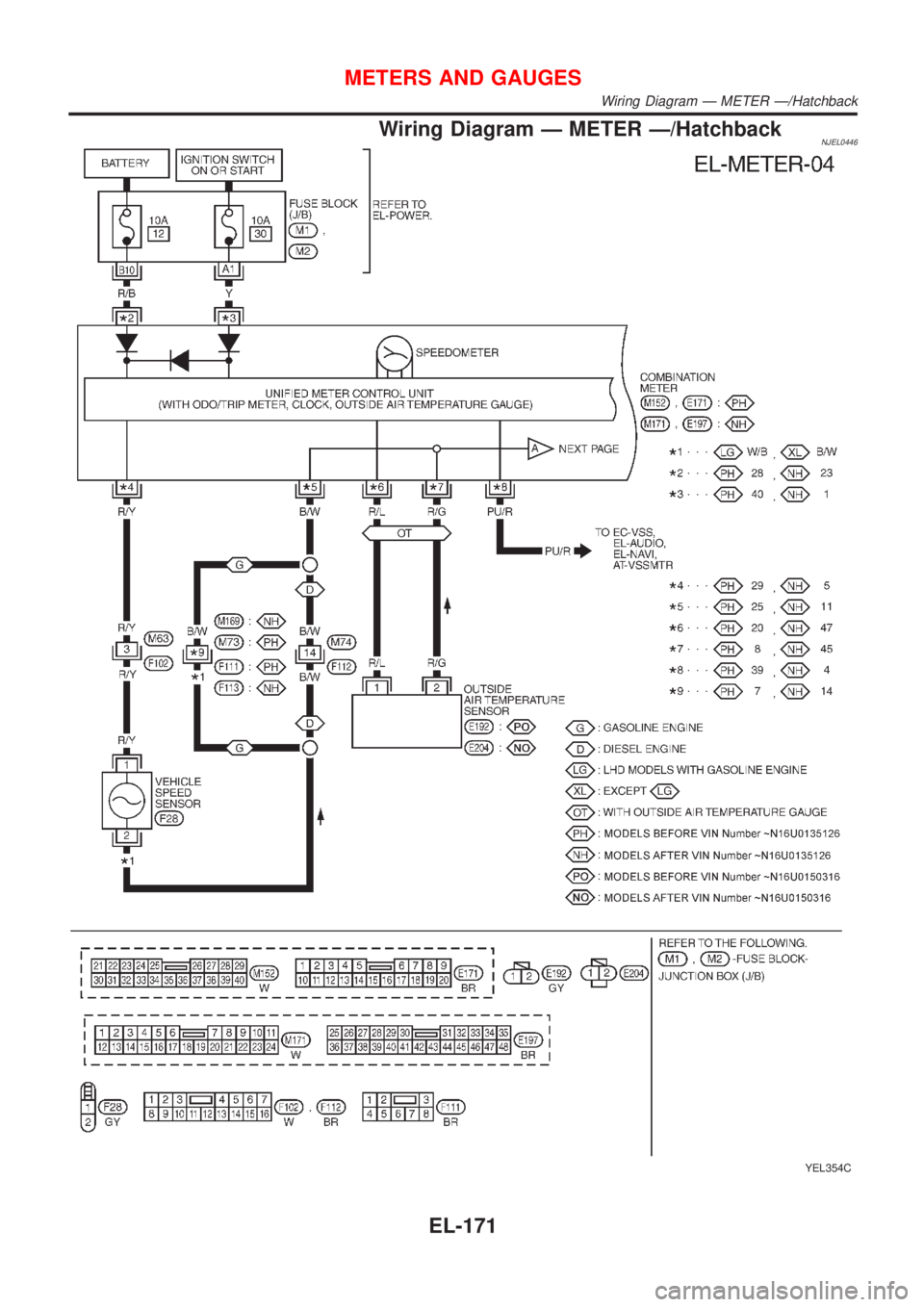

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð METER Ð/HatchbackNJEL0446
YEL354C
METERS AND GAUGES
Wiring Diagram Ð METER Ð/Hatchback
EL-171

Page 1730 of 2898

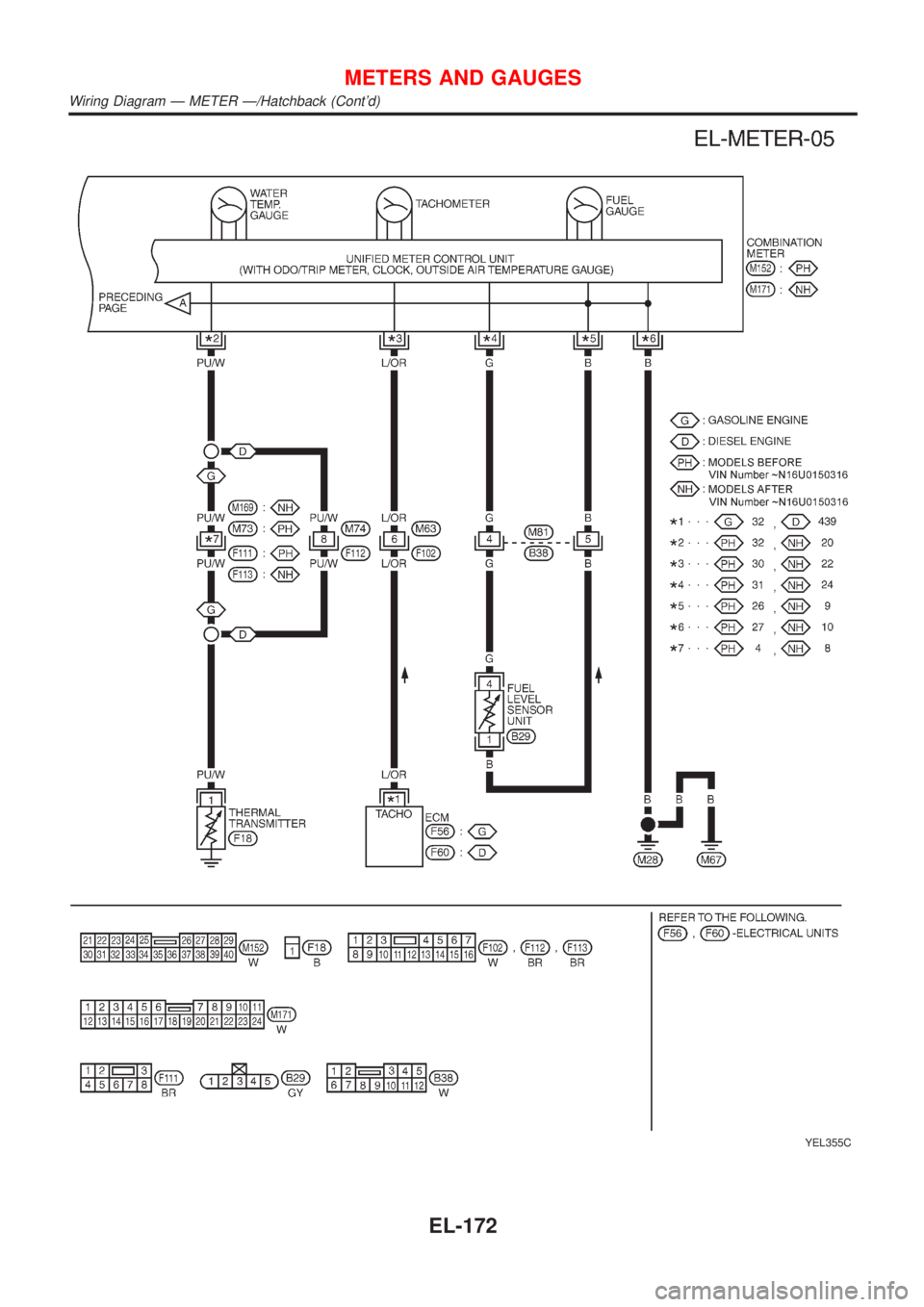

NISSAN ALMERA 2001 Service Manual YEL355C
METERS AND GAUGES
Wiring Diagram Ð METER Ð/Hatchback (Contd)
EL-172

Page 1731 of 2898

NISSAN ALMERA 2001 Service Manual Combination Meter Self-Diagnosis/HatchbackNJEL0447PERFORMING SELF-DIAGNOSIS MODENJEL0447S011. Turn the ignition switch to the ªLOCKº position.
2. Press both reset buttons on the combination meter an

Page 1732 of 2898

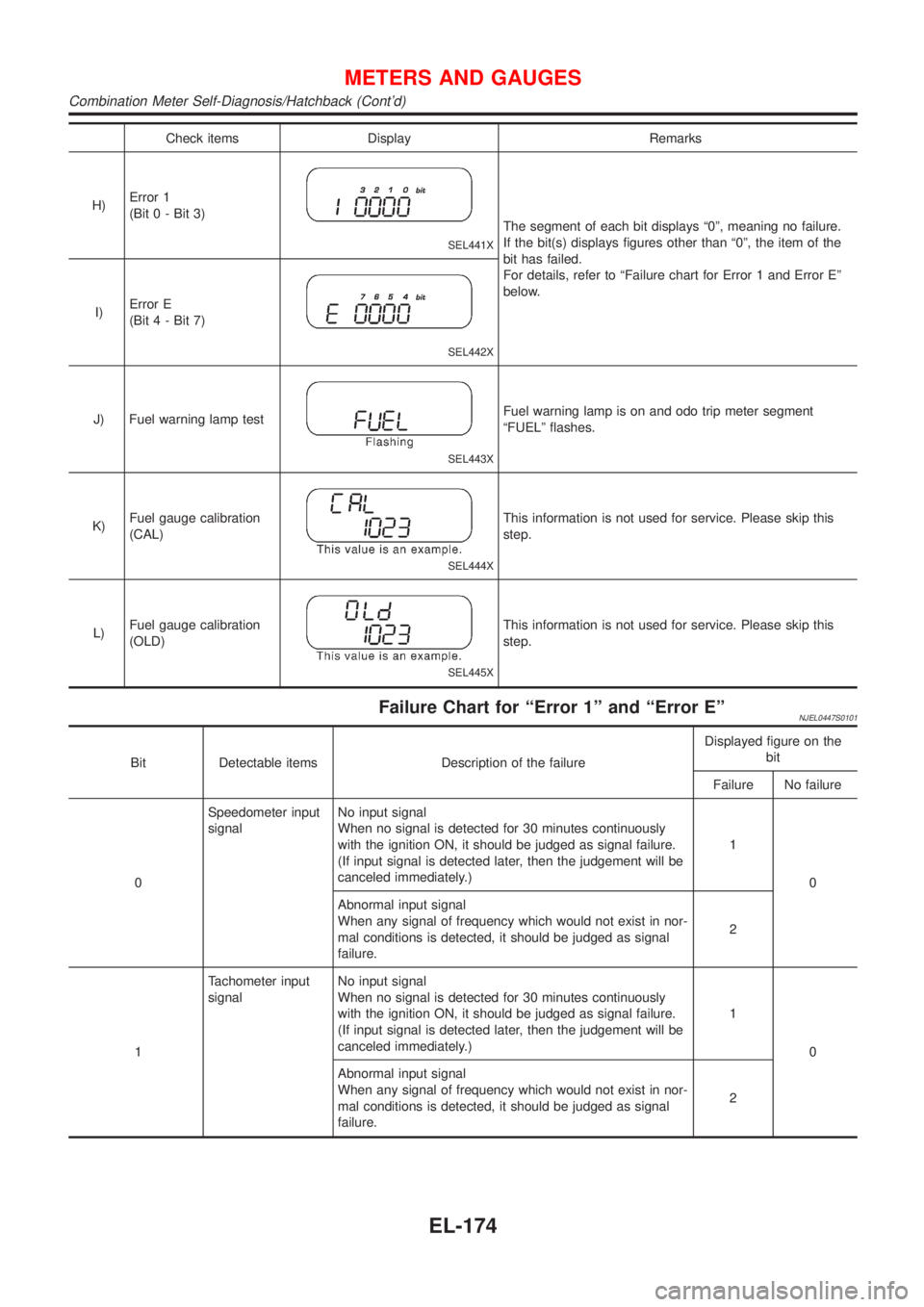

NISSAN ALMERA 2001 Service Manual Check items Display Remarks
H)Error 1
(Bit 0 - Bit 3)
SEL441X
The segment of each bit displays ª0º, meaning no failure.
If the bit(s) displays figures other than ª0º, the item of the
bit has faile

Page 1733 of 2898

NISSAN ALMERA 2001 Service Manual Bit Detectable items Description of the failureDisplayed figure on the
bit
Failure No failure
2Fuel level input sig-
nalShort circuit
When short circuit of the signal line is detected for 5 sec-
onds

Bit Detectable items Description of the failureDisplayed figure on the
bit
Failure No failure
2Fuel level input sig-
nalShort circuit
When short circuit of the signal line is detected for 5 sec-
onds or more, it should be judged as short-circuit failure.1
0
Open circuit
When open circuit of the signal line is detected for 5 sec-
onds or more, it should be judged as open-circuit failure.2
3Water temperature
input signalShort circuit
When short circuit of the signal line is detected for 5 sec-
onds or more, it should be judged as short-circuit failure.1
0
Open circuit
When open circuit of the signal line is detected for 5 sec-
onds or more, it should be judged as open-circuit failure.2
4Outside air tem-
perature input sig-
nalShort circuit
When short circuit of the signal line is detected for 5 sec-
onds or more, it should be judged as short-circuit failure.1
0
Open circuit
When open circuit of the signal line is detected for 5 sec-
onds or more, it should be judged as open-circuit failure.2
5Reset buttons Short circuit for reset but-
tons
When the short circuit is
continuously detected for 5
minutes or more, it should
be judged as short-circuit
failure.Right side reset button has
failed.1
0 Left side reset button has
failed.2
Both reset buttons have
failed.3
6Ð Ð 00
7CPU EEPROM failure 1
0
CPU RAM failure 2
Combination Meter Calibration
After replacing a combination meter, it might be necessary to cali-
brate the fuel gauge/low fuel warning lamp. In case the fuel warn-
ing lamp is flashing after replacing the combination meter perform
the following:
1. Press both reset buttons.
2. Turn the ignition ONand keep the reset buttons depressed
for at least 5 seconds.
3. Release both reset buttons.
The low fuel warning lamp will stop flashing and the combina-
tion meter will show CALL and possibly CALL FAIL. Showing
CALL FAIL does not indicate a concern as this might be related
to the current (unexpected) amount of fuel in the tank.
METERS AND GAUGES
Combination Meter Self-Diagnosis/Hatchback (Cont'd)
EL-175

Page 1734 of 2898

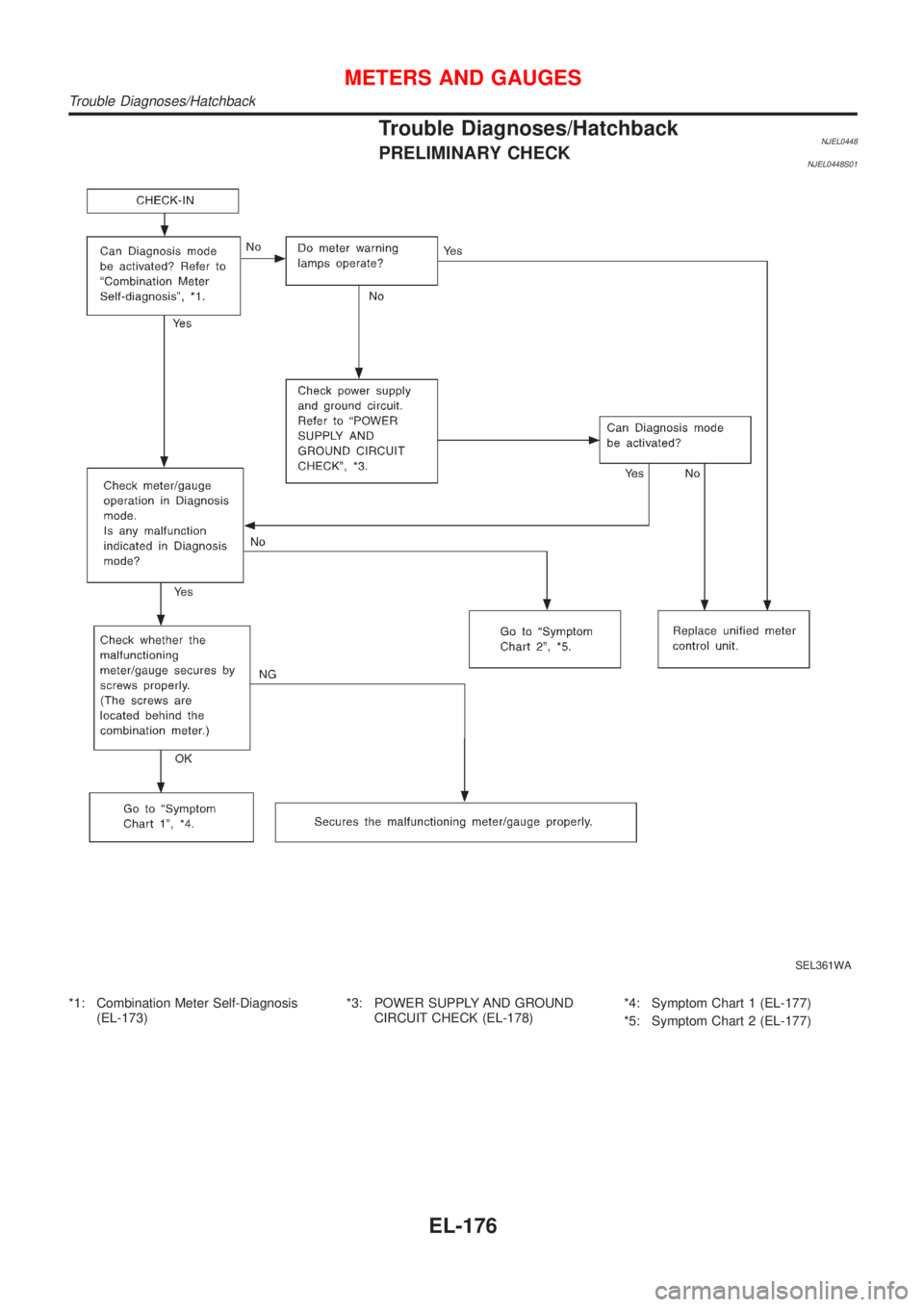

NISSAN ALMERA 2001 Service Manual Trouble Diagnoses/HatchbackNJEL0448PRELIMINARY CHECKNJEL0448S01
SEL361WA
*1: Combination Meter Self-Diagnosis
(EL-173)*3: POWER SUPPLY AND GROUND
CIRCUIT CHECK (EL-178)*4: Symptom Chart 1 (EL-177)
*5:

Page 1735 of 2898

NISSAN ALMERA 2001 Service Manual SYMPTOM CHARTNJEL0448S02Symptom Chart 1 (Malfunction is Indicated in
Diagnosis Mode)
NJEL0448S0201
Symptom Possible causes Repair order
Odo/trip meter indicates
malfunction in Diagnosis
mode.Unified m

Page 1736 of 2898

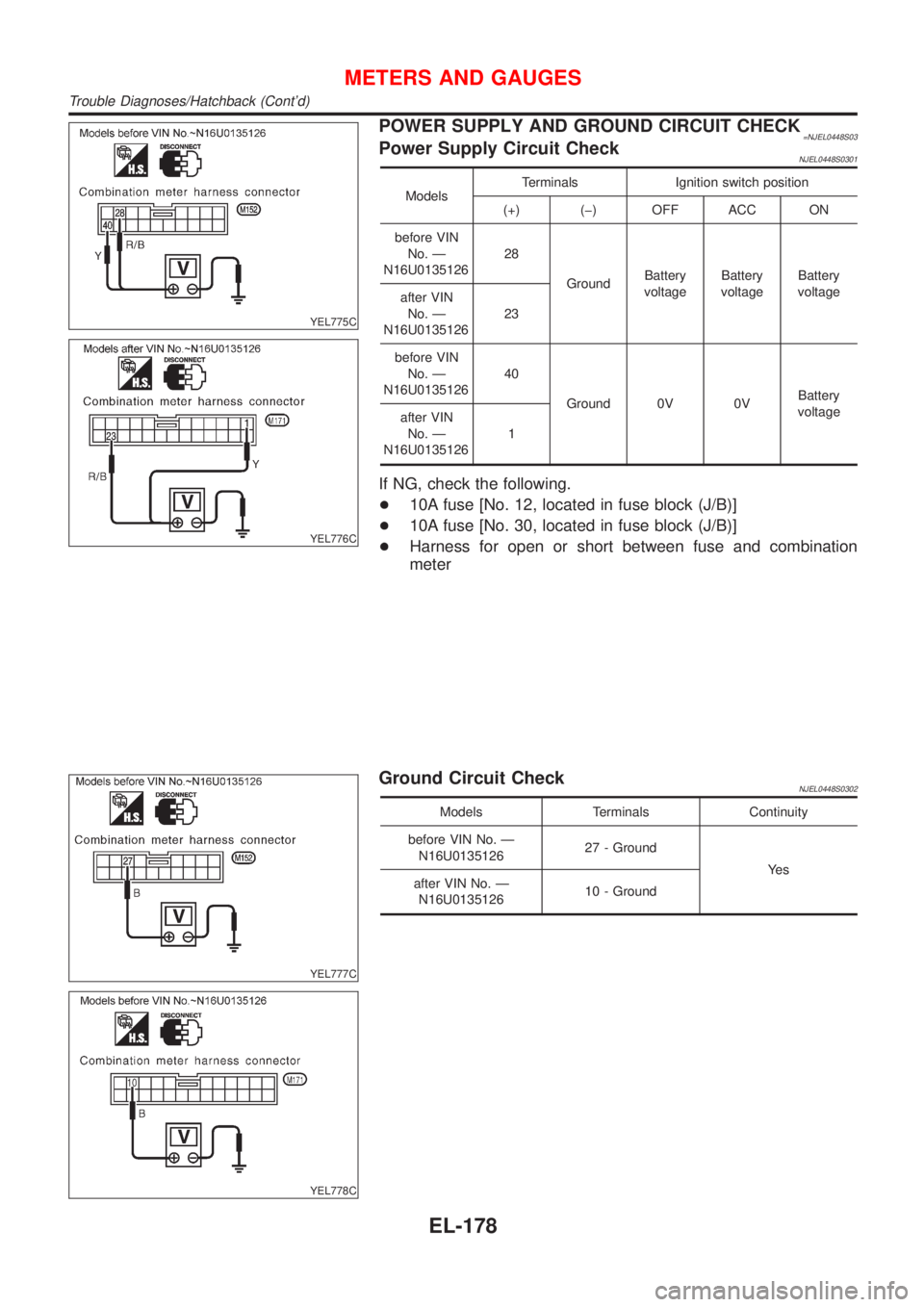

NISSAN ALMERA 2001 Service Manual YEL775C
YEL776C
POWER SUPPLY AND GROUND CIRCUIT CHECK=NJEL0448S03Power Supply Circuit CheckNJEL0448S0301
ModelsTerminals Ignition switch position
(+) (þ) OFF ACC ON
before VIN
No. Ð
N16U013512628
Gr
