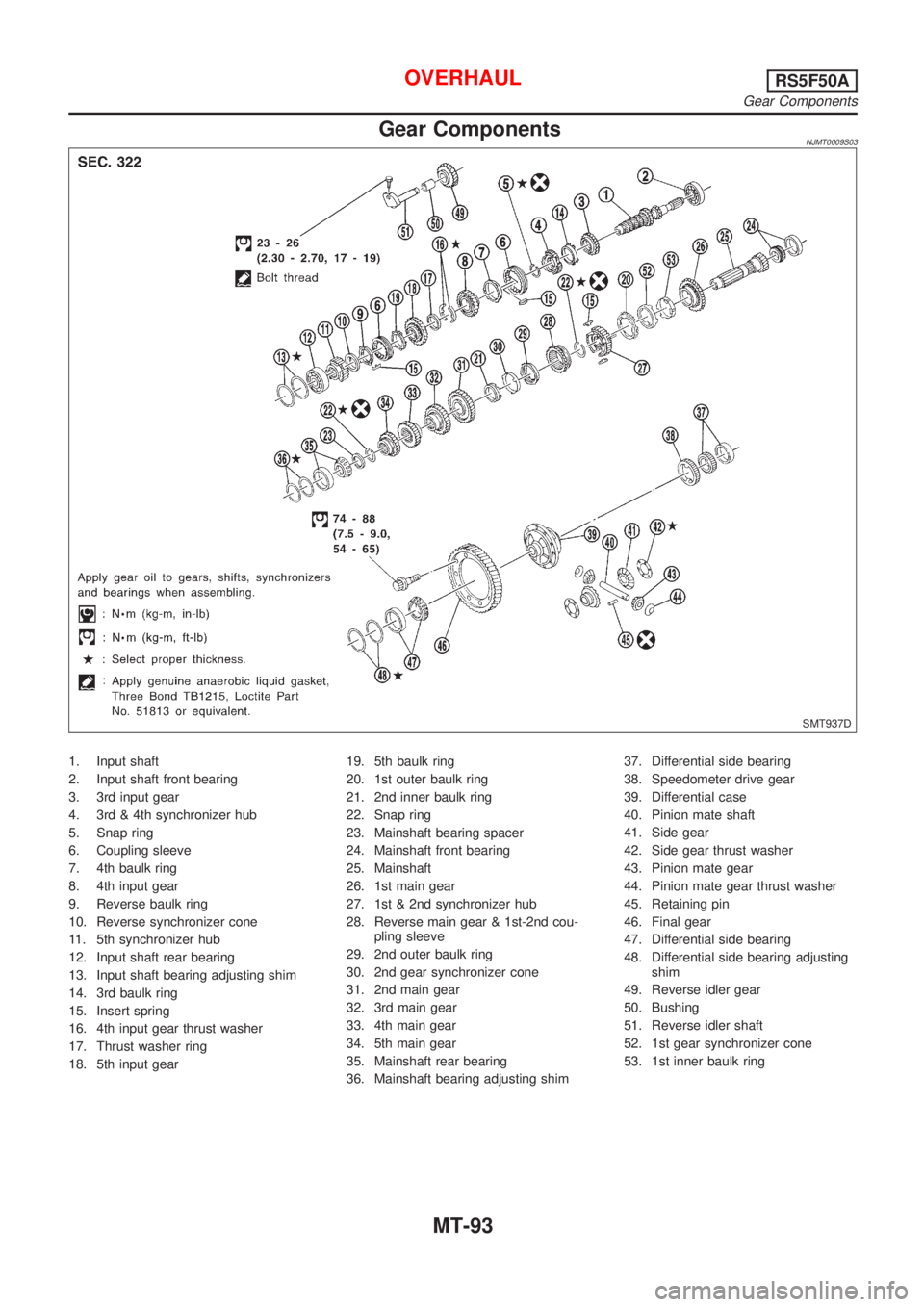

NISSAN ALMERA 2001 Service Manual Gear ComponentsNJMT0009S03 SMT937D 1. Input shaft 2. Input shaft front bearing 3. 3rd input gear 4. 3rd & 4th synchronizer hub 5. Snap ring 6. Coupling sleeve 7. 4th baulk ring 8. 4th input gear 9. Re

Page 2666 of 2898

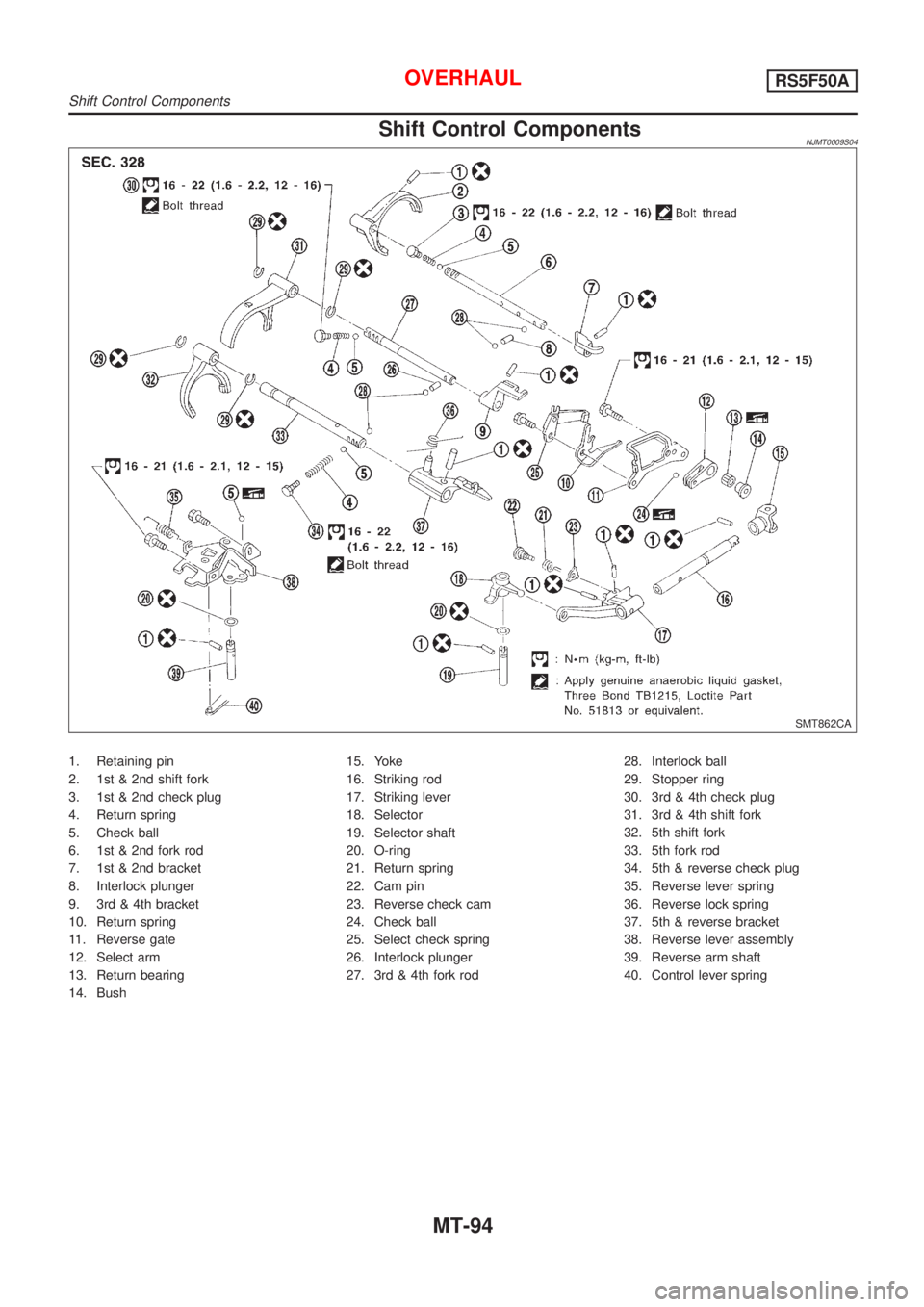

NISSAN ALMERA 2001 Service Manual Shift Control ComponentsNJMT0009S04 SMT862CA 1. Retaining pin 2. 1st & 2nd shift fork 3. 1st & 2nd check plug 4. Return spring 5. Check ball 6. 1st & 2nd fork rod 7. 1st & 2nd bracket 8. Interlock plu

Page 2667 of 2898

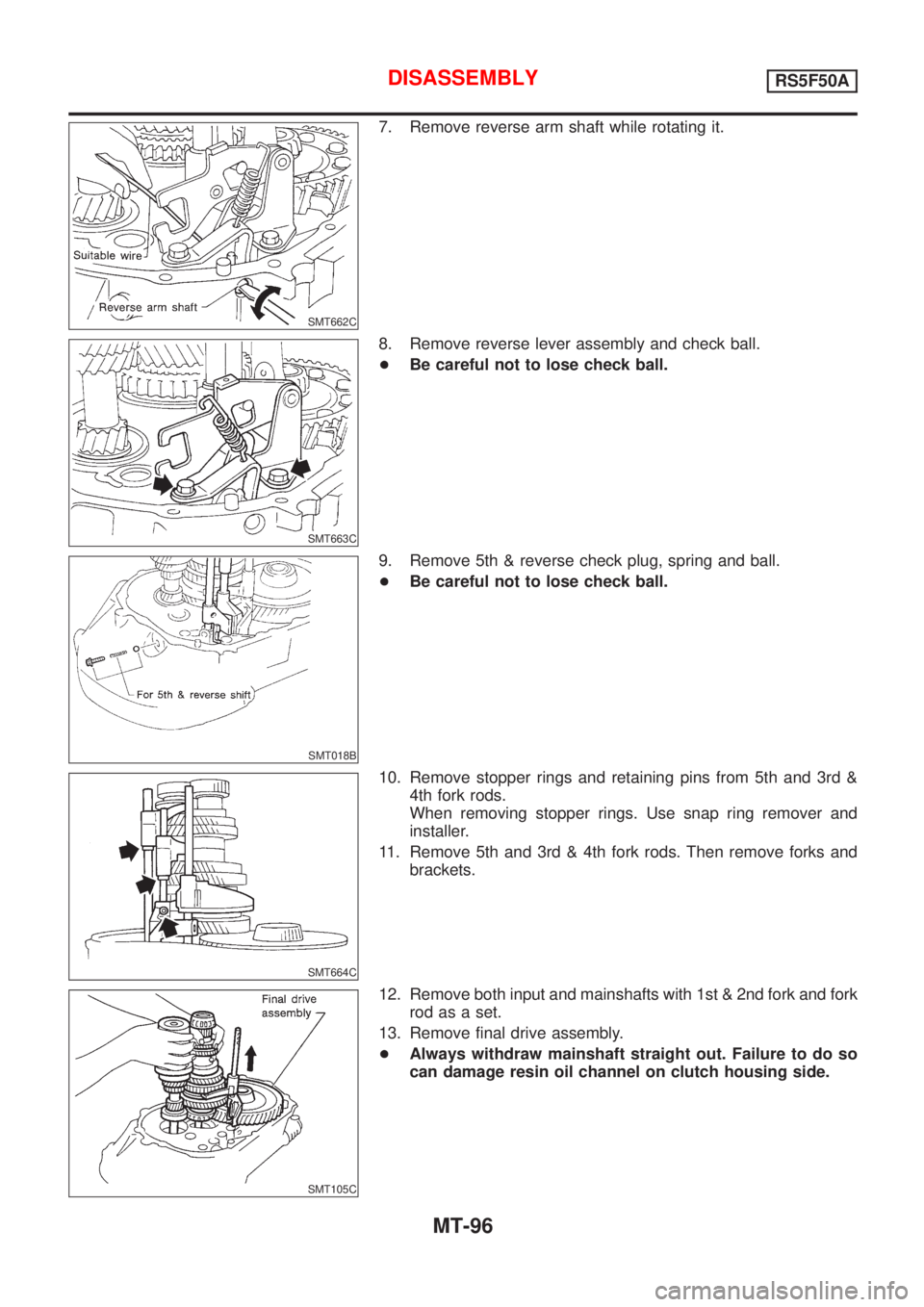

NISSAN ALMERA 2001 Service Manual NJMT0010 SMT626D 1. Before removing transmission case, remove bolts, check plugs, springs and check balls as shown left. +Be careful not to lose check balls. 2. Remove transmission case. SMT017AA 3. R

Page 2668 of 2898

NISSAN ALMERA 2001 Service Manual SMT662C 7. Remove reverse arm shaft while rotating it. SMT663C 8. Remove reverse lever assembly and check ball. +Be careful not to lose check ball. SMT018B 9. Remove 5th & reverse check plug, spring a

Page 2669 of 2898

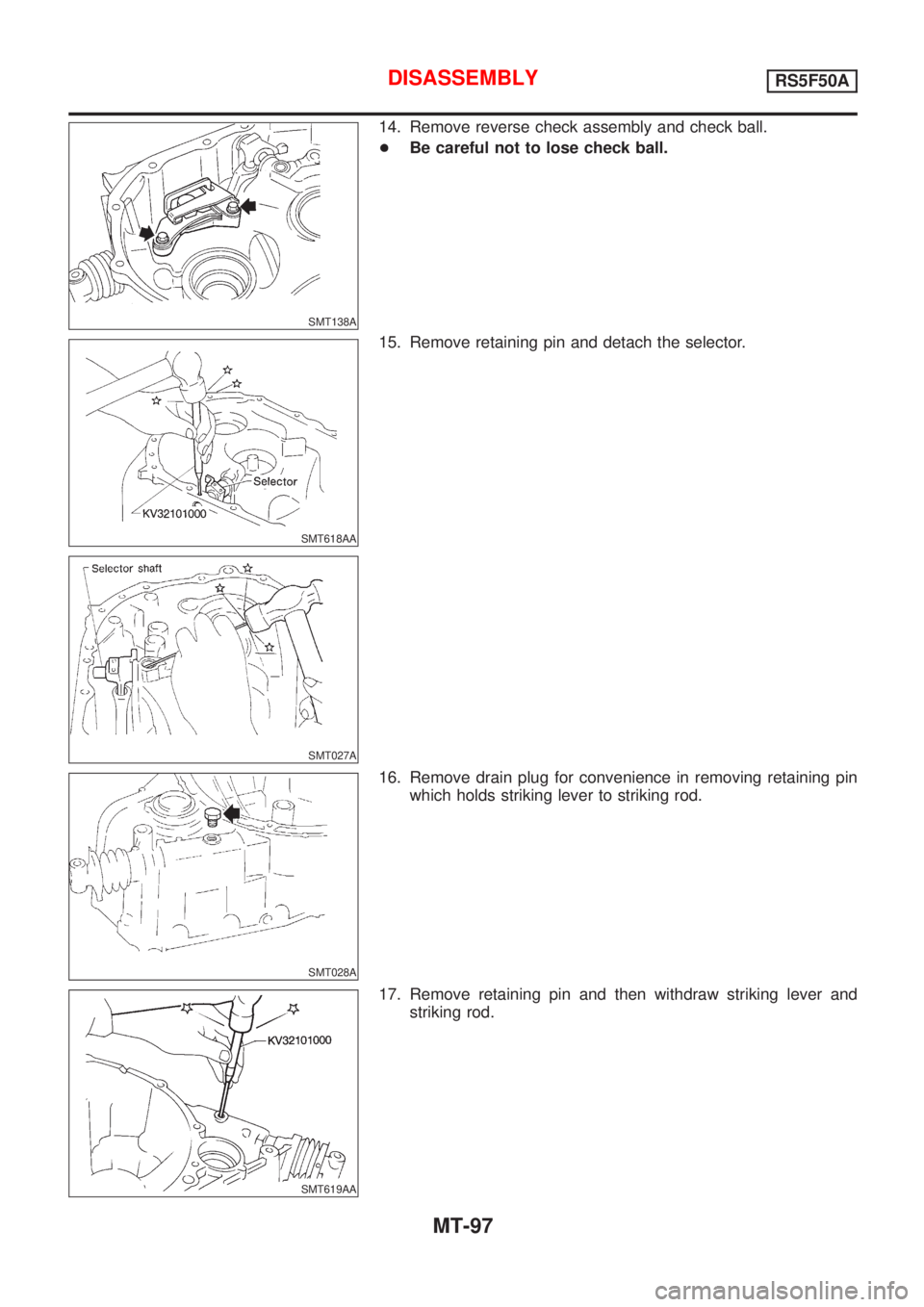

NISSAN ALMERA 2001 Service Manual SMT138A 14. Remove reverse check assembly and check ball. +Be careful not to lose check ball. SMT618AA SMT027A 15. Remove retaining pin and detach the selector. SMT028A 16. Remove drain plug for conve

Page 2670 of 2898

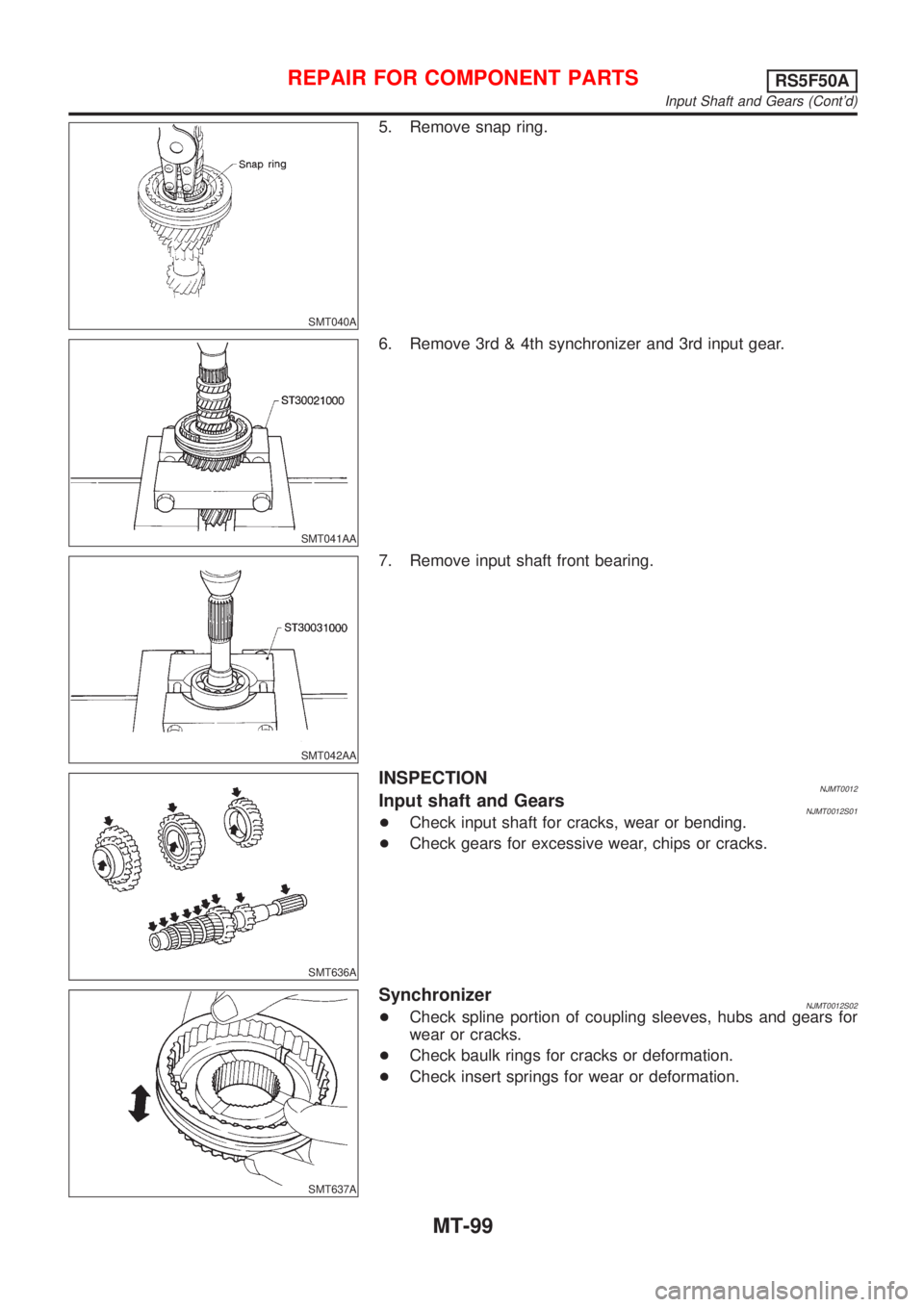

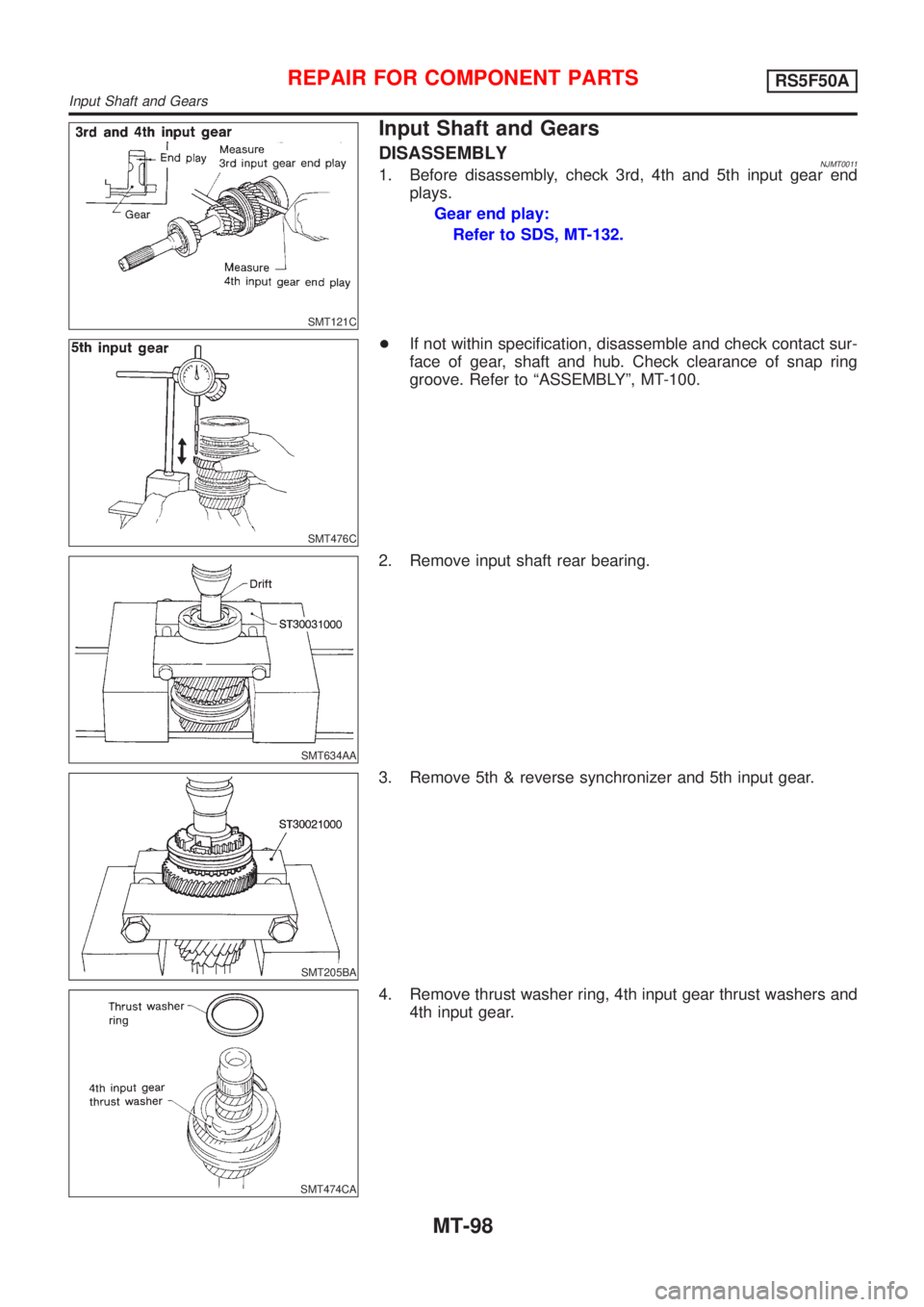

NISSAN ALMERA 2001 Service Manual SMT121C Input Shaft and Gears DISASSEMBLYNJMT00111. Before disassembly, check 3rd, 4th and 5th input gear end plays. Gear end play: Refer to SDS, MT-132. SMT476C +If not within specification, disassem

Page 2671 of 2898

NISSAN ALMERA 2001 Service Manual SMT040A 5. Remove snap ring. SMT041AA 6. Remove 3rd & 4th synchronizer and 3rd input gear. SMT042AA 7. Remove input shaft front bearing. SMT636A INSPECTIONNJMT0012Input shaft and GearsNJMT0012S01+Chec

Page 2672 of 2898

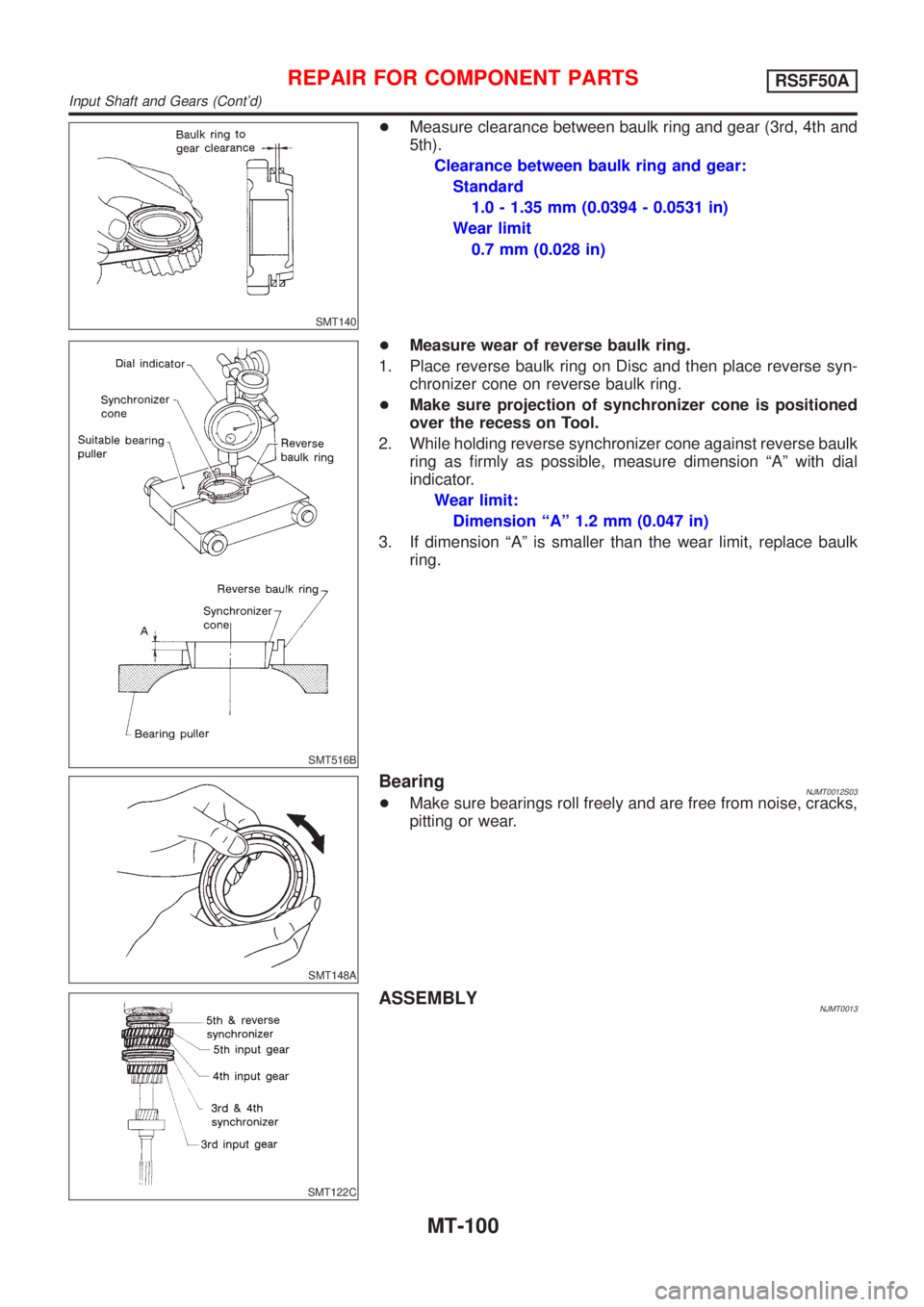

NISSAN ALMERA 2001 Service Manual SMT140 +Measure clearance between baulk ring and gear (3rd, 4th and 5th). Clearance between baulk ring and gear: Standard 1.0 - 1.35 mm (0.0394 - 0.0531 in) Wear limit 0.7 mm (0.028 in) SMT516B +Measu
