Page 1849 of 2898

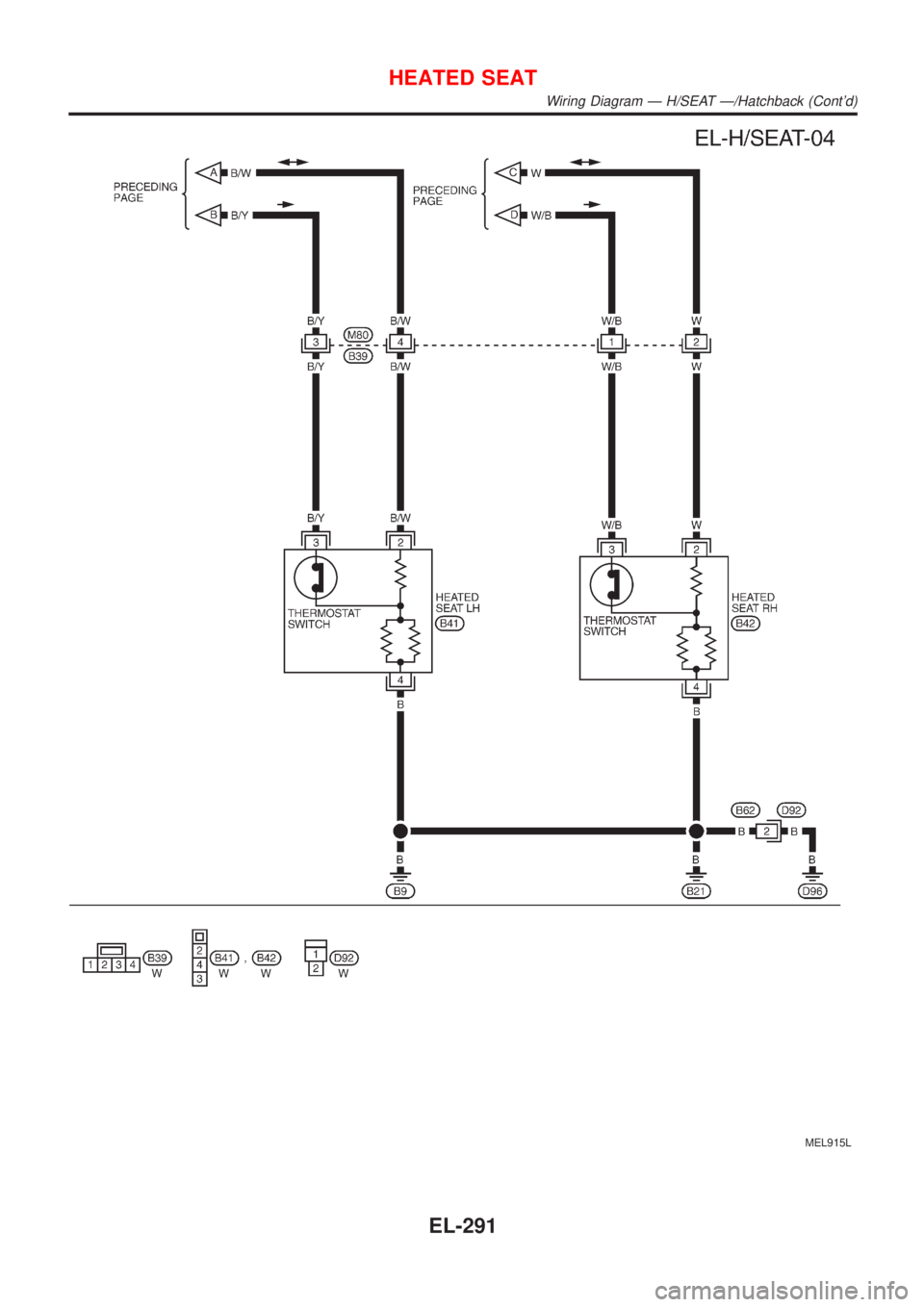

NISSAN ALMERA 2001 Service Manual MEL915L
HEATED SEAT
Wiring Diagram Ð H/SEAT Ð/Hatchback (Contd)
EL-291

Page 1850 of 2898

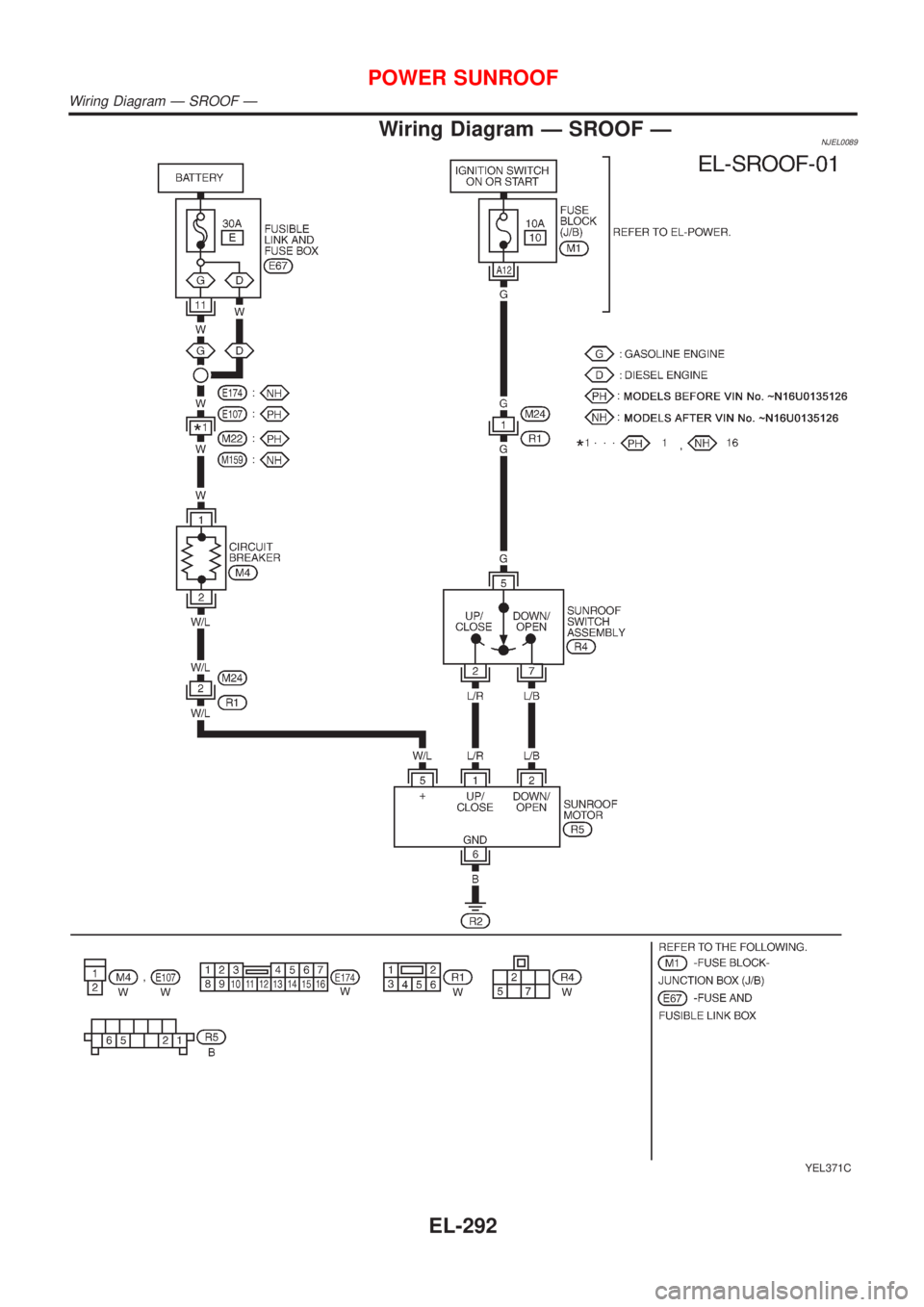

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð SROOF ÐNJEL0089
YEL371C
POWER SUNROOF
Wiring Diagram Ð SROOF Ð
EL-292

Page 1851 of 2898

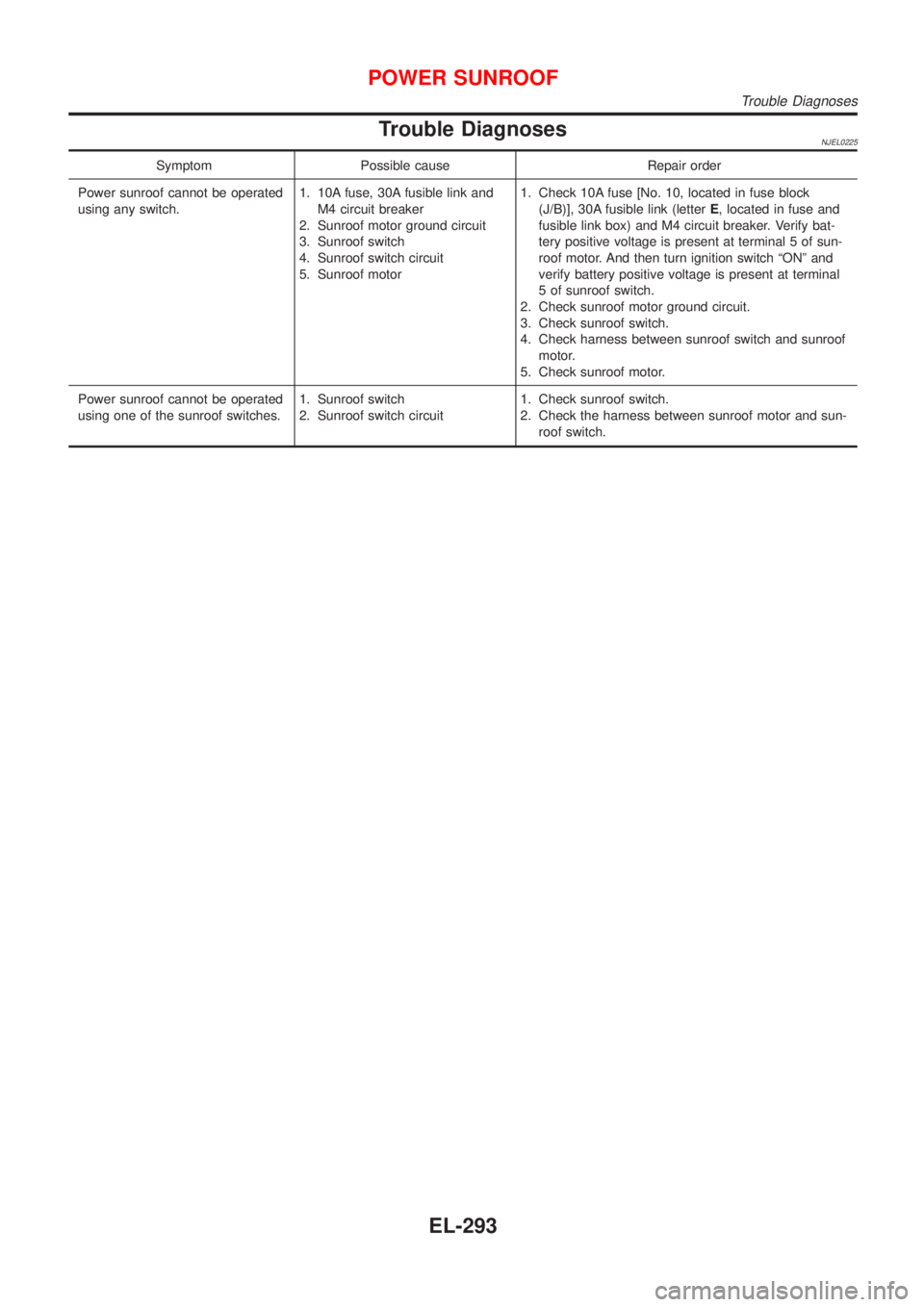

NISSAN ALMERA 2001 Service Manual Trouble DiagnosesNJEL0225
Symptom Possible cause Repair order
Power sunroof cannot be operated
using any switch.1. 10A fuse, 30A fusible link and
M4 circuit breaker
2. Sunroof motor ground circuit
3.

Page 1852 of 2898

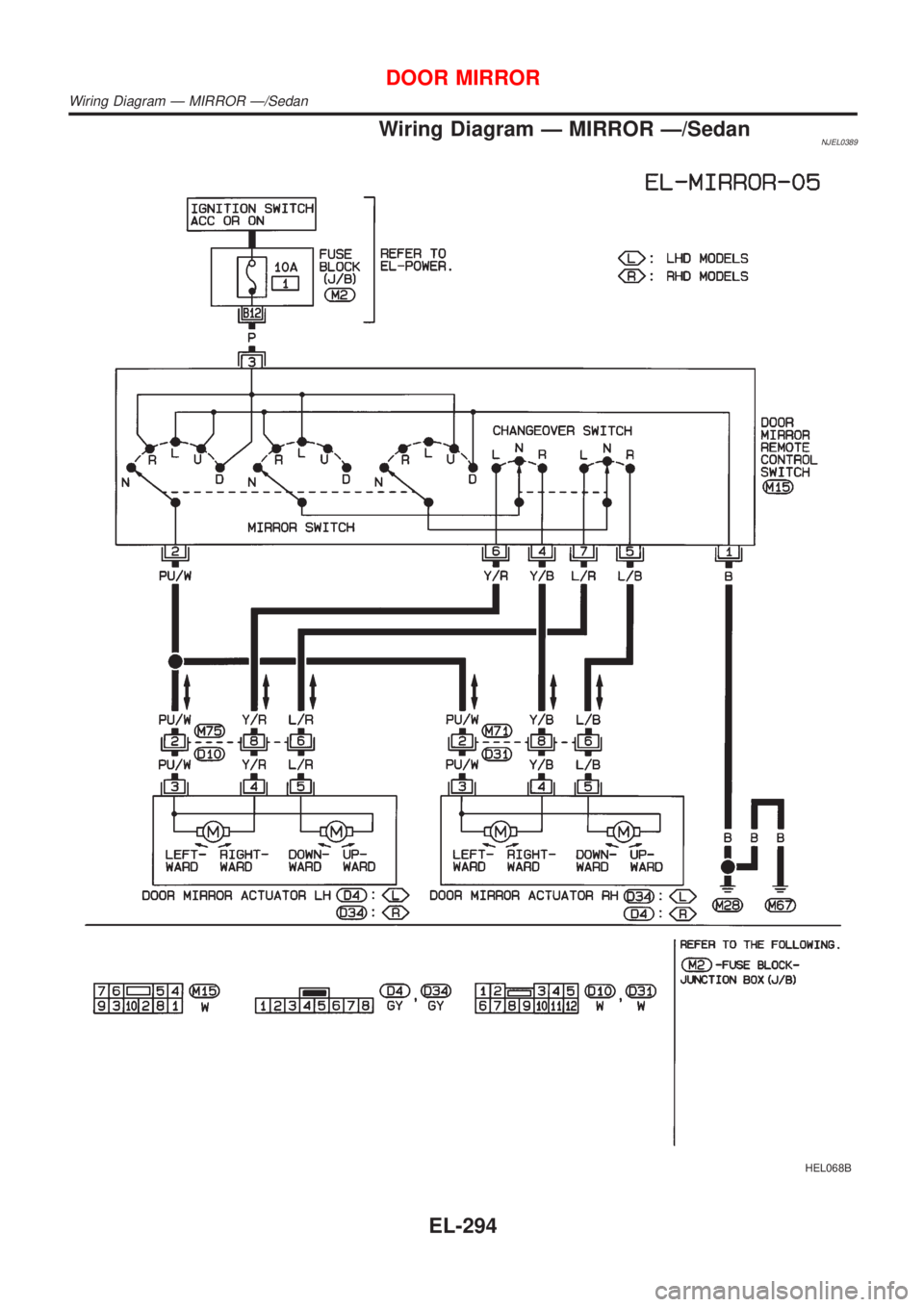

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð MIRROR Ð/SedanNJEL0389
HEL068B
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð/Sedan
EL-294

Page 1853 of 2898

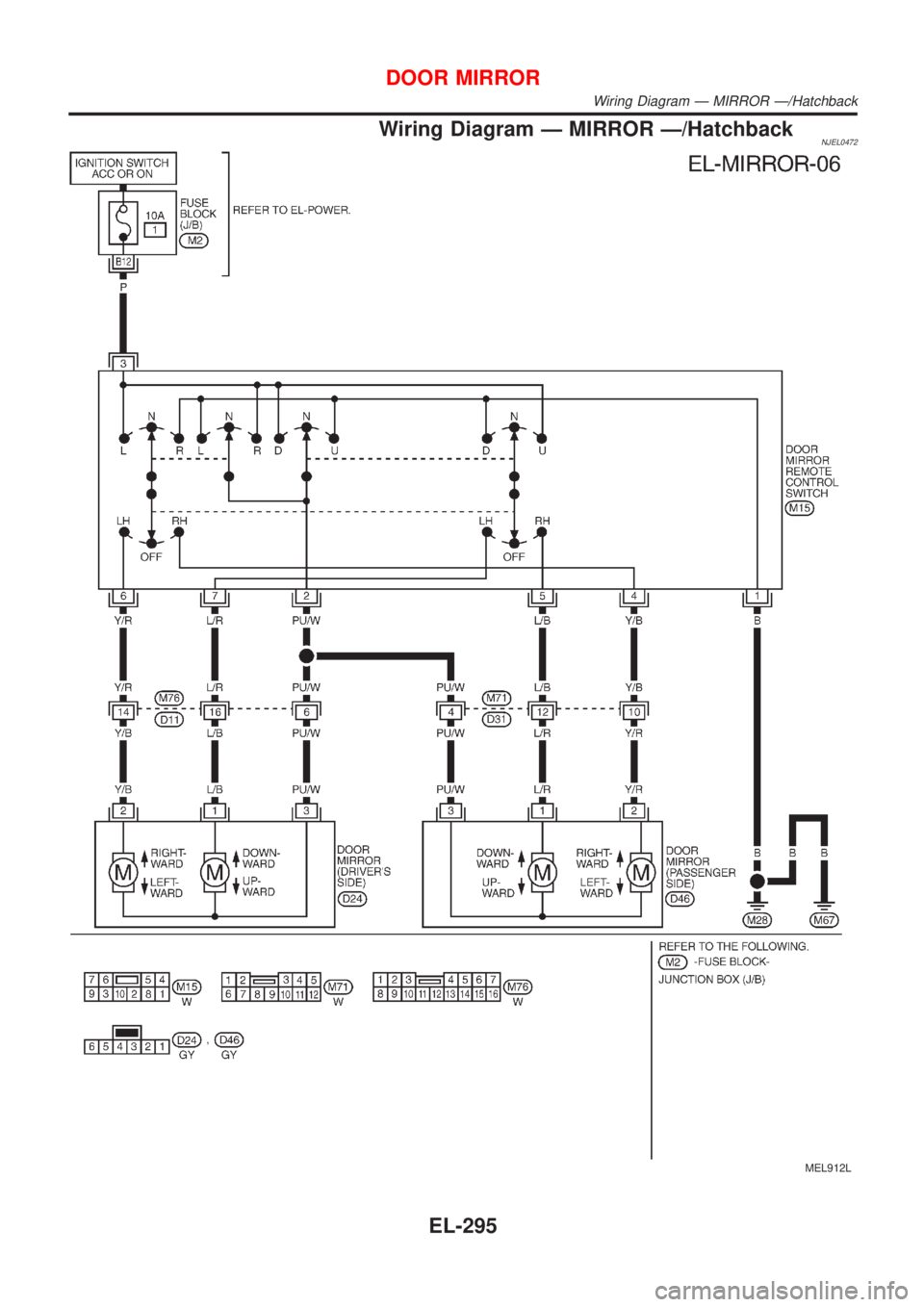

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð MIRROR Ð/HatchbackNJEL0472
MEL912L
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð/Hatchback
EL-295

Page 1854 of 2898

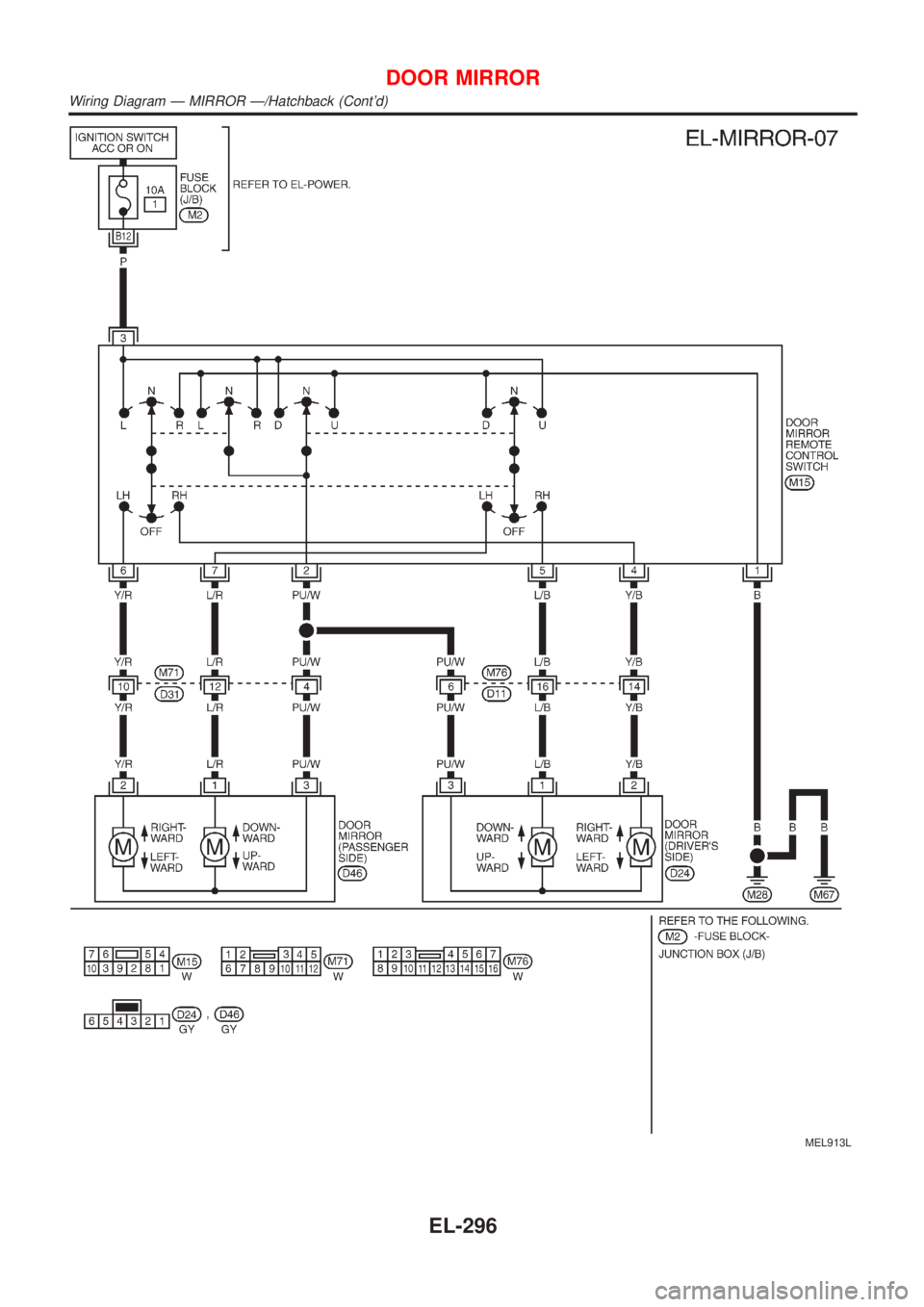

NISSAN ALMERA 2001 Service Manual MEL913L
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð/Hatchback (Contd)
EL-296

Page 1855 of 2898

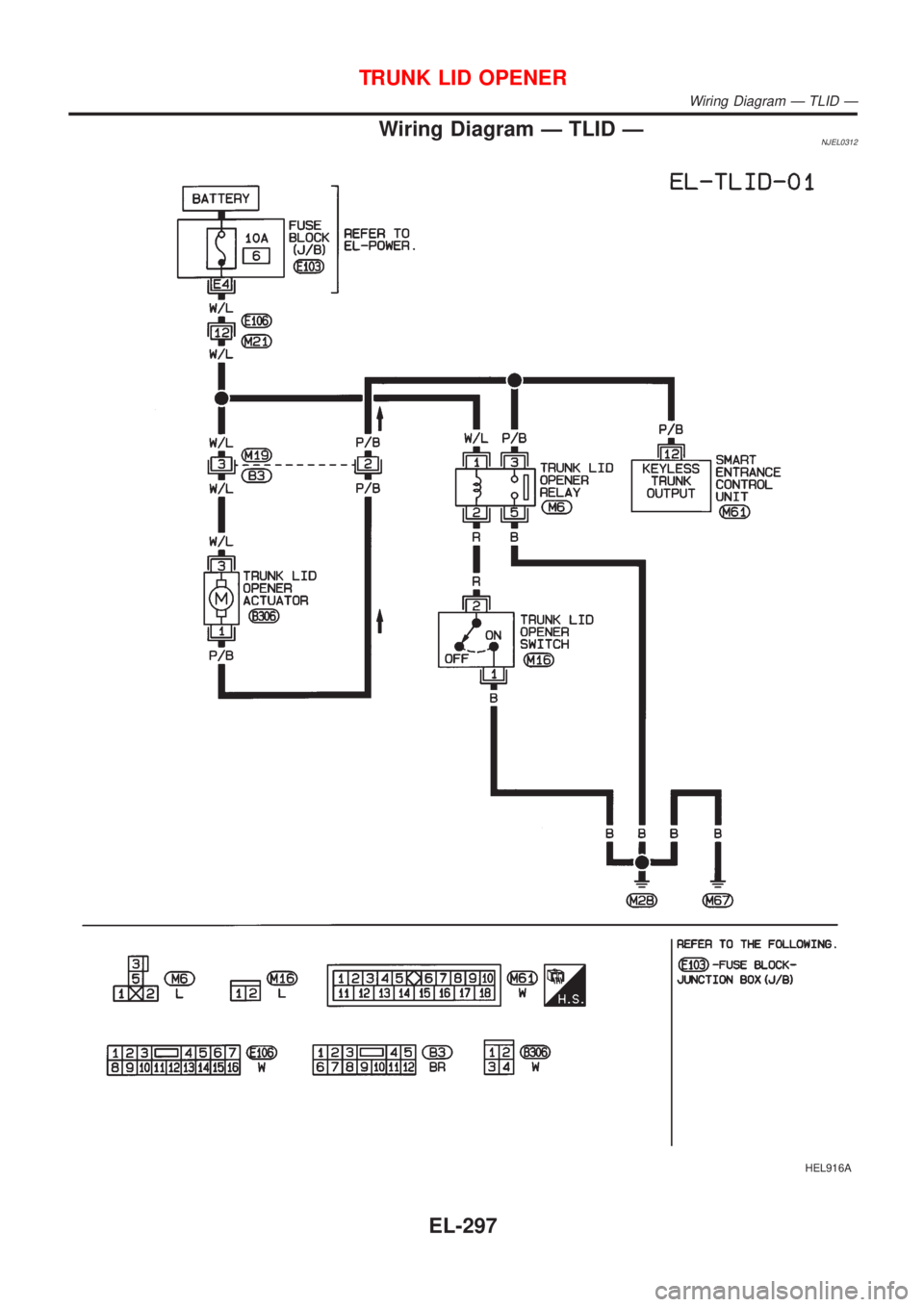

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð TLID ÐNJEL0312
HEL916A
TRUNK LID OPENER
Wiring Diagram Ð TLID Ð
EL-297

Page 1856 of 2898

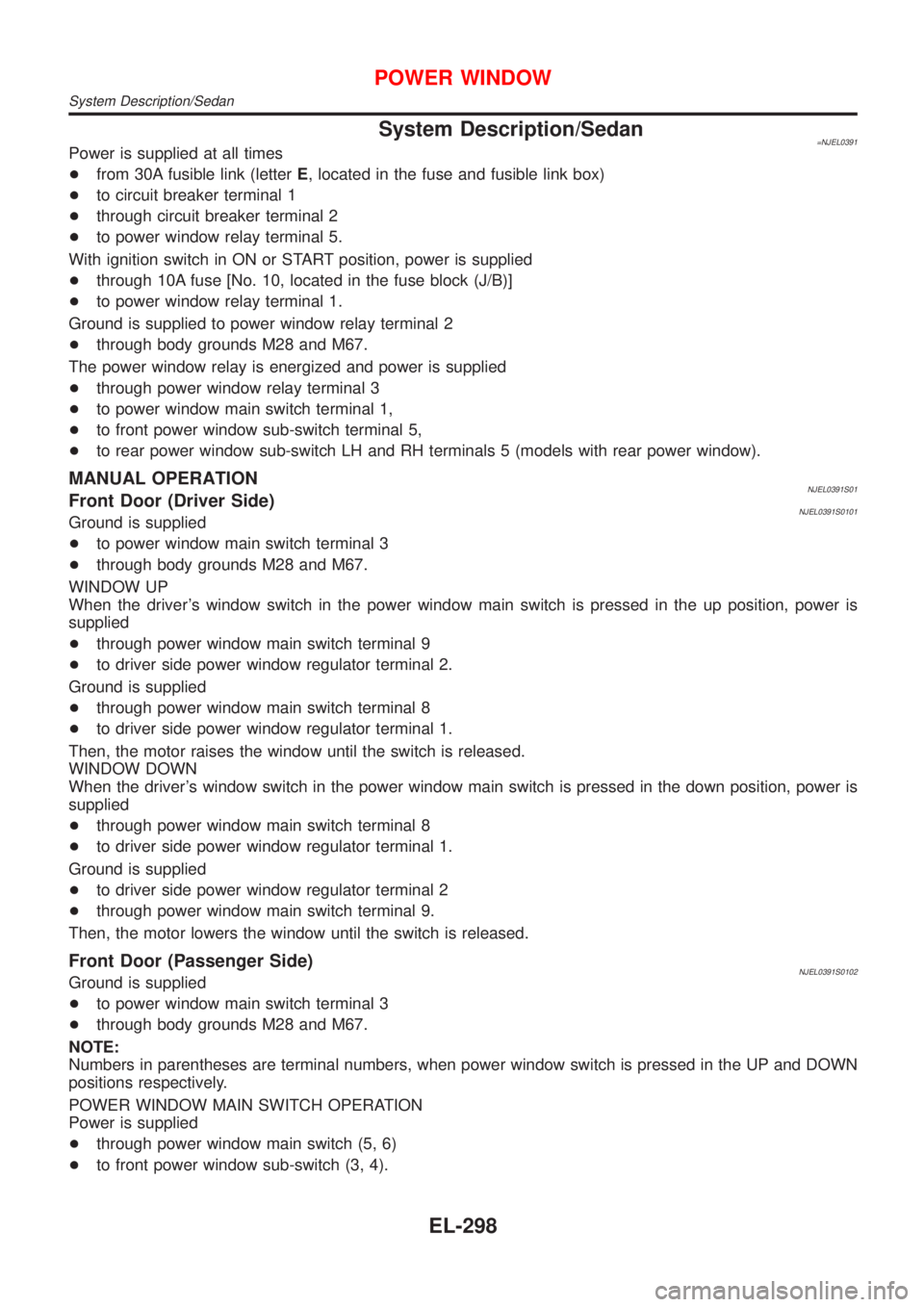

NISSAN ALMERA 2001 Service Manual System Description/Sedan=NJEL0391Power is supplied at all times
+from 30A fusible link (letterE, located in the fuse and fusible link box)
+to circuit breaker terminal 1
+through circuit breaker termi

System Description/Sedan=NJEL0391Power is supplied at all times
+from 30A fusible link (letterE, located in the fuse and fusible link box)
+to circuit breaker terminal 1
+through circuit breaker terminal 2
+to power window relay terminal 5.
With ignition switch in ON or START position, power is supplied
+through 10A fuse [No. 10, located in the fuse block (J/B)]
+to power window relay terminal 1.
Ground is supplied to power window relay terminal 2
+through body grounds M28 and M67.
The power window relay is energized and power is supplied
+through power window relay terminal 3
+to power window main switch terminal 1,
+to front power window sub-switch terminal 5,
+to rear power window sub-switch LH and RH terminals 5 (models with rear power window).
MANUAL OPERATIONNJEL0391S01Front Door (Driver Side)NJEL0391S0101Ground is supplied
+to power window main switch terminal 3
+through body grounds M28 and M67.
WINDOW UP
When the driver's window switch in the power window main switch is pressed in the up position, power is
supplied
+through power window main switch terminal 9
+to driver side power window regulator terminal 2.
Ground is supplied
+through power window main switch terminal 8
+to driver side power window regulator terminal 1.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the driver's window switch in the power window main switch is pressed in the down position, power is
supplied
+through power window main switch terminal 8
+to driver side power window regulator terminal 1.
Ground is supplied
+to driver side power window regulator terminal 2
+through power window main switch terminal 9.
Then, the motor lowers the window until the switch is released.
Front Door (Passenger Side)NJEL0391S0102Ground is supplied
+to power window main switch terminal 3
+through body grounds M28 and M67.
NOTE:
Numbers in parentheses are terminal numbers, when power window switch is pressed in the UP and DOWN
positions respectively.
POWER WINDOW MAIN SWITCH OPERATION
Power is supplied
+through power window main switch (5, 6)
+to front power window sub-switch (3, 4).
POWER WINDOW
System Description/Sedan
EL-298
