Page 377 of 2898
SAT052D

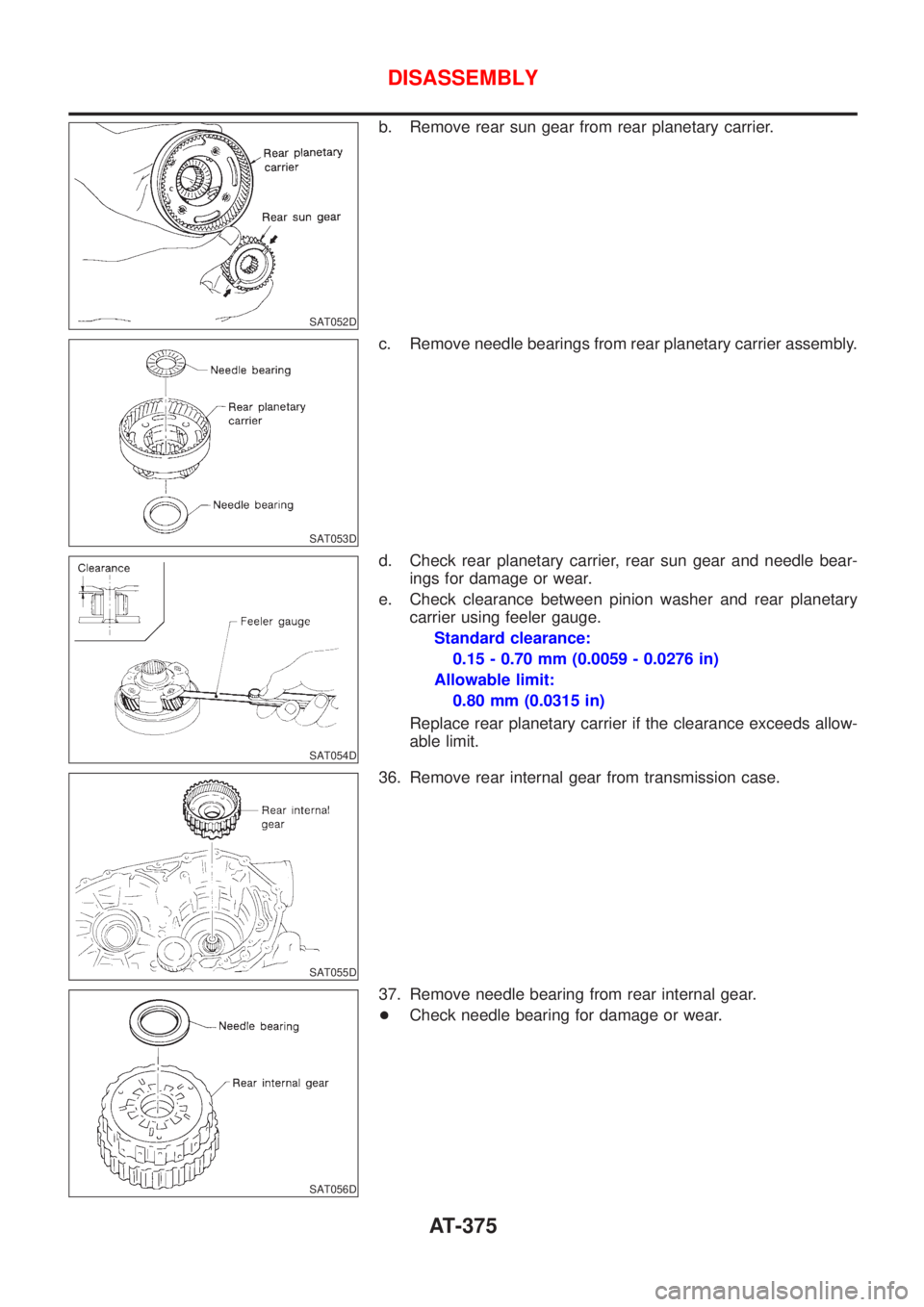

b. Remove rear sun gear from rear planetary carrier.
SAT053D
c. Remove needle bearings from rear planetary carrier assembly.
SAT054D
d. Check rear planetary carrier, rear sun gear and needle bear-
ings for damage or wear.
e. Check clearance between pinion washer and rear planetary
carrier using feeler gauge.
Standard clearance:
0.15 - 0.70 mm (0.0059 - 0.0276 in)
Allowable limit:
0.80 mm (0.0315 in)
Replace rear planetary carrier if the clearance exceeds allow-
able limit.
SAT055D
36. Remove rear internal gear from transmission case.
SAT056D
37. Remove needle bearing from rear internal gear.
+Check needle bearing for damage or wear.
DISASSEMBLY
AT-375
Page 378 of 2898
SAT272E

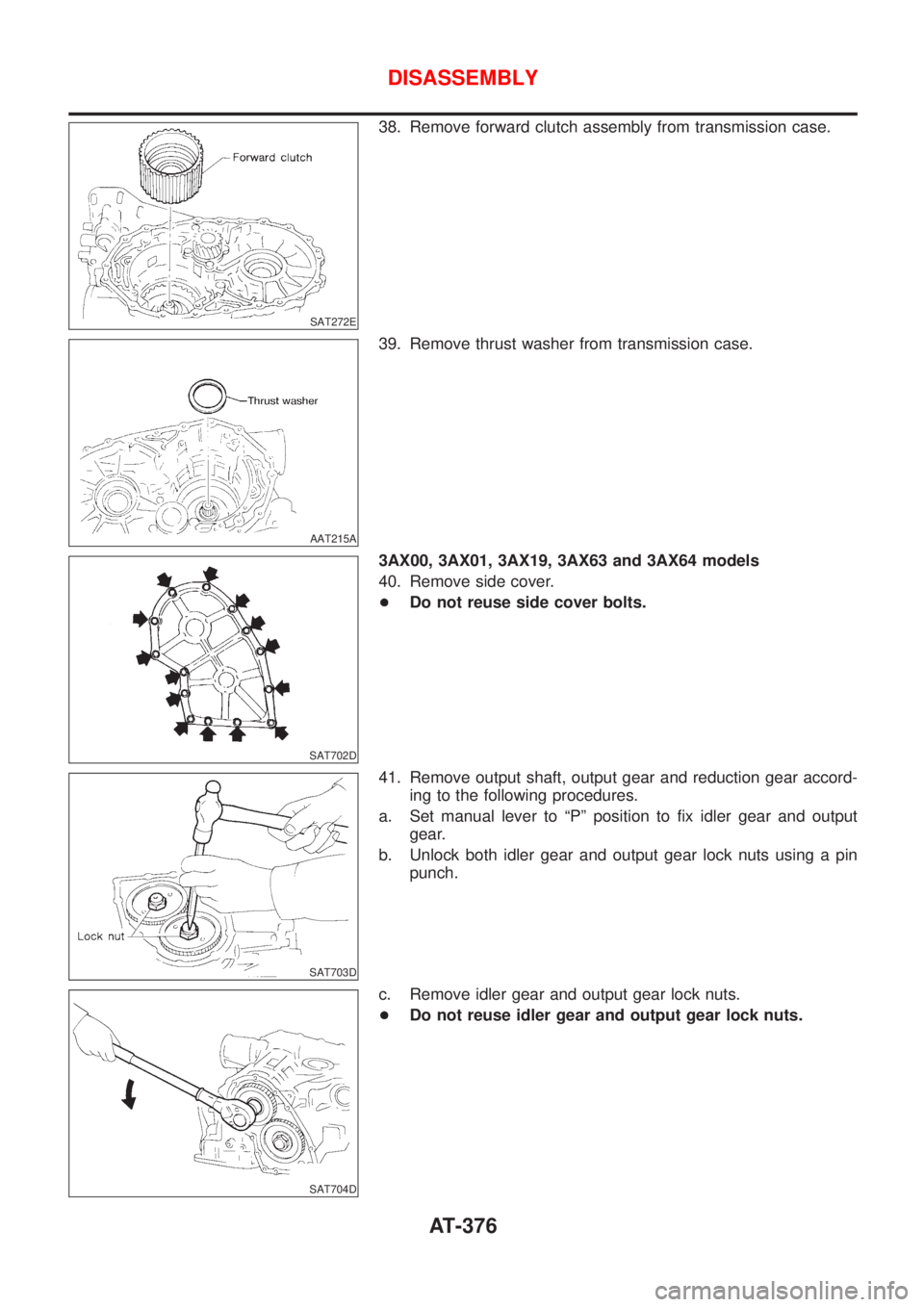

38. Remove forward clutch assembly from transmission case.
AAT215A
39. Remove thrust washer from transmission case.
SAT702D
3AX00, 3AX01, 3AX19, 3AX63 and 3AX64 models
40. Remove side cover.
+Do not reuse side cover bolts.
SAT703D
41. Remove output shaft, output gear and reduction gear accord-
ing to the following procedures.
a. Set manual lever to ªPº position to fix idler gear and output
gear.
b. Unlock both idler gear and output gear lock nuts using a pin
punch.
SAT704D
c. Remove idler gear and output gear lock nuts.
+Do not reuse idler gear and output gear lock nuts.
DISASSEMBLY
AT-376
Page 379 of 2898
SAT705D

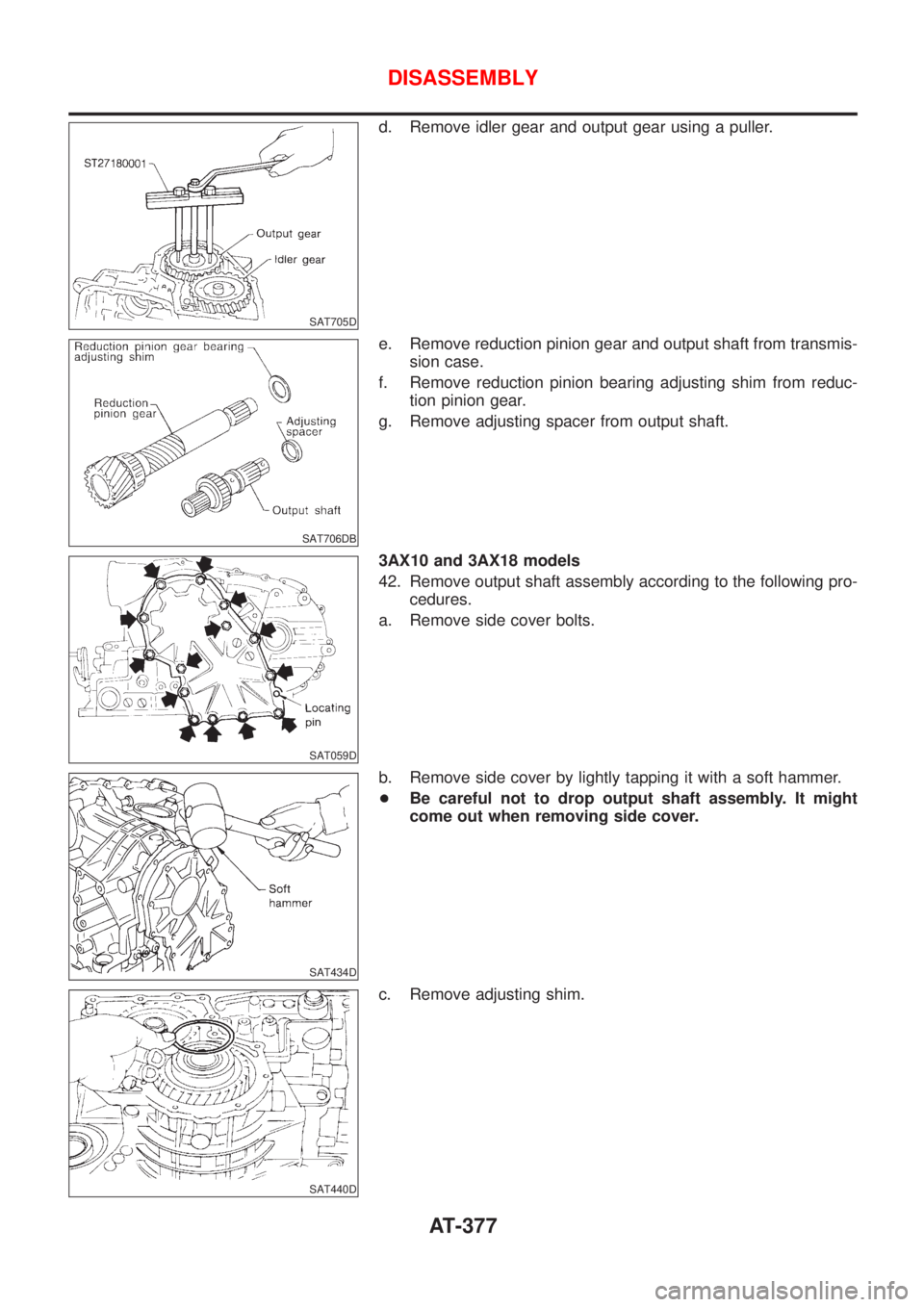

d. Remove idler gear and output gear using a puller.
SAT706DB
e. Remove reduction pinion gear and output shaft from transmis-
sion case.
f. Remove reduction pinion bearing adjusting shim from reduc-
tion pinion gear.
g. Remove adjusting spacer from output shaft.
SAT059D
3AX10 and 3AX18 models
42. Remove output shaft assembly according to the following pro-
cedures.
a. Remove side cover bolts.
SAT434D
b. Remove side cover by lightly tapping it with a soft hammer.
+Be careful not to drop output shaft assembly. It might
come out when removing side cover.
SAT440D
c. Remove adjusting shim.
DISASSEMBLY
AT-377
Page 380 of 2898
SAT439D

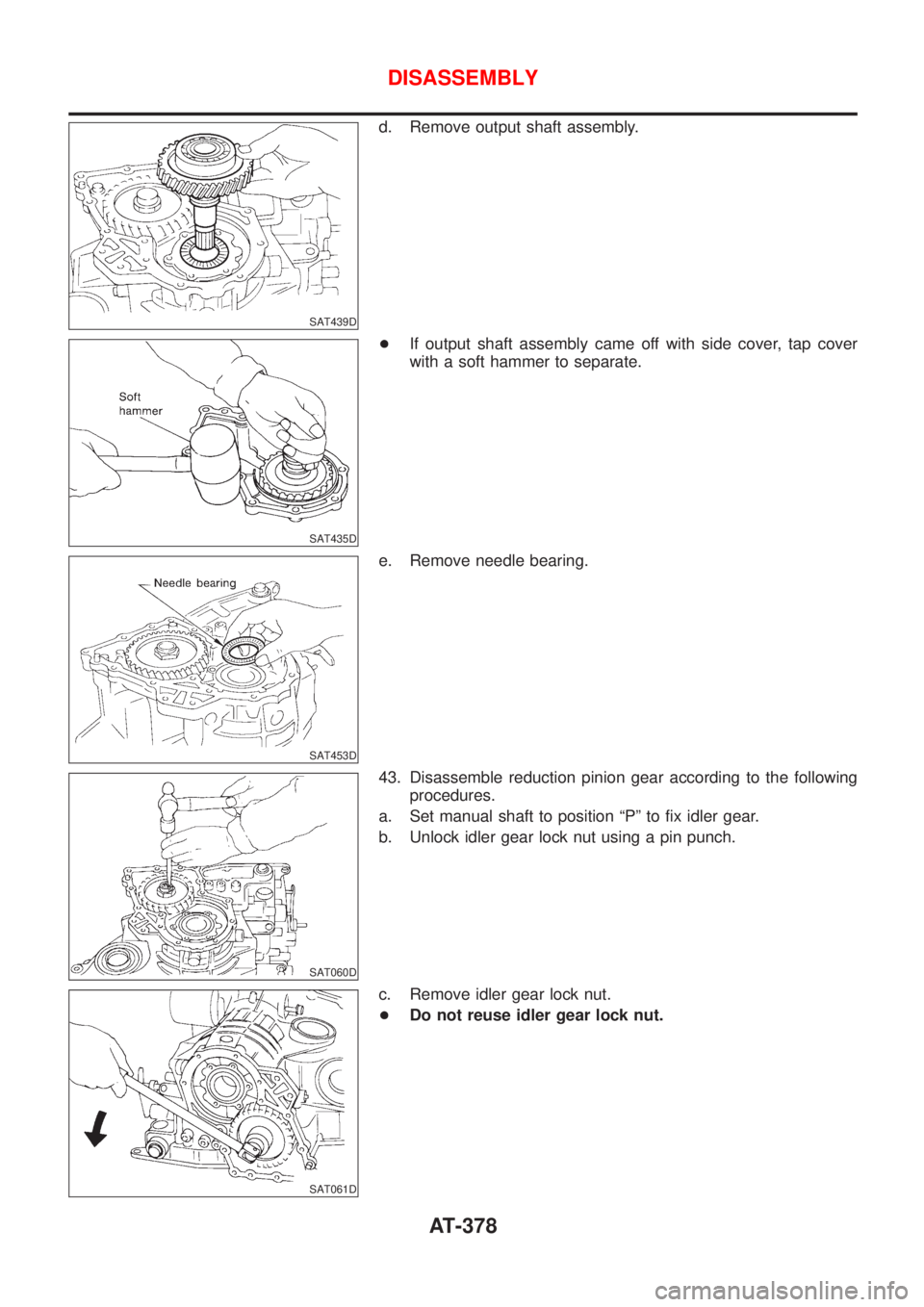

d. Remove output shaft assembly.
SAT435D
+If output shaft assembly came off with side cover, tap cover
with a soft hammer to separate.
SAT453D
e. Remove needle bearing.
SAT060D
43. Disassemble reduction pinion gear according to the following
procedures.
a. Set manual shaft to position ªPº to fix idler gear.
b. Unlock idler gear lock nut using a pin punch.
SAT061D
c. Remove idler gear lock nut.
+Do not reuse idler gear lock nut.
DISASSEMBLY
AT-378
Page 381 of 2898
SAT841DA

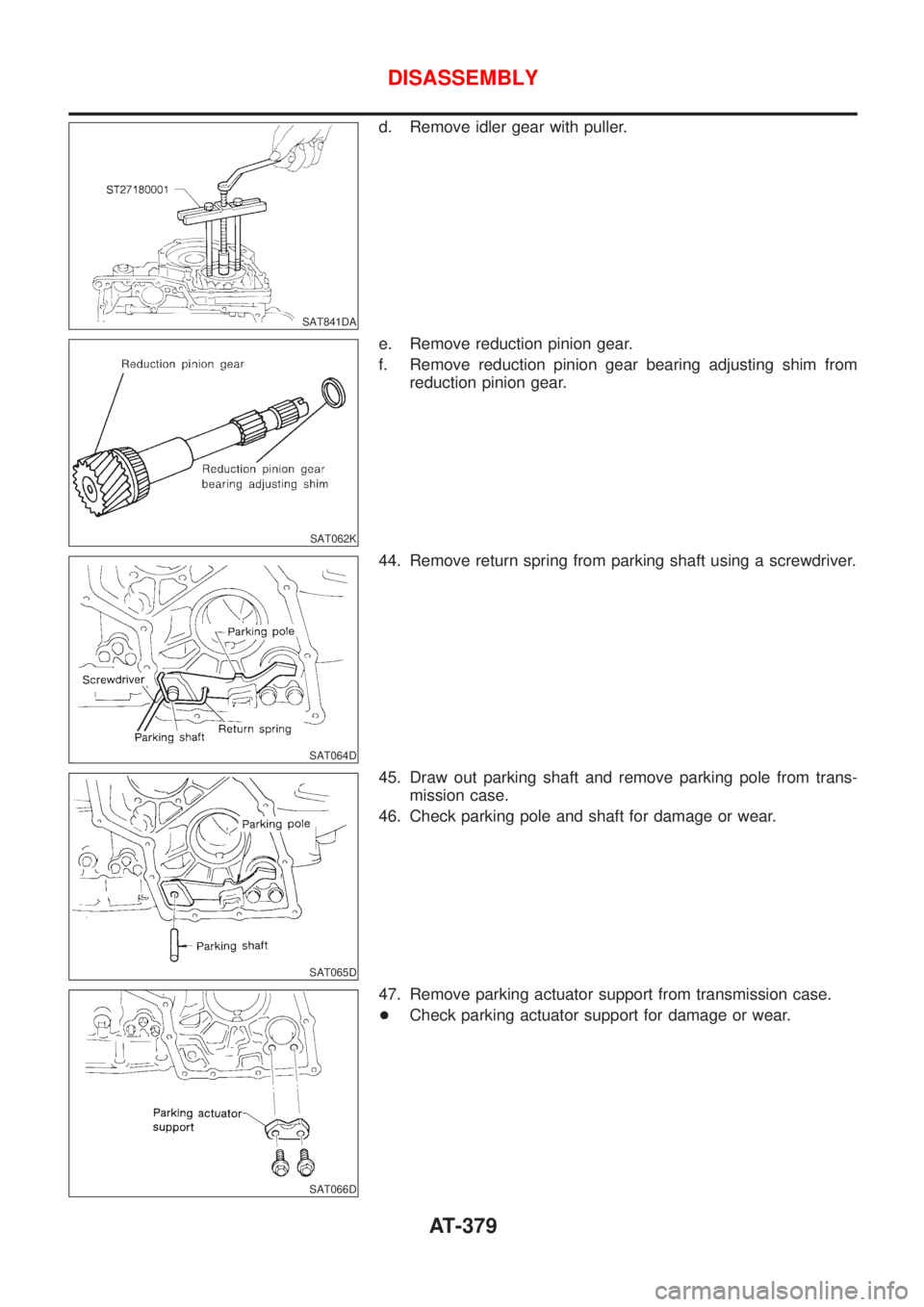

d. Remove idler gear with puller.
SAT062K
e. Remove reduction pinion gear.
f. Remove reduction pinion gear bearing adjusting shim from
reduction pinion gear.
SAT064D
44. Remove return spring from parking shaft using a screwdriver.
SAT065D
45. Draw out parking shaft and remove parking pole from trans-
mission case.
46. Check parking pole and shaft for damage or wear.
SAT066D
47. Remove parking actuator support from transmission case.
+Check parking actuator support for damage or wear.
DISASSEMBLY
AT-379
Page 382 of 2898
SAT311G
48. Remove revolution sensor from transmission case.
DISASSEMBLY
AT-380
Page 383 of 2898

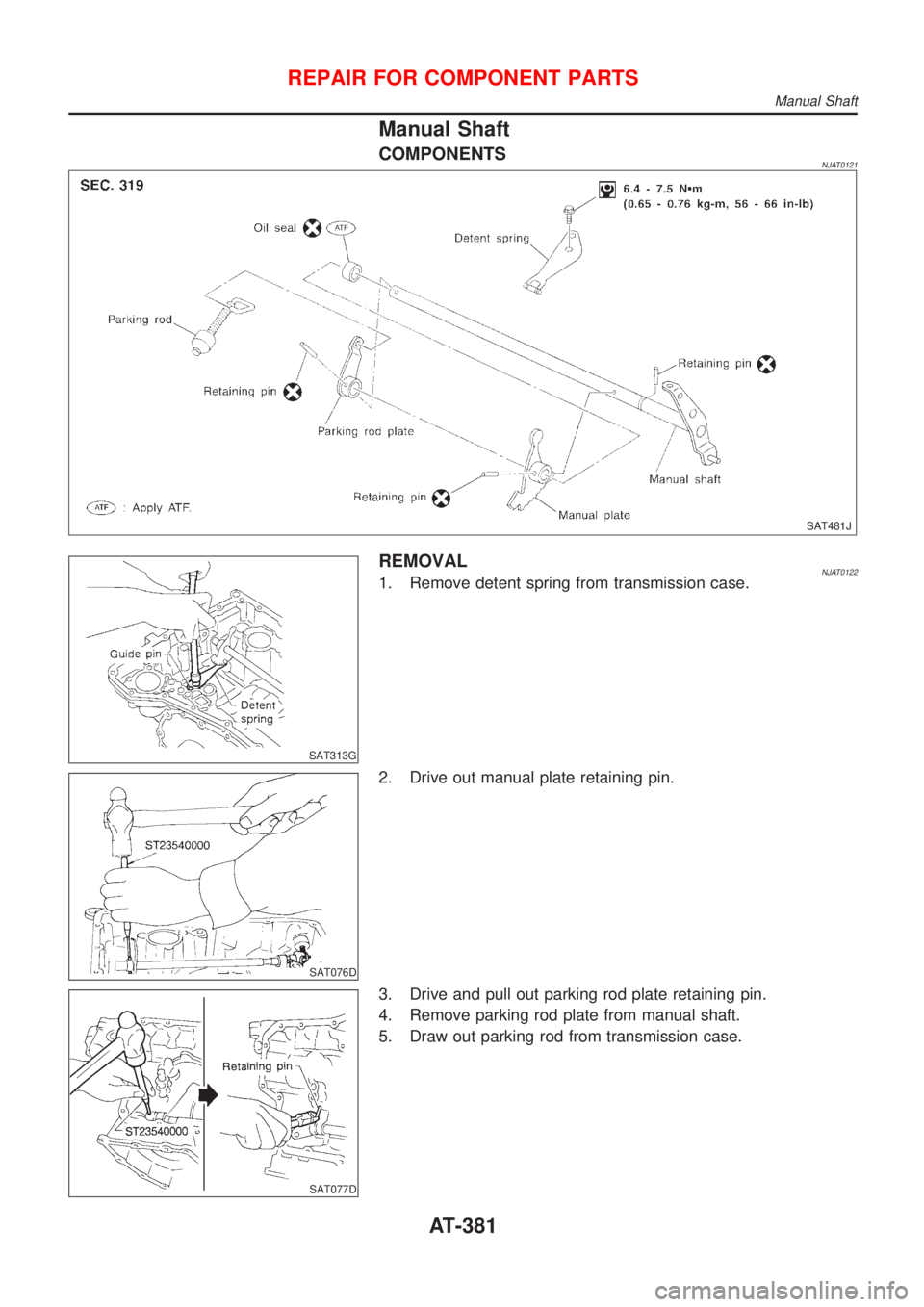

Manual Shaft
COMPONENTSNJAT0121
SAT481J
SAT313G
REMOVALNJAT01221. Remove detent spring from transmission case.
SAT076D
2. Drive out manual plate retaining pin.
SAT077D
3. Drive and pull out parking rod plate retaining pin.
4. Remove parking rod plate from manual shaft.
5. Draw out parking rod from transmission case.
REPAIR FOR COMPONENT PARTS
Manual Shaft
AT-381
Page 384 of 2898
SAT049F

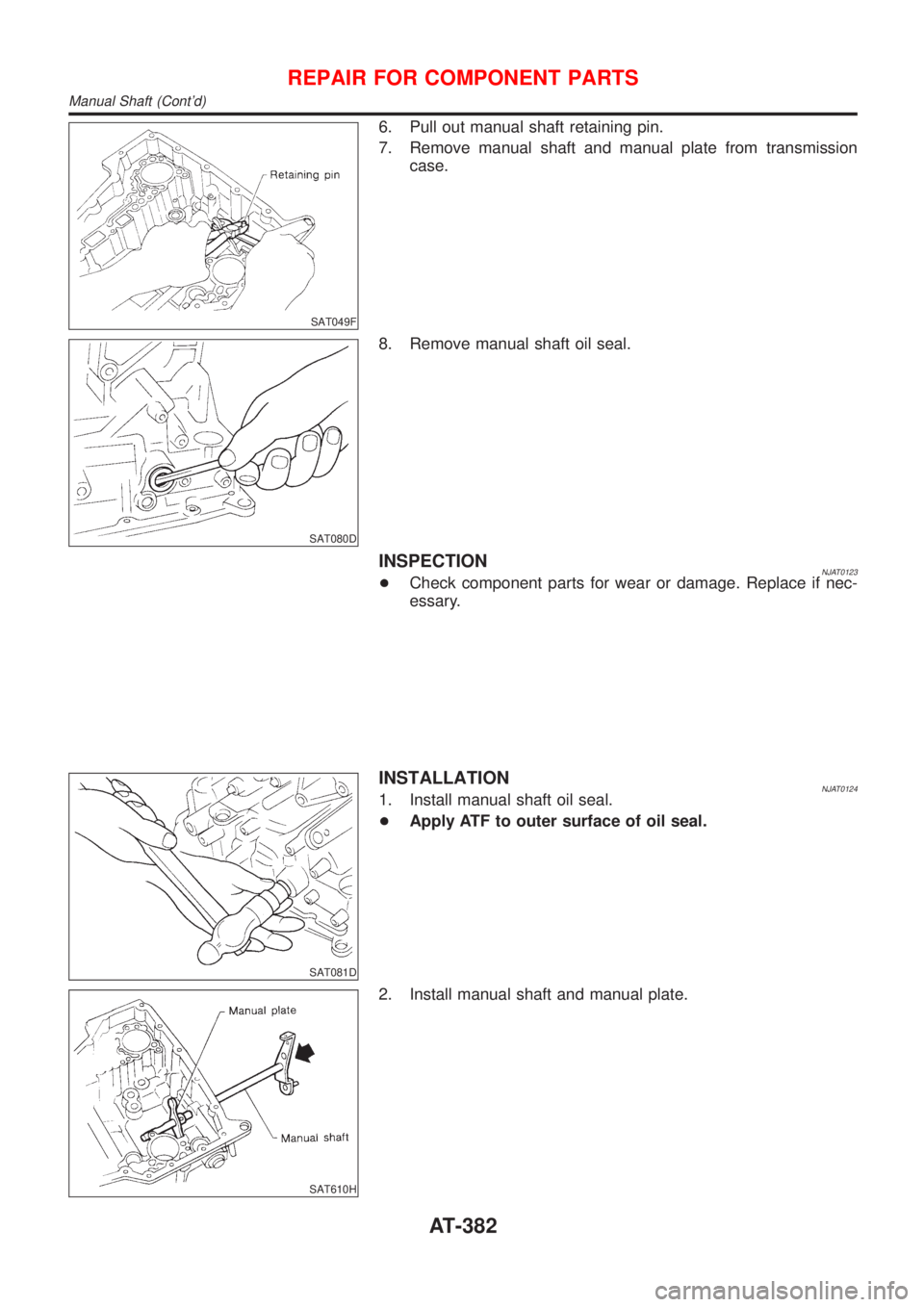

6. Pull out manual shaft retaining pin.
7. Remove manual shaft and manual plate from transmission
case.
SAT080D
8. Remove manual shaft oil seal.
INSPECTIONNJAT0123+Check component parts for wear or damage. Replace if nec-
essary.
SAT081D
INSTALLATIONNJAT01241. Install manual shaft oil seal.
+Apply ATF to outer surface of oil seal.
SAT610H
2. Install manual shaft and manual plate.
REPAIR FOR COMPONENT PARTS
Manual Shaft (Cont'd)
AT-382
