Page 2313 of 2898

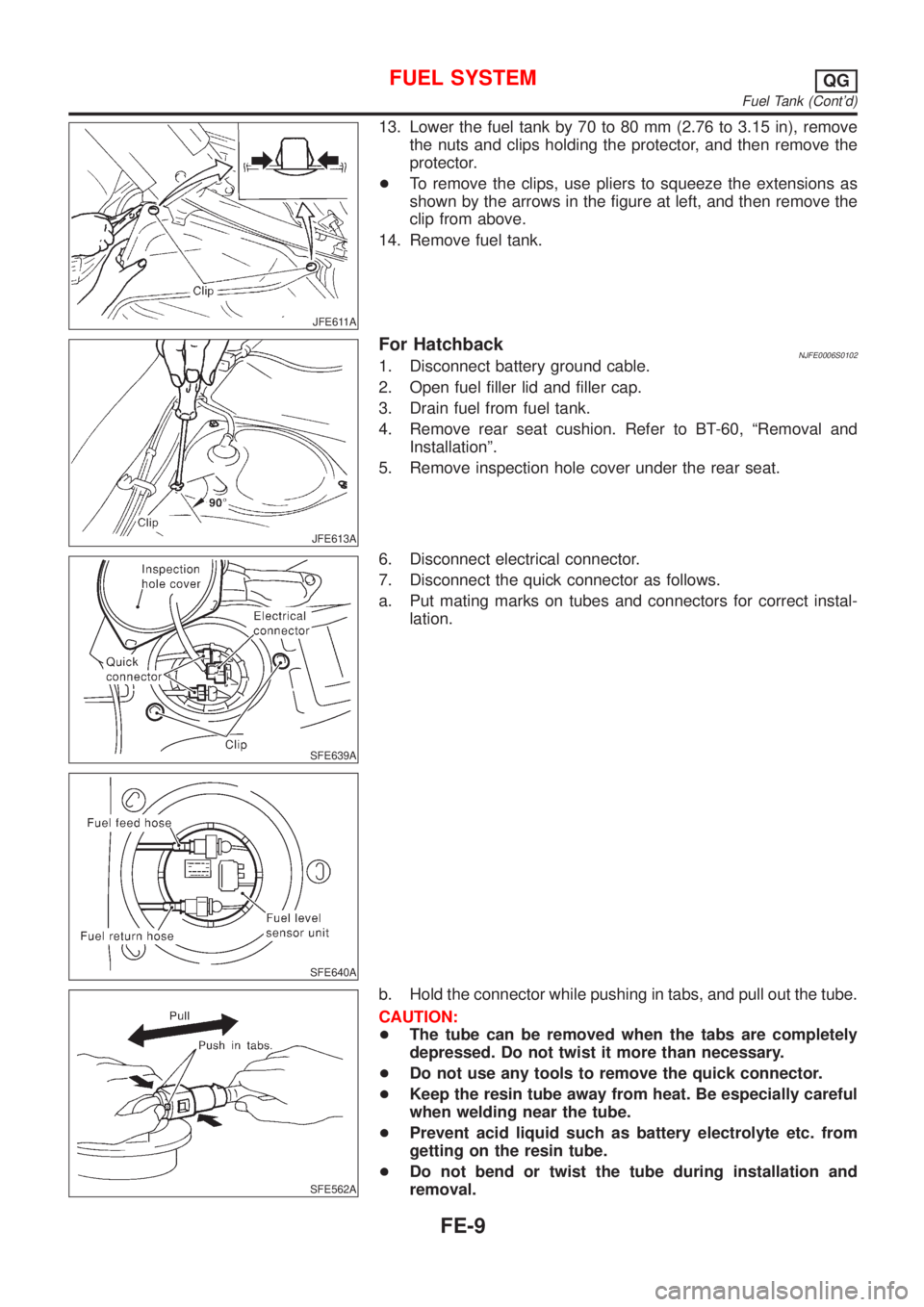

NISSAN ALMERA 2001 Service Manual JFE611A 13. Lower the fuel tank by 70 to 80 mm (2.76 to 3.15 in), remove the nuts and clips holding the protector, and then remove the protector. +To remove the clips, use pliers to squeeze the extens

Page 2314 of 2898

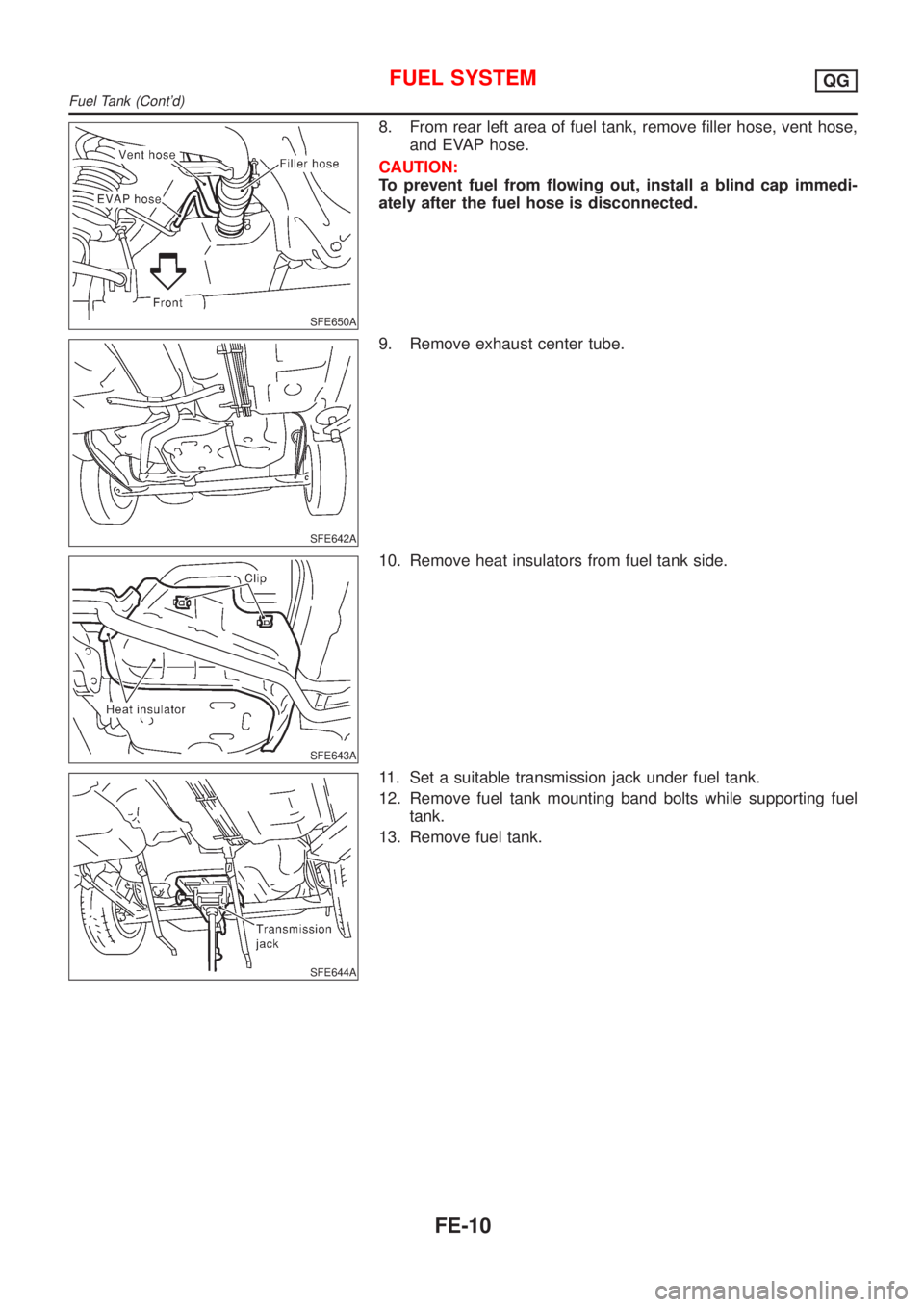

NISSAN ALMERA 2001 Service Manual SFE650A 8. From rear left area of fuel tank, remove filler hose, vent hose, and EVAP hose. CAUTION: To prevent fuel from flowing out, install a blind cap immedi- ately after the fuel hose is disconnec

Page 2315 of 2898

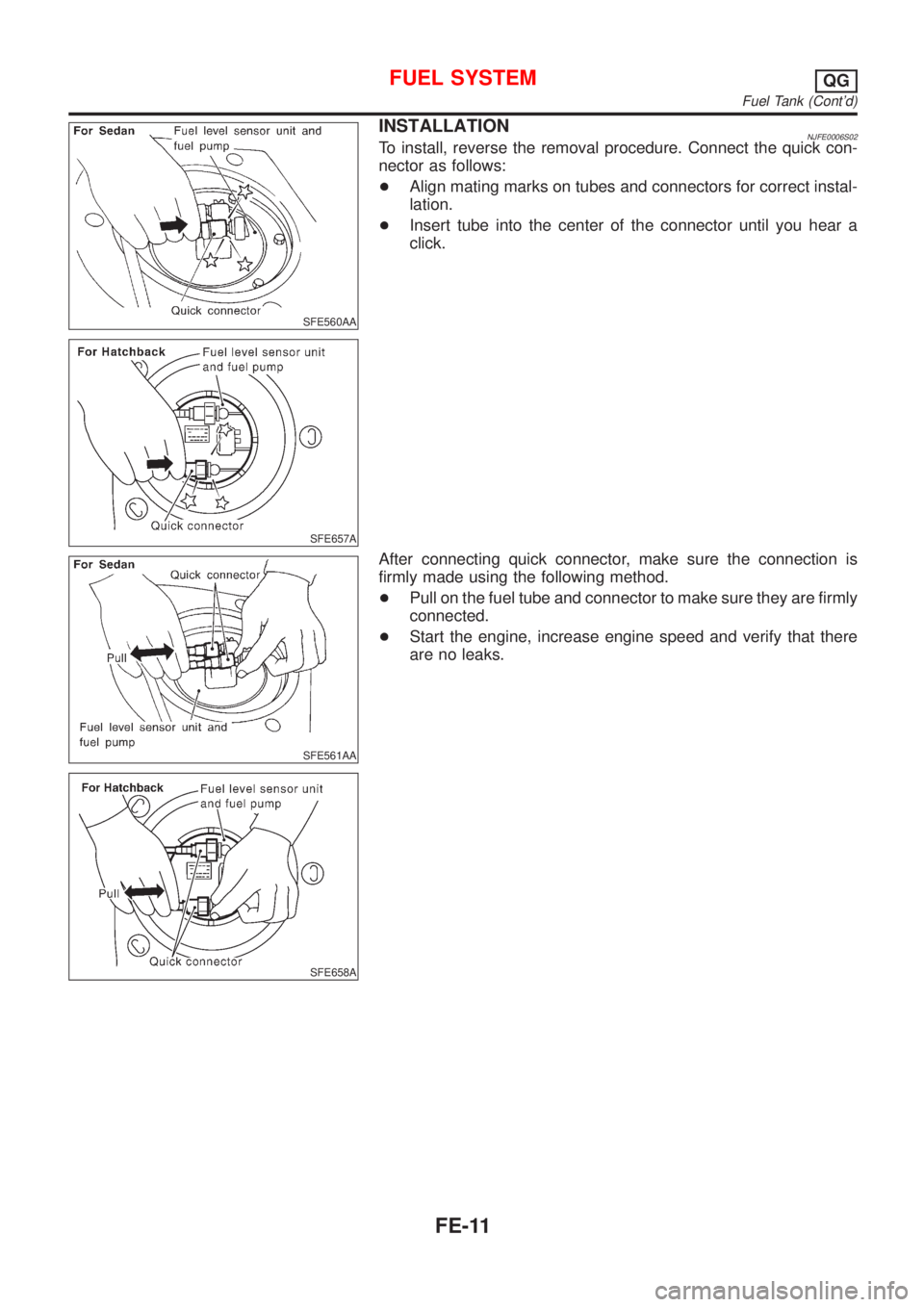

NISSAN ALMERA 2001 Service Manual SFE560AA SFE657A INSTALLATIONNJFE0006S02To install, reverse the removal procedure. Connect the quick con- nector as follows: +Align mating marks on tubes and connectors for correct instal- lation. +In

Page 2316 of 2898

NISSAN ALMERA 2001 Service Manual Fuel Pump, Fuel Level Sensor Unit and Fuel Filter NJFE0007 SFE671A JFE613A REMOVALNJFE0007S01For SedanNJFE0007S01011. Release fuel pressure from fuel line. Refer to EC-40, ªFuel Pressure Releaseº. 2

Page 2317 of 2898

NISSAN ALMERA 2001 Service Manual SFE564A 9. Pull out the fuel level sensor unit and fuel pump. +Do not damage the arm of the fuel level sensor unit and fuel tank temperature sensor. JFE614A 10. Remove fuel pump as shown in the figure

Page 2318 of 2898

NISSAN ALMERA 2001 Service Manual SFE639A 5. Disconnect electrical connector. 6. Disconnect the quick connectors. +For disconnect of quick connectors, refer to step 7. of ªFuel Tank Removalº. SFE376A 7. Remove lock ring using a lock

Page 2319 of 2898

NISSAN ALMERA 2001 Service Manual SMA211A Checking Exhaust SystemNJFE0010Check exhaust pipes, muffler and mounting for improper attachment, leaks, cracks, damage, chafing or deterioration. Removal and InstallationNJFE0005CAUTION: +Alw

Page 2320 of 2898

NISSAN ALMERA 2001 Service Manual SFE632AA EXHAUST SYSTEMQG Removal and Installation (Contd) FE-16
