Page 2809 of 2898

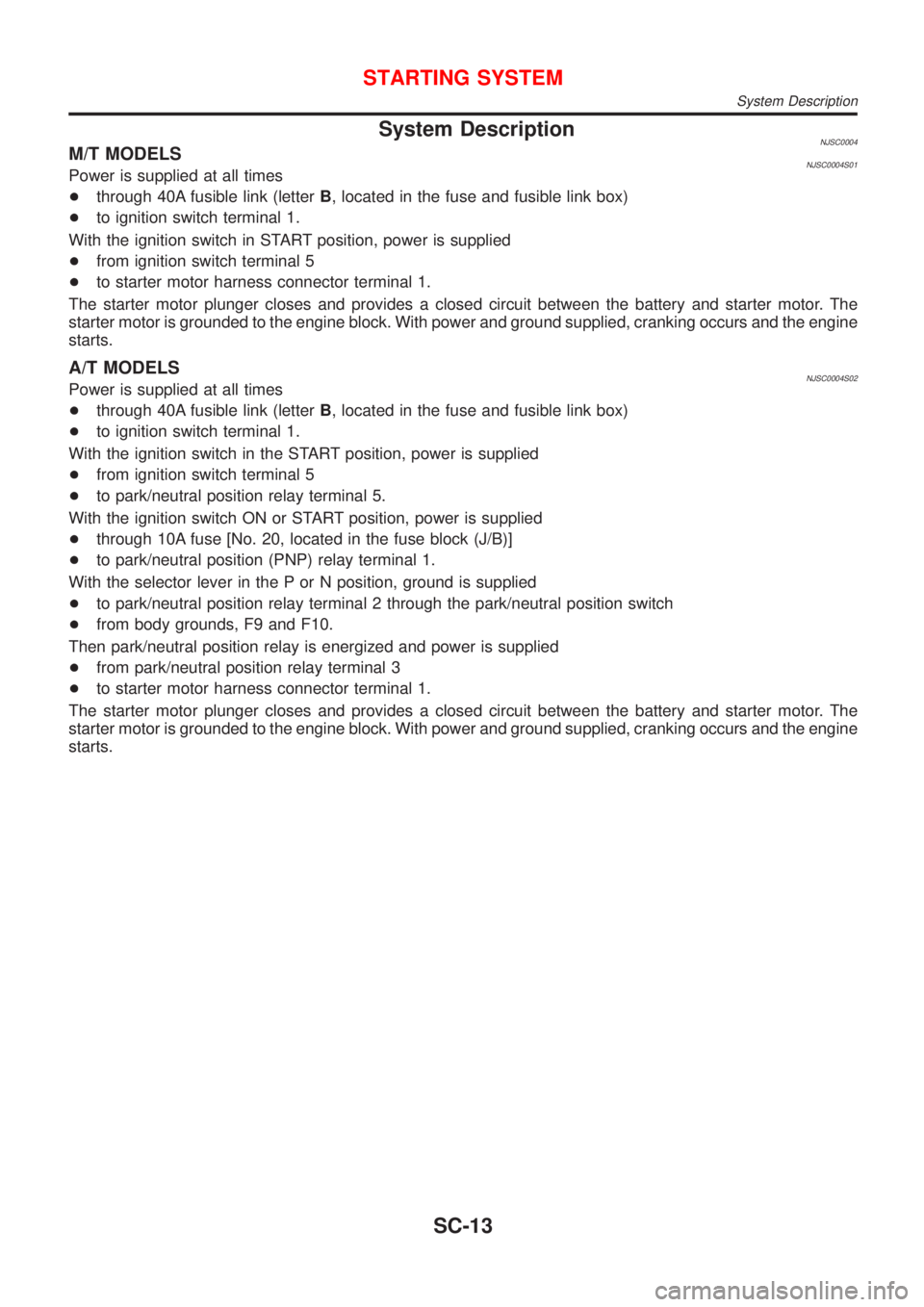

System DescriptionNJSC0004M/T MODELSNJSC0004S01Power is supplied at all times
+through 40A fusible link (letterB, located in the fuse and fusible link box)
+to ignition switch terminal 1.
With the ignition switch in START position, power is supplied
+from ignition switch terminal 5
+to starter motor harness connector terminal 1.
The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The
starter motor is grounded to the engine block. With power and ground supplied, cranking occurs and the engine
starts.
A/T MODELSNJSC0004S02Power is supplied at all times
+through 40A fusible link (letterB, located in the fuse and fusible link box)
+to ignition switch terminal 1.
With the ignition switch in the START position, power is supplied
+from ignition switch terminal 5
+to park/neutral position relay terminal 5.
With the ignition switch ON or START position, power is supplied
+through 10A fuse [No. 20, located in the fuse block (J/B)]
+to park/neutral position (PNP) relay terminal 1.
With the selector lever in the P or N position, ground is supplied
+to park/neutral position relay terminal 2 through the park/neutral position switch
+from body grounds, F9 and F10.
Then park/neutral position relay is energized and power is supplied
+from park/neutral position relay terminal 3
+to starter motor harness connector terminal 1.
The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The
starter motor is grounded to the engine block. With power and ground supplied, cranking occurs and the engine
starts.
STARTING SYSTEM
System Description
SC-13
Page 2810 of 2898
Wiring Diagram Ð START Ð/SedanNJSC0005M/T MODELSNJSC0005S03
HSC011
STARTING SYSTEM
Wiring Diagram Ð START Ð/Sedan
SC-14
Page 2811 of 2898
A/T MODELSNJSC0005S05
HSC013
STARTING SYSTEM
Wiring Diagram Ð START Ð/Sedan (Cont'd)
SC-15
Page 2812 of 2898

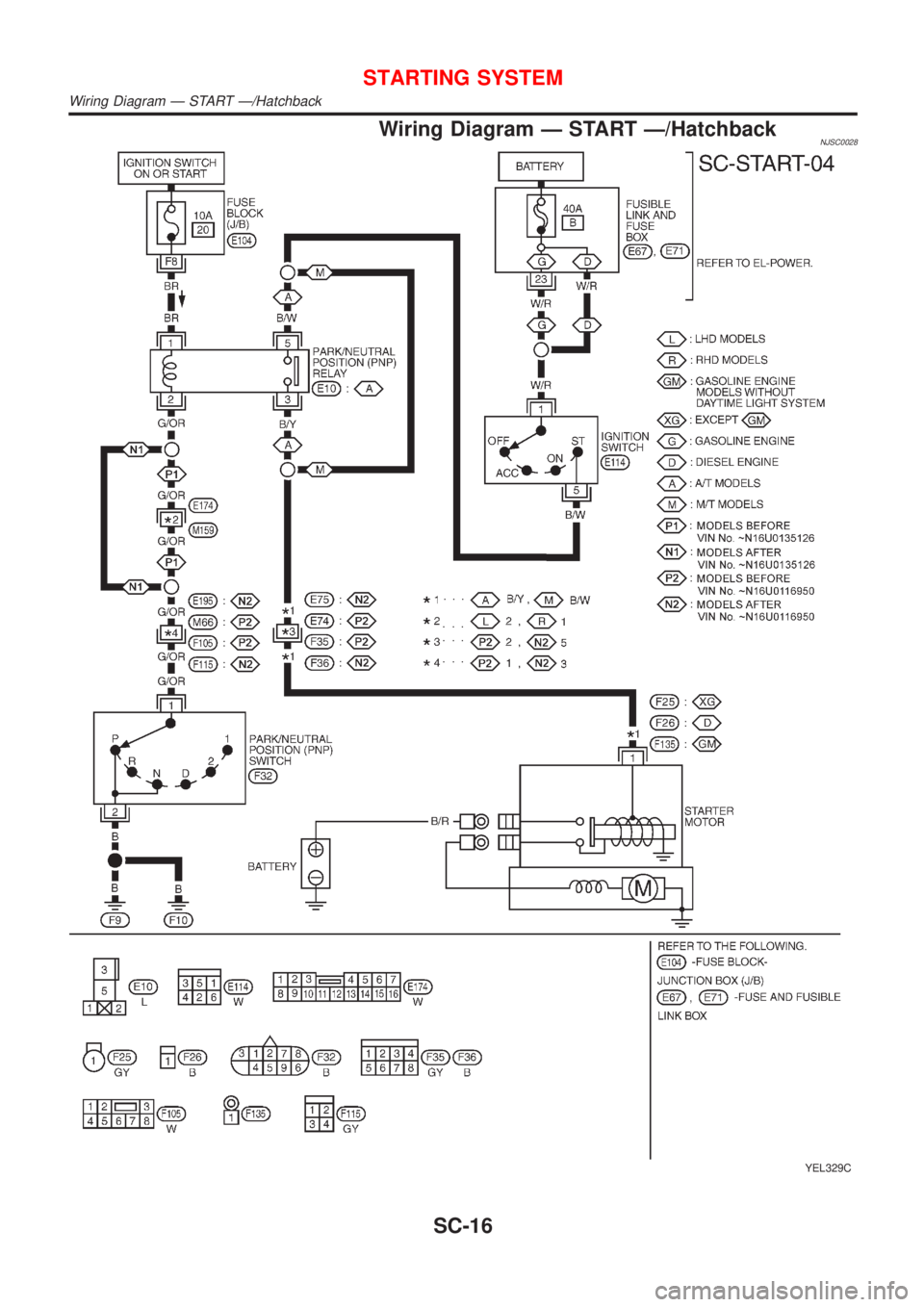

Wiring Diagram Ð START Ð/HatchbackNJSC0028
YEL329C
STARTING SYSTEM
Wiring Diagram Ð START Ð/Hatchback
SC-16
Page 2813 of 2898

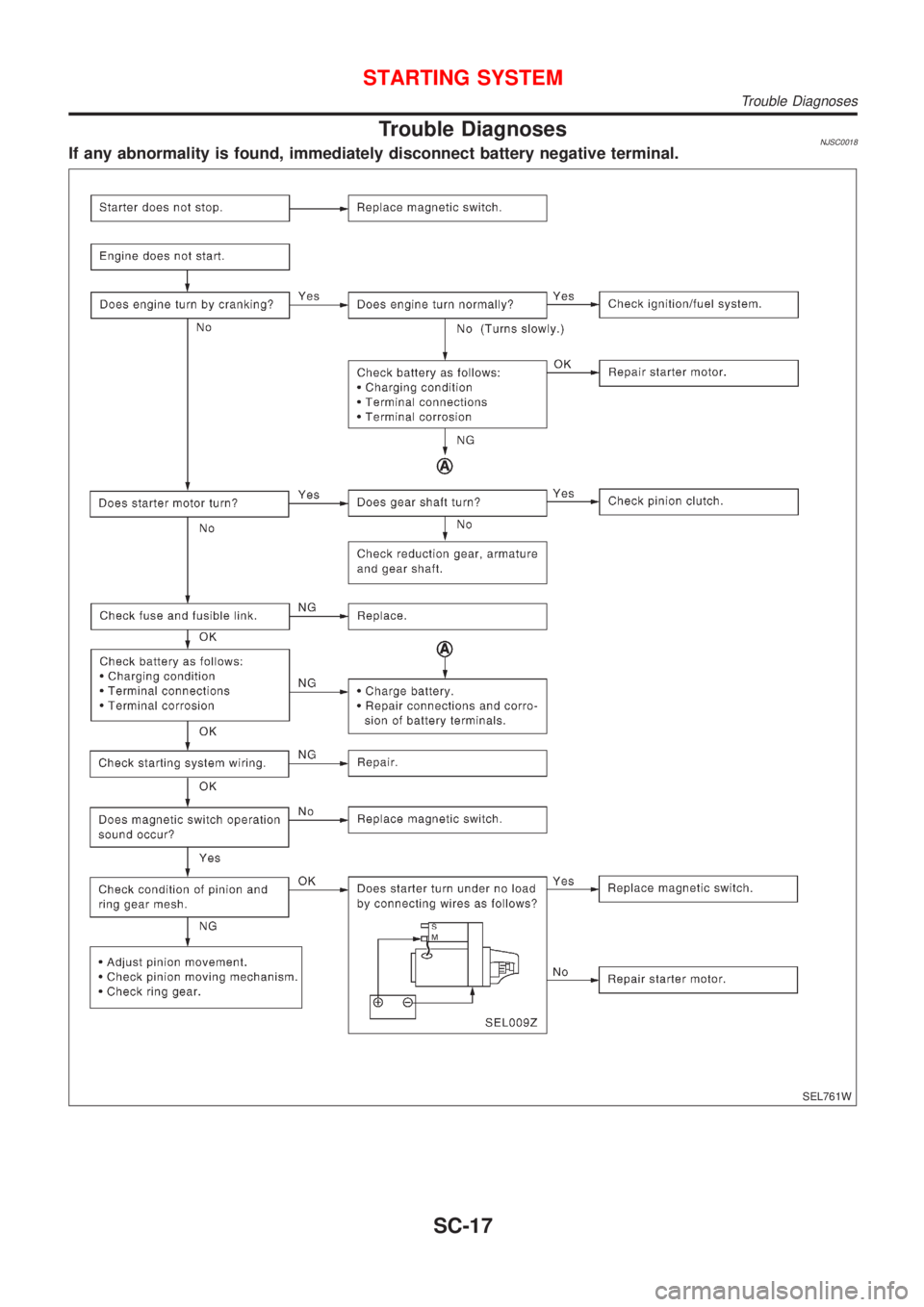

Trouble DiagnosesNJSC0018If any abnormality is found, immediately disconnect battery negative terminal.
SEL761W
STARTING SYSTEM
Trouble Diagnoses
SC-17
Page 2814 of 2898

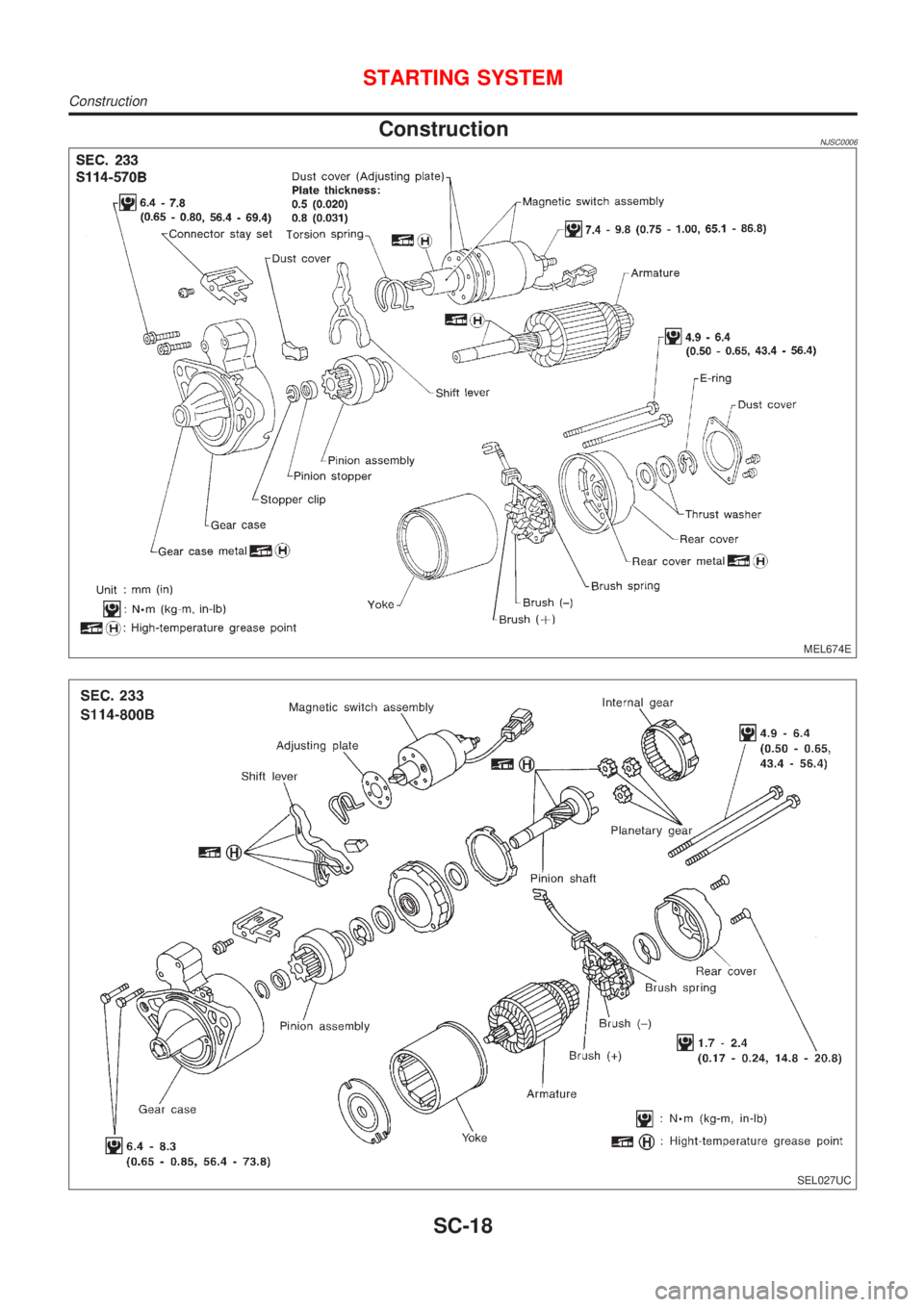

ConstructionNJSC0006
MEL674E
SEL027UC
STARTING SYSTEM
Construction
SC-18
Page 2815 of 2898
MEL673E
MEL136LB
STARTING SYSTEM

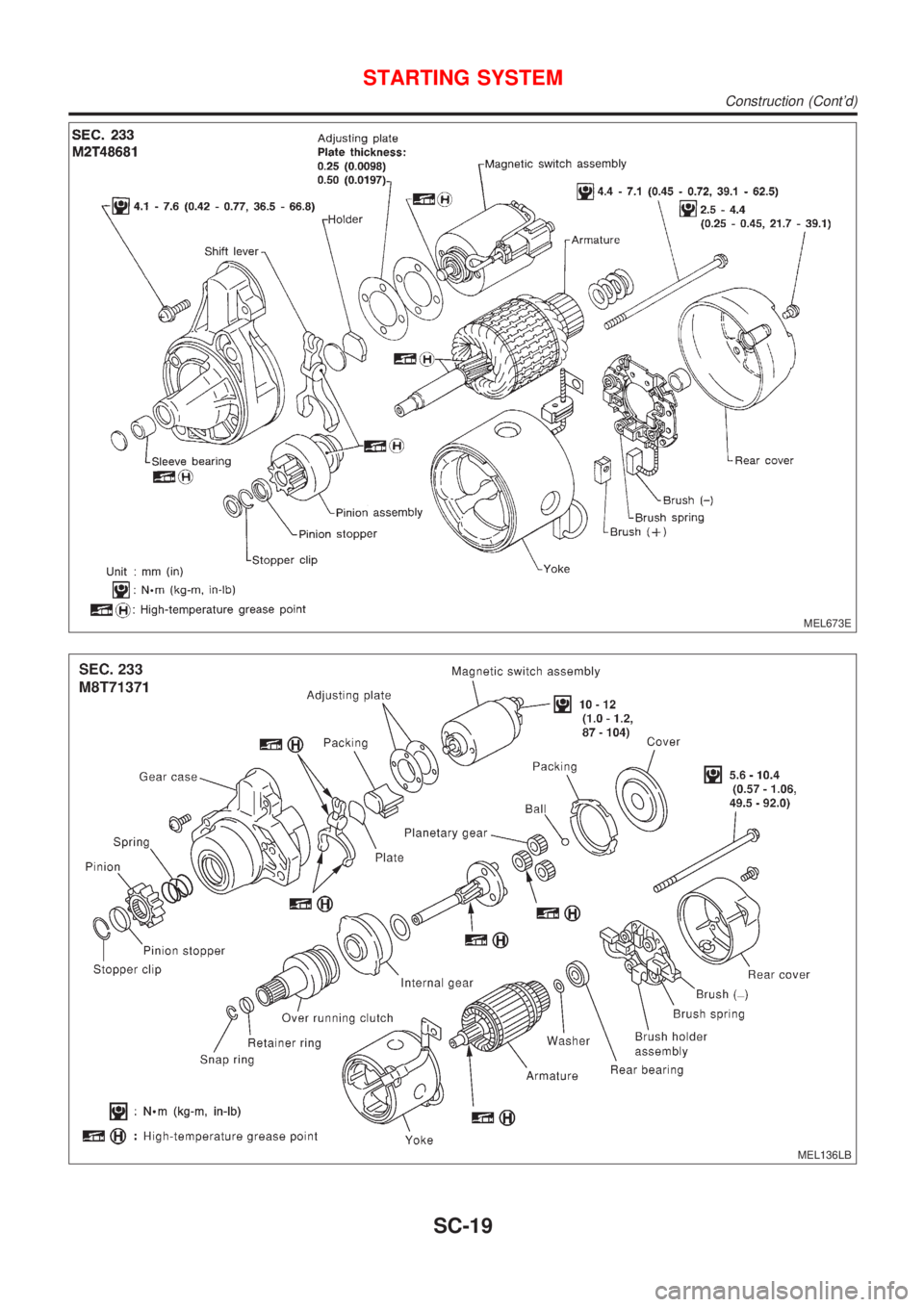

Construction (Cont'd)
SC-19
Page 2816 of 2898
MEL946N
NEL791
STARTING SYSTEM

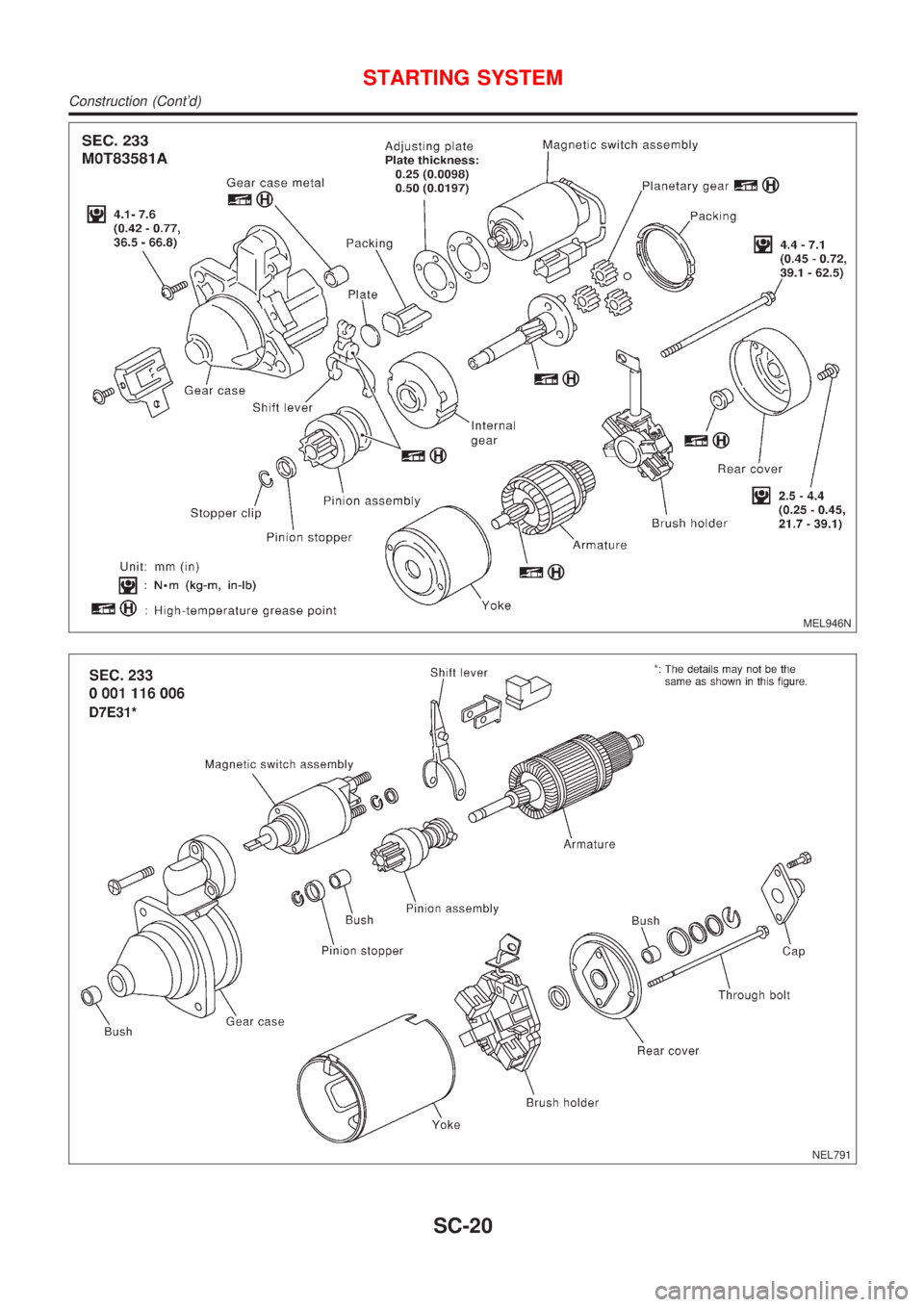

Construction (Cont'd)
SC-20
