NISSAN ALMERA 2001  Service Manual 11 CHECK ACCELERATOR POSITION SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect accelerator work unit harness connector.
SEF886Y
3. Turn ignition switch ªONº.
4. Check volta

Page 1418 of 2898

NISSAN ALMERA 2001  Service Manual 15 CHECK ACCELERATOR POSITION SWITCH
Check continuity between accelerator position switch terminals 1 and 3 under the following conditions.
SEF913Y
OK or NG
OK©GO TO 16.
NG©Replace accelerator pedal

Page 1419 of 2898

NISSAN ALMERA 2001  Service Manual SEF420Z
DescriptionNJEC0686The crankshaft position sensor (TDC) monitors engine speed by
means of signals from the sensing plate (with three protrusions)
installed to the crankshaft pulley. The datum

Page 1420 of 2898

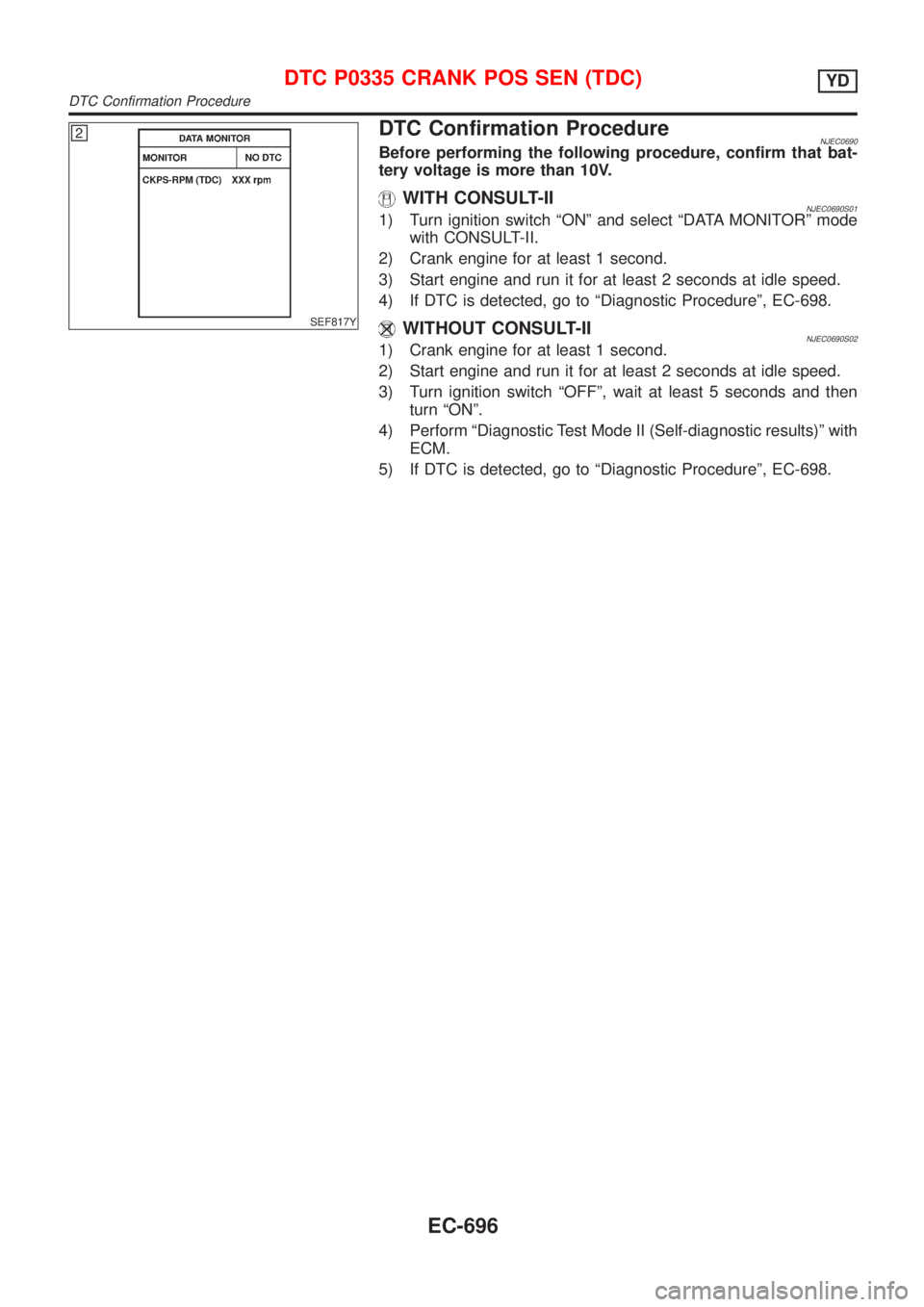

NISSAN ALMERA 2001  Service Manual SEF817Y
DTC Confirmation ProcedureNJEC0690Before performing the following procedure, confirm that bat-
tery voltage is more than 10V.
WITH CONSULT-IINJEC0690S011) Turn ignition switch ªONº and selec

Page 1421 of 2898

NISSAN ALMERA 2001  Service Manual Wiring DiagramNJEC0691
HEC885
DTC P0335 CRANK POS SEN (TDC)YD
Wiring Diagram
EC-697

Page 1422 of 2898

NISSAN ALMERA 2001  Service Manual Diagnostic ProcedureNJEC0692
1 CHECK CRANKSHAFT POSITION SENSOR (TDC) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch ªOFFº.
2. Loosen and retighten engine ground screws.
SEF380Y
3. Discon

Page 1423 of 2898

NISSAN ALMERA 2001  Service Manual 3 CHECK CRANKSHAFT POSITION SENSOR (TDC)-I
1. Loosen the fixing bolt and remove the crankshaft position sensor (TDC).
2. Visually check the sensor for chipping.
SEF620S
OK or NG
OK©GO TO 4.
NG©Repla

Page 1424 of 2898

NISSAN ALMERA 2001  Service Manual 5 INSTALL CRANKSHAFT POSITION SENSOR (TDC)
1. Install crankshaft position sensor (TDC) and temporarily tighten the fixing bolt.
2. Turn crankshaft position sensor (TDC) clockwise until it stops.
3. Ti
