Page 2001 of 2898

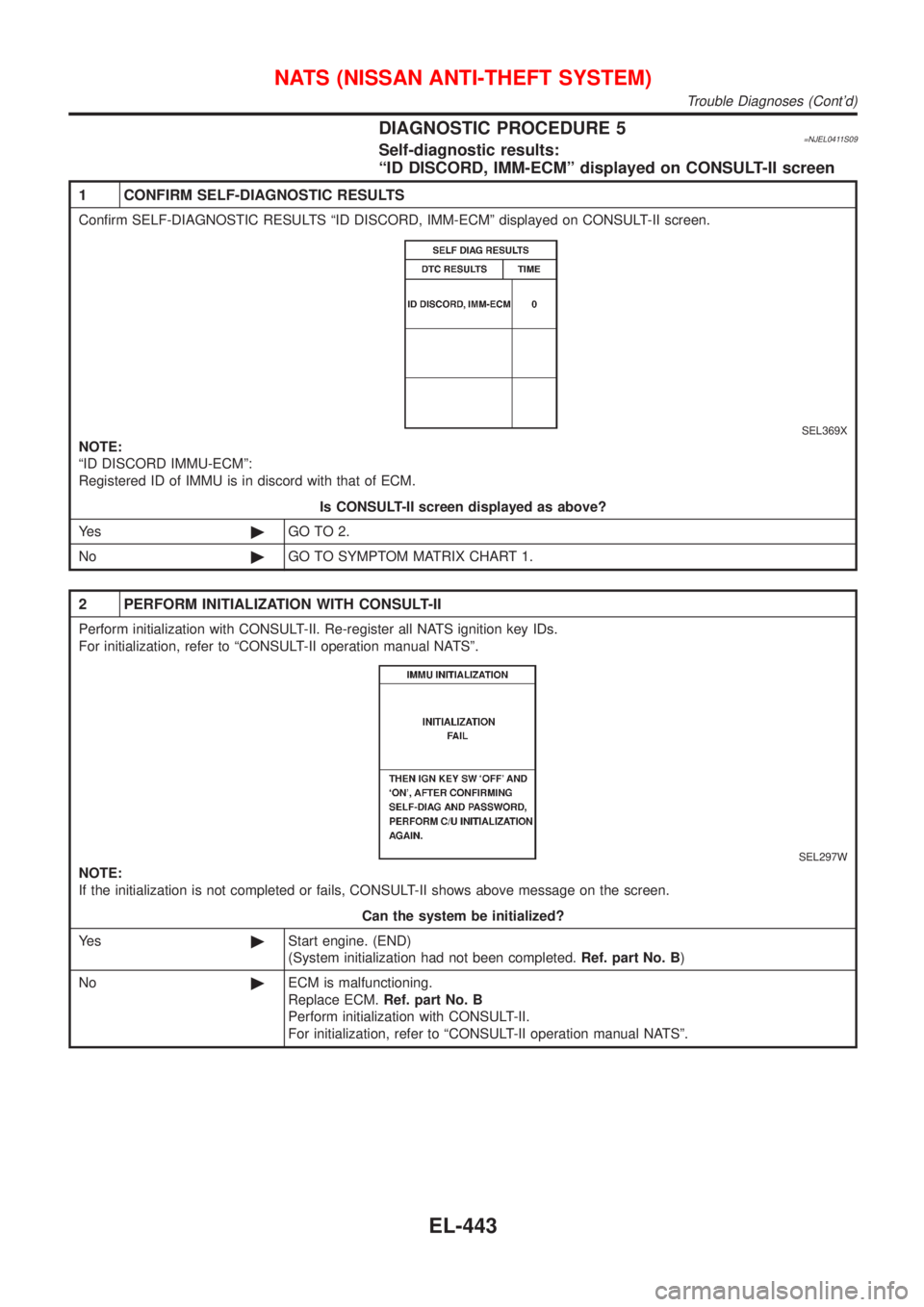

NISSAN ALMERA 2001 Service Manual DIAGNOSTIC PROCEDURE 5=NJEL0411S09Self-diagnostic results: ªID DISCORD, IMM-ECMº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªID DISCORD, IMM-EC

Page 2002 of 2898

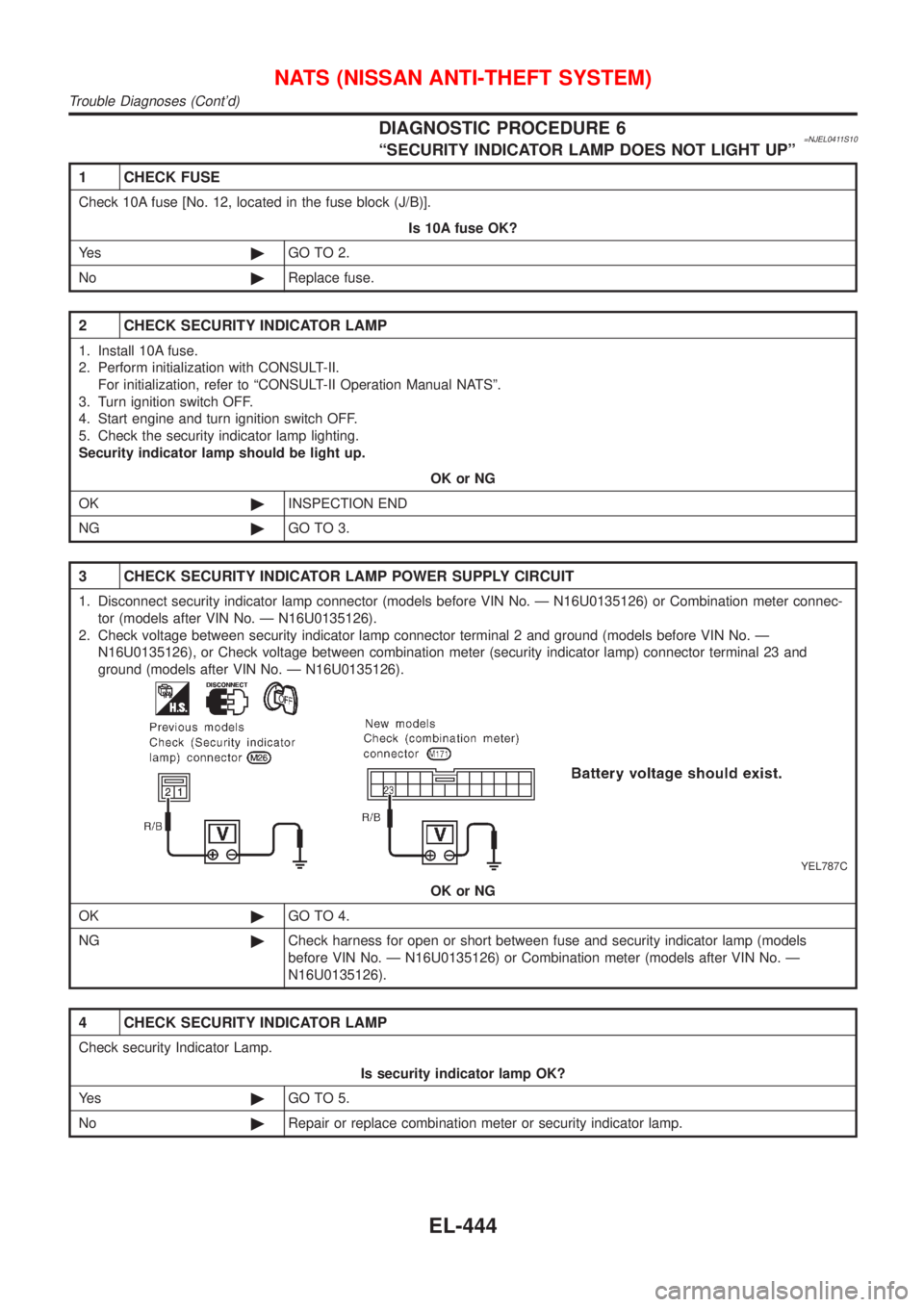

NISSAN ALMERA 2001 Service Manual DIAGNOSTIC PROCEDURE 6=NJEL0411S10ªSECURITY INDICATOR LAMP DOES NOT LIGHT UPº 1 CHECK FUSE Check 10A fuse [No. 12, located in the fuse block (J/B)]. Is 10A fuse OK? Ye s©GO TO 2. No©Replace fuse.

Page 2003 of 2898

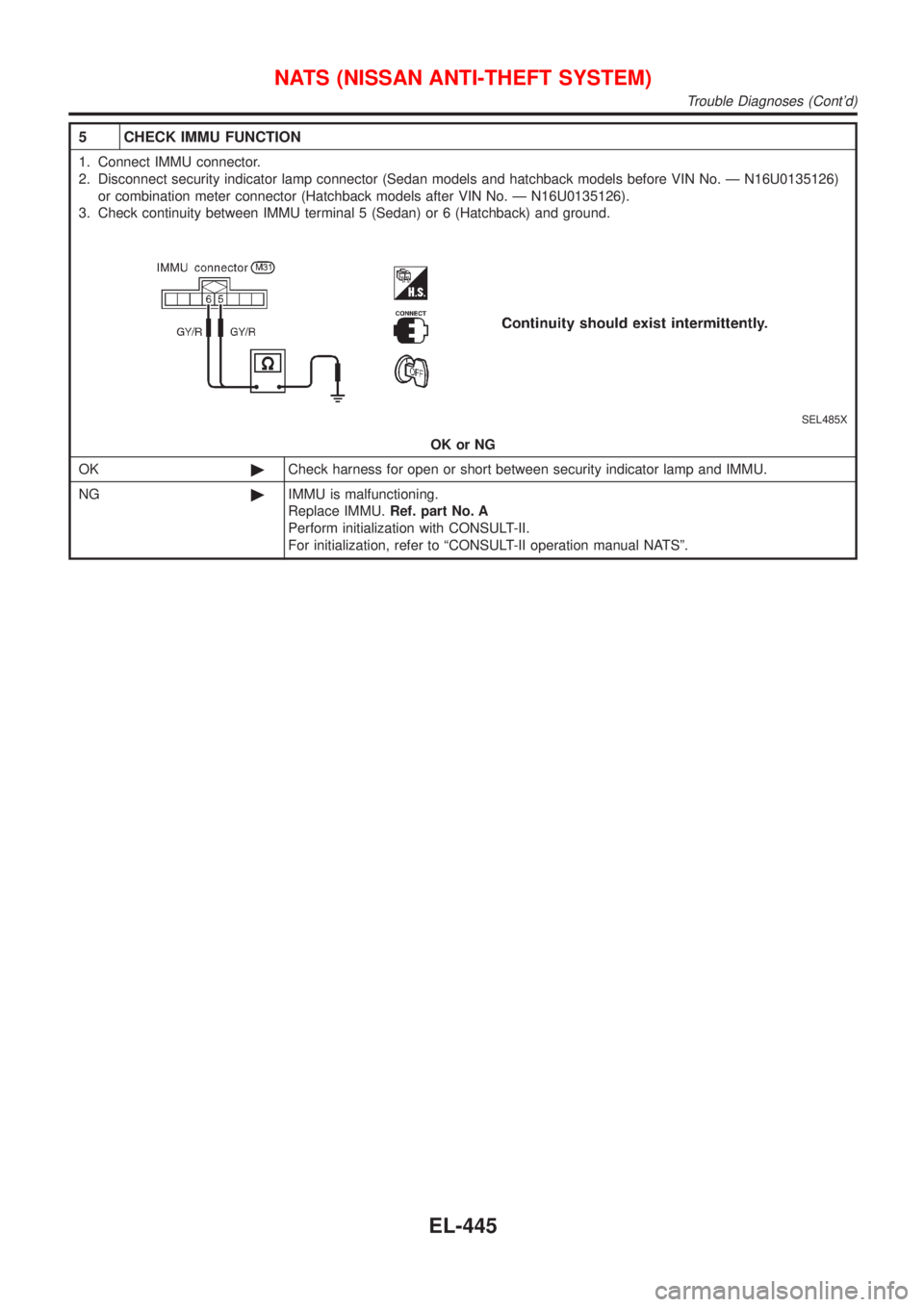

NISSAN ALMERA 2001 Service Manual 5 CHECK IMMU FUNCTION 1. Connect IMMU connector. 2. Disconnect security indicator lamp connector (Sedan models and hatchback models before VIN No. Ð N16U0135126) or combination meter connector (Hatch

Page 2004 of 2898

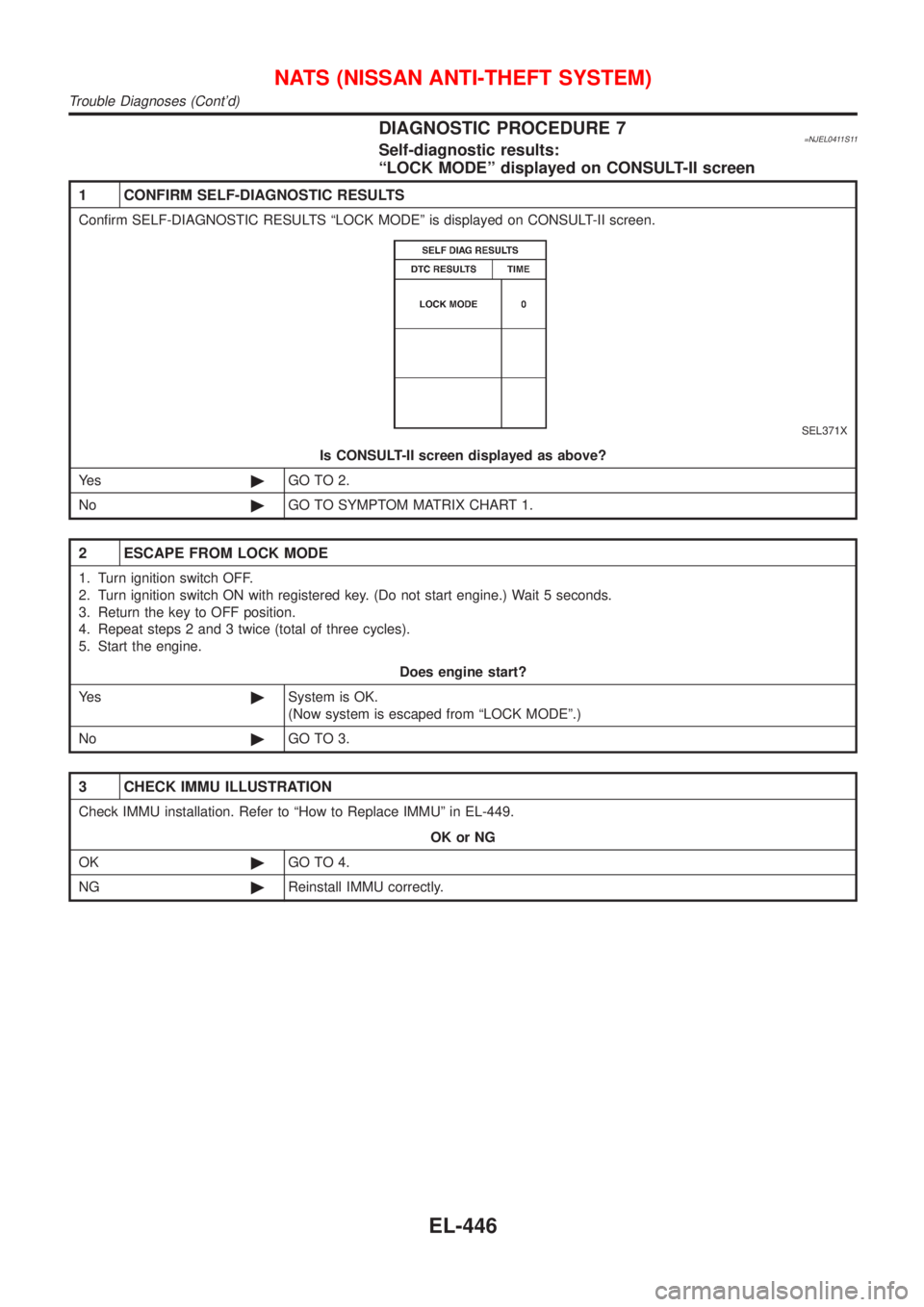

NISSAN ALMERA 2001 Service Manual DIAGNOSTIC PROCEDURE 7=NJEL0411S11Self-diagnostic results: ªLOCK MODEº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªLOCK MODEº is displayed on

Page 2005 of 2898

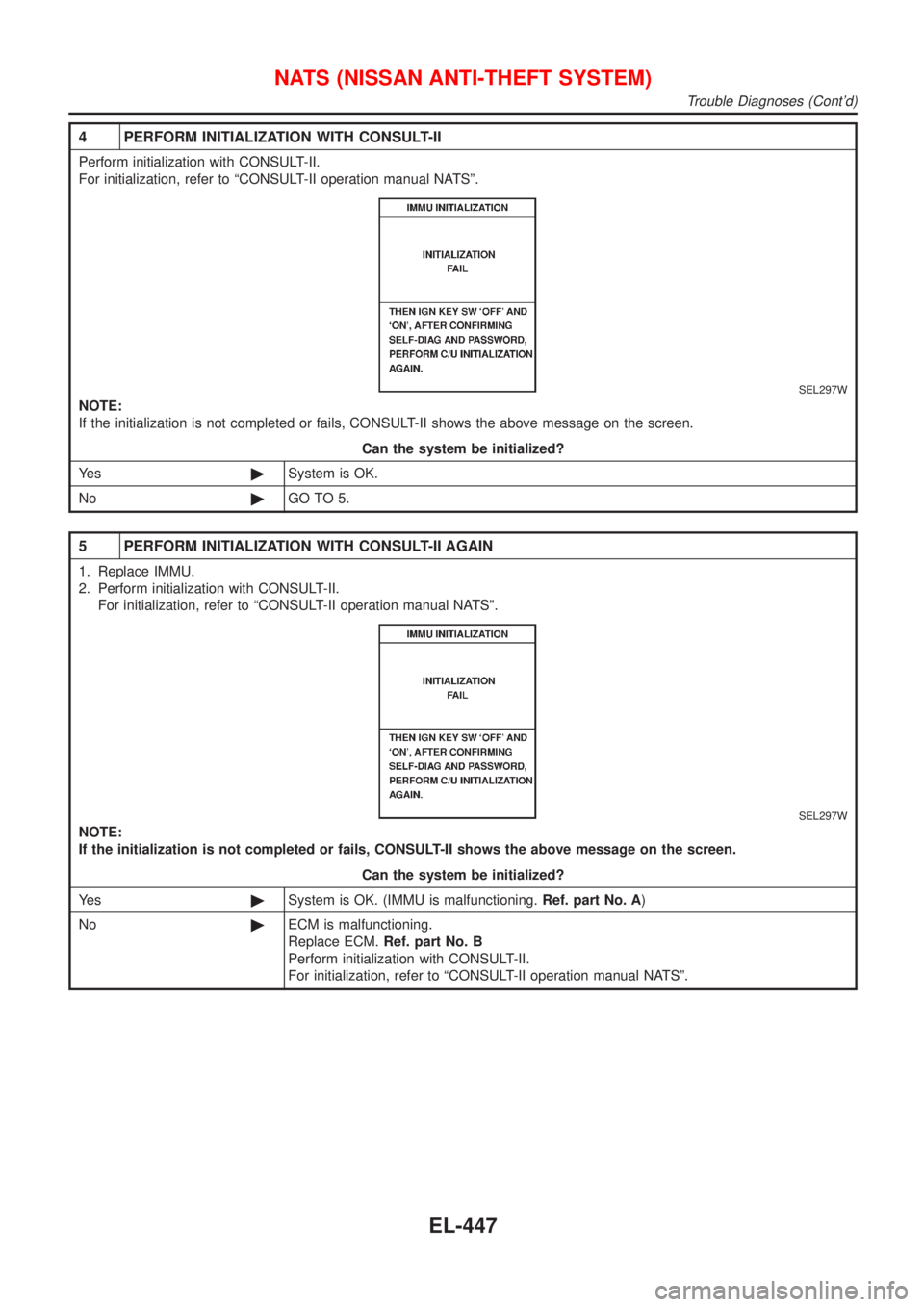

NISSAN ALMERA 2001 Service Manual 4 PERFORM INITIALIZATION WITH CONSULT-II Perform initialization with CONSULT-II. For initialization, refer to ªCONSULT-II operation manual NATSº. SEL297W NOTE: If the initialization is not completed

Page 2006 of 2898

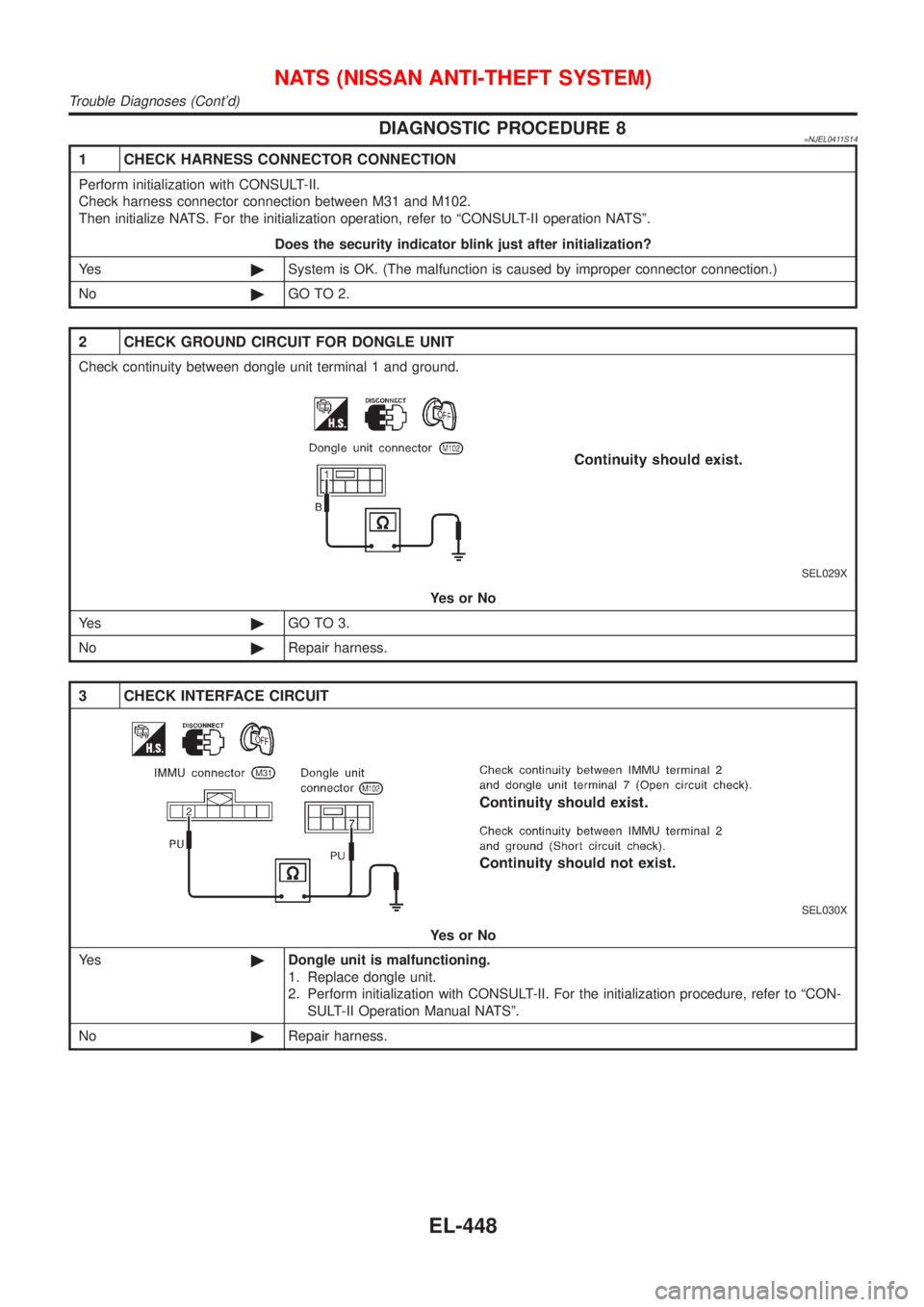

NISSAN ALMERA 2001 Service Manual DIAGNOSTIC PROCEDURE 8=NJEL0411S14 1 CHECK HARNESS CONNECTOR CONNECTION Perform initialization with CONSULT-II. Check harness connector connection between M31 and M102. Then initialize NATS. For the i

Page 2007 of 2898

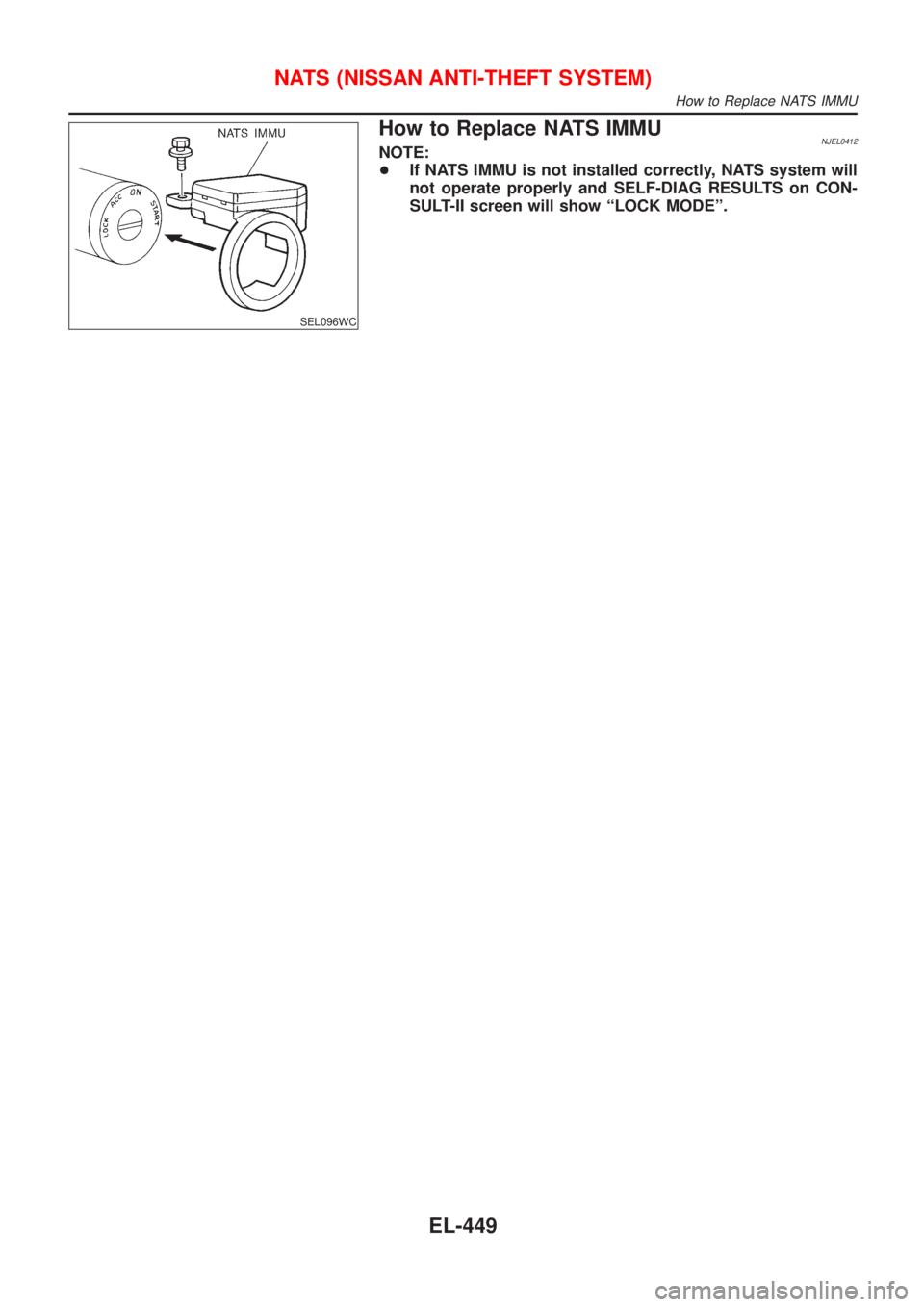

NISSAN ALMERA 2001 Service Manual SEL096WC How to Replace NATS IMMUNJEL0412NOTE: +If NATS IMMU is not installed correctly, NATS system will not operate properly and SELF-DIAG RESULTS on CON- SULT-II screen will show ªLOCK MODEº. NAT

Page 2008 of 2898

NISSAN ALMERA 2001 Service Manual PrecautionsNJEL0514WARNING: Do not attempt to disassemble the monitor. Parts of the monitor have high voltages that can result in severe and dangerous electric shock. CAUTION: +Do not reverse battery
