Page 1649 of 2898

NISSAN ALMERA 2001 Service Manual SEL975W

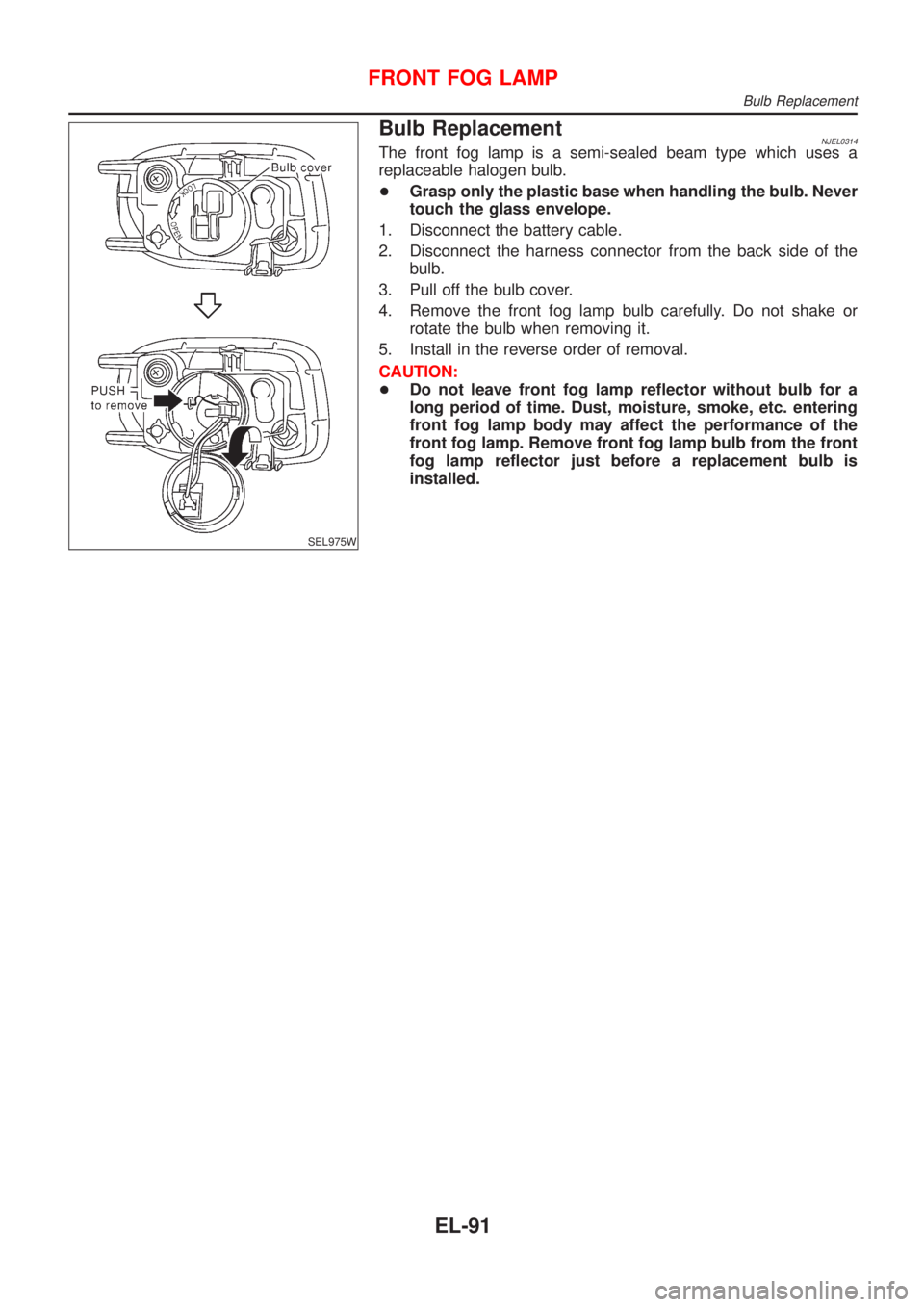

Bulb ReplacementNJEL0314The front fog lamp is a semi-sealed beam type which uses a
replaceable halogen bulb.
+Grasp only the plastic base when handling the bulb. Never
touch the glass envelope

Page 1650 of 2898

NISSAN ALMERA 2001 Service Manual SEL976W
SEL480X

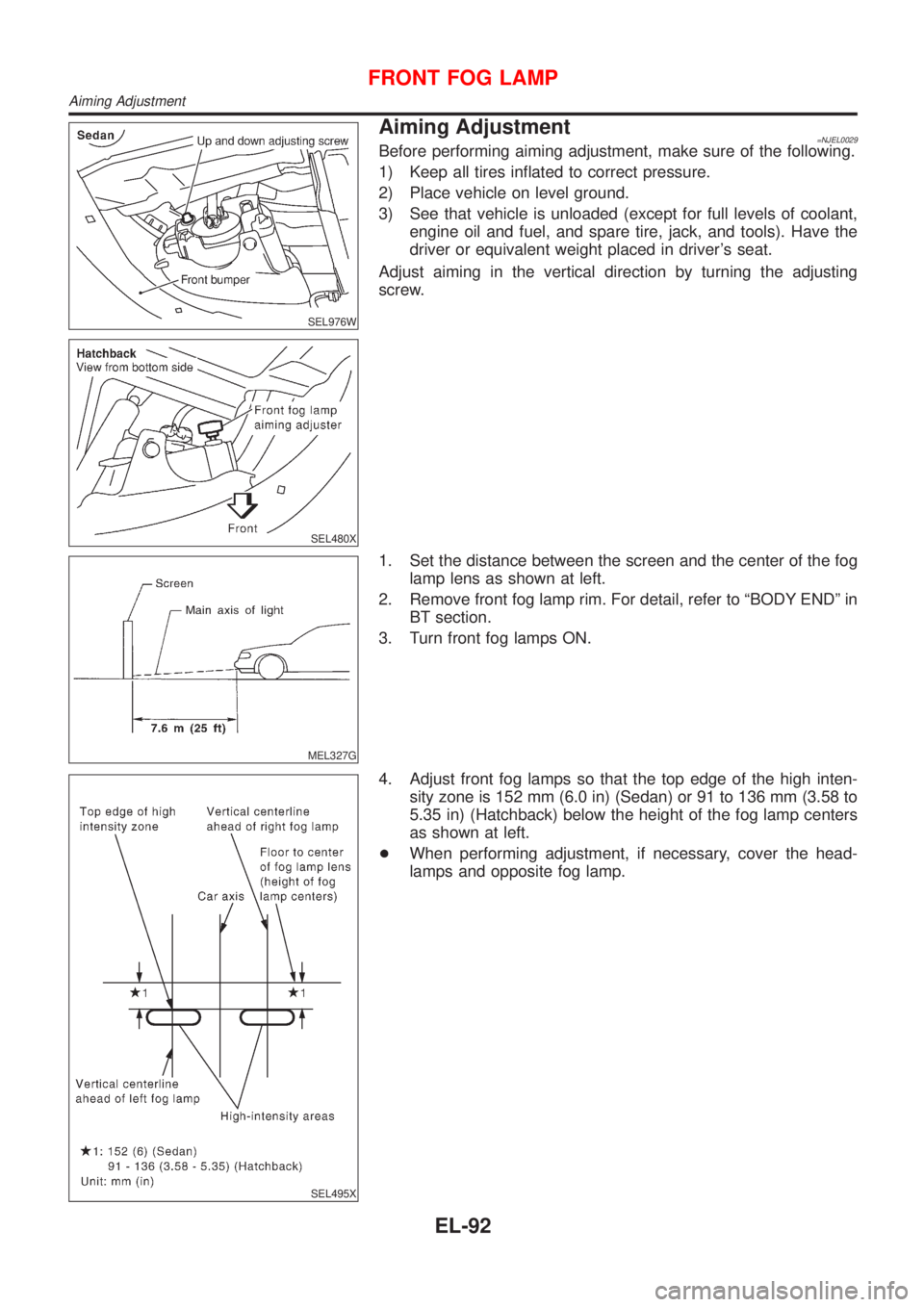

Aiming Adjustment=NJEL0029Before performing aiming adjustment, make sure of the following.
1) Keep all tires inflated to correct pressure.
2) Place vehicle on level ground.
3) See that

Page 1651 of 2898

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð R/FOG Ð/SedanNJEL0362WITHOUT FRONT FOG LAMPNJEL0362S01
HEL372B
REAR FOG LAMP
Wiring Diagram Ð R/FOG Ð/Sedan
EL-93

Page 1652 of 2898

NISSAN ALMERA 2001 Service Manual WITH FRONT FOG LAMPNJEL0362S02
HEL373B
REAR FOG LAMP
Wiring Diagram Ð R/FOG Ð/Sedan (Contd)
EL-94

Page 1653 of 2898

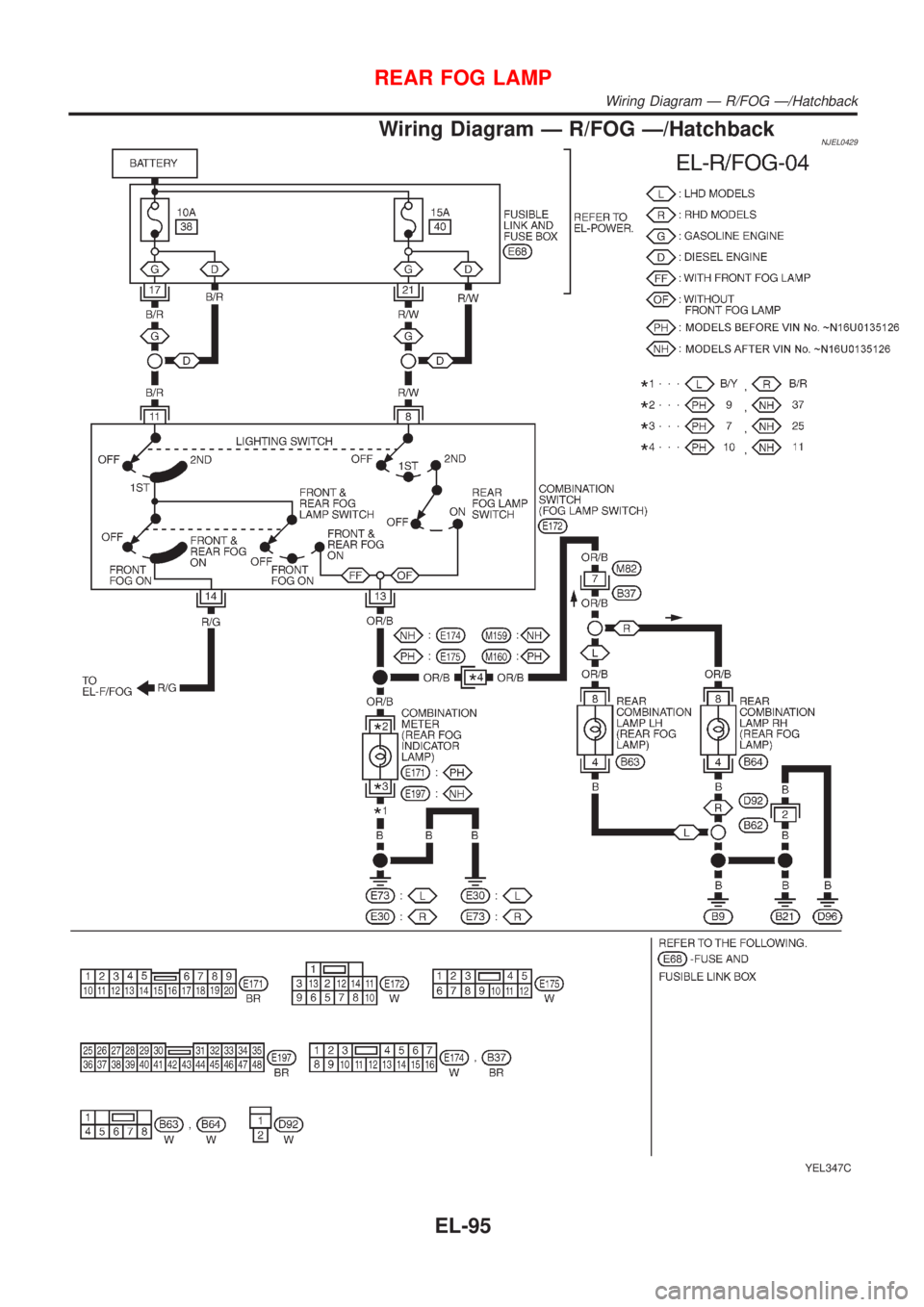

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð R/FOG Ð/HatchbackNJEL0429
YEL347C
REAR FOG LAMP
Wiring Diagram Ð R/FOG Ð/Hatchback
EL-95

Page 1654 of 2898

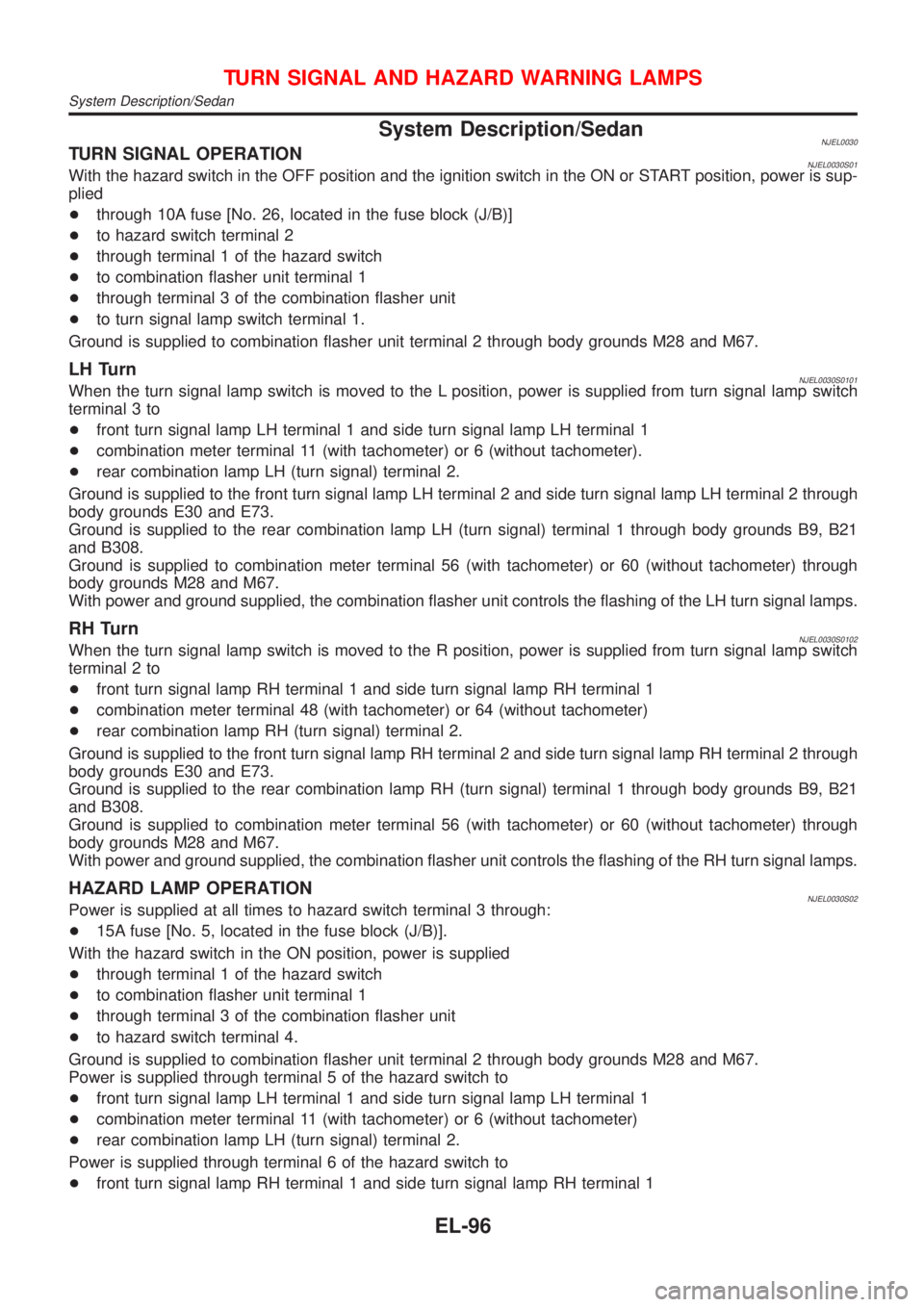

NISSAN ALMERA 2001 Service Manual System Description/SedanNJEL0030TURN SIGNAL OPERATIONNJEL0030S01With the hazard switch in the OFF position and the ignition switch in the ON or START position, power is sup-
plied
+through 10A fuse [N

System Description/SedanNJEL0030TURN SIGNAL OPERATIONNJEL0030S01With the hazard switch in the OFF position and the ignition switch in the ON or START position, power is sup-
plied
+through 10A fuse [No. 26, located in the fuse block (J/B)]
+to hazard switch terminal 2
+through terminal 1 of the hazard switch
+to combination flasher unit terminal 1
+through terminal 3 of the combination flasher unit
+to turn signal lamp switch terminal 1.
Ground is supplied to combination flasher unit terminal 2 through body grounds M28 and M67.
LH TurnNJEL0030S0101When the turn signal lamp switch is moved to the L position, power is supplied from turn signal lamp switch
terminal 3 to
+front turn signal lamp LH terminal 1 and side turn signal lamp LH terminal 1
+combination meter terminal 11 (with tachometer) or 6 (without tachometer).
+rear combination lamp LH (turn signal) terminal 2.
Ground is supplied to the front turn signal lamp LH terminal 2 and side turn signal lamp LH terminal 2 through
body grounds E30 and E73.
Ground is supplied to the rear combination lamp LH (turn signal) terminal 1 through body grounds B9, B21
and B308.
Ground is supplied to combination meter terminal 56 (with tachometer) or 60 (without tachometer) through
body grounds M28 and M67.
With power and ground supplied, the combination flasher unit controls the flashing of the LH turn signal lamps.
RH TurnNJEL0030S0102When the turn signal lamp switch is moved to the R position, power is supplied from turn signal lamp switch
terminal 2 to
+front turn signal lamp RH terminal 1 and side turn signal lamp RH terminal 1
+combination meter terminal 48 (with tachometer) or 64 (without tachometer)
+rear combination lamp RH (turn signal) terminal 2.
Ground is supplied to the front turn signal lamp RH terminal 2 and side turn signal lamp RH terminal 2 through
body grounds E30 and E73.
Ground is supplied to the rear combination lamp RH (turn signal) terminal 1 through body grounds B9, B21
and B308.
Ground is supplied to combination meter terminal 56 (with tachometer) or 60 (without tachometer) through
body grounds M28 and M67.
With power and ground supplied, the combination flasher unit controls the flashing of the RH turn signal lamps.
HAZARD LAMP OPERATIONNJEL0030S02Power is supplied at all times to hazard switch terminal 3 through:
+15A fuse [No. 5, located in the fuse block (J/B)].
With the hazard switch in the ON position, power is supplied
+through terminal 1 of the hazard switch
+to combination flasher unit terminal 1
+through terminal 3 of the combination flasher unit
+to hazard switch terminal 4.
Ground is supplied to combination flasher unit terminal 2 through body grounds M28 and M67.
Power is supplied through terminal 5 of the hazard switch to
+front turn signal lamp LH terminal 1 and side turn signal lamp LH terminal 1
+combination meter terminal 11 (with tachometer) or 6 (without tachometer)
+rear combination lamp LH (turn signal) terminal 2.
Power is supplied through terminal 6 of the hazard switch to
+front turn signal lamp RH terminal 1 and side turn signal lamp RH terminal 1
TURN SIGNAL AND HAZARD WARNING LAMPS
System Description/Sedan
EL-96

Page 1655 of 2898

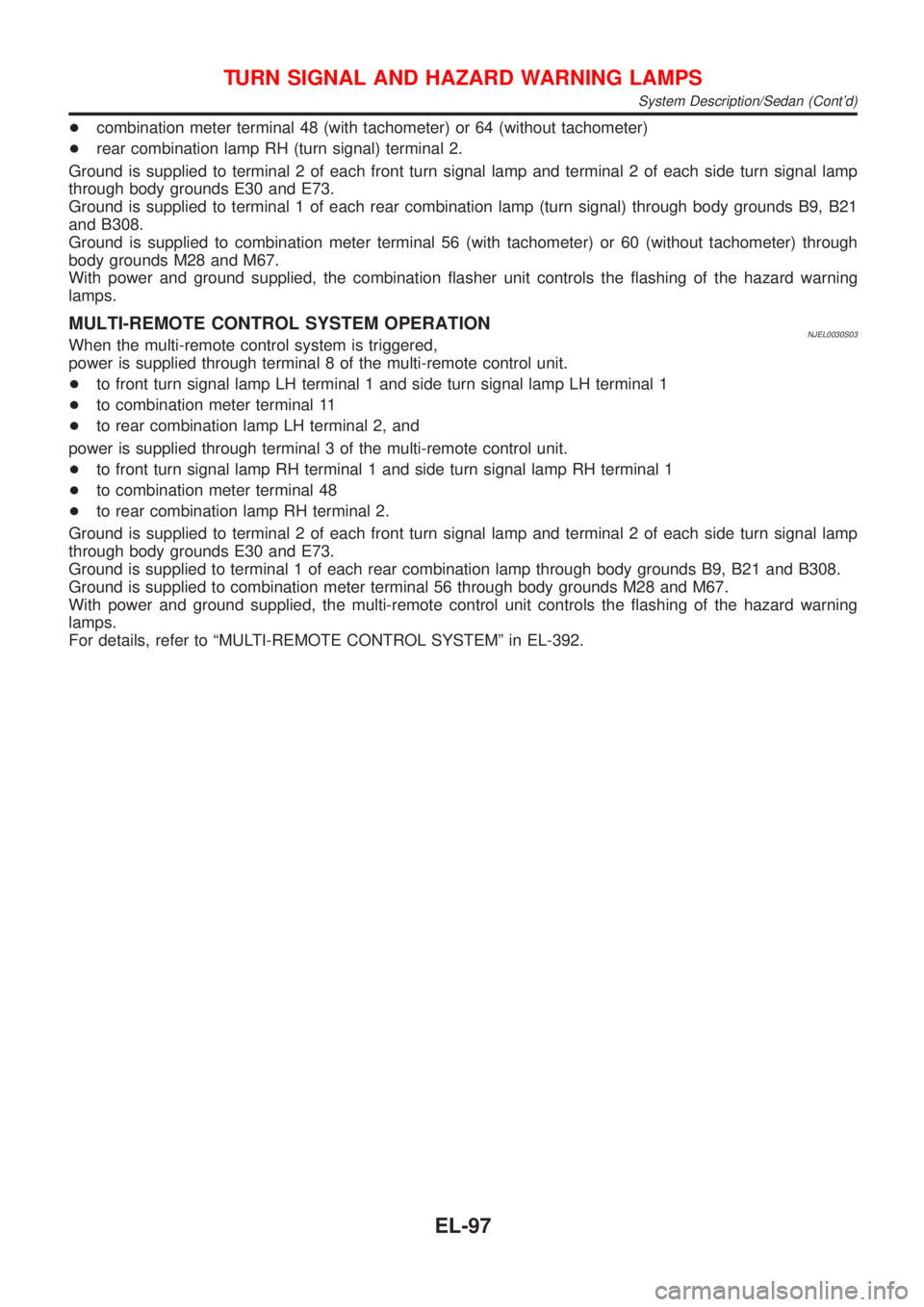

NISSAN ALMERA 2001 Service Manual +combination meter terminal 48 (with tachometer) or 64 (without tachometer)
+rear combination lamp RH (turn signal) terminal 2.
Ground is supplied to terminal 2 of each front turn signal lamp and term

Page 1656 of 2898

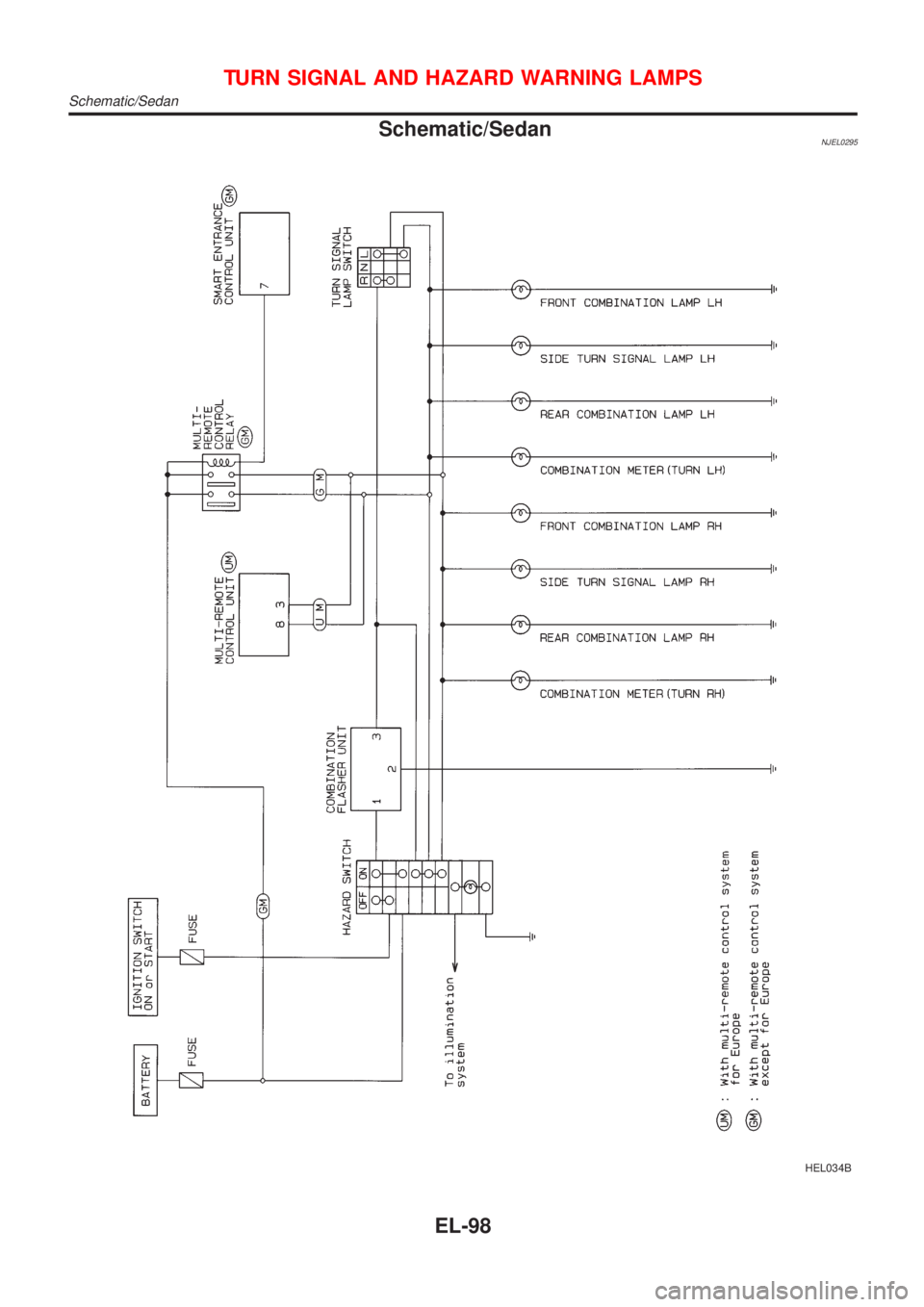

NISSAN ALMERA 2001 Service Manual Schematic/SedanNJEL0295
HEL034B
TURN SIGNAL AND HAZARD WARNING LAMPS
Schematic/Sedan
EL-98
