Page 2041 of 2898

NISSAN ALMERA 2001 Service Manual ªDIAGNOSIS FOR SIGNALS FROM THE CARº MODE=NJEL0520S03DescriptionNJEL0520S0301In ªDiagnosis for Signals from the Carº mode, following input sig- nals to the NAVI control unit can be checked on the

Page 2042 of 2898

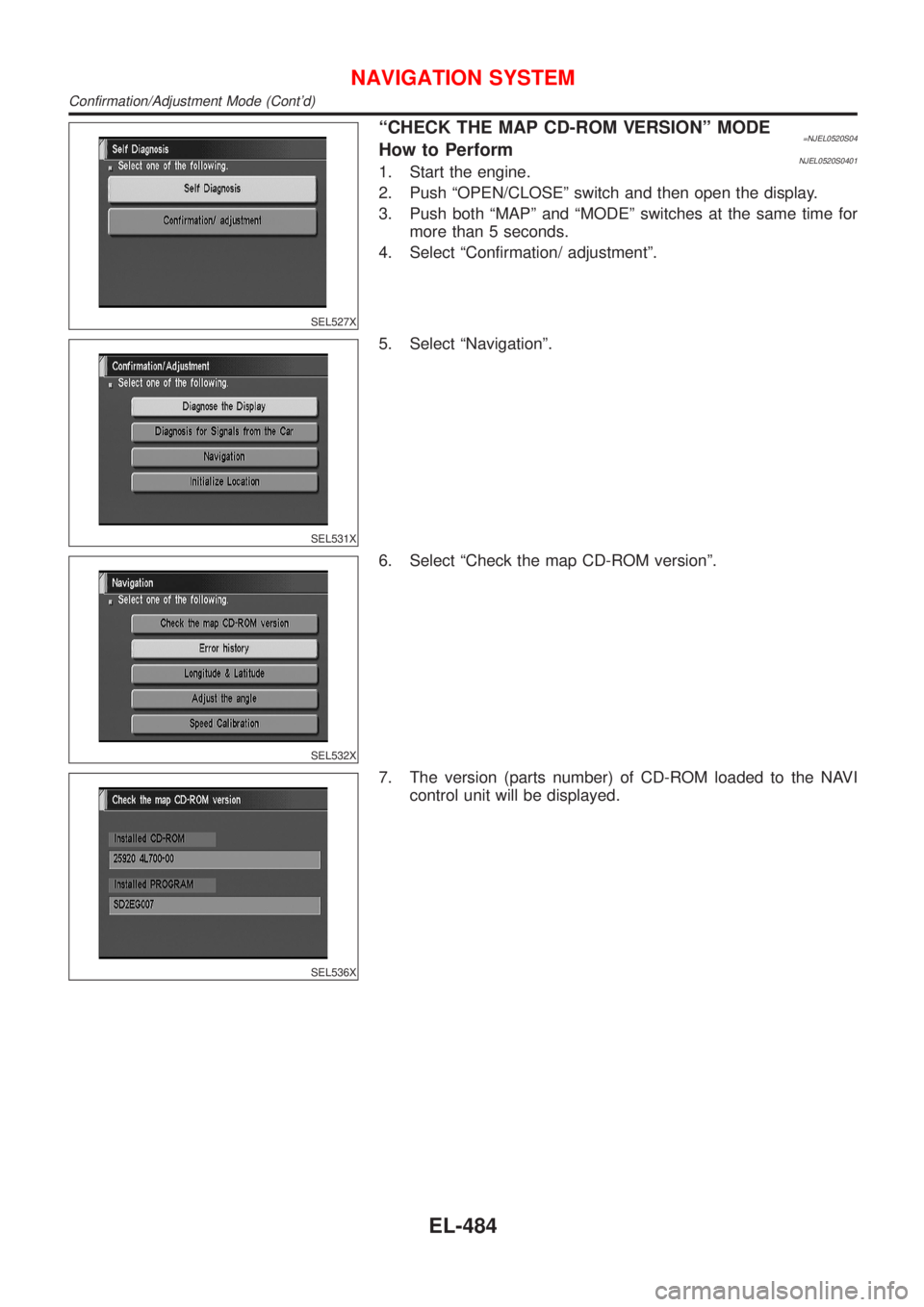

NISSAN ALMERA 2001 Service Manual SEL527X ªCHECK THE MAP CD-ROM VERSIONº MODE=NJEL0520S04How to PerformNJEL0520S04011. Start the engine. 2. Push ªOPEN/CLOSEº switch and then open the display. 3. Push both ªMAPº and ªMODEº swit

Page 2043 of 2898

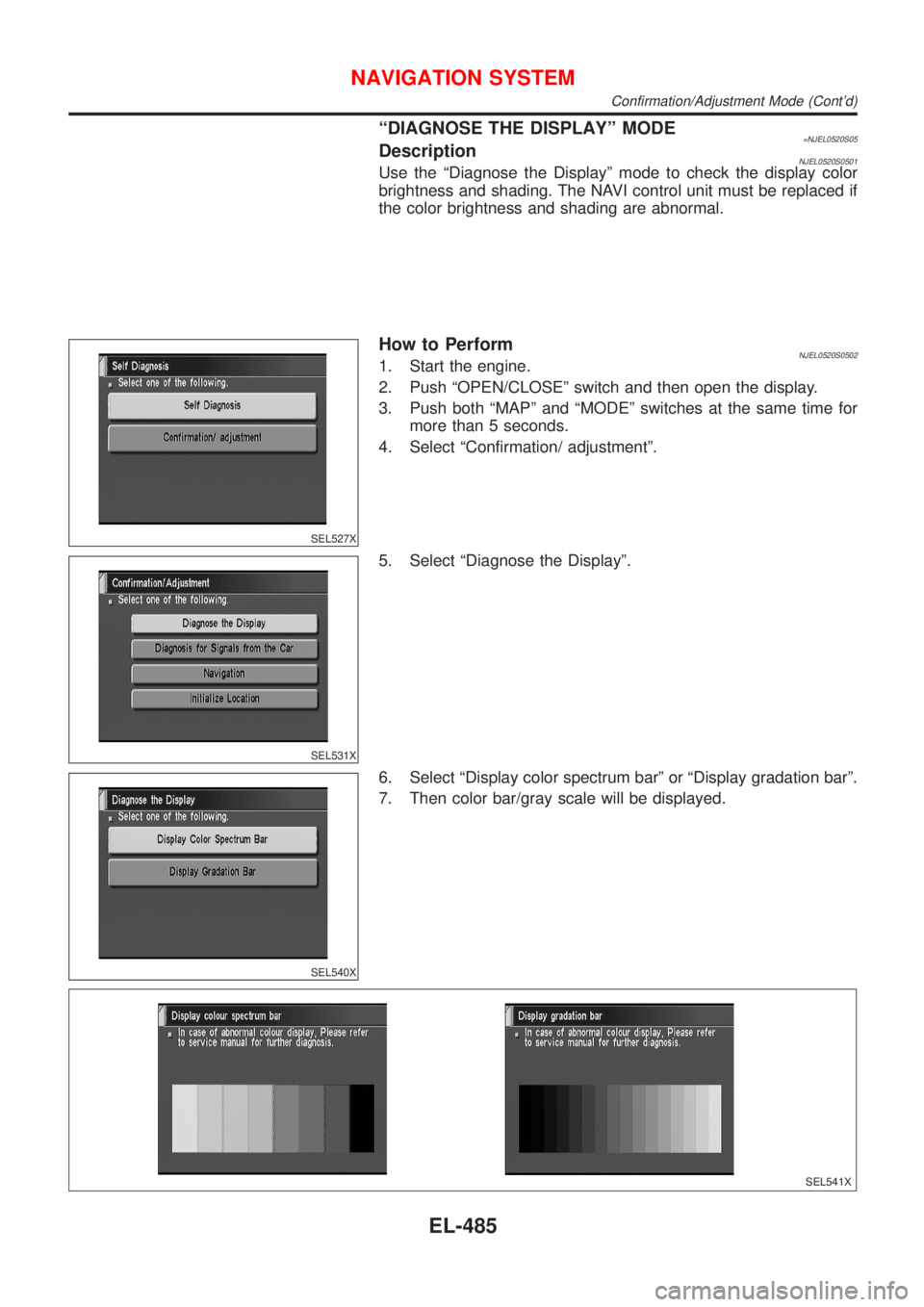

NISSAN ALMERA 2001 Service Manual ªDIAGNOSE THE DISPLAYº MODE=NJEL0520S05DescriptionNJEL0520S0501Use the ªDiagnose the Displayº mode to check the display color brightness and shading. The NAVI control unit must be replaced if the

Page 2044 of 2898

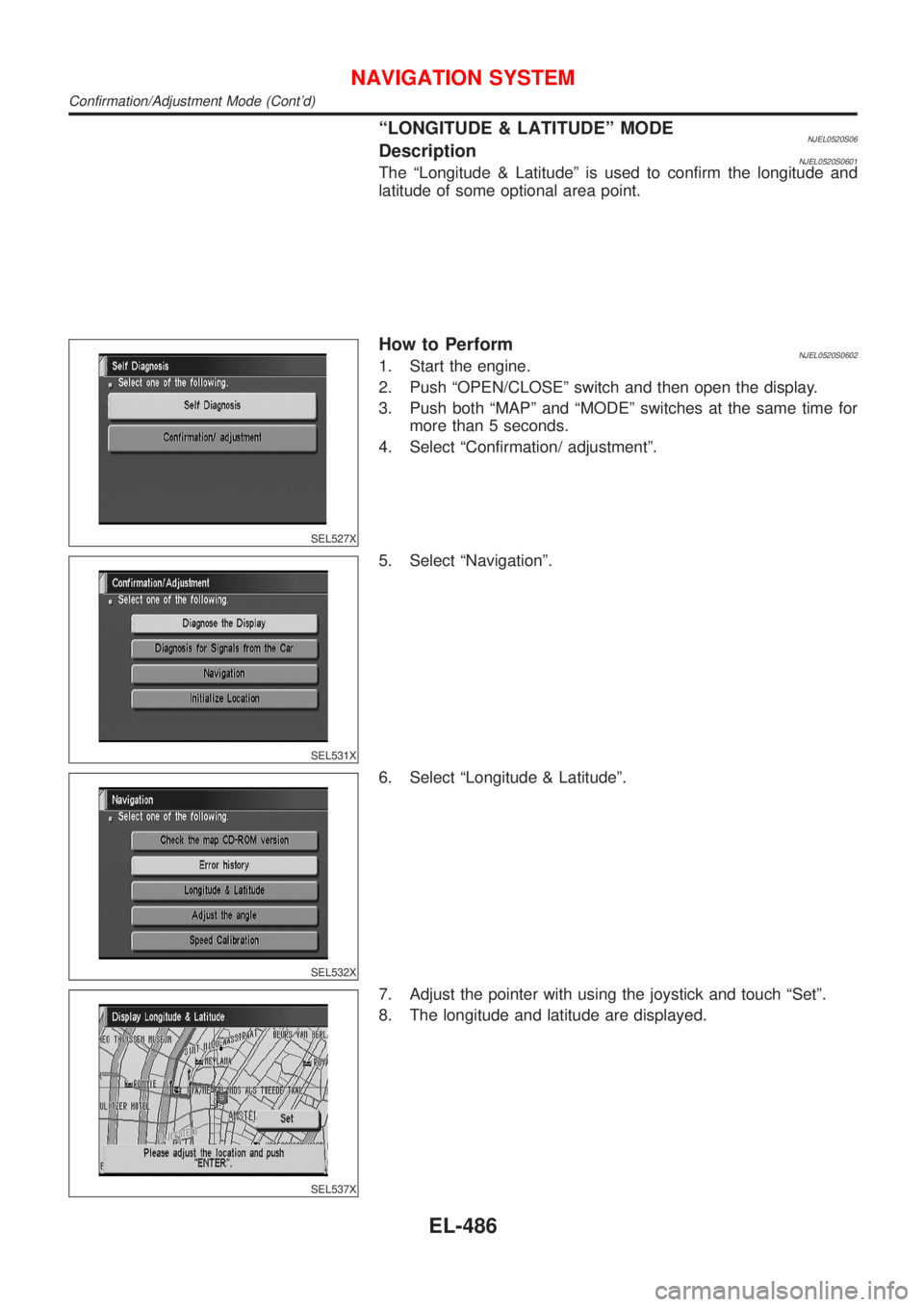

NISSAN ALMERA 2001 Service Manual ªLONGITUDE & LATITUDEº MODENJEL0520S06DescriptionNJEL0520S0601The ªLongitude & Latitudeº is used to confirm the longitude and latitude of some optional area point. SEL527X How to PerformNJEL0520S0

Page 2045 of 2898

NISSAN ALMERA 2001 Service Manual ªADJUST THE ANGLEº MODENJEL0520S07DescriptionNJEL0520S0701If the display indicates a larger or smaller turning angle than the actual turning angle, the gyro (angular speed sensor) sensing val- ues m

Page 2046 of 2898

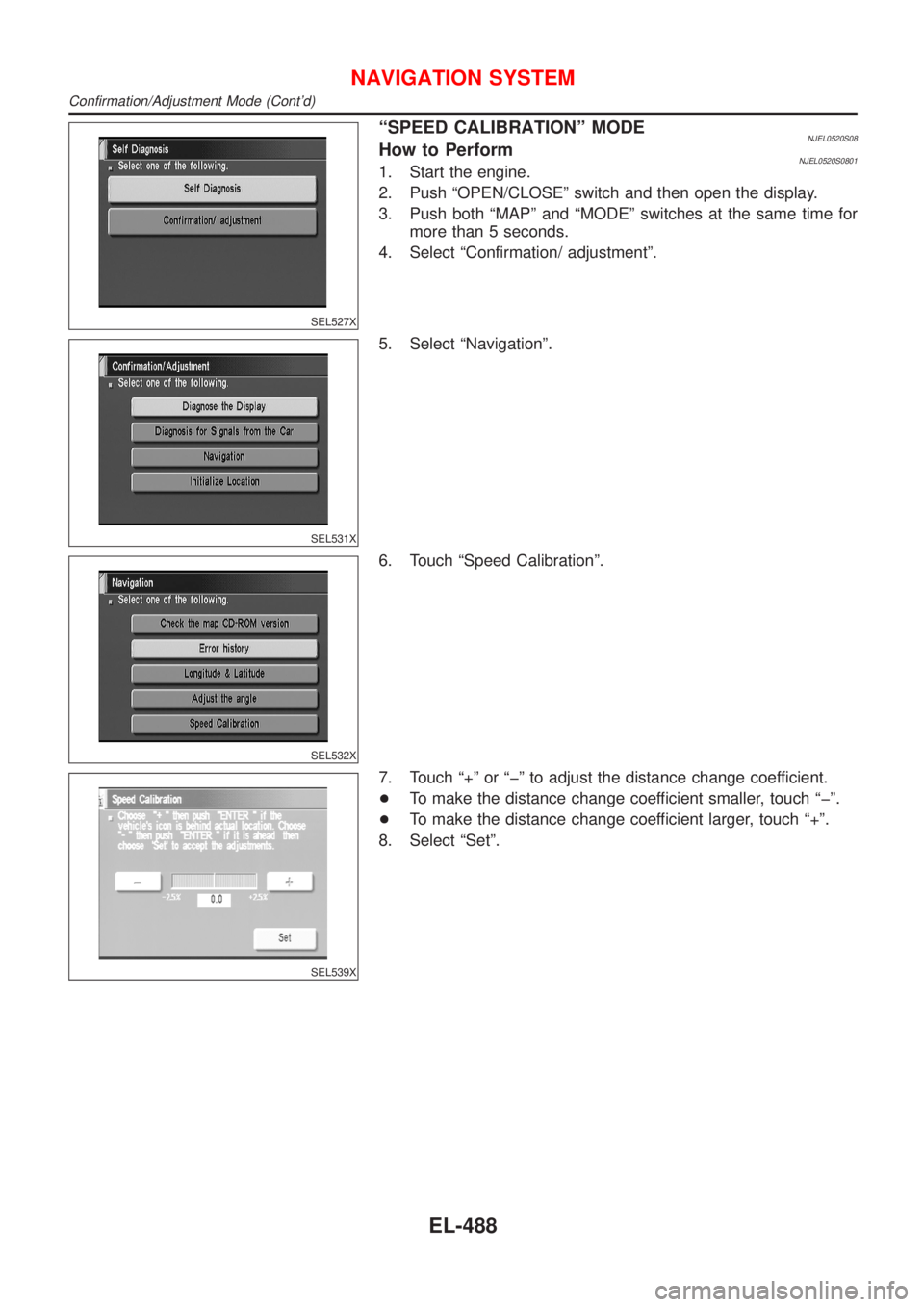

NISSAN ALMERA 2001 Service Manual SEL527X ªSPEED CALIBRATIONº MODENJEL0520S08How to PerformNJEL0520S08011. Start the engine. 2. Push ªOPEN/CLOSEº switch and then open the display. 3. Push both ªMAPº and ªMODEº switches at the

Page 2047 of 2898

NISSAN ALMERA 2001 Service Manual ªINITIALIZE LOCATIONº MODE=NJEL0520S09This procedure is for initializing the current location. Perform ªIni- tialize Locationº when the vehicle has been transported a long dis- tance by trailer, e

Page 2048 of 2898

NISSAN ALMERA 2001 Service Manual SETTING SEL618X 5. Push ªSETTINGº switch. 6. Select ªSystem Settingº. SEL559X 7. Select ªGPS Informationº. SEL146W 8. More than one GPS satellite icon turns green. (It may take 1 to 15 minutes.)
