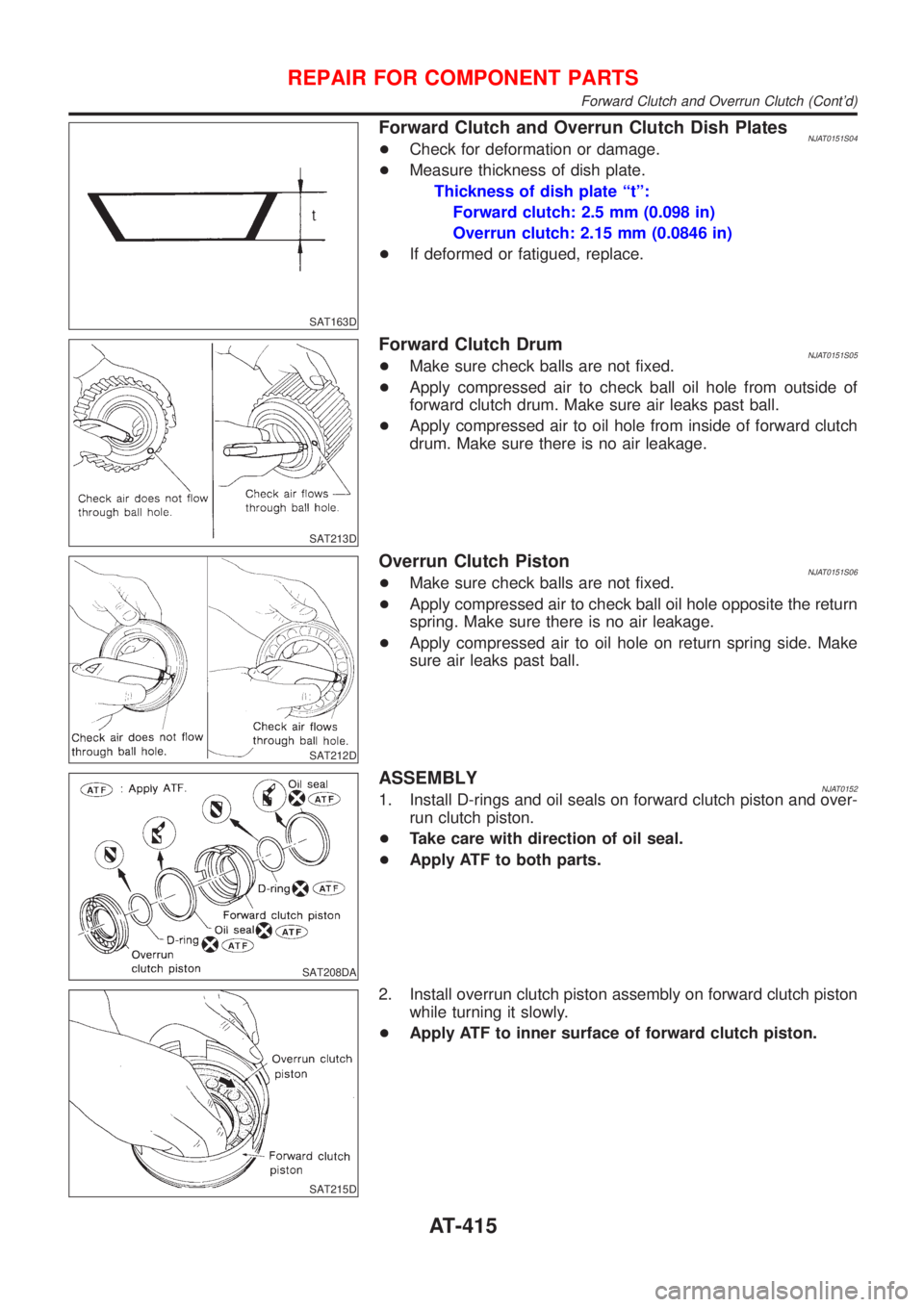

Forward Clutch and Overrun Clutch Dish PlatesNJAT0151S04+Check for deformation or damage.
+Measure thickness of dish plate.
Thickness of dish plate ªtº:
Forward clutch: 2.5 mm (0.098 in)
Overrun clutch: 2.15 mm (0.0846 in)
+If deformed or fatigued, replace.
SAT213D
Forward Clutch DrumNJAT0151S05+Make sure check balls are not fixed.
+Apply compressed air to check ball oil hole from outside of
forward clutch drum. Make sure air leaks past ball.
+Apply compressed air to oil hole from inside of forward clutch
drum. Make sure there is no air leakage.
SAT212D
Overrun Clutch PistonNJAT0151S06+Make sure check balls are not fixed.
+Apply compressed air to check ball oil hole opposite the return
spring. Make sure there is no air leakage.
+Apply compressed air to oil hole on return spring side. Make
sure air leaks past ball.
SAT208DA
ASSEMBLYNJAT01521. Install D-rings and oil seals on forward clutch piston and over-
run clutch piston.
+Take care with direction of oil seal.
+Apply ATF to both parts.
SAT215D
2. Install overrun clutch piston assembly on forward clutch piston
while turning it slowly.
+Apply ATF to inner surface of forward clutch piston.
REPAIR FOR COMPONENT PARTS
Forward Clutch and Overrun Clutch (Cont'd)
AT-415
Page 418 of 2898
SAT216D

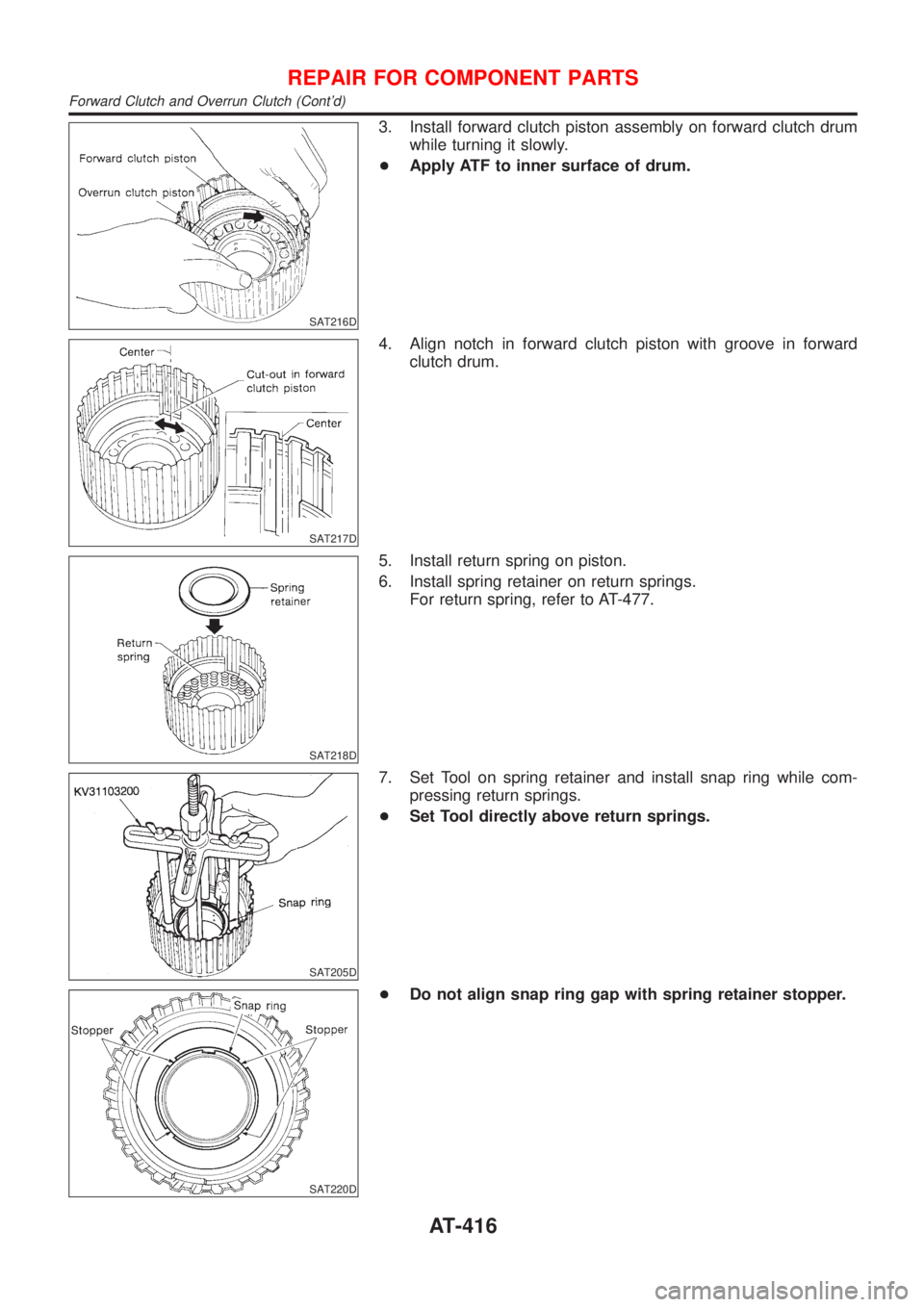

3. Install forward clutch piston assembly on forward clutch drum
while turning it slowly.
+Apply ATF to inner surface of drum.
SAT217D
4. Align notch in forward clutch piston with groove in forward
clutch drum.
SAT218D
5. Install return spring on piston.
6. Install spring retainer on return springs.
For return spring, refer to AT-477.
SAT205D
7. Set Tool on spring retainer and install snap ring while com-
pressing return springs.
+Set Tool directly above return springs.
SAT220D
+Do not align snap ring gap with spring retainer stopper.
REPAIR FOR COMPONENT PARTS
Forward Clutch and Overrun Clutch (Cont'd)
AT-416
Page 419 of 2898

SAT204D

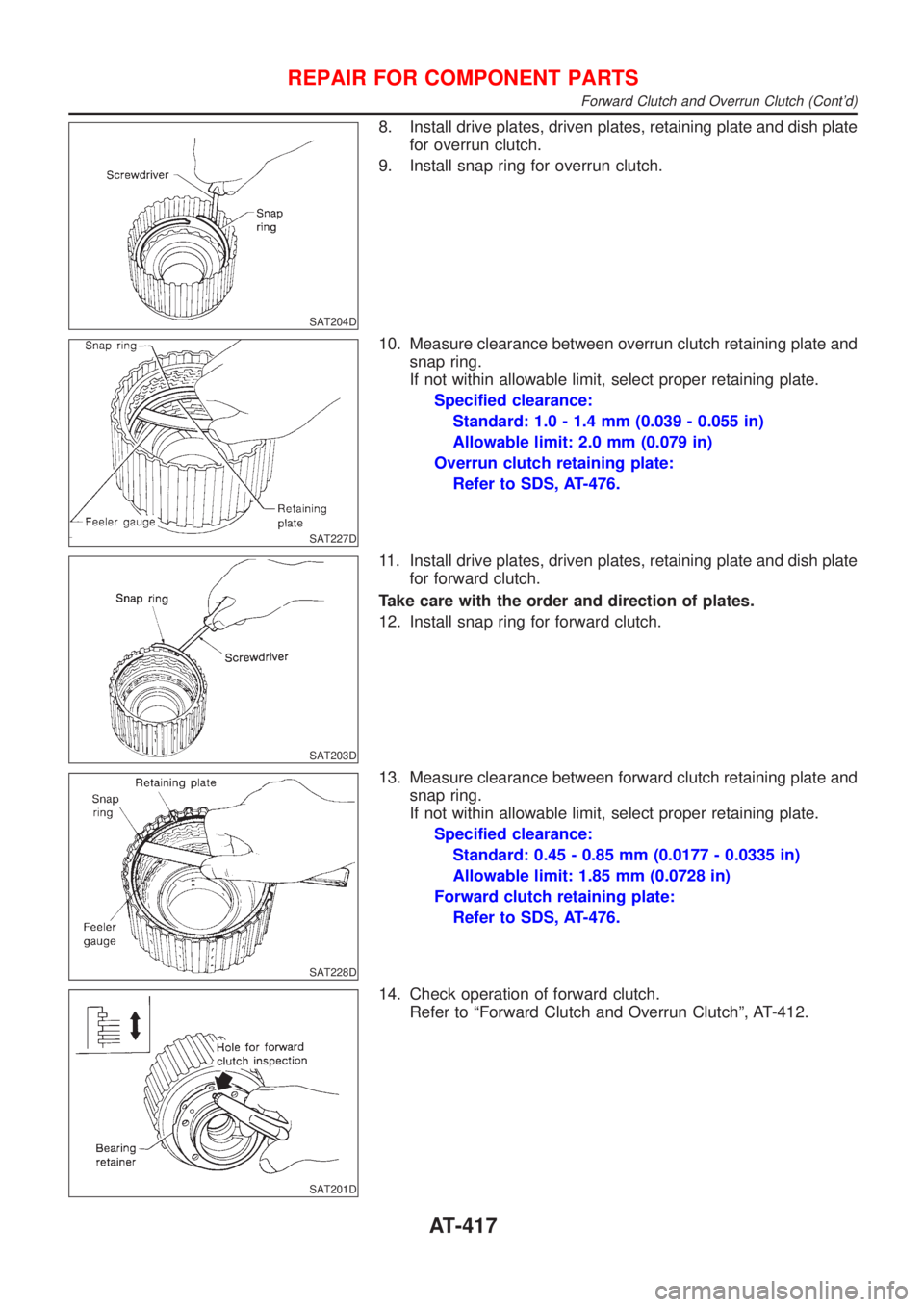

8. Install drive plates, driven plates, retaining plate and dish plate
for overrun clutch.
9. Install snap ring for overrun clutch.
SAT227D
10. Measure clearance between overrun clutch retaining plate and
snap ring.
If not within allowable limit, select proper retaining plate.
Specified clearance:
Standard: 1.0 - 1.4 mm (0.039 - 0.055 in)
Allowable limit: 2.0 mm (0.079 in)
Overrun clutch retaining plate:
Refer to SDS, AT-476.
SAT203D
11. Install drive plates, driven plates, retaining plate and dish plate
for forward clutch.
Take care with the order and direction of plates.
12. Install snap ring for forward clutch.
SAT228D
13. Measure clearance between forward clutch retaining plate and
snap ring.
If not within allowable limit, select proper retaining plate.
Specified clearance:
Standard: 0.45 - 0.85 mm (0.0177 - 0.0335 in)
Allowable limit: 1.85 mm (0.0728 in)
Forward clutch retaining plate:
Refer to SDS, AT-476.
SAT201D
14. Check operation of forward clutch.
Refer to ªForward Clutch and Overrun Clutchº, AT-412.
REPAIR FOR COMPONENT PARTS
Forward Clutch and Overrun Clutch (Cont'd)
AT-417
Page 420 of 2898
SAT202D

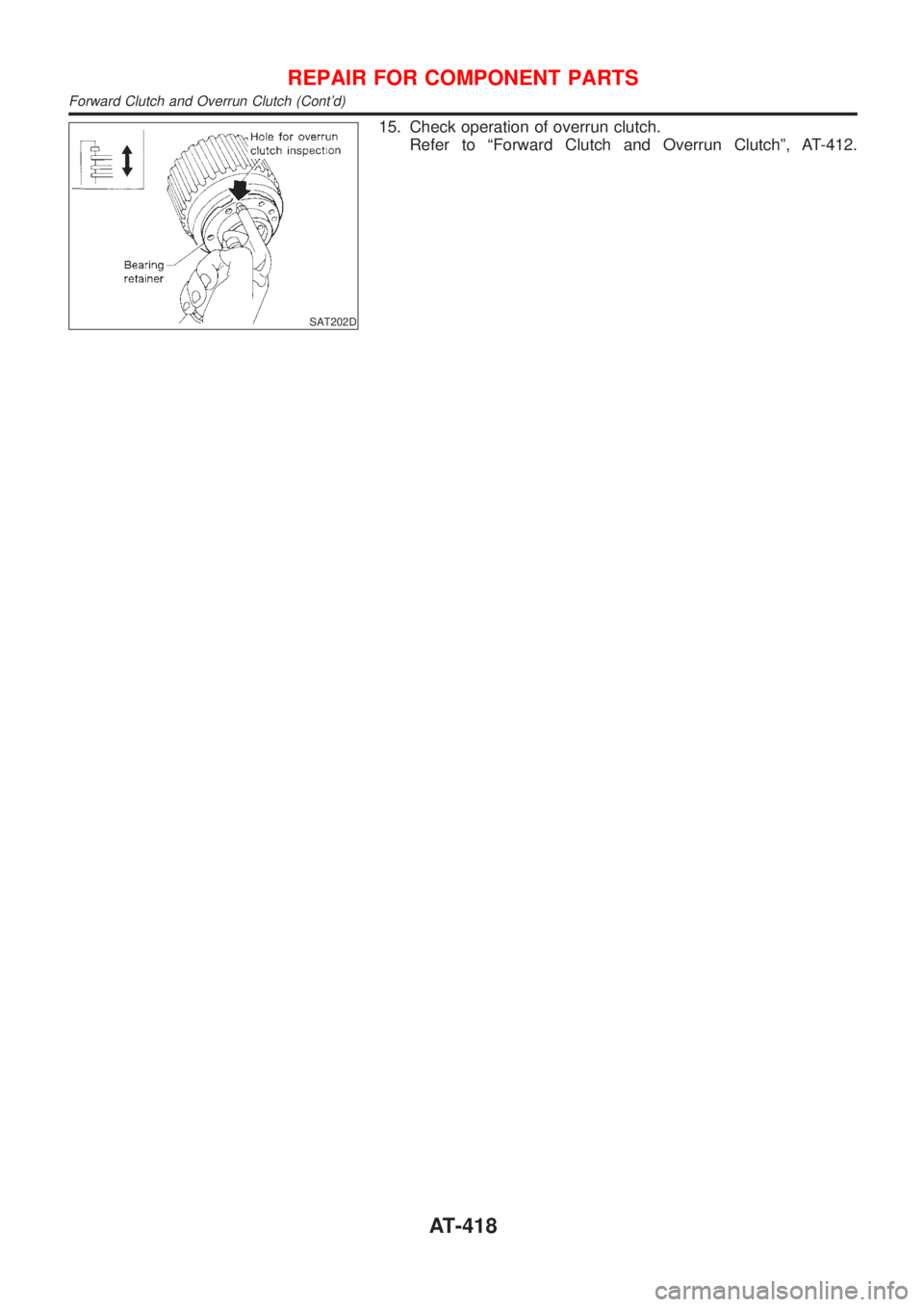

15. Check operation of overrun clutch.
Refer to ªForward Clutch and Overrun Clutchº, AT-412.
REPAIR FOR COMPONENT PARTS
Forward Clutch and Overrun Clutch (Cont'd)
AT-418
Page 421 of 2898
Low & Reverse Brake

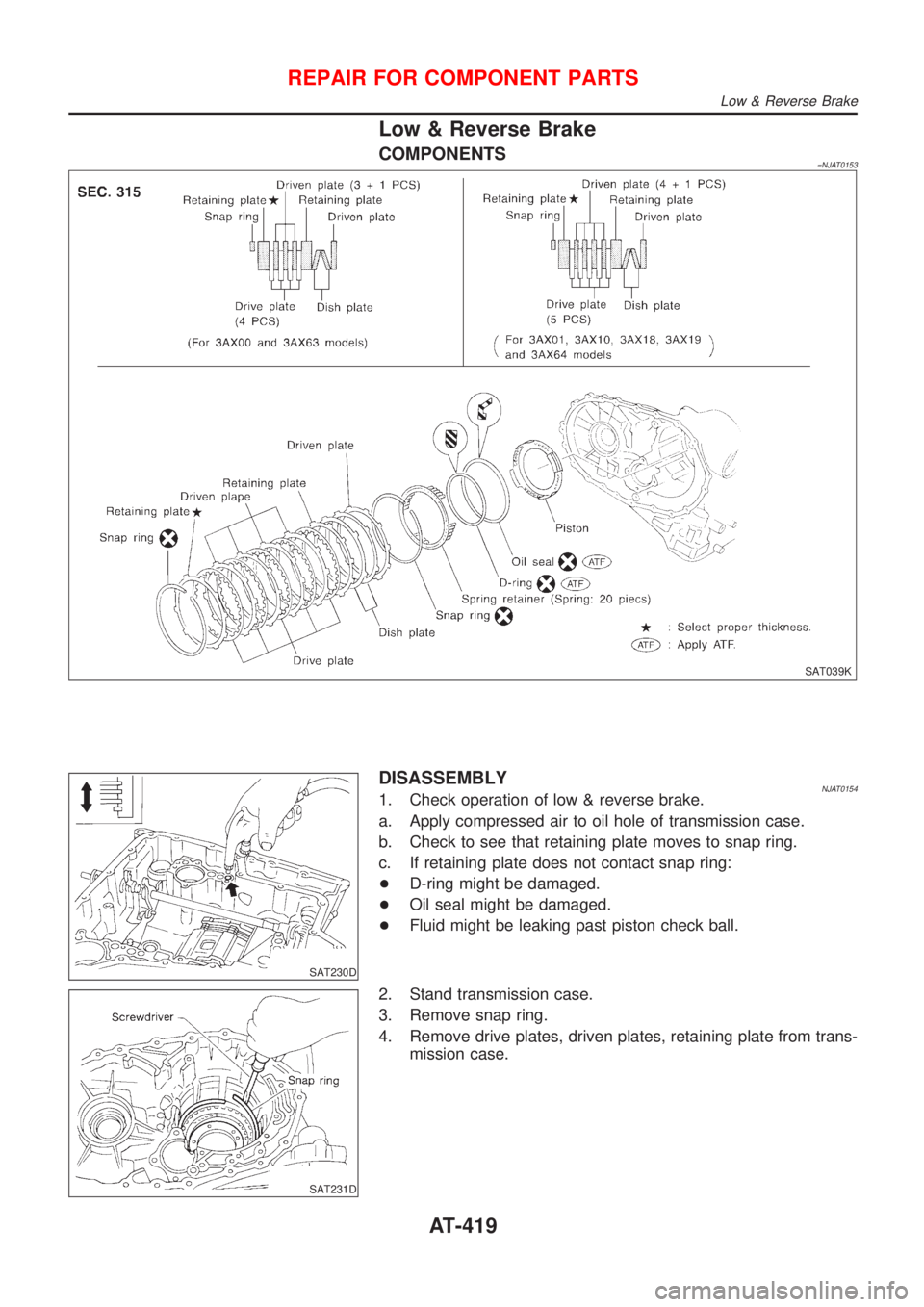

COMPONENTS=NJAT0153
SAT039K
SAT230D
DISASSEMBLYNJAT01541. Check operation of low & reverse brake.
a. Apply compressed air to oil hole of transmission case.
b. Check to see that retaining plate moves to snap ring.
c. If retaining plate does not contact snap ring:
+D-ring might be damaged.
+Oil seal might be damaged.
+Fluid might be leaking past piston check ball.
SAT231D
2. Stand transmission case.
3. Remove snap ring.
4. Remove drive plates, driven plates, retaining plate from trans-
mission case.
REPAIR FOR COMPONENT PARTS
Low & Reverse Brake
AT-419
Page 422 of 2898
SAT242D

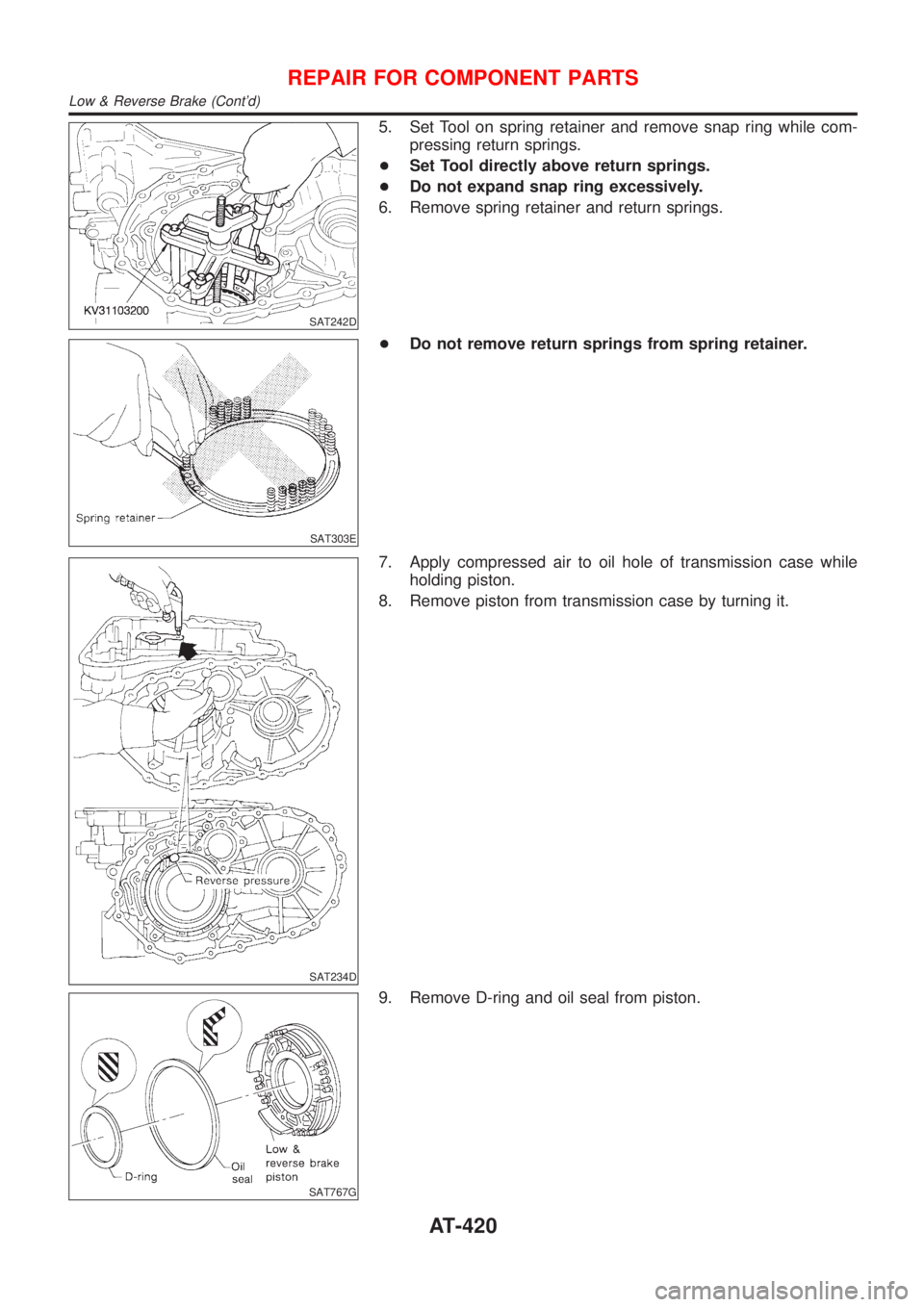

5. Set Tool on spring retainer and remove snap ring while com-
pressing return springs.
+Set Tool directly above return springs.
+Do not expand snap ring excessively.
6. Remove spring retainer and return springs.
SAT303E
+Do not remove return springs from spring retainer.
SAT234D
7. Apply compressed air to oil hole of transmission case while
holding piston.
8. Remove piston from transmission case by turning it.
SAT767G
9. Remove D-ring and oil seal from piston.
REPAIR FOR COMPONENT PARTS
Low & Reverse Brake (Cont'd)
AT-420
Page 423 of 2898

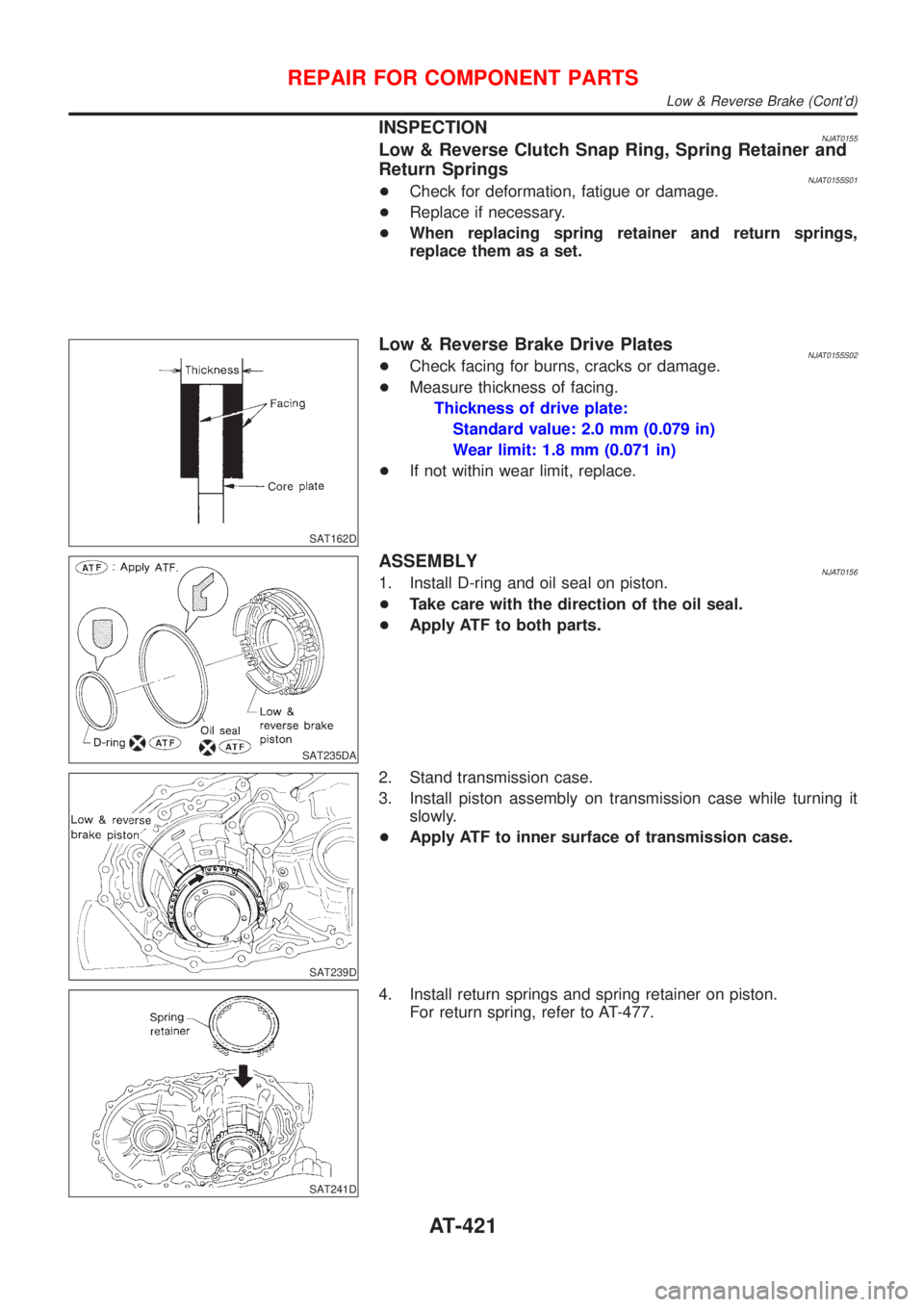

INSPECTIONNJAT0155Low & Reverse Clutch Snap Ring, Spring Retainer and
Return Springs
NJAT0155S01+Check for deformation, fatigue or damage.
+Replace if necessary.
+When replacing spring retainer and return springs,
replace them as a set.
SAT162D
Low & Reverse Brake Drive PlatesNJAT0155S02+Check facing for burns, cracks or damage.
+Measure thickness of facing.
Thickness of drive plate:
Standard value: 2.0 mm (0.079 in)
Wear limit: 1.8 mm (0.071 in)
+If not within wear limit, replace.
SAT235DA
ASSEMBLYNJAT01561. Install D-ring and oil seal on piston.
+Take care with the direction of the oil seal.
+Apply ATF to both parts.
SAT239D
2. Stand transmission case.
3. Install piston assembly on transmission case while turning it
slowly.
+Apply ATF to inner surface of transmission case.
SAT241D
4. Install return springs and spring retainer on piston.
For return spring, refer to AT-477.
REPAIR FOR COMPONENT PARTS
Low & Reverse Brake (Cont'd)
AT-421
Page 424 of 2898
SAT242D
5. Install snap ring while compressing return springs.
+Set Tool directly above return springs.
SAT254E
6. Install drive plates, driven plates, retaining plates and dished
plates.
+Do not align the projections on the two dished plates.
+Make sure to put the plates in the correct order and direc-
tion.
SAT231D
7. Install snap ring.
SAT246D
8. Measure clearance between retaining plate and snap ring. If
not within allowable limit, select proper retaining plate (front
side).
Specified clearance:
Standard: 1.4 - 1.8 mm (0.055 - 0.071 in)
Allowable limit:
2.8 mm (0.110 in)
Retaining plate:
Refer to SDS, AT-476.
SAT230D
9. Check operation of low & reverse brake.
Refer to ªDISASSEMBLYº, AT-419.
REPAIR FOR COMPONENT PARTS
Low & Reverse Brake (Cont'd)
