Page 537 of 2898

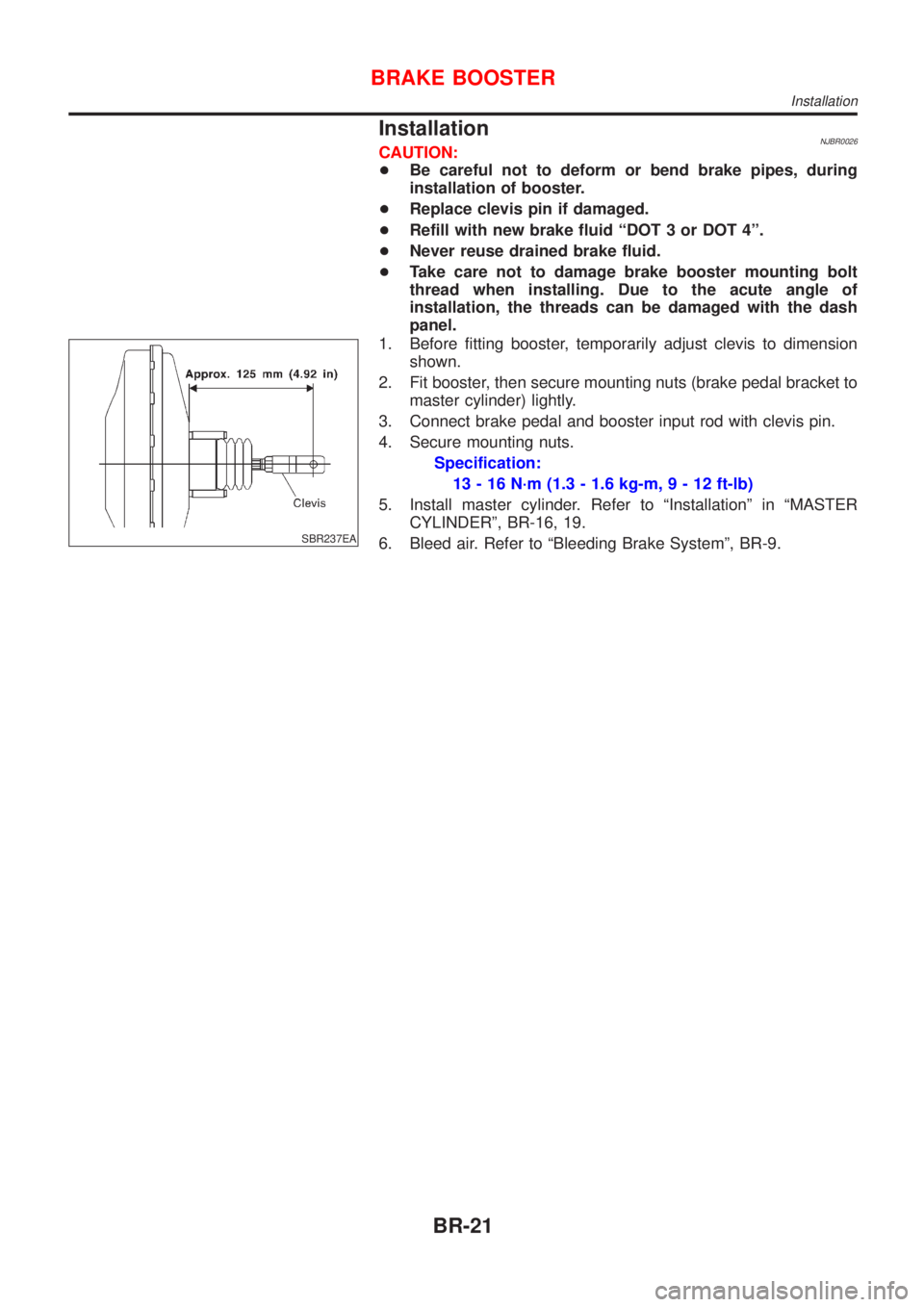

NISSAN ALMERA 2001 Service Manual InstallationNJBR0026CAUTION: +Be careful not to deform or bend brake pipes, during installation of booster. +Replace clevis pin if damaged. +Refill with new brake fluid ªDOT 3 or DOT 4º. +Never reus

Page 538 of 2898

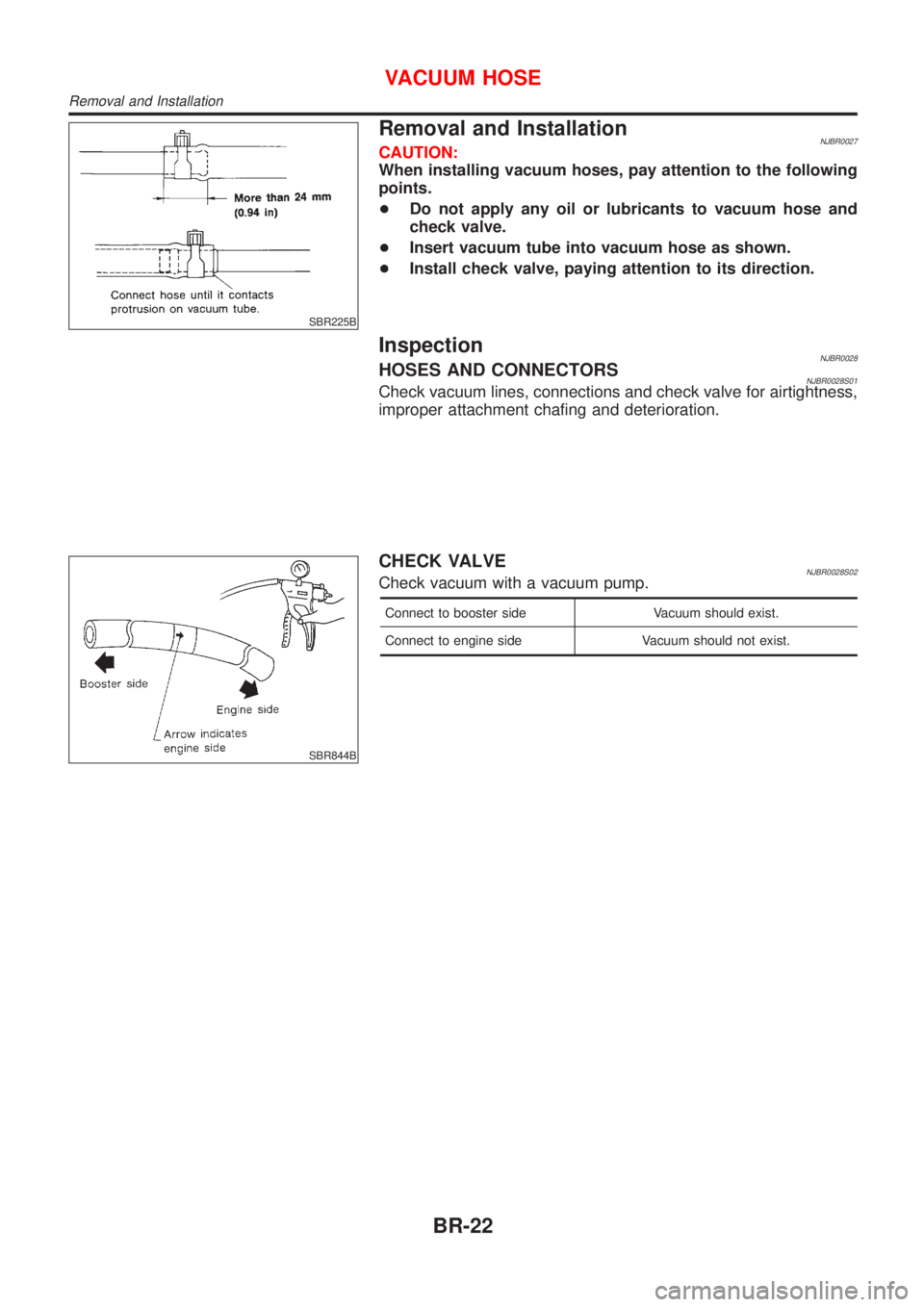

NISSAN ALMERA 2001 Service Manual SBR225B Removal and InstallationNJBR0027CAUTION: When installing vacuum hoses, pay attention to the following points. +Do not apply any oil or lubricants to vacuum hose and check valve. +Insert vacuum

Page 539 of 2898

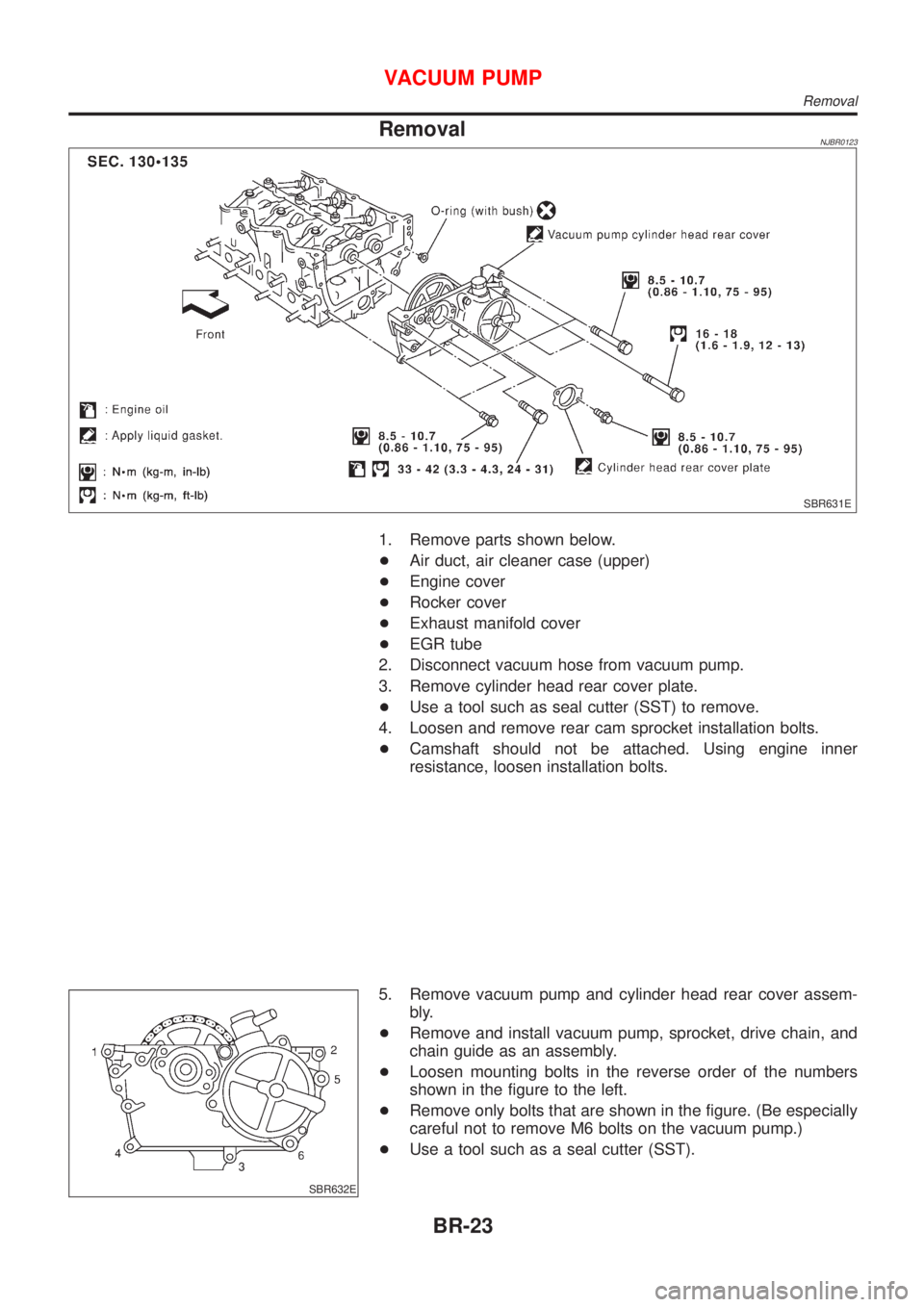

NISSAN ALMERA 2001 Service Manual RemovalNJBR0123 SBR631E 1. Remove parts shown below. +Air duct, air cleaner case (upper) +Engine cover +Rocker cover +Exhaust manifold cover +EGR tube 2. Disconnect vacuum hose from vacuum pump. 3. Re

Page 540 of 2898

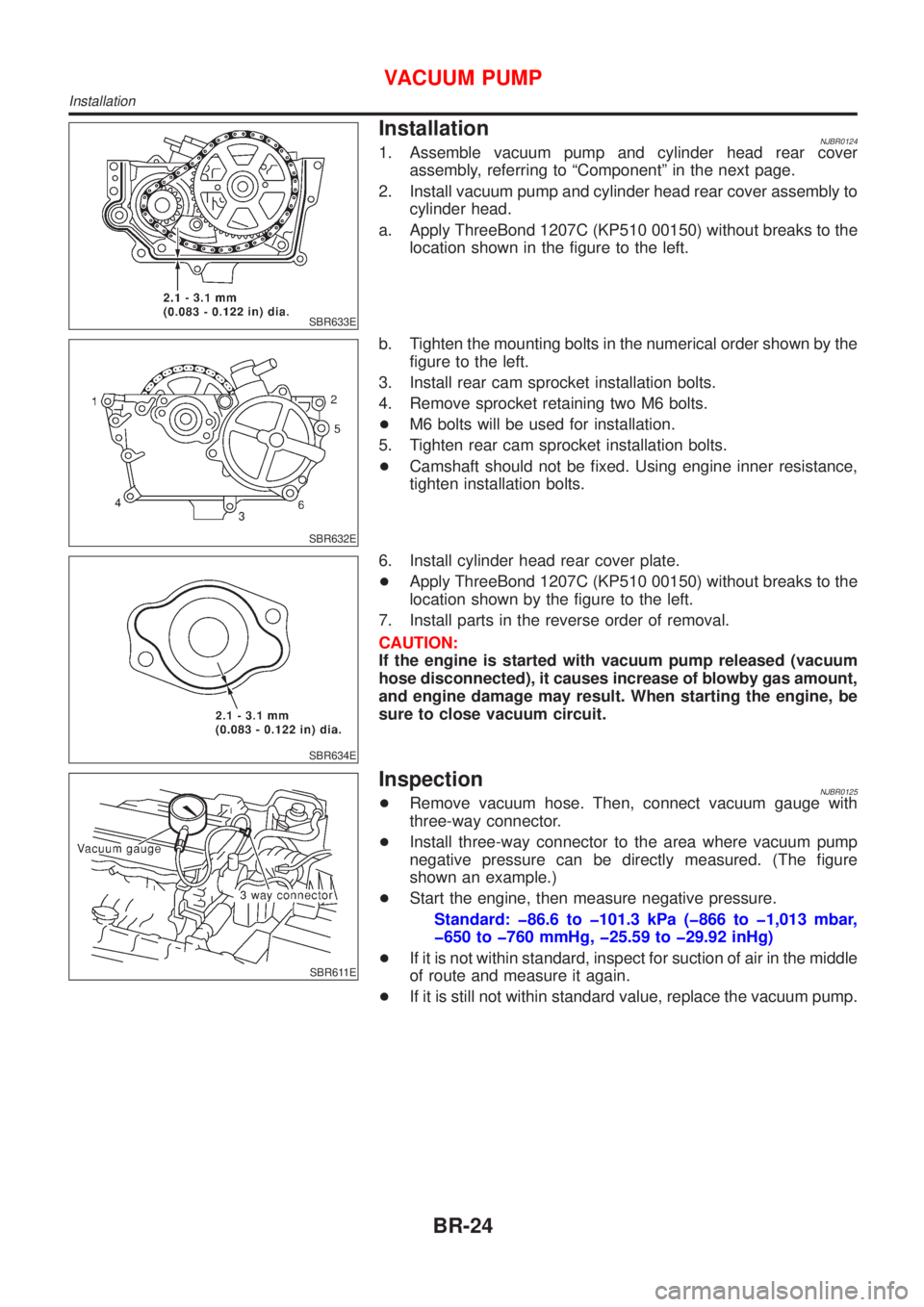

NISSAN ALMERA 2001 Service Manual SBR633E InstallationNJBR01241. Assemble vacuum pump and cylinder head rear cover assembly, referring to ªComponentº in the next page. 2. Install vacuum pump and cylinder head rear cover assembly to

Page 541 of 2898

NISSAN ALMERA 2001 Service Manual ComponentNJBR0126 SBR612E SBR613E DisassemblyNJBR0136Disassemble the components, referring to the ªComponentº, then remove vacuum pump. CAUTION: Do not disassemble vacuum pump. (Do not loosen three

Page 542 of 2898

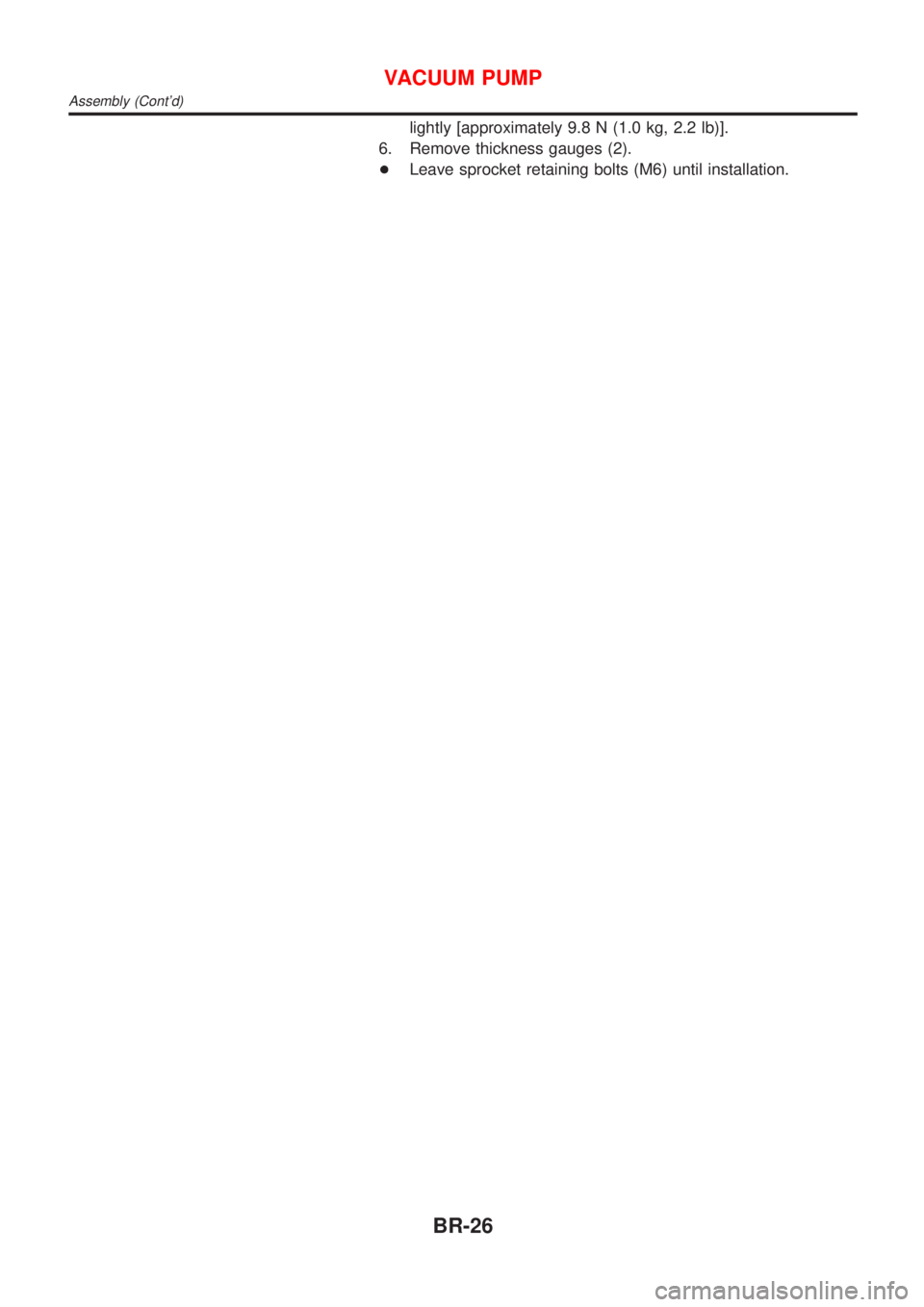

NISSAN ALMERA 2001 Service Manual lightly [approximately 9.8 N (1.0 kg, 2.2 lb)]. 6. Remove thickness gauges (2). +Leave sprocket retaining bolts (M6) until installation. VACUUM PUMP Assembly (Contd) BR-26

Page 543 of 2898

NISSAN ALMERA 2001 Service Manual ComponentNJBR0030 NBR429 1. Main pin 2. Pin boot 3. Torque member fixing bolt 4. Torque member 5. Shim cover 6. Inner shim7. Inner pad 8. Pad retainer 9. Outer pad 10. Outer shim 11. Connecting bolt 1

Page 544 of 2898

NISSAN ALMERA 2001 Service Manual SBR976B SBR932C 1. Remove master cylinder reservoir cap. 2. Remove pin bolt. 3. Open cylinder body upward. Then remove pad with retainers, inner and outer shims. Standard pad thickness: 11 mm (0.43 in
