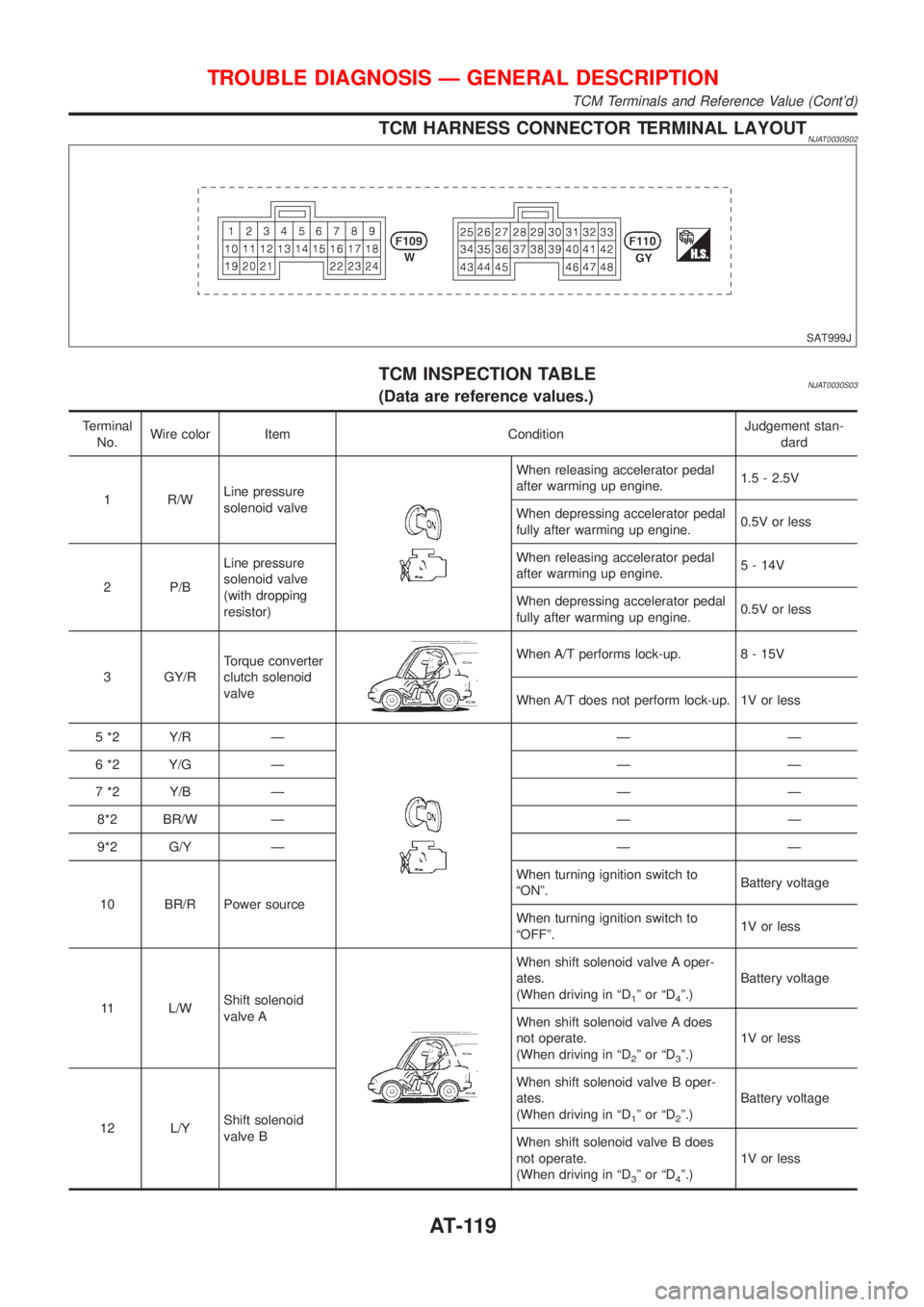

NISSAN ALMERA 2001 Service Manual TCM HARNESS CONNECTOR TERMINAL LAYOUTNJAT0030S02 SAT999J TCM INSPECTION TABLENJAT0030S03(Data are reference values.) Terminal No.Wire color Item ConditionJudgement stan- dard 1 R/WLine pressure soleno

Page 122 of 2898

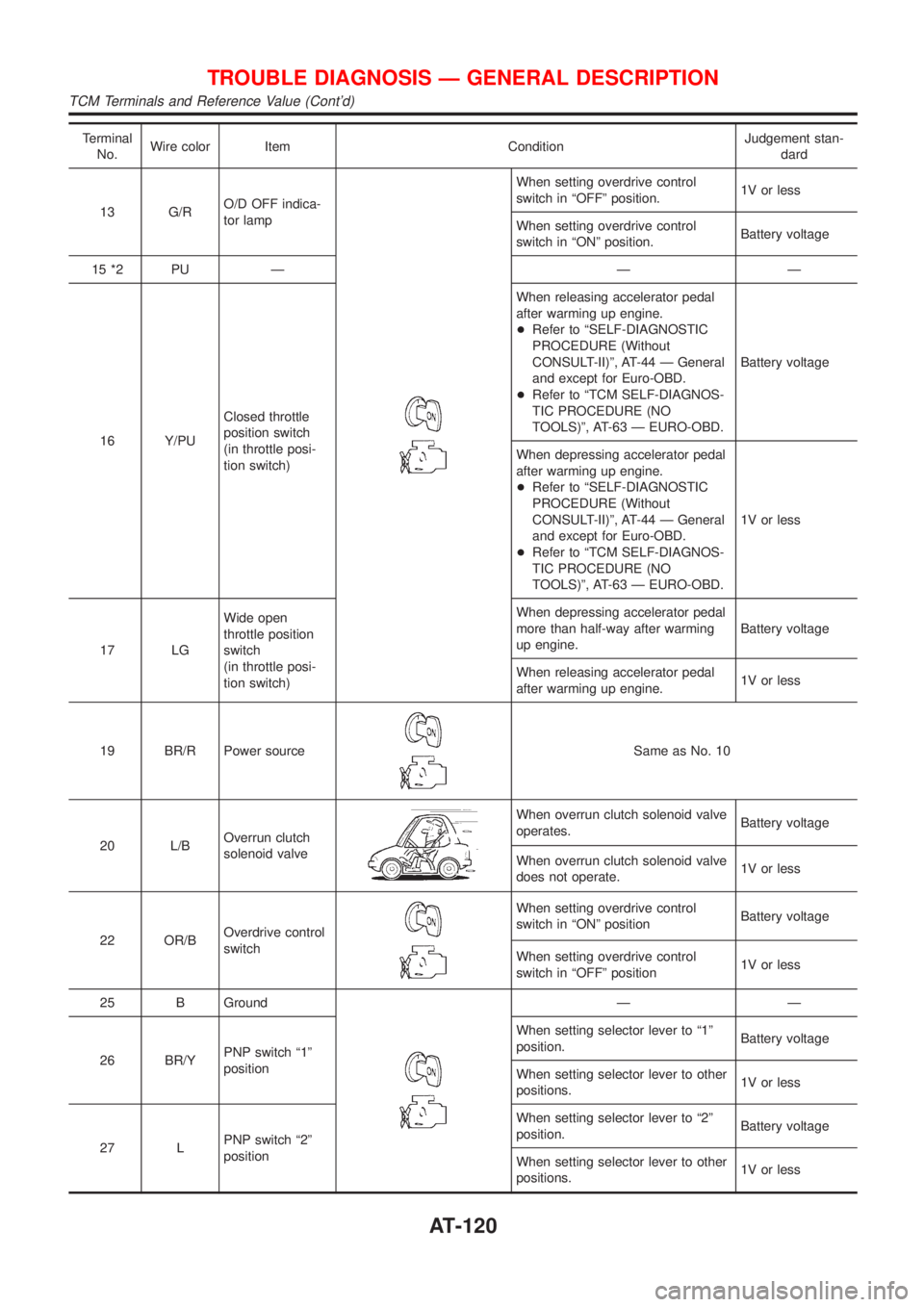

NISSAN ALMERA 2001 Service Manual Terminal No.Wire color Item ConditionJudgement stan- dard 13 G/RO/D OFF indica- tor lamp When setting overdrive control switch in ªOFFº position.1V or less When setting overdrive control switch in

Page 123 of 2898

NISSAN ALMERA 2001 Service Manual Terminal No.Wire color Item ConditionJudgement stan- dard 28 R/BPower source (Memory back-up) or When turning ignition switch to ªOFFº.Battery voltage When turning ignition switch to ªONº.Battery

Page 124 of 2898

NISSAN ALMERA 2001 Service Manual Terminal No.Wire color Item ConditionJudgement stan- dard 41 GYThrottle position sensor When depressing accelerator pedal slowly after warming up engine. (Voltage rises gradually in response to thrott

Page 125 of 2898

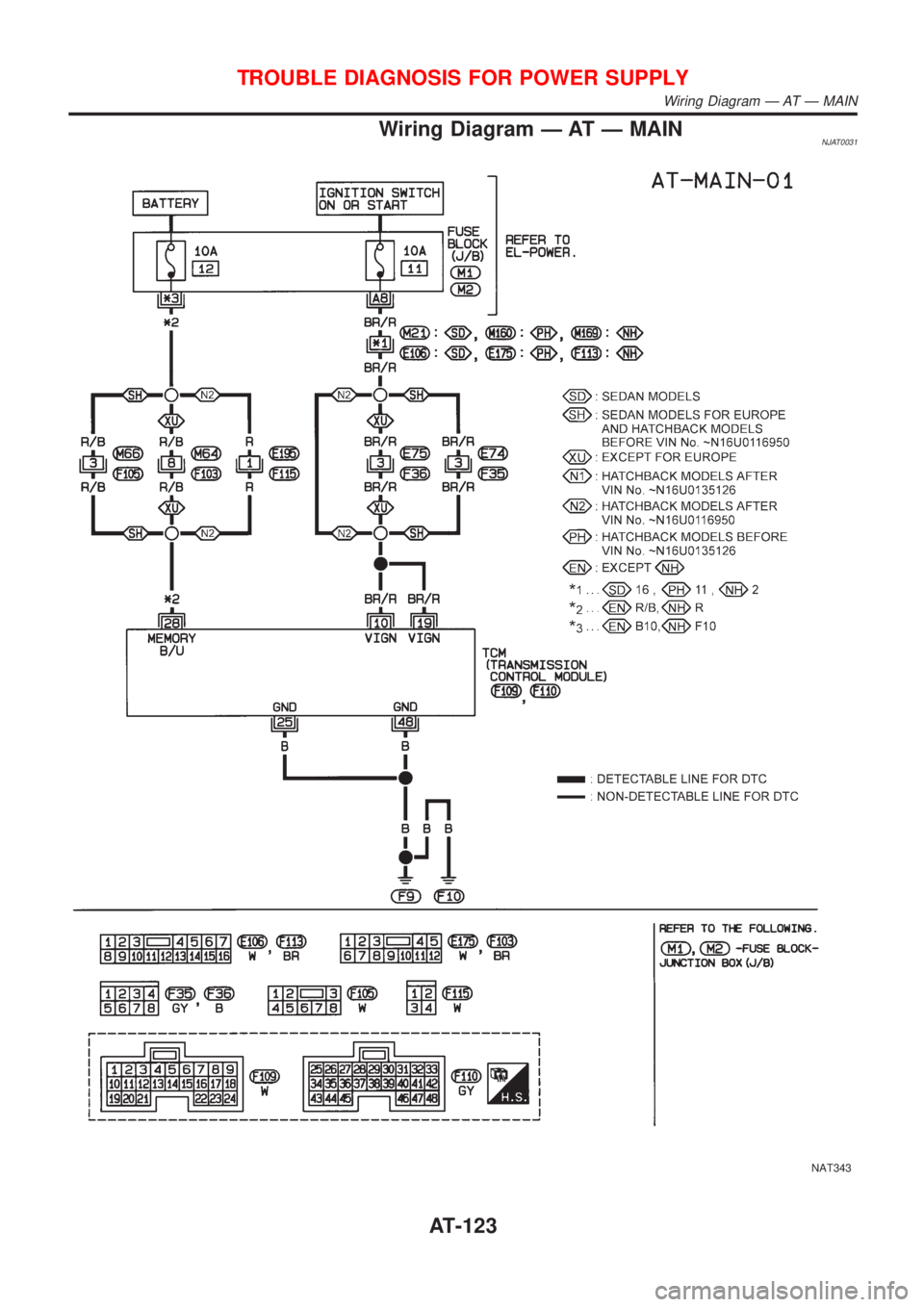

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð AT Ð MAINNJAT0031 NAT343 TROUBLE DIAGNOSIS FOR POWER SUPPLY Wiring Diagram Ð AT Ð MAIN AT-123

Page 126 of 2898

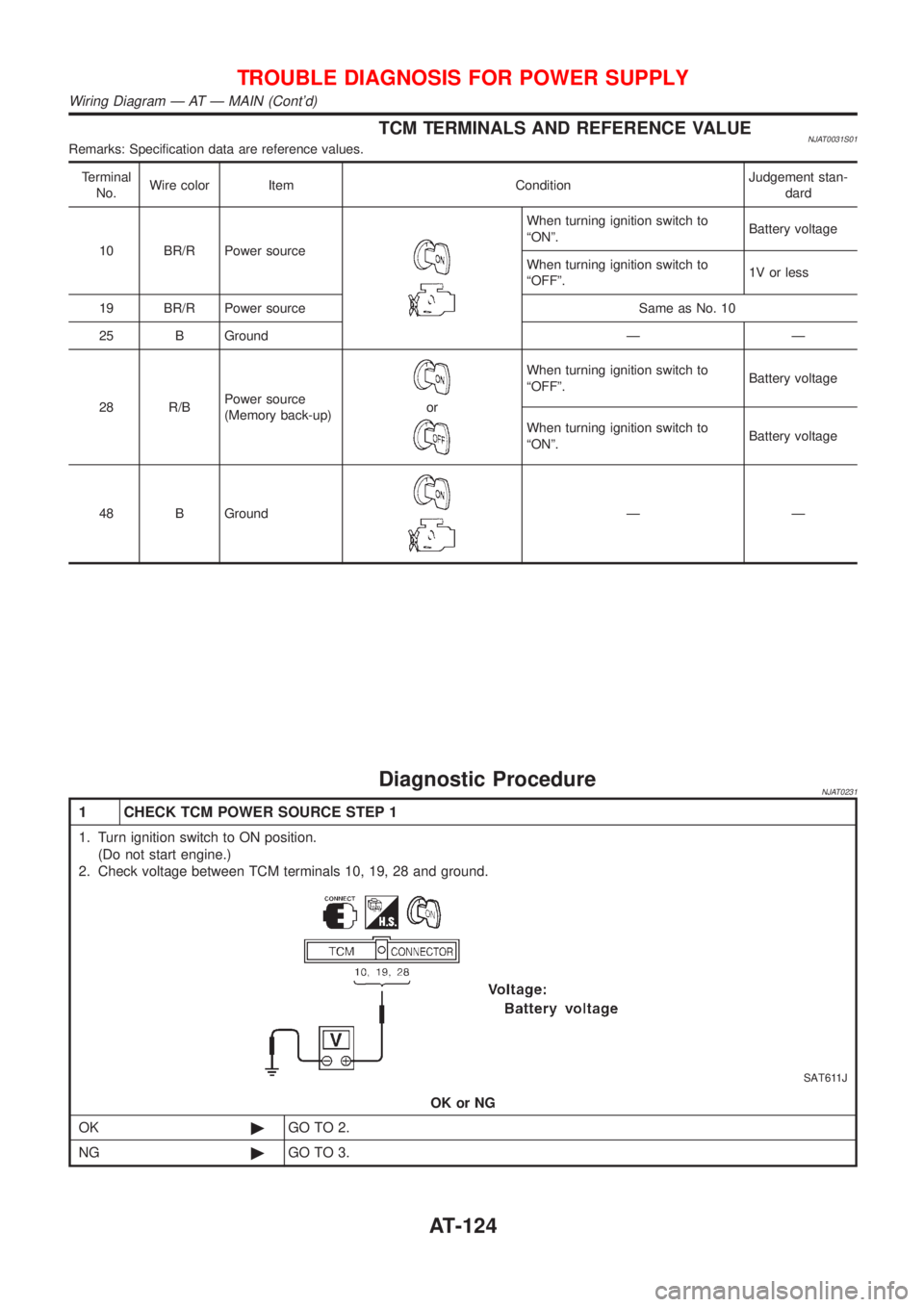

NISSAN ALMERA 2001 Service Manual TCM TERMINALS AND REFERENCE VALUENJAT0031S01Remarks: Specification data are reference values. Terminal No.Wire color Item ConditionJudgement stan- dard 10 BR/R Power source When turning ignition switc

Page 127 of 2898

NISSAN ALMERA 2001 Service Manual 2 CHECK TCM POWER SOURCE STEP 2 1. Turn ignition switch to OFF position. 2. Check voltage between TCM terminal 28 and ground. SAT612JA OK or NG OK©GO TO 4. NG©GO TO 3. 3 DETECT MALFUNCTIONING ITEM C

Page 128 of 2898

NISSAN ALMERA 2001 Service Manual SAT357H DescriptionNJAT0038The revolution sensor detects the revolution of the idler gear park- ing pawl lock gear and emits a pulse signal. The pulse signal is sent to the TCM which converts it into
