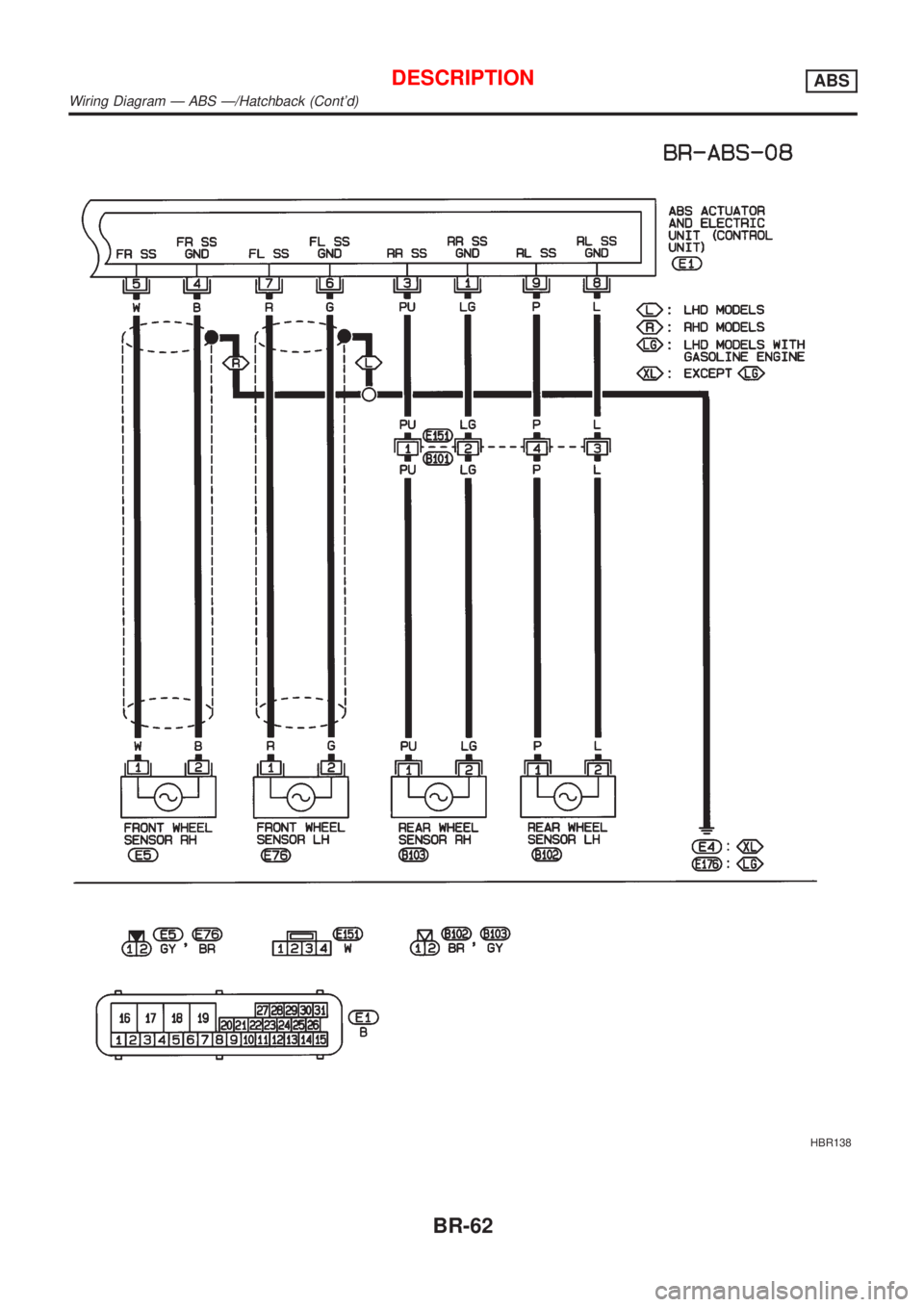

Wiring Diagram Ð ABS Ð/Hatchback (Cont'd)
BR-61
Page 578 of 2898
HBR138
DESCRIPTIONABS

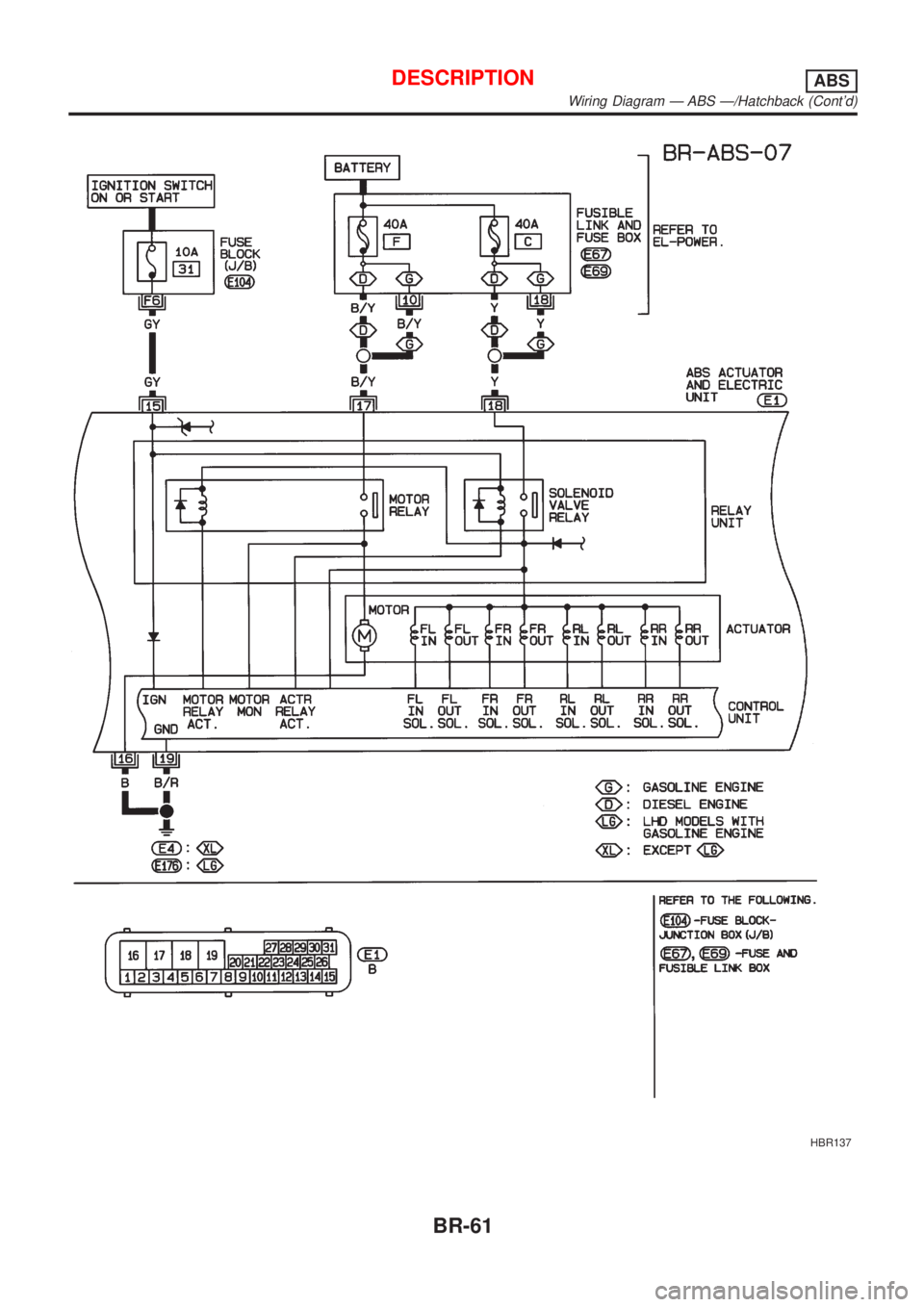

Wiring Diagram Ð ABS Ð/Hatchback (Cont'd)
BR-62
Page 579 of 2898

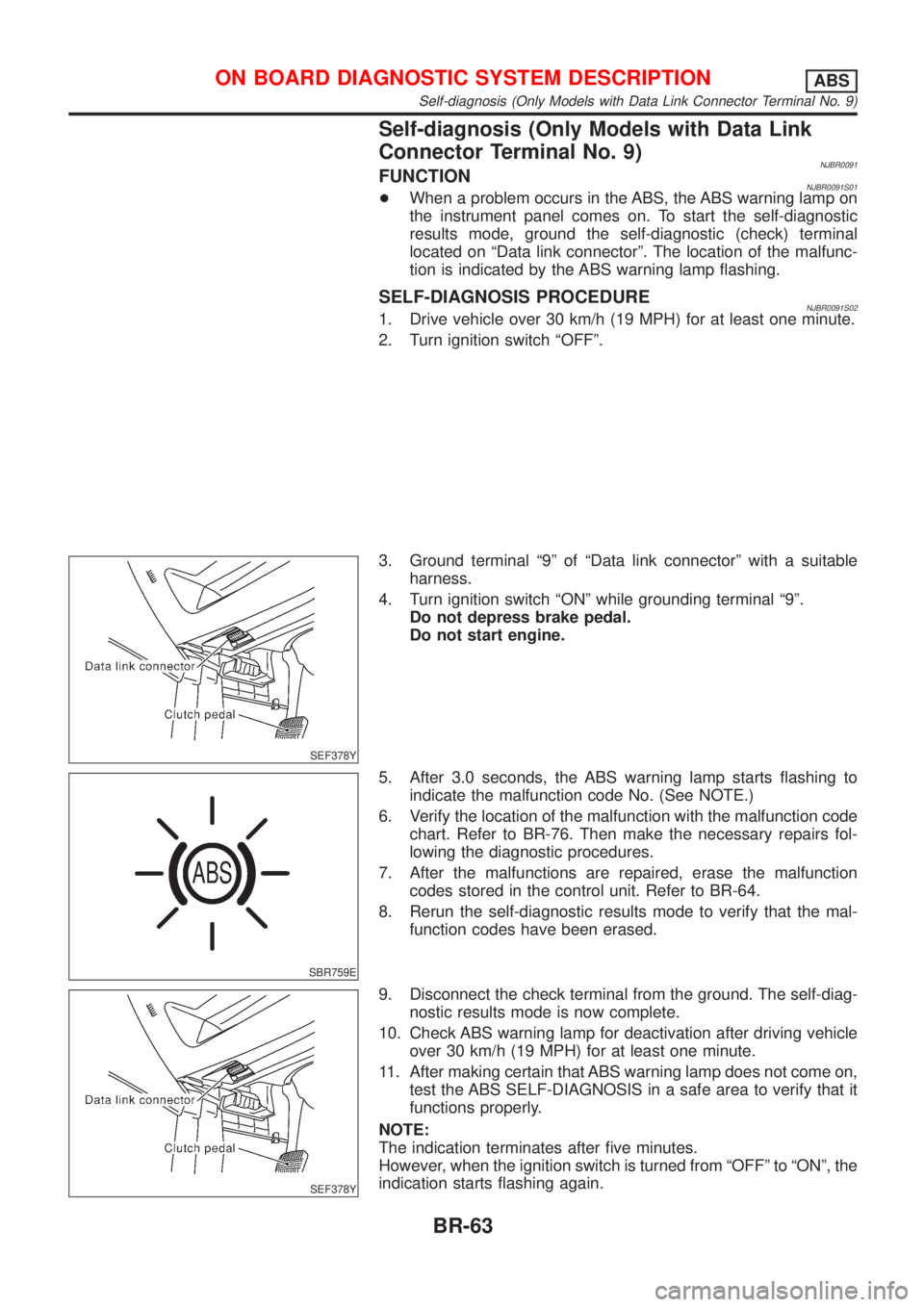

Self-diagnosis (Only Models with Data Link
Connector Terminal No. 9)
NJBR0091FUNCTIONNJBR0091S01+When a problem occurs in the ABS, the ABS warning lamp on
the instrument panel comes on. To start the self-diagnostic
results mode, ground the self-diagnostic (check) terminal
located on ªData link connectorº. The location of the malfunc-
tion is indicated by the ABS warning lamp flashing.
SELF-DIAGNOSIS PROCEDURENJBR0091S021. Drive vehicle over 30 km/h (19 MPH) for at least one minute.
2. Turn ignition switch ªOFFº.
SEF378Y
3. Ground terminal ª9º of ªData link connectorº with a suitable
harness.
4. Turn ignition switch ªONº while grounding terminal ª9º.
Do not depress brake pedal.
Do not start engine.
SBR759E
5. After 3.0 seconds, the ABS warning lamp starts flashing to
indicate the malfunction code No. (See NOTE.)
6. Verify the location of the malfunction with the malfunction code
chart. Refer to BR-76. Then make the necessary repairs fol-
lowing the diagnostic procedures.
7. After the malfunctions are repaired, erase the malfunction
codes stored in the control unit. Refer to BR-64.
8. Rerun the self-diagnostic results mode to verify that the mal-
function codes have been erased.
SEF378Y
9. Disconnect the check terminal from the ground. The self-diag-
nostic results mode is now complete.
10. Check ABS warning lamp for deactivation after driving vehicle
over 30 km/h (19 MPH) for at least one minute.
11. After making certain that ABS warning lamp does not come on,
test the ABS SELF-DIAGNOSIS in a safe area to verify that it
functions properly.
NOTE:
The indication terminates after five minutes.
However, when the ignition switch is turned from ªOFFº to ªONº, the
indication starts flashing again.
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
Self-diagnosis (Only Models with Data Link Connector Terminal No. 9)
BR-63
Page 580 of 2898

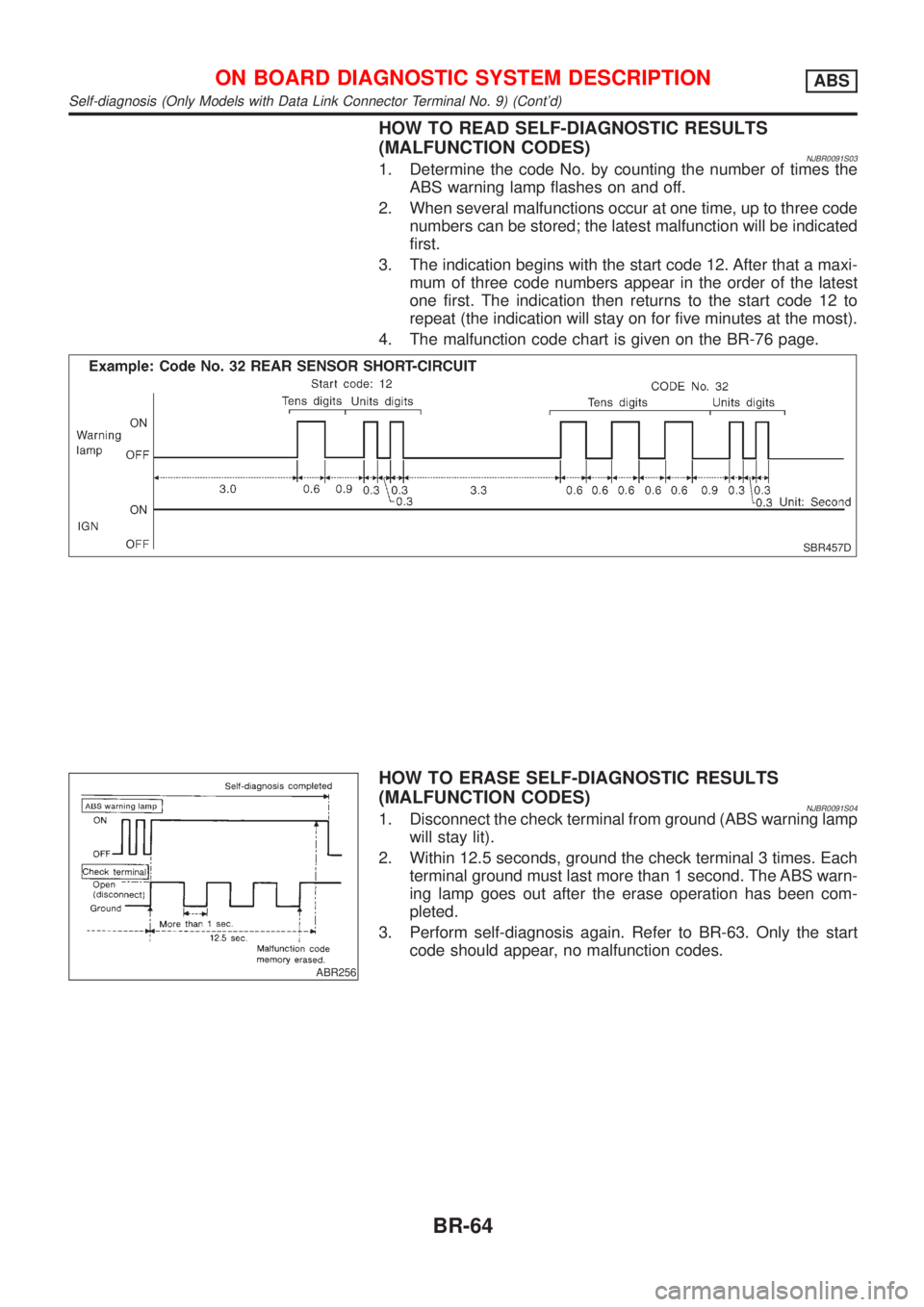

HOW TO READ SELF-DIAGNOSTIC RESULTS
(MALFUNCTION CODES)
NJBR0091S031. Determine the code No. by counting the number of times the
ABS warning lamp flashes on and off.
2. When several malfunctions occur at one time, up to three code
numbers can be stored; the latest malfunction will be indicated
first.
3. The indication begins with the start code 12. After that a maxi-
mum of three code numbers appear in the order of the latest
one first. The indication then returns to the start code 12 to
repeat (the indication will stay on for five minutes at the most).
4. The malfunction code chart is given on the BR-76 page.
SBR457D
ABR256
HOW TO ERASE SELF-DIAGNOSTIC RESULTS
(MALFUNCTION CODES)
NJBR0091S041. Disconnect the check terminal from ground (ABS warning lamp
will stay lit).
2. Within 12.5 seconds, ground the check terminal 3 times. Each
terminal ground must last more than 1 second. The ABS warn-
ing lamp goes out after the erase operation has been com-
pleted.
3. Perform self-diagnosis again. Refer to BR-63. Only the start
code should appear, no malfunction codes.
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
Self-diagnosis (Only Models with Data Link Connector Terminal No. 9) (Cont'd)
BR-64
Page 581 of 2898

CONSULT-IINJBR0092CONSULT-II APPLICATION TO ABSNJBR0092S01
ITEMSELF-DIAGNOSTIC
RESULTSDATA MONITOR ACTIVE TEST
Front right wheel sensor X X Ð
Front left wheel sensor X X Ð
Rear right wheel sensor X X Ð
Rear left wheel sensor X X Ð
Stop lamp switch Ð X Ð
Front right inlet solenoid valve X X X
Front right outlet solenoid valve X X X
Front left inlet solenoid valve X X X
Front left outlet solenoid valve X X X
Rear right inlet solenoid valve X X X
Rear right outlet solenoid valve X X X
Rear left inlet solenoid valve X X X
Rear left outlet solenoid valve X X X
Actuator solenoid valve relay X X Ð
Actuator motor relay
(ABS MOTOR is shown on the ACTIVE TEST
screen.)XXX
ABS warning lamp Ð X Ð
Battery voltage X X Ð
Control unit X Ð Ð
X: Applicable
Ð: Not applicable
ECU (ABS CONTROL UNIT) PART NUMBER MODENJBR0092S02Ignore the ECU part number displayed in the ECU PART NUMBER MODE. Refer to parts catalog to order
the ABS actuator and electric unit.
SEF378Y
CONSULT-II Inspection ProcedureNJBR0093SELF-DIAGNOSIS PROCEDURENJBR0093S011. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector.
3. Start engine.
4. Drive vehicle over 30 km/h (19 MPH) for at least one minute.
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
CONSULT-II
BR-65
Page 582 of 2898
PBR455D
5. Stop vehicle with engine running and touch ªSTARTº on CON-
SULT-II screen.
PBR385C
6. Touch ªABSº.
PST412B
7. Touch ªSELF-DIAG RESULTSº.
+The screen shows the detected malfunction and how many
times the ignition switch has been turned since the malfunc-
tion.
8. Make the necessary repairs following the diagnostic proce-
dures.
SBR561E
9. After the malfunctions are repaired, erase the self-diagnostic
results stored in the control unit by touching ªERASEº.
10. Check ABS warning lamp for deactivation after driving vehicle
over 30 km/h (19 MPH) for at least one minute.
NOTE:
ªSELF-DIAG RESULTSº screen shows the detected malfunction
and how many times the ignition switch has been turned since the
malfunction.
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
CONSULT-II Inspection Procedure (Cont'd)
BR-66
Page 583 of 2898
![NISSAN ALMERA 2001 Service Manual SELF-DIAGNOSTIC RESULTS MODE=NJBR0093S02
Diagnostic item Diagnostic item is detected when ...Reference
Page
FR RH SENSOR
[OPEN]*1+Circuit for front right wheel sensor is open.
(An abnormally high inpu NISSAN ALMERA 2001 Service Manual SELF-DIAGNOSTIC RESULTS MODE=NJBR0093S02
Diagnostic item Diagnostic item is detected when ...Reference
Page
FR RH SENSOR
[OPEN]*1+Circuit for front right wheel sensor is open.
(An abnormally high inpu](/manual-img/5/57348/w960_57348-582.png)
SELF-DIAGNOSTIC RESULTS MODE=NJBR0093S02
Diagnostic item Diagnostic item is detected when ...Reference
Page
FR RH SENSOR
[OPEN]*1+Circuit for front right wheel sensor is open.
(An abnormally high input voltage is entered.)BR-78
FR LH SENSOR
[OPEN]*1+Circuit for front left wheel sensor is open.
(An abnormally high input voltage is entered.)BR-78
RR RH SENSOR
[OPEN]*1+Circuit for rear right sensor is open.
(An abnormally high input voltage is entered.)BR-78
RR LH SENSOR
[OPEN]*1+Circuit for rear left sensor is open.
(An abnormally high input voltage is entered.)BR-78
FR RH SENSOR
[SHORT]*1+Circuit for front right wheel sensor is shorted.
(An abnormally low input voltage is entered.)BR-78
FR LH SENSOR
[SHORT]*1+Circuit for front left wheel sensor is shorted.
(An abnormally low input voltage is entered.)BR-78
RR RH SENSOR
[SHORT]*1+Circuit for rear right sensor is shorted.
(An abnormally low input voltage is entered.)BR-78
RR LH SENSOR
[SHORT]*1+Circuit for rear left sensor is shorted.
(An abnormally low input voltage is entered.)BR-78
ABS SENSOR
[ABNORMAL SIGNAL]+Teeth damage on sensor rotor or improper installation of wheel sensor.
(Abnormal wheel sensor signal is entered.)BR-78
FR RH IN ABS SOL
[OPEN]+Circuit for front right inlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-81
FR LH IN ABS SOL
[OPEN]+Circuit for front left inlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-81
RR RH IN ABS SOL
[OPEN]+Circuit for rear right inlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-81
RR LH IN ABS SOL
[OPEN]+Circuit for rear left inlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-81
FR RH IN ABS SOL
[SHORT]+Circuit for front right inlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-81
FR LH IN ABS SOL
[SHORT]+Circuit for front left inlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-81
RR RH IN ABS SOL
[SHORT]+Circuit for rear right inlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-81
RR LH IN ABS SOL
[SHORT]+Circuit for rear left inlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-81
FR RH OUT ABS SOL
[OPEN]+Circuit for front right outlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-81
FR LH OUT ABS SOL
[OPEN]+Circuit for front left outlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-81
RR RH OUT ABS SOL
[OPEN]+Circuit for rear right outlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-81
RR LH OUT ABS SOL
[OPEN]+Circuit for rear left outlet solenoid valve is open.
(An abnormally low output voltage is entered.)BR-81
FR RH OUT ABS SOL
[SHORT]+Circuit for front right outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-81
FR LH OUT ABS SOL
[SHORT]+Circuit for front left outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-81
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
CONSULT-II Inspection Procedure (Cont'd)
BR-67
Page 584 of 2898
![NISSAN ALMERA 2001 Service Manual Diagnostic item Diagnostic item is detected when ...Reference
Page
RR RH OUT ABS SOL
[SHORT]+Circuit for rear right outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR- NISSAN ALMERA 2001 Service Manual Diagnostic item Diagnostic item is detected when ...Reference
Page
RR RH OUT ABS SOL
[SHORT]+Circuit for rear right outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-](/manual-img/5/57348/w960_57348-583.png)
Diagnostic item Diagnostic item is detected when ...Reference
Page
RR RH OUT ABS SOL
[SHORT]+Circuit for rear right outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-81
RR LH OUT ABS SOL
[SHORT]+Circuit for rear left outlet solenoid valve is shorted.
(An abnormally high output voltage is entered.)BR-81
ABS ACTUATOR RELAY
[ABNORMAL]+Actuator solenoid valve relay is ON, even control unit sends off signal.
+Actuator solenoid valve relay is OFF, even control unit sends on signal.BR-81
ABS MOTOR RELAY
[ABNORMAL]+Circuit for actuator motor is open or shorted.
+Actuator motor relay is stuck.BR-84
BATTERY VOLT
[ABNORMAL]+Power source voltage supplied to ABS control unit is abnormally low. BR-86
CONTROL UNIT+Function of calculation in ABS control unit has failed. BR-88
*1: Be sure to confirm the ABS warning lamp illuminates when the ignition switch is turned ON after repairing the shorted sensor circuit,
but the lamp goes out when driving the vehicle over 30 km/h (19 MPH) for one minute in accordance with SELF-DIAGNOSIS
PROCEDURE.
PBR455D
DATA MONITOR PROCEDURENJBR0093S031. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector.
3. Turn ignition switch ON.
4. Touch ªSTARTº on CONSULT-II screen.
PBR385C
5. Touch ªABSº.
PST412B
6. Touch ªDATA MONITORº.
7. Touch ªSETTINGº on ªSELECT MONITOR ITEMº screen.
8. Touch ªLONG TIMEº on ªSET RECORDING CONDº screen.
9. Touch ªSTARTº on ªSELECT MONITOR ITEMº.
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
CONSULT-II Inspection Procedure (Cont'd)
