Page 2265 of 2898

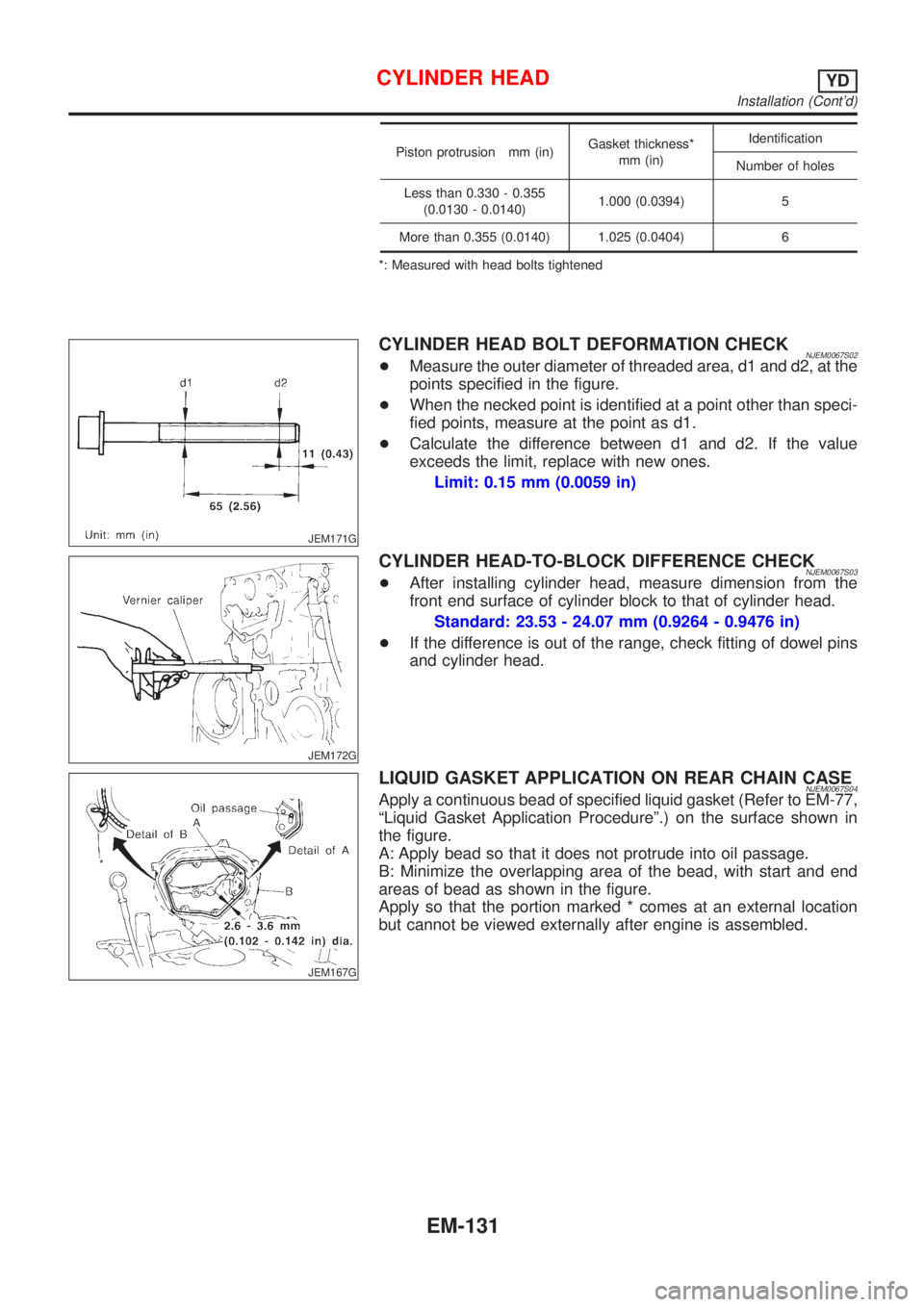

NISSAN ALMERA 2001 Service Manual Piston protrusion mm (in)Gasket thickness* mm (in)Identification Number of holes Less than 0.330 - 0.355 (0.0130 - 0.0140)1.000 (0.0394) 5 More than 0.355 (0.0140) 1.025 (0.0404) 6 *: Measured with he

Page 2266 of 2898

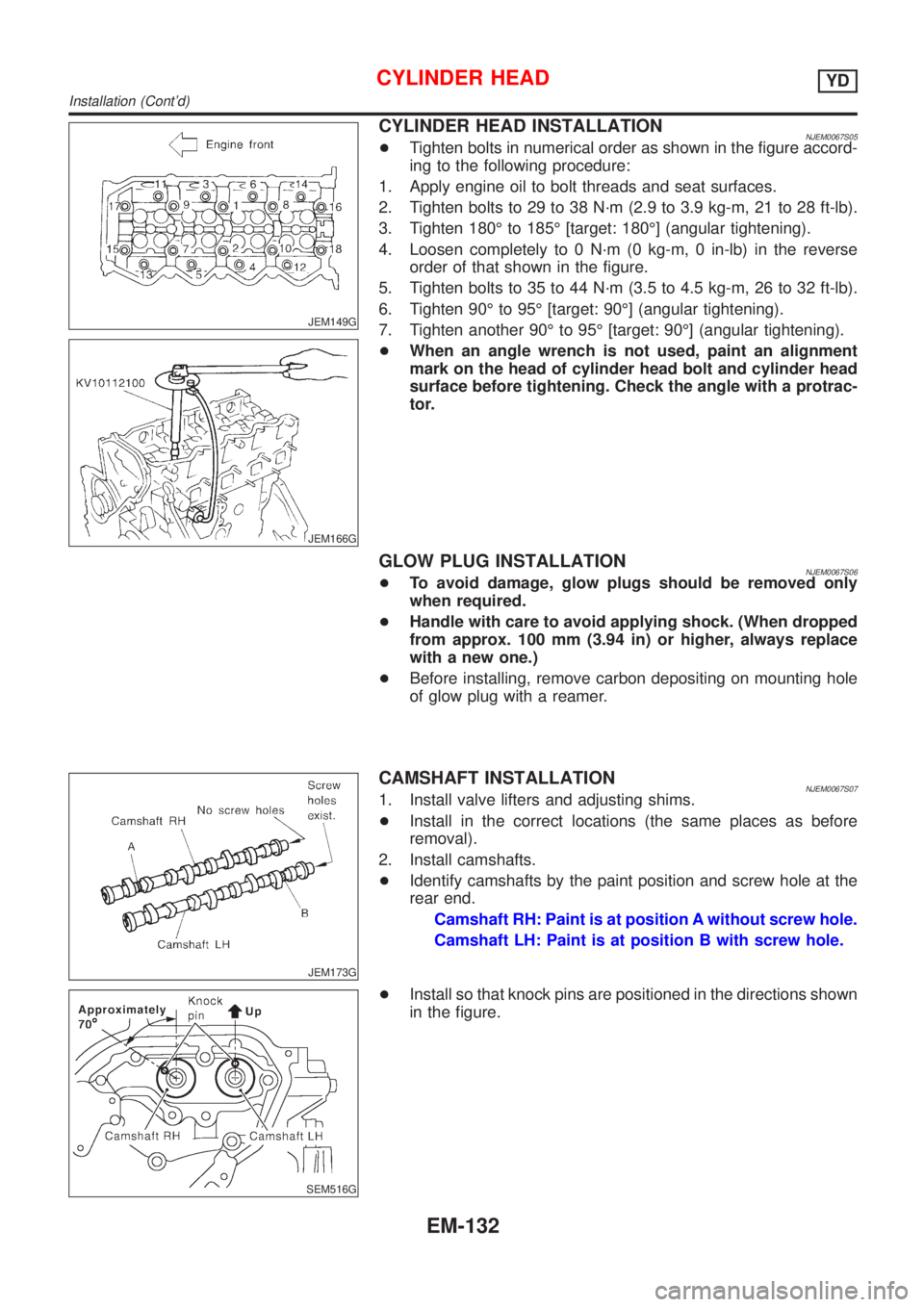

NISSAN ALMERA 2001 Service Manual JEM149G JEM166G CYLINDER HEAD INSTALLATIONNJEM0067S05+Tighten bolts in numerical order as shown in the figure accord- ing to the following procedure: 1. Apply engine oil to bolt threads and seat surfa

Page 2267 of 2898

NISSAN ALMERA 2001 Service Manual JEM175G 3. Install camshaft brackets. +Install correctly, identifying brackets by the journal No. and front mark on top surface. JEM160G 4. Tighten bolts in the order shown in the figure according to

Page 2268 of 2898

NISSAN ALMERA 2001 Service Manual JEM178G 3. Check only those valves shown in the figure. Crank positionValve No. 1 No. 2 No. 3 No. 4 INT EXH INT EXH INT EXH INT EXH No. 1 TDC (Compression stroke)jjj j JEM179G +Using a feeler gauge, m

Page 2269 of 2898

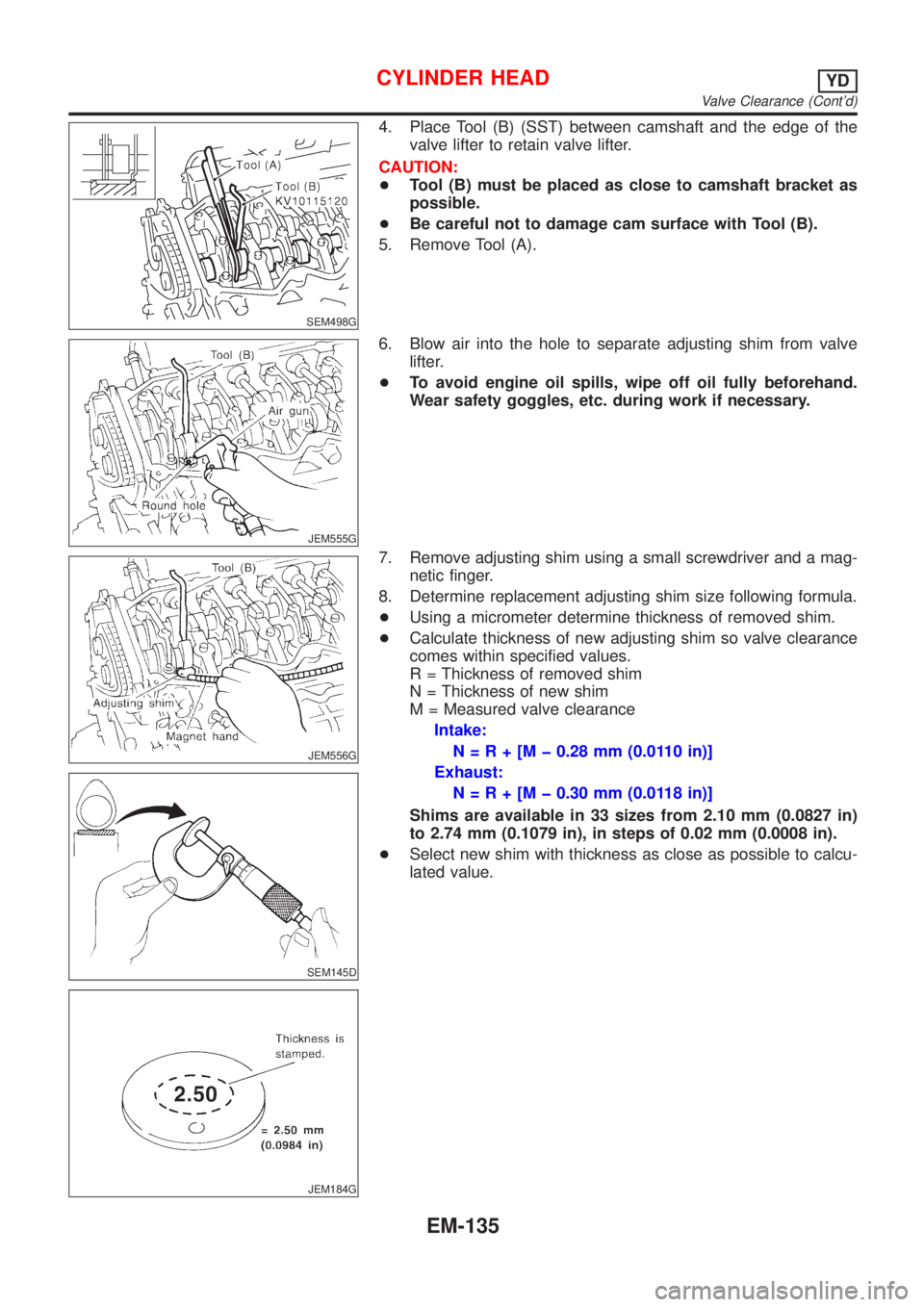

NISSAN ALMERA 2001 Service Manual SEM498G 4. Place Tool (B) (SST) between camshaft and the edge of the valve lifter to retain valve lifter. CAUTION: +Tool (B) must be placed as close to camshaft bracket as possible. +Be careful not to

Page 2270 of 2898

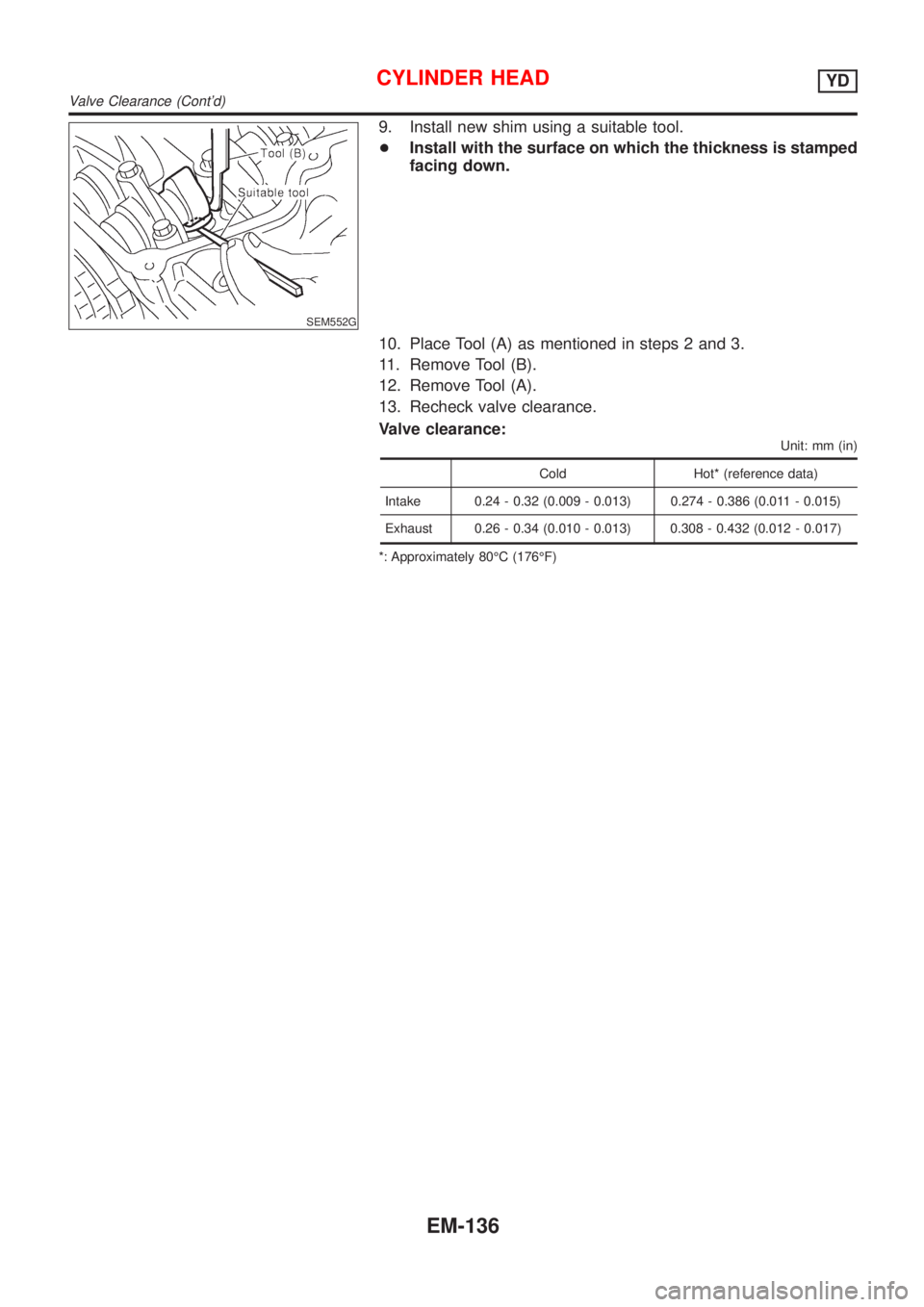

NISSAN ALMERA 2001 Service Manual SEM552G 9. Install new shim using a suitable tool. +Install with the surface on which the thickness is stamped facing down. 10. Place Tool (A) as mentioned in steps 2 and 3. 11. Remove Tool (B). 12. R

Page 2271 of 2898

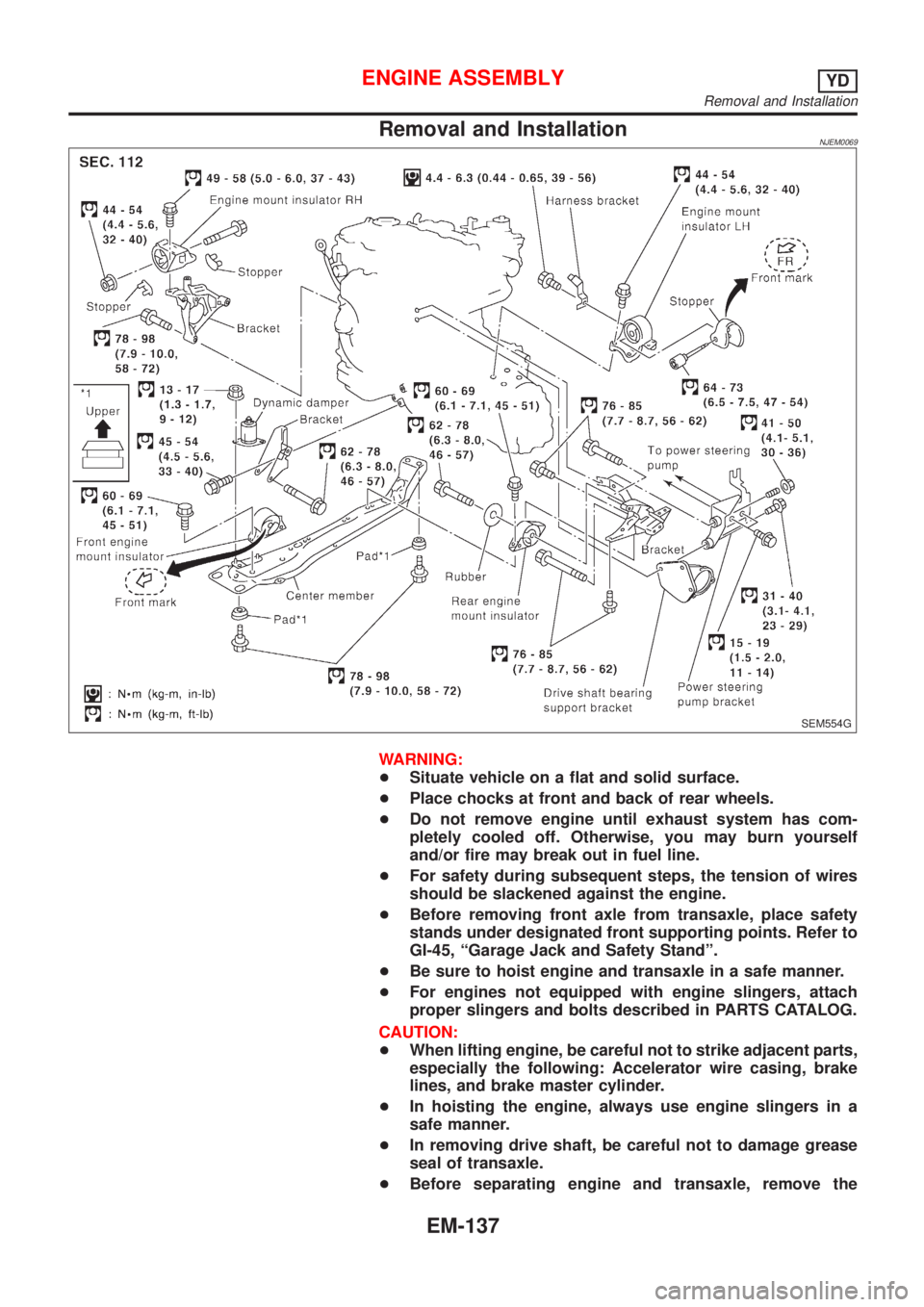

NISSAN ALMERA 2001 Service Manual Removal and InstallationNJEM0069 SEM554G WARNING: +Situate vehicle on a flat and solid surface. +Place chocks at front and back of rear wheels. +Do not remove engine until exhaust system has com- plet

Page 2272 of 2898

NISSAN ALMERA 2001 Service Manual crankshaft position sensor (TDC sensor) from the assem- bly. +Always pay extra attention not to damage edge of crank- shaft position sensor (TDC sensor) or ring gear teeth. REMOVALNJEM0069S011. Remove
