Page 1841 of 2898

NISSAN ALMERA 2001 Service Manual Location of Antenna/Power AntennaNJEL0087 GEL274 AUDIO ANTENNA Location of Antenna/Power Antenna EL-283

Page 1842 of 2898

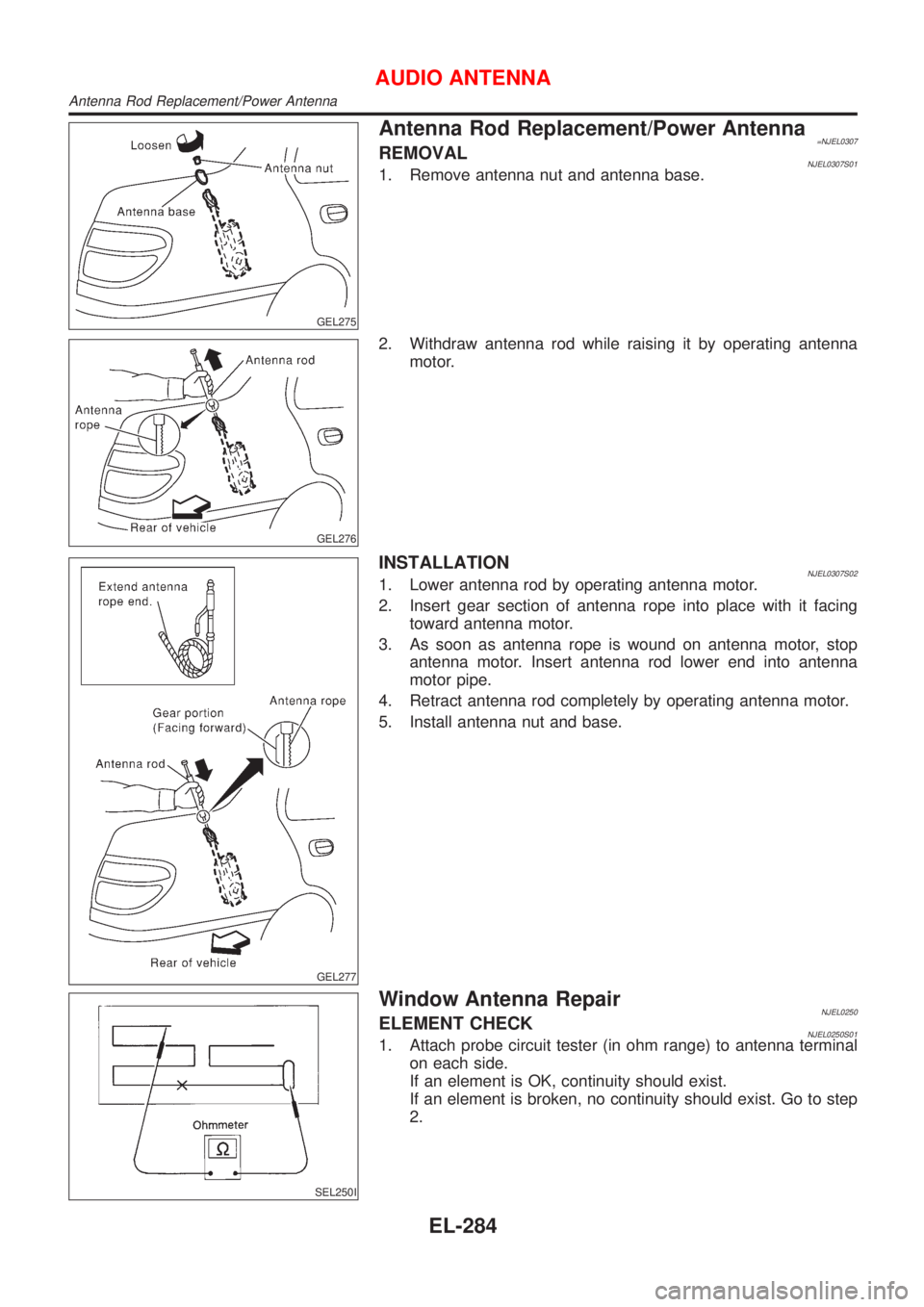

NISSAN ALMERA 2001 Service Manual GEL275 Antenna Rod Replacement/Power Antenna=NJEL0307REMOVALNJEL0307S011. Remove antenna nut and antenna base. GEL276 2. Withdraw antenna rod while raising it by operating antenna motor. GEL277 INSTAL

Page 1843 of 2898

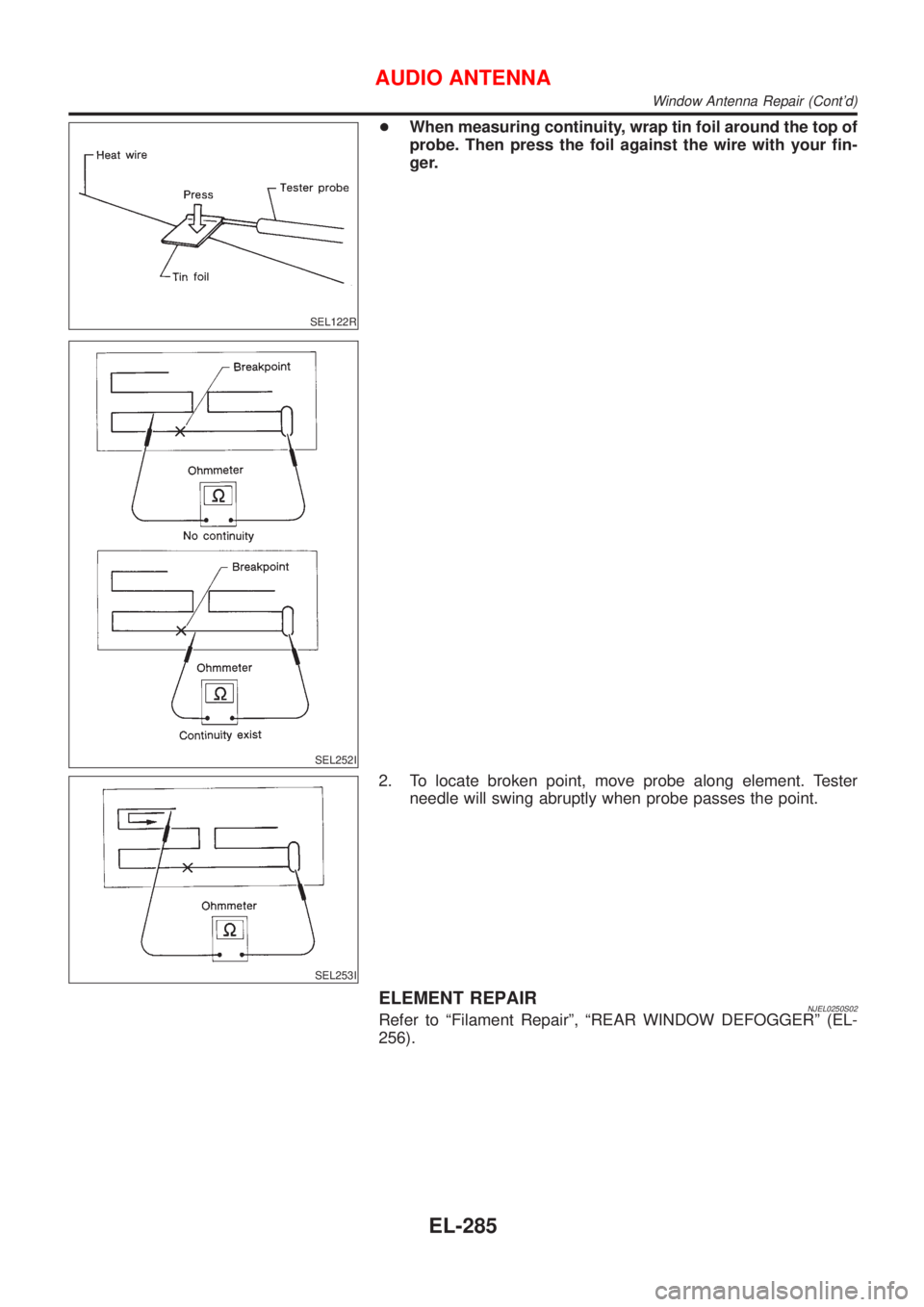

NISSAN ALMERA 2001 Service Manual SEL122R SEL252I +When measuring continuity, wrap tin foil around the top of probe. Then press the foil against the wire with your fin- ger. SEL253I 2. To locate broken point, move probe along element.

Page 1844 of 2898

NISSAN ALMERA 2001 Service Manual Location of Antenna/Sedan With Manual Antenna NJEL0335 GEL273 SEL242S Antenna Rod Replacement/Sedan With Manual Antenna NJEL0336REMOVALNJEL0336S011. Loosen screws securing antenna base. SEL243S 2. Pul

Page 1845 of 2898

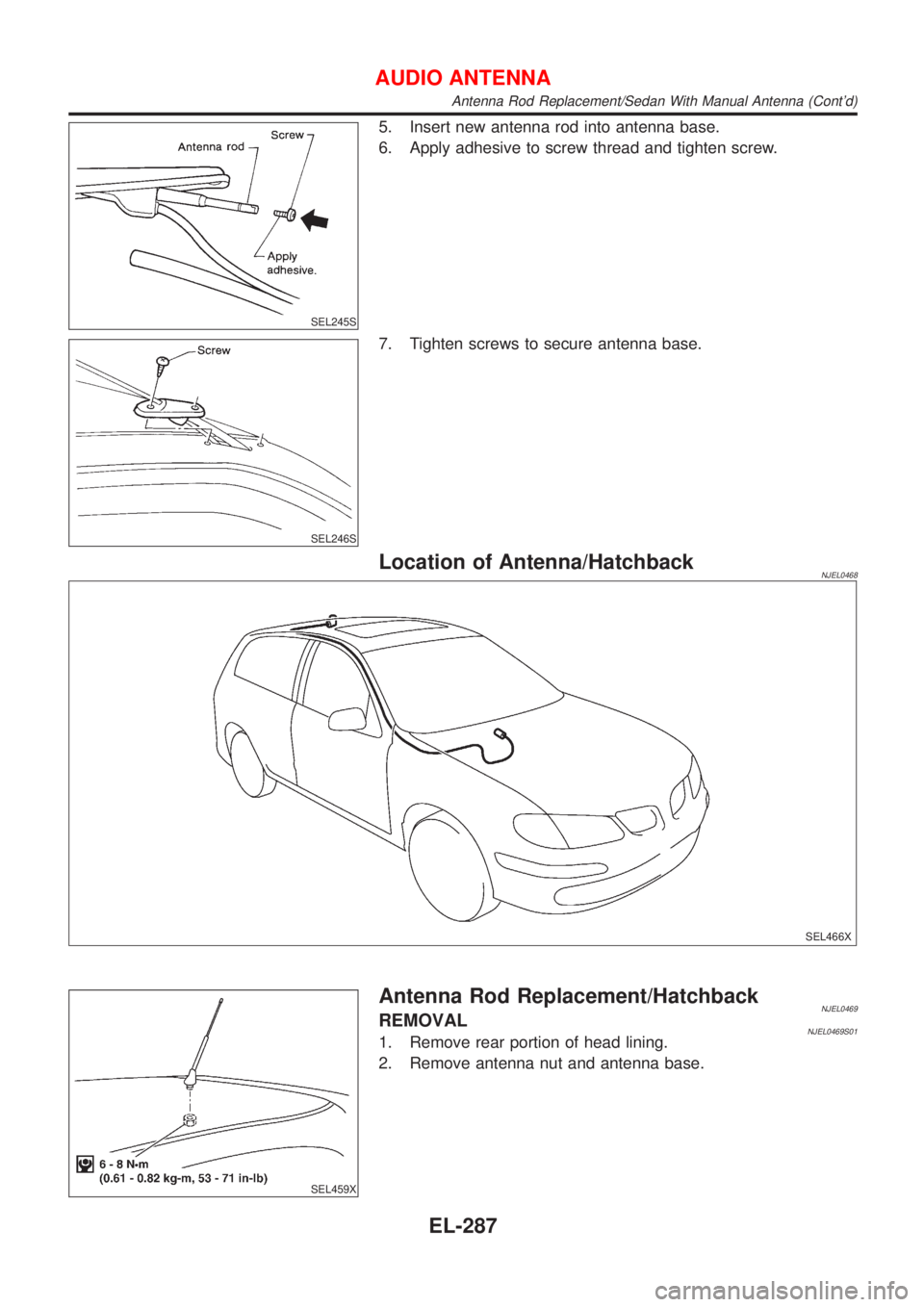

NISSAN ALMERA 2001 Service Manual SEL245S 5. Insert new antenna rod into antenna base. 6. Apply adhesive to screw thread and tighten screw. SEL246S 7. Tighten screws to secure antenna base. Location of Antenna/HatchbackNJEL0468 SEL466

Page 1846 of 2898

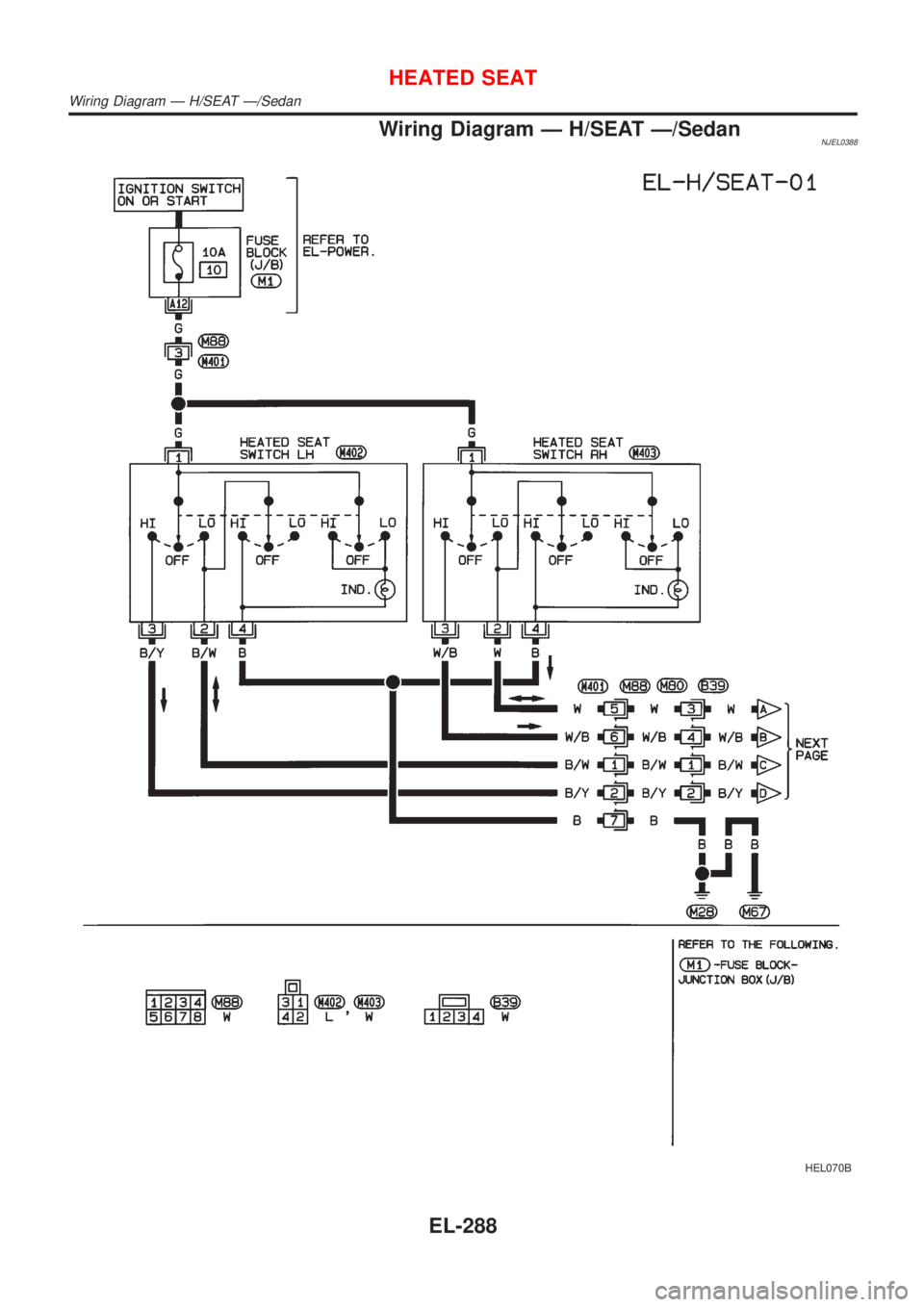

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð H/SEAT Ð/SedanNJEL0388 HEL070B HEATED SEAT Wiring Diagram Ð H/SEAT Ð/Sedan EL-288

Page 1847 of 2898

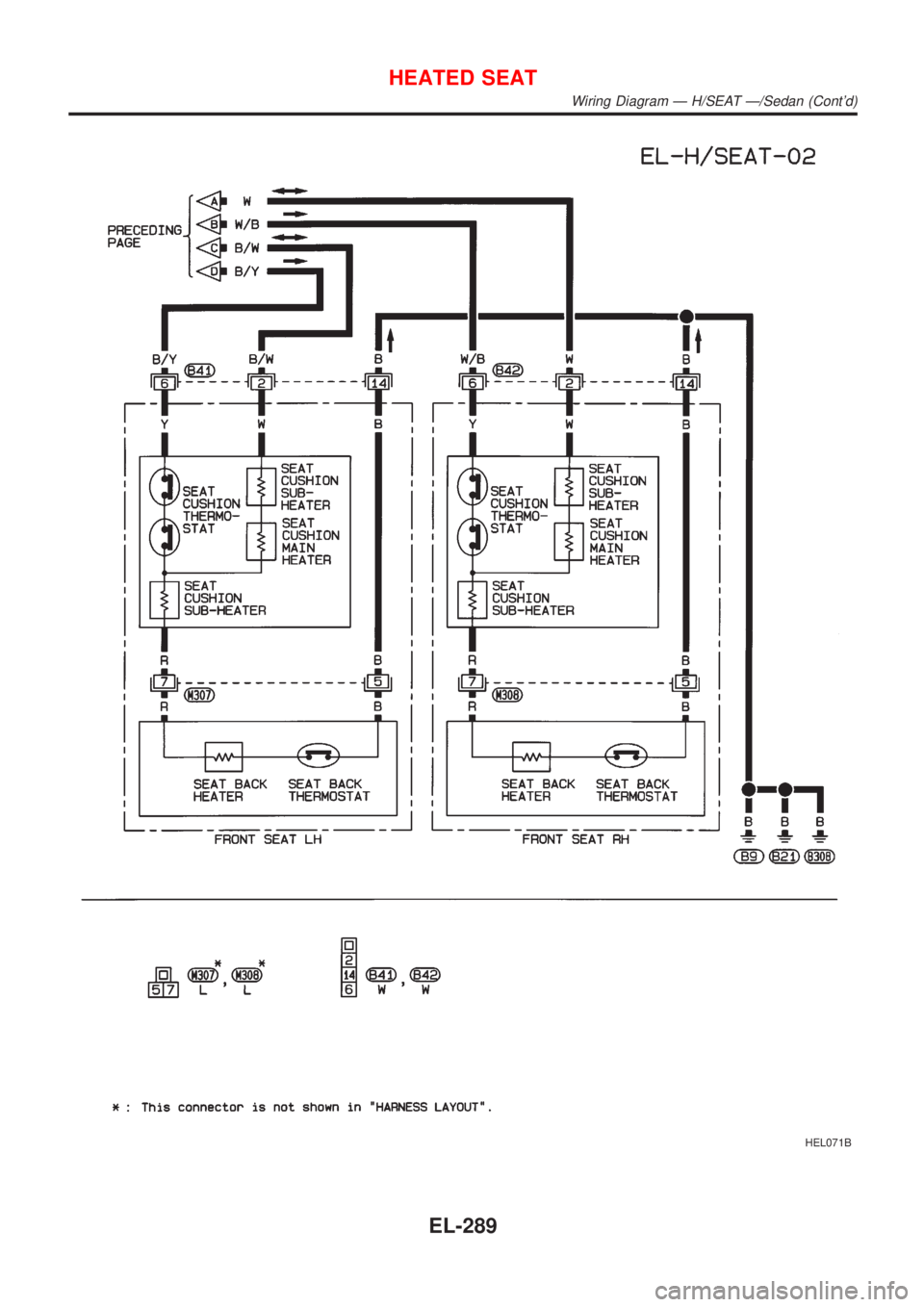

NISSAN ALMERA 2001 Service Manual HEL071B HEATED SEAT Wiring Diagram Ð H/SEAT Ð/Sedan (Contd) EL-289

Page 1848 of 2898

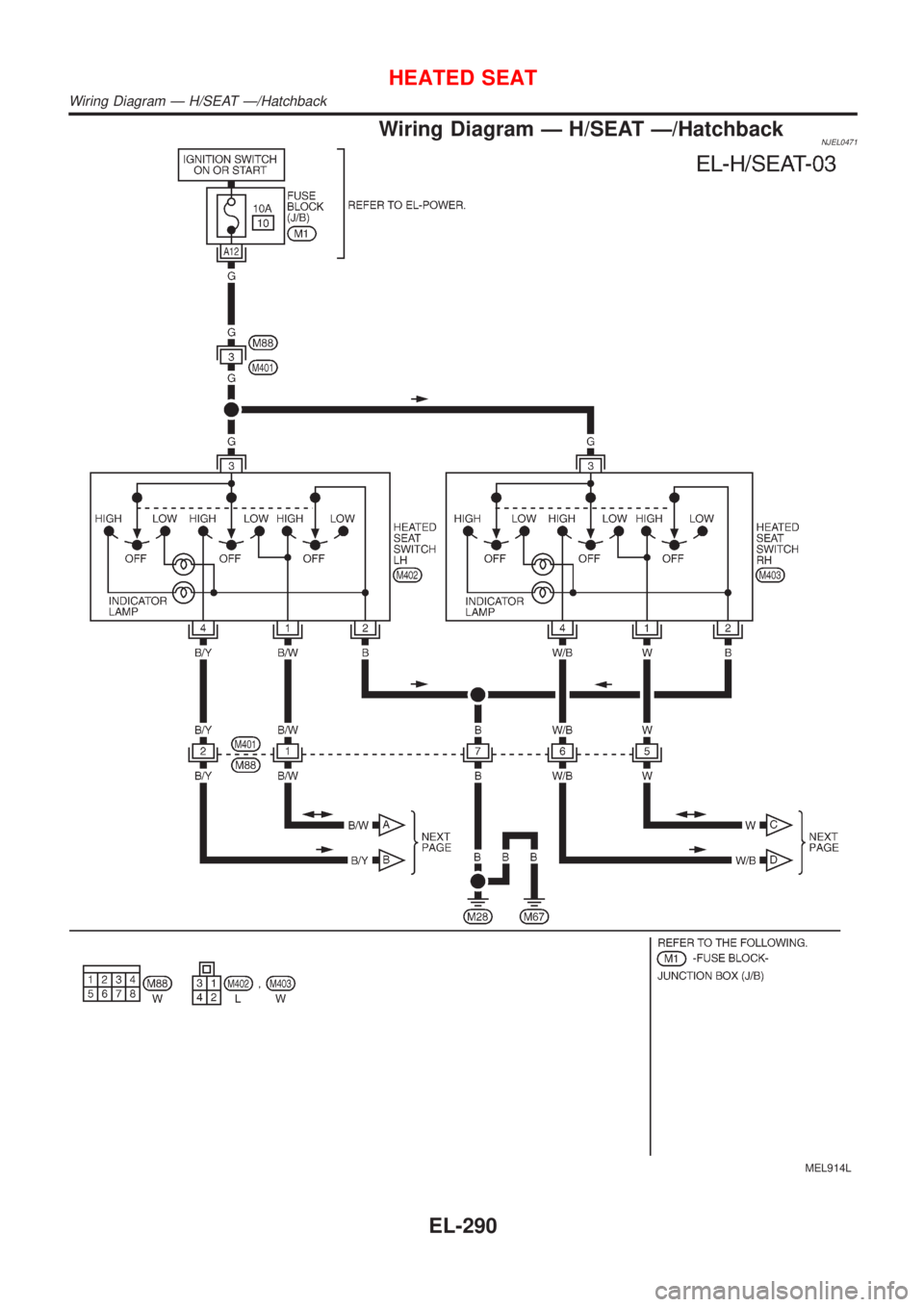

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð H/SEAT Ð/HatchbackNJEL0471 MEL914L HEATED SEAT Wiring Diagram Ð H/SEAT Ð/Hatchback EL-290
