Page 1641 of 2898

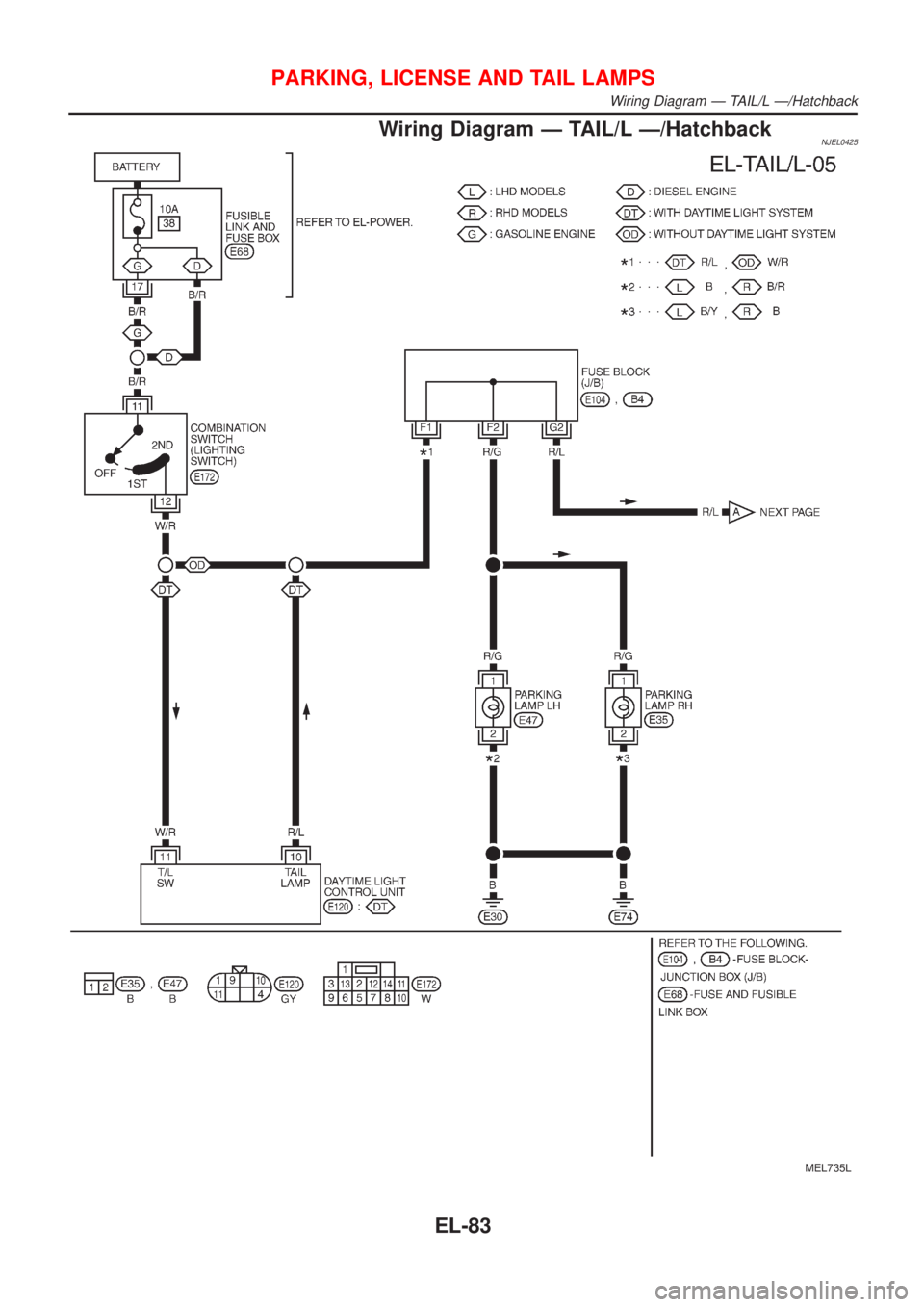

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð TAIL/L Ð/HatchbackNJEL0425 MEL735L PARKING, LICENSE AND TAIL LAMPS Wiring Diagram Ð TAIL/L Ð/Hatchback EL-83

Page 1642 of 2898

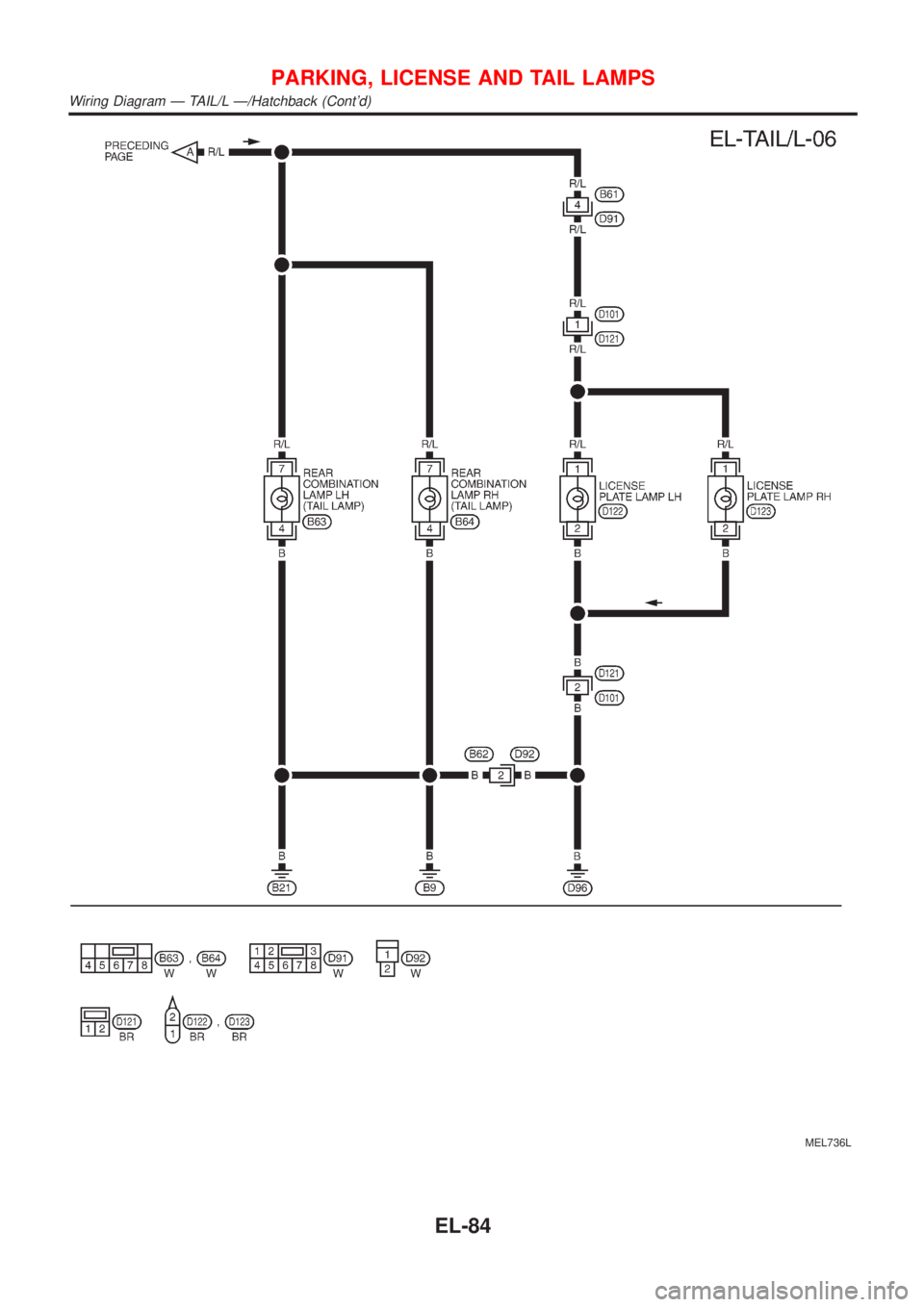

NISSAN ALMERA 2001 Service Manual MEL736L PARKING, LICENSE AND TAIL LAMPS Wiring Diagram Ð TAIL/L Ð/Hatchback (Contd) EL-84

Page 1643 of 2898

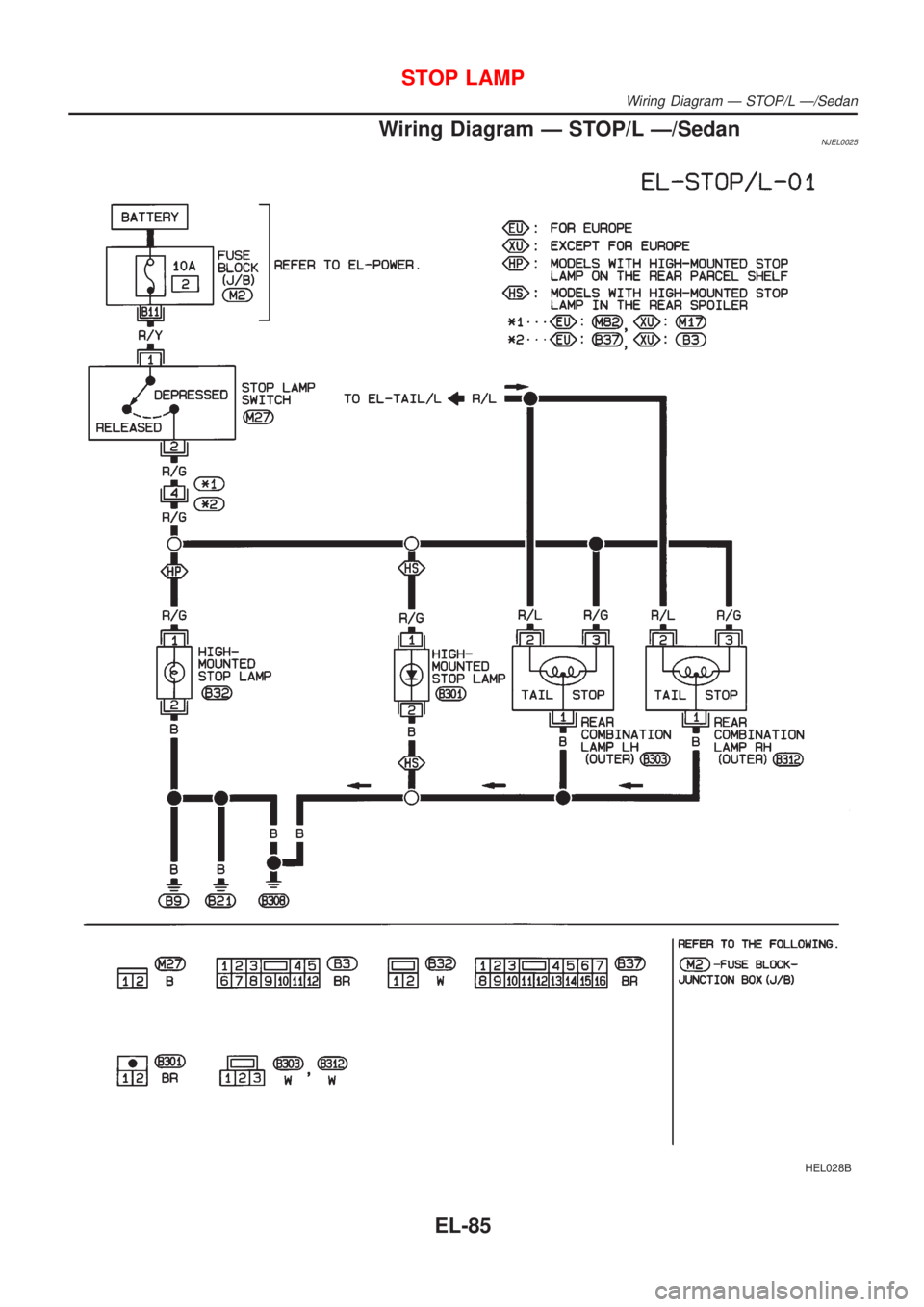

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð STOP/L Ð/SedanNJEL0025 HEL028B STOP LAMP Wiring Diagram Ð STOP/L Ð/Sedan EL-85

Page 1644 of 2898

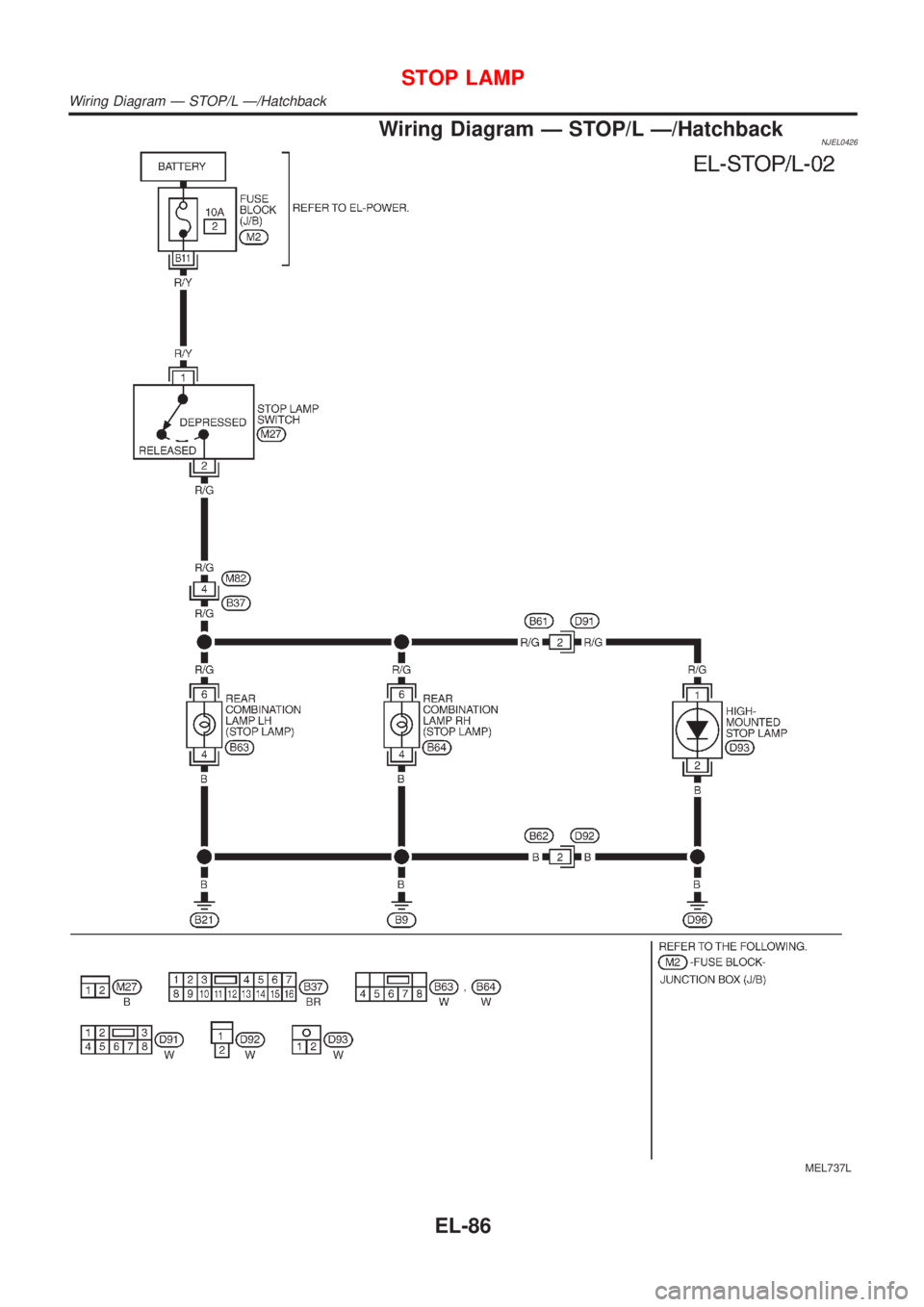

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð STOP/L Ð/HatchbackNJEL0426 MEL737L STOP LAMP Wiring Diagram Ð STOP/L Ð/Hatchback EL-86

Page 1645 of 2898

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð BACK/L Ð/SedanNJEL0360 HEL371B BACK-UP LAMP Wiring Diagram Ð BACK/L Ð/Sedan EL-87

Page 1646 of 2898

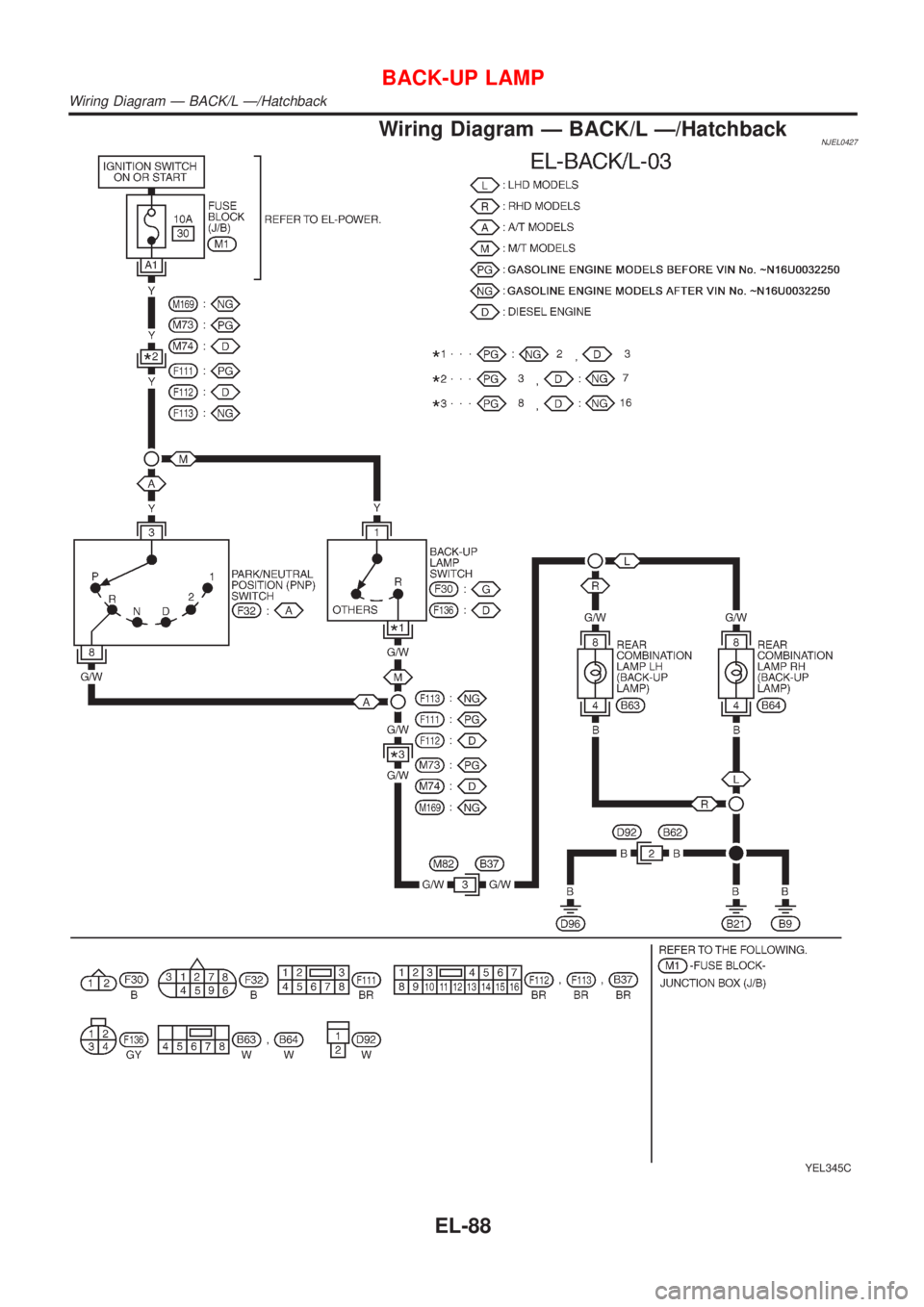

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð BACK/L Ð/HatchbackNJEL0427 YEL345C BACK-UP LAMP Wiring Diagram Ð BACK/L Ð/Hatchback EL-88

Page 1647 of 2898

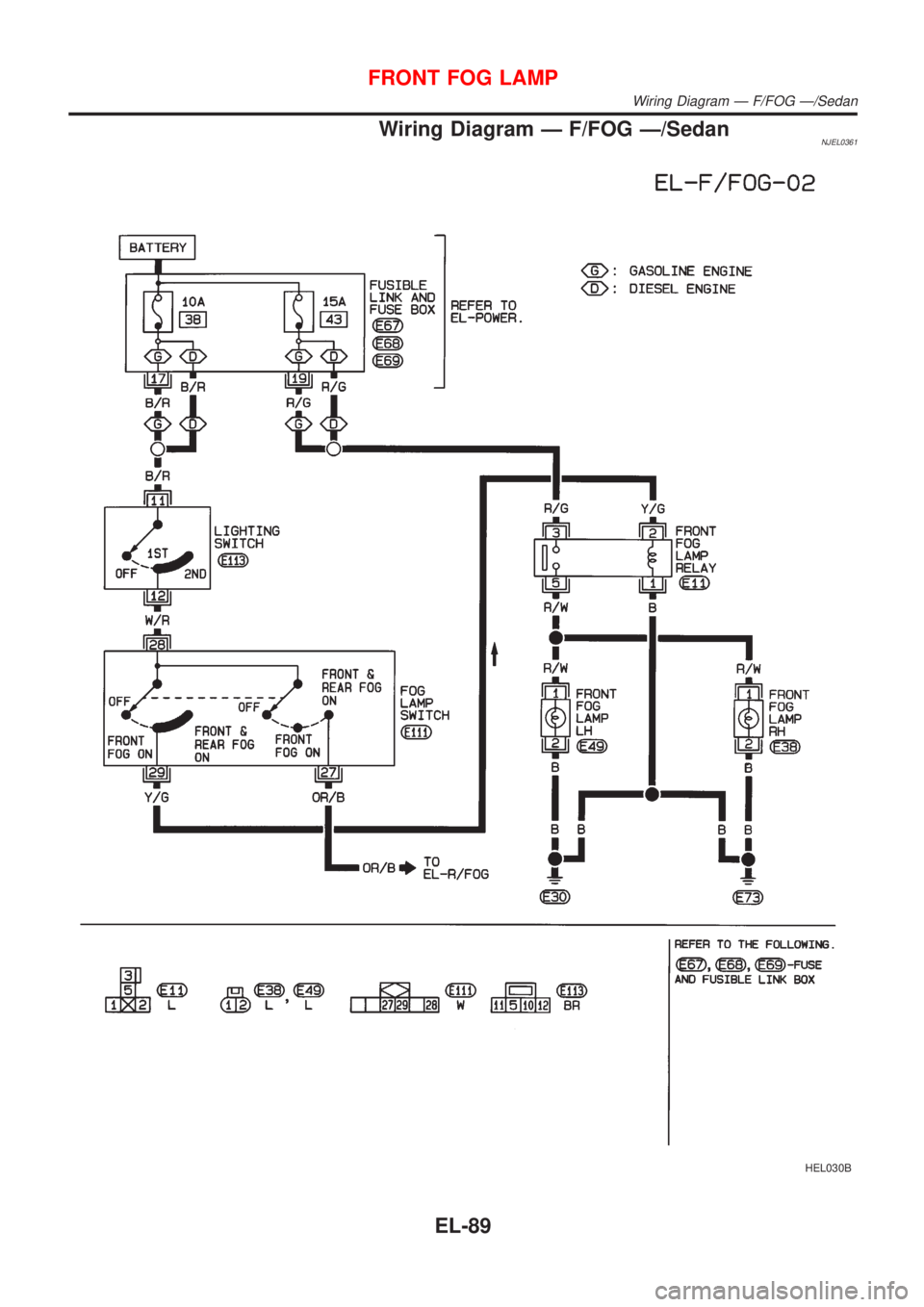

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð F/FOG Ð/SedanNJEL0361 HEL030B FRONT FOG LAMP Wiring Diagram Ð F/FOG Ð/Sedan EL-89

Page 1648 of 2898

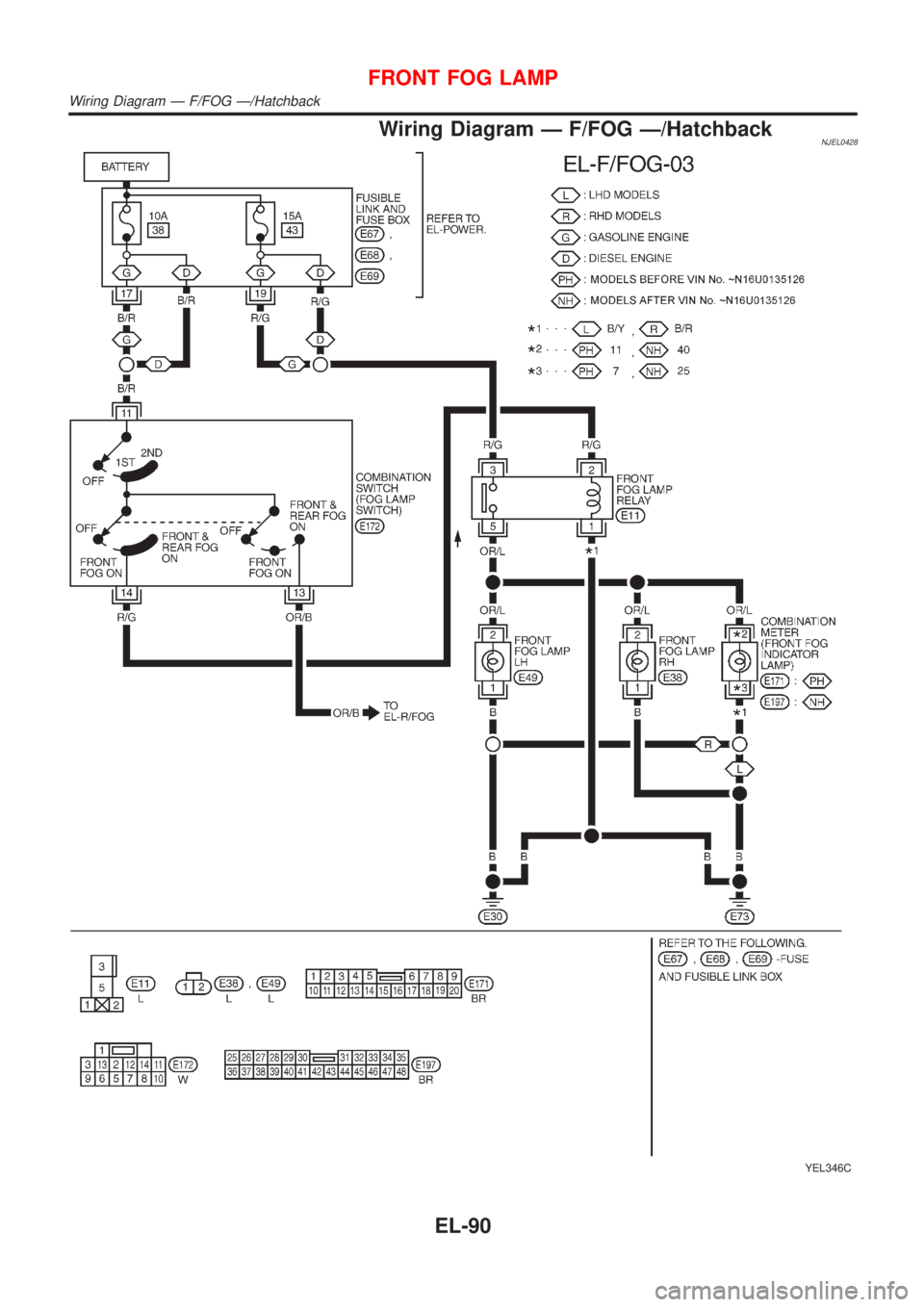

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð F/FOG Ð/HatchbackNJEL0428 YEL346C FRONT FOG LAMP Wiring Diagram Ð F/FOG Ð/Hatchback EL-90
