2001 NISSAN ALMERA Service Manual

Page 2865 of 2898

NISSAN ALMERA 2001  Service Manual ComponentsNJST0038
SST882CA
1. Rear bracket
2. Rear body
3. Dowel pin
4. Side plate seal
5. Cam ring
6. Vane
7. Rotor
8. Side plate9. O-ring (Outer)
10. O-ring (Inner)
11. Front body
12. Drive shaft r

Page 2866 of 2898

NISSAN ALMERA 2001  Service Manual SST884C

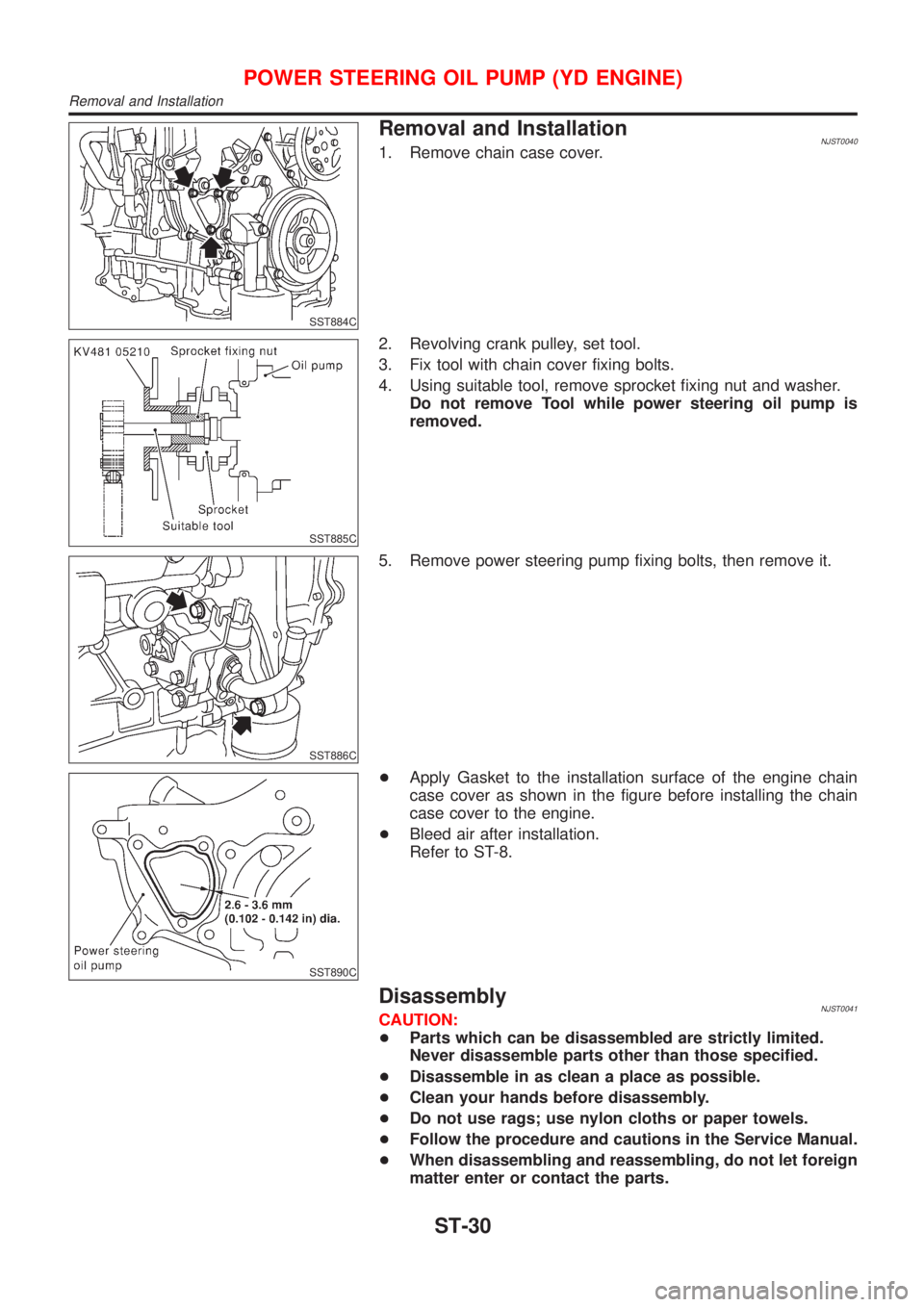

Removal and InstallationNJST00401. Remove chain case cover.
SST885C
2. Revolving crank pulley, set tool.
3. Fix tool with chain cover fixing bolts.
4. Using suitable tool, remove sprocket fixi

Page 2867 of 2898

NISSAN ALMERA 2001  Service Manual SST887C

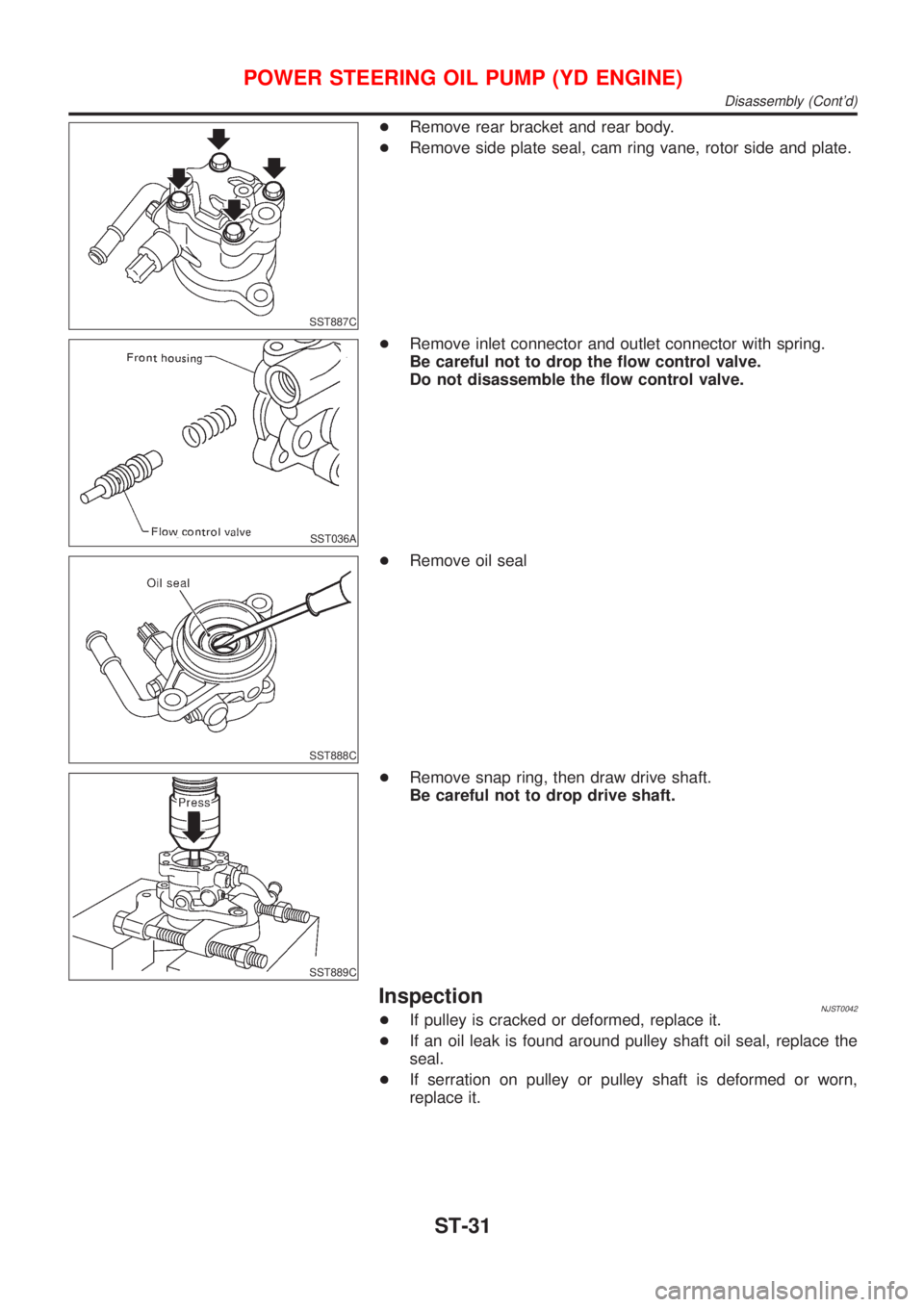

+Remove rear bracket and rear body.
+Remove side plate seal, cam ring vane, rotor side and plate.
SST036A
+Remove inlet connector and outlet connector with spring.
Be careful not to drop the f

Page 2868 of 2898

NISSAN ALMERA 2001  Service Manual SST038A

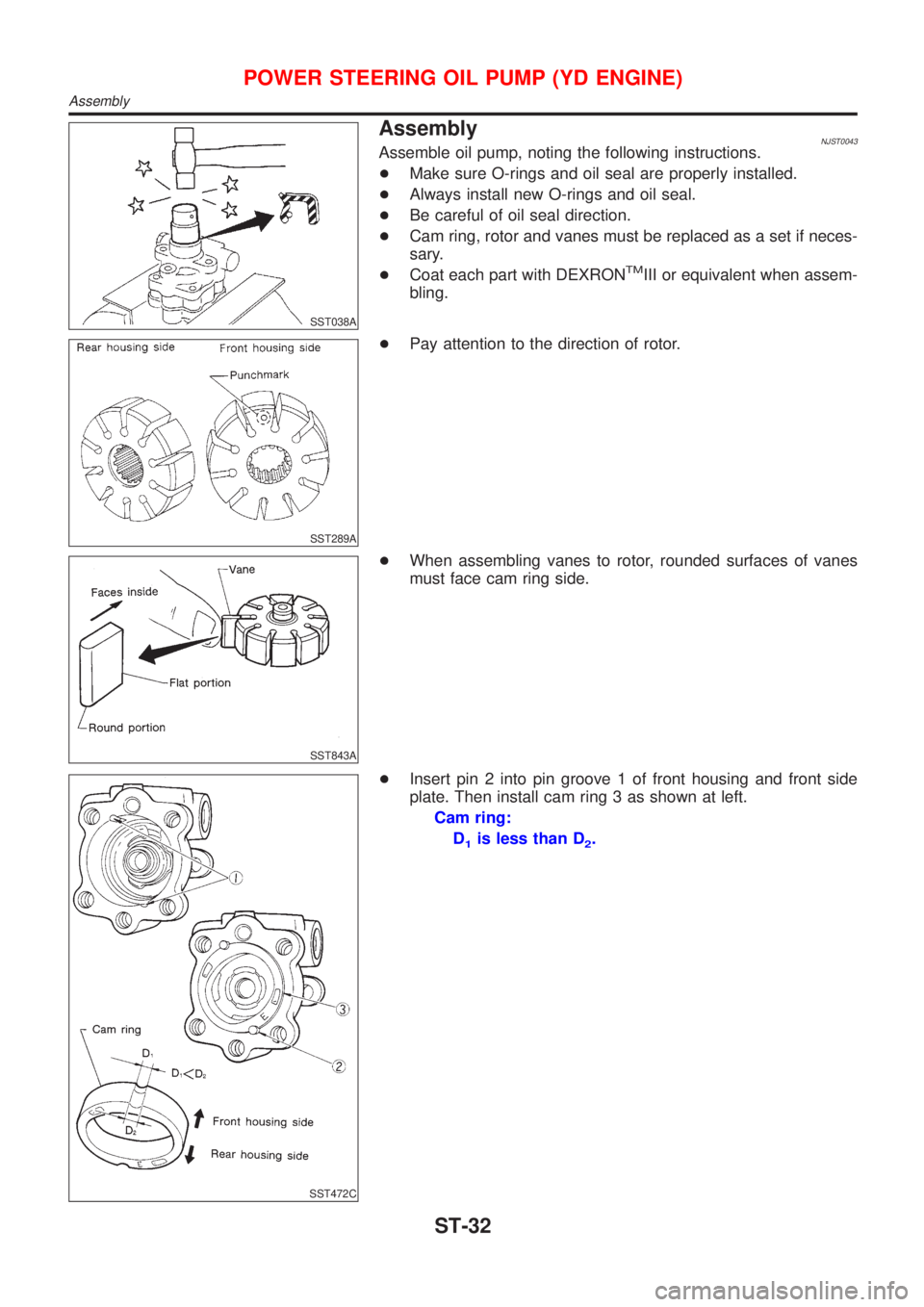

AssemblyNJST0043Assemble oil pump, noting the following instructions.
+Make sure O-rings and oil seal are properly installed.
+Always install new O-rings and oil seal.
+Be careful of oil seal

Page 2869 of 2898

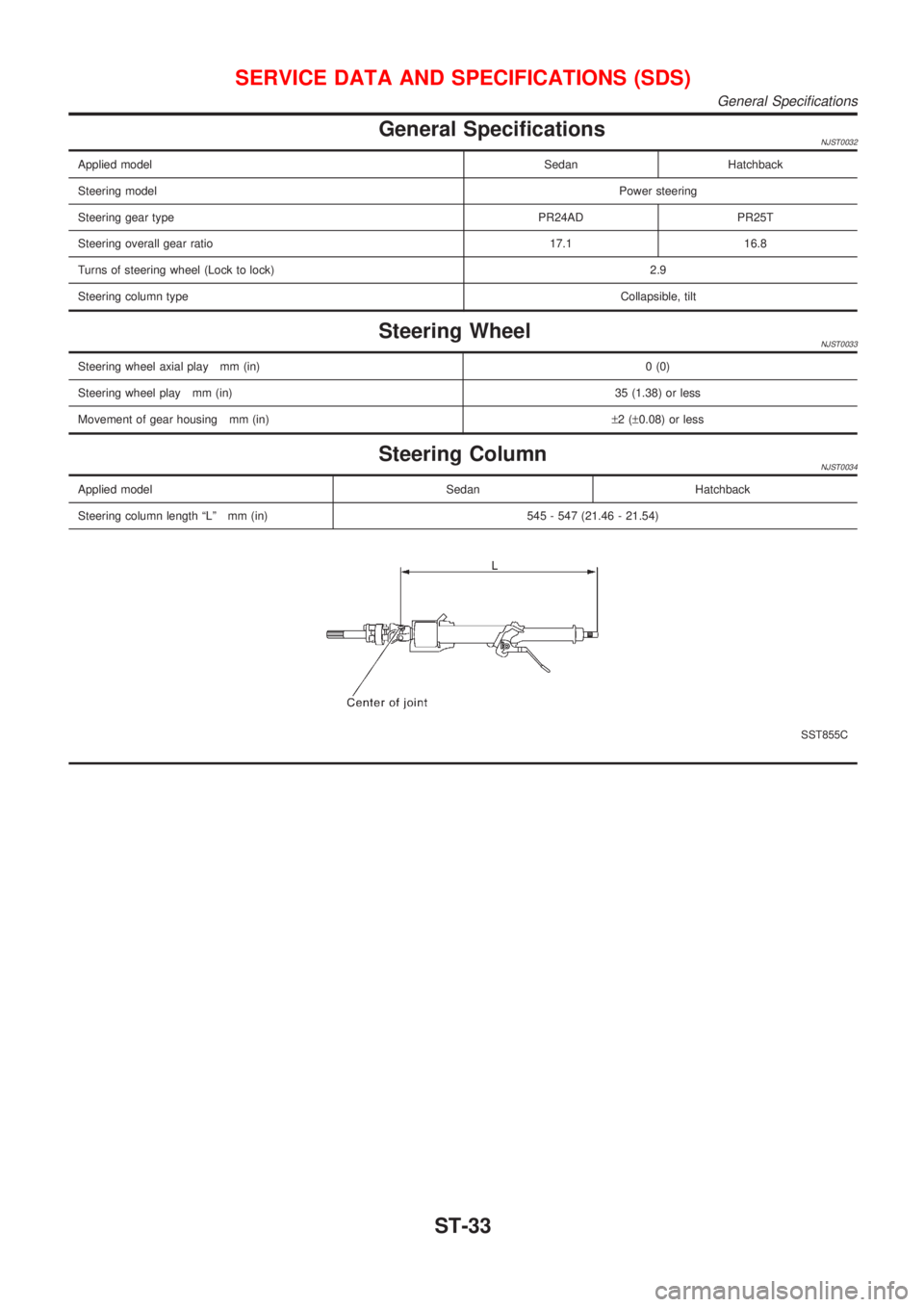

NISSAN ALMERA 2001  Service Manual General SpecificationsNJST0032
Applied modelSedan Hatchback
Steering modelPower steering
Steering gear type PR24AD PR25T
Steering overall gear ratio 17.1 16.8
Turns of steering wheel (Lock to lock)2.9

Page 2870 of 2898

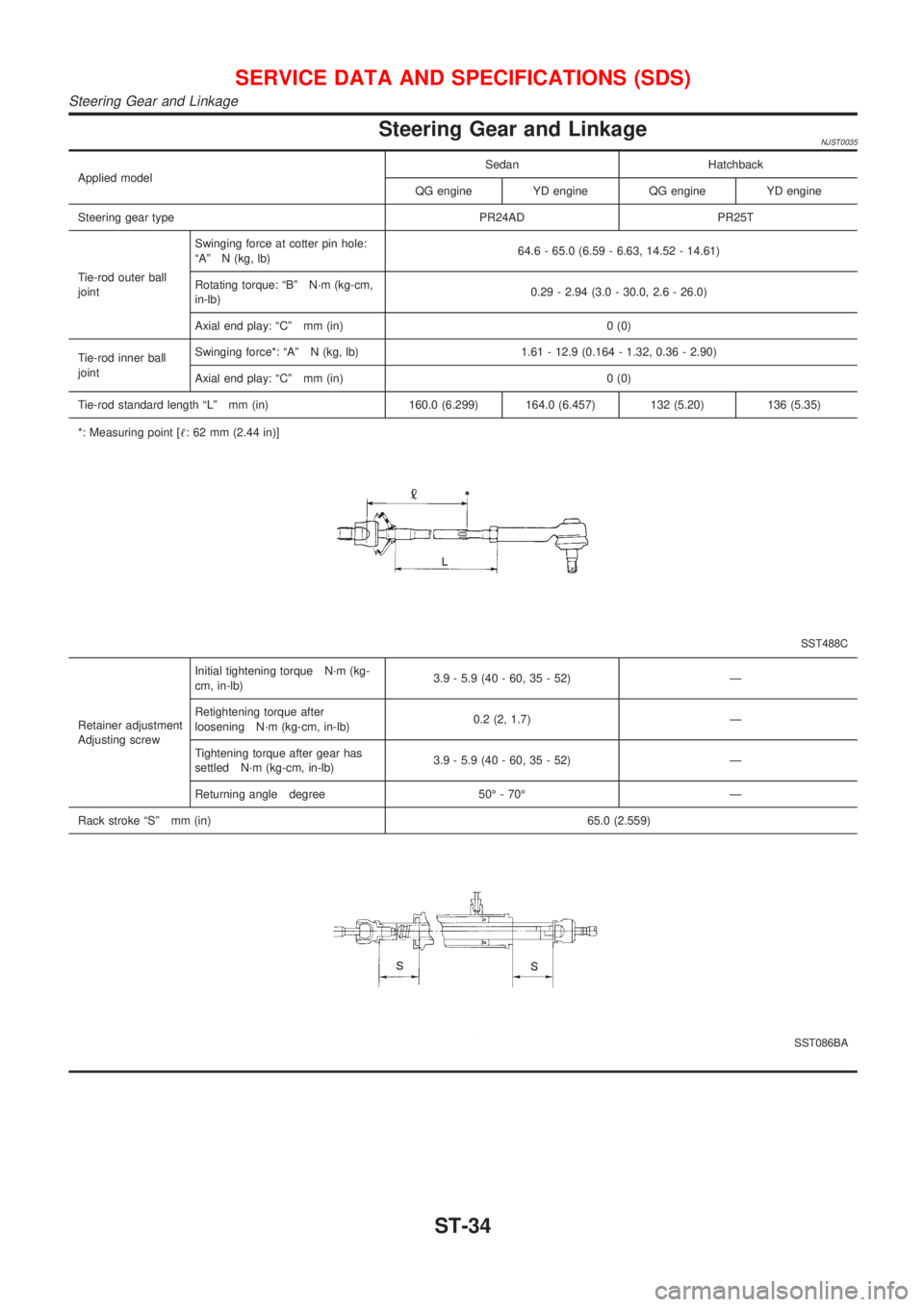

NISSAN ALMERA 2001  Service Manual Steering Gear and LinkageNJST0035
Applied modelSedan Hatchback
QG engine YD engine QG engine YD engine
Steering gear type PR24AD PR25T
Tie-rod outer ball
jointSwinging force at cotter pin hole:
ªAº

Page 2871 of 2898

NISSAN ALMERA 2001  Service Manual Power SteeringNJST0036
Applied modelSedan Hatchback
Steering gear typePR24AD PR25T
Rack sliding
force N (kg, lb)
Under normal oper-
ating oil pressureRange within±11.5 mm (±0.453 in)
from the neutra

Page 2872 of 2898

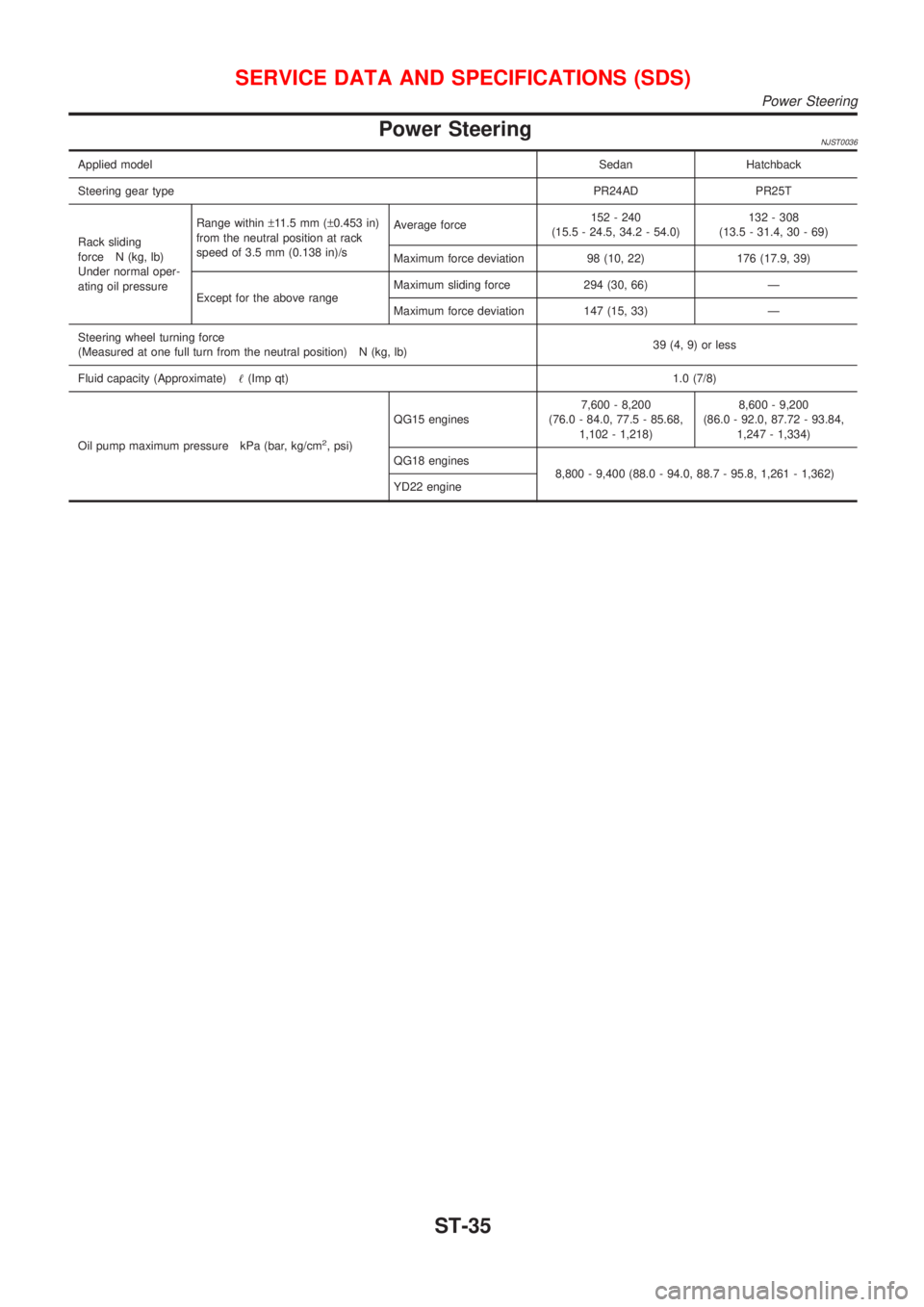

NISSAN ALMERA 2001  Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
Power Steering (Contd)
ST-36
