Page 2289 of 2898

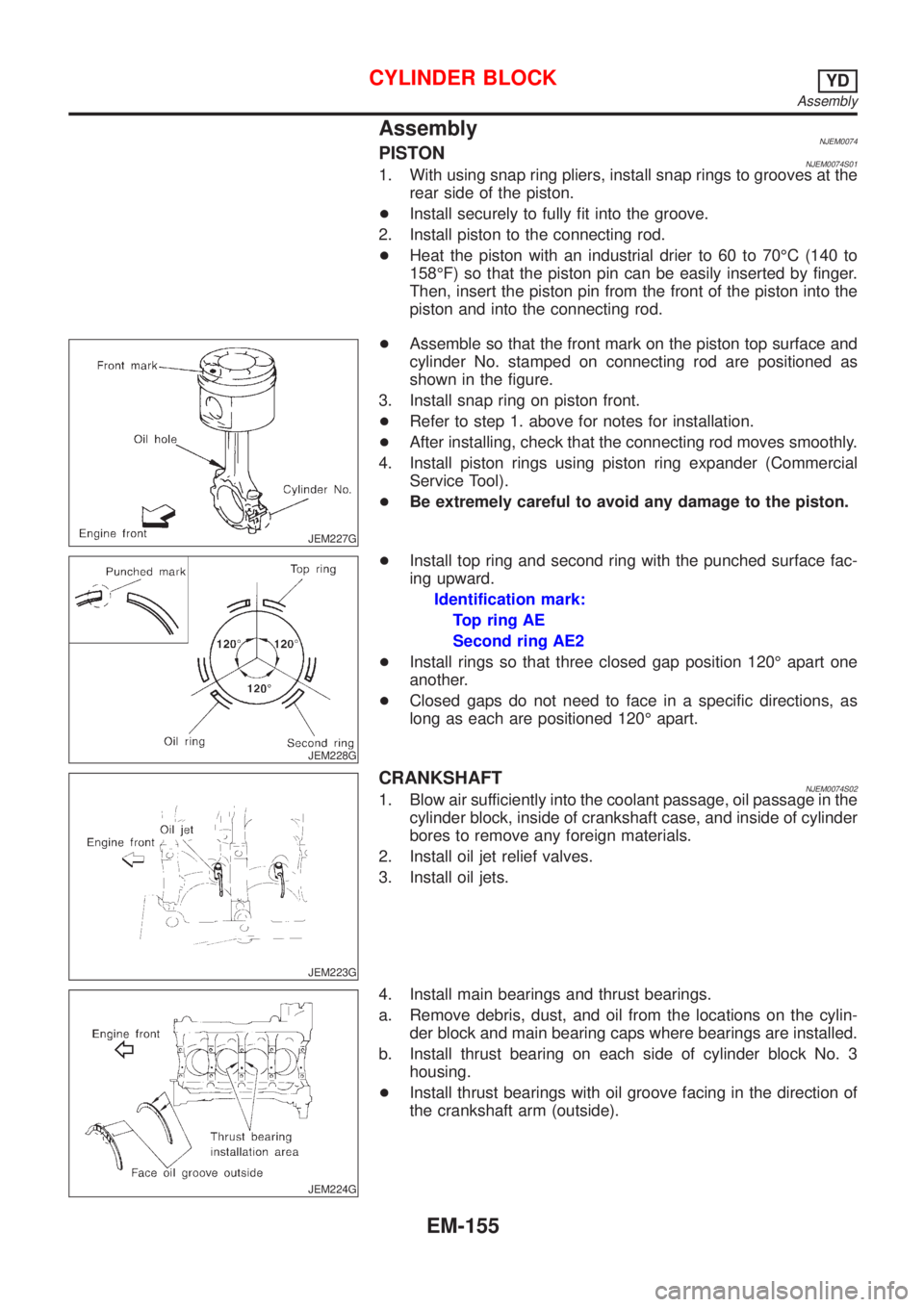

NISSAN ALMERA 2001 Service Manual AssemblyNJEM0074PISTONNJEM0074S011. With using snap ring pliers, install snap rings to grooves at the
rear side of the piston.
+Install securely to fully fit into the groove.
2. Install piston to the

Page 2290 of 2898

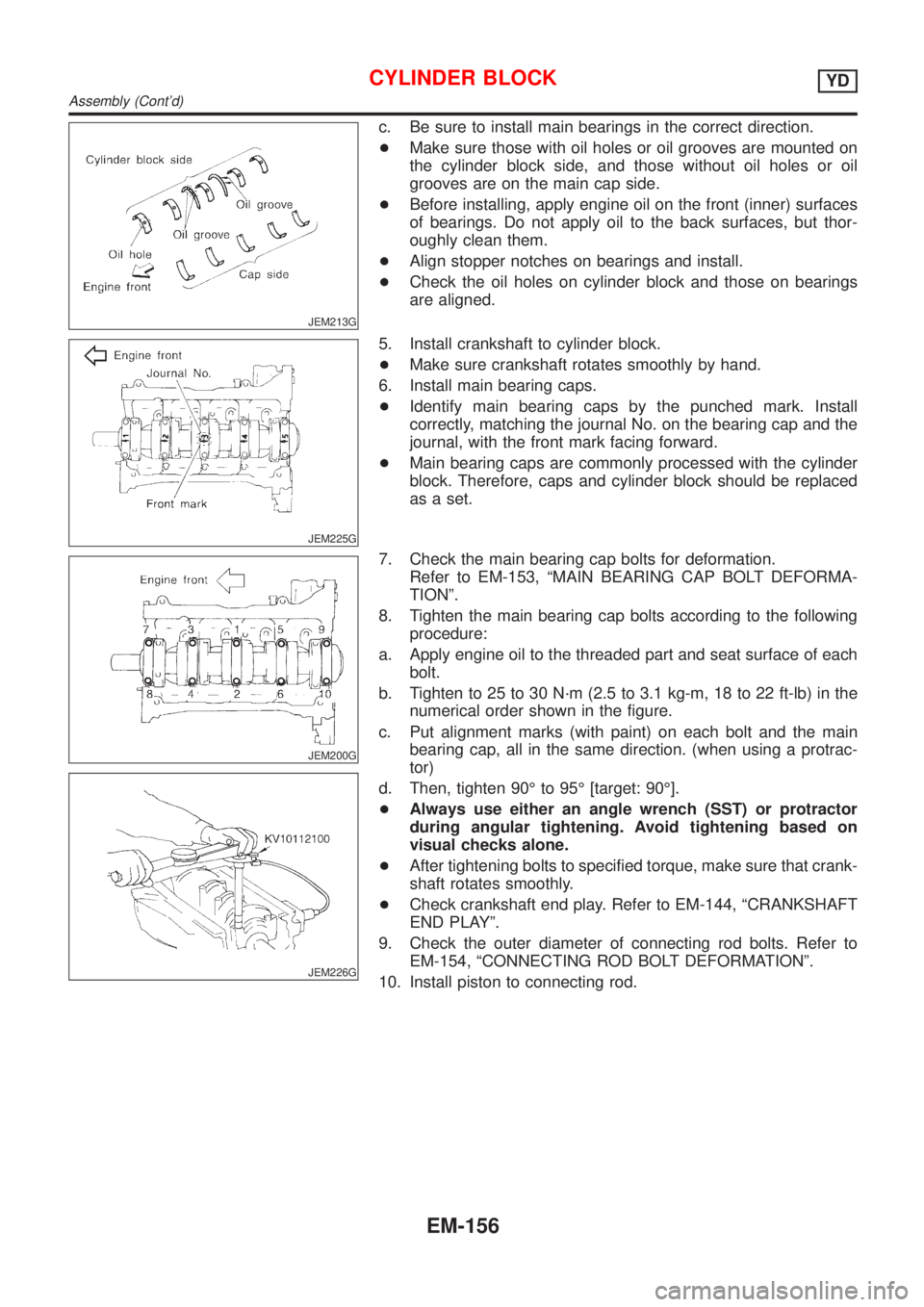

NISSAN ALMERA 2001 Service Manual JEM213G
c. Be sure to install main bearings in the correct direction.
+Make sure those with oil holes or oil grooves are mounted on
the cylinder block side, and those without oil holes or oil
grooves

Page 2291 of 2898

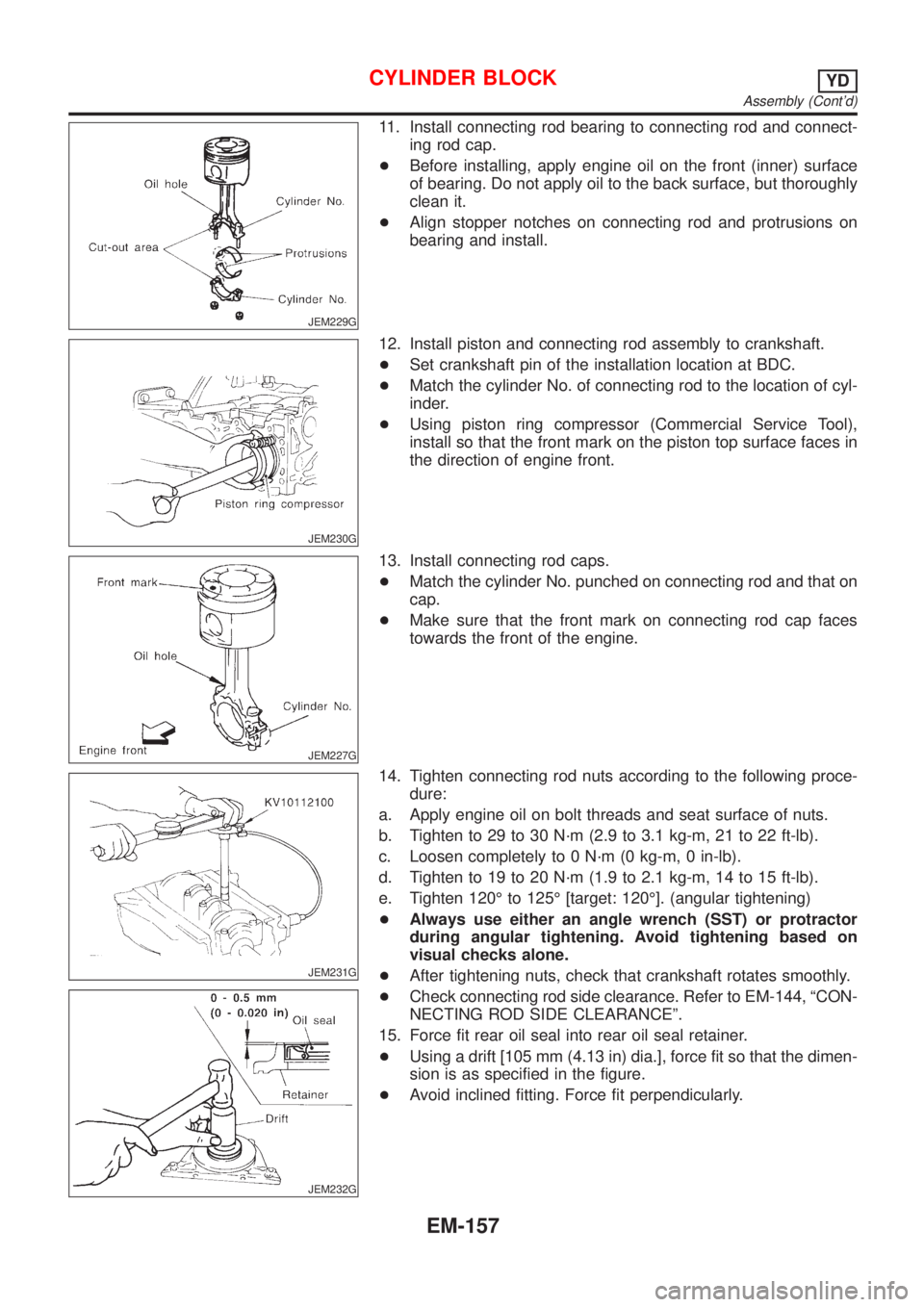

NISSAN ALMERA 2001 Service Manual JEM229G
11. Install connecting rod bearing to connecting rod and connect-
ing rod cap.
+Before installing, apply engine oil on the front (inner) surface
of bearing. Do not apply oil to the back surfac

Page 2292 of 2898

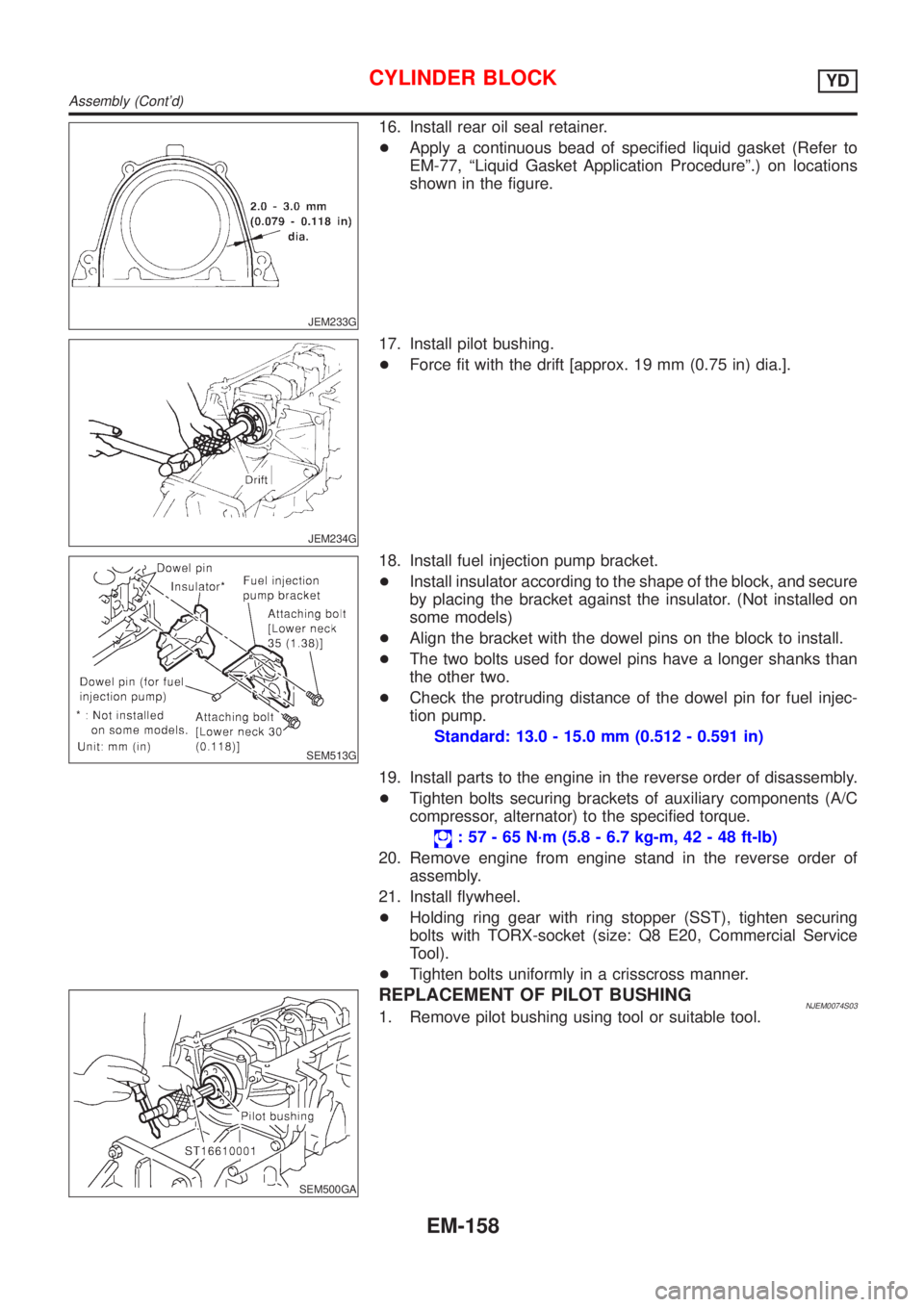

NISSAN ALMERA 2001 Service Manual JEM233G
16. Install rear oil seal retainer.
+Apply a continuous bead of specified liquid gasket (Refer to
EM-77, ªLiquid Gasket Application Procedureº.) on locations
shown in the figure.
JEM234G
17.

Page 2293 of 2898

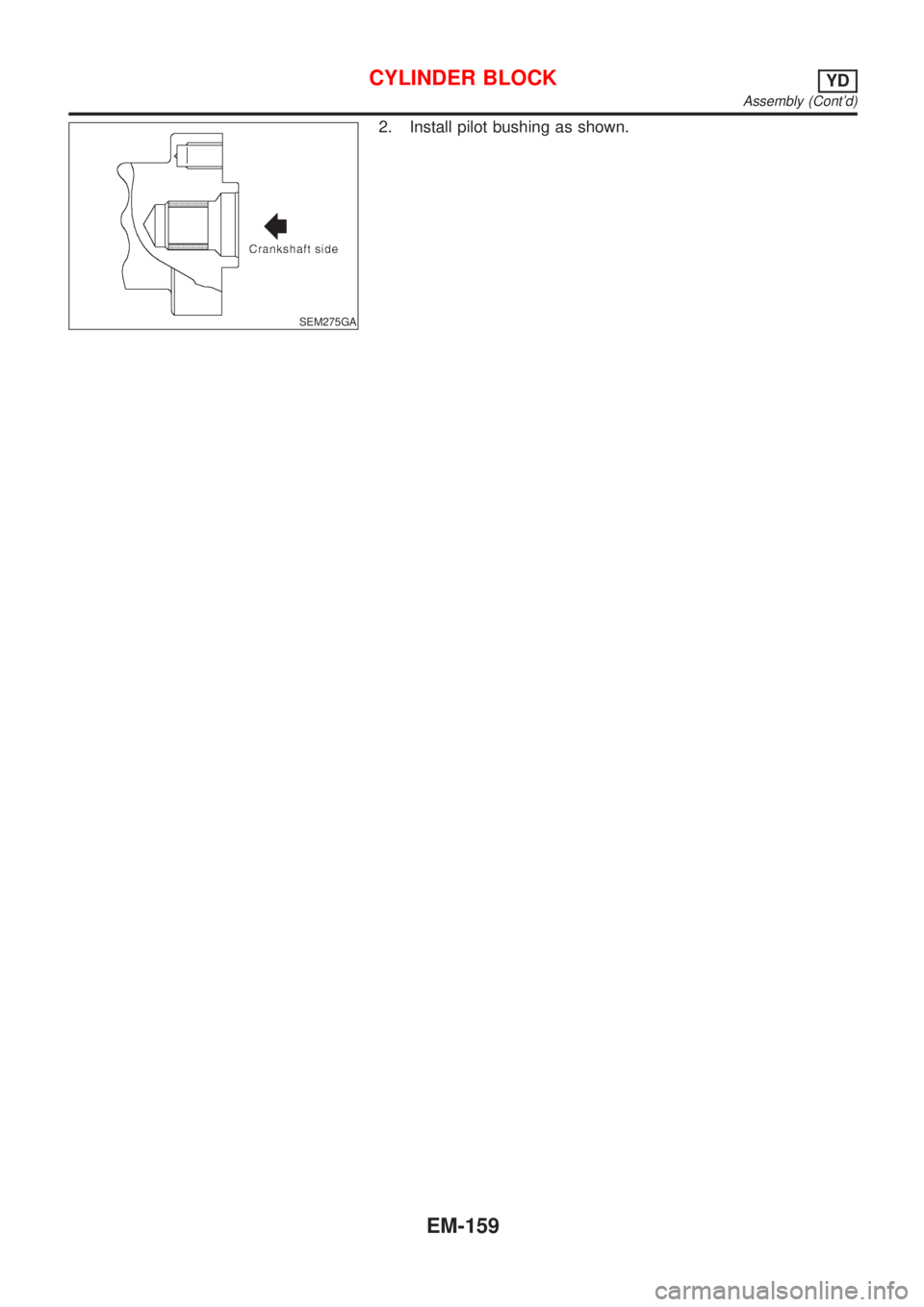

NISSAN ALMERA 2001 Service Manual SEM275GA
2. Install pilot bushing as shown.
CYLINDER BLOCKYD
Assembly (Contd)
EM-159

Page 2294 of 2898

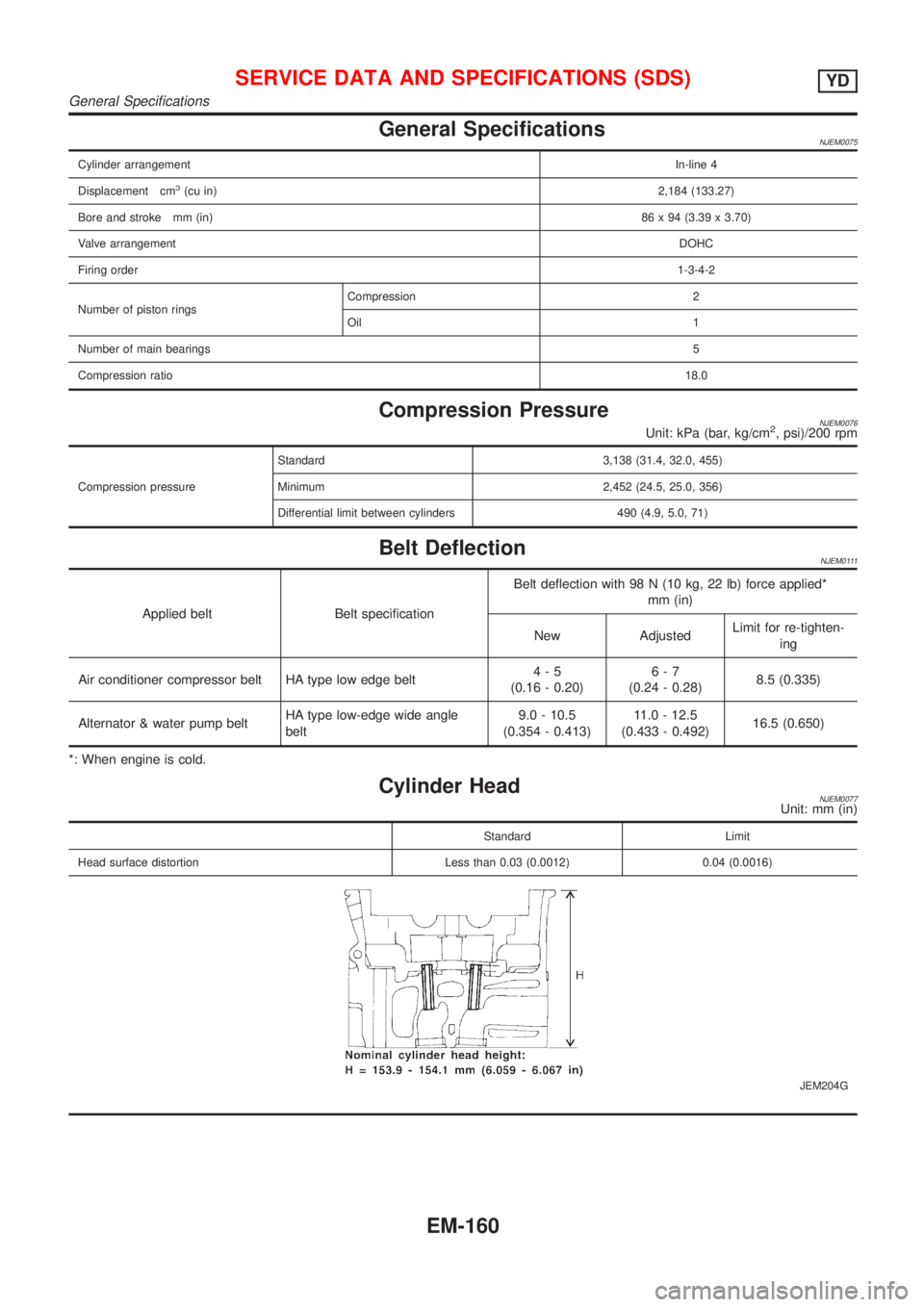

NISSAN ALMERA 2001 Service Manual General SpecificationsNJEM0075
Cylinder arrangementIn-line 4
Displacement cm
3(cu in)2,184 (133.27)
Bore and stroke mm (in)86 x 94 (3.39 x 3.70)
Valve arrangementDOHC
Firing order1-3-4-2
Number of pis

Page 2295 of 2898

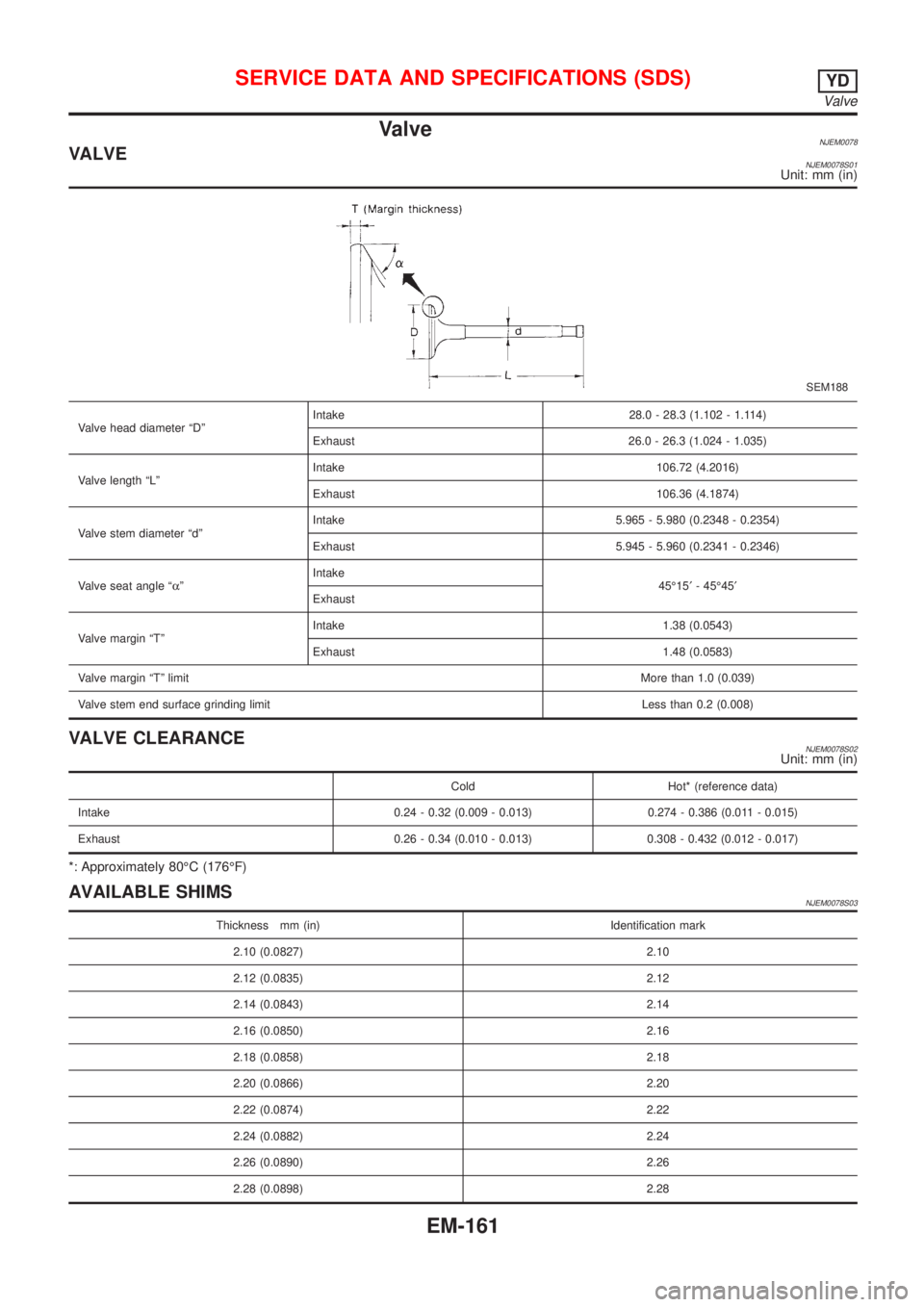

NISSAN ALMERA 2001 Service Manual ValveNJEM0078VALVENJEM0078S01Unit: mm (in)
SEM188
Valve head diameter ªDºIntake 28.0 - 28.3 (1.102 - 1.114)
Exhaust 26.0 - 26.3 (1.024 - 1.035)
Valve length ªLºIntake 106.72 (4.2016)
Exhaust 106.3

Page 2296 of 2898

NISSAN ALMERA 2001 Service Manual Thickness mm (in) Identification mark
2.30 (0.0906) 2.30
2.32 (0.0913) 2.32
2.34 (0.0921) 2.34
2.36 (0.0929) 2.36
2.38 (0.0937) 2.38
2.40 (0.0945) 2.40
2.42 (0.0953) 2.42
2.44 (0.0961) 2.44
2.46 (0.09
