Page 505 of 2898

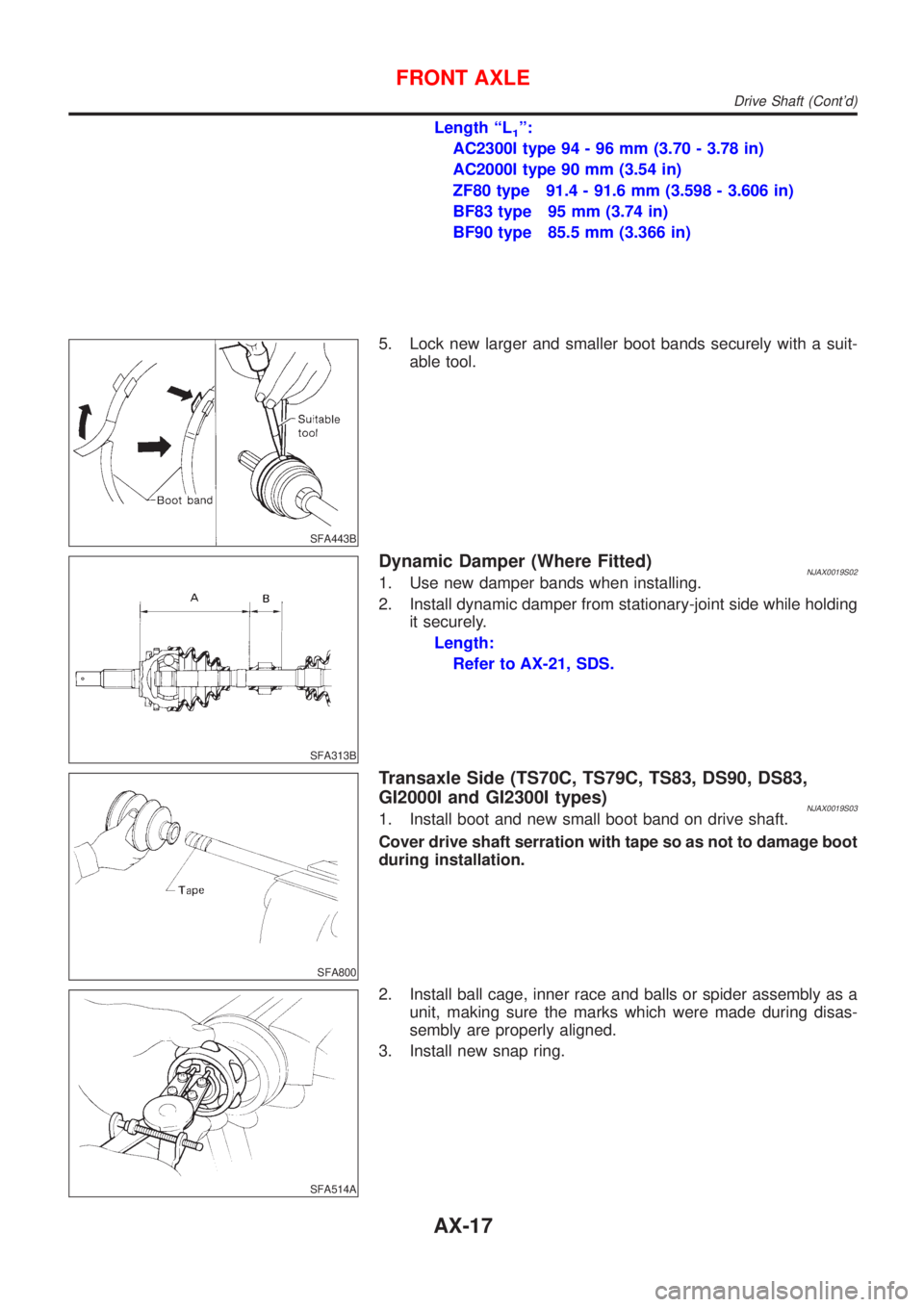

NISSAN ALMERA 2001 Service Manual Length ªL1º: AC2300I type 94 - 96 mm (3.70 - 3.78 in) AC2000I type 90 mm (3.54 in) ZF80 type 91.4 - 91.6 mm (3.598 - 3.606 in) BF83 type 95 mm (3.74 in) BF90 type 85.5 mm (3.366 in) SFA443B 5. Lock

Page 506 of 2898

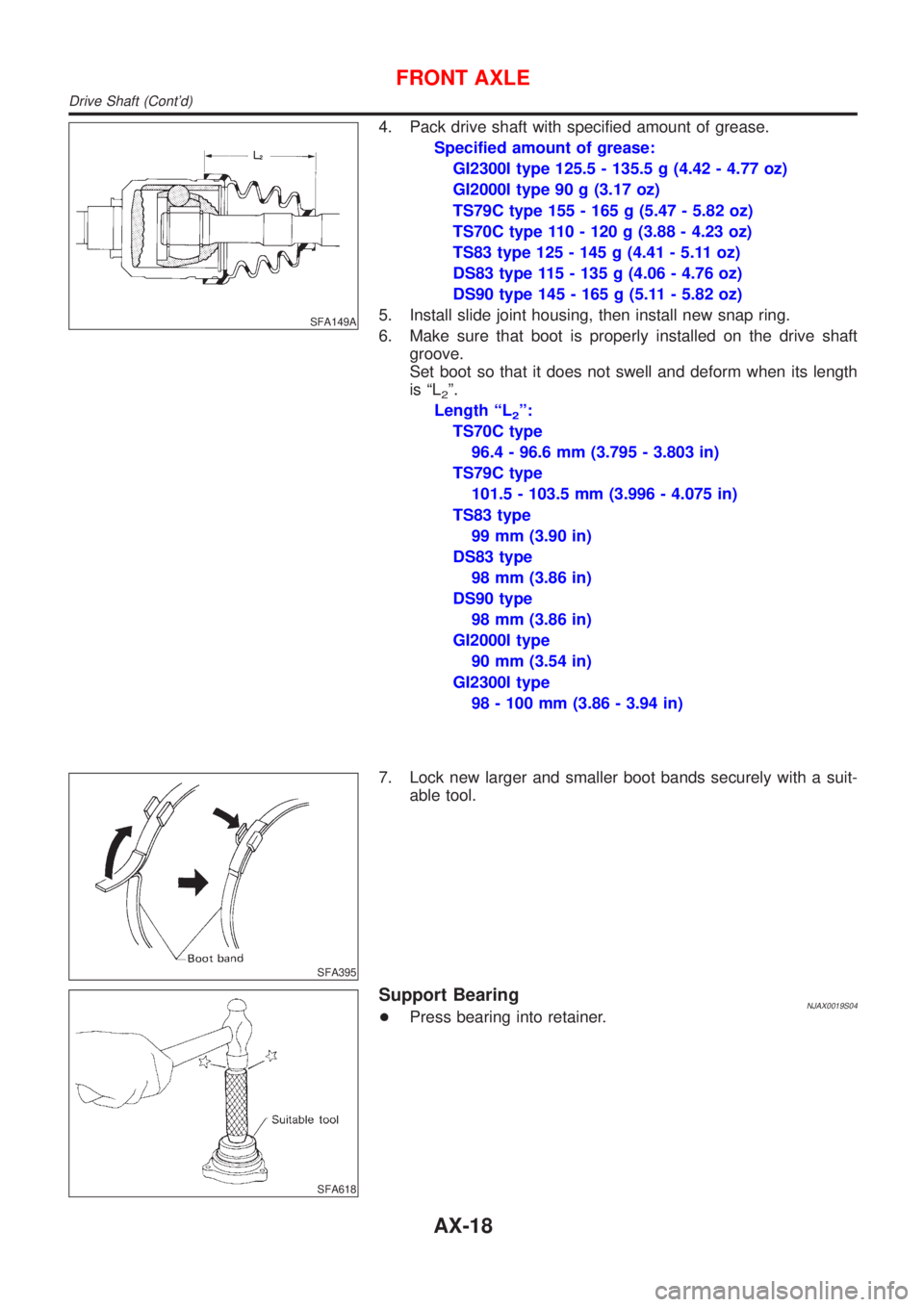

NISSAN ALMERA 2001 Service Manual SFA149A 4. Pack drive shaft with specified amount of grease. Specified amount of grease: GI2300I type 125.5 - 135.5 g (4.42 - 4.77 oz) GI2000I type 90 g (3.17 oz) TS79C type 155 - 165 g (5.47 - 5.82 o

Page 507 of 2898

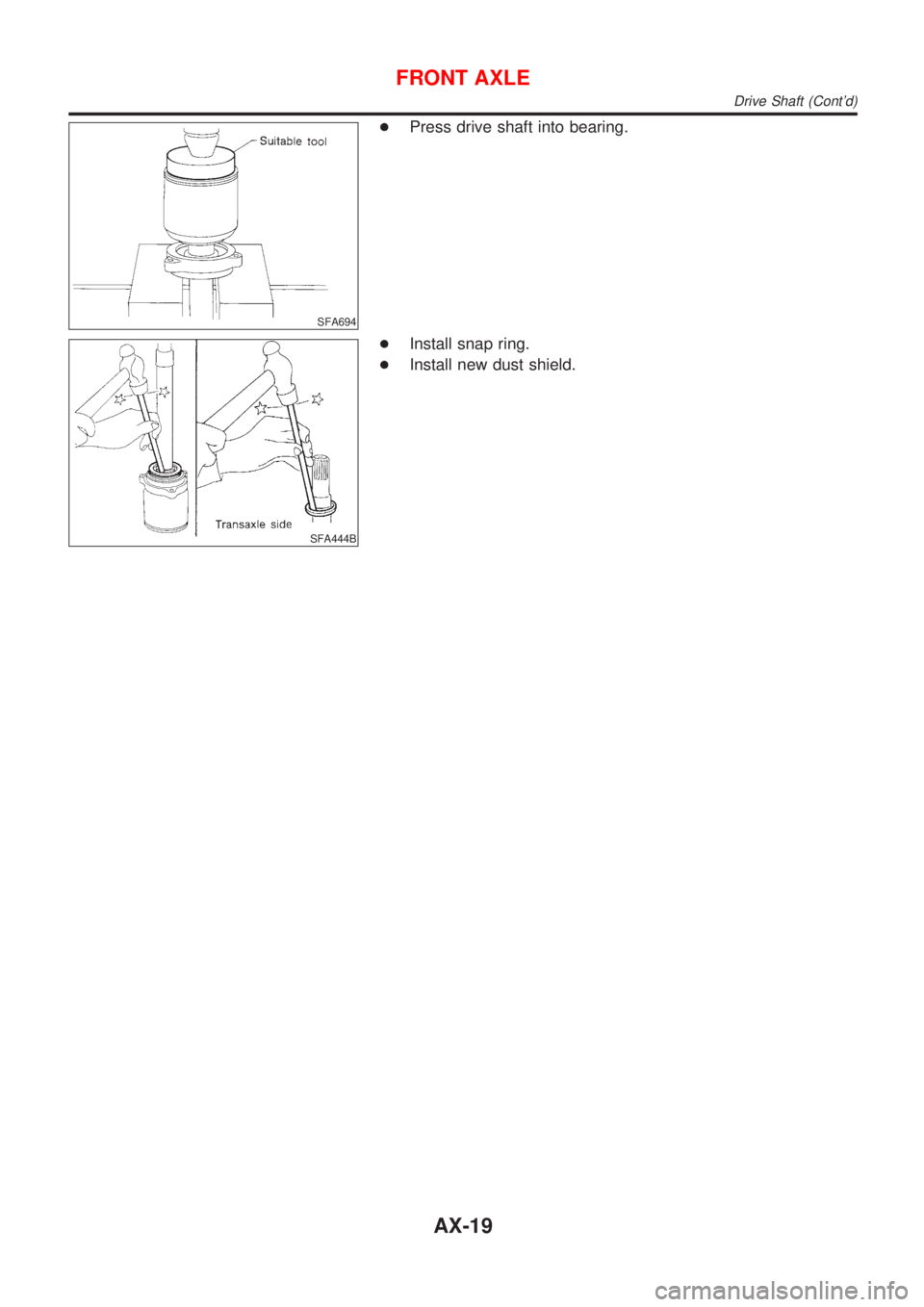

NISSAN ALMERA 2001 Service Manual SFA694 +Press drive shaft into bearing. SFA444B +Install snap ring. +Install new dust shield. FRONT AXLE Drive Shaft (Contd) AX-19

Page 508 of 2898

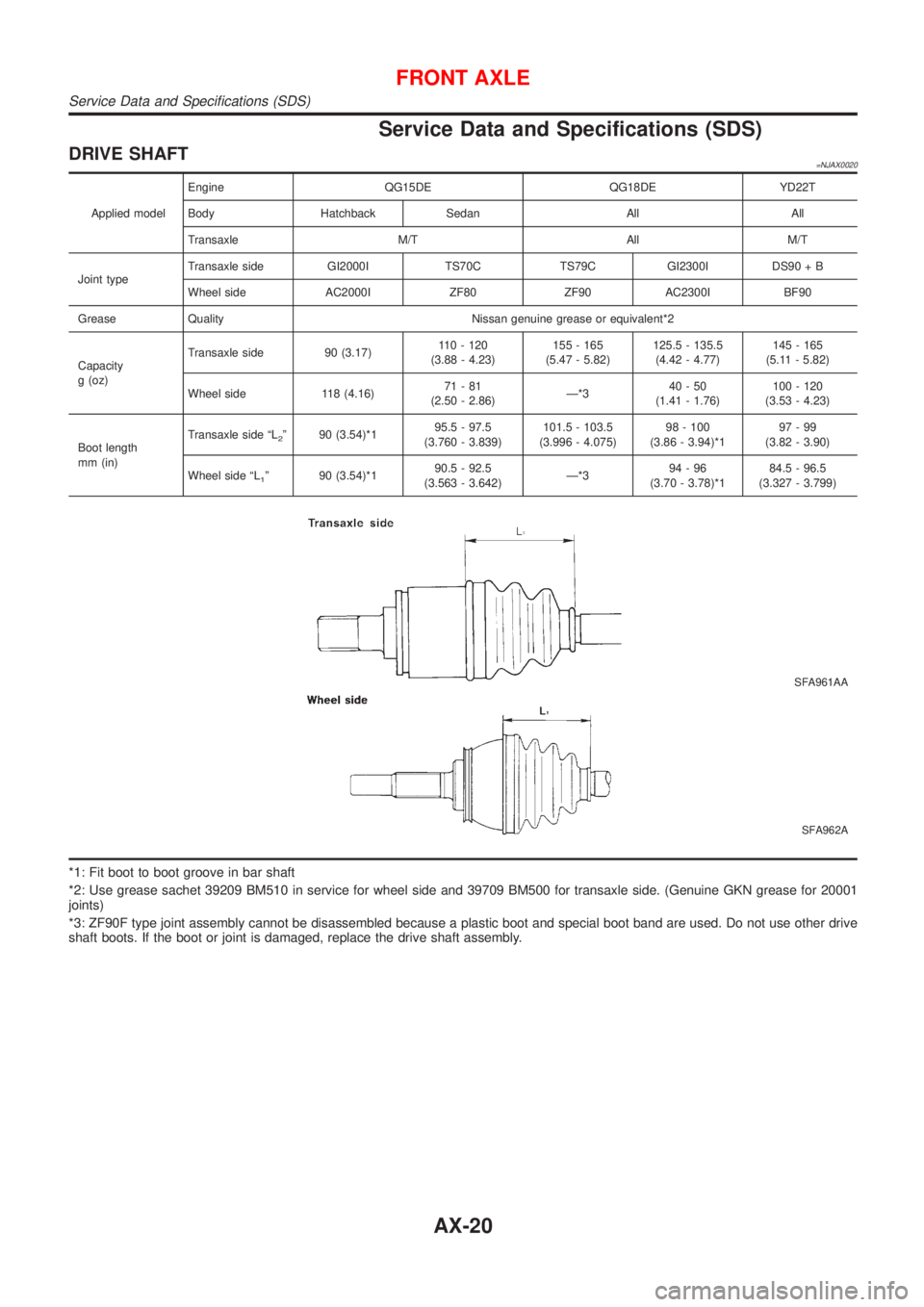

NISSAN ALMERA 2001 Service Manual Service Data and Specifications (SDS) DRIVE SHAFT=NJAX0020 Applied modelEngine QG15DE QG18DE YD22T Body Hatchback Sedan All All Transaxle M/T All M/T Joint typeTransaxle side GI2000I TS70C TS79C GI230

Page 509 of 2898

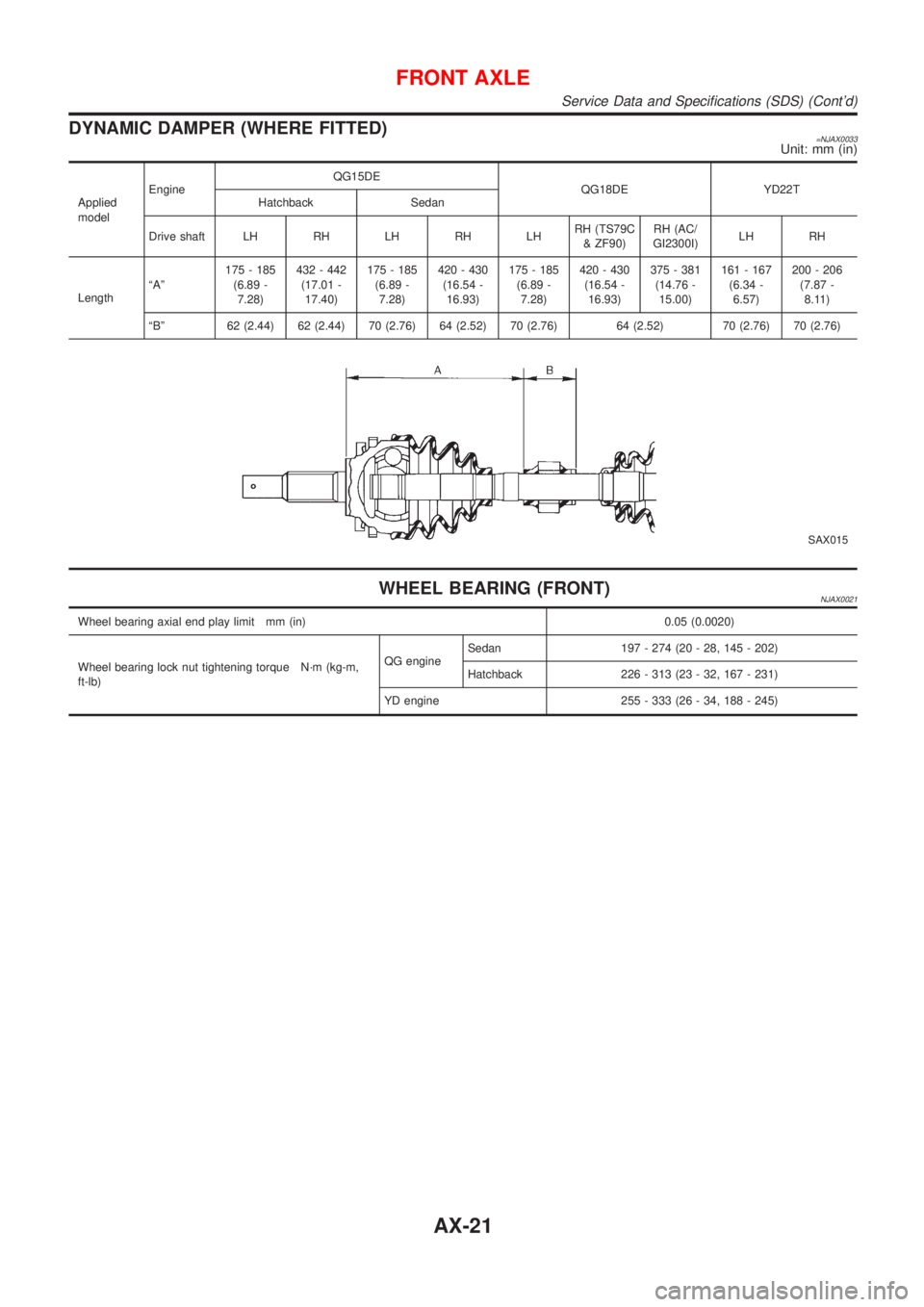

NISSAN ALMERA 2001 Service Manual DYNAMIC DAMPER (WHERE FITTED)=NJAX0033Unit: mm (in) Applied modelEngineQG15DE QG18DE YD22T Hatchback Sedan Drive shaft LH RH LH RH LHRH (TS79C & ZF90)RH (AC/ GI2300I)LH RH LengthªAº175 - 185 (6.89 -

Page 510 of 2898

NISSAN ALMERA 2001 Service Manual SBR686C Precautions PRECAUTIONSNJAX0022+When installing each rubber part, final tightening must be carried out under unladen condition* with tires on ground. *: Fuel, radiator coolant and engine oil f

Page 511 of 2898

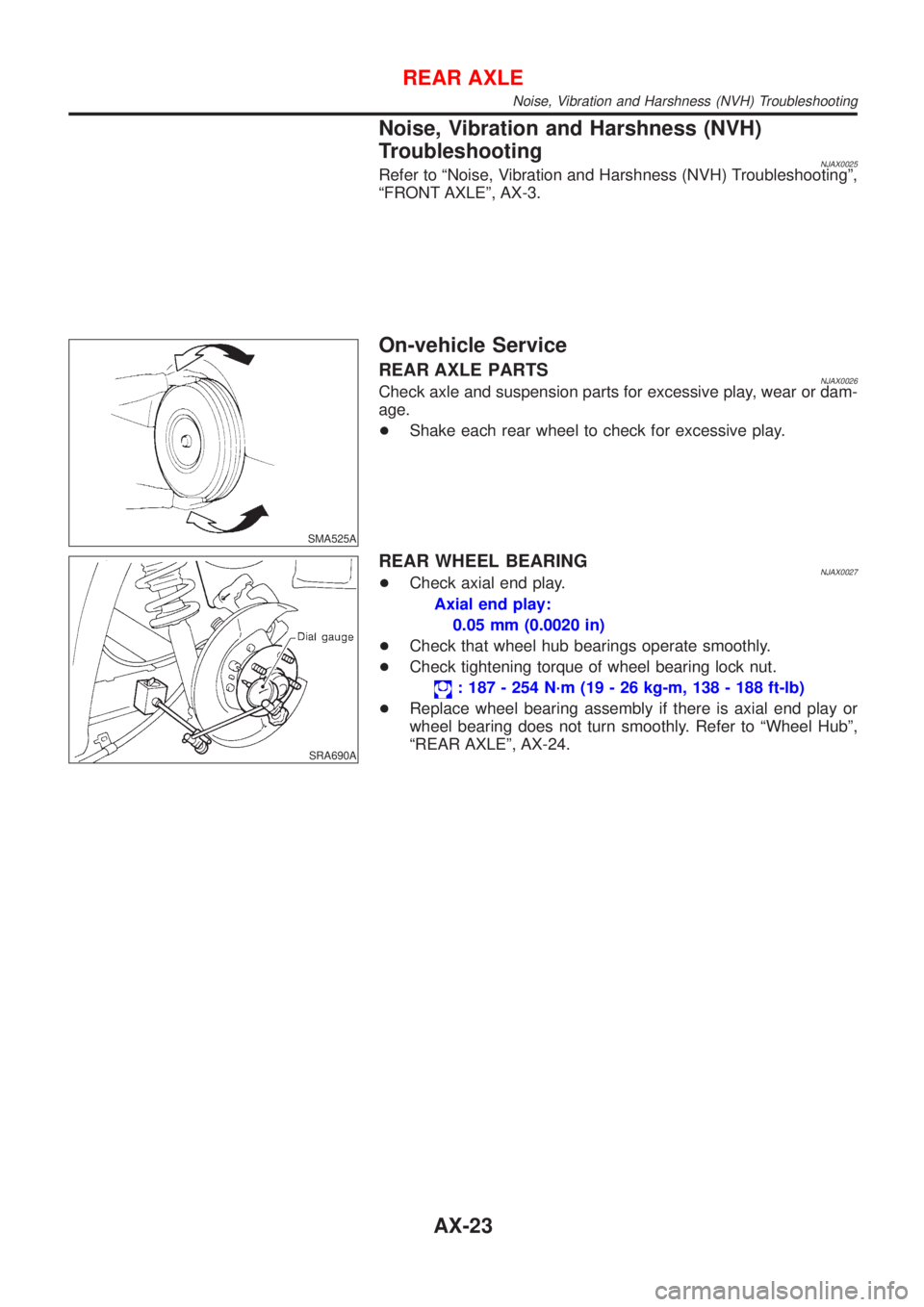

NISSAN ALMERA 2001 Service Manual Noise, Vibration and Harshness (NVH) Troubleshooting NJAX0025Refer to ªNoise, Vibration and Harshness (NVH) Troubleshootingº, ªFRONT AXLEº, AX-3. SMA525A On-vehicle Service REAR AXLE PARTSNJAX0026

Page 512 of 2898

NISSAN ALMERA 2001 Service Manual Wheel Hub COMPONENTSNJAX0028 SAX013-A 1. Spindle 2. Baffle plate 3. Back plate4. ABS sensor rotor 5. Wheel hub bearing 6. Wheel bearing lock nut7. Hub cap 8. ABS sensor REMOVALNJAX0029CAUTION: +Before
