Page 1801 of 2898

NISSAN ALMERA 2001 Service Manual HEL053B REAR WINDOW DEFOGGER Wiring Diagram Ð DEF Ð/Sedan (Contd) EL-243

Page 1802 of 2898

NISSAN ALMERA 2001 Service Manual RHD MODELSNJEL0379S02 HEL395B REAR WINDOW DEFOGGER Wiring Diagram Ð DEF Ð/Sedan (Contd) EL-244

Page 1803 of 2898

NISSAN ALMERA 2001 Service Manual HEL396B REAR WINDOW DEFOGGER Wiring Diagram Ð DEF Ð/Sedan (Contd) EL-245

Page 1804 of 2898

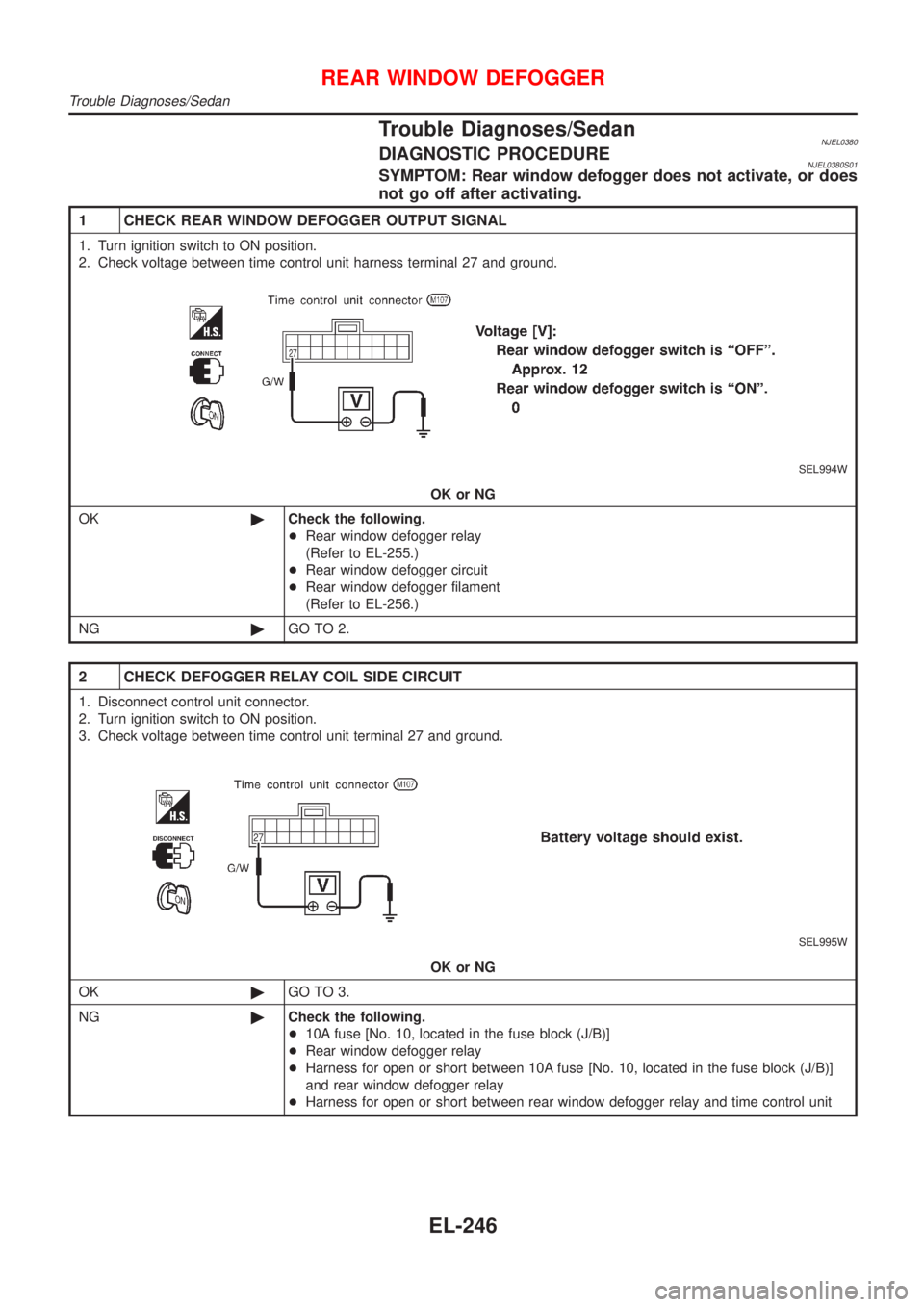

NISSAN ALMERA 2001 Service Manual Trouble Diagnoses/SedanNJEL0380DIAGNOSTIC PROCEDURENJEL0380S01SYMPTOM: Rear window defogger does not activate, or does not go off after activating. 1 CHECK REAR WINDOW DEFOGGER OUTPUT SIGNAL 1. Turn i

Page 1805 of 2898

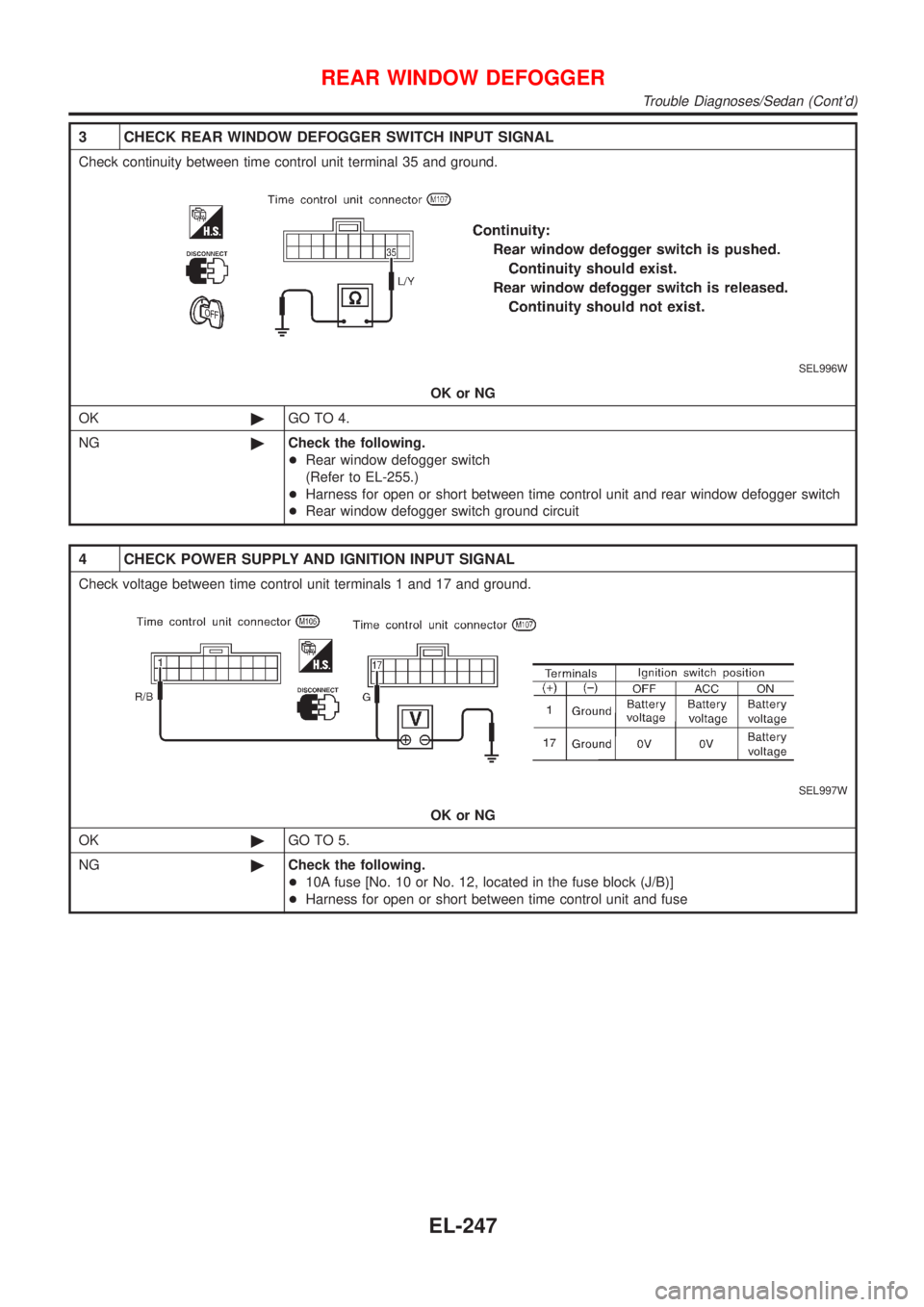

NISSAN ALMERA 2001 Service Manual 3 CHECK REAR WINDOW DEFOGGER SWITCH INPUT SIGNAL Check continuity between time control unit terminal 35 and ground. SEL996W OK or NG OK©GO TO 4. NG©Check the following. +Rear window defogger switch

Page 1806 of 2898

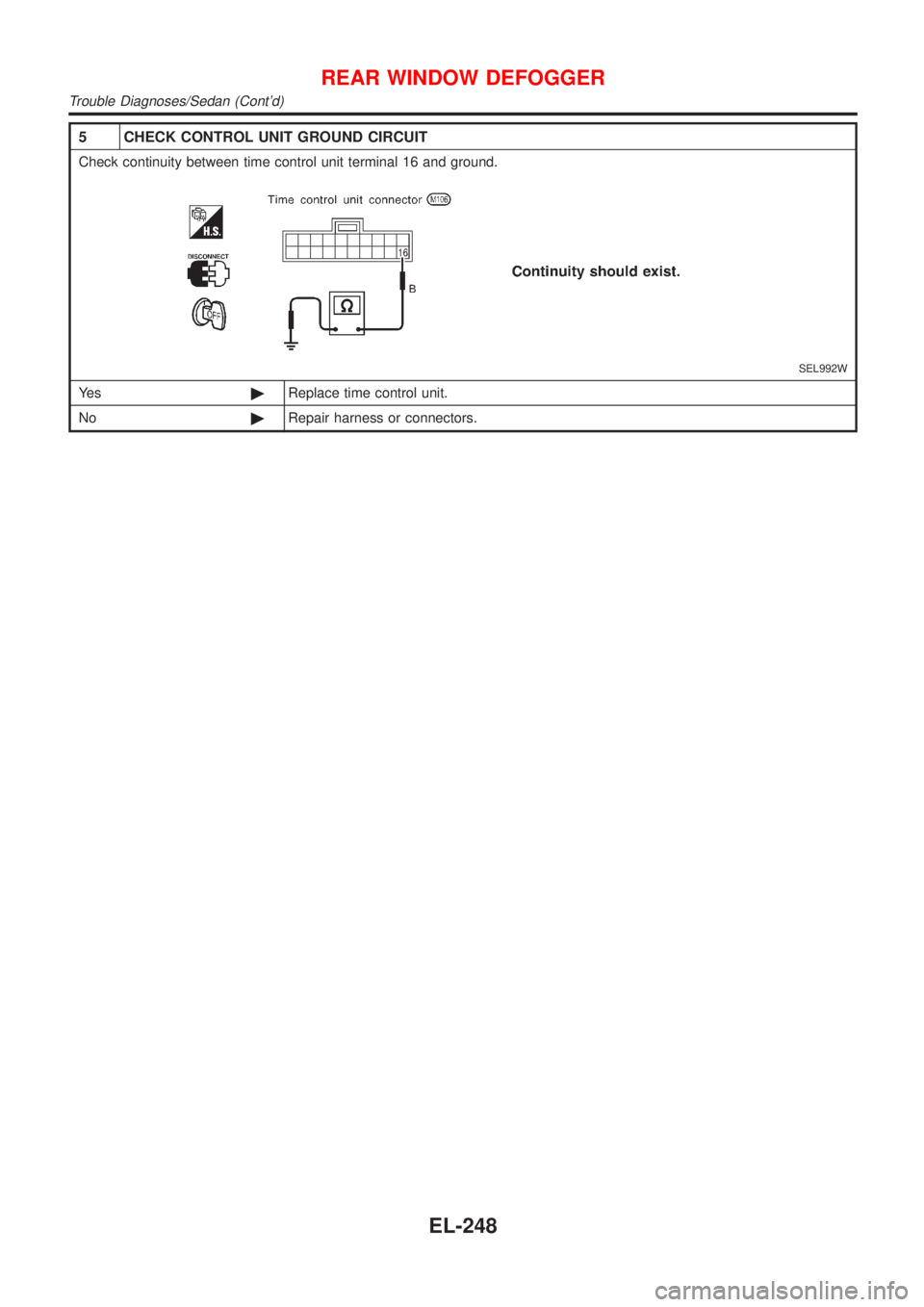

NISSAN ALMERA 2001 Service Manual 5 CHECK CONTROL UNIT GROUND CIRCUIT Check continuity between time control unit terminal 16 and ground. SEL992W Ye s©Replace time control unit. No©Repair harness or connectors. REAR WINDOW DEFOGGER T

Page 1807 of 2898

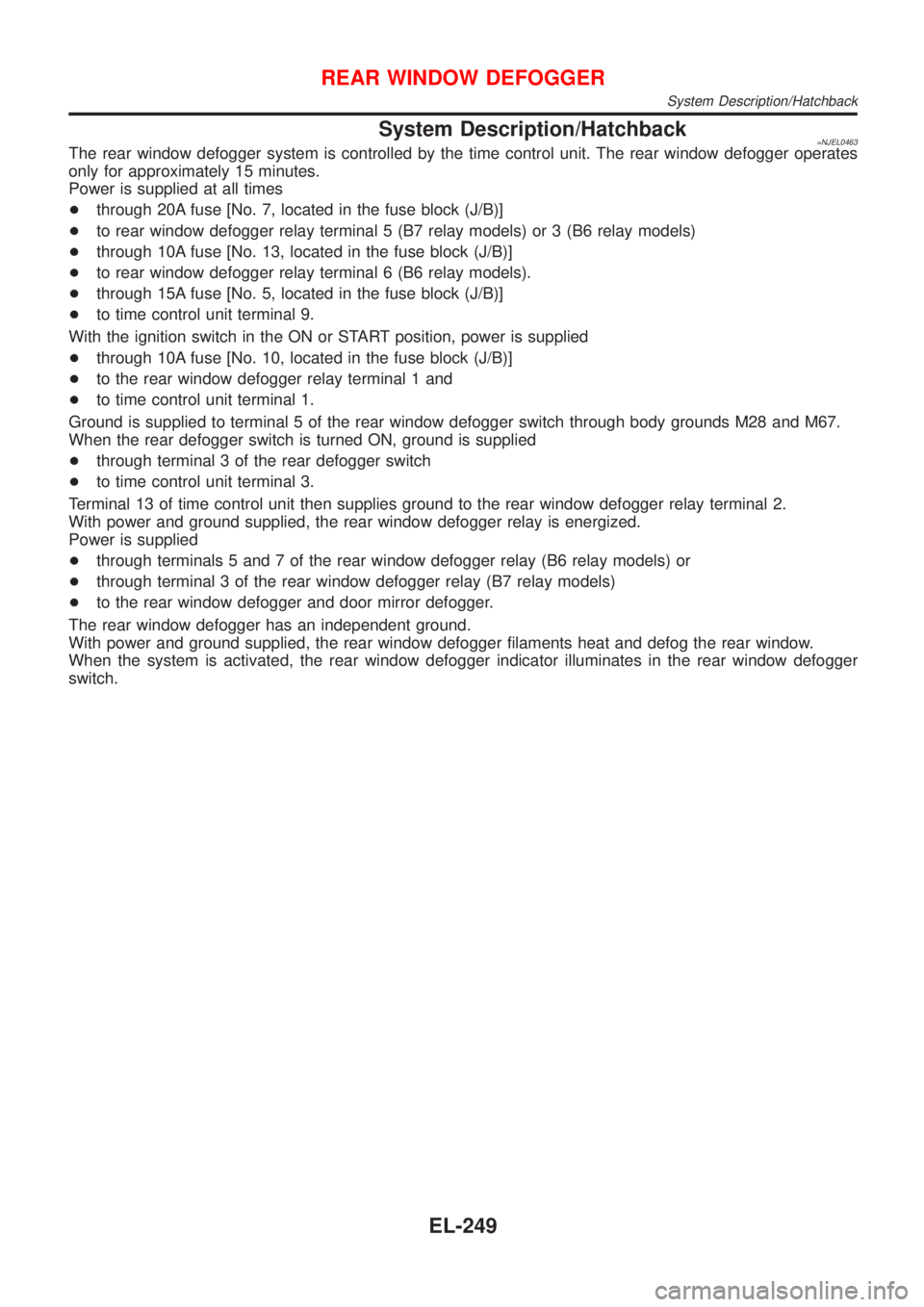

NISSAN ALMERA 2001 Service Manual System Description/Hatchback=NJEL0463The rear window defogger system is controlled by the time control unit. The rear window defogger operates only for approximately 15 minutes. Power is supplied at a

Page 1808 of 2898

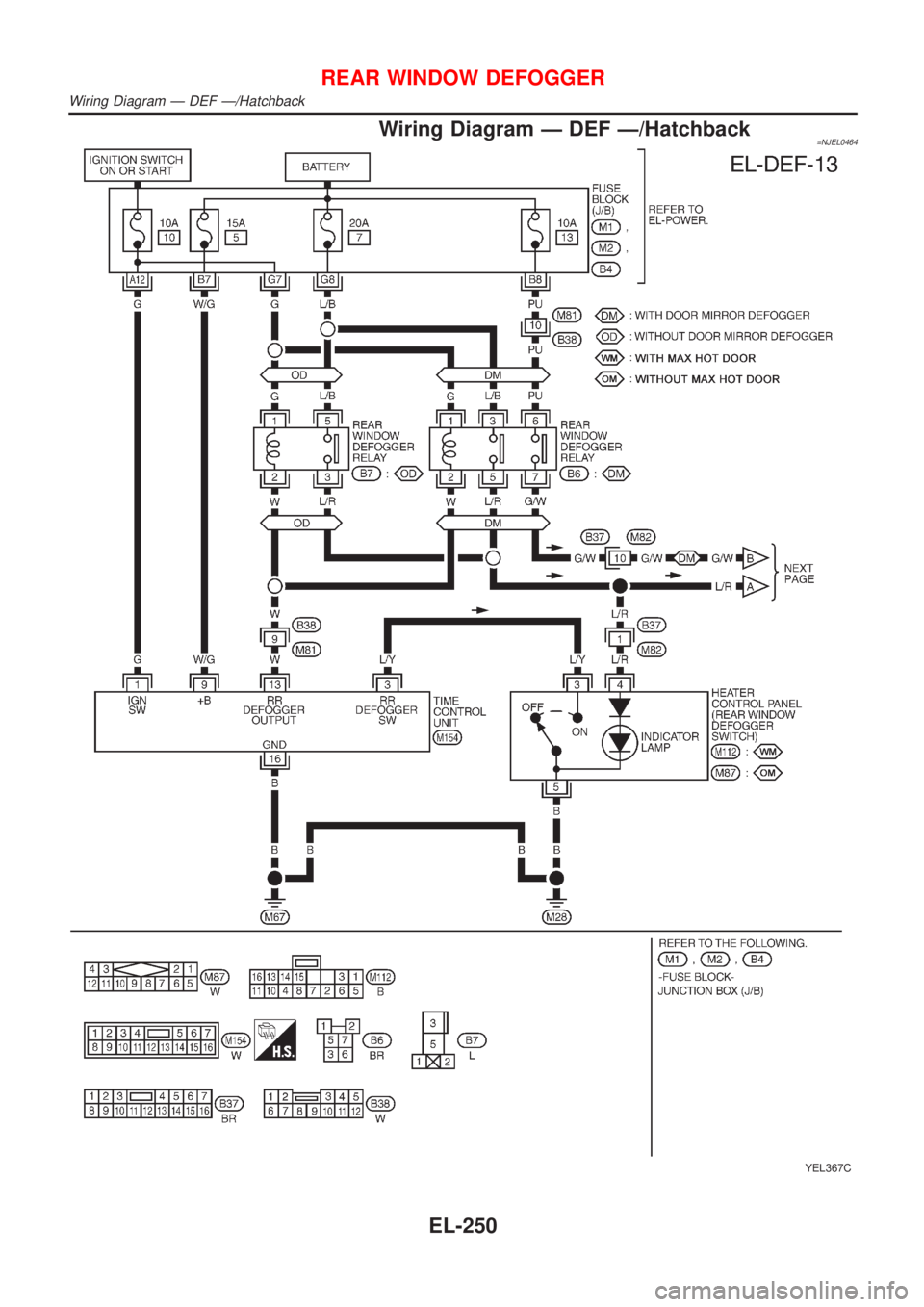

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð DEF Ð/Hatchback=NJEL0464 YEL367C REAR WINDOW DEFOGGER Wiring Diagram Ð DEF Ð/Hatchback EL-250
