Page 1121 of 2898

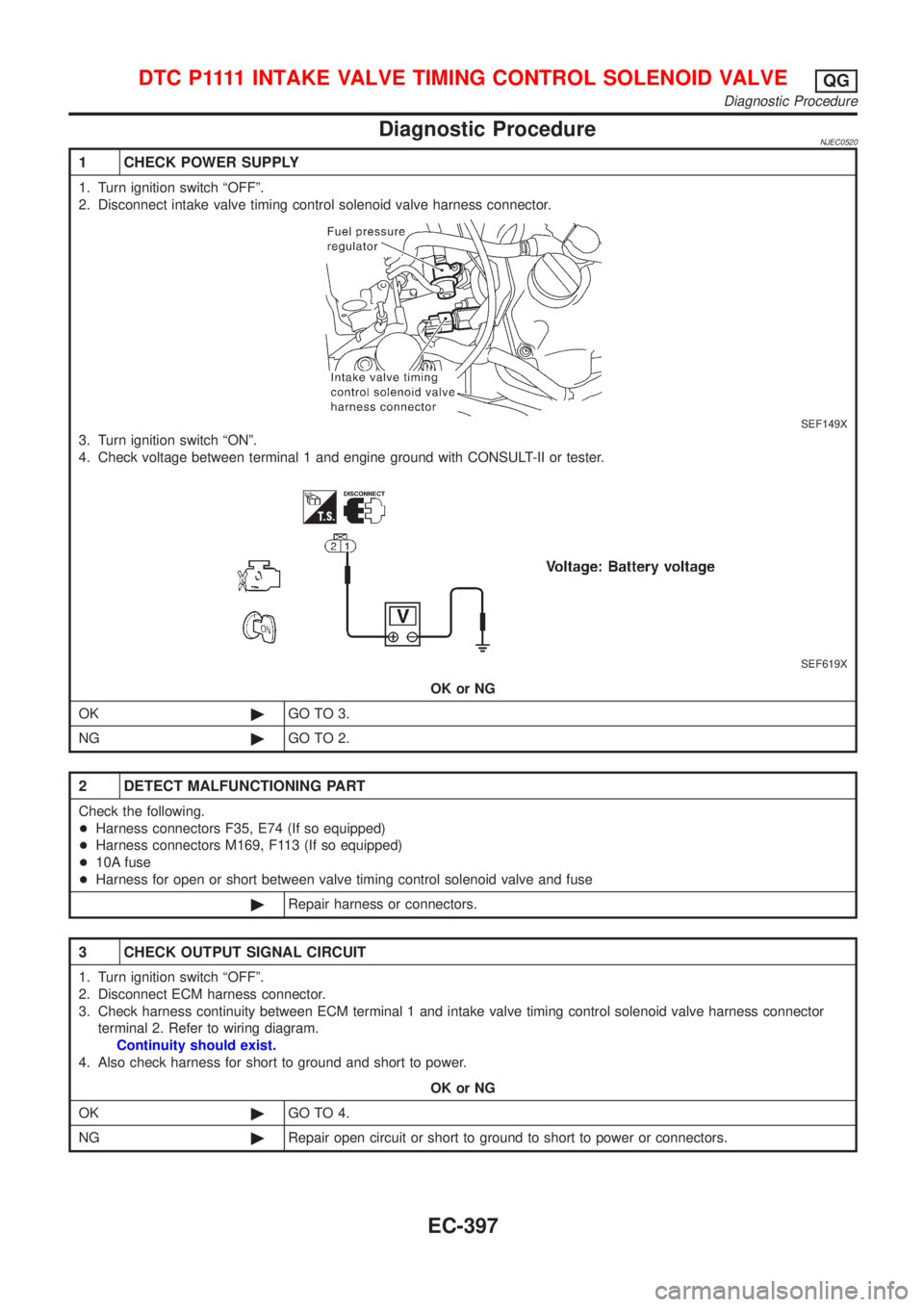

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC0520
1 CHECK POWER SUPPLY
1. Turn ignition switch ªOFFº.
2. Disconnect intake valve timing control solenoid valve harness connector.
SEF149X
3. Turn ignition switch ªONº.
4

Page 1122 of 2898

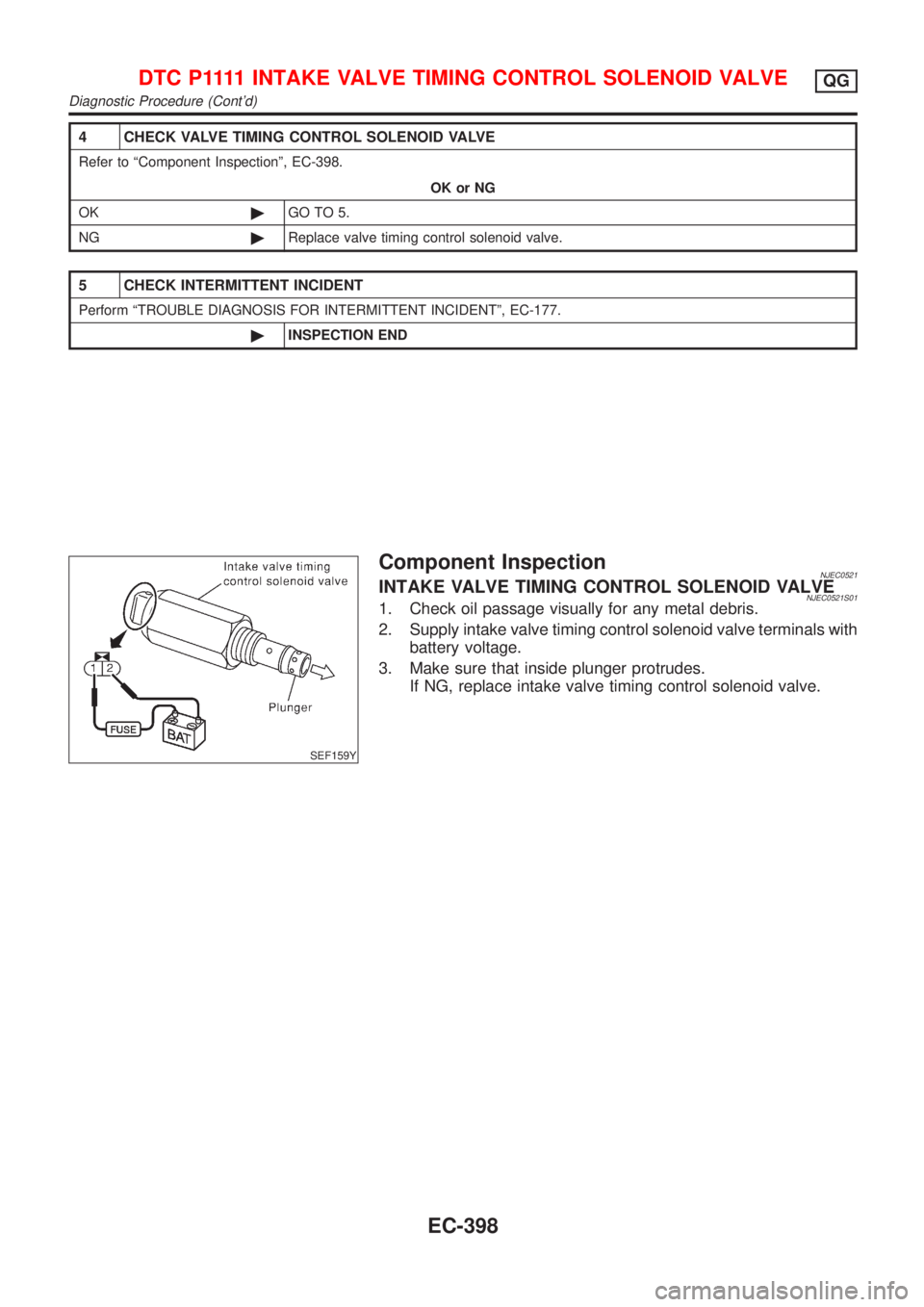

NISSAN ALMERA 2001 Service Manual 4 CHECK VALVE TIMING CONTROL SOLENOID VALVE
Refer to ªComponent Inspectionº, EC-398.
OK or NG
OK©GO TO 5.
NG©Replace valve timing control solenoid valve.
5 CHECK INTERMITTENT INCIDENT
Perform ªTR

Page 1123 of 2898

NISSAN ALMERA 2001 Service Manual DescriptionNJEC0522SYSTEM DESCRIPTIONNJEC0522S01
Sensor Input Signal to ECMECM func-
tionActuator
Throttle position sensor Throttle position
Swirl con-
trol valve
system
controlSwirl control valve con

Page 1124 of 2898

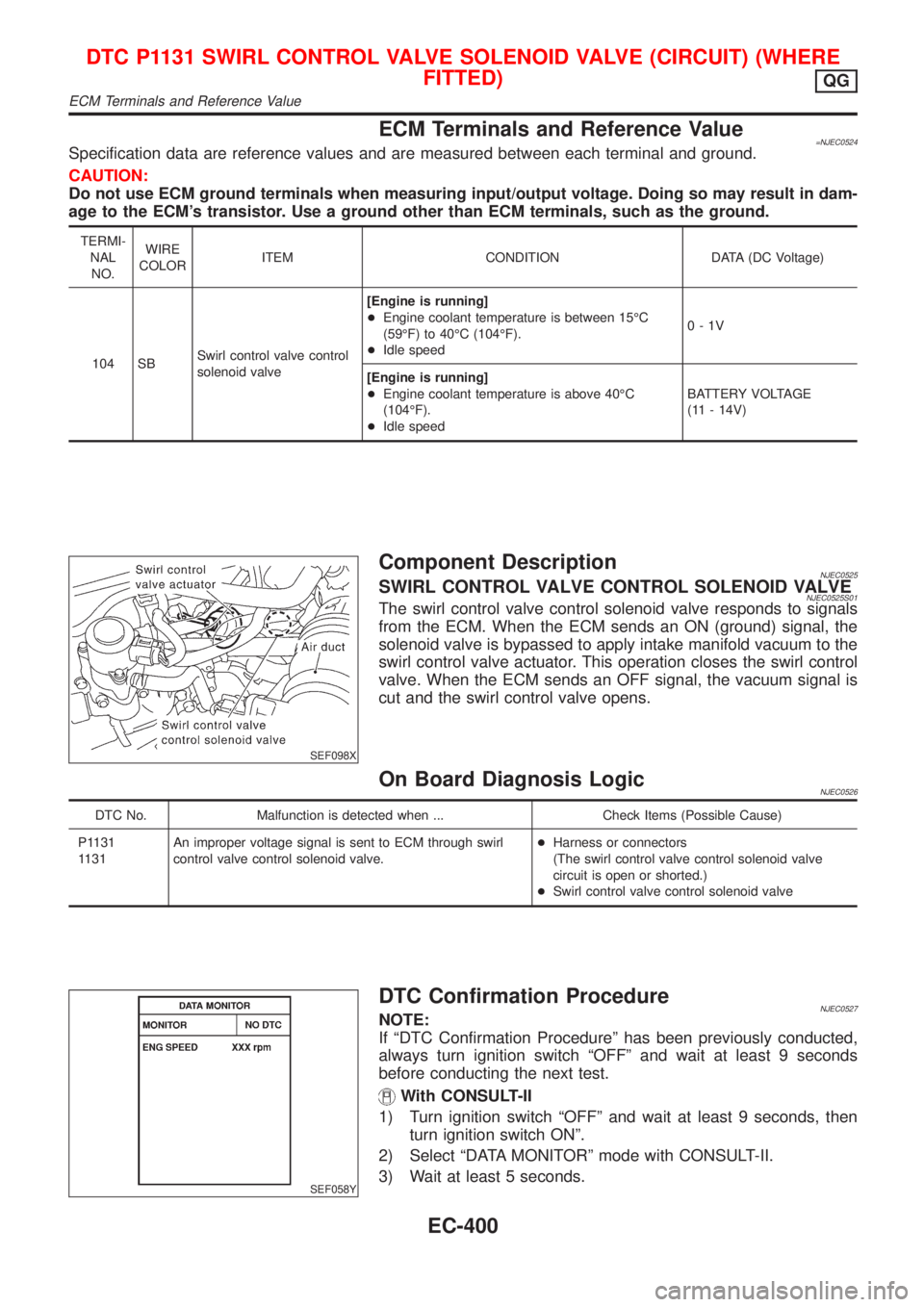

NISSAN ALMERA 2001 Service Manual ECM Terminals and Reference Value=NJEC0524Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/outpu

Page 1125 of 2898

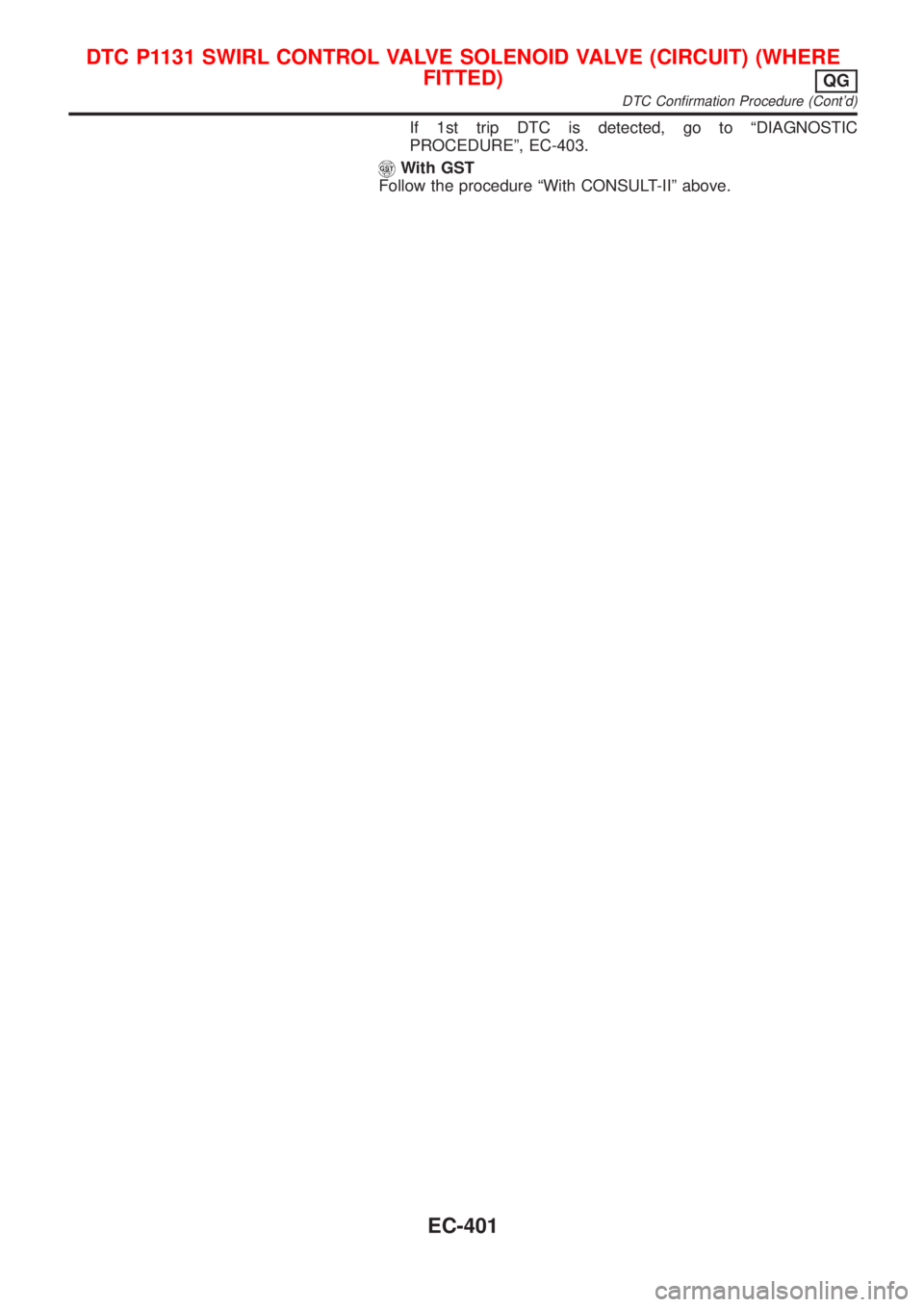

NISSAN ALMERA 2001 Service Manual If 1st trip DTC is detected, go to ªDIAGNOSTIC
PROCEDUREº, EC-403.
With GST
Follow the procedure ªWith CONSULT-IIº above.
DTC P1131 SWIRL CONTROL VALVE SOLENOID VALVE (CIRCUIT) (WHERE
FITTED)
QG
D

Page 1126 of 2898

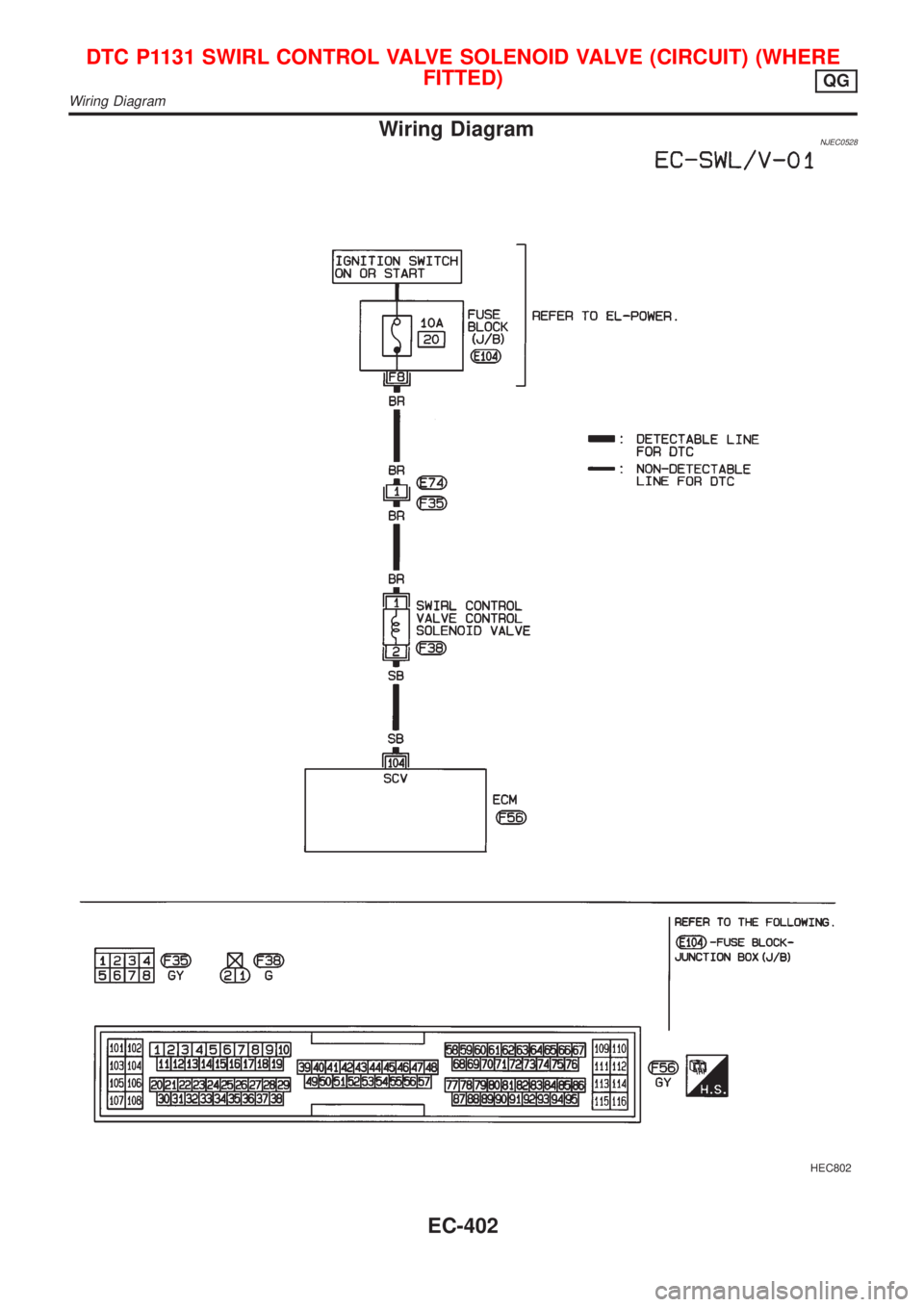

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC0528
HEC802
DTC P1131 SWIRL CONTROL VALVE SOLENOID VALVE (CIRCUIT) (WHERE
FITTED)
QG
Wiring Diagram
EC-402

Page 1127 of 2898

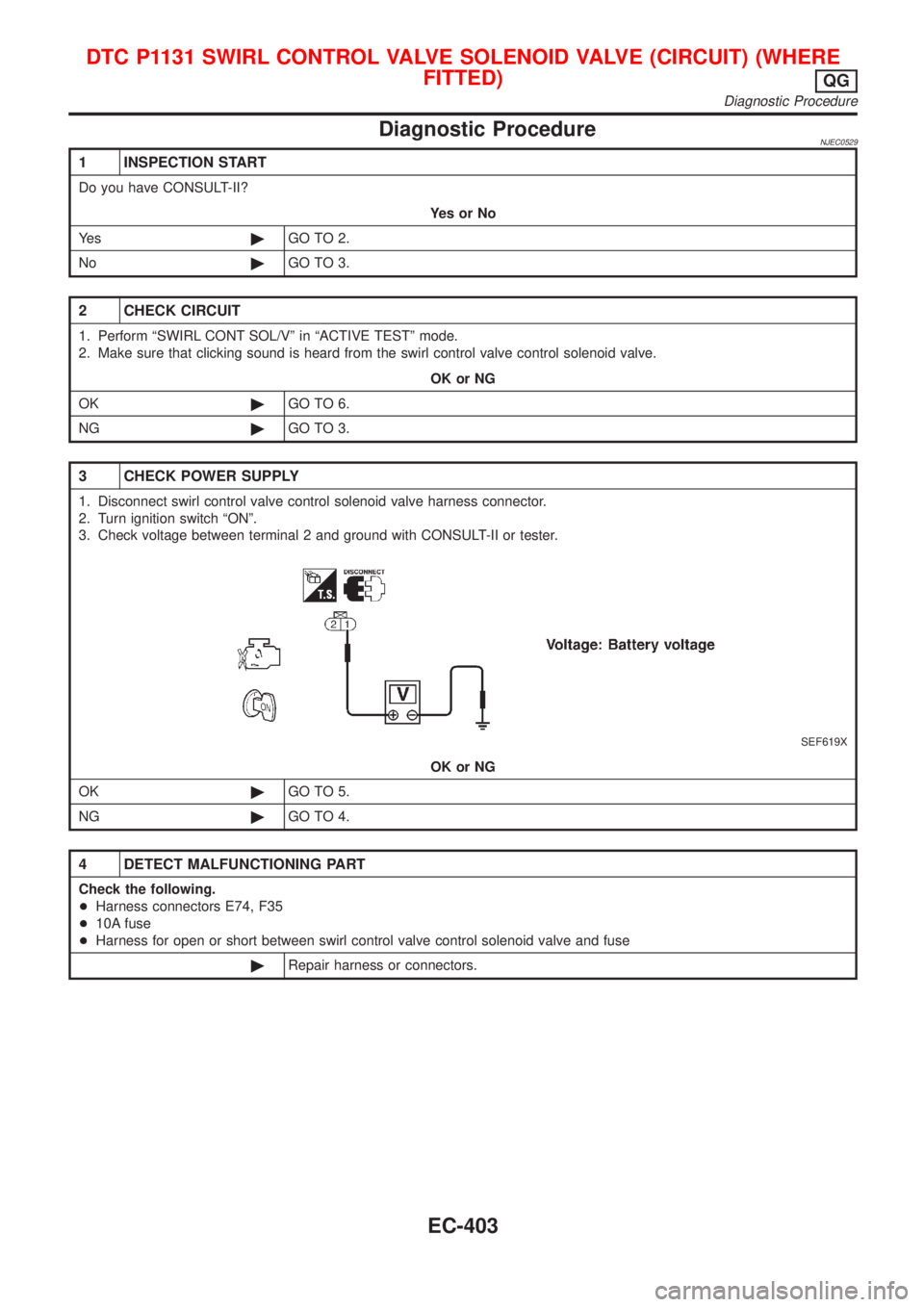

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC0529
1 INSPECTION START
Do you have CONSULT-II?
YesorNo
Ye s©GO TO 2.
No©GO TO 3.
2 CHECK CIRCUIT
1. Perform ªSWIRL CONT SOL/Vº in ªACTIVE TESTº mode.
2. Make sure that c

Page 1128 of 2898

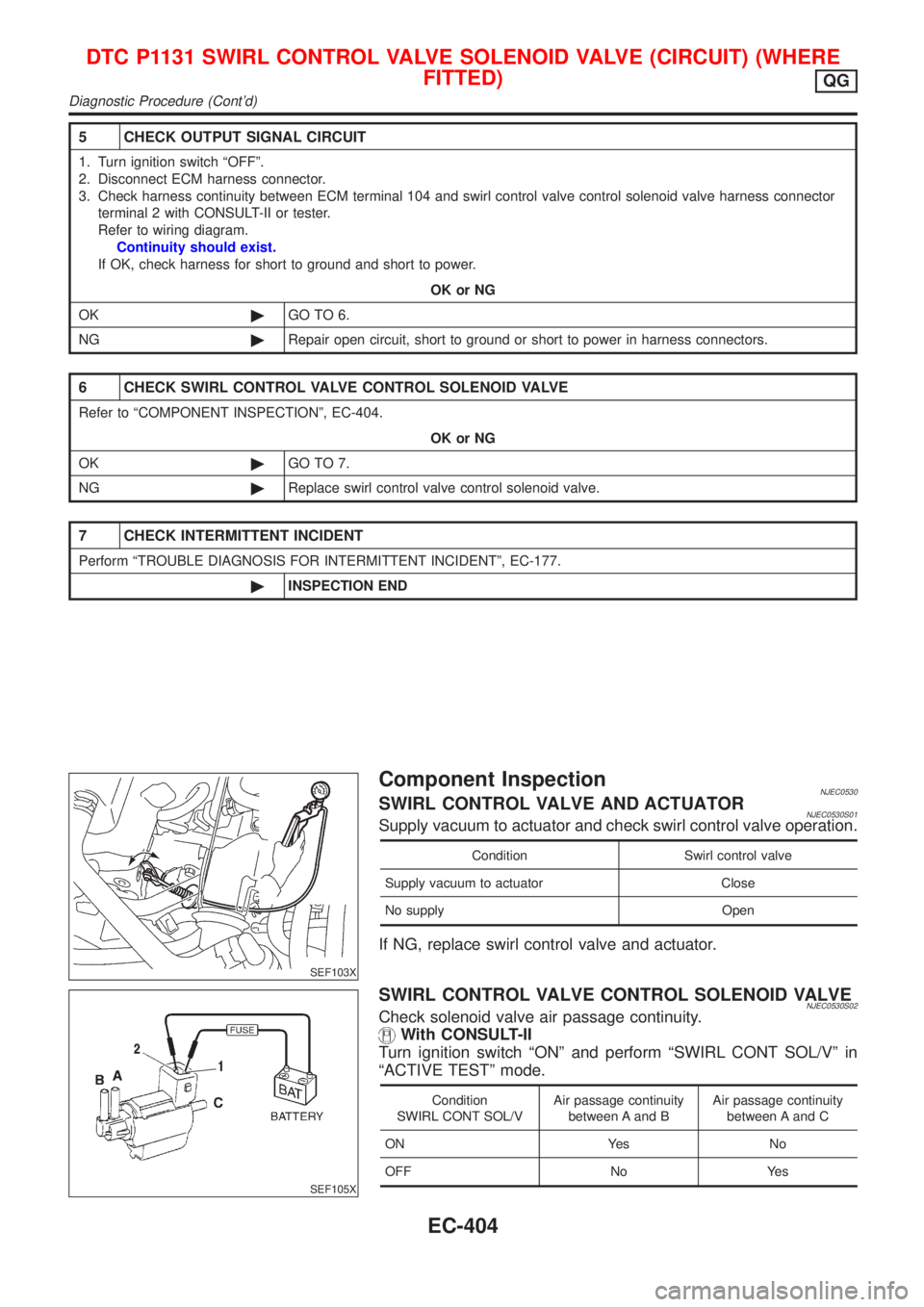

NISSAN ALMERA 2001 Service Manual 5 CHECK OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 104 and swirl control valve control solenoid valve

Load next 8 pages
