Page 217 of 2898

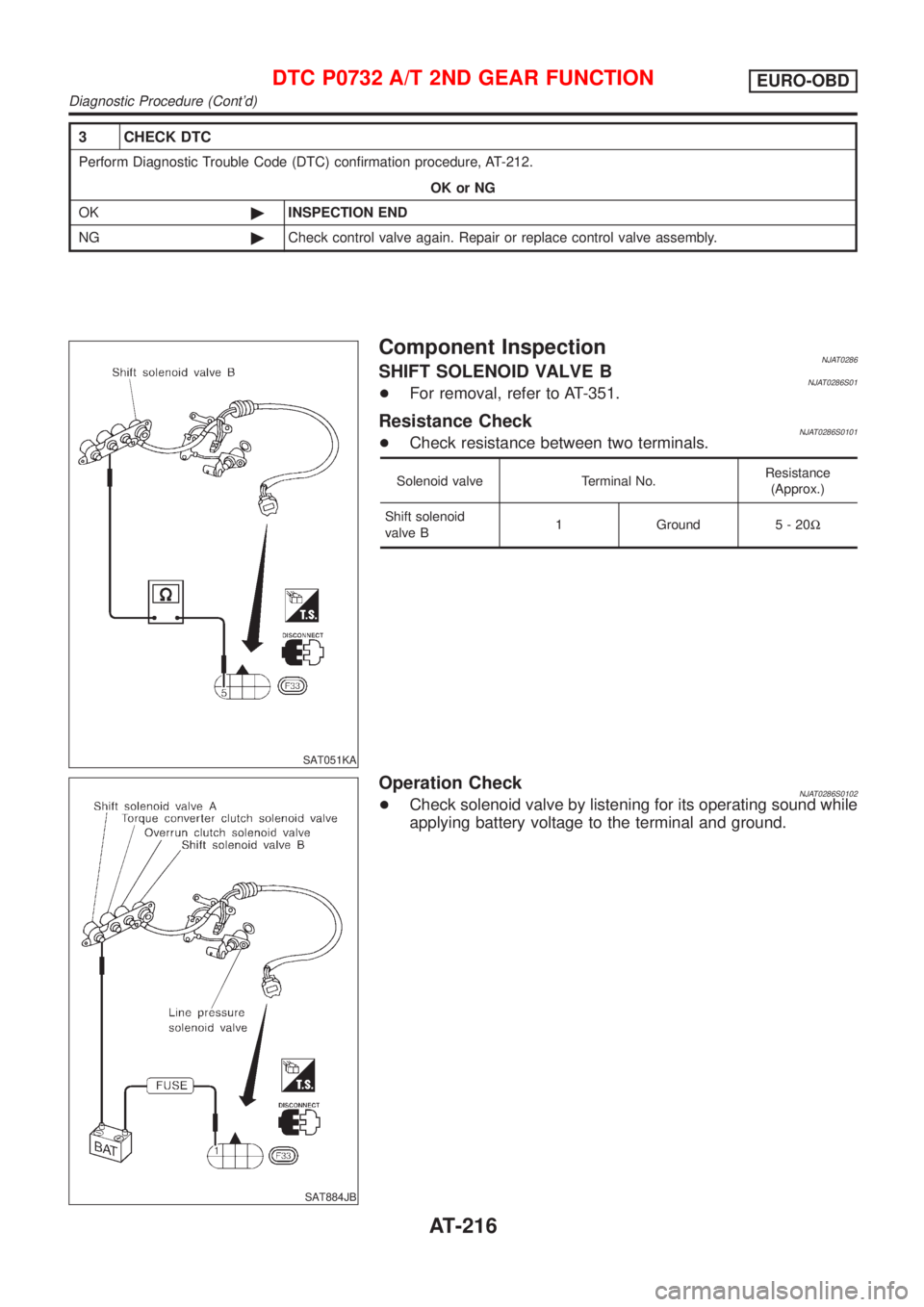

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJAT0285
1 CHECK SHIFT SOLENOID VALVE
1. Remove control valve assembly. Refer to AT-351.
2. Check shift solenoid valve operation.
+Shift solenoid valve B
Refer to ªComponent Inspe

Page 218 of 2898

NISSAN ALMERA 2001 Service Manual 3 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-212.
OK or NG
OK©INSPECTION END
NG©Check control valve again. Repair or replace control valve assembly.
SAT051KA
Componen

Page 219 of 2898

NISSAN ALMERA 2001 Service Manual DescriptionNJAT0287+This is an OBD-II self-diagnostic item and not available in TCM
self-diagnosis.
+This malfunction will not be detected while the O/D OFF indi-
cator lamp is indicating another self

DescriptionNJAT0287+This is an OBD-II self-diagnostic item and not available in TCM
self-diagnosis.
+This malfunction will not be detected while the O/D OFF indi-
cator lamp is indicating another self-diagnosis malfunction.
+This malfunction is detected when the A/T does not shift into
third gear position as instructed by the TCM. This is not caused
by electrical malfunction (circuits open or shorted) but by
mechanical malfunction such as control valve sticking,
improper solenoid valve operation, malfunctioning servo piston
or brake band, etc.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0287S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
11 L/WShift solenoid
valve A
When shift solenoid valve A oper-
ates.
(When driving in ªD
1ºorªD4º.)Battery voltage
When shift solenoid valve A does
not operate.
(When driving in ªD
2ºorªD3º.)1V or less
ON BOARD DIAGNOSTIC LOGICNJAT0287S02This diagnosis monitors actual gear position by checking the torque
converter slip ratio calculated by TCM as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (3rd) supposed
by TCM, the slip ratio will be more than normal. In case the ratio
exceeds the specified value, TCM judges this diagnosis malfunc-
tion.
This malfunction will be caused when shift solenoid valve A is stuck
closed.
Gear position supposed by TCM1234
In case of gear position with no malfunctions1234
In case of gear position with shift solenoid valve A stuck closed 1 1 4* 4
*: P0733 is detected.
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: A/T 3RD GR FNCTN
A/T cannot be shifted to the 3rd gear
position even if electrical circuit is good.+Shift solenoid valve A
+Each clutch
+Hydraulic control circuit
: P0733
DTC P0733 A/T 3RD GEAR FUNCTIONEURO-OBD
Description
AT-217

Page 220 of 2898

NISSAN ALMERA 2001 Service Manual SAT014K
SAT971J
SAT021J
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0287S03CAUTION:
+Always drive vehicle at a safe speed.
+Be careful not to rev engine into the red zone on the
tachomete

SAT014K
SAT971J
SAT021J
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0287S03CAUTION:
+Always drive vehicle at a safe speed.
+Be careful not to rev engine into the red zone on the
tachometer.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy
of test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Start engine and select ªDATA MONITORº mode for ªA/Tº with
CONSULT-II.
2) Make sure that output voltage of A/T fluid temperature sensor
is within the range below.
FLUID TEMP SEN: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm
up the fluid) or stop engine to increase the voltage (cool down
the fluid).
3) Select ª3RD GR FNCTN P0733º of ªDTC WORK SUPPORTº
mode for ªA/Tº with CONSULT-II and touch ªSTARTº.
4) Accelerate vehicle to 70 to 85 km/h (43 to 53 MPH) under the
following condition and release the accelerator pedal com-
pletely.
THROTTLE POSI: Less than 1.0/8 (at all times during step
4)
Selector lever: D position (OD ªONº)
+Check that ªGEARº shows ª4º after releasing pedal.
5) Depress accelerator pedal steadily with 3.5/8 - 4.5/8 of
ªTHROTTLE POSIº from a speed of 70 to 85 km/h (43 to 53
MPH) until ªTESTINGº changes to ªSTOP VEHICLEº or ªCOM-
PLETEDº. (It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to
ªDIAGNOSTIC PROCEDUREº, AT-221.
If ªSTOP VEHICLEº appears on CONSULT-II screen, go to
following step.
+Check that ªGEARº shows ª3º when depressing accelera-
tor pedal with 3.5/8 - 4.5/8 of ªTHROTTLE POSIº.
+If ªTESTINGº does not appear on CONSULT-II for a long
time, select ªSELF-DIAGNOSISº for ªENGINEº. In case a
1st trip DTC other than P0733 is shown, refer to applicable
ªTROUBLE DIAGNOSIS FOR DTCº.
6) Stop vehicle.
7) Follow the instruction displayed. (Check for normal shifting
referring to the table below.)
Vehicle conditionGear on actual transmission shift pattern when
screen is changed to 1®2®3®4
No malfunction exists. 1®2®3®4
Malfunction for P0733 exists. 1®1®4®4
DTC P0733 A/T 3RD GEAR FUNCTIONEURO-OBD
Description (Cont'd)
AT-218

Page 221 of 2898

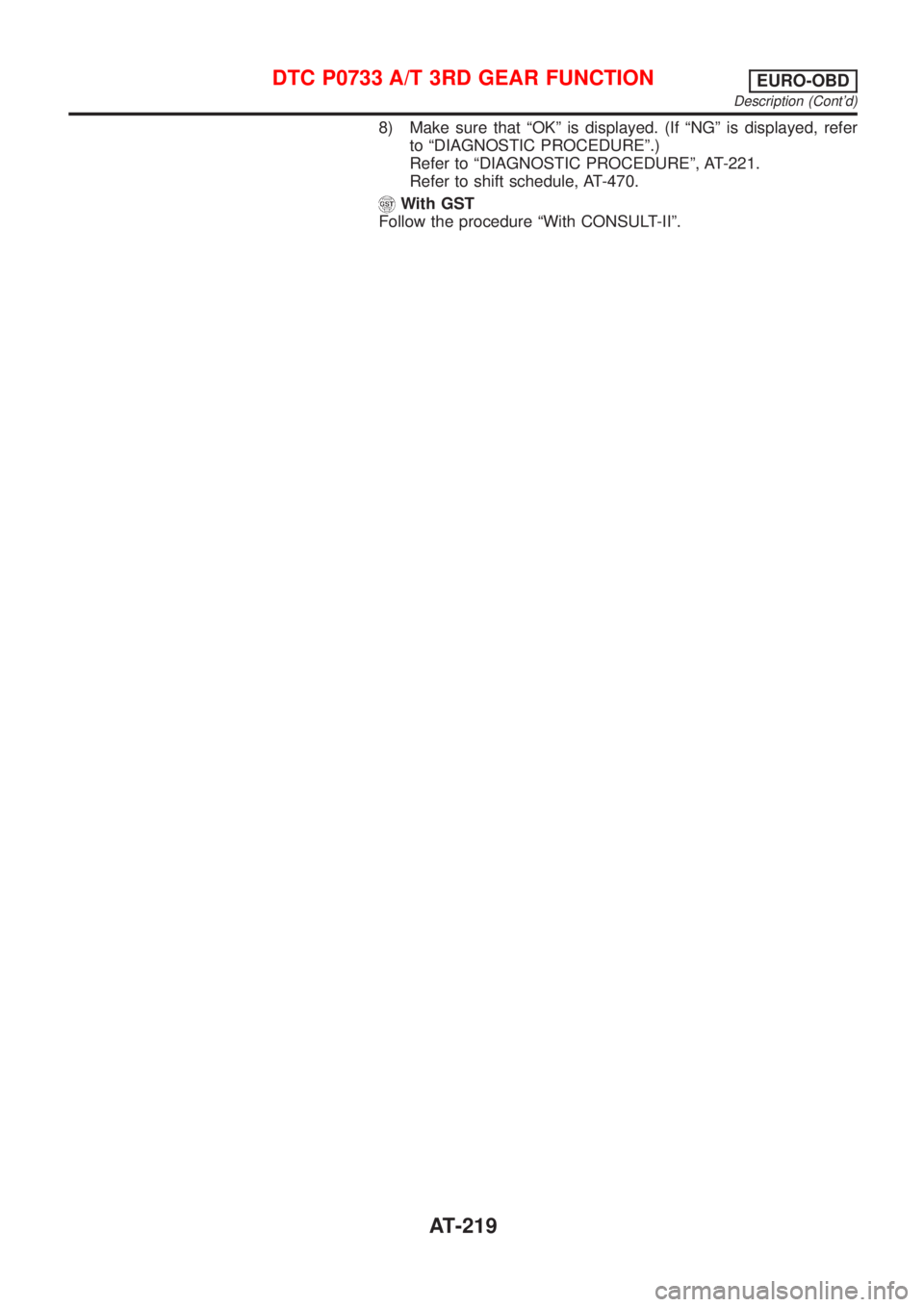

NISSAN ALMERA 2001 Service Manual 8) Make sure that ªOKº is displayed. (If ªNGº is displayed, refer
to ªDIAGNOSTIC PROCEDUREº.)
Refer to ªDIAGNOSTIC PROCEDUREº, AT-221.
Refer to shift schedule, AT-470.
With GST
Follow the proc

Page 222 of 2898

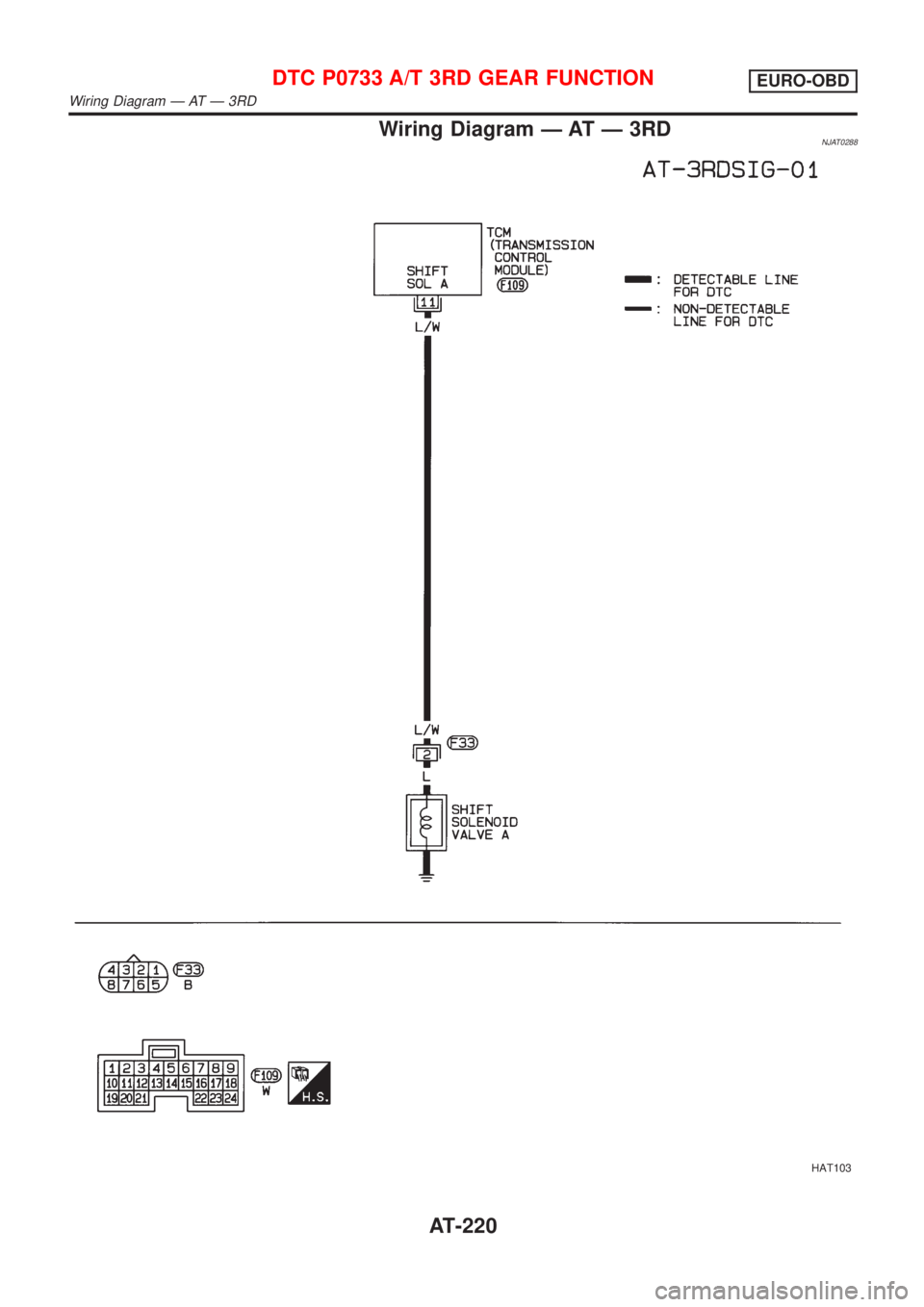

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð AT Ð 3RDNJAT0288
HAT103
DTC P0733 A/T 3RD GEAR FUNCTIONEURO-OBD
Wiring Diagram Ð AT Ð 3RD
AT-220

Page 223 of 2898

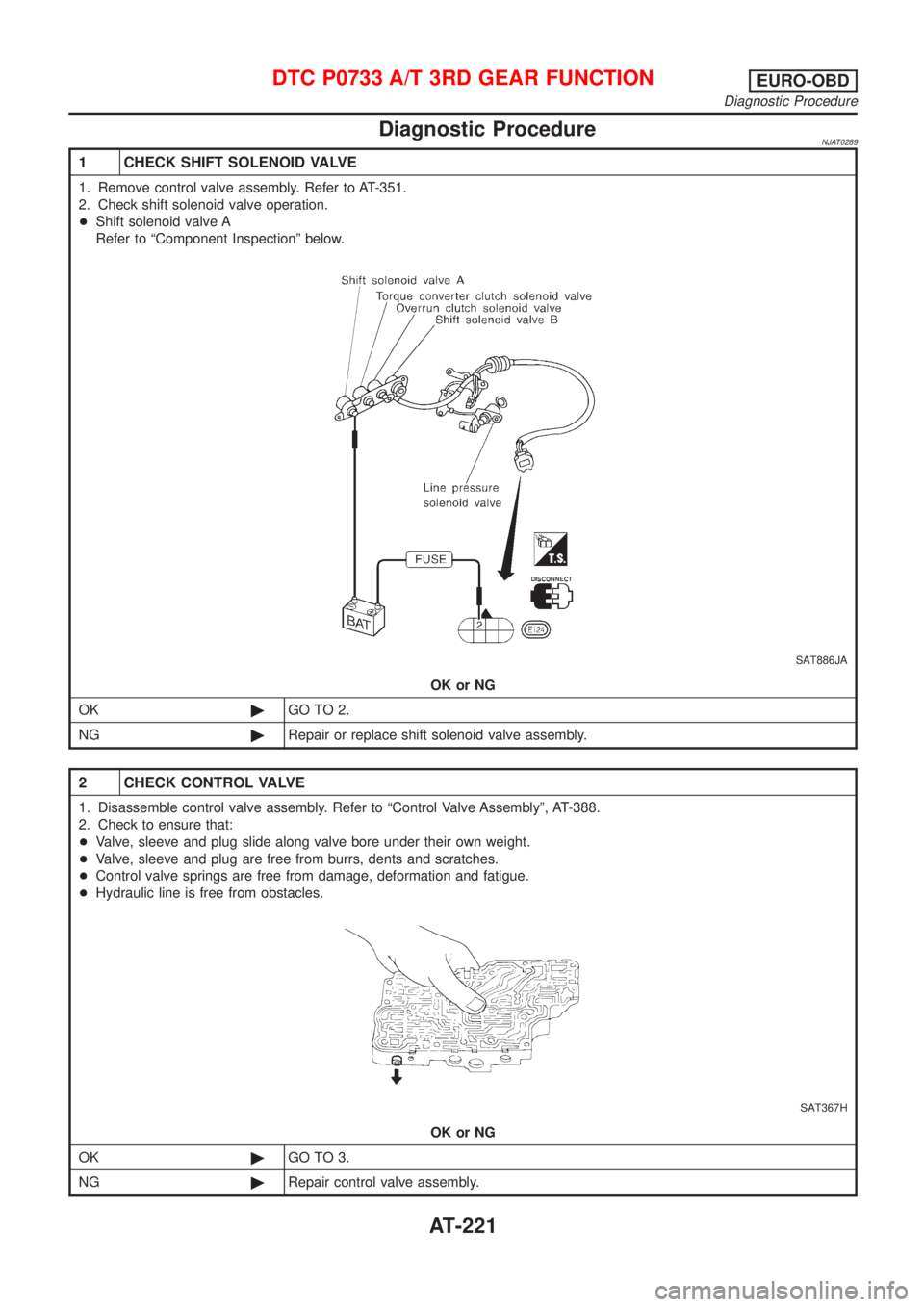

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJAT0289
1 CHECK SHIFT SOLENOID VALVE
1. Remove control valve assembly. Refer to AT-351.
2. Check shift solenoid valve operation.
+Shift solenoid valve A
Refer to ªComponent Inspe

Page 224 of 2898

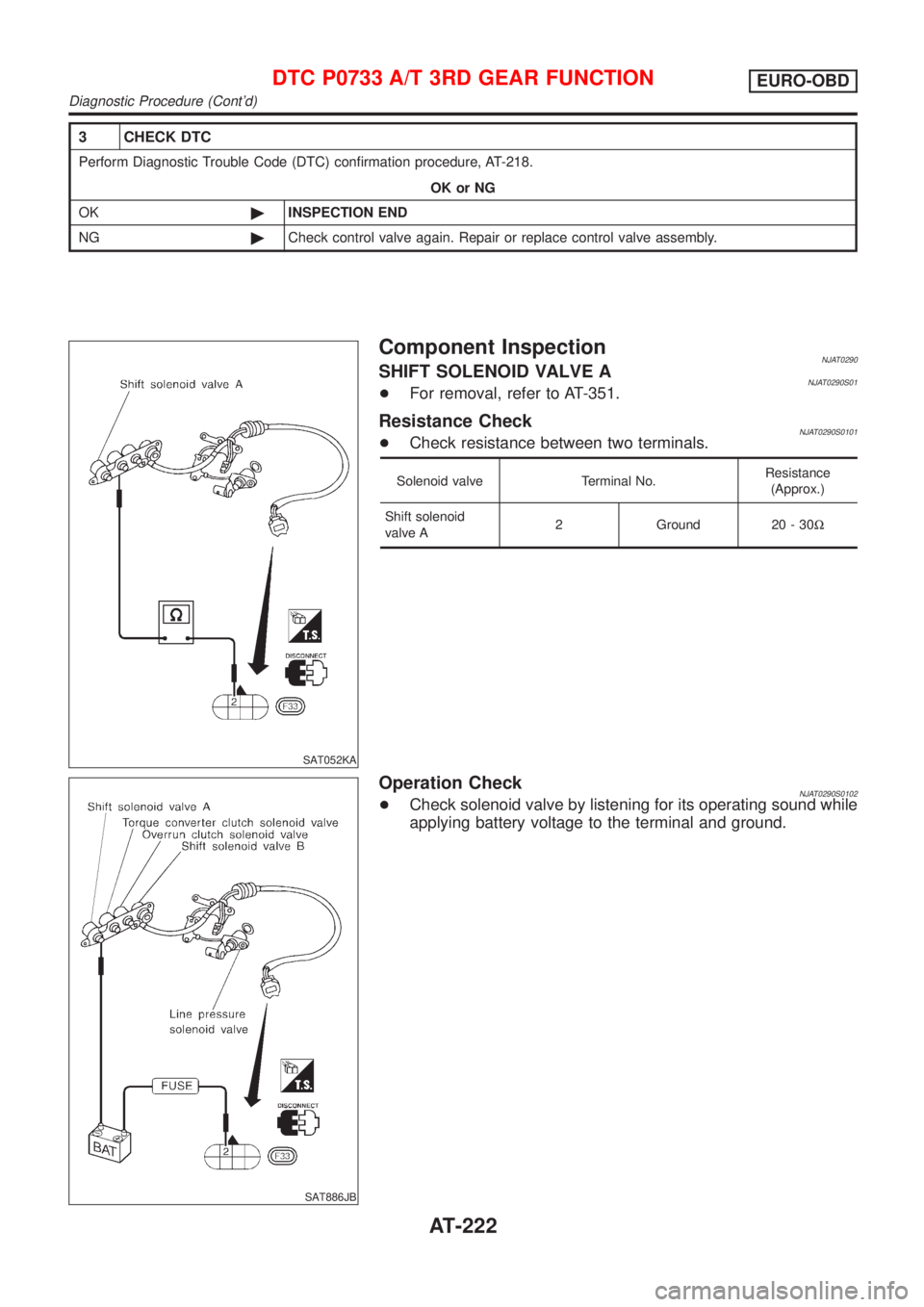

NISSAN ALMERA 2001 Service Manual 3 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-218.
OK or NG
OK©INSPECTION END
NG©Check control valve again. Repair or replace control valve assembly.
SAT052KA
Componen
