Page 145 of 2898
SAT580J
SAT809H

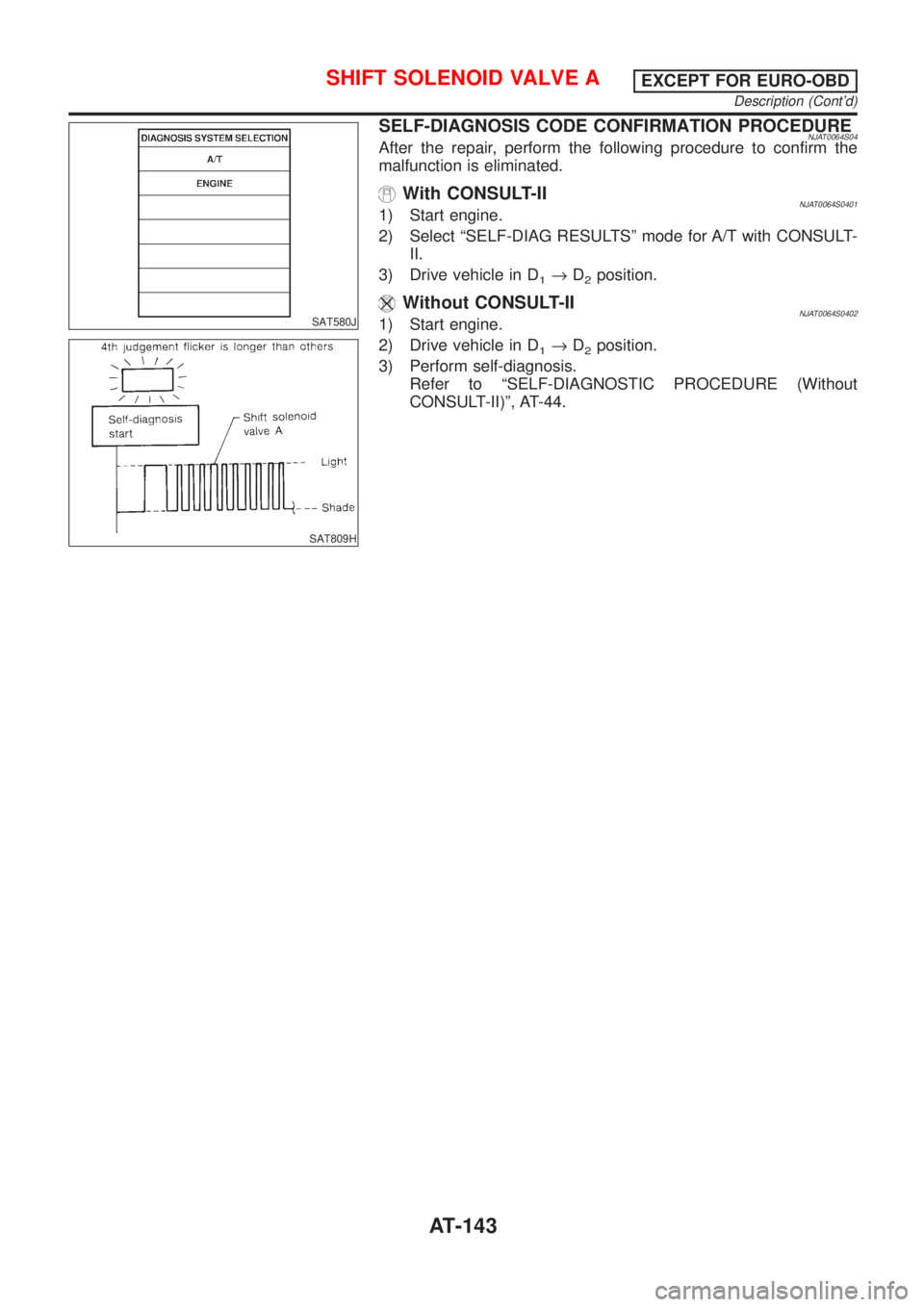

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENJAT0064S04After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-IINJAT0064S04011) Start engine.
2) Select ªSELF-DIAG RESULTSº mode for A/T with CONSULT-
II.
3) Drive vehicle in D
1®D2position.
Without CONSULT-IINJAT0064S04021) Start engine.
2) Drive vehicle in D
1®D2position.
3) Perform self-diagnosis.
Refer to ªSELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-44.
SHIFT SOLENOID VALVE AEXCEPT FOR EURO-OBD
Description (Cont'd)
AT-143
Page 146 of 2898

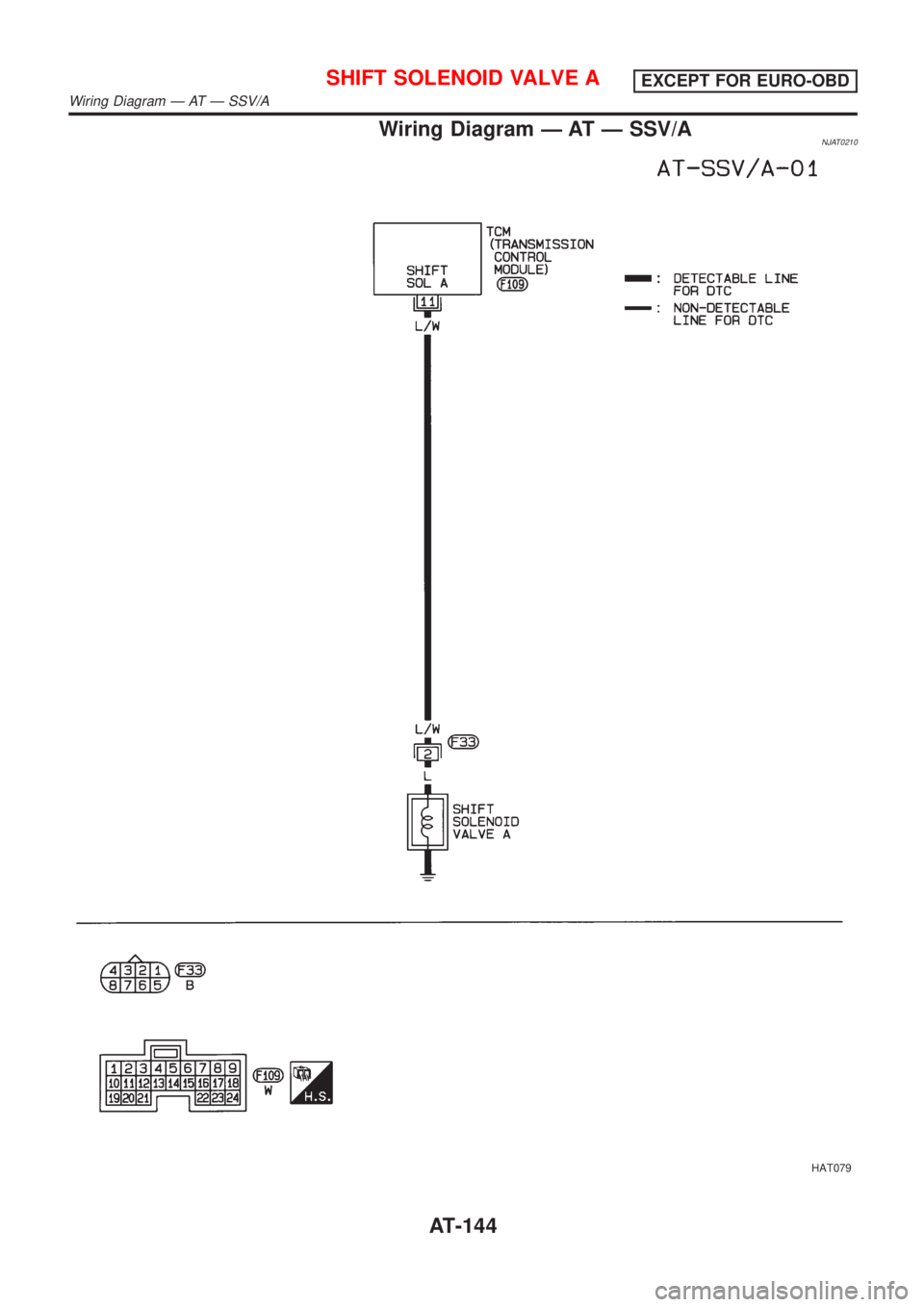

Wiring Diagram Ð AT Ð SSV/ANJAT0210
HAT079
SHIFT SOLENOID VALVE AEXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð SSV/A
AT-144
Page 147 of 2898

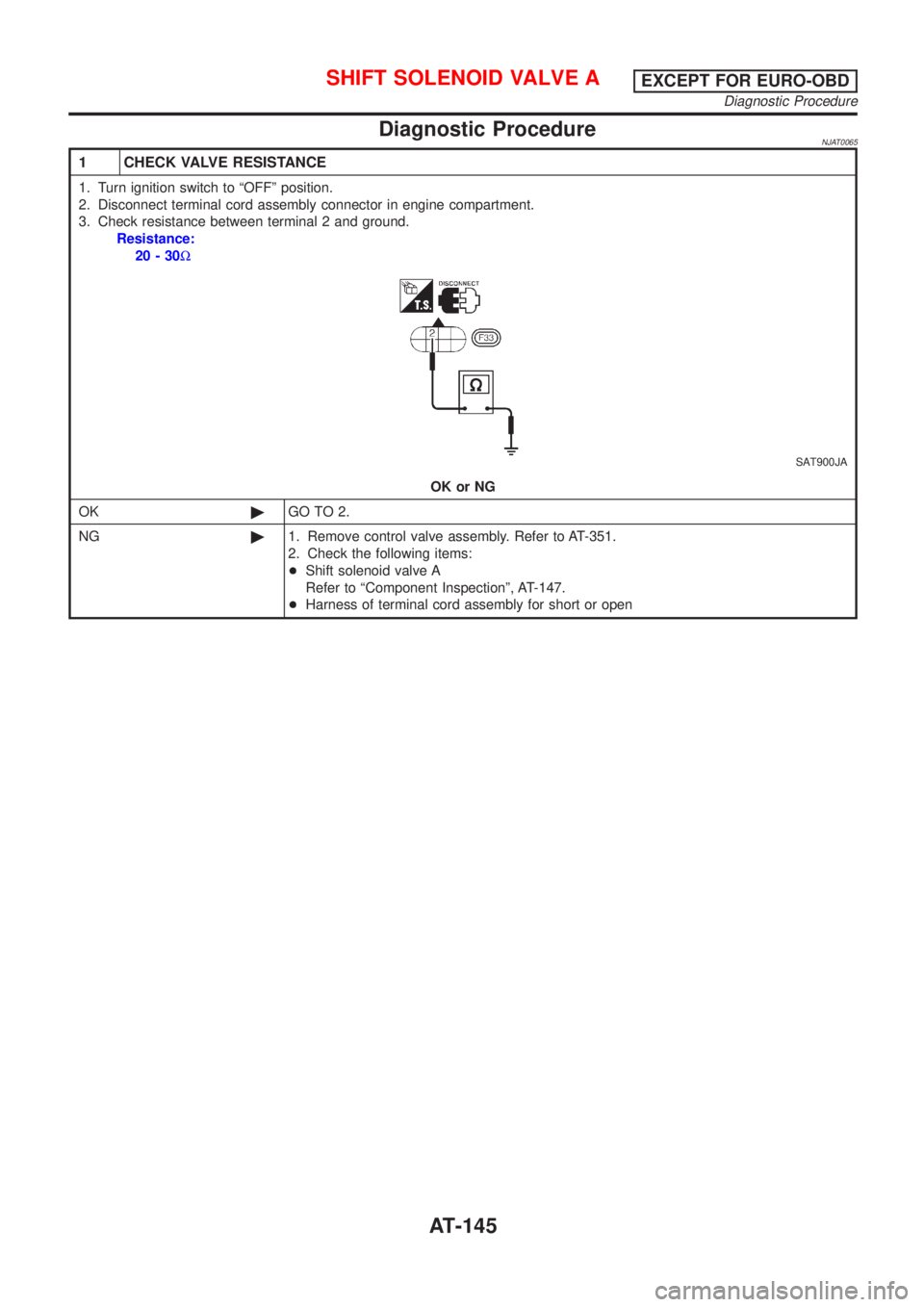

Diagnostic ProcedureNJAT0065
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 2 and ground.
Resistance:
20-30W
SAT900JA
OK or NG
OK©GO TO 2.
NG©1. Remove control valve assembly. Refer to AT-351.
2. Check the following items:
+Shift solenoid valve A
Refer to ªComponent Inspectionº, AT-147.
+Harness of terminal cord assembly for short or open
SHIFT SOLENOID VALVE AEXCEPT FOR EURO-OBD
Diagnostic Procedure
AT-145
Page 148 of 2898

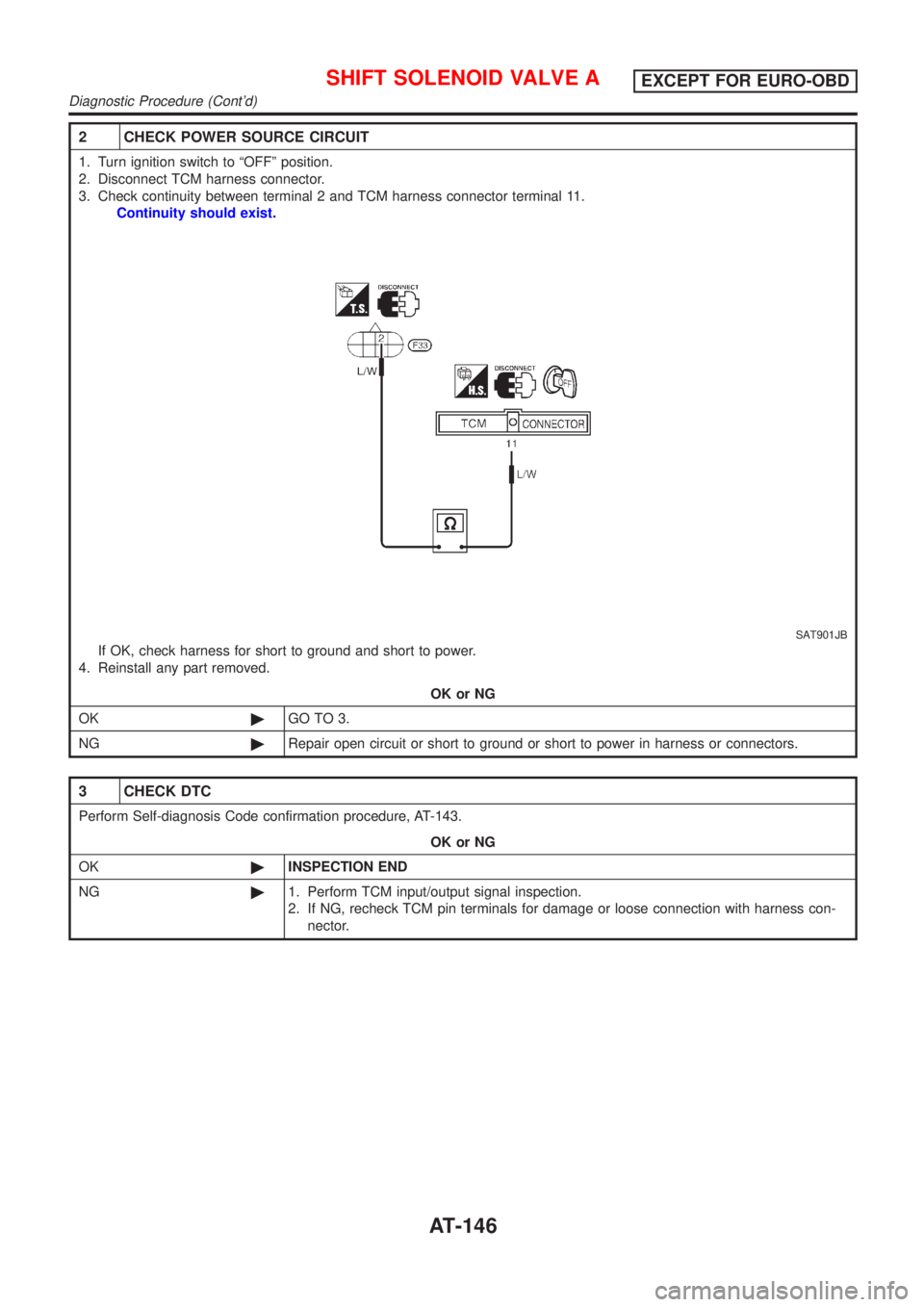

2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 2 and TCM harness connector terminal 11.
Continuity should exist.
SAT901JB
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT-143.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
SHIFT SOLENOID VALVE AEXCEPT FOR EURO-OBD
Diagnostic Procedure (Cont'd)
AT-146
Page 149 of 2898
SAT021K

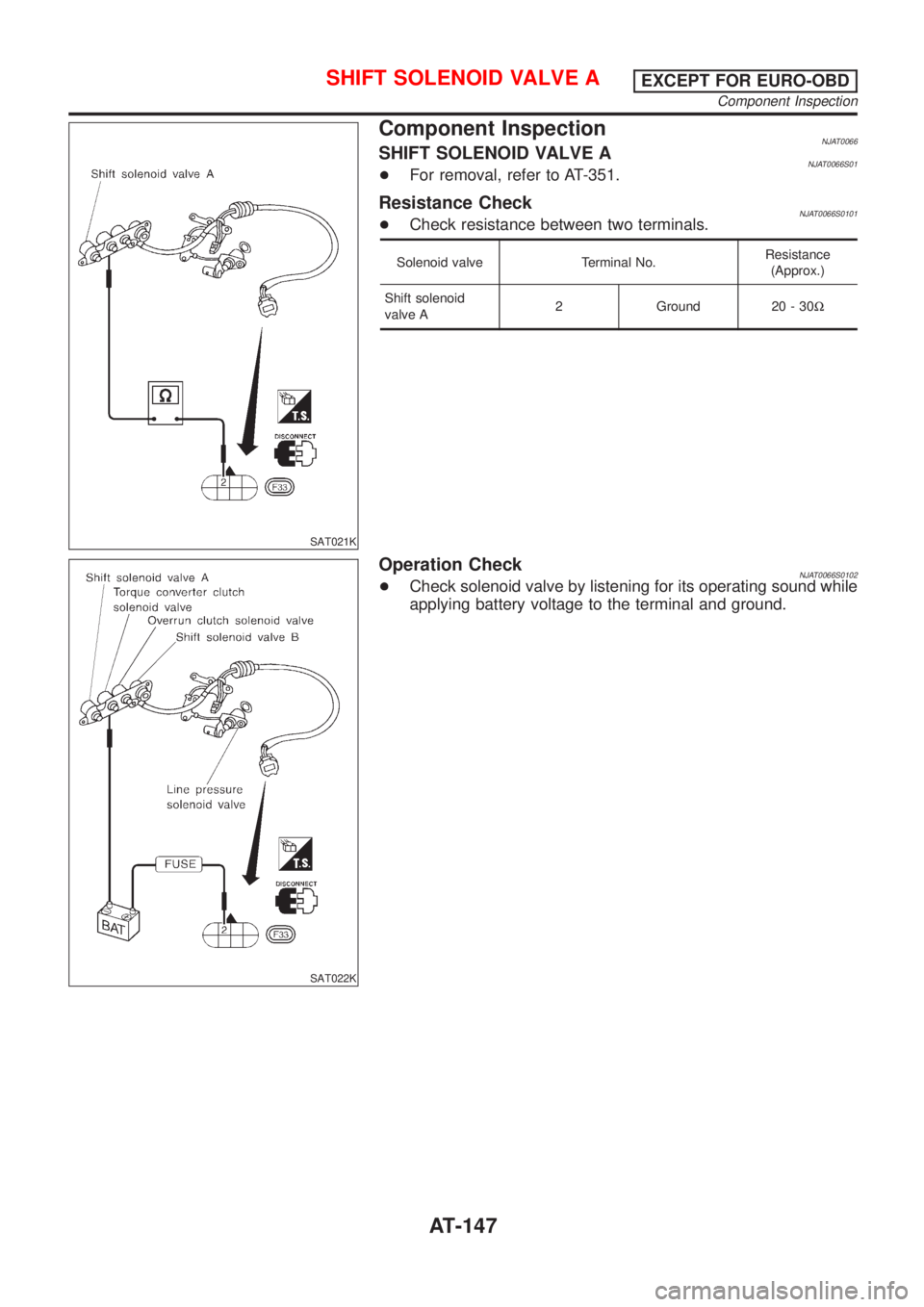

Component InspectionNJAT0066SHIFT SOLENOID VALVE ANJAT0066S01+For removal, refer to AT-351.
Resistance CheckNJAT0066S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve A2 Ground 20 - 30W
SAT022K
Operation CheckNJAT0066S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
SHIFT SOLENOID VALVE AEXCEPT FOR EURO-OBD
Component Inspection
AT-147
Page 150 of 2898

SAT322GC
DescriptionNJAT0067Shift solenoid valves A and B are turned ªONº or ªOFFº by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0067S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
12 L/YShift solenoid
valve B
When shift solenoid valve B oper-
ates.
(When driving in ªD
1ºorªD2º.)Battery voltage
When shift solenoid valve B does
not operate.
(When driving in ªD
3ºorªD4º.)1V or less
ON BOARD DIAGNOSIS LOGICNJAT0067S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: SHIFT SOLENOID/VB TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+Shift solenoid valve B
: 5th judgement flicker
SHIFT SOLENOID VALVE BEXCEPT FOR EURO-OBD
Description
AT-148
Page 151 of 2898
SAT580J
SAT812H

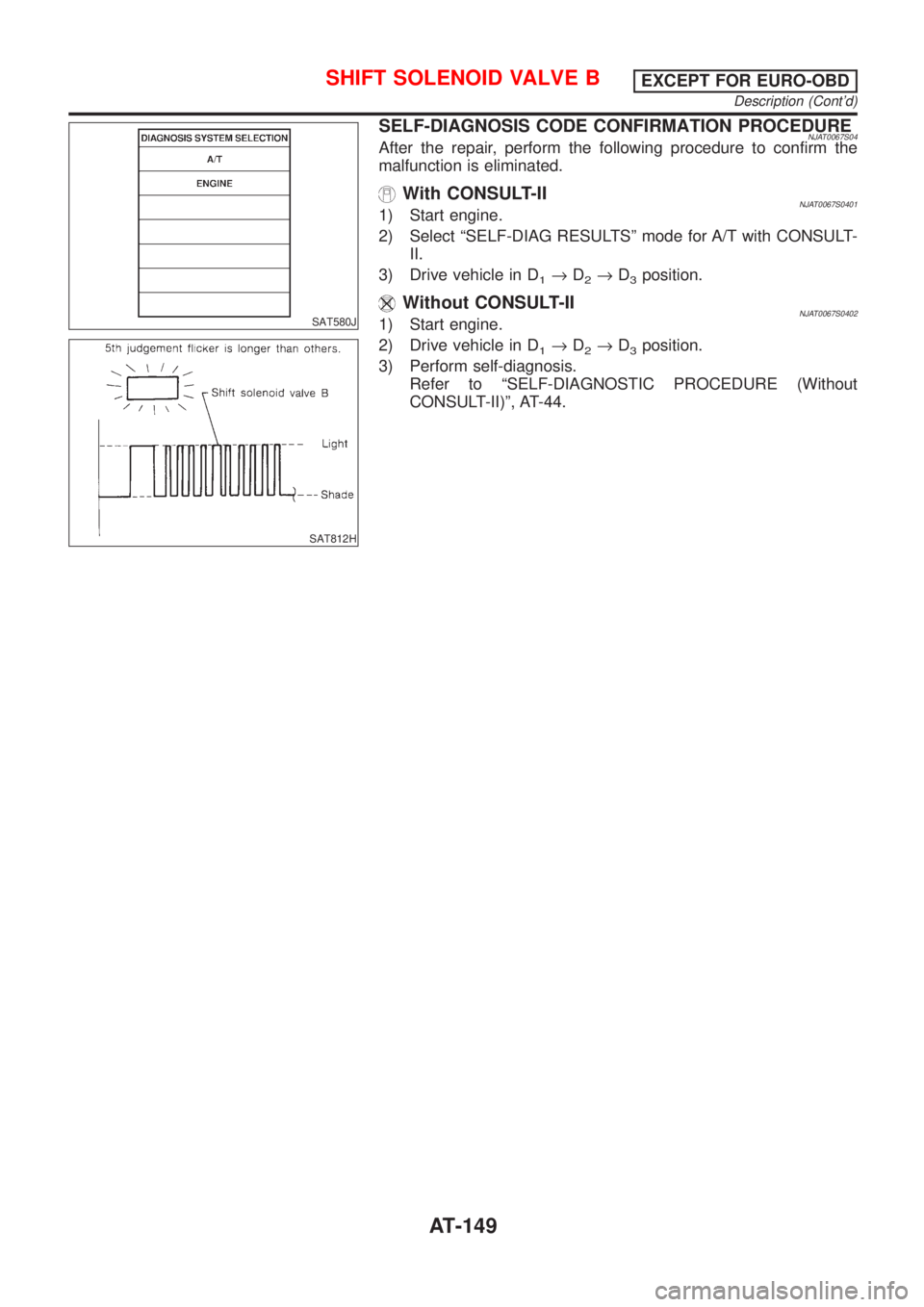

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENJAT0067S04After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-IINJAT0067S04011) Start engine.
2) Select ªSELF-DIAG RESULTSº mode for A/T with CONSULT-
II.
3) Drive vehicle in D
1®D2®D3position.
Without CONSULT-IINJAT0067S04021) Start engine.
2) Drive vehicle in D
1®D2®D3position.
3) Perform self-diagnosis.
Refer to ªSELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-44.
SHIFT SOLENOID VALVE BEXCEPT FOR EURO-OBD
Description (Cont'd)
AT-149
Page 152 of 2898

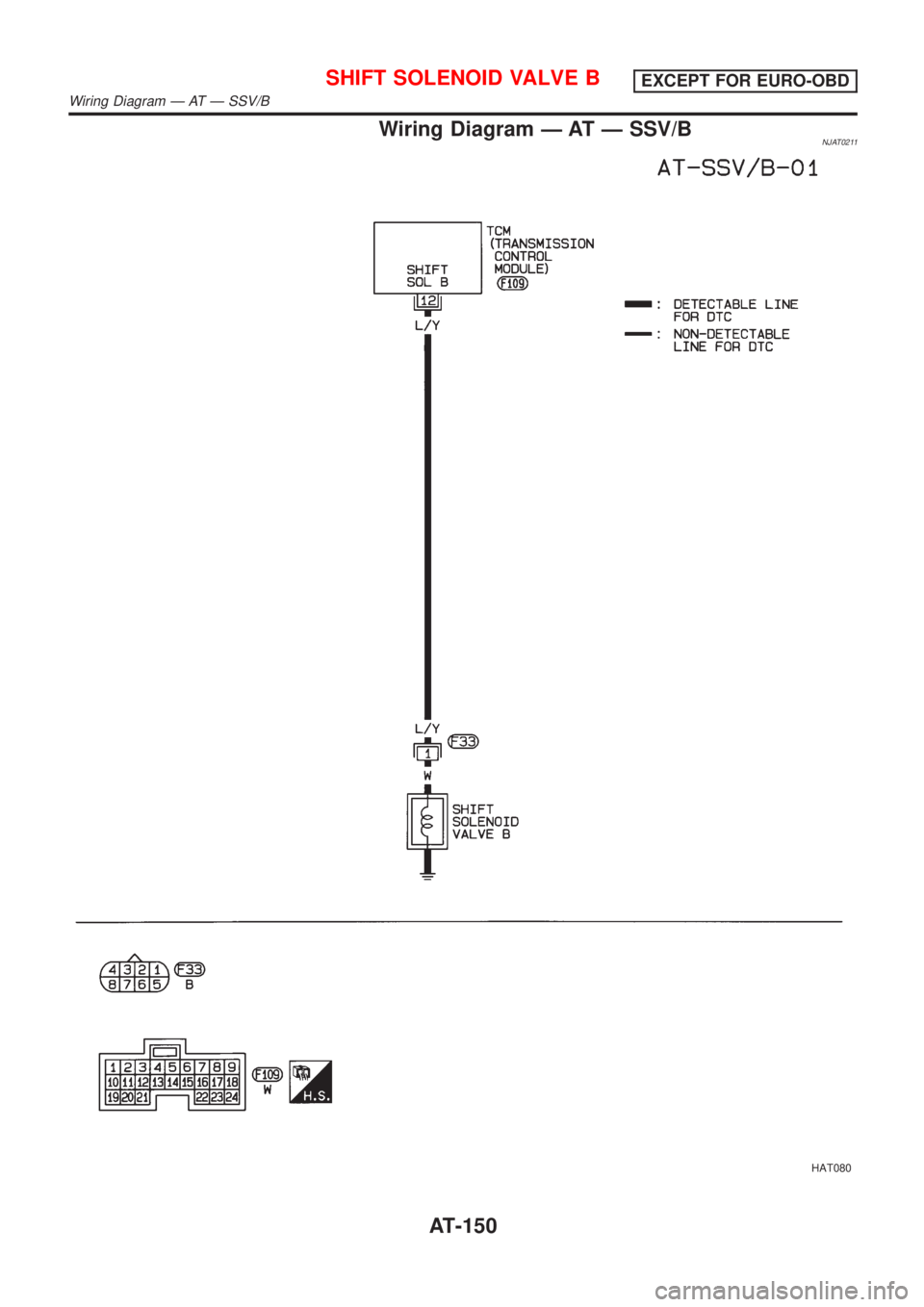

Wiring Diagram Ð AT Ð SSV/BNJAT0211
HAT080
SHIFT SOLENOID VALVE BEXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð SSV/B
AT-150
