NISSAN ALMERA 2001 Service Manual The subsequent operation is the same as the front power window sub-switch operation.
FRONT POWER WINDOW SUB-SWITCH OPERATION
Power is supplied
+through front power window sub-switch (1, 2)
+to front p

Page 1866 of 2898

NISSAN ALMERA 2001 Service Manual Schematic/HatchbackNJEL0499
MEL916L
POWER WINDOW
Schematic/Hatchback
EL-308

Page 1867 of 2898

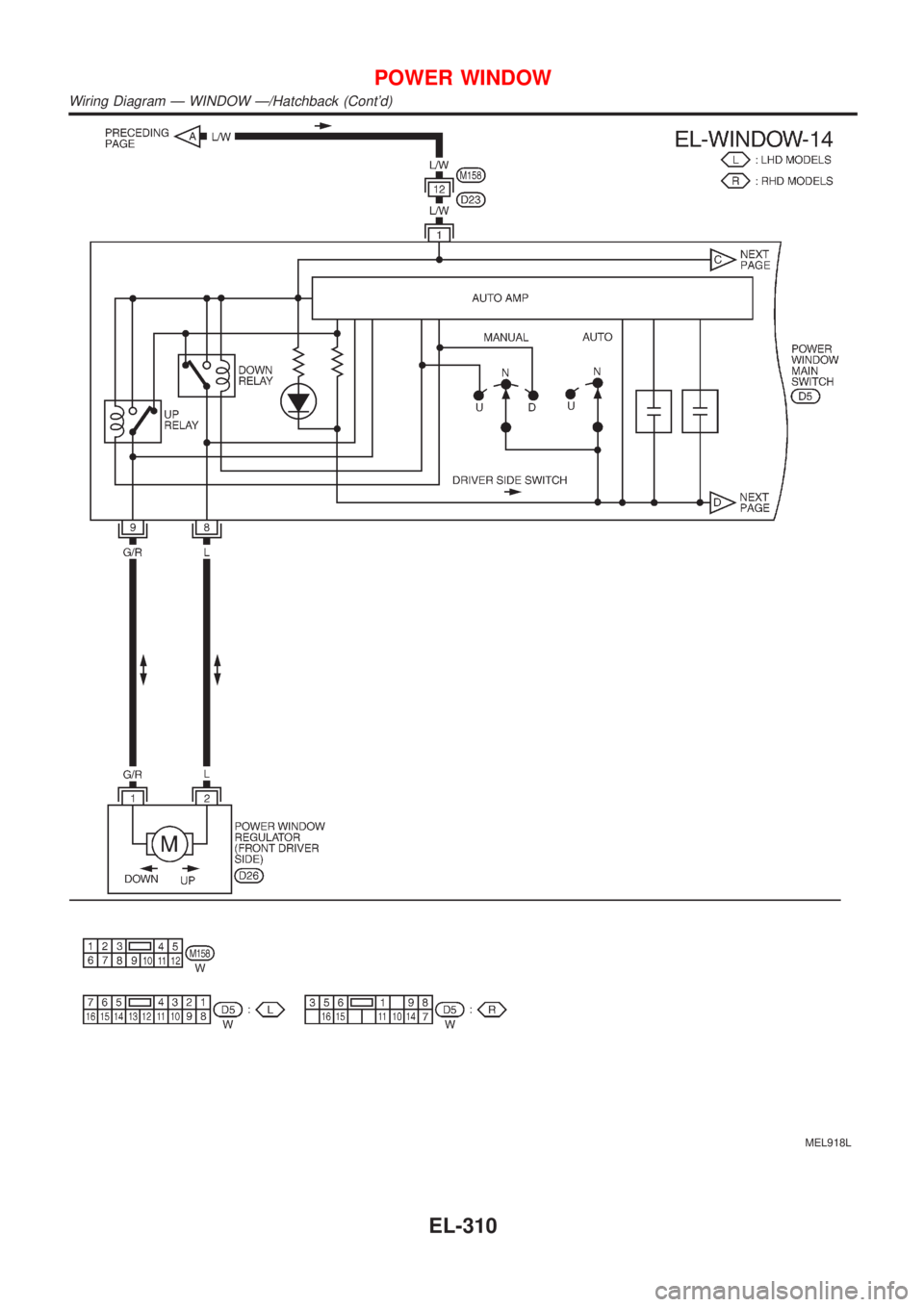

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð WINDOW Ð/HatchbackNJEL0500
YEL372C
POWER WINDOW
Wiring Diagram Ð WINDOW Ð/Hatchback
EL-309

Page 1868 of 2898

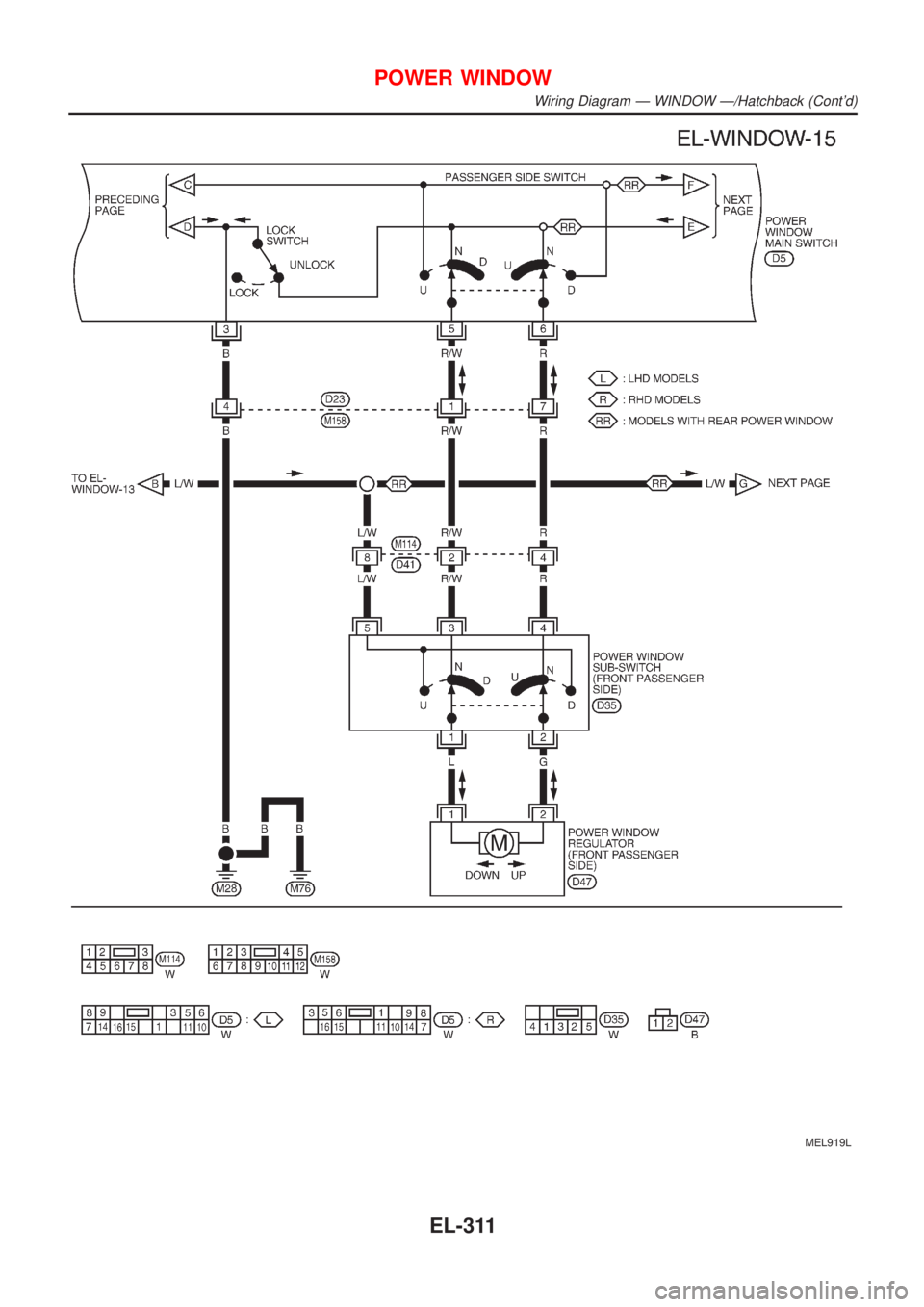

NISSAN ALMERA 2001 Service Manual MEL918L
POWER WINDOW
Wiring Diagram Ð WINDOW Ð/Hatchback (Contd)
EL-310

Page 1869 of 2898

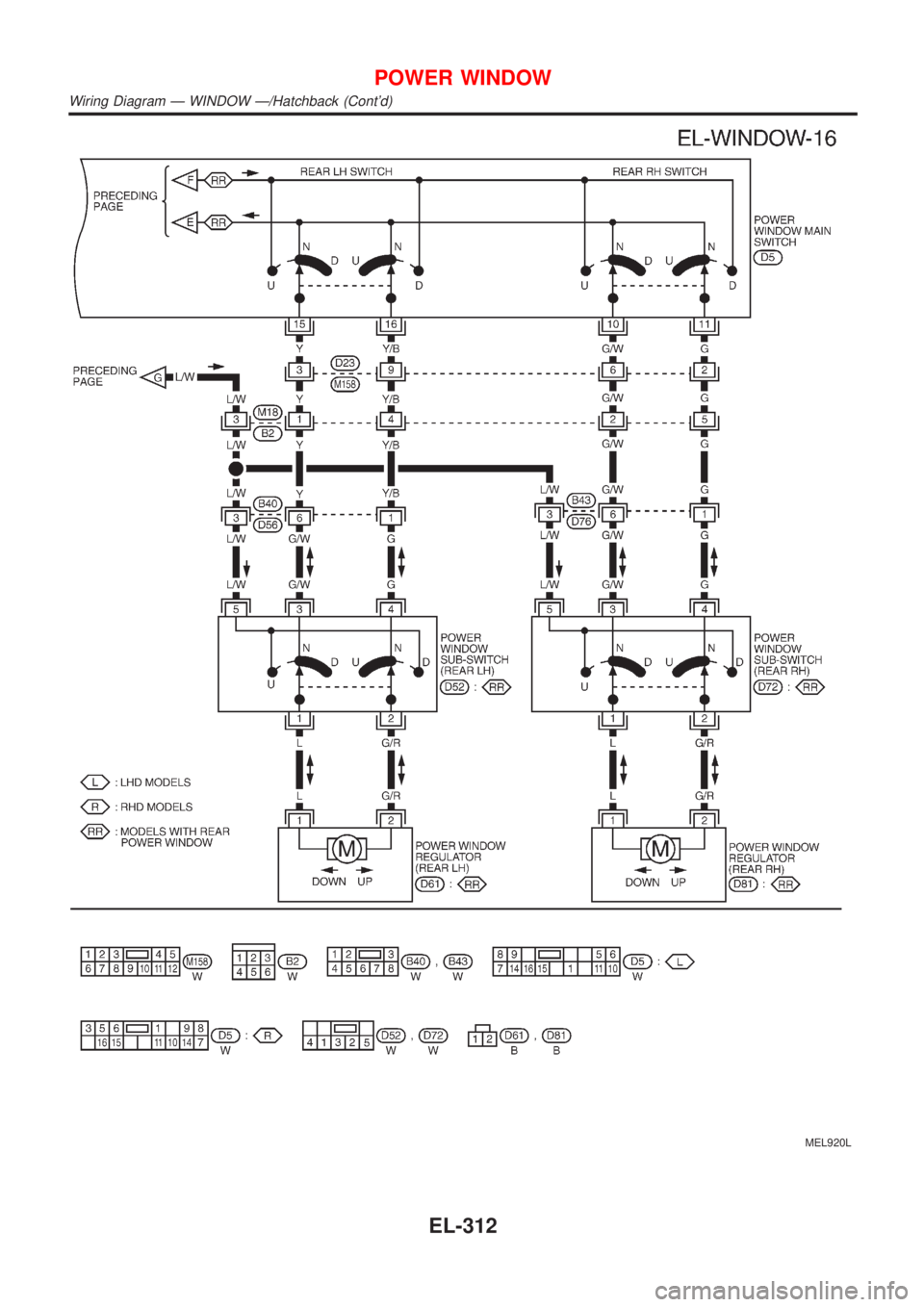

NISSAN ALMERA 2001 Service Manual MEL919L
POWER WINDOW
Wiring Diagram Ð WINDOW Ð/Hatchback (Contd)
EL-311

Page 1870 of 2898

NISSAN ALMERA 2001 Service Manual MEL920L
POWER WINDOW
Wiring Diagram Ð WINDOW Ð/Hatchback (Contd)
EL-312

Page 1871 of 2898

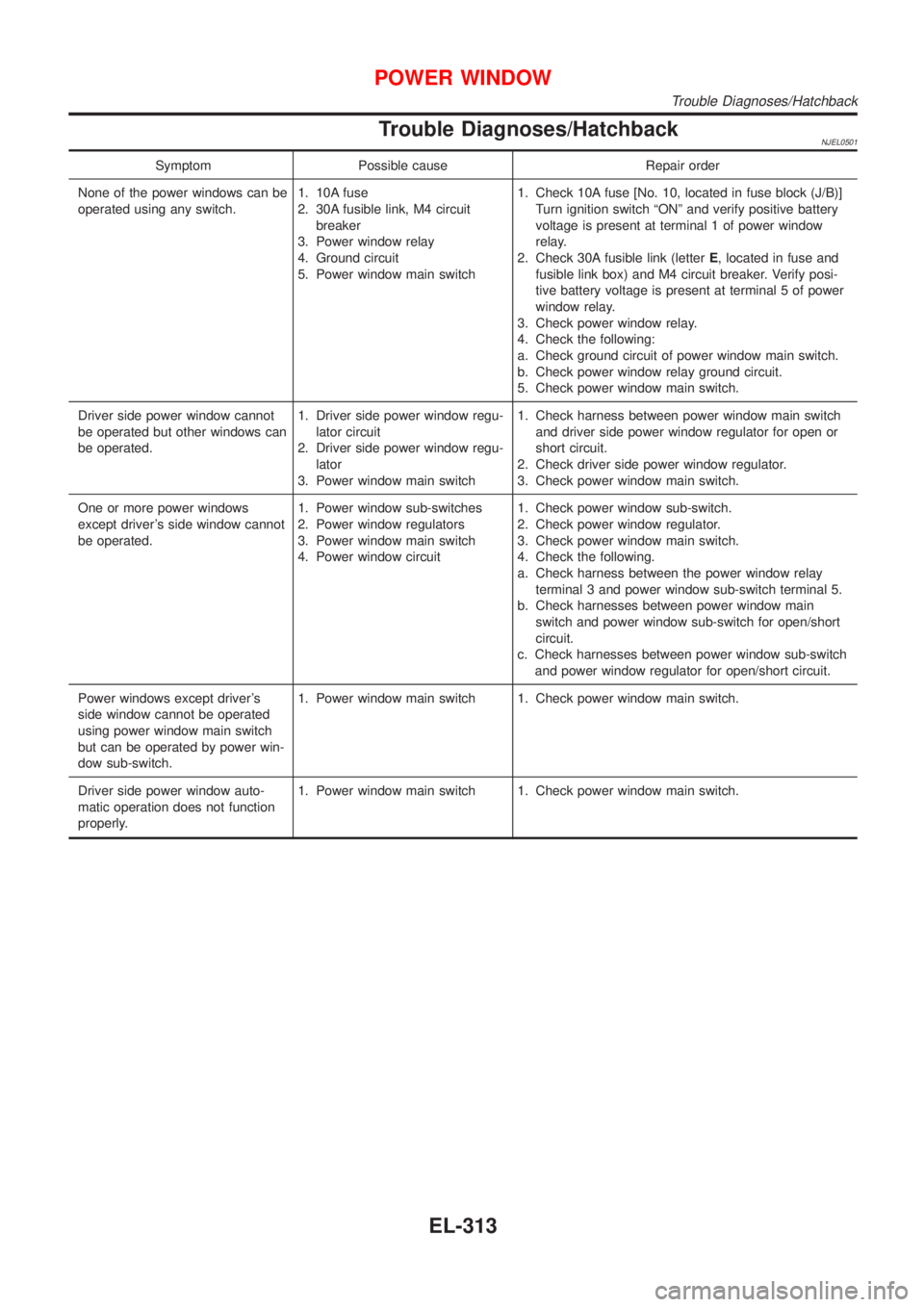

NISSAN ALMERA 2001 Service Manual Trouble Diagnoses/HatchbackNJEL0501
Symptom Possible cause Repair order
None of the power windows can be
operated using any switch.1. 10A fuse
2. 30A fusible link, M4 circuit
breaker
3. Power window r

Trouble Diagnoses/HatchbackNJEL0501
Symptom Possible cause Repair order
None of the power windows can be
operated using any switch.1. 10A fuse
2. 30A fusible link, M4 circuit
breaker
3. Power window relay
4. Ground circuit
5. Power window main switch1. Check 10A fuse [No. 10, located in fuse block (J/B)]
Turn ignition switch ªONº and verify positive battery
voltage is present at terminal 1 of power window
relay.
2. Check 30A fusible link (letterE, located in fuse and
fusible link box) and M4 circuit breaker. Verify posi-
tive battery voltage is present at terminal 5 of power
window relay.
3. Check power window relay.
4. Check the following:
a. Check ground circuit of power window main switch.
b. Check power window relay ground circuit.
5. Check power window main switch.
Driver side power window cannot
be operated but other windows can
be operated.1. Driver side power window regu-
lator circuit
2. Driver side power window regu-
lator
3. Power window main switch1. Check harness between power window main switch
and driver side power window regulator for open or
short circuit.
2. Check driver side power window regulator.
3. Check power window main switch.
One or more power windows
except driver's side window cannot
be operated.1. Power window sub-switches
2. Power window regulators
3. Power window main switch
4. Power window circuit1. Check power window sub-switch.
2. Check power window regulator.
3. Check power window main switch.
4. Check the following.
a. Check harness between the power window relay
terminal 3 and power window sub-switch terminal 5.
b. Check harnesses between power window main
switch and power window sub-switch for open/short
circuit.
c. Check harnesses between power window sub-switch
and power window regulator for open/short circuit.
Power windows except driver's
side window cannot be operated
using power window main switch
but can be operated by power win-
dow sub-switch.1. Power window main switch 1. Check power window main switch.
Driver side power window auto-
matic operation does not function
properly.1. Power window main switch 1. Check power window main switch.
POWER WINDOW
Trouble Diagnoses/Hatchback
EL-313

Page 1872 of 2898

NISSAN ALMERA 2001 Service Manual System Description/Hatchback=NJEL0502OPERATIONNJEL0502S02Power door lock/unlock operation by door key cylinder
+With the key inserted into front door key cylinder, turning it to LOCK will lock all doo
