NISSAN ALMERA 2001  Service Manual 21 DETECT MALFUNCTIONING PART
Check the following.
+Harness connectors M63, F102
+Harness connectors M159, F174
+Diode E177
+Harness for open and short between ECM and lighting switch connector
©Repa

Page 1314 of 2898

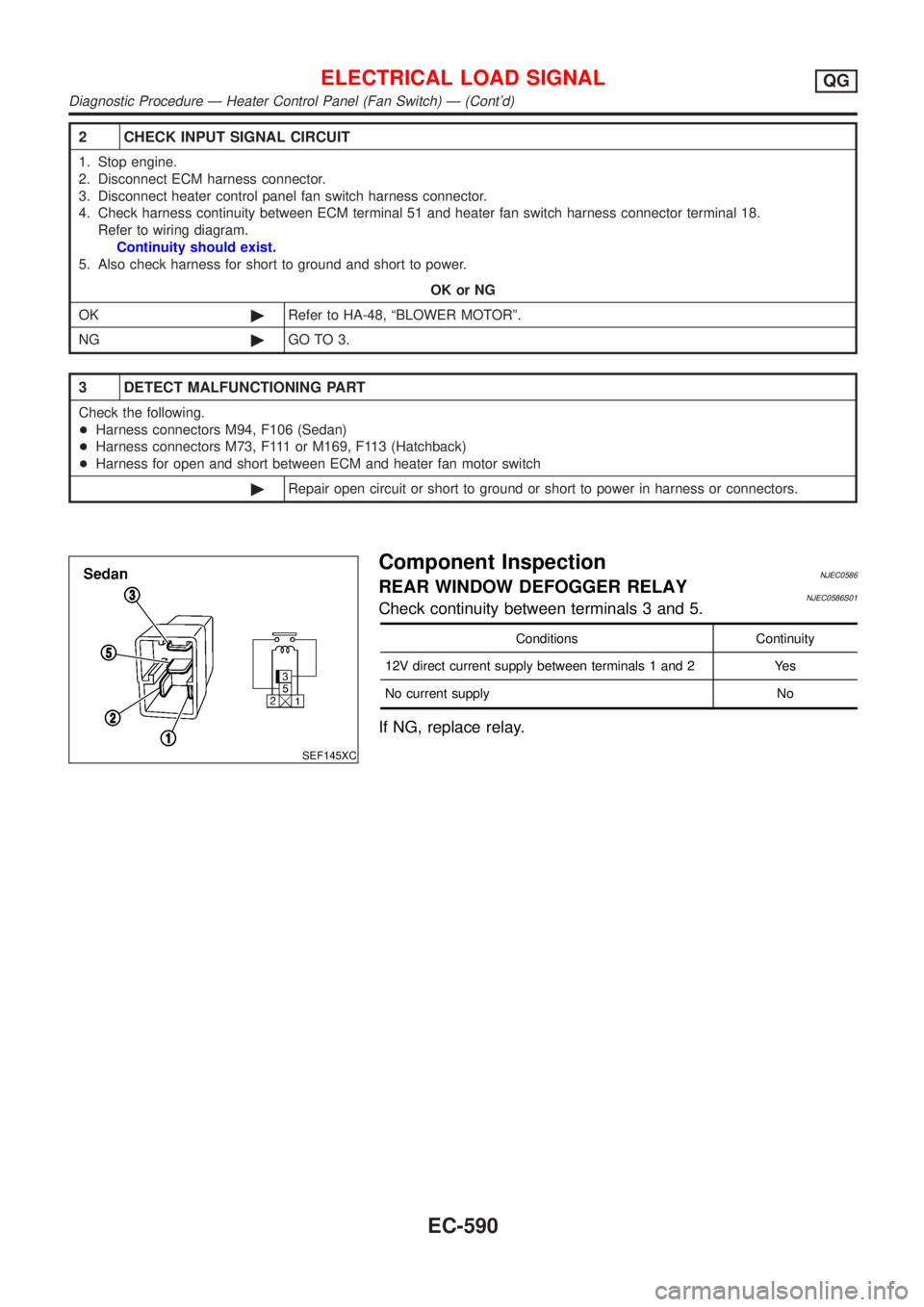

NISSAN ALMERA 2001  Service Manual 2 CHECK INPUT SIGNAL CIRCUIT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect heater control panel fan switch harness connector.
4. Check harness continuity between ECM terminal 51 a

Page 1315 of 2898

NISSAN ALMERA 2001  Service Manual Wiring DiagramNJEC0466SEDAN MODELS AND HATCHBACK MODELS WITH
ECM IN ENGINE COMPARTMENT
NJEC0466S01
HEC894
MI & DATA LINK CONNECTORSQG
Wiring Diagram
EC-591

Page 1316 of 2898

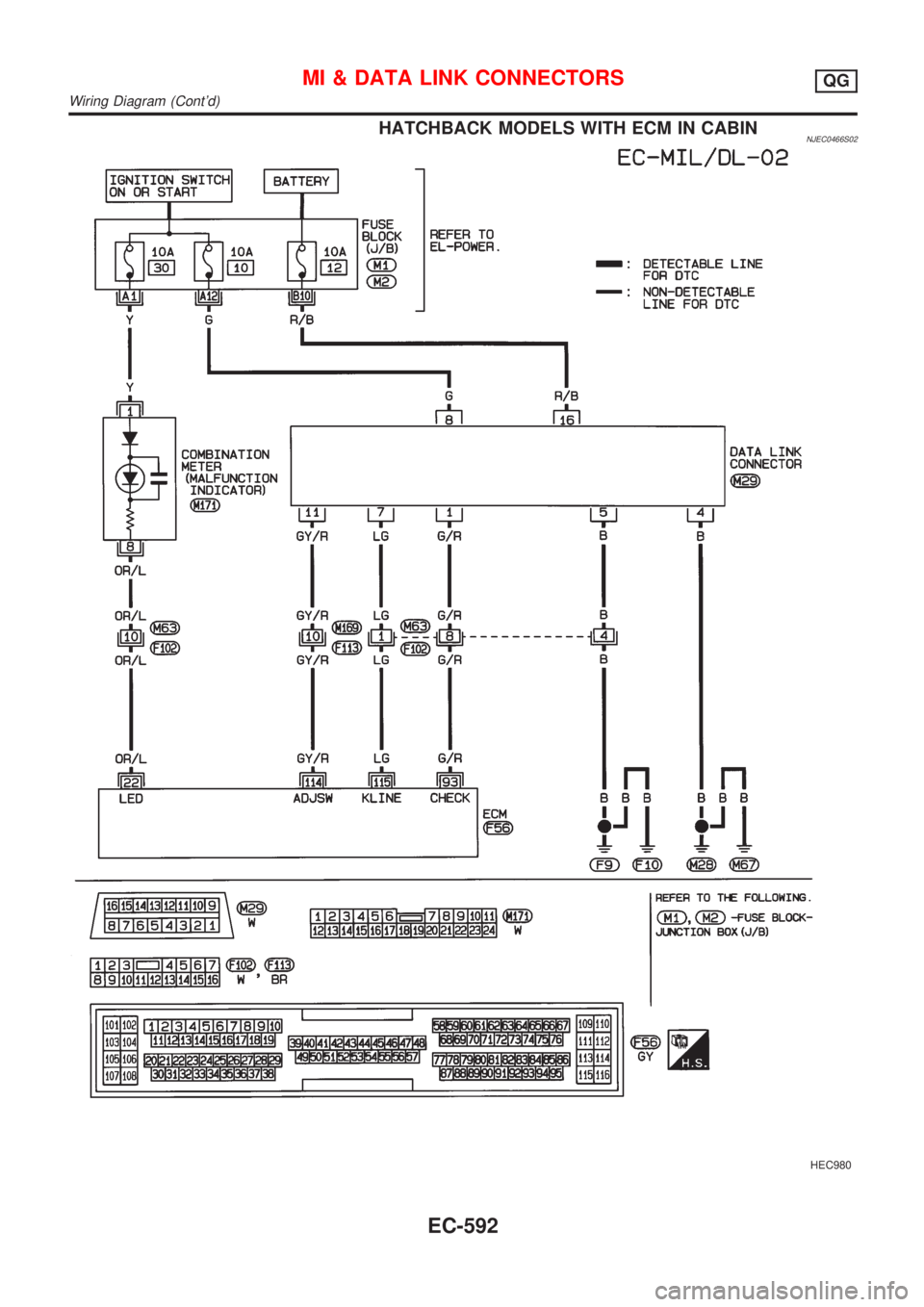

NISSAN ALMERA 2001  Service Manual HATCHBACK MODELS WITH ECM IN CABINNJEC0466S02
HEC980
MI & DATA LINK CONNECTORSQG
Wiring Diagram (Contd)
EC-592

Page 1317 of 2898

NISSAN ALMERA 2001  Service Manual Fuel Pressure RegulatorNJEC0467
Fuel pressure at idling
kPa (bar, kg/cm2, psi)Vacuum hose is connected Approximately 235 (2.35, 2.4, 34)
Vacuum hose is disconnected Approximately 294 (2.94, 3.0, 43)
I

Page 1318 of 2898

NISSAN ALMERA 2001  Service Manual Fuel Tank Temperature Sensor (Where Fitted)NJEC0485
Temperature ÉC (ÉF) Resistance kW
20 (68) 2.3 - 2.7
50 (122) 0.79 - 0.90
EGR Volume Control Valve (Where Fitted)NJEC0560
Terminal No. ResistanceW[

Page 1319 of 2898

NISSAN ALMERA 2001  Service Manual Crankshaft Position Sensor (POS)NJEC0558Refer to ªComponent Inspectionº, EC-334.
Camshaft Position Sensor (PHASE)NJEC0559Refer to ªComponent Inspectionº, EC-342.
SERVICE DATA AND SPECIFICATIONS (S

Page 1320 of 2898

NISSAN ALMERA 2001  Service Manual Alphabetical & P No. Index for DTCNJEC0600ALPHABETICAL INDEX FOR DTCNJEC0600S01X: Applicable Ð: Not applicable
Items
(CONSULT-II screen terms)DTC
MI illumination Reference page
CONSULT-II ECM
ACCEL P
