Page 1161 of 2898

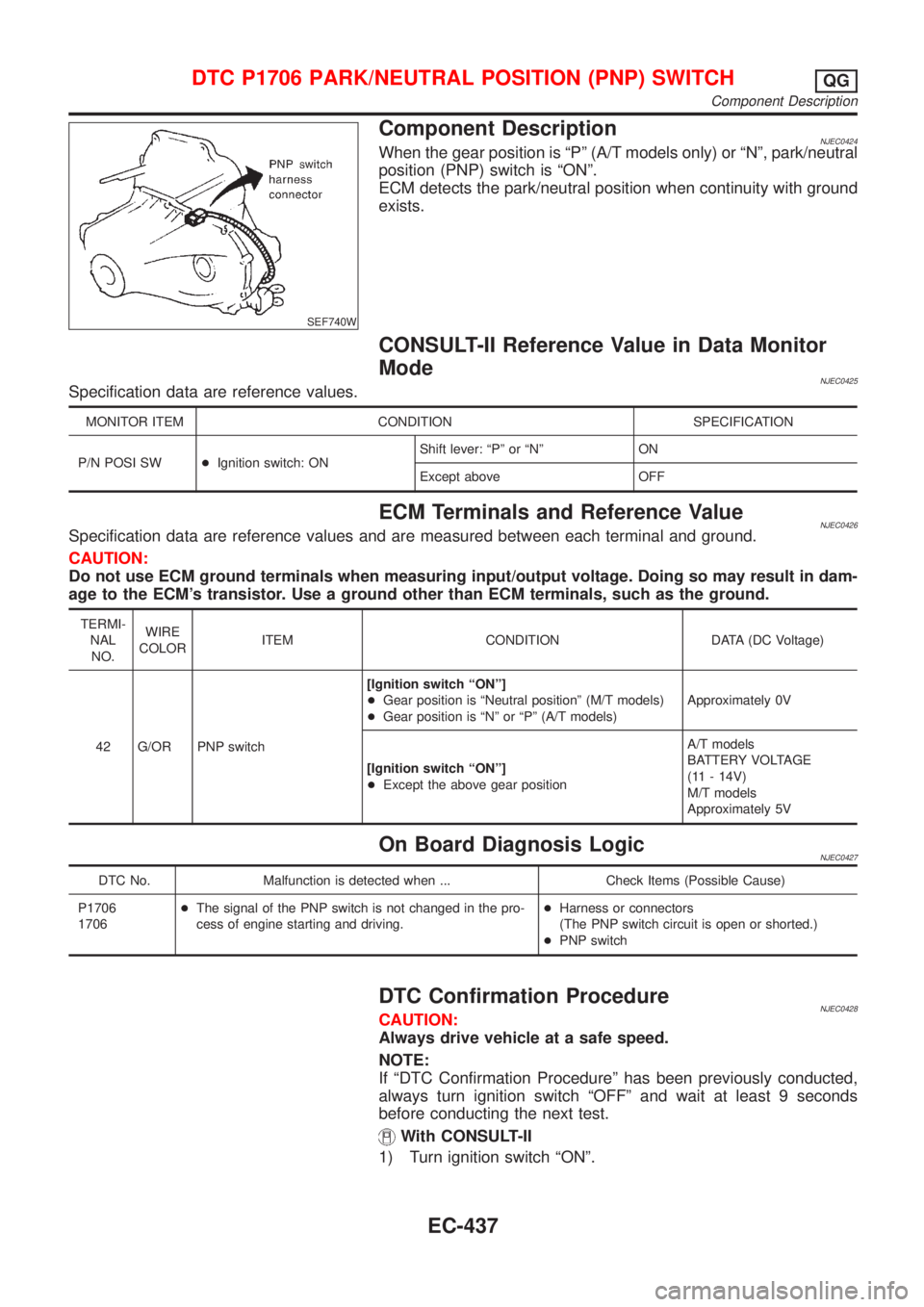

NISSAN ALMERA 2001 Service Manual SEF740W Component DescriptionNJEC0424When the gear position is ªPº (A/T models only) or ªNº, park/neutral position (PNP) switch is ªONº. ECM detects the park/neutral position when continuity wit

Page 1162 of 2898

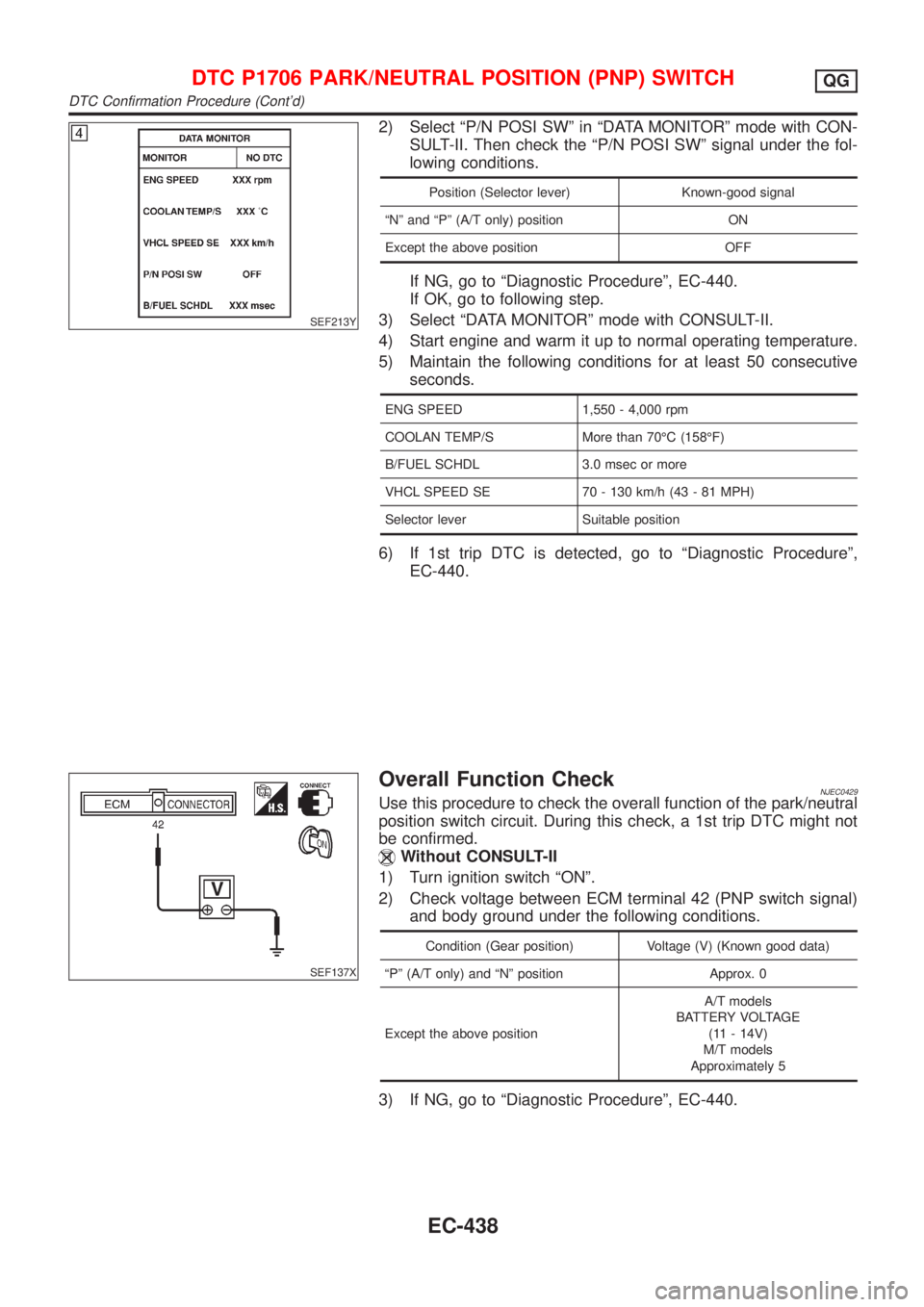

NISSAN ALMERA 2001 Service Manual SEF213Y 2) Select ªP/N POSI SWº in ªDATA MONITORº mode with CON- SULT-II. Then check the ªP/N POSI SWº signal under the fol- lowing conditions. Position (Selector lever) Known-good signal ªNº

Page 1163 of 2898

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC0430 HEC808 DTC P1706 PARK/NEUTRAL POSITION (PNP) SWITCHQG Wiring Diagram EC-439

Page 1164 of 2898

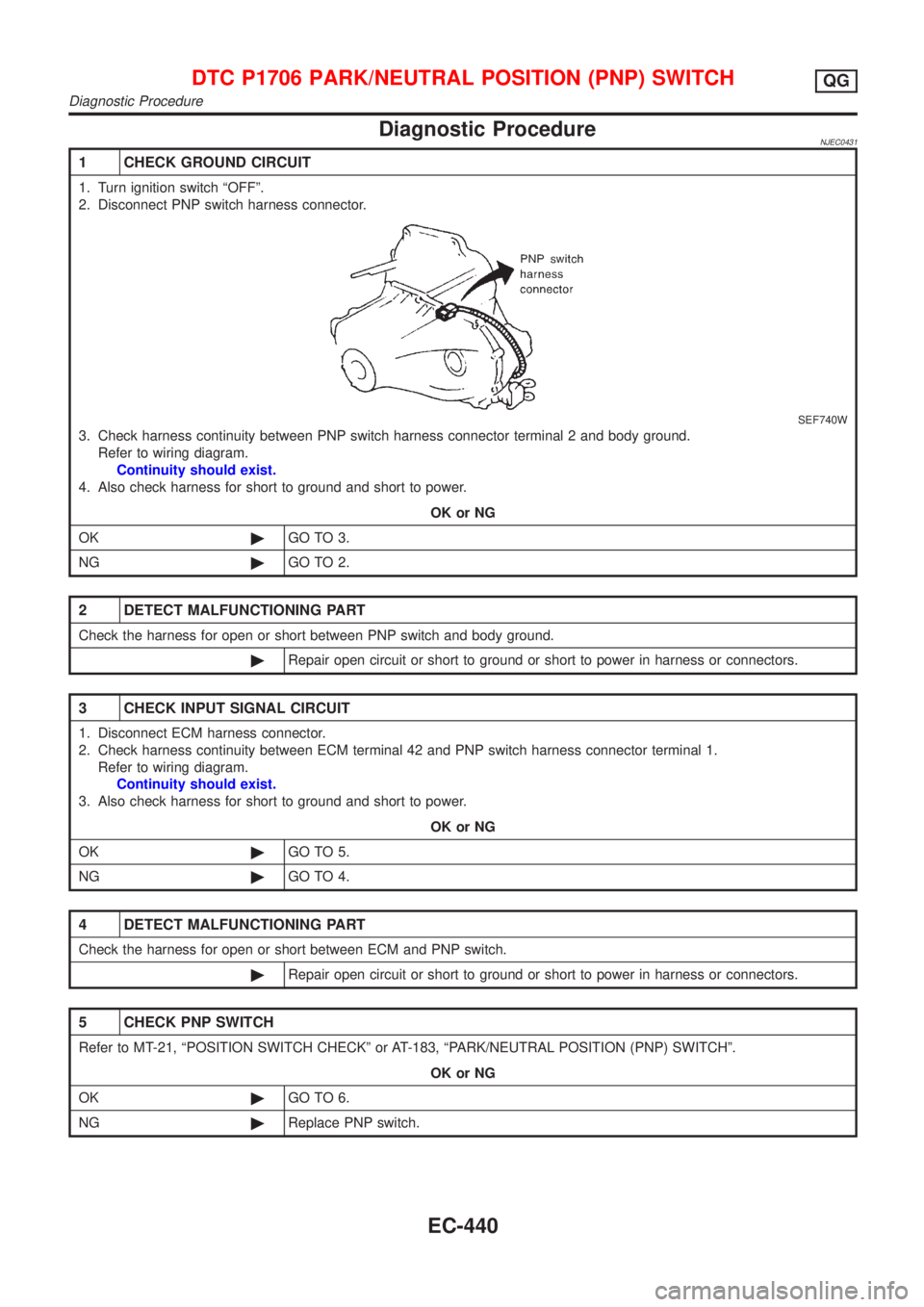

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC0431 1 CHECK GROUND CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect PNP switch harness connector. SEF740W 3. Check harness continuity between PNP switch harness connecto

Page 1165 of 2898

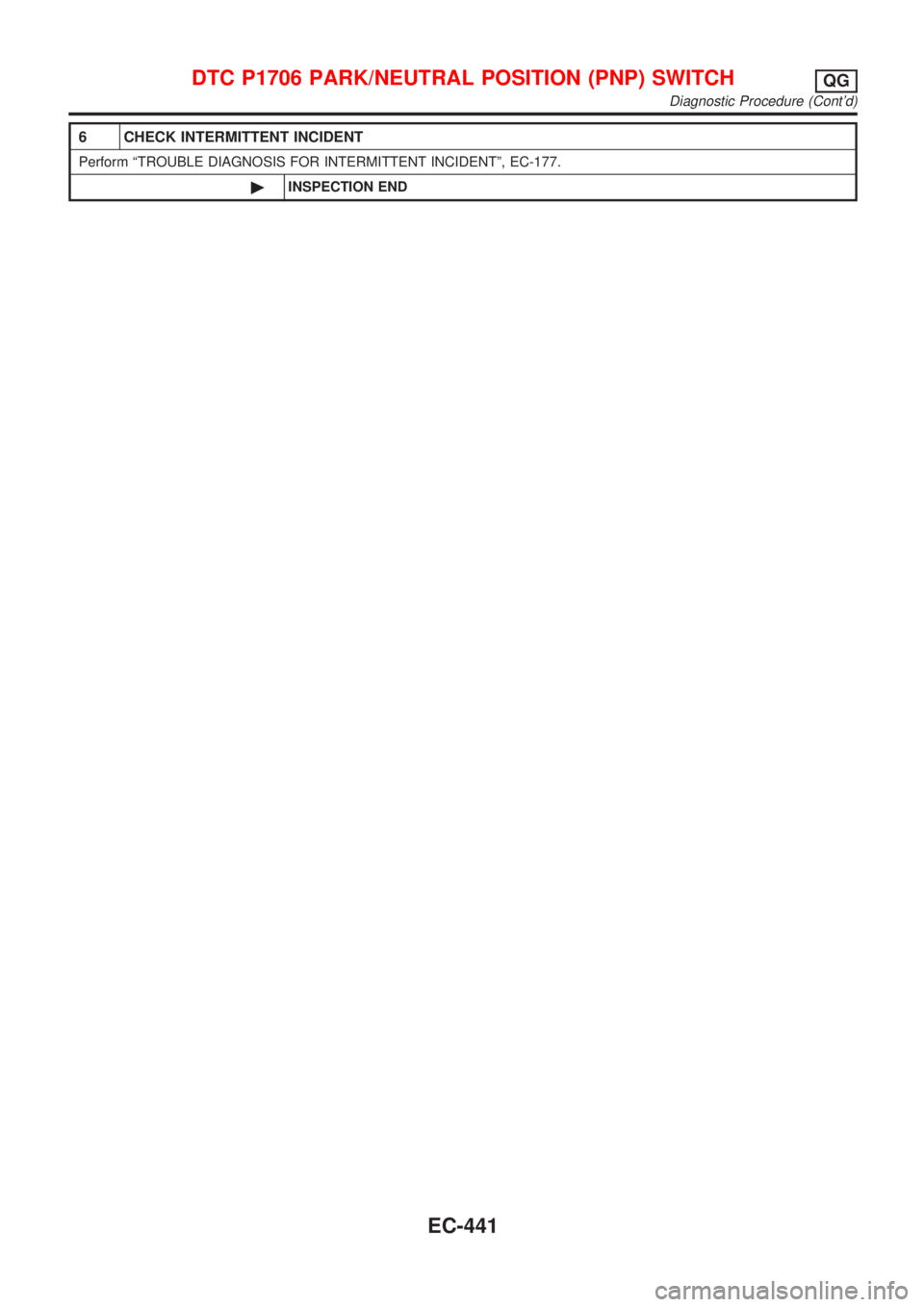

NISSAN ALMERA 2001 Service Manual 6 CHECK INTERMITTENT INCIDENT Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-177. ©INSPECTION END DTC P1706 PARK/NEUTRAL POSITION (PNP) SWITCHQG Diagnostic Procedure (Contd) EC-441

Page 1166 of 2898

NISSAN ALMERA 2001 Service Manual SEF206T Component DescriptionNJEC1737MODELS WITH INTAKE AIR TEMPERATURE SENSOR ON INTAKE AIR DUCT NJEC1737S01The intake air temperature sensor is mounted to the air duct hous- ing. The sensor detects

Page 1167 of 2898

NISSAN ALMERA 2001 Service Manual CAUTION: Do not use ECM ground terminals when measuring input/ output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground. INTAKE

Page 1168 of 2898

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC1738MODELS WITH INTAKE AIR TEMPERATURE SENSOR IN MASS AIR FLOW SENSOR NJEC1738S01 HEC948 INTAKE AIR TEMPERATURE SENSORQG Wiring Diagram EC-444
