Page 1705 of 2898
Schematic/Sedan With TachometerNJEL0320
HEL382B
METERS AND GAUGES
Schematic/Sedan With Tachometer
EL-147
Page 1706 of 2898

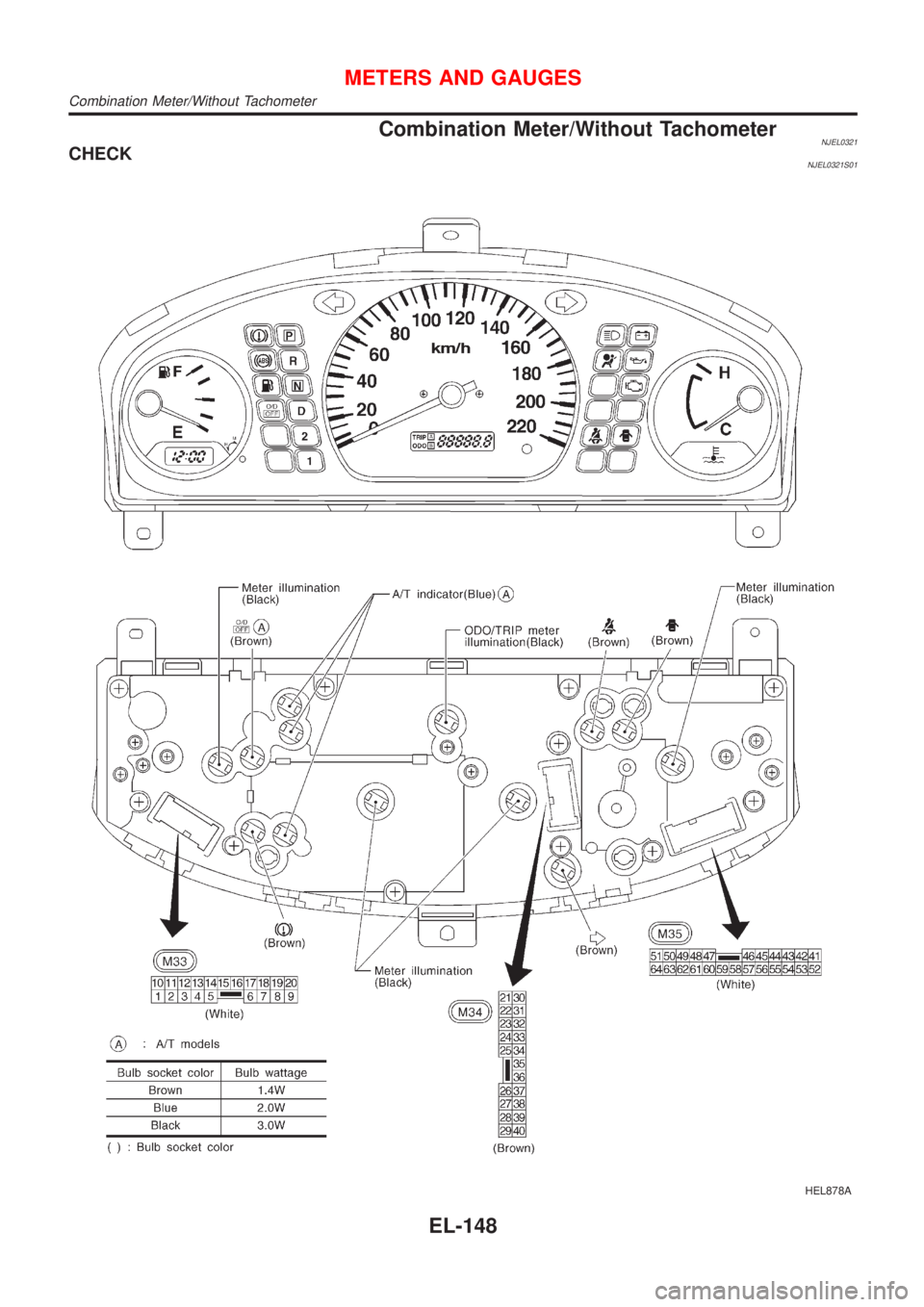

Combination Meter/Without TachometerNJEL0321CHECKNJEL0321S01
HEL878A
METERS AND GAUGES
Combination Meter/Without Tachometer
EL-148
Page 1707 of 2898
Schematic/Without TachometerNJEL0322
HEL879A
METERS AND GAUGES
Schematic/Without Tachometer
EL-149
Page 1708 of 2898

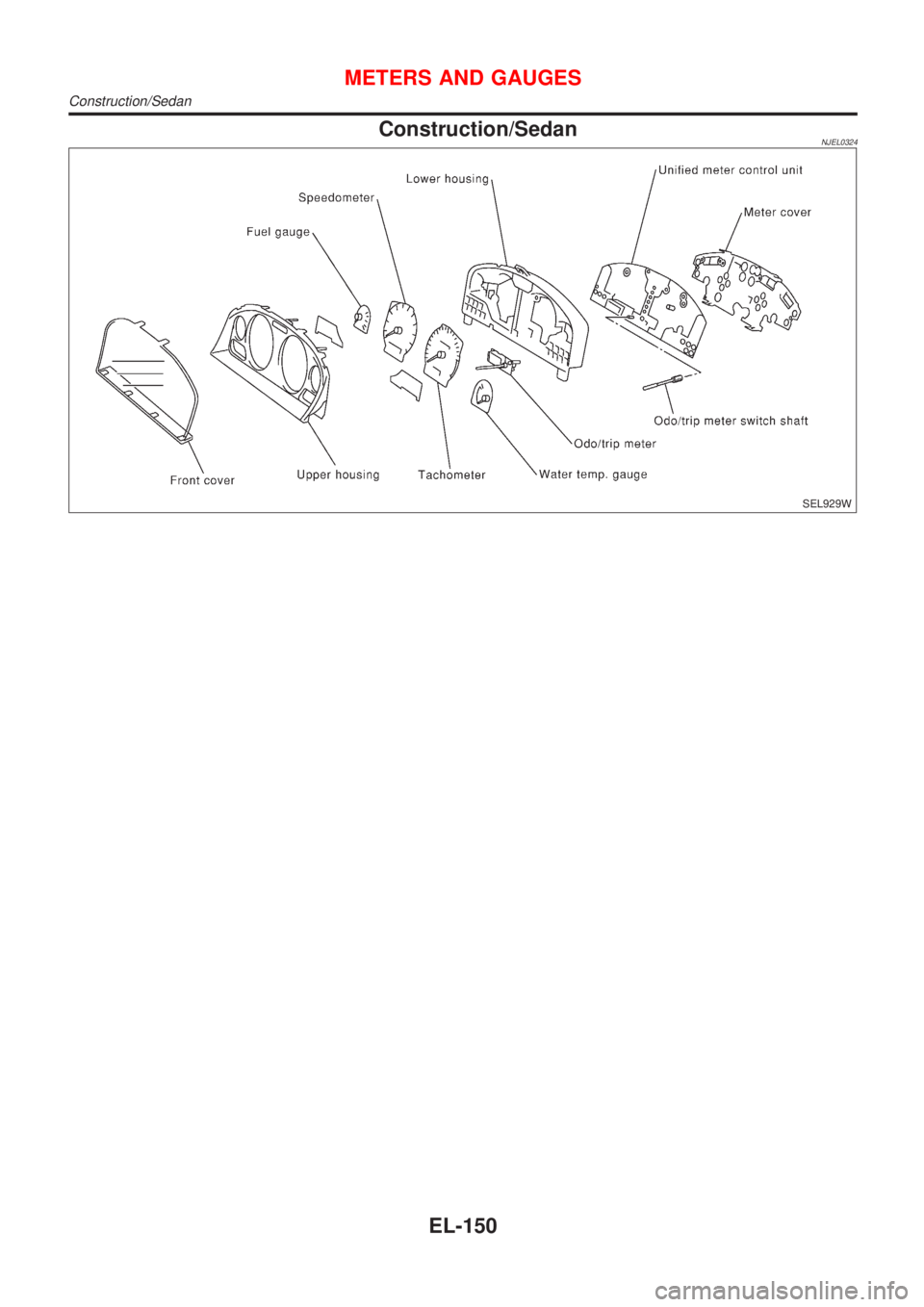

Construction/SedanNJEL0324
SEL929W
METERS AND GAUGES
Construction/Sedan
EL-150
Page 1709 of 2898

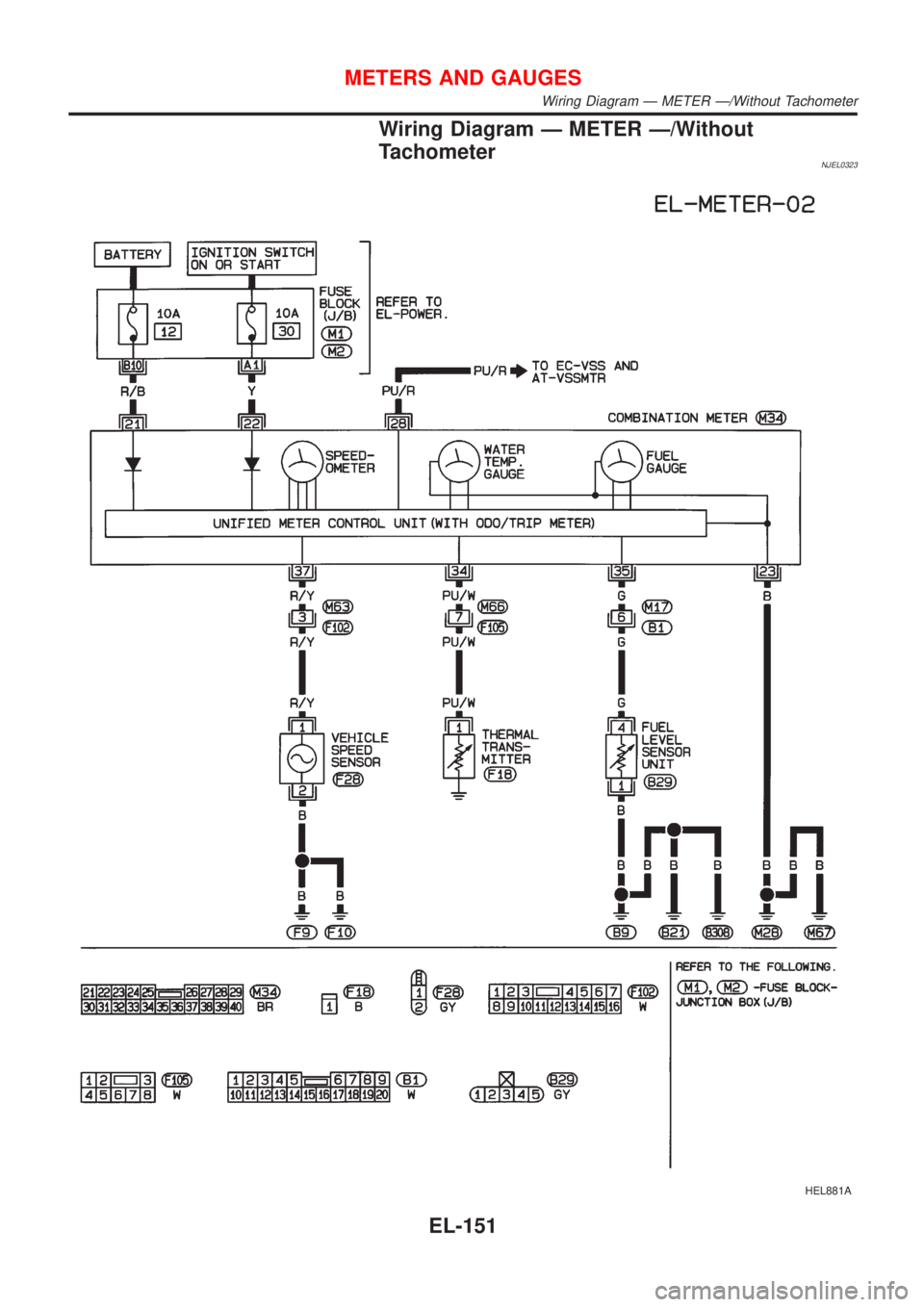

Wiring Diagram Ð METER Ð/Without
Tachometer
NJEL0323
HEL881A
METERS AND GAUGES
Wiring Diagram Ð METER Ð/Without Tachometer
EL-151
Page 1710 of 2898
Wiring Diagram Ð METER Ð/SedanNJEL0369
HEL383B
METERS AND GAUGES
Wiring Diagram Ð METER Ð/Sedan
EL-152
Page 1711 of 2898

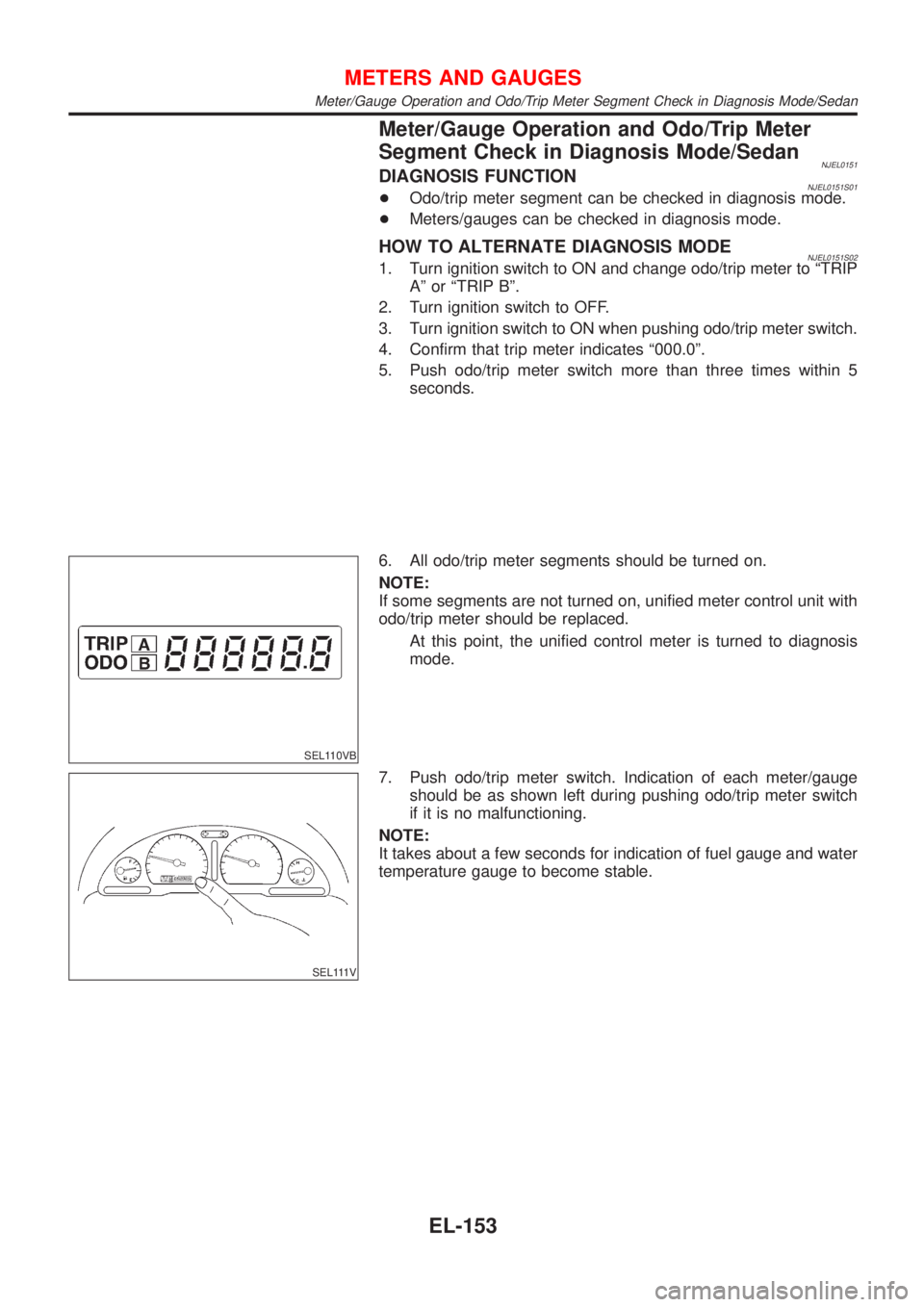

Meter/Gauge Operation and Odo/Trip Meter
Segment Check in Diagnosis Mode/Sedan
NJEL0151DIAGNOSIS FUNCTIONNJEL0151S01+Odo/trip meter segment can be checked in diagnosis mode.
+Meters/gauges can be checked in diagnosis mode.
HOW TO ALTERNATE DIAGNOSIS MODENJEL0151S021. Turn ignition switch to ON and change odo/trip meter to ªTRIP
Aº or ªTRIP Bº.
2. Turn ignition switch to OFF.
3. Turn ignition switch to ON when pushing odo/trip meter switch.
4. Confirm that trip meter indicates ª000.0º.
5. Push odo/trip meter switch more than three times within 5
seconds.
SEL110VB
6. All odo/trip meter segments should be turned on.
NOTE:
If some segments are not turned on, unified meter control unit with
odo/trip meter should be replaced.
At this point, the unified control meter is turned to diagnosis
mode.
SEL111V
7. Push odo/trip meter switch. Indication of each meter/gauge
should be as shown left during pushing odo/trip meter switch
if it is no malfunctioning.
NOTE:
It takes about a few seconds for indication of fuel gauge and water
temperature gauge to become stable.
METERS AND GAUGES
Meter/Gauge Operation and Odo/Trip Meter Segment Check in Diagnosis Mode/Sedan
EL-153
Page 1712 of 2898

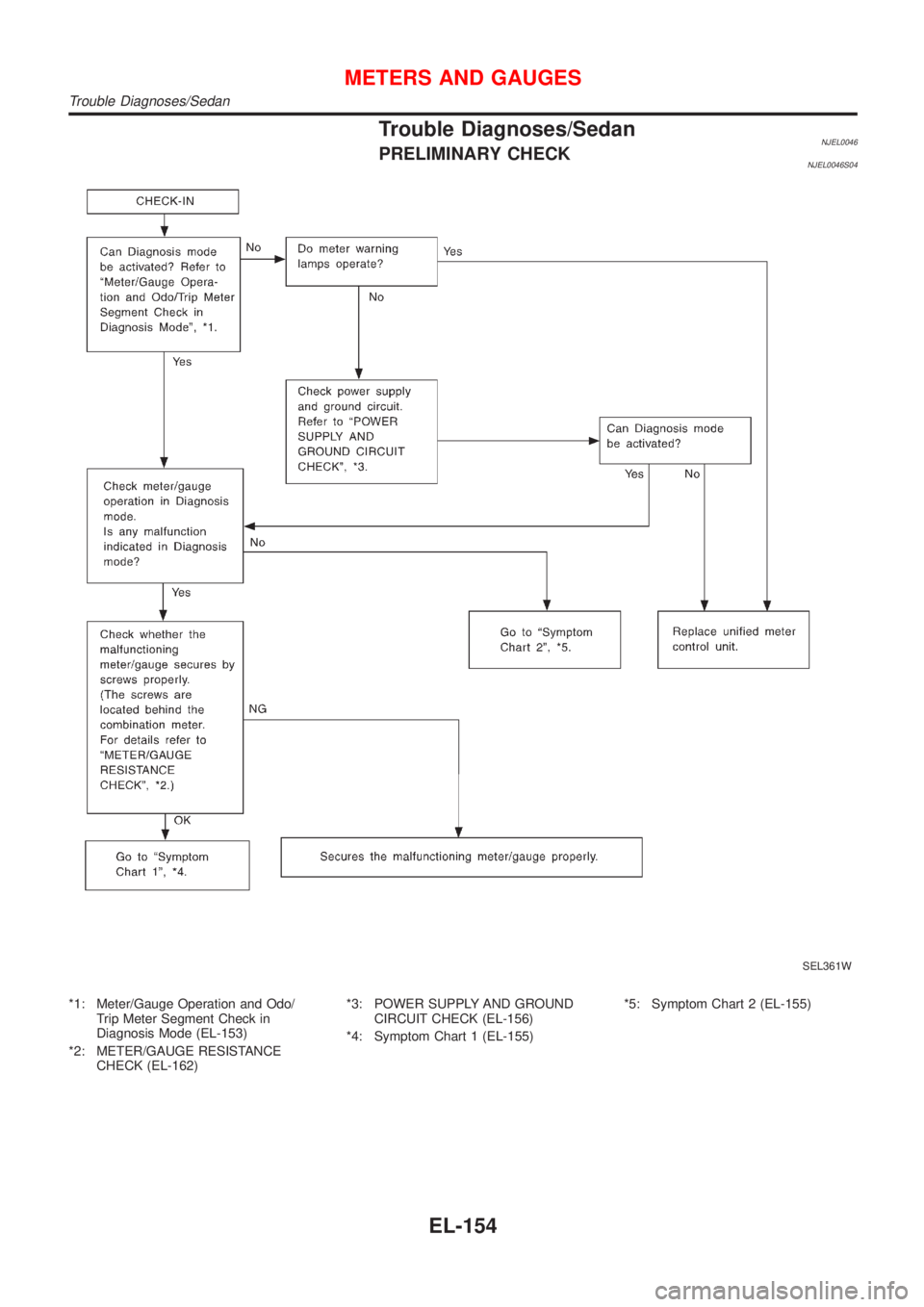

Trouble Diagnoses/SedanNJEL0046PRELIMINARY CHECKNJEL0046S04
SEL361W
*1: Meter/Gauge Operation and Odo/
Trip Meter Segment Check in
Diagnosis Mode (EL-153)
*2: METER/GAUGE RESISTANCE
CHECK (EL-162)*3: POWER SUPPLY AND GROUND
CIRCUIT CHECK (EL-156)
*4: Symptom Chart 1 (EL-155)*5: Symptom Chart 2 (EL-155)
METERS AND GAUGES
Trouble Diagnoses/Sedan
EL-154
