NISSAN ALMERA 2001 Service Manual SEL909TA

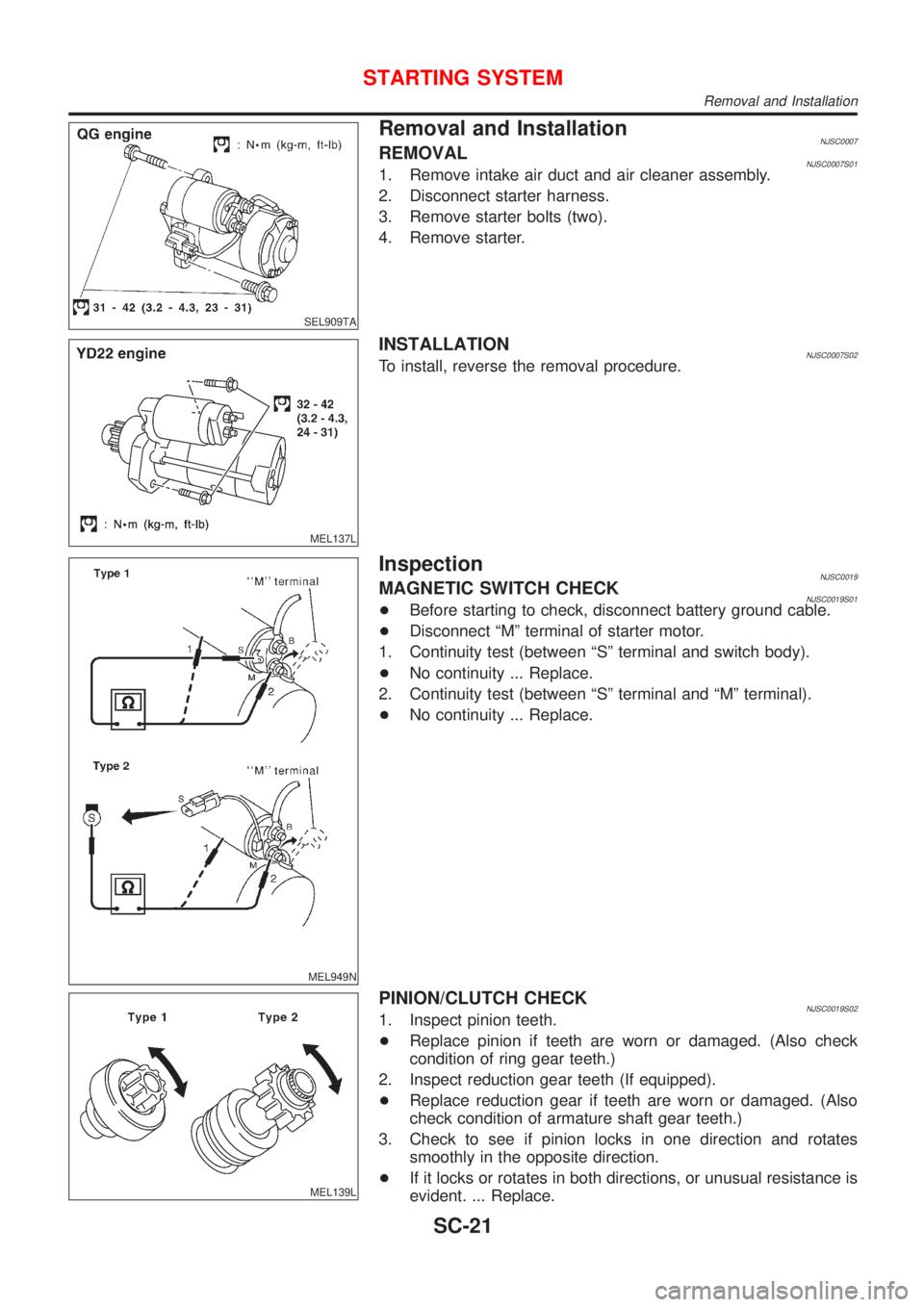

Removal and InstallationNJSC0007REMOVALNJSC0007S011. Remove intake air duct and air cleaner assembly.
2. Disconnect starter harness.
3. Remove starter bolts (two).
4. Remove starter.
MEL137L

Page 2818 of 2898

NISSAN ALMERA 2001 Service Manual SEL014Z

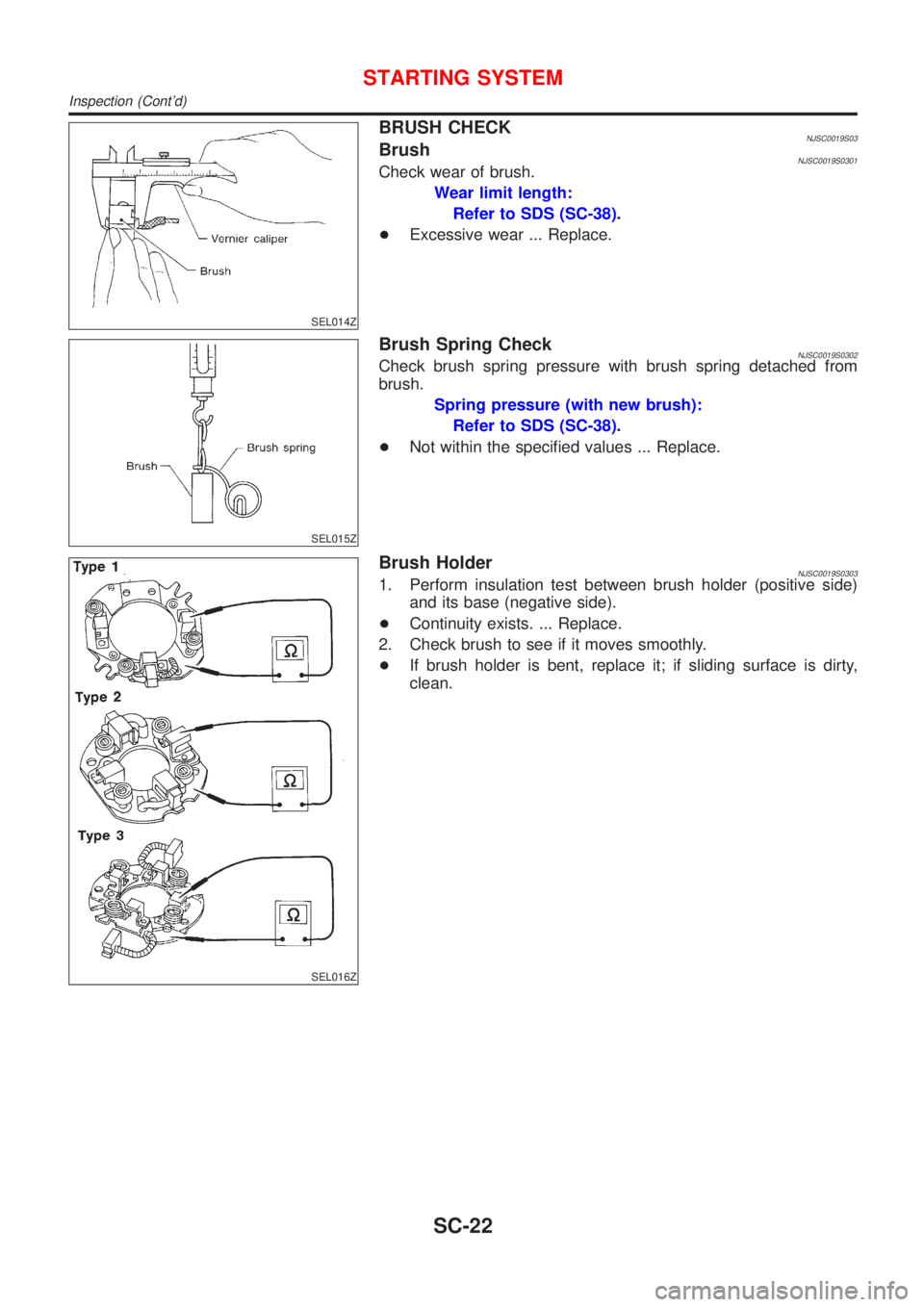

BRUSH CHECKNJSC0019S03BrushNJSC0019S0301Check wear of brush.
Wear limit length:
Refer to SDS (SC-38).
+Excessive wear ... Replace.
SEL015Z
Brush Spring CheckNJSC0019S0302Check brush spring pre

Page 2819 of 2898

NISSAN ALMERA 2001 Service Manual SEL018Z
YOKE CHECKNJSC0019S04Magnet is secured to yoke by bonding agent. Check magnet to see
that it is secured to yoke and for any cracks. Replace malfunction-
ing parts as an assembly.
CAUTION:
Do n

Page 2820 of 2898

NISSAN ALMERA 2001 Service Manual SEL022Z

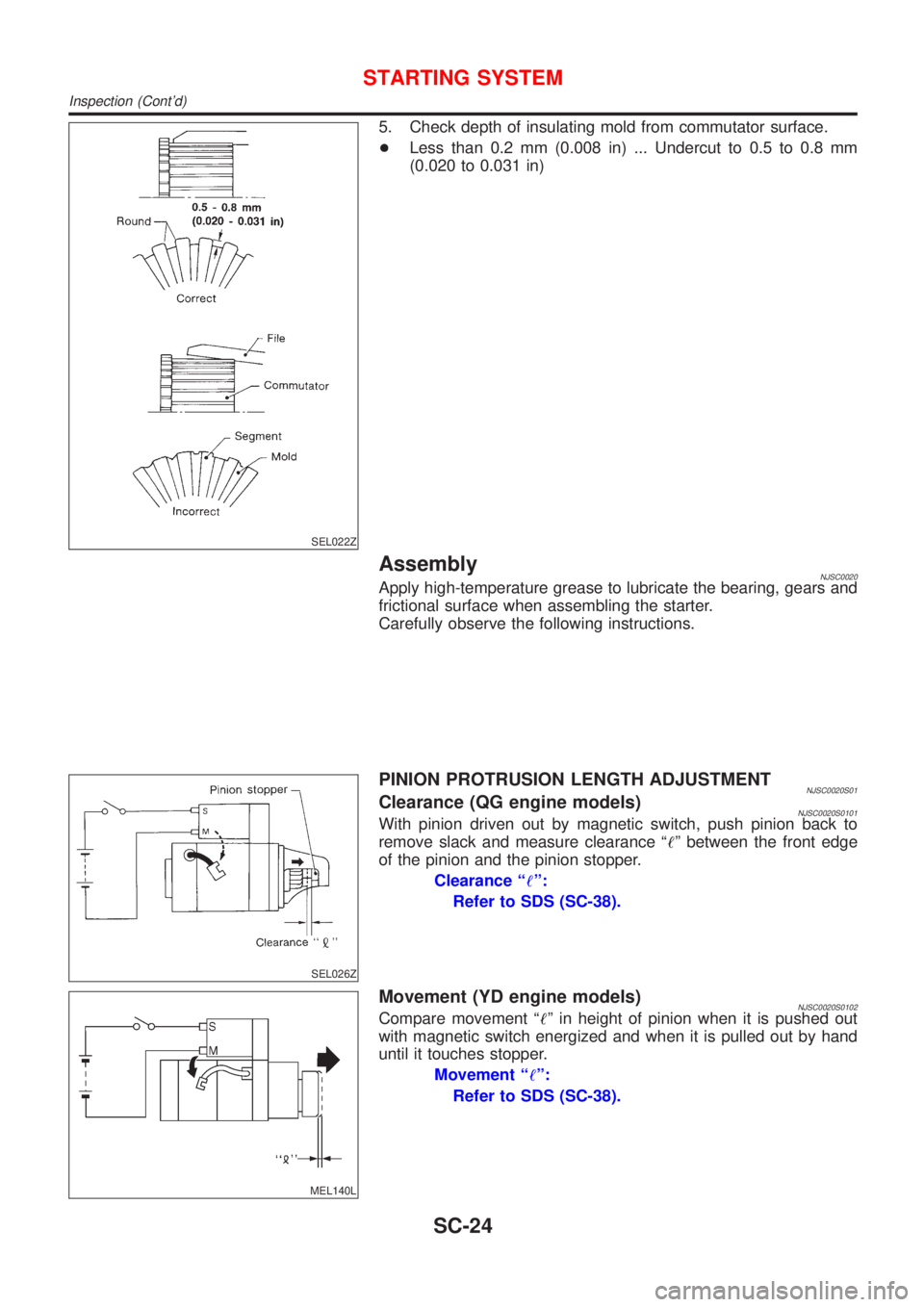

5. Check depth of insulating mold from commutator surface.
+Less than 0.2 mm (0.008 in) ... Undercut to 0.5 to 0.8 mm
(0.020 to 0.031 in)
AssemblyNJSC0020Apply high-temperature grease to lubri

Page 2821 of 2898

NISSAN ALMERA 2001 Service Manual SEL633BA

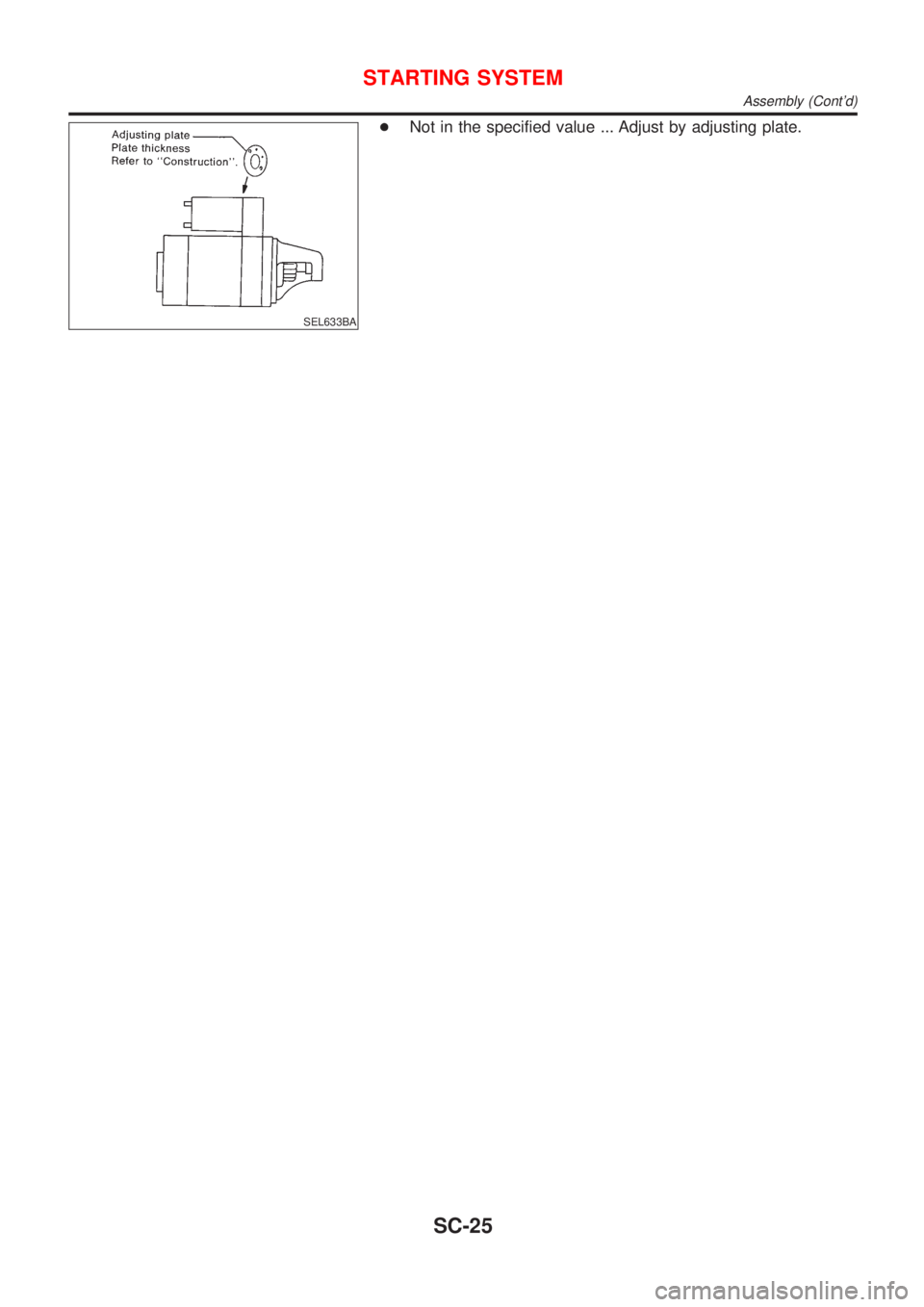

+Not in the specified value ... Adjust by adjusting plate.
STARTING SYSTEM
Assembly (Contd)
SC-25

Page 2822 of 2898

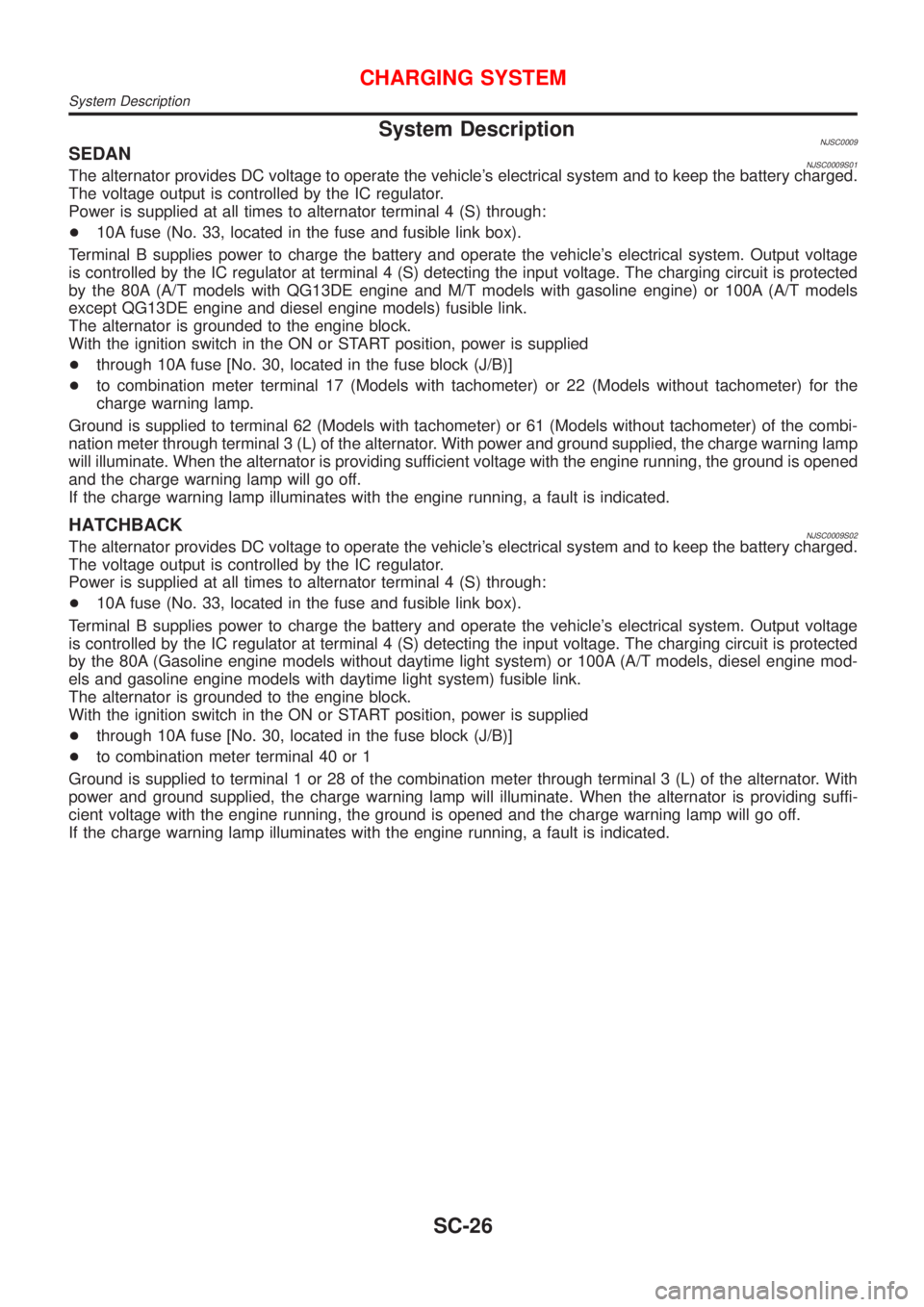

NISSAN ALMERA 2001 Service Manual System DescriptionNJSC0009SEDANNJSC0009S01The alternator provides DC voltage to operate the vehicles electrical system and to keep the battery charged.
The voltage output is controlled by the IC regu

System DescriptionNJSC0009SEDANNJSC0009S01The alternator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.
The voltage output is controlled by the IC regulator.
Power is supplied at all times to alternator terminal 4 (S) through:
+10A fuse (No. 33, located in the fuse and fusible link box).
Terminal B supplies power to charge the battery and operate the vehicle's electrical system. Output voltage
is controlled by the IC regulator at terminal 4 (S) detecting the input voltage. The charging circuit is protected
by the 80A (A/T models with QG13DE engine and M/T models with gasoline engine) or 100A (A/T models
except QG13DE engine and diesel engine models) fusible link.
The alternator is grounded to the engine block.
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 30, located in the fuse block (J/B)]
+to combination meter terminal 17 (Models with tachometer) or 22 (Models without tachometer) for the
charge warning lamp.
Ground is supplied to terminal 62 (Models with tachometer) or 61 (Models without tachometer) of the combi-
nation meter through terminal 3 (L) of the alternator. With power and ground supplied, the charge warning lamp
will illuminate. When the alternator is providing sufficient voltage with the engine running, the ground is opened
and the charge warning lamp will go off.
If the charge warning lamp illuminates with the engine running, a fault is indicated.
HATCHBACKNJSC0009S02The alternator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.
The voltage output is controlled by the IC regulator.
Power is supplied at all times to alternator terminal 4 (S) through:
+10A fuse (No. 33, located in the fuse and fusible link box).
Terminal B supplies power to charge the battery and operate the vehicle's electrical system. Output voltage
is controlled by the IC regulator at terminal 4 (S) detecting the input voltage. The charging circuit is protected
by the 80A (Gasoline engine models without daytime light system) or 100A (A/T models, diesel engine mod-
els and gasoline engine models with daytime light system) fusible link.
The alternator is grounded to the engine block.
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 30, located in the fuse block (J/B)]
+to combination meter terminal 40 or 1
Ground is supplied to terminal 1 or 28 of the combination meter through terminal 3 (L) of the alternator. With
power and ground supplied, the charge warning lamp will illuminate. When the alternator is providing suffi-
cient voltage with the engine running, the ground is opened and the charge warning lamp will go off.
If the charge warning lamp illuminates with the engine running, a fault is indicated.
CHARGING SYSTEM
System Description
SC-26

Page 2823 of 2898

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð CHARGE Ð/SedanNJSC0010GASOLINE ENGINE MODELSNJSC0010S02
HSC014
CHARGING SYSTEM
Wiring Diagram Ð CHARGE Ð/Sedan
SC-27

Page 2824 of 2898

NISSAN ALMERA 2001 Service Manual DIESEL ENGINE MODELSNJSC0010S03
HSC015
CHARGING SYSTEM
Wiring Diagram Ð CHARGE Ð/Sedan (Contd)
SC-28
