Page 1969 of 2898

NISSAN ALMERA 2001 Service Manual MULTI-REMOTE CONTROL SYSTEM
Trouble Diagnoses/Hatchback (Contd)
EL-411

Page 1970 of 2898

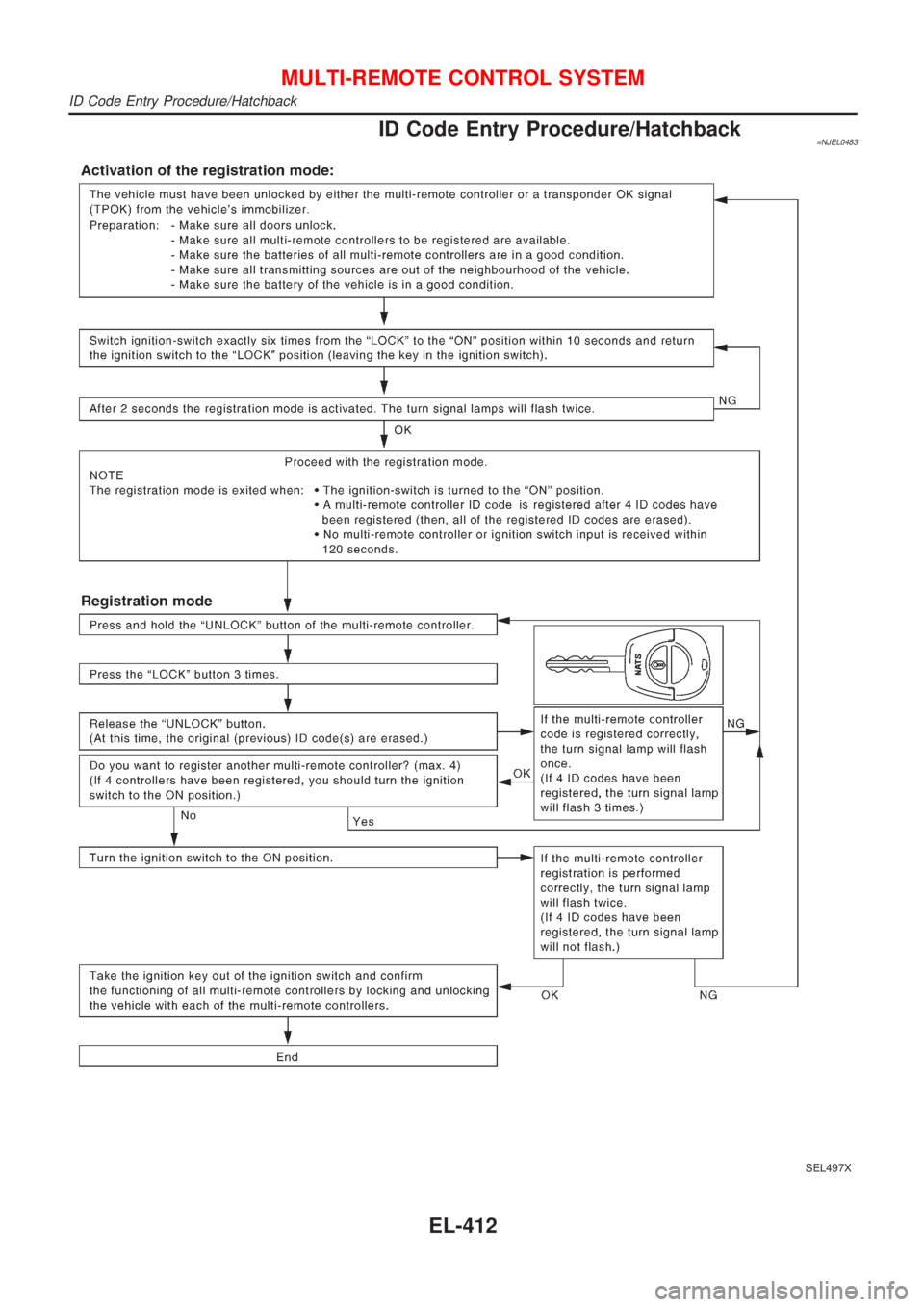

NISSAN ALMERA 2001 Service Manual ID Code Entry Procedure/Hatchback=NJEL0483
SEL497X
MULTI-REMOTE CONTROL SYSTEM
ID Code Entry Procedure/Hatchback
EL-412

Page 1971 of 2898

NISSAN ALMERA 2001 Service Manual Remote Controller Battery
Replacement/Hatchback
NJEL0484Refer to ªRemote Controller Battery Replacement/Sedanº, EL-403.
MULTI-REMOTE CONTROL SYSTEM
Remote Controller Battery Replacement/Hatchback
EL

Page 1972 of 2898

NISSAN ALMERA 2001 Service Manual Description/Sedan=NJEL0403OUTLINENJEL0403S01The time control unit totally controls the following body electrical system operations.
+Warning chime
+Rear defogger
+Power door lock
+Interior lamp
INPUT/

Page 1973 of 2898

NISSAN ALMERA 2001 Service Manual Schematic/SedanNJEL0404
HEL421B
TIME CONTROL UNIT
Schematic/Sedan
EL-415

Page 1974 of 2898

NISSAN ALMERA 2001 Service Manual Time Control Unit Inspection Table/SedanNJEL0405
Terminal
No.Wire
colorConnections Operation conditionVoltage
(Approximate
values)
1 R/B Power source (Fuse) Ð 12V
3 G/R Super lock actuator Door key c

Page 1975 of 2898

NISSAN ALMERA 2001 Service Manual Description/Hatchback=NJEL0485The TCU has the following functions.
INTERIOR LAMP TIMERNJEL0485S01The interior lamp timer is controlled by the TCU.
For further information, refer to ªINTERIOR ROOM LAM

Description/Hatchback=NJEL0485The TCU has the following functions.
INTERIOR LAMP TIMERNJEL0485S01The interior lamp timer is controlled by the TCU.
For further information, refer to ªINTERIOR ROOM LAMPº (EL-127).
IGNITION KEY WARNING CHIME AND LIGHT WARNING CHIMENJEL0485S02The ignition key and light warning chime are controlled by the TCU.
For further information, refer to ªWARNING CHIMEº (EL-205).
REAR WINDOW DEFOGGER TIMERNJEL0485S03The rear window defogger and door mirror defogger system are controlled by the TCU.
For further information, refer to ªREAR WINDOW DEFOGGERº (EL-249).
POWER DOOR LOCK (SUPER LOCK)NJEL0485S04The power door lock (super lock) is controlled by the TCU.
For further information, refer to ªPOWER DOOR LOCK Ð Super Lock Ðº (EL-349).
MULTI-REMOTE CONTROL SYSTEMNJEL0485S05The multi-remote control system is controlled by the TCU.
For further information, refer to ªMULTI-REMOTE CONTROL SYSTEMº (EL-403).
FUNCTIONNJEL0485S06+The TCU has the following control function.
Item Details of control
Direction indicatorsSwitches the director indicators (Left, Right or All) when the combination
switch or hazard switch is operated.
Light warning chimeSounds warning chime when driver's door is opened with light switch in the
1st or 2nd position and ignition switch ªOFFº.
Ignition key warning chineSounds warning chime when driver's door is opened with key in ignition and
the driver door lock knob (unlock sensor) is moved from the ªunlockº posi-
tion to the ªlockº position.
Rear window defogger timerTurn off rear window defogger and door mirror heater, if equipped, about 15
minutes after the rear window defogger switch is turned ªONº.
Battery saverShuts off interior lamp in 30 minutes if any door is left open when ignition
switch is ªOFFº. The battery saver will reset if ignition switch is cycled or any
door is opened or closed.
Interior lamp timerKeep interior lamp illuminated for about 30 seconds when:
+driver's door is unlocked,
+the ignition is switched off,
+driver's door is opened and then closed.
The timer is cancelled, and interior lamp turns off when:
+driver's door is locked, or
+ignition switch is turned ªONº.
Power door lock Centrally locks and unlocks the vehicle
Super lock Activates and de-activates the super lock system.
TIME CONTROL UNIT
Description/Hatchback
EL-417

Page 1976 of 2898

NISSAN ALMERA 2001 Service Manual Trouble Diagnoses/Hatchback=NJEL0486The Timer Control Unit includes software to help during development testing, manufacturing and service. It
allows the technician to put it into Diagnostic Mode. In
