Page 689 of 2898

NISSAN ALMERA 2001 Service Manual SBF034BA Removal and InstallationNJBT0023REMOVALNJBT0023S01After removing moldings, remove glass using piano wire or power cutting tool and an inflatable pump bag. WARNING: When cutting the glass from

Page 690 of 2898

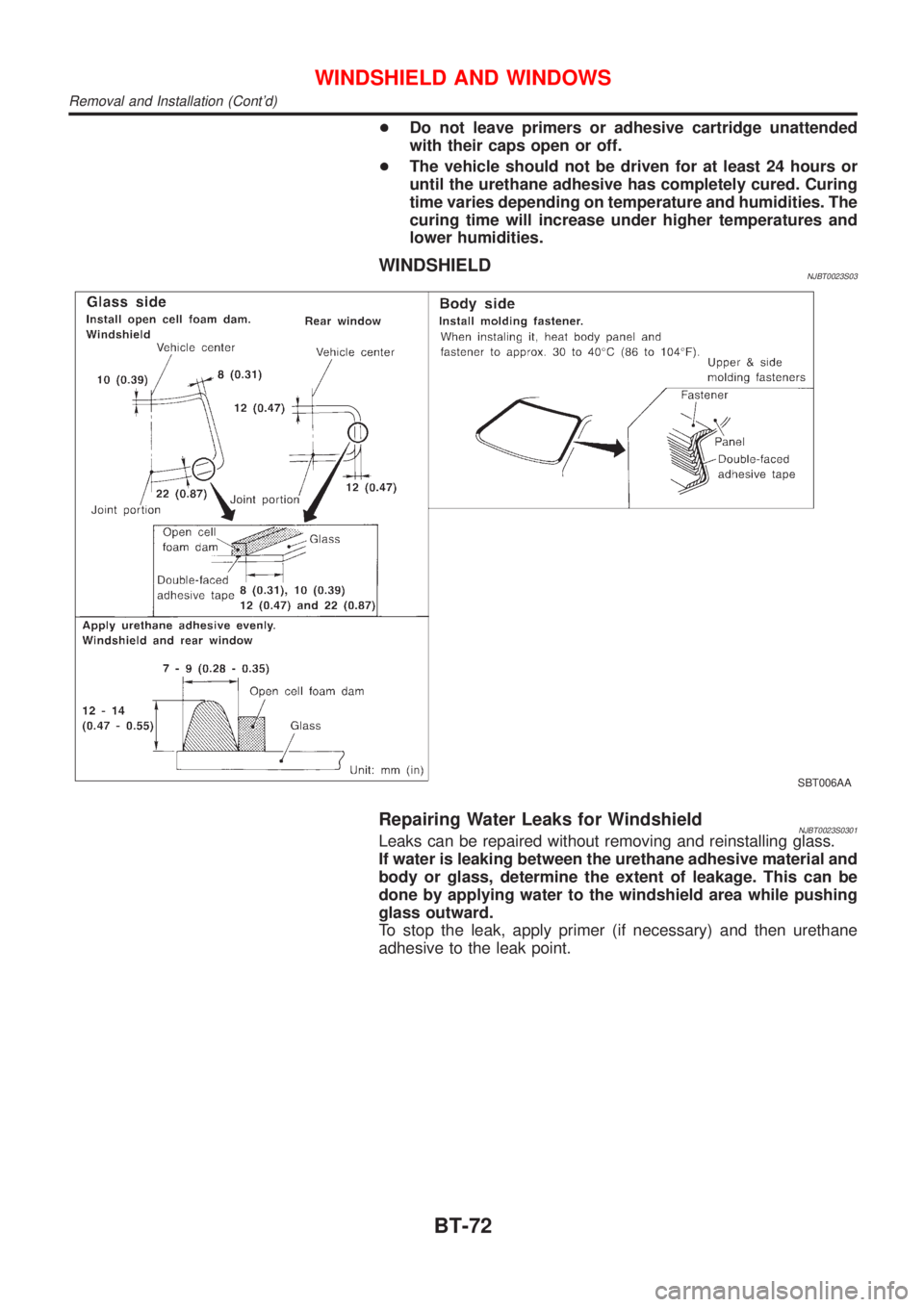

NISSAN ALMERA 2001 Service Manual +Do not leave primers or adhesive cartridge unattended with their caps open or off. +The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely cured. Curing

Page 691 of 2898

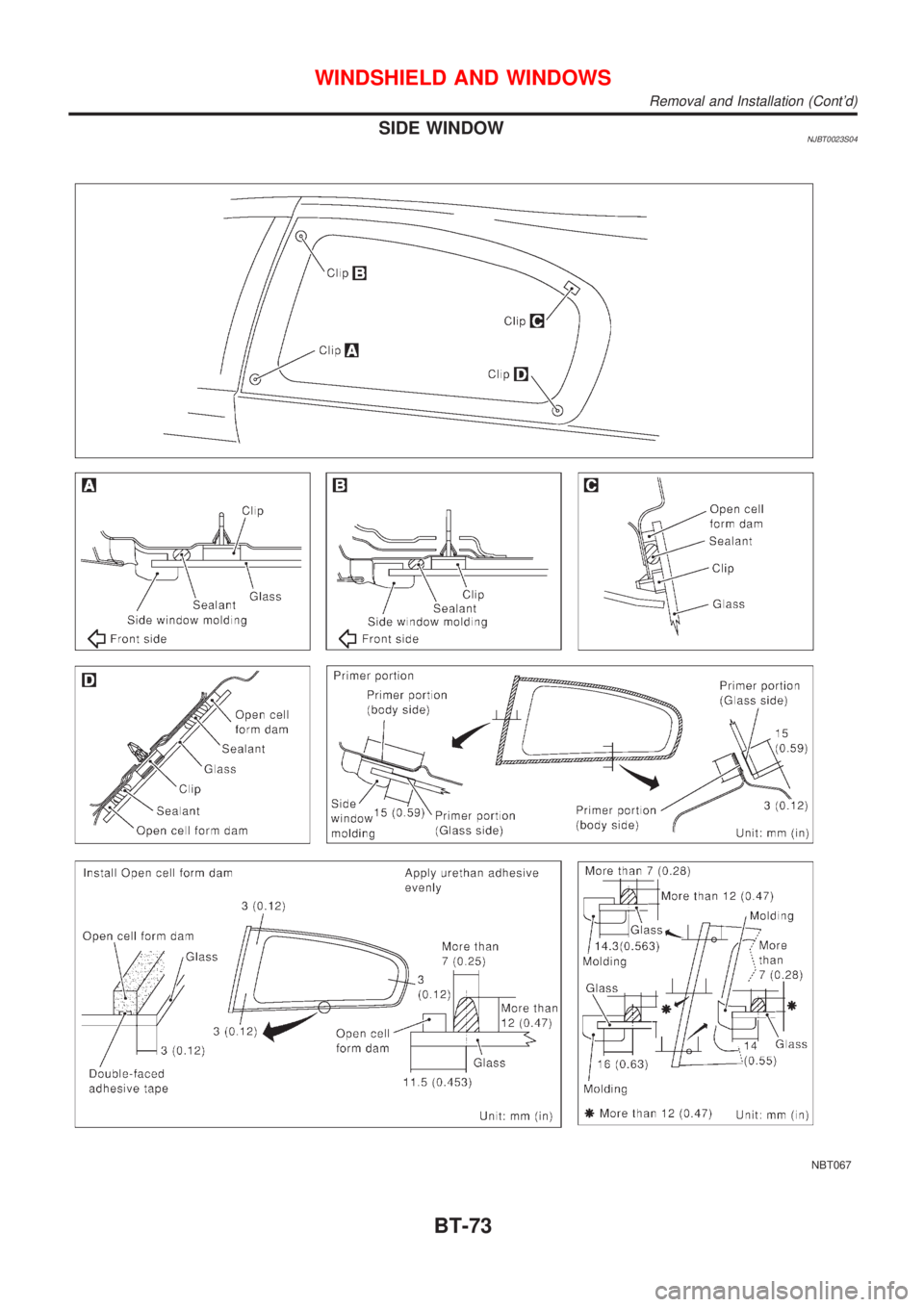

NISSAN ALMERA 2001 Service Manual SIDE WINDOWNJBT0023S04 NBT067 WINDSHIELD AND WINDOWS Removal and Installation (Contd) BT-73

Page 692 of 2898

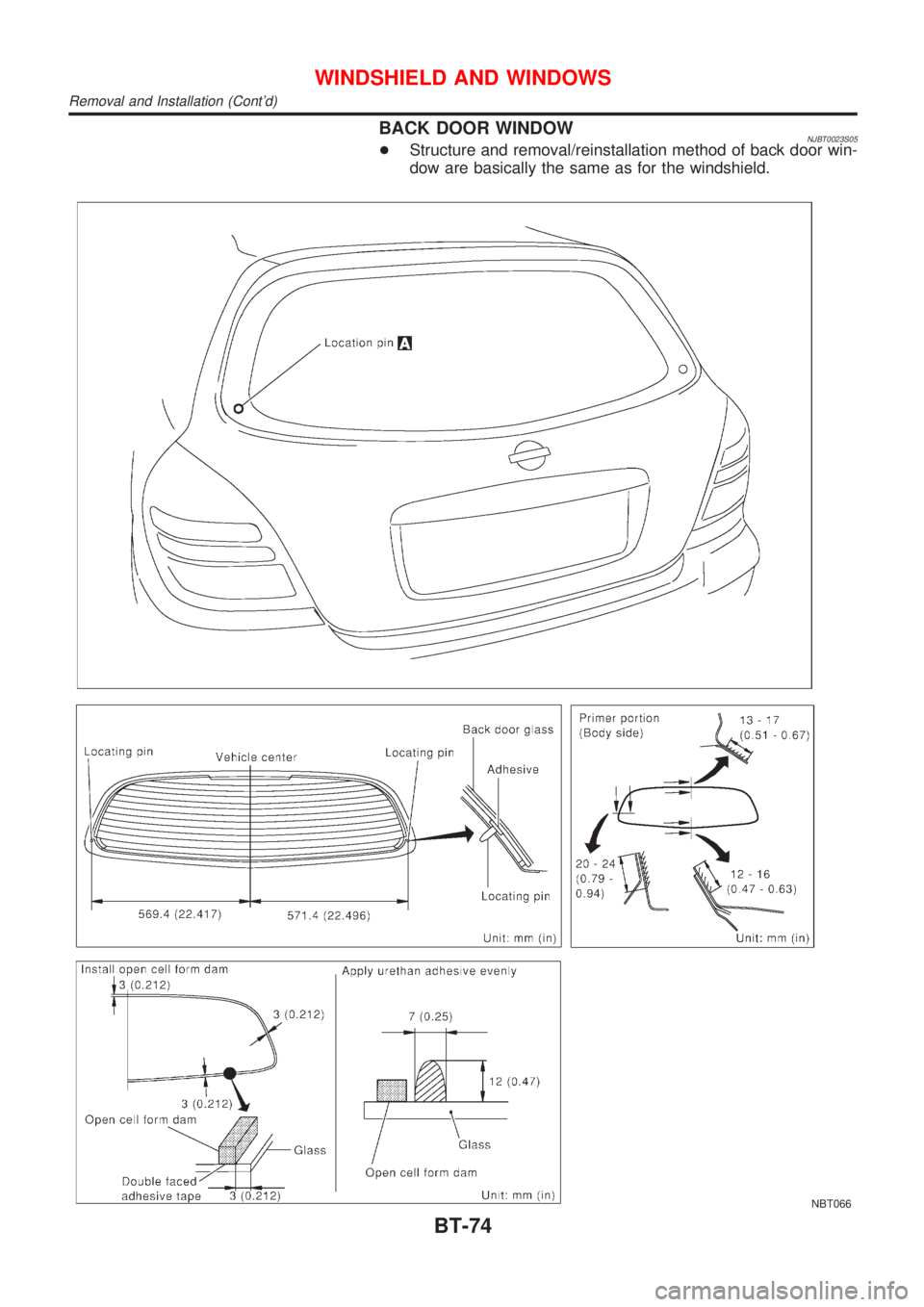

NISSAN ALMERA 2001 Service Manual BACK DOOR WINDOWNJBT0023S05+Structure and removal/reinstallation method of back door win- dow are basically the same as for the windshield. NBT066 WINDSHIELD AND WINDOWS Removal and Installation (Cont

Page 693 of 2898

NISSAN ALMERA 2001 Service Manual Removalan dInstallation SBT007A Removal and Installation

Page 694 of 2898

NISSAN ALMERA 2001 Service Manual Removal and InstallationNJBT0025REMOVALNJBT0025S01 SBT880 SBT822 INSTALLATIONNJBT0025S021. Install mirror base as follows: a. Determine mirror base position on windshield by measuring from top of wind

Page 695 of 2898

NISSAN ALMERA 2001 Service Manual AlignmentNJBT0026+All dimensions indicated in figures are actual ones. +When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there i

Page 696 of 2898

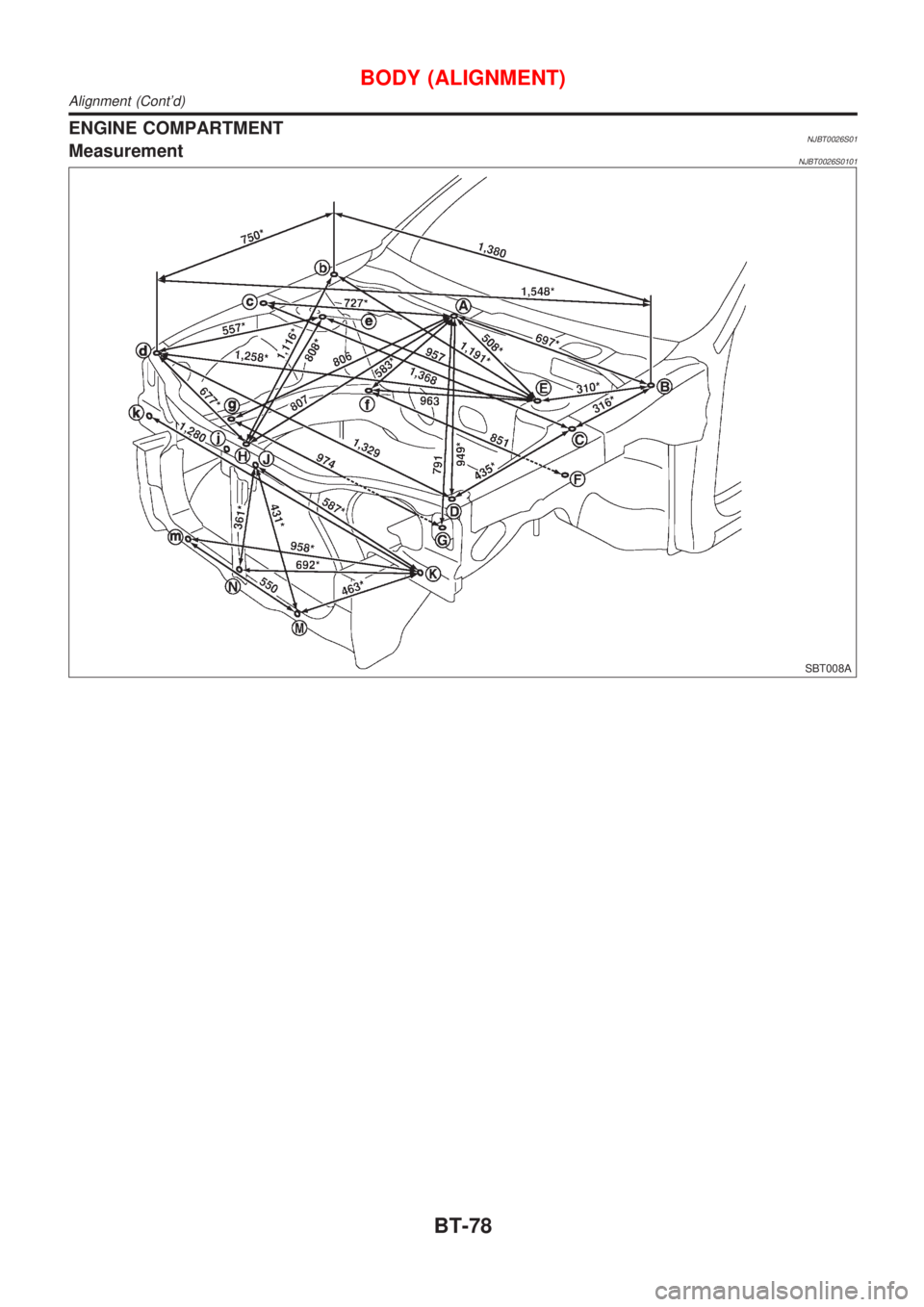

NISSAN ALMERA 2001 Service Manual ENGINE COMPARTMENTNJBT0026S01MeasurementNJBT0026S0101 SBT008A BODY (ALIGNMENT) Alignment (Contd) BT-78
