Page 1049 of 2898

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC0210 HEC791 DTC P0325 KNOCK SENSOR (KS)QG Wiring Diagram EC-325

Page 1050 of 2898

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC0211 1 RETIGHTEN GROUND SCREWS Loosen and retighten engine ground screws. JEF104Y ©GO TO 2. 2 CHECK INPUT SIGNAL CIRCUIT-1 1. Turn ignition switch ªOFFº. 2. Disconnect ECM h

Page 1051 of 2898

NISSAN ALMERA 2001 Service Manual 5 CHECK INTERMITTENT INCIDENT Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-177. ©INSPECTION END SEF111Y Component InspectionNJEC0212KNOCK SENSORNJEC0212S01+Use an ohmmeter which can me

Page 1052 of 2898

NISSAN ALMERA 2001 Service Manual SEF058X JEF112Y Component DescriptionNJEC0551The crankshaft position sensor (POS) is located on the right-rear wall of the cylinder block in relation to the signal plate at the rear end of the cranksh

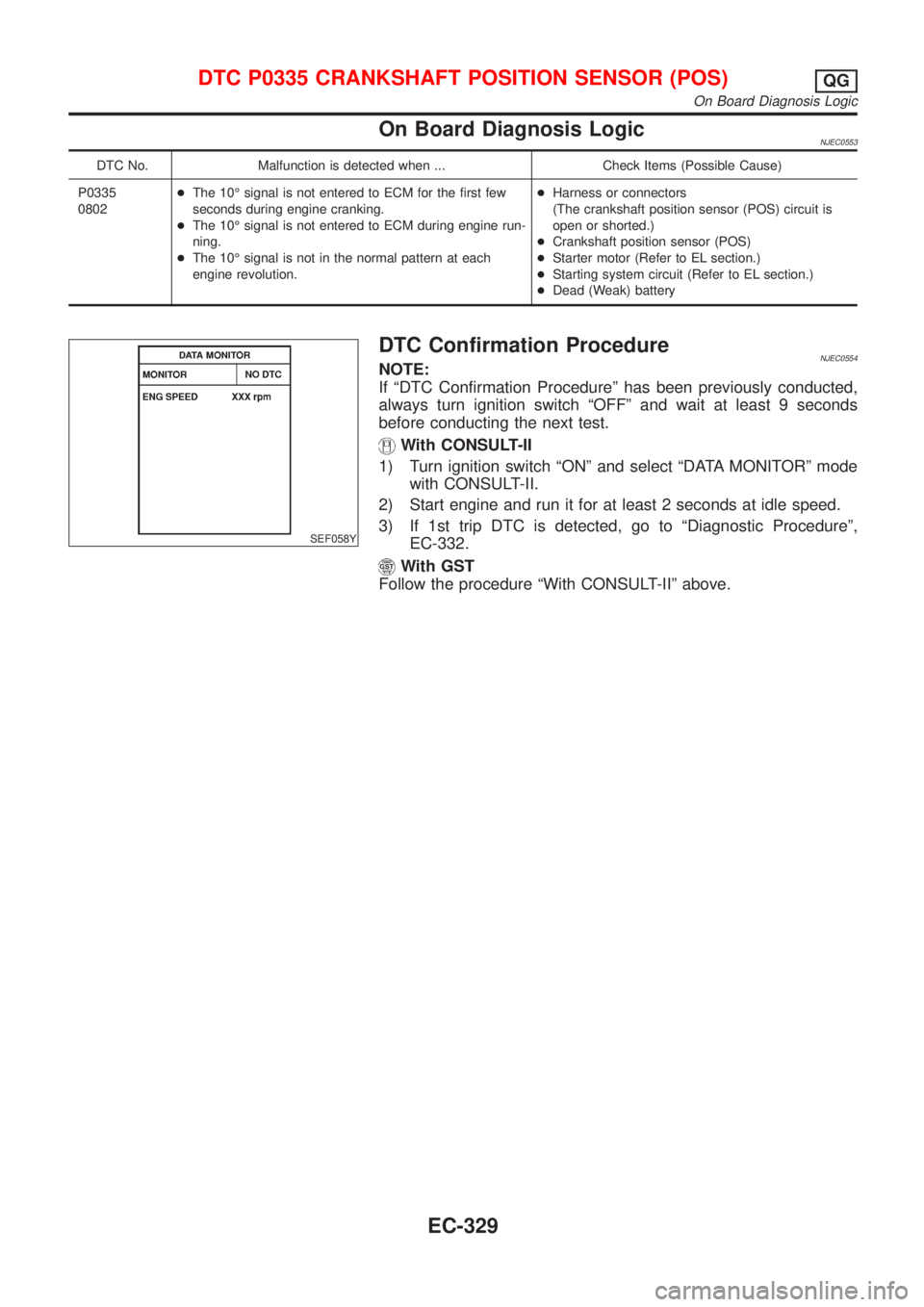

Page 1053 of 2898

NISSAN ALMERA 2001 Service Manual On Board Diagnosis LogicNJEC0553 DTC No. Malfunction is detected when ... Check Items (Possible Cause) P0335 0802+The 10É signal is not entered to ECM for the first few seconds during engine cranking

Page 1054 of 2898

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC0555SEDAN MODELS AND HATCHBACK MODELS WITH ECM IN ENGINE COMPARTMENT NJEC0555S01 HEC792 DTC P0335 CRANKSHAFT POSITION SENSOR (POS)QG Wiring Diagram EC-330

Page 1055 of 2898

NISSAN ALMERA 2001 Service Manual HATCHBACK MODELS WITH ECM IN CABINNJEC0555S02 HEC974 DTC P0335 CRANKSHAFT POSITION SENSOR (POS)QG Wiring Diagram (Contd) EC-331

Page 1056 of 2898

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC0556 1 RETIGHTEN GROUND SCREWS 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. JEF104Y ©GO TO 2. 2 CHECK POWER SUPPLY 1. Disconnect crankshaft p
