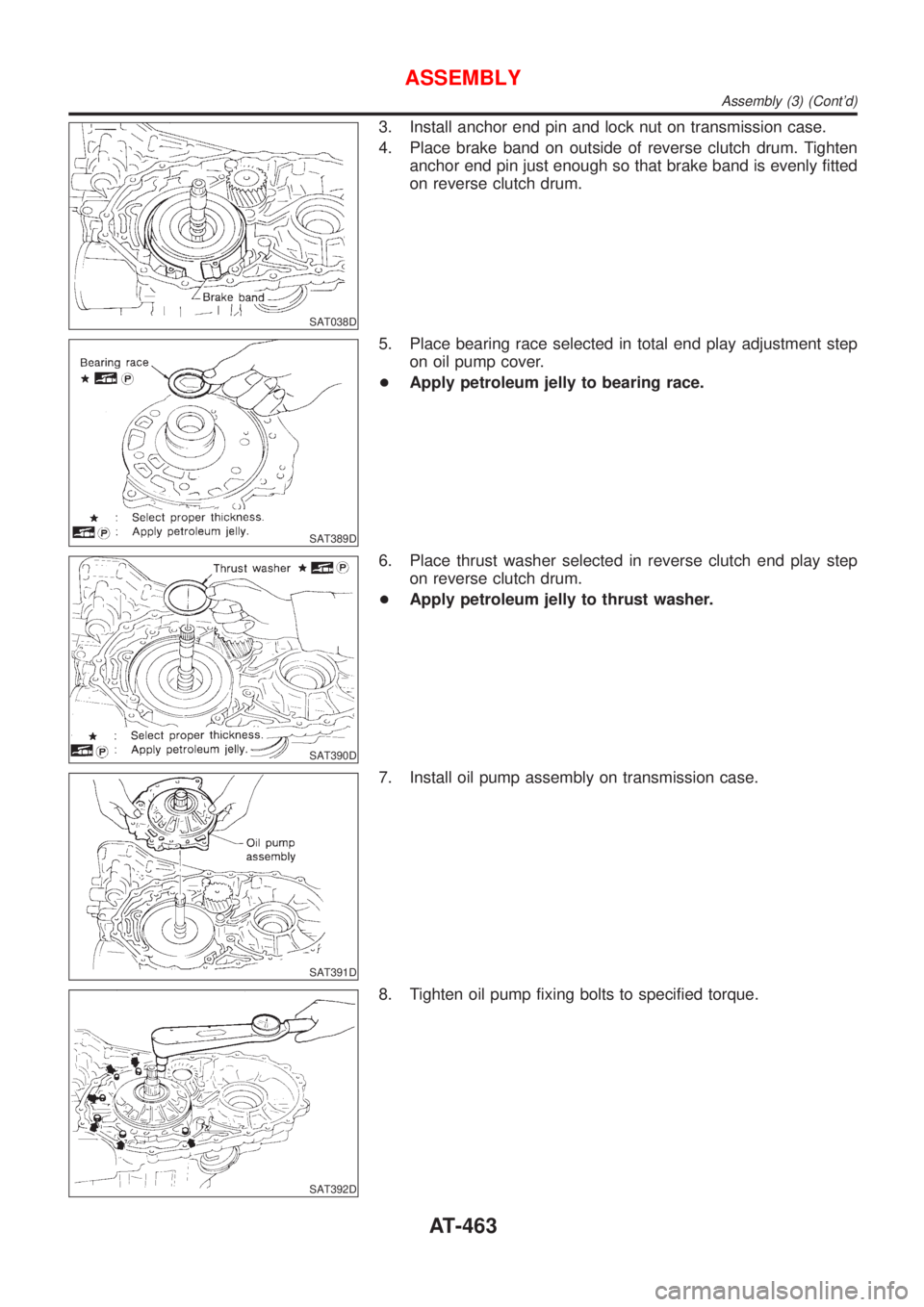

Page 465 of 2898
SAT038D
3. Install anchor end pin and lock nut on transmission case.
4. Place brake band on outside of reverse clutch drum. Tighten
anchor end pin just enough so that brake band is evenly fitted
on reverse clutch drum.
SAT389D
5. Place bearing race selected in total end play adjustment step
on oil pump cover.
+Apply petroleum jelly to bearing race.
SAT390D
6. Place thrust washer selected in reverse clutch end play step
on reverse clutch drum.
+Apply petroleum jelly to thrust washer.
SAT391D
7. Install oil pump assembly on transmission case.
SAT392D
8. Tighten oil pump fixing bolts to specified torque.
ASSEMBLY
Assembly (3) (Cont'd)
AT-463
Page 466 of 2898
SAT034D
9. Install O-ring to input shaft.
+Apply ATF to O-ring.
SAT394D
10. Adjust brake band.
a. Tighten anchor end pin to specified torque.
Anchor end pin:
: 3.9 - 5.9 N´m (0.4 - 0.6 kg-m, 35 - 52 in-lb)
SAT395D
b. Back off anchor end pin two and a half turns.
SAT396D
c. While holding anchor end pin, tighten lock nut.
SAT397D
11. Apply compressed air to oil holes of transmission case and
check operation of brake band.
ASSEMBLY
Assembly (3) (Cont'd)
AT-464

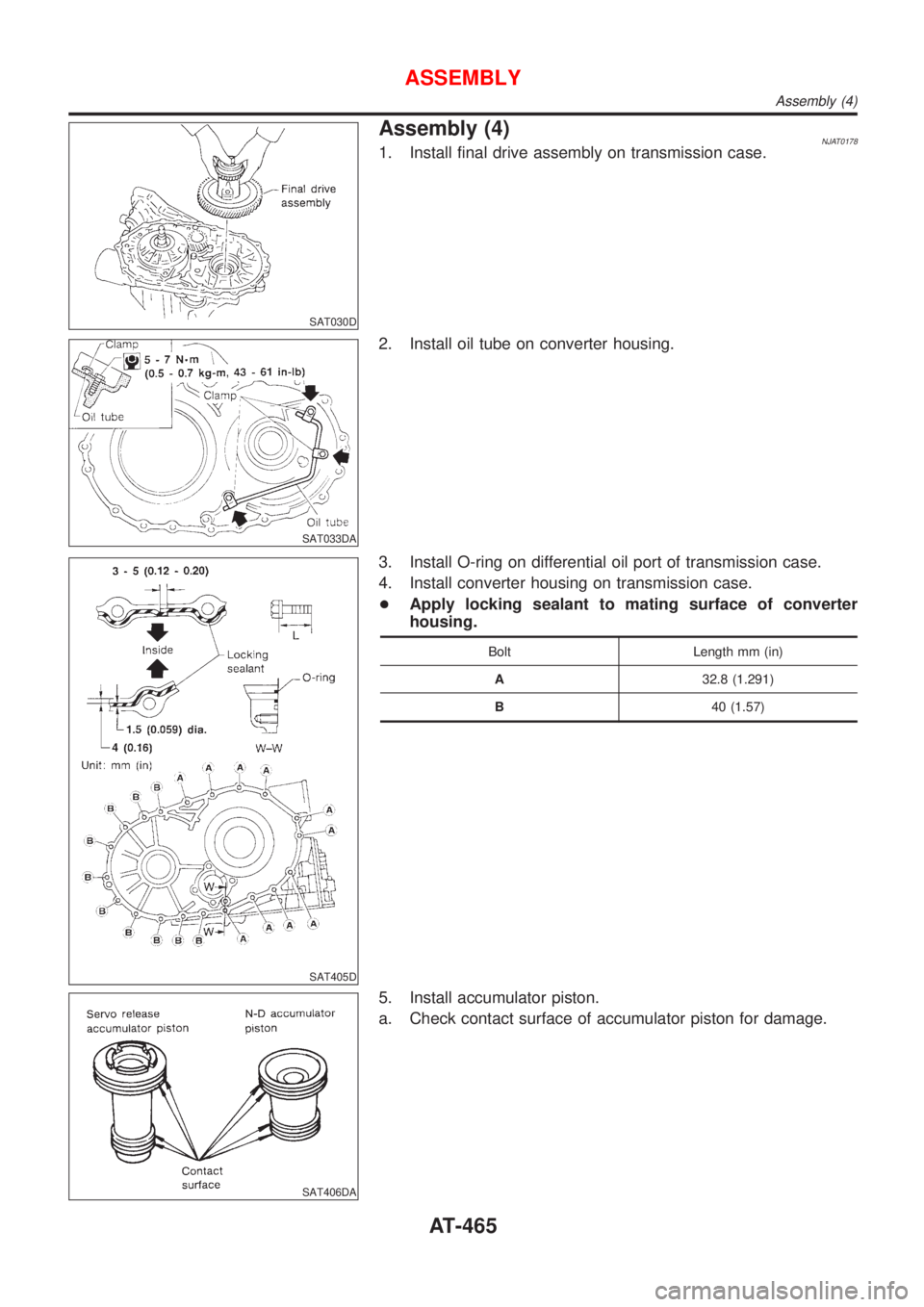

Page 467 of 2898
SAT030D
Assembly (4)NJAT01781. Install final drive assembly on transmission case.
SAT033DA
2. Install oil tube on converter housing.
SAT405D
3. Install O-ring on differential oil port of transmission case.
4. Install converter housing on transmission case.
+Apply locking sealant to mating surface of converter
housing.
Bolt Length mm (in)
A32.8 (1.291)
B40 (1.57)
SAT406DA
5. Install accumulator piston.
a. Check contact surface of accumulator piston for damage.
ASSEMBLY
Assembly (4)
AT-465

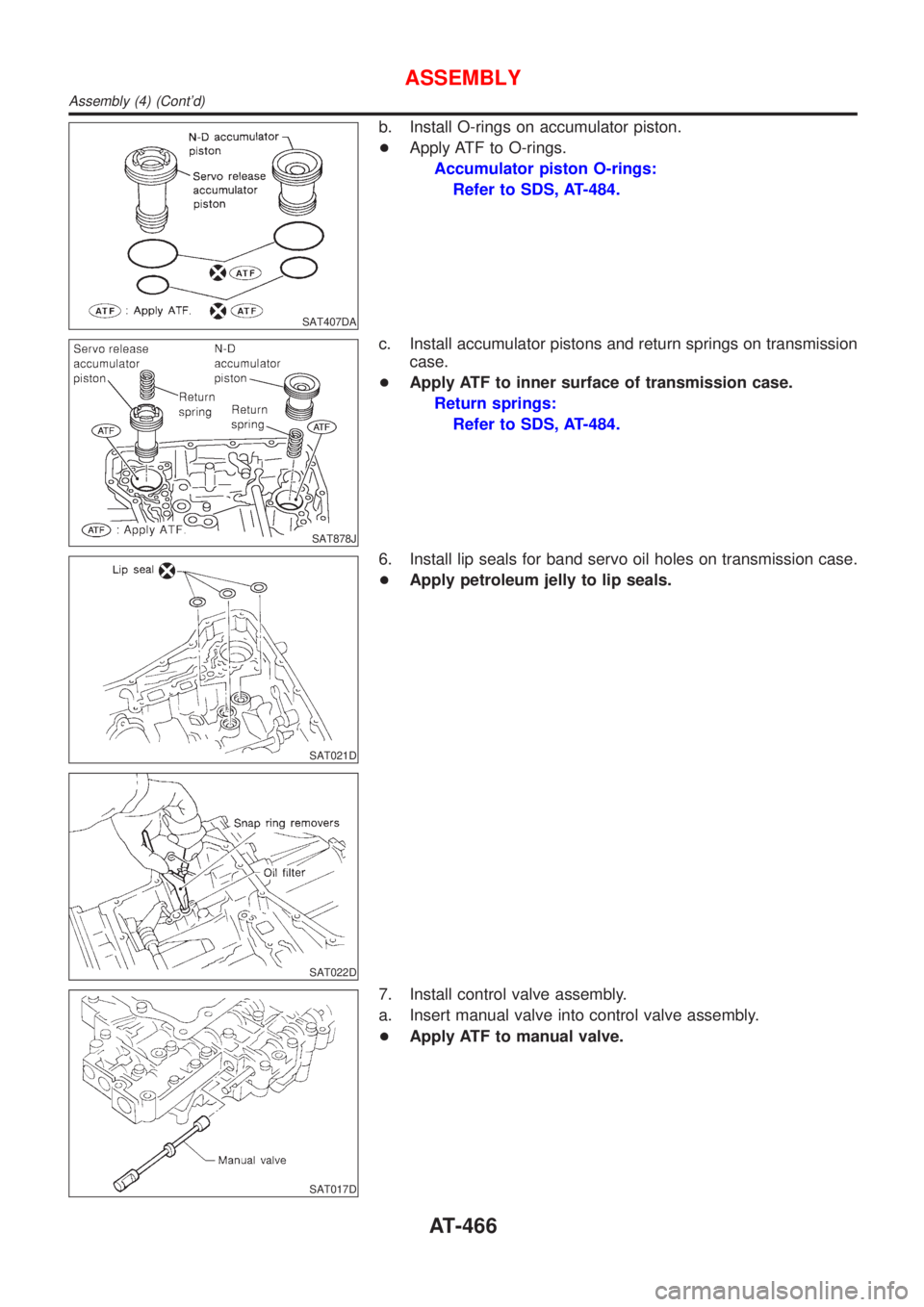

Page 468 of 2898
SAT407DA
b. Install O-rings on accumulator piston.
+Apply ATF to O-rings.
Accumulator piston O-rings:
Refer to SDS, AT-484.
SAT878J
c. Install accumulator pistons and return springs on transmission
case.
+Apply ATF to inner surface of transmission case.
Return springs:
Refer to SDS, AT-484.
SAT021D
SAT022D
6. Install lip seals for band servo oil holes on transmission case.
+Apply petroleum jelly to lip seals.
SAT017D
7. Install control valve assembly.
a. Insert manual valve into control valve assembly.
+Apply ATF to manual valve.
ASSEMBLY
Assembly (4) (Cont'd)
AT-466
Page 469 of 2898
AAT261A
b. Pass solenoid harness through transmission case and install
terminal body on transmission case by pushing it.
c. Install stopper ring to terminal body.
AAT260A
d. Tighten boltsA,BandC.
:7-9N´m(0.7 - 0.9 kg-m, 61 - 78 in-lb)
Bolt length, number and location
Bolt symbolABC
Bolt length ª!º
40.0 mm
(1.575 in)33.0 mm
(1.299 in)43.5 mm
(1.713 in)
Number of bolts 5 6 2
SAT418D
8. Install oil pan.
a. Attach magnet to oil pan.
SAT128E
b. Install new oil pan gasket on transmission case.
c. Install oil pan on transmission case.
+Always replace oil pan bolts as they are self-sealing bolts.
+Tighten the four bolts in a criss-cross pattern to prevent
dislocation of gasket.
d. Tighten drain plug to specified torque.
ASSEMBLY
Assembly (4) (Cont'd)
AT-467

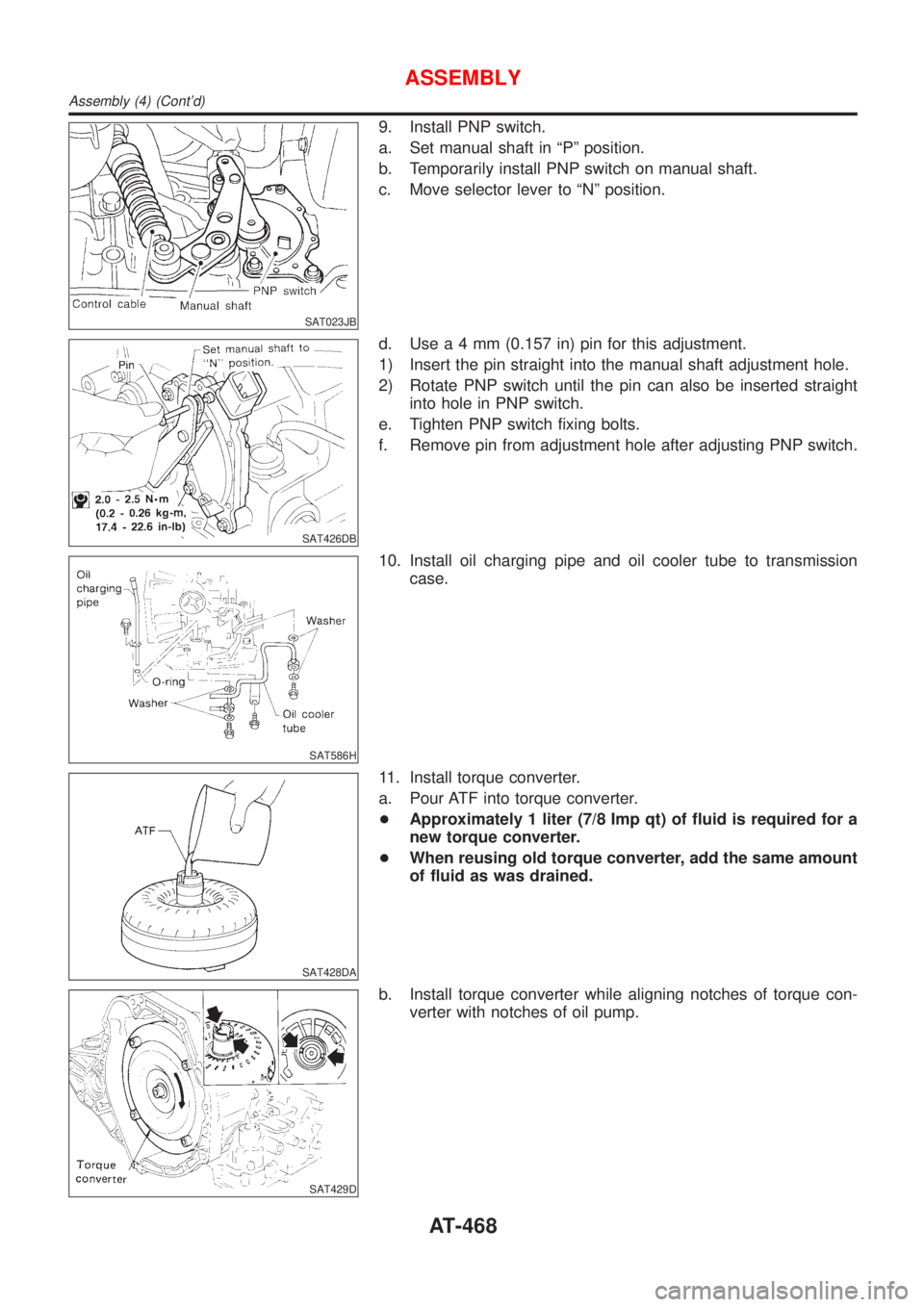

Page 470 of 2898
SAT023JB
9. Install PNP switch.
a. Set manual shaft in ªPº position.
b. Temporarily install PNP switch on manual shaft.
c. Move selector lever to ªNº position.
SAT426DB
d. Usea4mm(0.157 in) pin for this adjustment.
1) Insert the pin straight into the manual shaft adjustment hole.
2) Rotate PNP switch until the pin can also be inserted straight
into hole in PNP switch.
e. Tighten PNP switch fixing bolts.
f. Remove pin from adjustment hole after adjusting PNP switch.
SAT586H
10. Install oil charging pipe and oil cooler tube to transmission
case.
SAT428DA
11. Install torque converter.
a. Pour ATF into torque converter.
+Approximately 1 liter (7/8 Imp qt) of fluid is required for a
new torque converter.
+When reusing old torque converter, add the same amount
of fluid as was drained.
SAT429D
b. Install torque converter while aligning notches of torque con-
verter with notches of oil pump.
ASSEMBLY
Assembly (4) (Cont'd)
AT-468

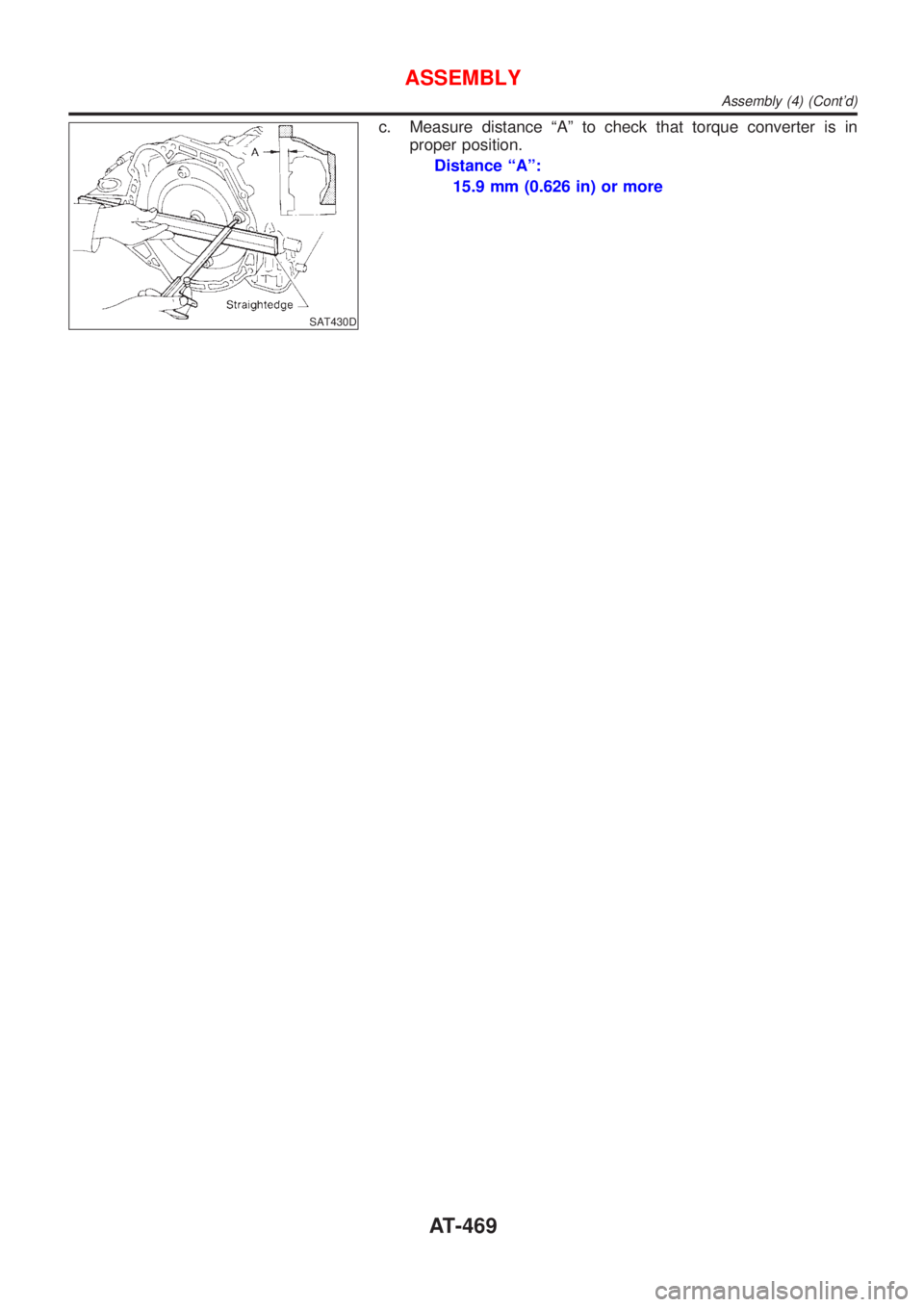

Page 471 of 2898
SAT430D
c. Measure distance ªAº to check that torque converter is in
proper position.
Distance ªAº:
15.9 mm (0.626 in) or more
ASSEMBLY
Assembly (4) (Cont'd)
AT-469

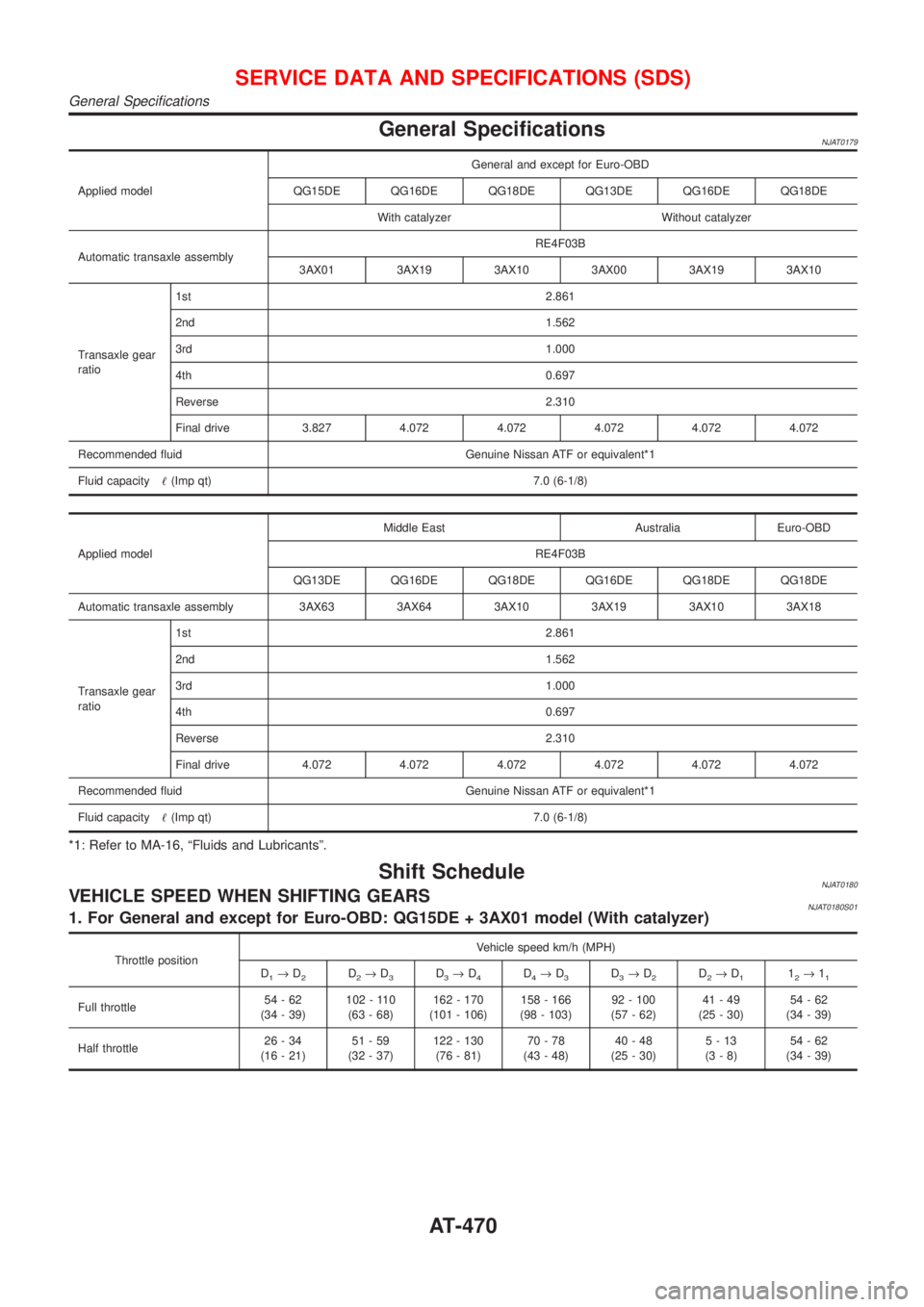

Page 472 of 2898

General SpecificationsNJAT0179
Applied modelGeneral and except for Euro-OBD
QG15DE QG16DE QG18DE QG13DE QG16DE QG18DE
With catalyzer Without catalyzer
Automatic transaxle assemblyRE4F03B
3AX01 3AX19 3AX10 3AX00 3AX19 3AX10
Transaxle gear
ratio1st 2.861
2nd 1.562
3rd 1.000
4th 0.697
Reverse 2.310
Final drive 3.827 4.072 4.072 4.072 4.072 4.072
Recommended fluid Genuine Nissan ATF or equivalent*1
Fluid capacity!(Imp qt) 7.0 (6-1/8)
Applied modelMiddle East Australia Euro-OBD
RE4F03B
QG13DE QG16DE QG18DE QG16DE QG18DE QG18DE
Automatic transaxle assembly 3AX63 3AX64 3AX10 3AX19 3AX10 3AX18
Transaxle gear
ratio1st 2.861
2nd 1.562
3rd 1.000
4th 0.697
Reverse 2.310
Final drive 4.072 4.072 4.072 4.072 4.072 4.072
Recommended fluid Genuine Nissan ATF or equivalent*1
Fluid capacity!(Imp qt) 7.0 (6-1/8)
*1: Refer to MA-16, ªFluids and Lubricantsº.
Shift ScheduleNJAT0180VEHICLE SPEED WHEN SHIFTING GEARSNJAT0180S011. For General and except for Euro-OBD: QG15DE + 3AX01 model (With catalyzer)
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle54-62
(34 - 39)102 - 110
(63 - 68)162 - 170
(101 - 106)158 - 166
(98 - 103)92 - 100
(57 - 62)41-49
(25 - 30)54-62
(34 - 39)
Half throttle26-34
(16 - 21)51-59
(32 - 37)122 - 130
(76 - 81)70-78
(43 - 48)40-48
(25 - 30)5-13
(3-8)54-62
(34 - 39)
SERVICE DATA AND SPECIFICATIONS (SDS)
General Specifications
AT-470
