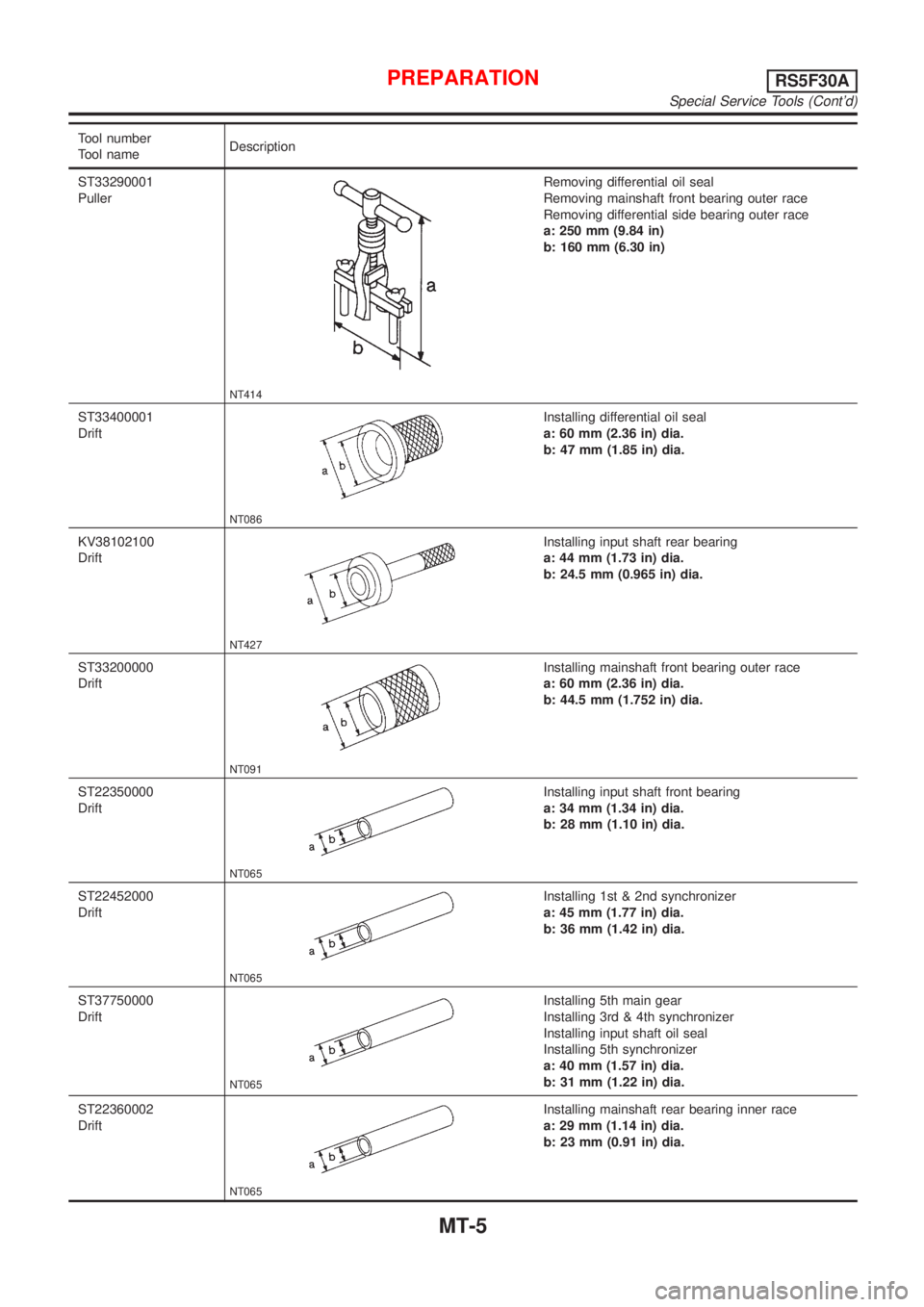

Page 2577 of 2898

NISSAN ALMERA 2001 Service Manual Tool number Tool nameDescription ST33290001 Puller NT414 Removing differential oil seal Removing mainshaft front bearing outer race Removing differential side bearing outer race a: 250 mm (9.84 in) b:

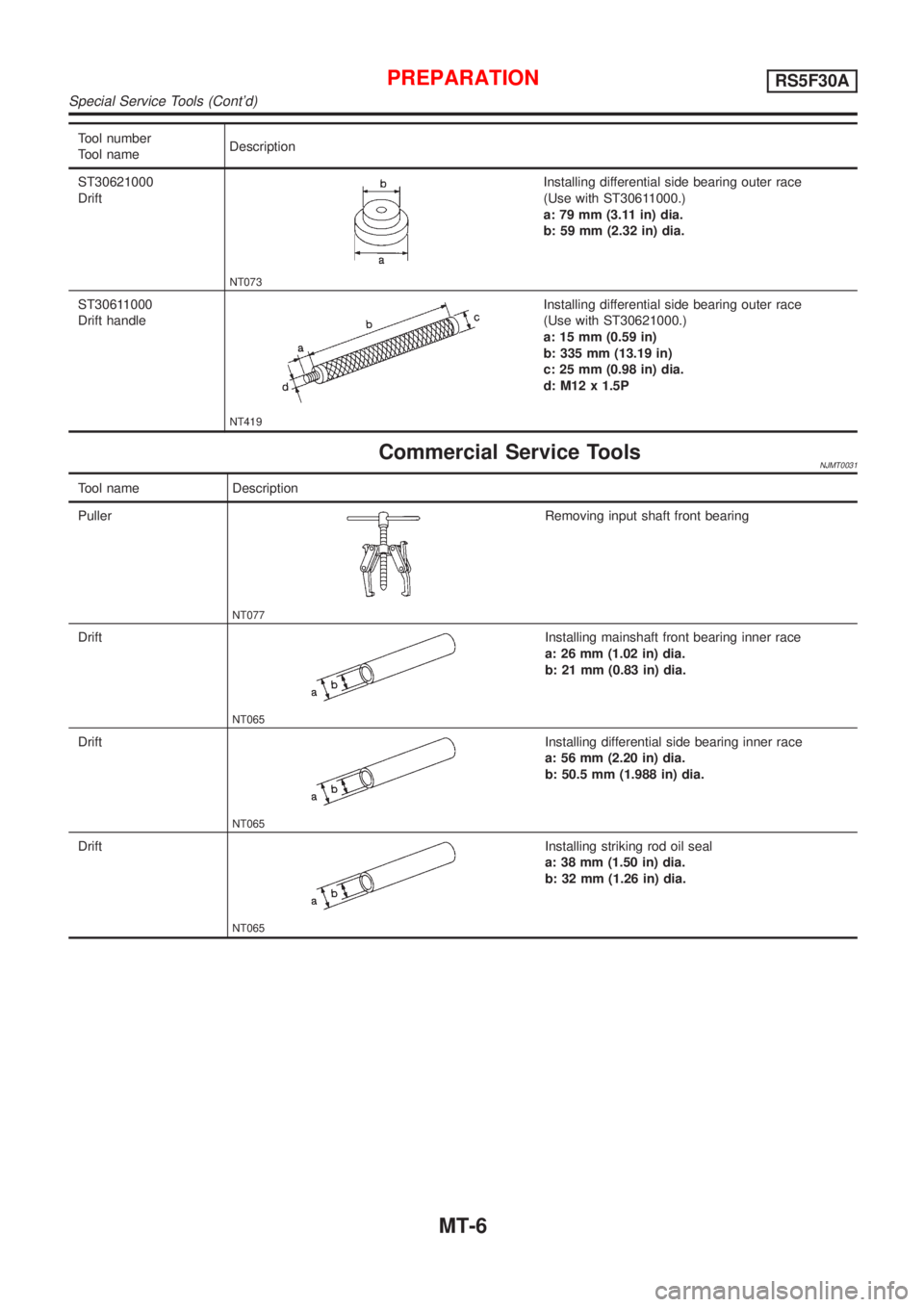

Page 2578 of 2898

NISSAN ALMERA 2001 Service Manual Tool number Tool nameDescription ST30621000 Drift NT073 Installing differential side bearing outer race (Use with ST30611000.) a: 79 mm (3.11 in) dia. b: 59 mm (2.32 in) dia. ST30611000 Drift handle N

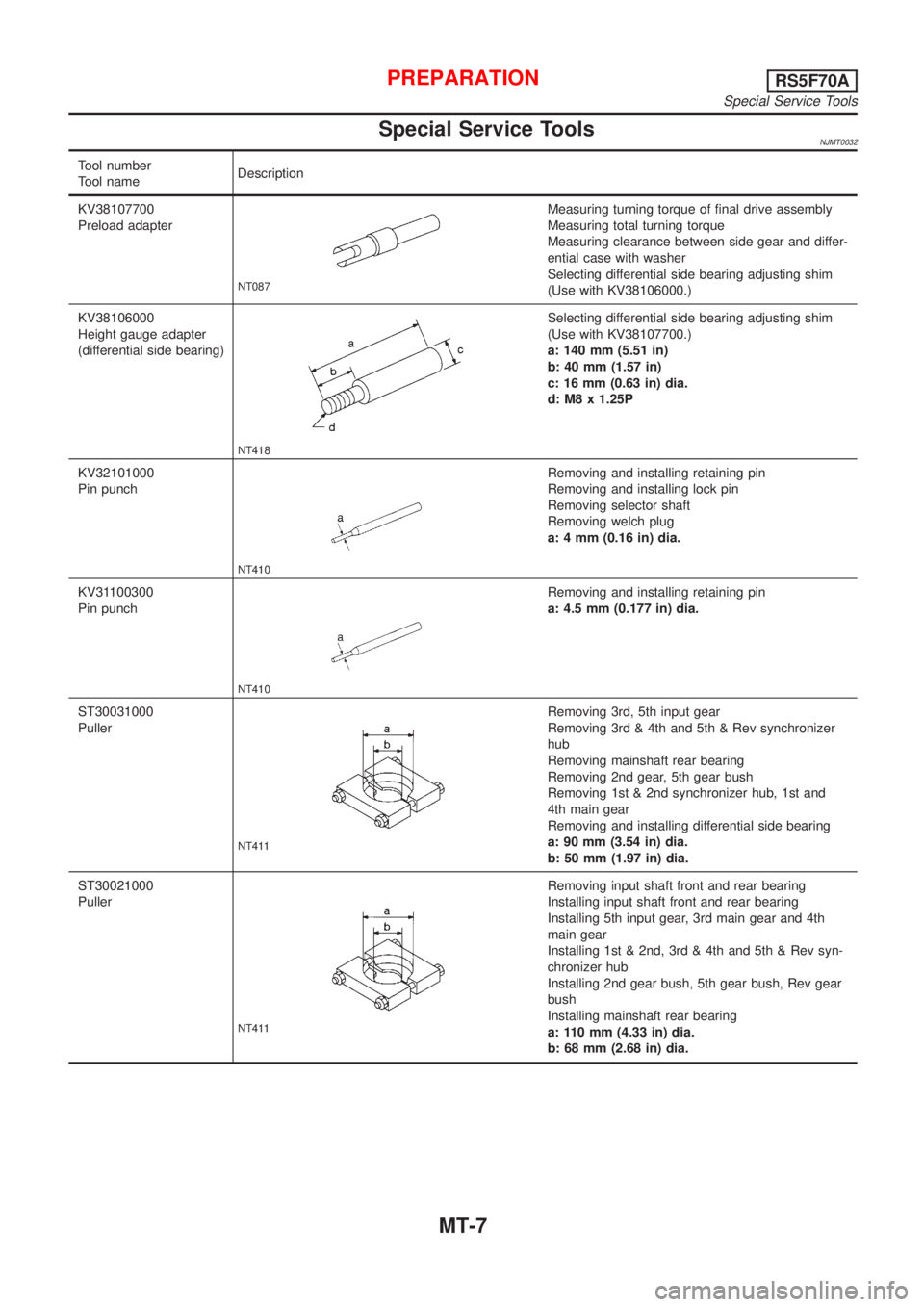

Page 2579 of 2898

NISSAN ALMERA 2001 Service Manual Special Service ToolsNJMT0032 Tool number Tool nameDescription KV38107700 Preload adapter NT087 Measuring turning torque of final drive assembly Measuring total turning torque Measuring clearance betw

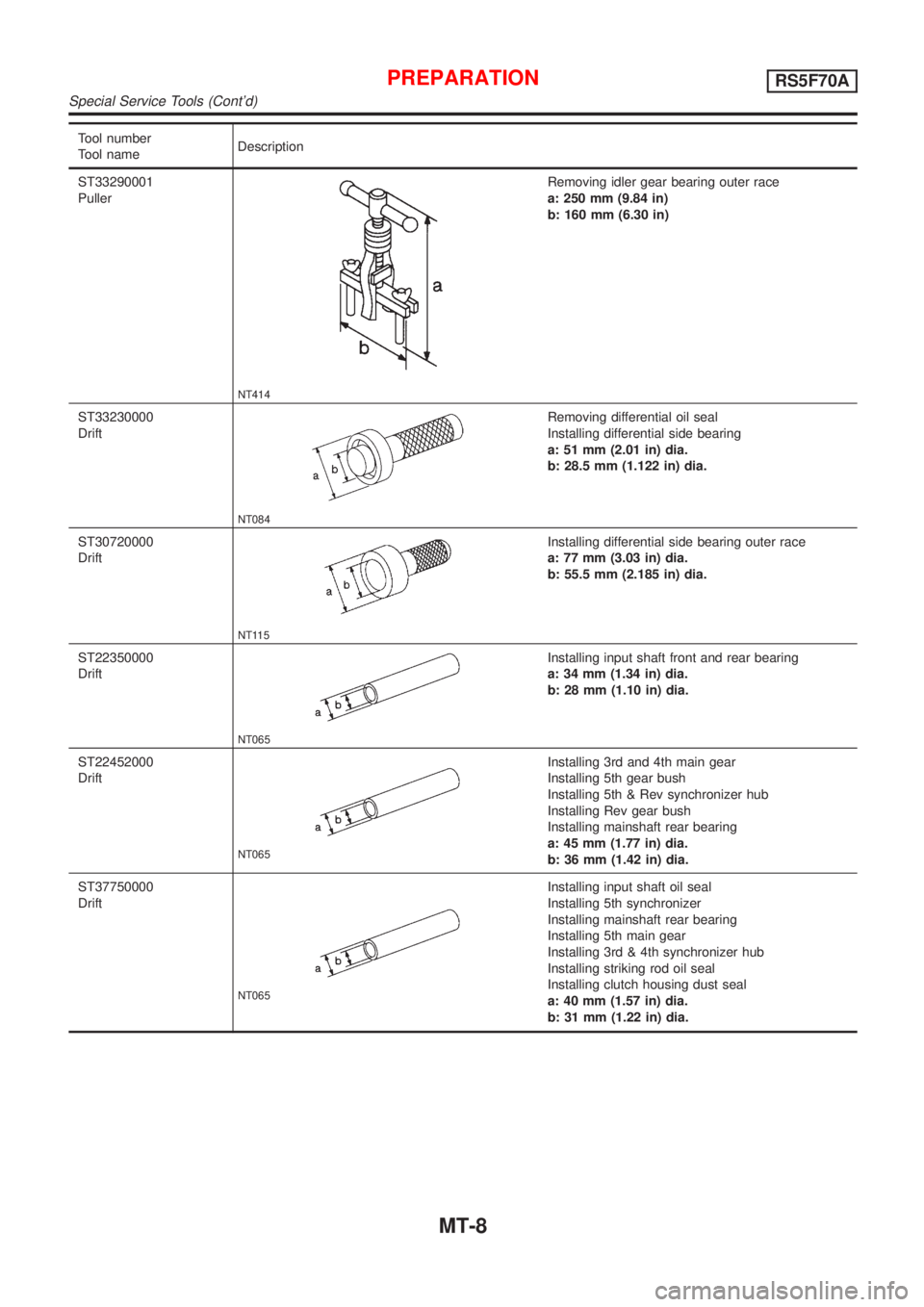

Page 2580 of 2898

NISSAN ALMERA 2001 Service Manual Tool number Tool nameDescription ST33290001 Puller NT414 Removing idler gear bearing outer race a: 250 mm (9.84 in) b: 160 mm (6.30 in) ST33230000 Drift NT084 Removing differential oil seal Installing

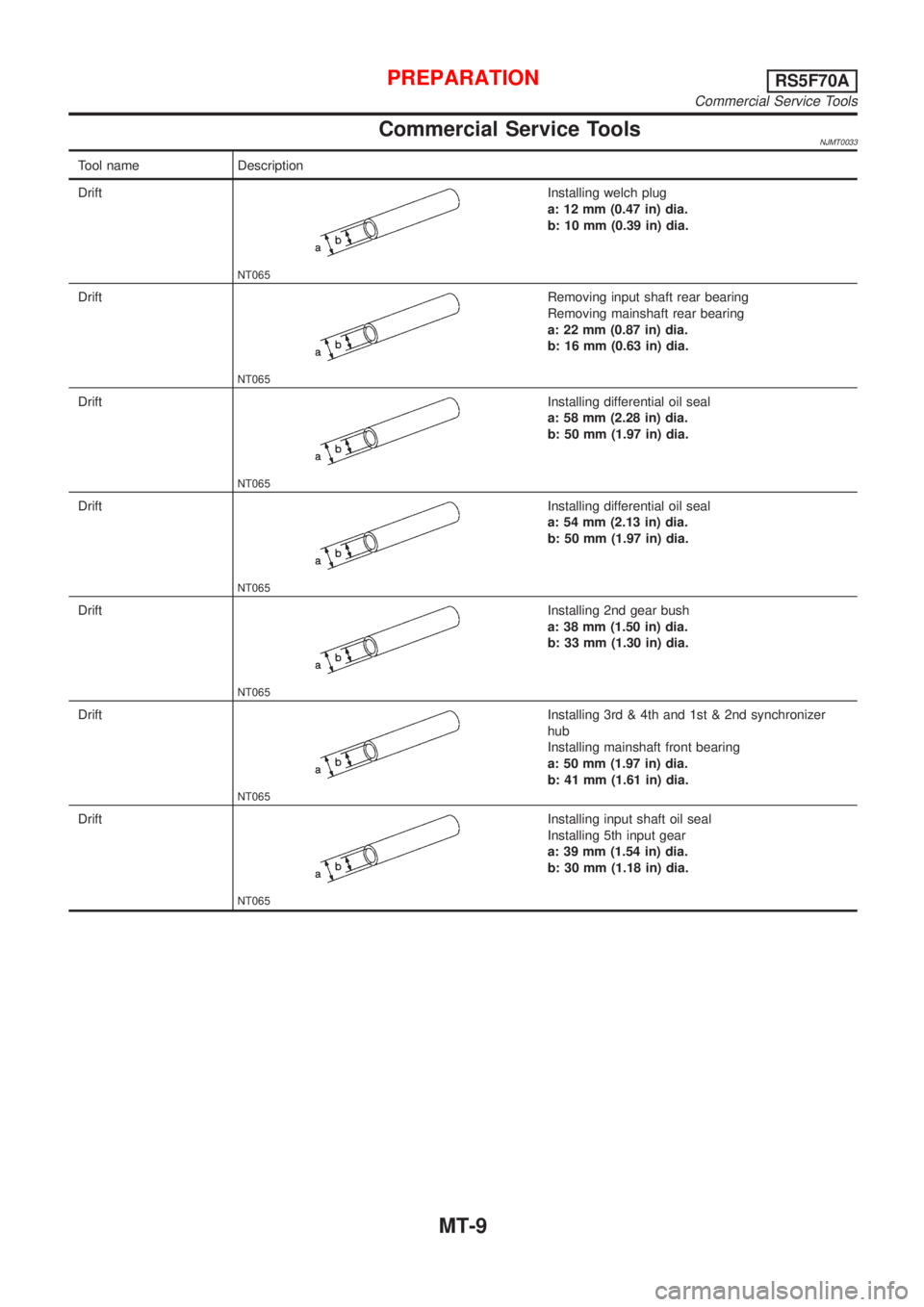

Page 2581 of 2898

NISSAN ALMERA 2001 Service Manual Commercial Service ToolsNJMT0033 Tool name Description Drift NT065 Installing welch plug a: 12 mm (0.47 in) dia. b: 10 mm (0.39 in) dia. Drift NT065 Removing input shaft rear bearing Removing mainshaf

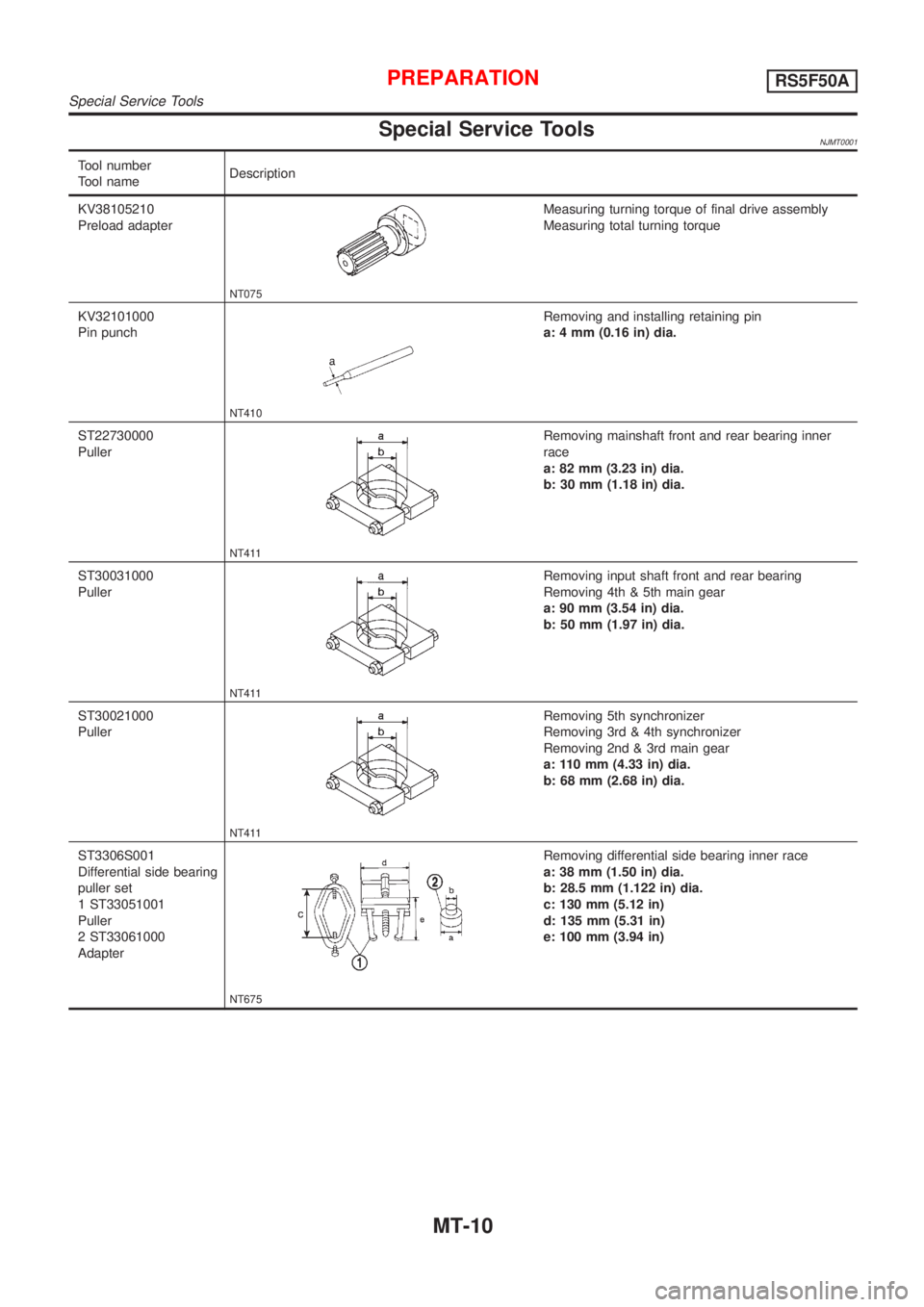

Page 2582 of 2898

NISSAN ALMERA 2001 Service Manual Special Service ToolsNJMT0001 Tool number Tool nameDescription KV38105210 Preload adapter NT075 Measuring turning torque of final drive assembly Measuring total turning torque KV32101000 Pin punch NT4

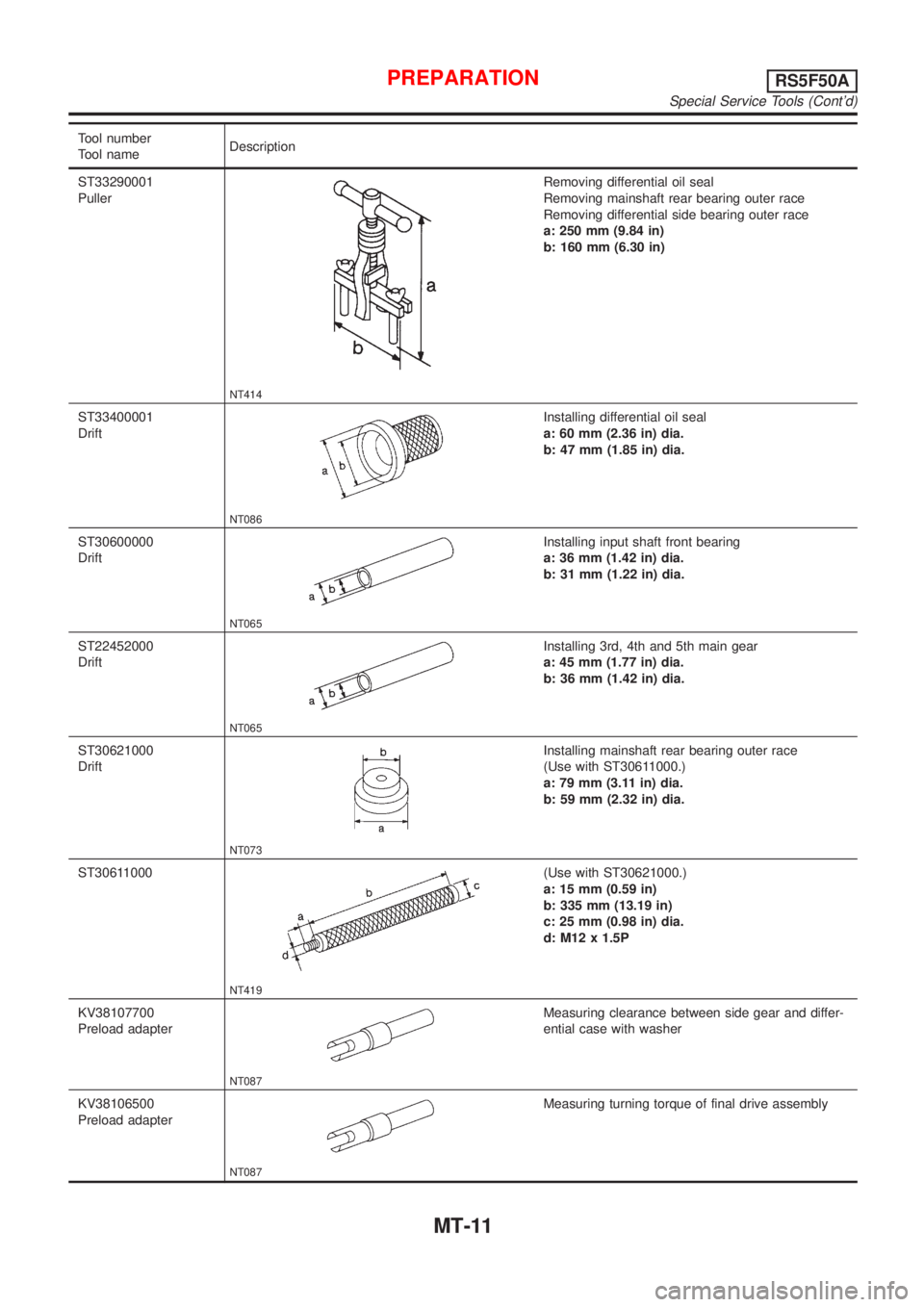

Page 2583 of 2898

NISSAN ALMERA 2001 Service Manual Tool number Tool nameDescription ST33290001 Puller NT414 Removing differential oil seal Removing mainshaft rear bearing outer race Removing differential side bearing outer race a: 250 mm (9.84 in) b:

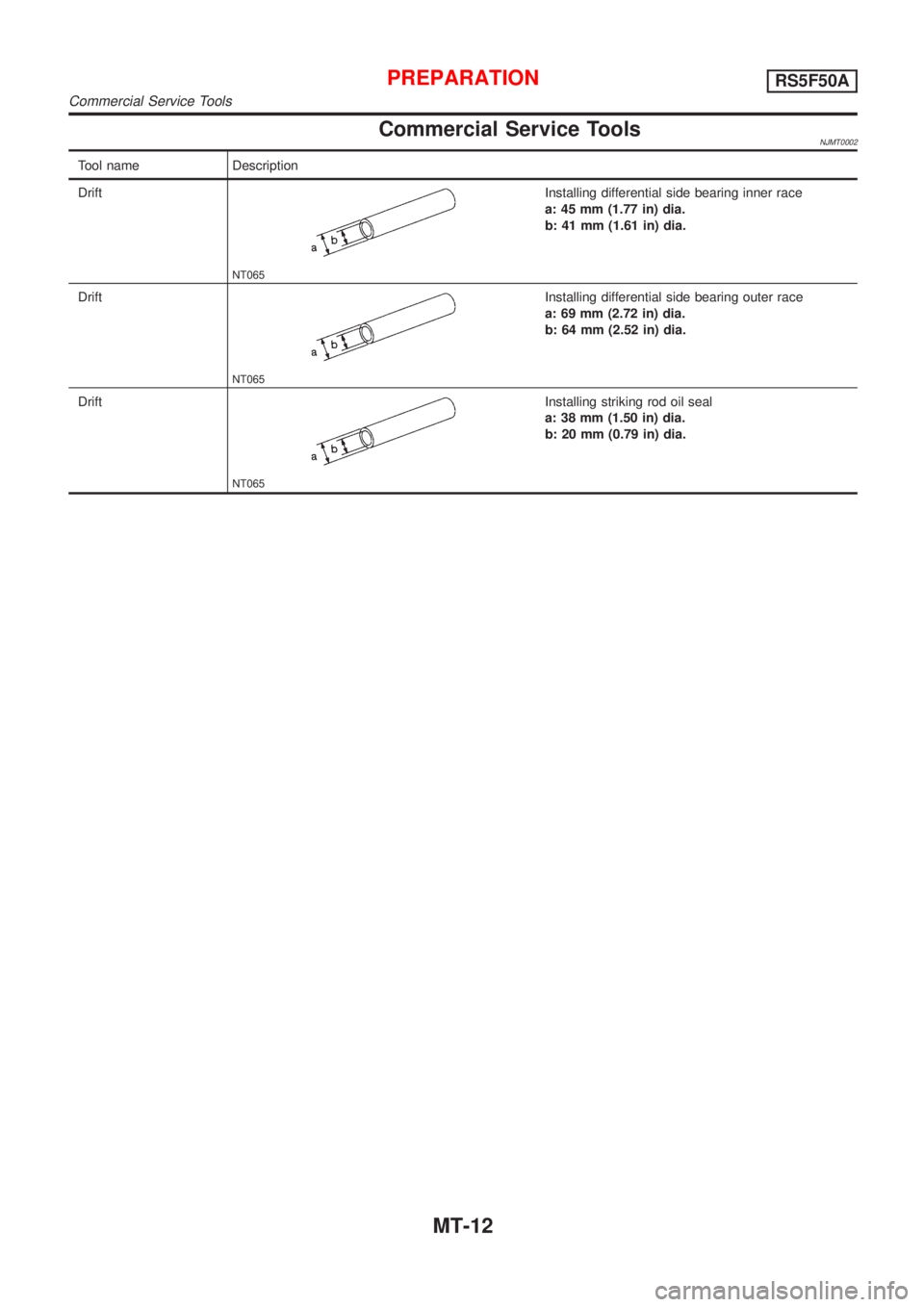

Page 2584 of 2898

NISSAN ALMERA 2001 Service Manual Commercial Service ToolsNJMT0002 Tool name Description Drift NT065 Installing differential side bearing inner race a: 45 mm (1.77 in) dia. b: 41 mm (1.61 in) dia. Drift NT065 Installing differential s
