NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð ROOM/L Ð/Sedan Without
Timer
NJEL0318
HEL379B
INTERIOR ROOM LAMP
Wiring Diagram Ð ROOM/L Ð/Sedan Without Timer
EL-139

Page 1698 of 2898

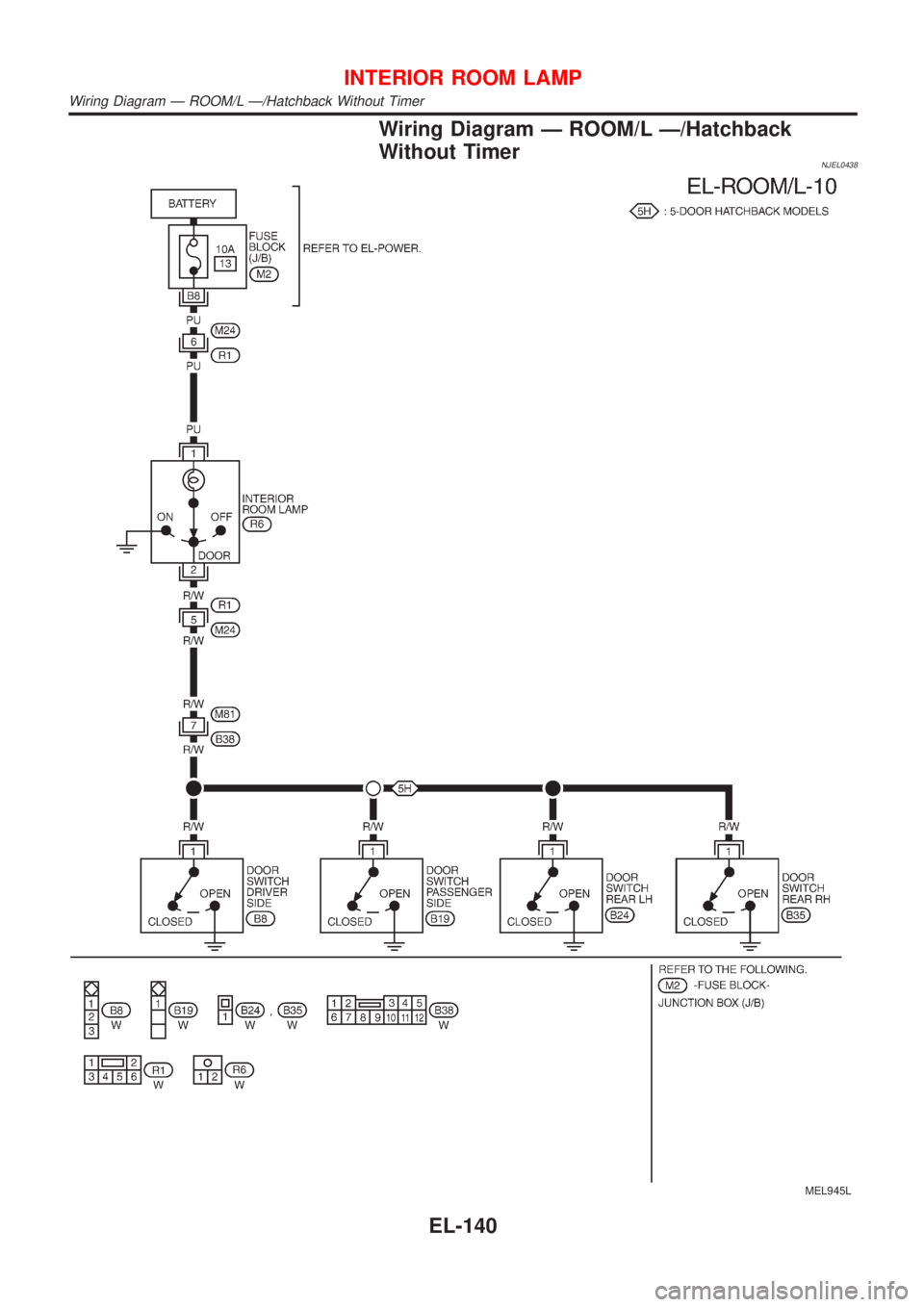

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð ROOM/L Ð/Hatchback
Without Timer
NJEL0438
MEL945L
INTERIOR ROOM LAMP
Wiring Diagram Ð ROOM/L Ð/Hatchback Without Timer
EL-140

Page 1699 of 2898

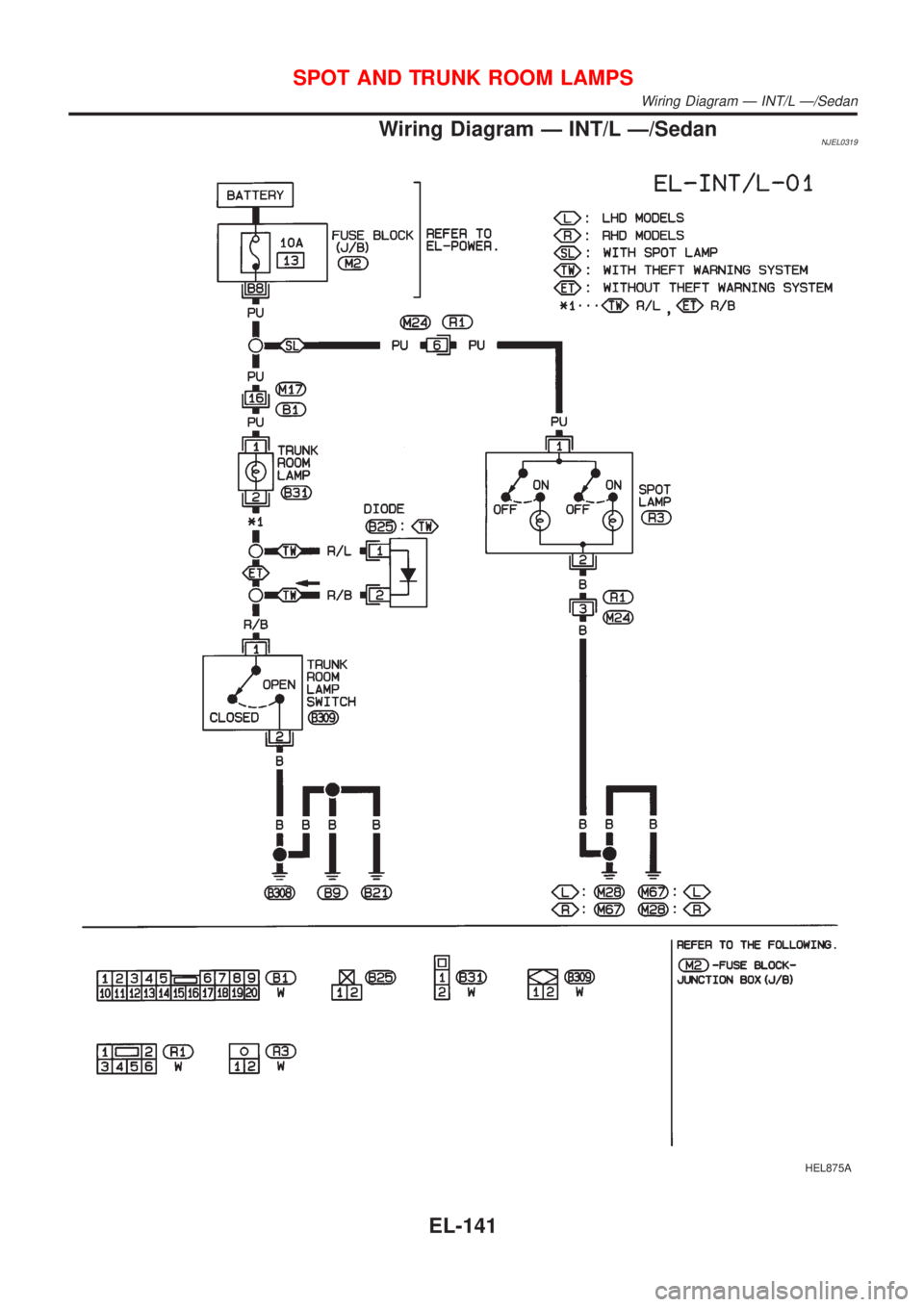

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð INT/L Ð/SedanNJEL0319
HEL875A
SPOT AND TRUNK ROOM LAMPS
Wiring Diagram Ð INT/L Ð/Sedan
EL-141

Page 1700 of 2898

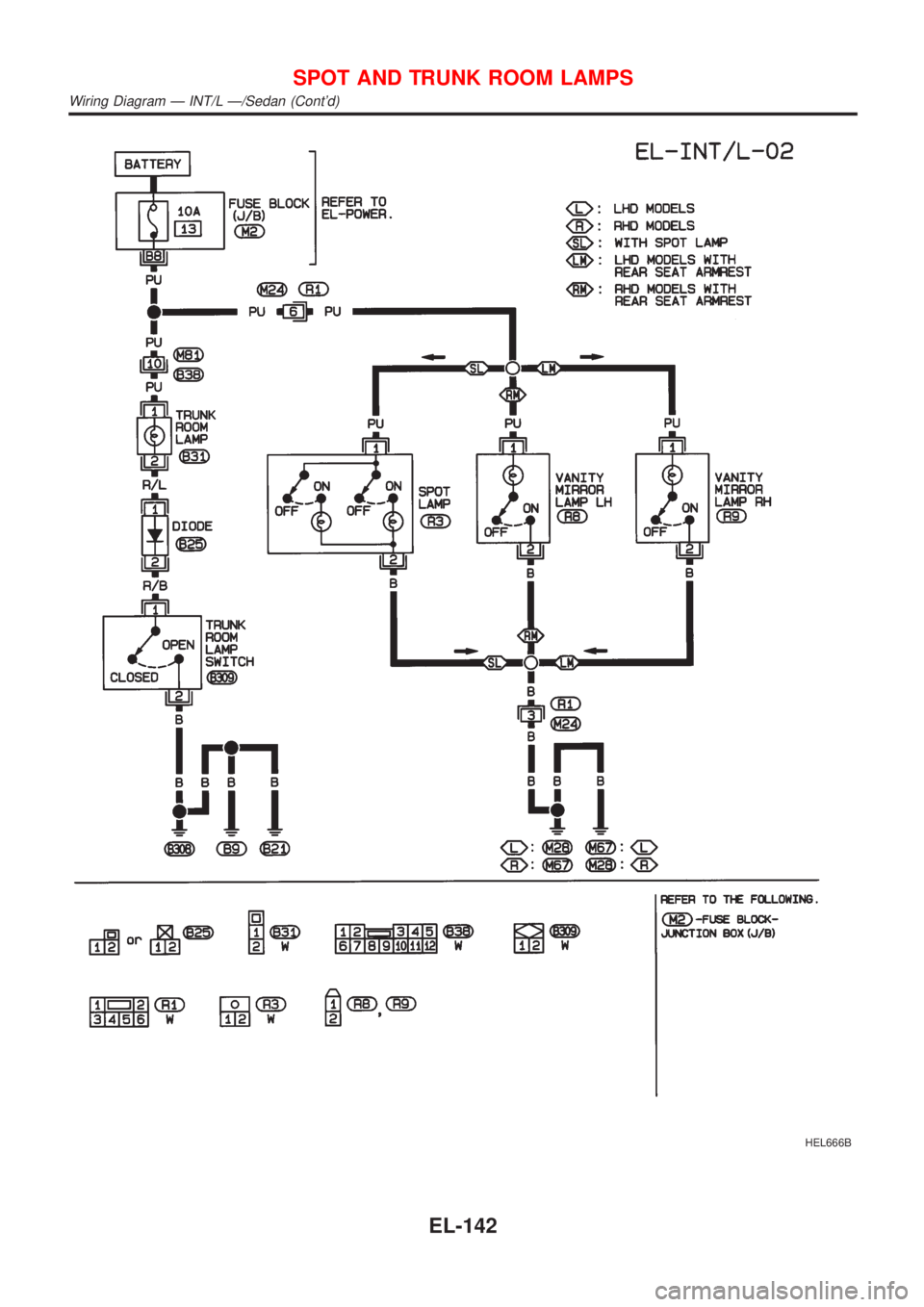

NISSAN ALMERA 2001 Service Manual HEL666B
SPOT AND TRUNK ROOM LAMPS
Wiring Diagram Ð INT/L Ð/Sedan (Contd)
EL-142

Page 1701 of 2898

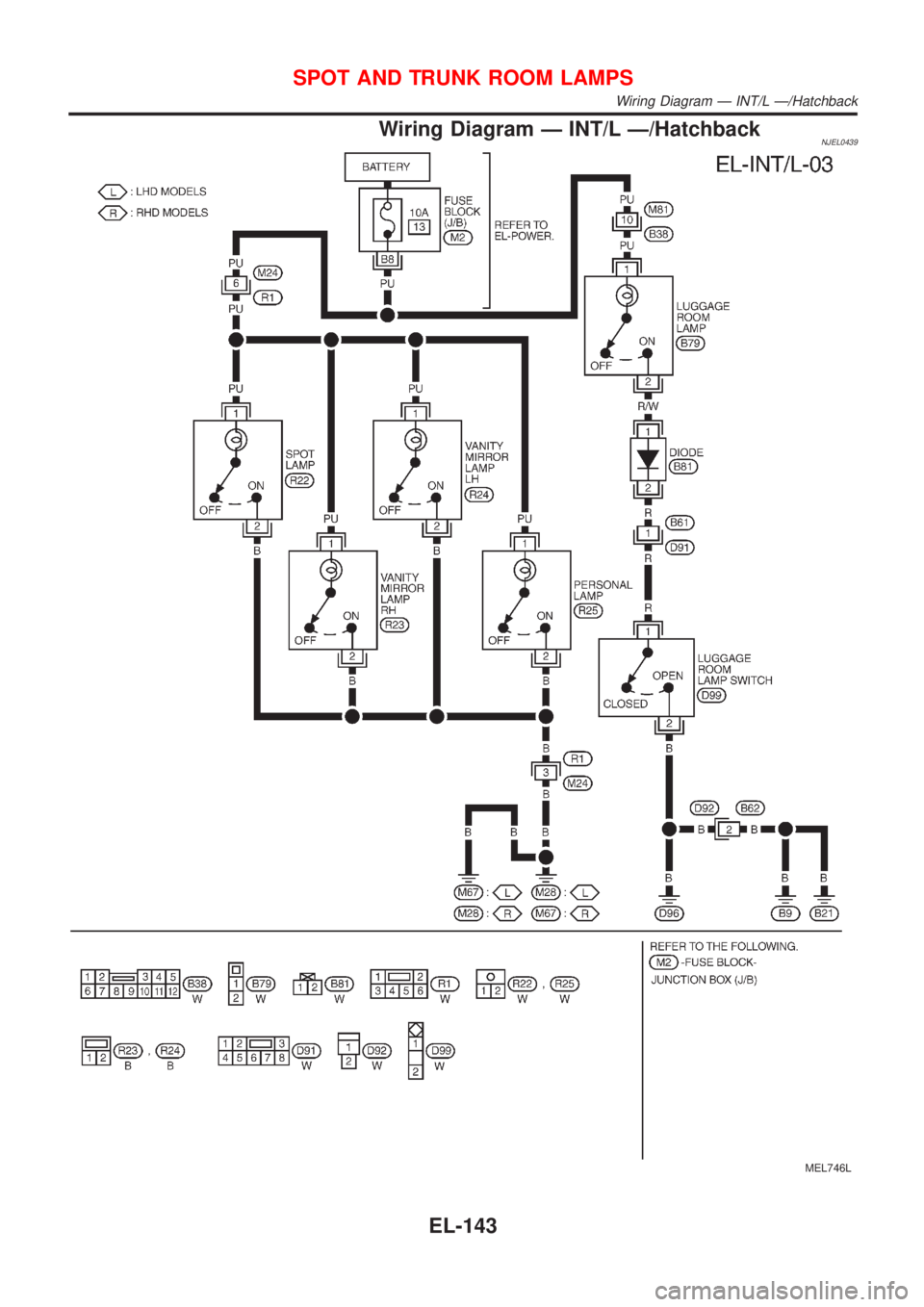

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð INT/L Ð/HatchbackNJEL0439
MEL746L
SPOT AND TRUNK ROOM LAMPS
Wiring Diagram Ð INT/L Ð/Hatchback
EL-143

Page 1702 of 2898

NISSAN ALMERA 2001 Service Manual Component Parts and Harness Connector
Location/Sedan
NJEL0041
SEL919W
System Description/SedanNJEL0042UNIFIED CONTROL METERNJEL0042S06+Speedometer, odo/trip meter, tachometer, fuel gauge and water tem

Page 1703 of 2898

NISSAN ALMERA 2001 Service Manual POWER SUPPLY AND GROUND CIRCUITNJEL0042S08Power is supplied at all times
+through 10A fuse [No. 12, located in the fuse block (J/B)]
+to combination meter terminal 18 (with tachometer) or 21 (without

POWER SUPPLY AND GROUND CIRCUITNJEL0042S08Power is supplied at all times
+through 10A fuse [No. 12, located in the fuse block (J/B)]
+to combination meter terminal 18 (with tachometer) or 21 (without tachometer).
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 30, located in the fuse block (J/B)]
+to combination meter terminal 17 (with tachometer) or 22 (without tachometer).
Ground is supplied
+through body grounds M28 and M67
+to combination meter terminal 24 (with tachometer) or 23 (without tachometer).
WATER TEMPERATURE GAUGENJEL0042S01The water temperature gauge indicates the engine coolant temperature. The reading on the gauge is based
on the resistance of the thermal transmitter.
As the temperature of the coolant increases, the resistance of the thermal transmitter decreases. A variable
ground is supplied to terminal 19 (with tachometer) or 34 (without tachometer) of the combination meter for
the water temperature gauge. The needle on the gauge moves from ªCº to ªHº.
TACHOMETERNJEL0042S02The tachometer indicates engine speed in revolutions per minute (rpm).
The tachometer is regulated by a signal
+from terminal 32 (Gasoline engine models) or 439 (Diesel engine models) of the ECM
+to combination meter terminal 21 for the tachometer.
FUEL GAUGENJEL0042S03The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by a variable ground signal supplied
+from body grounds B9, B21 and B308
+through terminal 1 (Gasoline engine models) or 3 (Diesel engine models) of the fuel level sensor unit and
+through terminal 4 (Gasoline engine models) or 1 (Diesel engine models) of the fuel level sensor unit
+to combination meter terminal 20 (with tachometer) or 35 (without tachometer) for the fuel gauge.
SPEEDOMETERNJEL0042S04The combination meter provides a voltage signal to the vehicle speed sensor for the speedometer.
The voltage is supplied
+from combination meter terminal 23 (with tachometer) or 37 (without tachometer) for the speedometer
+to terminal 1 of the vehicle speed sensor.
The speedometer converts the voltage into the vehicle speed displayed.
METERS AND GAUGES
System Description/Sedan (Cont'd)
EL-145

Page 1704 of 2898

NISSAN ALMERA 2001 Service Manual Combination Meter/Sedan With TachometerNJEL0043CHECKNJEL0043S01
HEL381B
METERS AND GAUGES
Combination Meter/Sedan With Tachometer
EL-146
