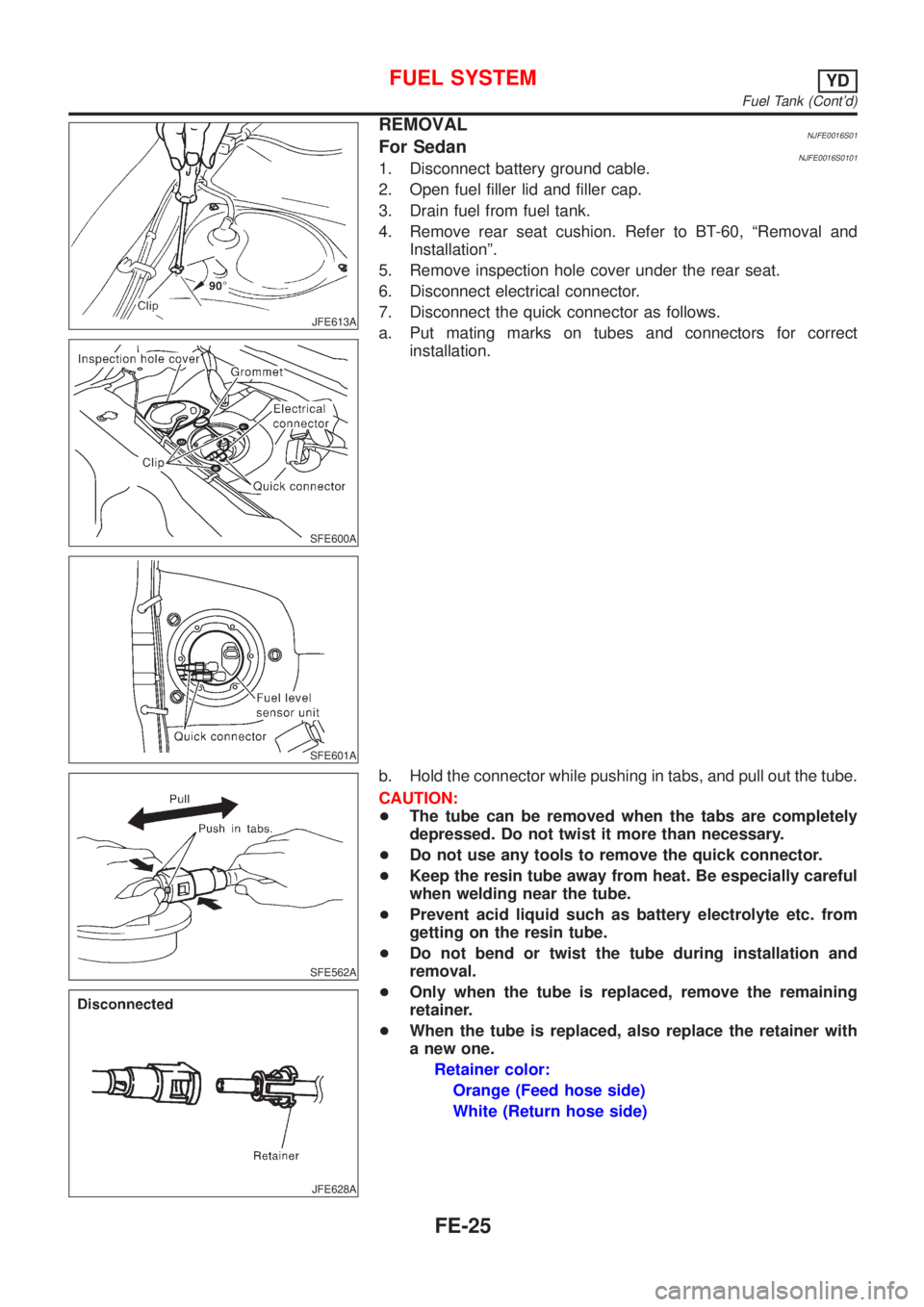

Page 2329 of 2898

NISSAN ALMERA 2001 Service Manual JFE613A SFE600A SFE601A REMOVALNJFE0016S01For SedanNJFE0016S01011. Disconnect battery ground cable. 2. Open fuel filler lid and filler cap. 3. Drain fuel from fuel tank. 4. Remove rear seat cushion. R

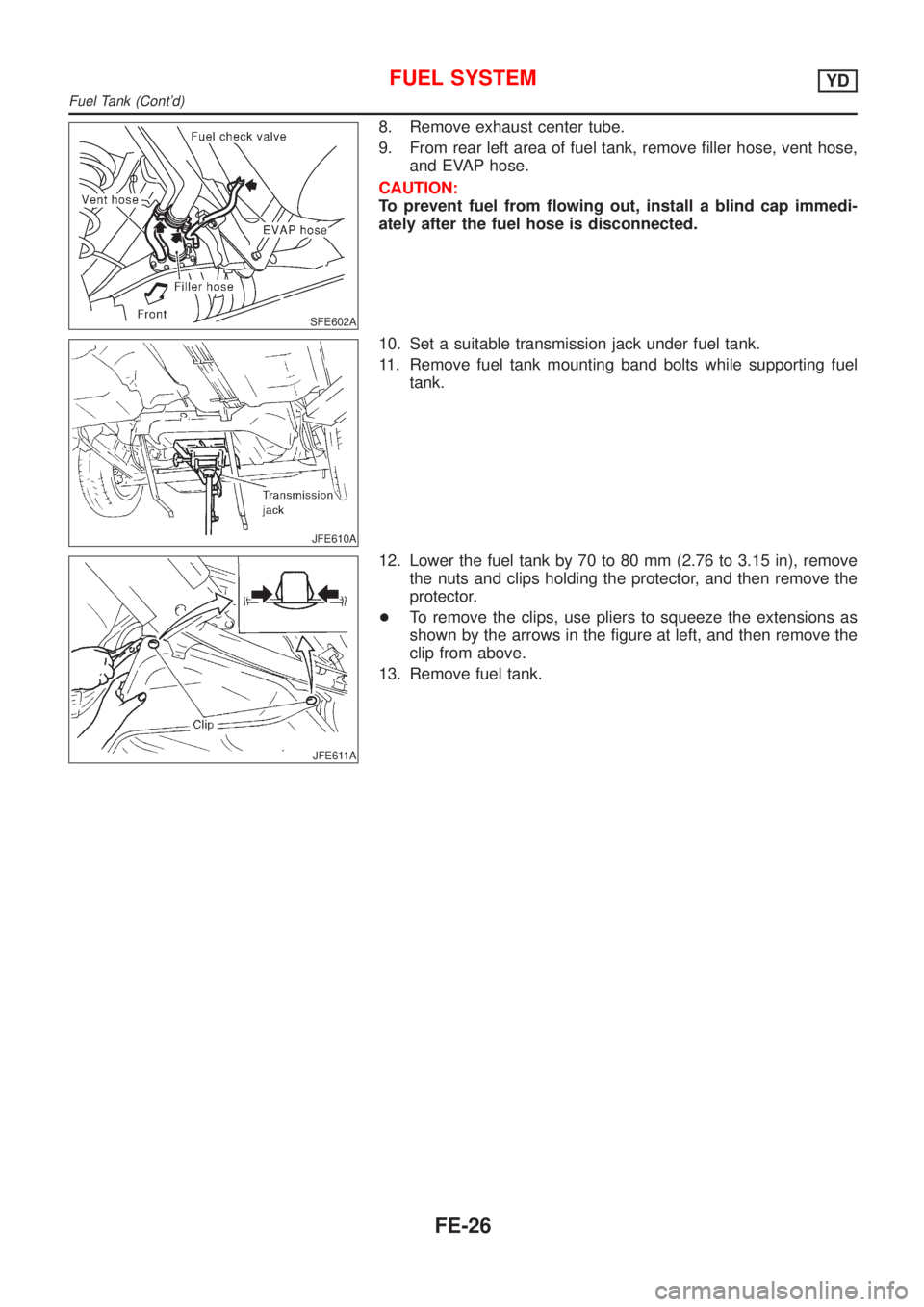

Page 2330 of 2898

NISSAN ALMERA 2001 Service Manual SFE602A 8. Remove exhaust center tube. 9. From rear left area of fuel tank, remove filler hose, vent hose, and EVAP hose. CAUTION: To prevent fuel from flowing out, install a blind cap immedi- ately a

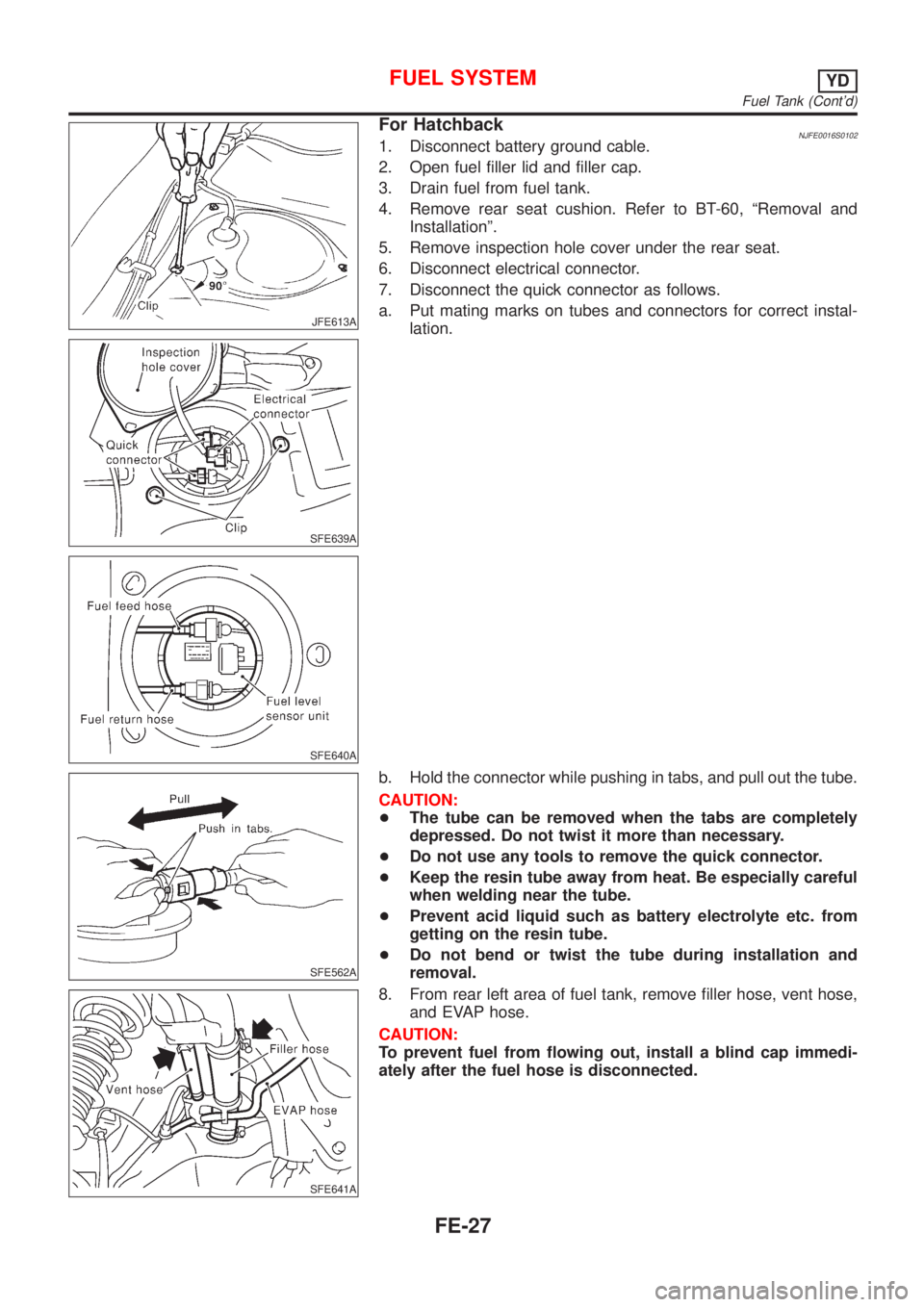

Page 2331 of 2898

NISSAN ALMERA 2001 Service Manual JFE613A SFE639A SFE640A For HatchbackNJFE0016S01021. Disconnect battery ground cable. 2. Open fuel filler lid and filler cap. 3. Drain fuel from fuel tank. 4. Remove rear seat cushion. Refer to BT-60,

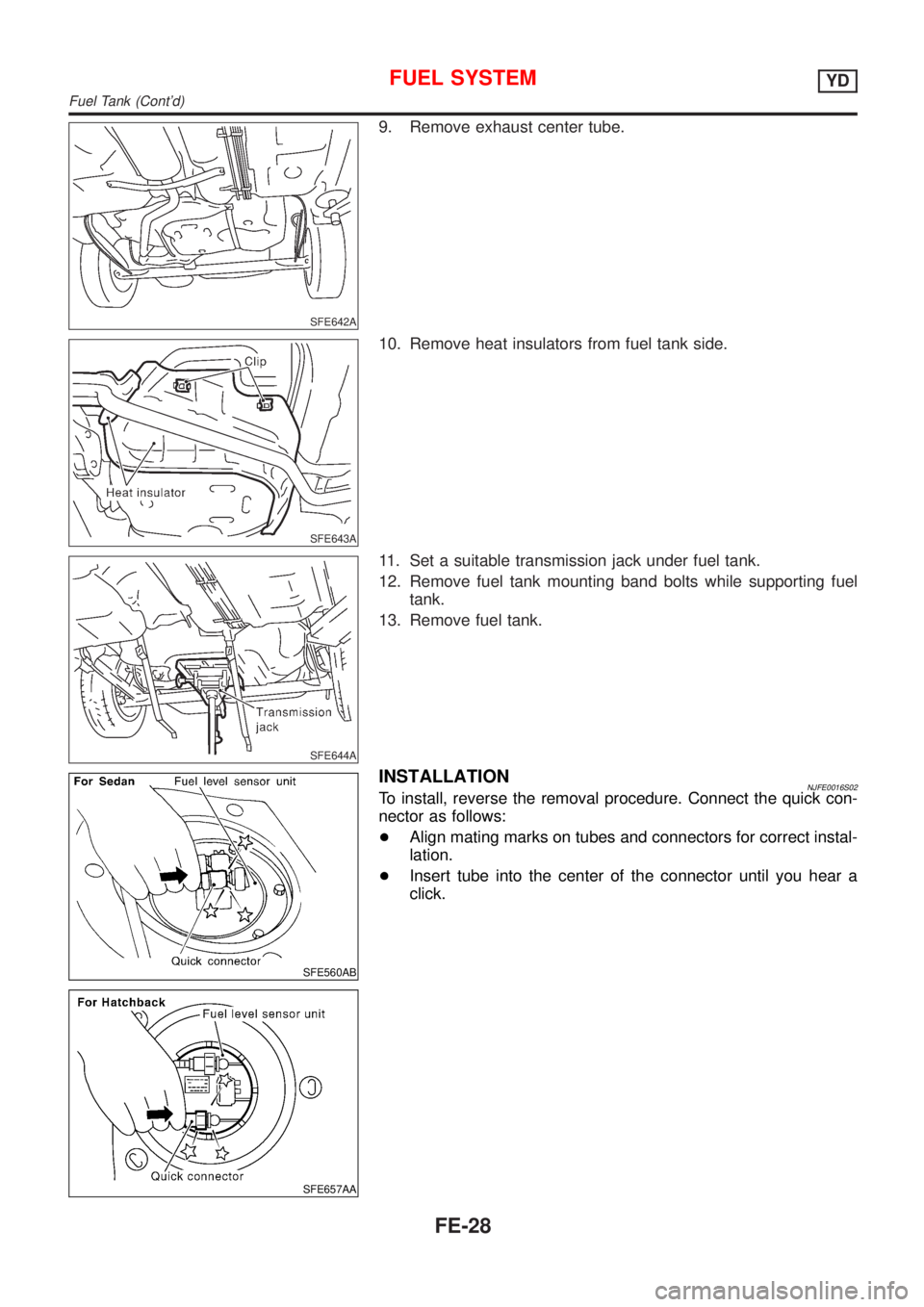

Page 2332 of 2898

NISSAN ALMERA 2001 Service Manual SFE642A 9. Remove exhaust center tube. SFE643A 10. Remove heat insulators from fuel tank side. SFE644A 11. Set a suitable transmission jack under fuel tank. 12. Remove fuel tank mounting band bolts wh

Page 2333 of 2898

NISSAN ALMERA 2001 Service Manual SFE561AB SFE658AA After connecting quick connector, make sure the connection is firmly made using the following method. +Pull on the fuel tube and connector to make sure they are firmly connected. +St

Page 2334 of 2898

NISSAN ALMERA 2001 Service Manual JFE613A REMOVALNJFE0032S01For SedanNJFE0032S01011. Disconnect battery ground cable. 2. Open fuel filler lid and filler cap. 3. Remove rear seat cushion. Refer to BT-60, ªRemoval and Installationº. 4

Page 2335 of 2898

NISSAN ALMERA 2001 Service Manual SFE376A 7. Remove lock ring using a lock ring socket (SST). SFE648AA 8. Pull out the fuel level sensor unit and fuel pump. +Do not damage the arm of the fuel level sensor unit. INSTALLATIONNJFE0032S02

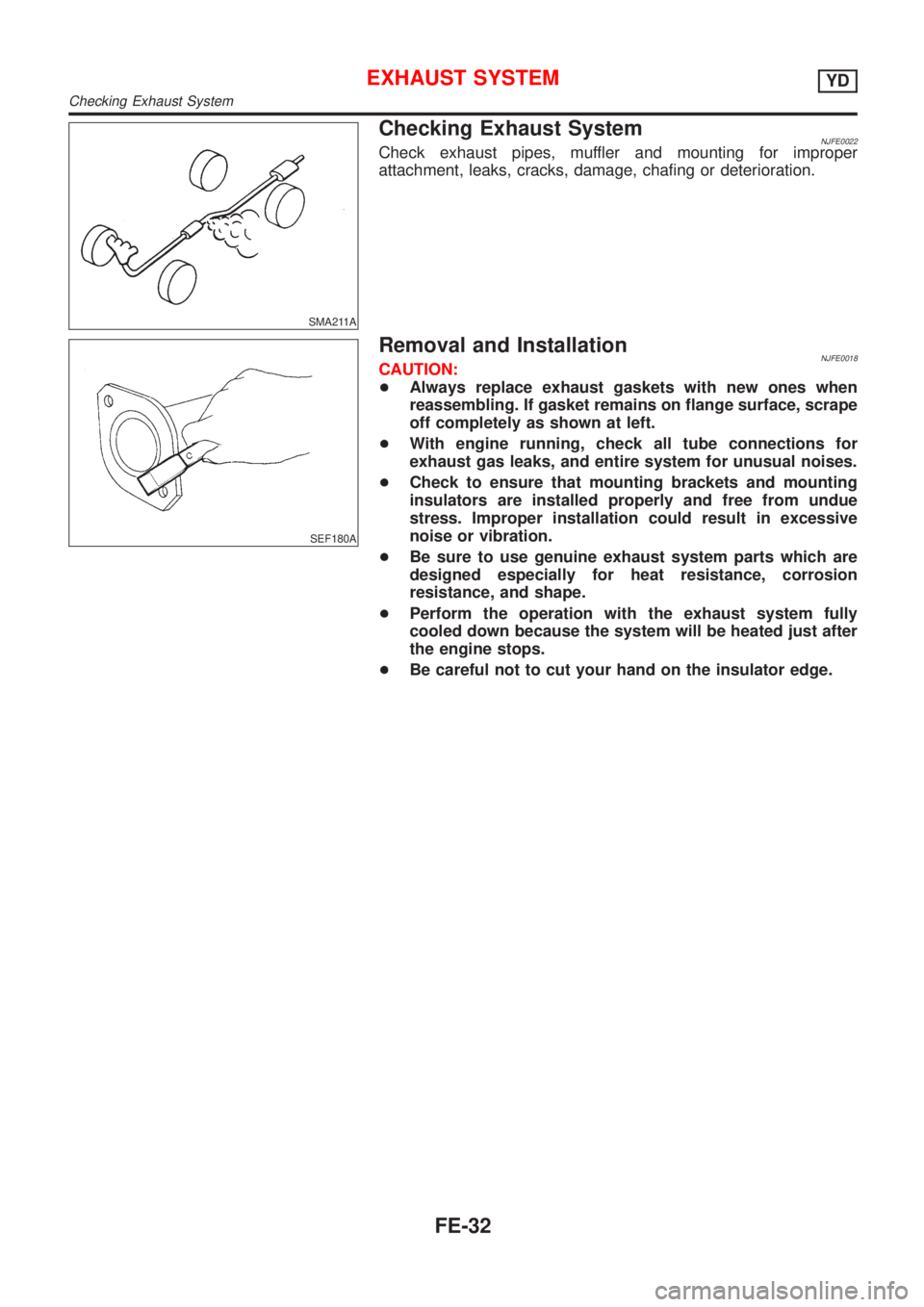

Page 2336 of 2898

NISSAN ALMERA 2001 Service Manual SMA211A Checking Exhaust SystemNJFE0022Check exhaust pipes, muffler and mounting for improper attachment, leaks, cracks, damage, chafing or deterioration. SEF180A Removal and InstallationNJFE0018CAUTI
