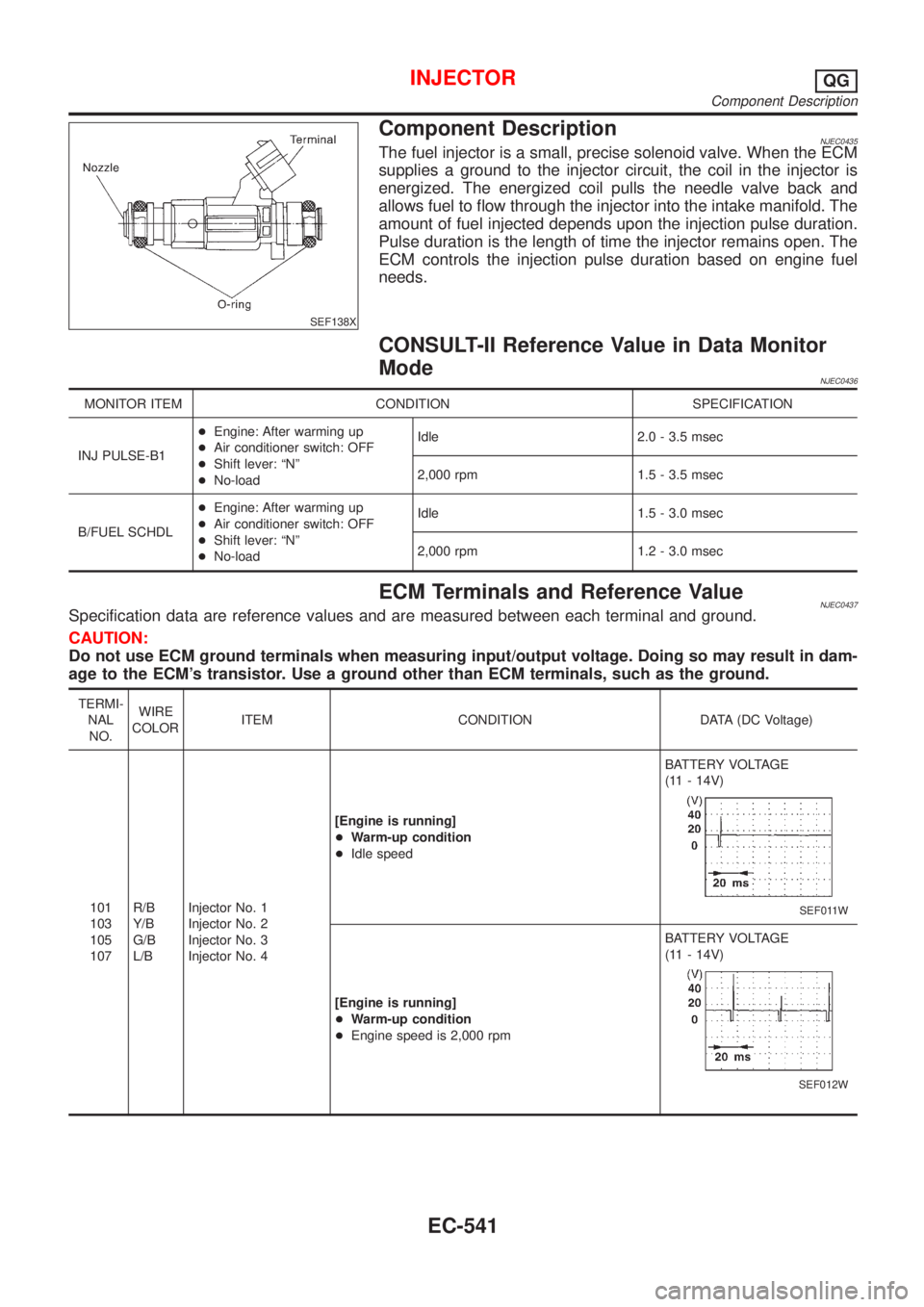

Page 1265 of 2898

NISSAN ALMERA 2001 Service Manual SEF138X Component DescriptionNJEC0435The fuel injector is a small, precise solenoid valve. When the ECM supplies a ground to the injector circuit, the coil in the injector is energized. The energized

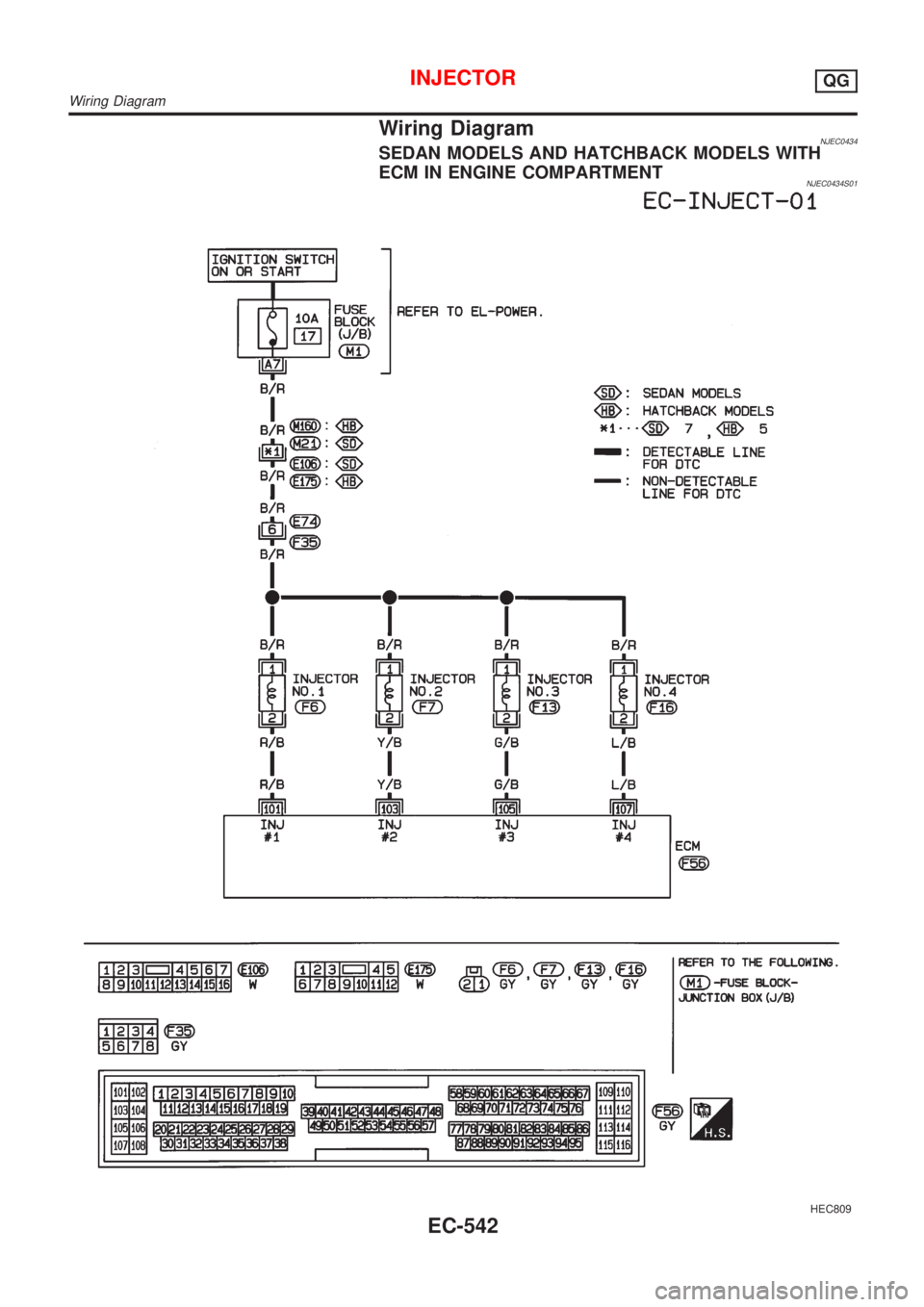

Page 1266 of 2898

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC0434SEDAN MODELS AND HATCHBACK MODELS WITH ECM IN ENGINE COMPARTMENT NJEC0434S01 HEC809 INJECTORQG Wiring Diagram EC-542

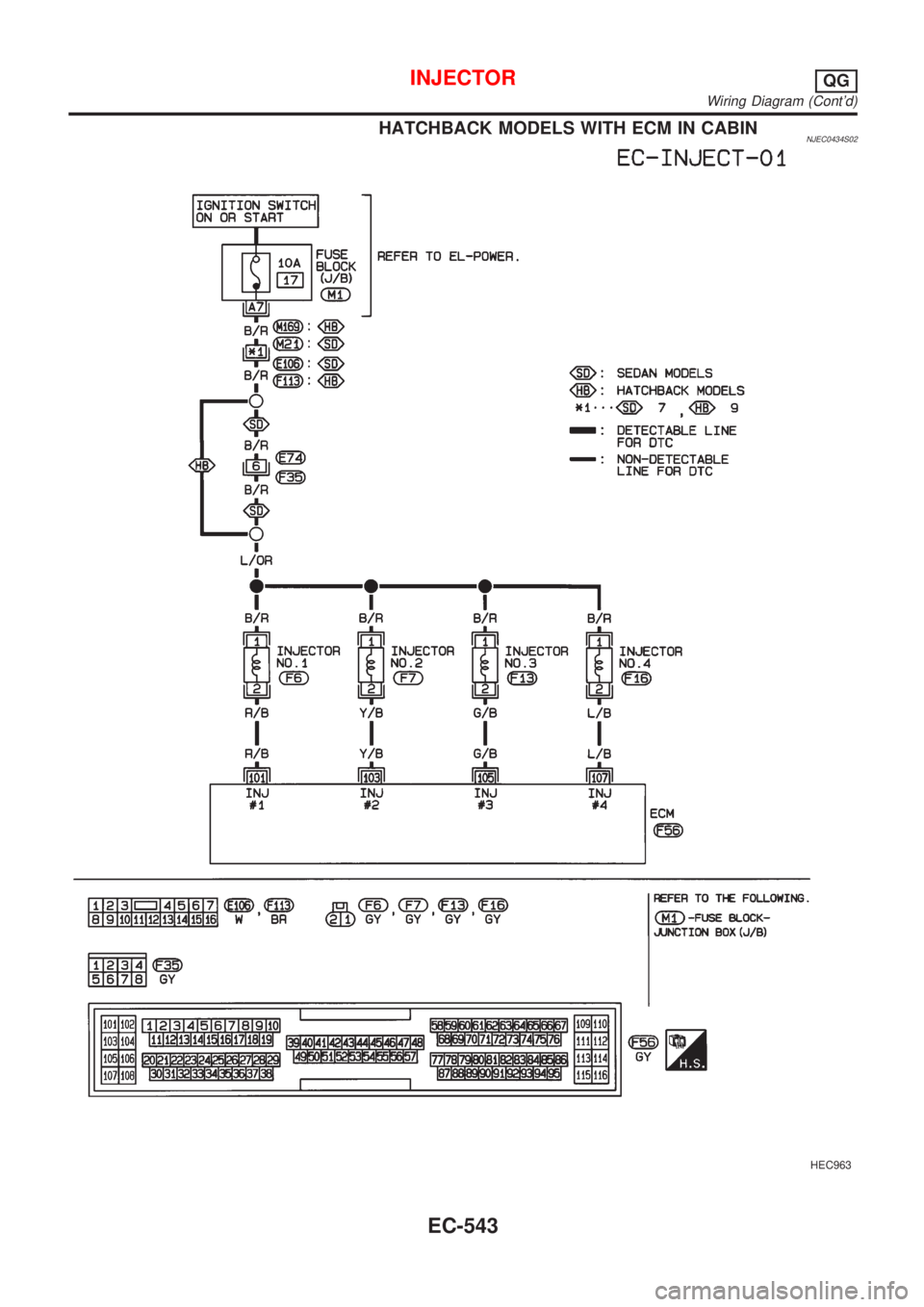

Page 1267 of 2898

NISSAN ALMERA 2001 Service Manual HATCHBACK MODELS WITH ECM IN CABINNJEC0434S02 HEC963 INJECTORQG Wiring Diagram (Contd) EC-543

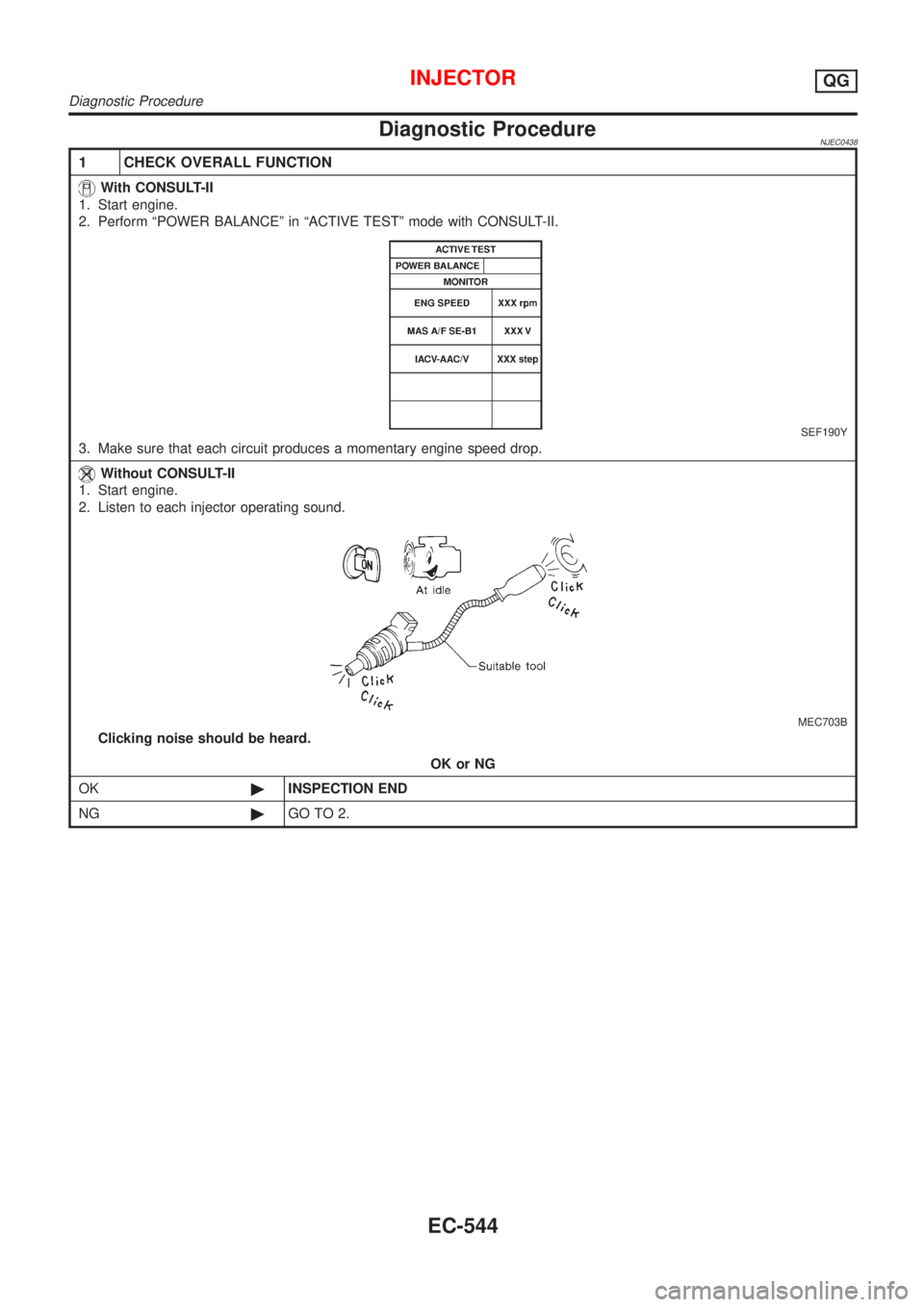

Page 1268 of 2898

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC0438 1 CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine. 2. Perform ªPOWER BALANCEº in ªACTIVE TESTº mode with CONSULT-II. SEF190Y 3. Make sure that each circuit prod

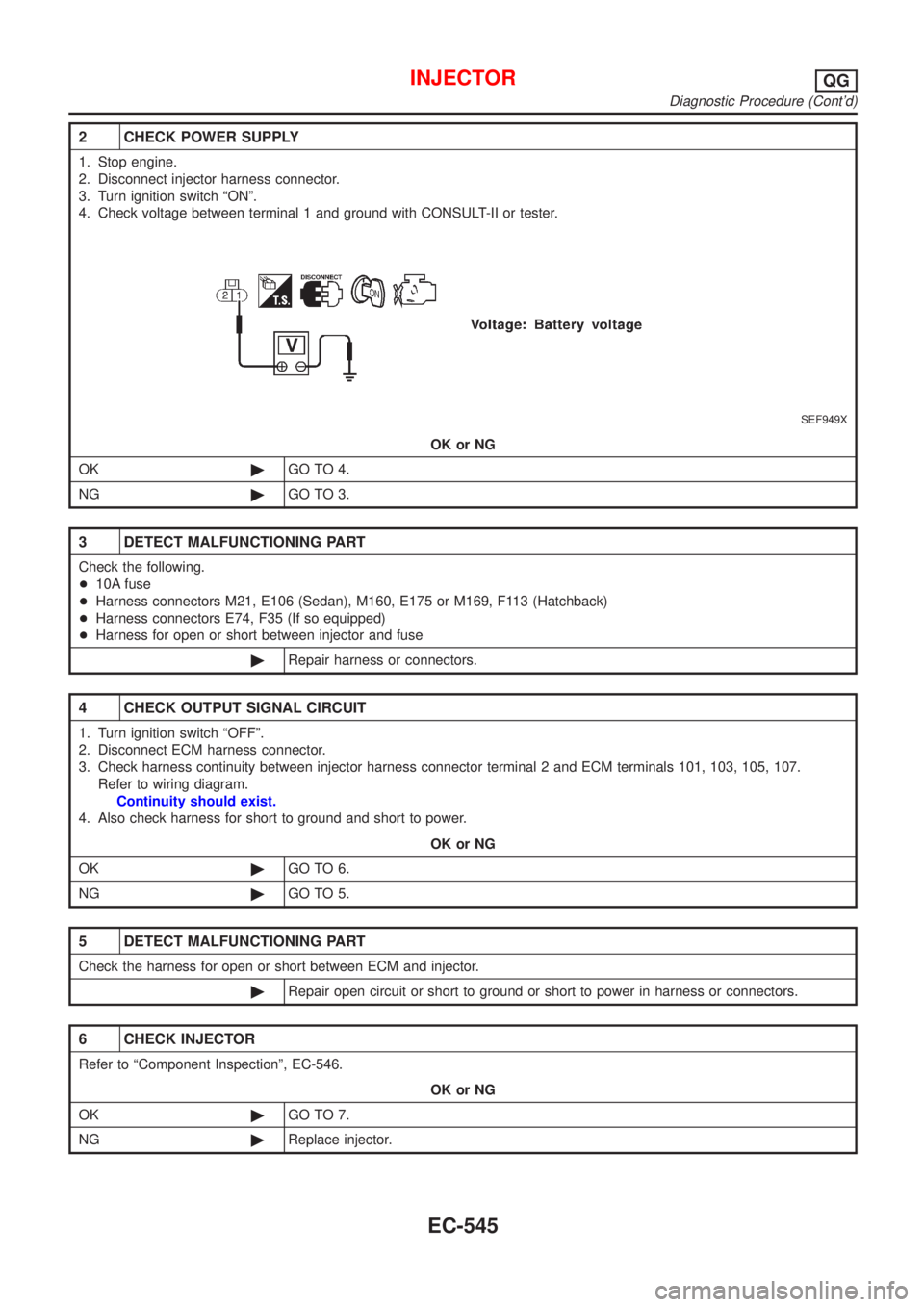

Page 1269 of 2898

NISSAN ALMERA 2001 Service Manual 2 CHECK POWER SUPPLY 1. Stop engine. 2. Disconnect injector harness connector. 3. Turn ignition switch ªONº. 4. Check voltage between terminal 1 and ground with CONSULT-II or tester. SEF949X OK or N

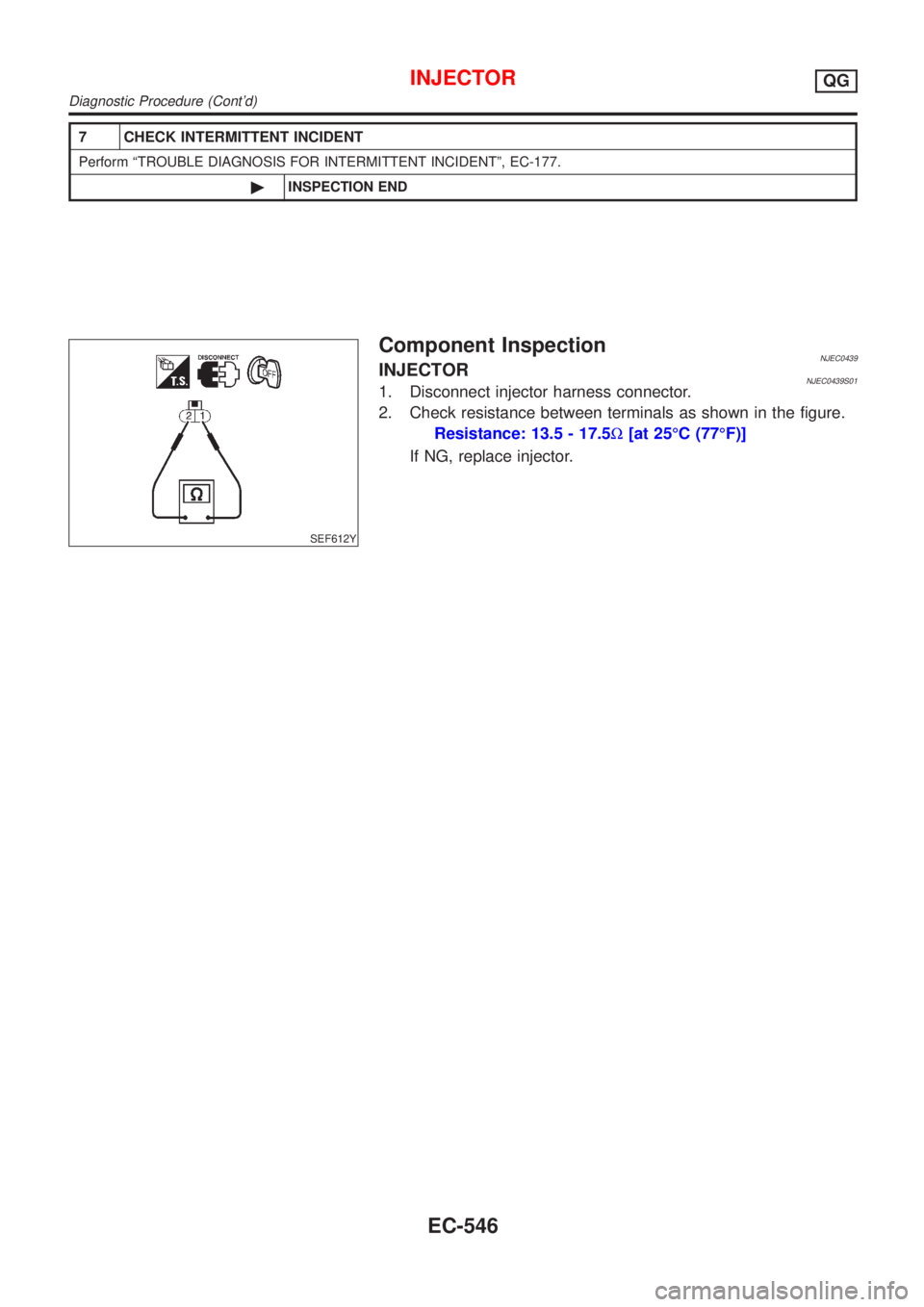

Page 1270 of 2898

NISSAN ALMERA 2001 Service Manual 7 CHECK INTERMITTENT INCIDENT Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-177. ©INSPECTION END SEF612Y Component InspectionNJEC0439INJECTORNJEC0439S011. Disconnect injector harness co

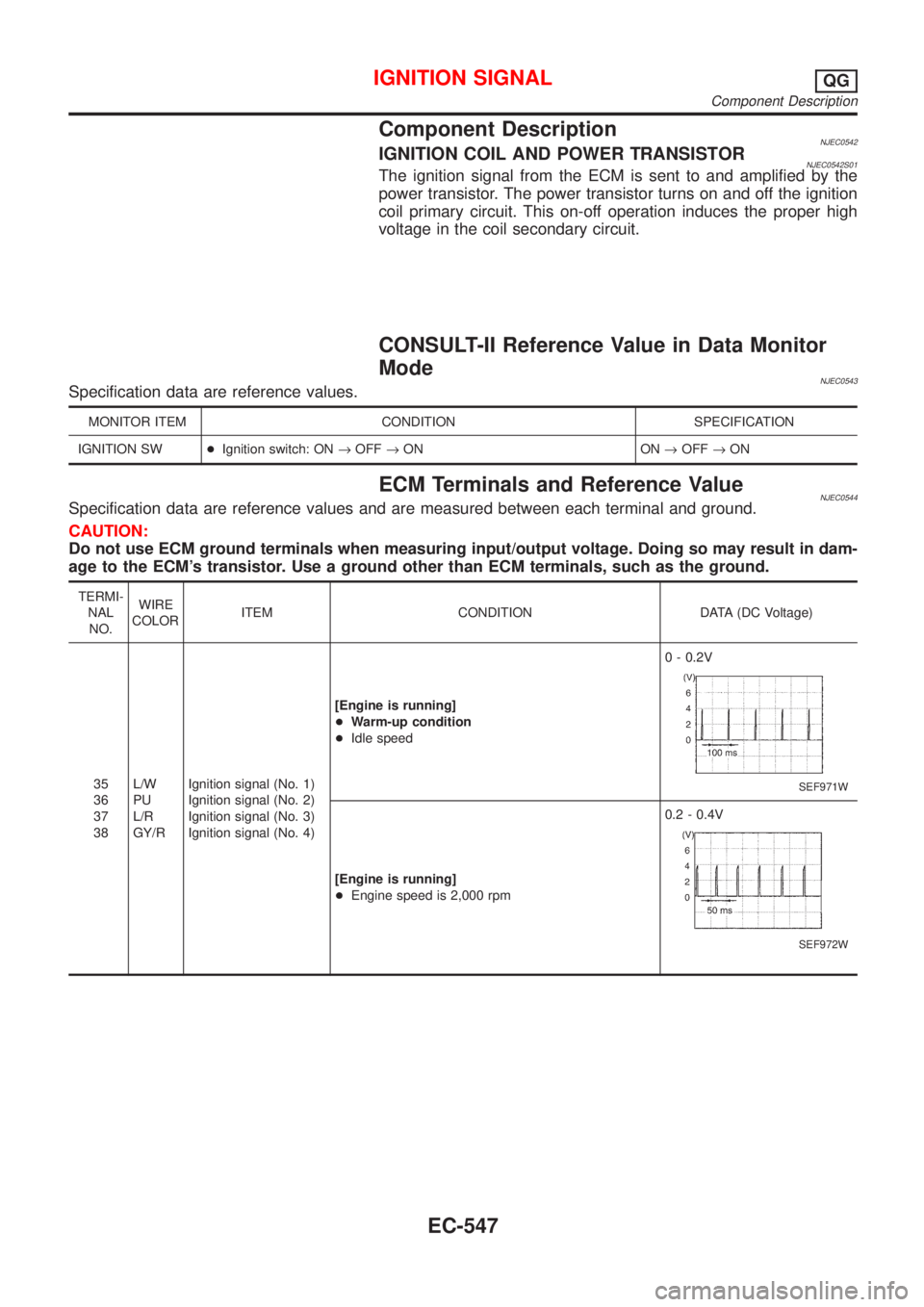

Page 1271 of 2898

NISSAN ALMERA 2001 Service Manual Component DescriptionNJEC0542IGNITION COIL AND POWER TRANSISTORNJEC0542S01The ignition signal from the ECM is sent to and amplified by the power transistor. The power transistor turns on and off the i

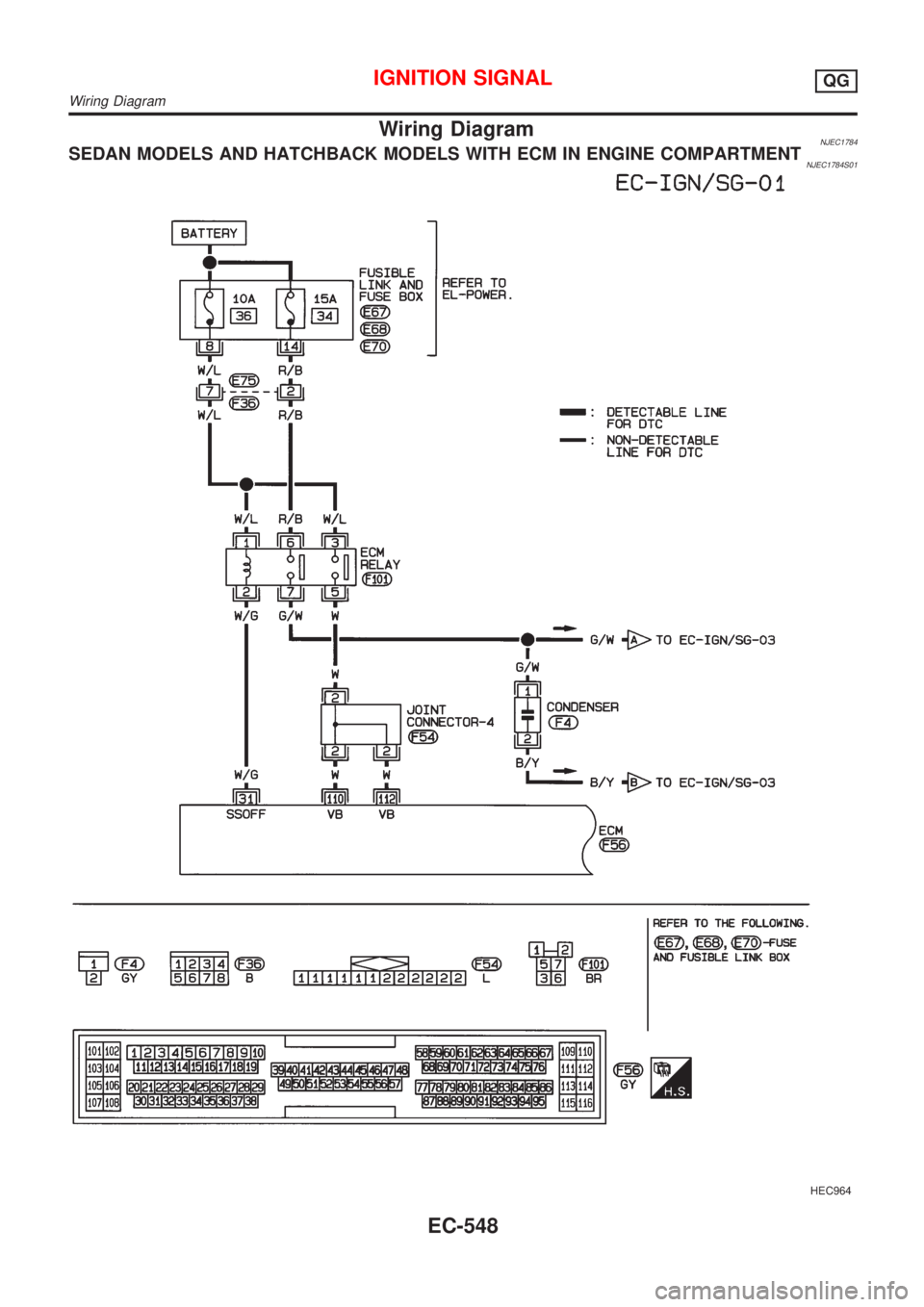

Page 1272 of 2898

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC1784SEDAN MODELS AND HATCHBACK MODELS WITH ECM IN ENGINE COMPARTMENTNJEC1784S01 HEC964 IGNITION SIGNALQG Wiring Diagram EC-548
