NISSAN ALMERA 2001  Service Manual DIAGNOSTIC PROCEDURE 3 (DOOR UNLOCK SENSOR
CHECK)
NJEL0374S08
1 CHECK DOOR UNLOCK SENSOR INPUT SIGNAL
Check voltage between time control unit terminal 28 and ground.
SEL987W
OK or NG
OK©Door unlock s

Page 1762 of 2898

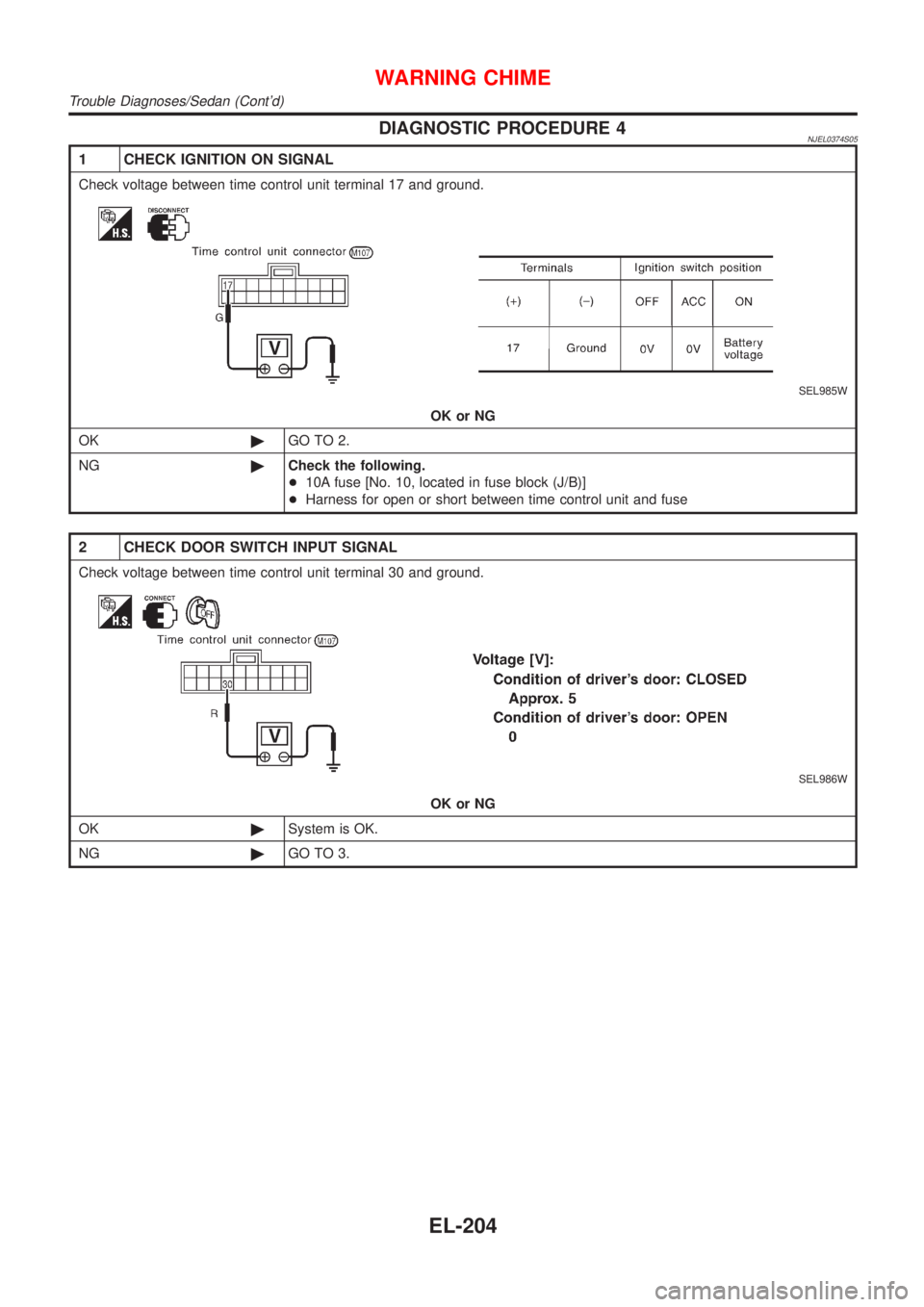

NISSAN ALMERA 2001  Service Manual DIAGNOSTIC PROCEDURE 4NJEL0374S05
1 CHECK IGNITION ON SIGNAL
Check voltage between time control unit terminal 17 and ground.
SEL985W
OK or NG
OK©GO TO 2.
NG©Check the following.
+10A fuse [No. 10, l

Page 1763 of 2898

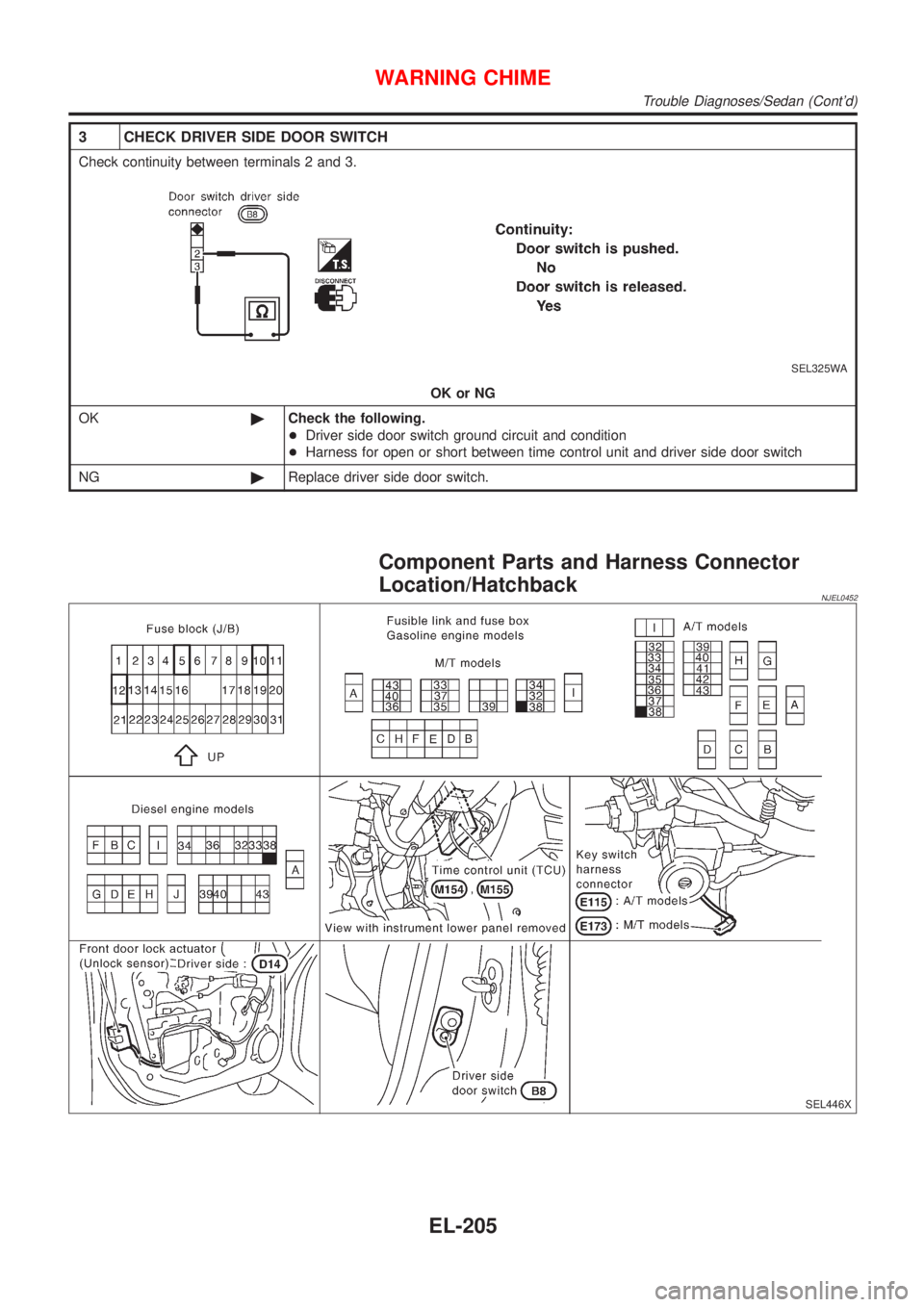

NISSAN ALMERA 2001  Service Manual 3 CHECK DRIVER SIDE DOOR SWITCH
Check continuity between terminals 2 and 3.
SEL325WA
OK or NG
OK©Check the following.
+Driver side door switch ground circuit and condition
+Harness for open or short

Page 1764 of 2898

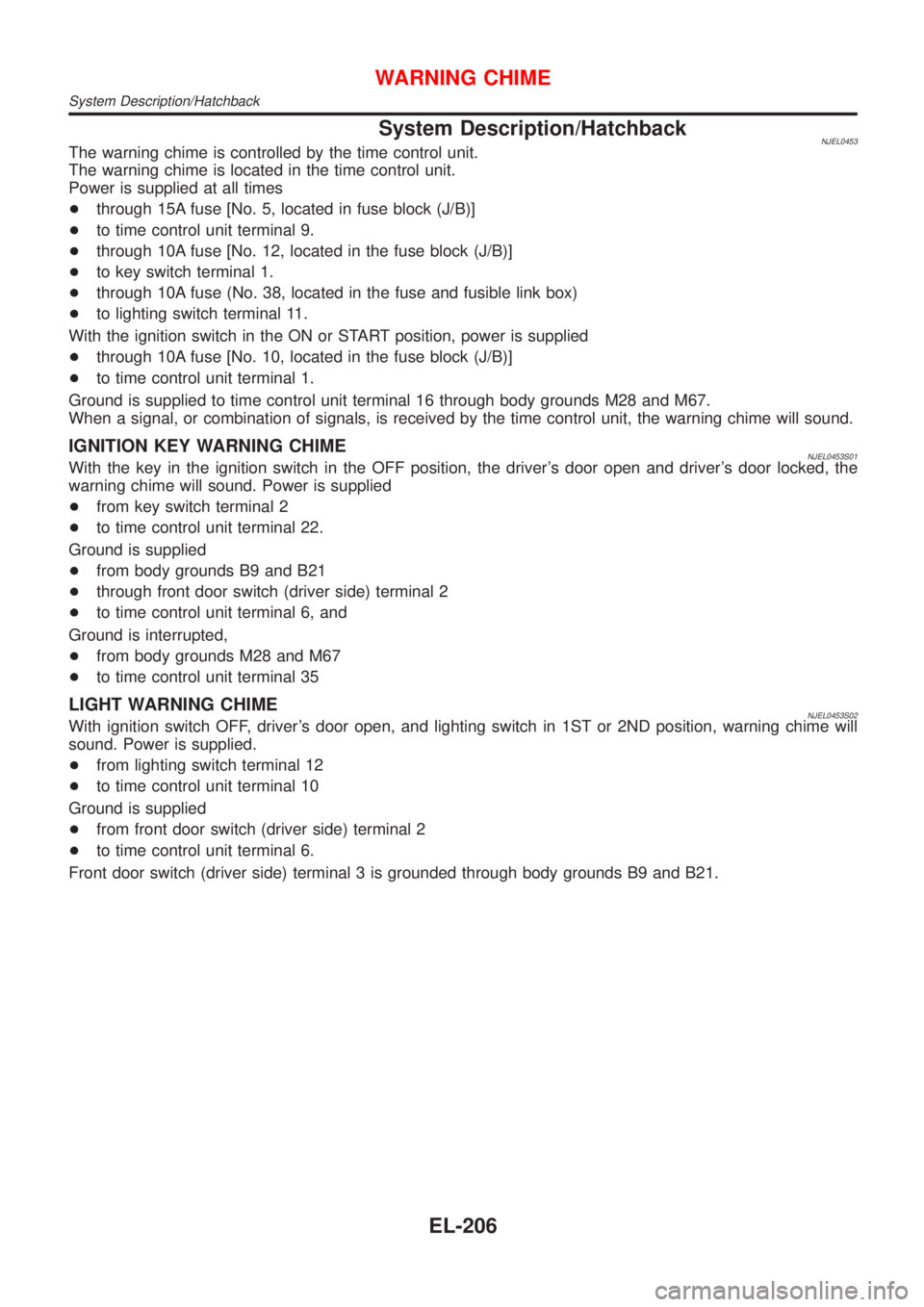

NISSAN ALMERA 2001  Service Manual System Description/HatchbackNJEL0453The warning chime is controlled by the time control unit.
The warning chime is located in the time control unit.
Power is supplied at all times
+through 15A fuse [N

Page 1765 of 2898

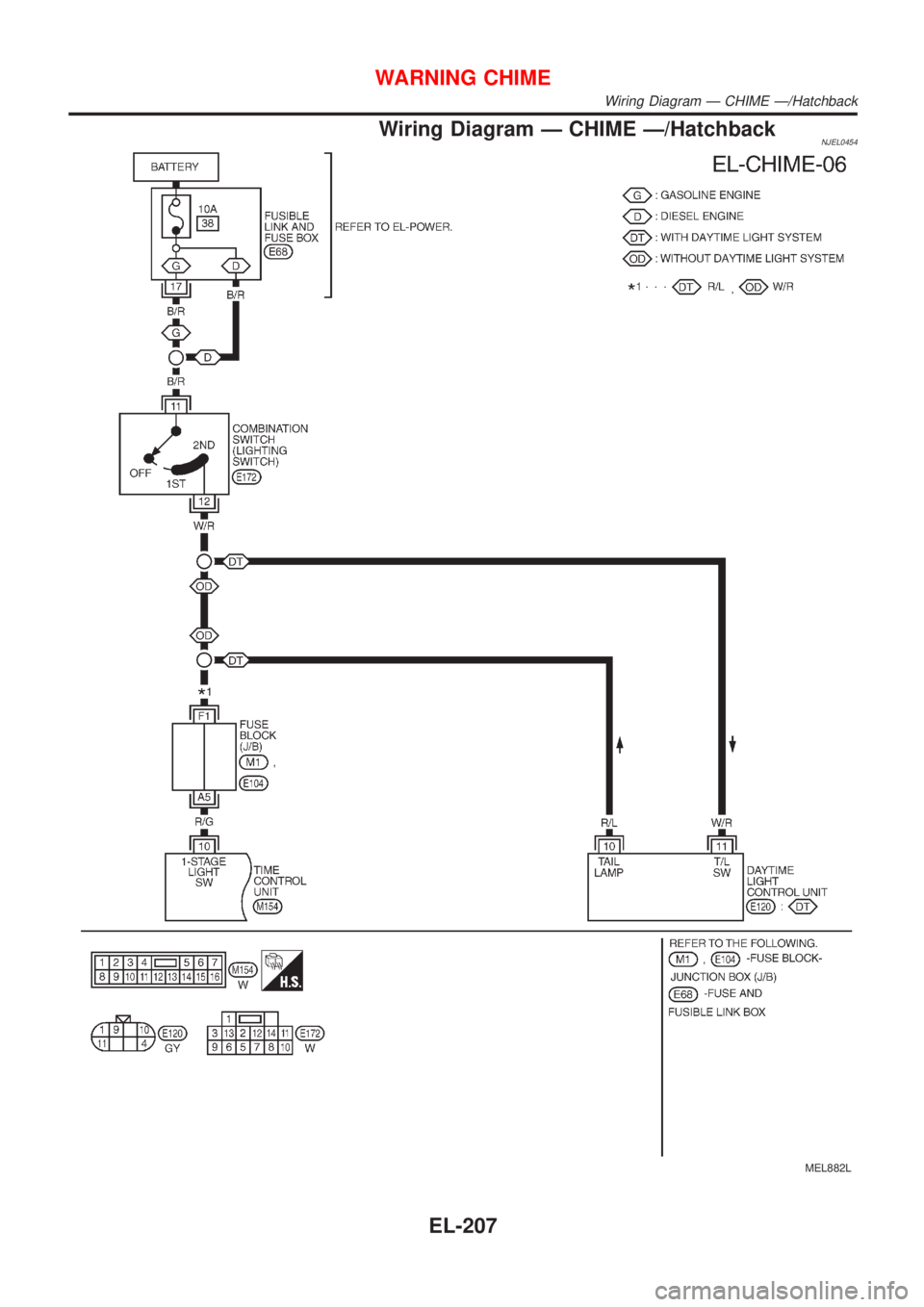

NISSAN ALMERA 2001  Service Manual Wiring Diagram Ð CHIME Ð/HatchbackNJEL0454
MEL882L
WARNING CHIME
Wiring Diagram Ð CHIME Ð/Hatchback
EL-207

Page 1766 of 2898

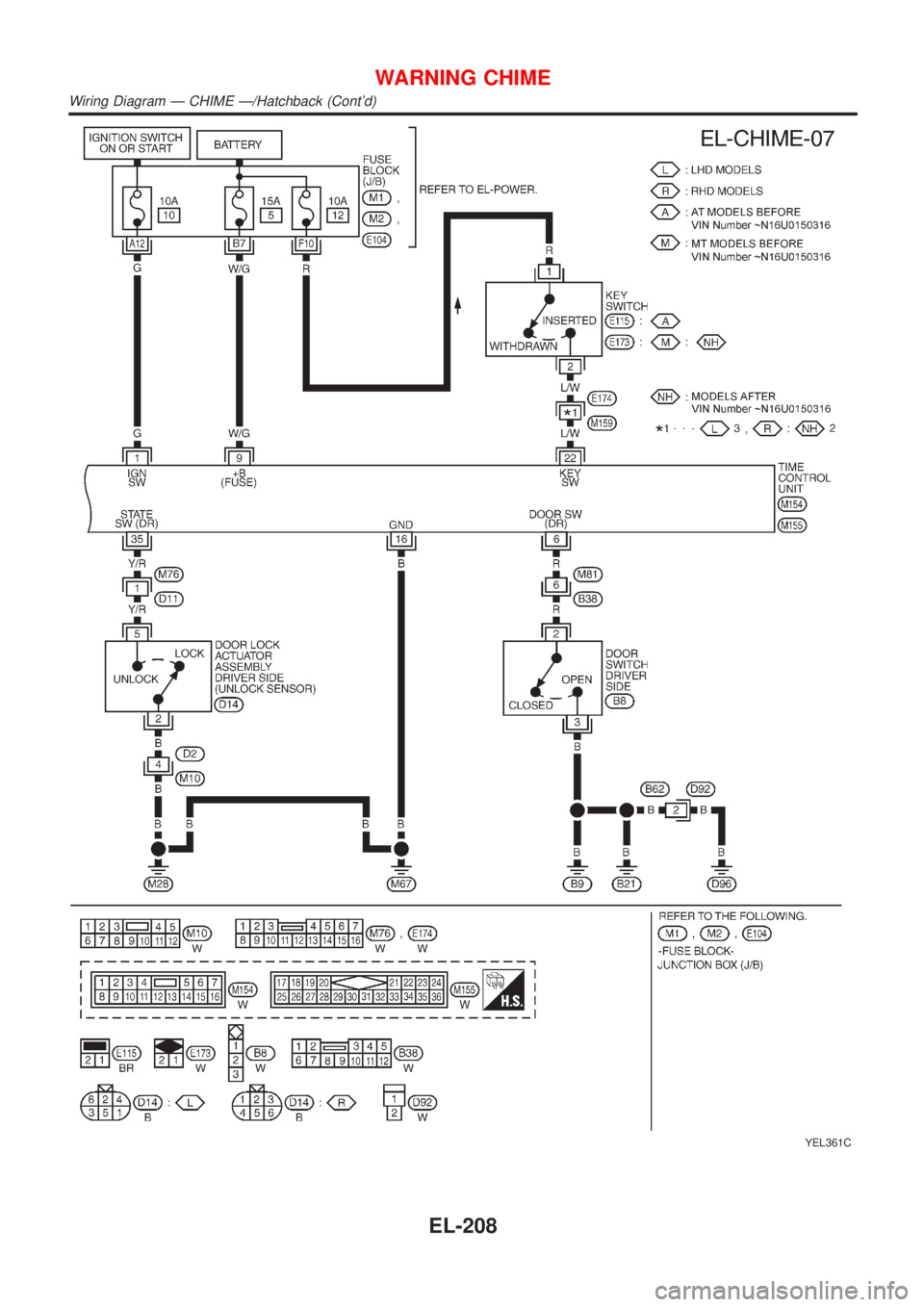

NISSAN ALMERA 2001  Service Manual YEL361C
WARNING CHIME
Wiring Diagram Ð CHIME Ð/Hatchback (Contd)
EL-208

Page 1767 of 2898

NISSAN ALMERA 2001  Service Manual Trouble Diagnoses/HatchbackNJEL0455SYMPTOM CHARTNJEL0455S01
REFERENCE PAGE (EL- ) 209 210 211 212 213
SYMPTOM
POWER SUPPLY AND
GROUND CIRCUIT CHECK
DIAGNOSTIC PROCEDURE 1
(LIGHTING SWITCH INPUT
SIGNAL

Page 1768 of 2898

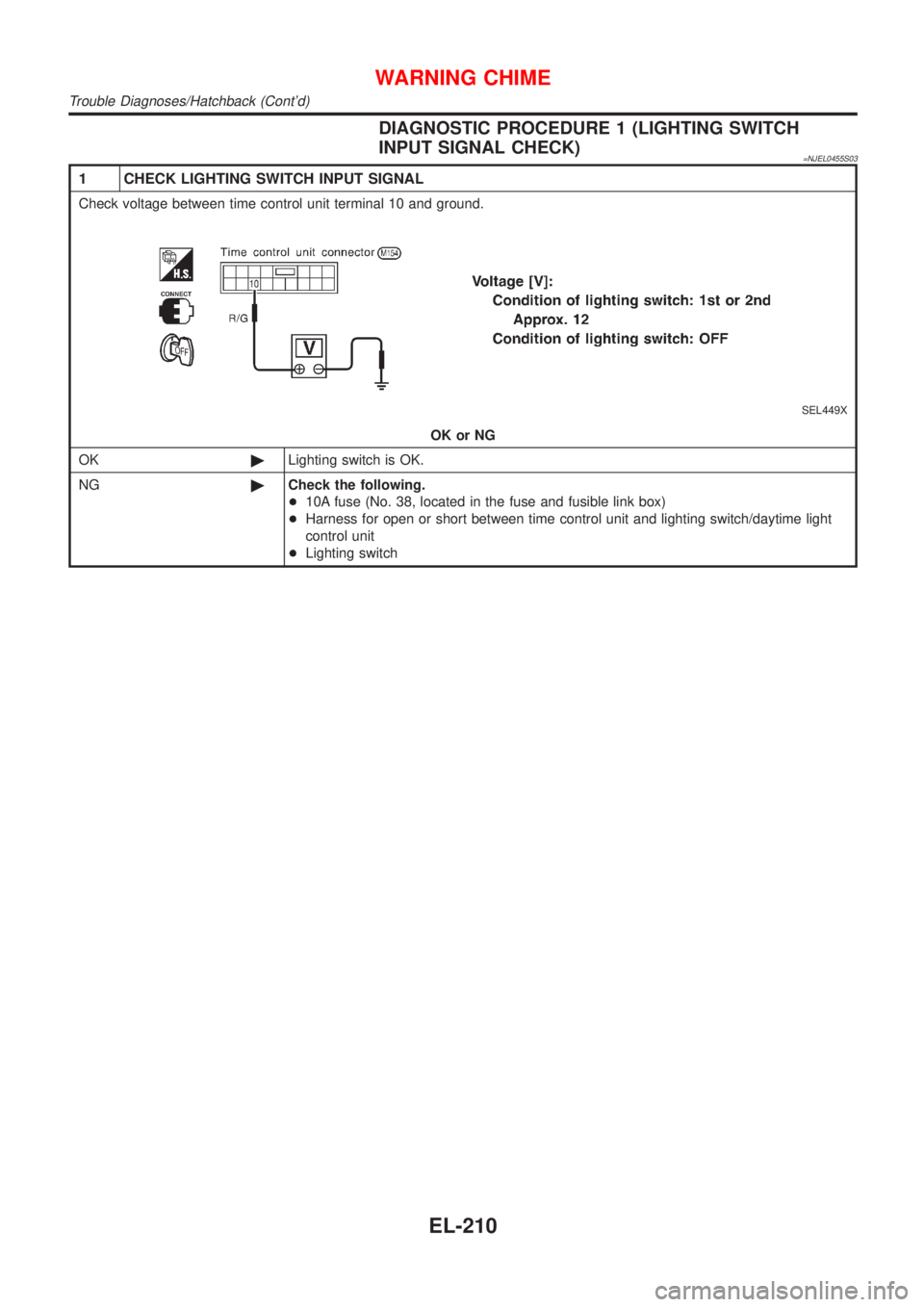

NISSAN ALMERA 2001  Service Manual DIAGNOSTIC PROCEDURE 1 (LIGHTING SWITCH
INPUT SIGNAL CHECK)
=NJEL0455S03
1 CHECK LIGHTING SWITCH INPUT SIGNAL
Check voltage between time control unit terminal 10 and ground.
SEL449X
OK or NG
OK©Light
