Page 1273 of 2898

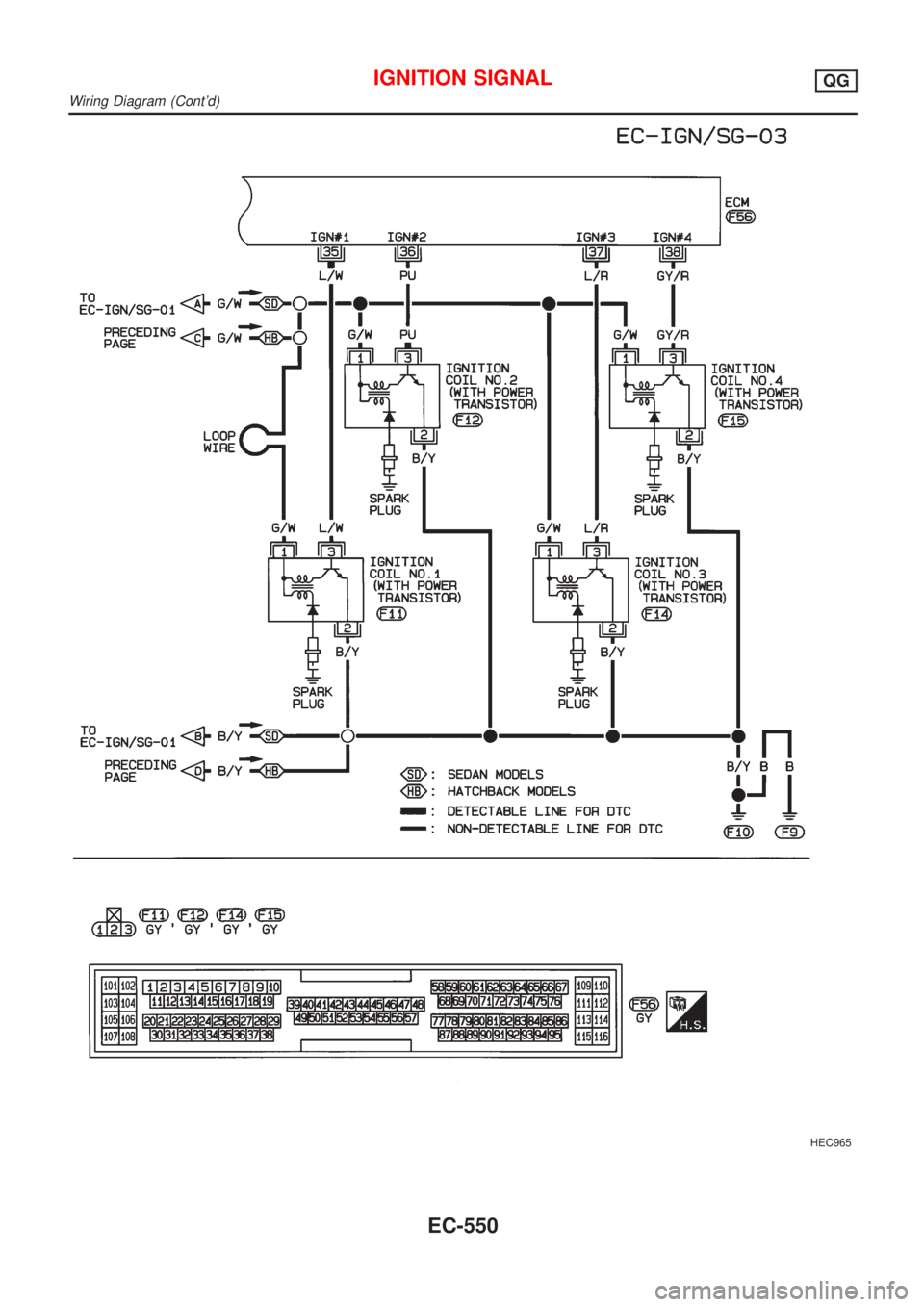

NISSAN ALMERA 2001 Service Manual HATCHBACK MODELS WITH ECM IN CABINNJEC1784S02 HEC979 IGNITION SIGNALQG Wiring Diagram (Contd) EC-549

Page 1274 of 2898

NISSAN ALMERA 2001 Service Manual HEC965 IGNITION SIGNALQG Wiring Diagram (Contd) EC-550

Page 1275 of 2898

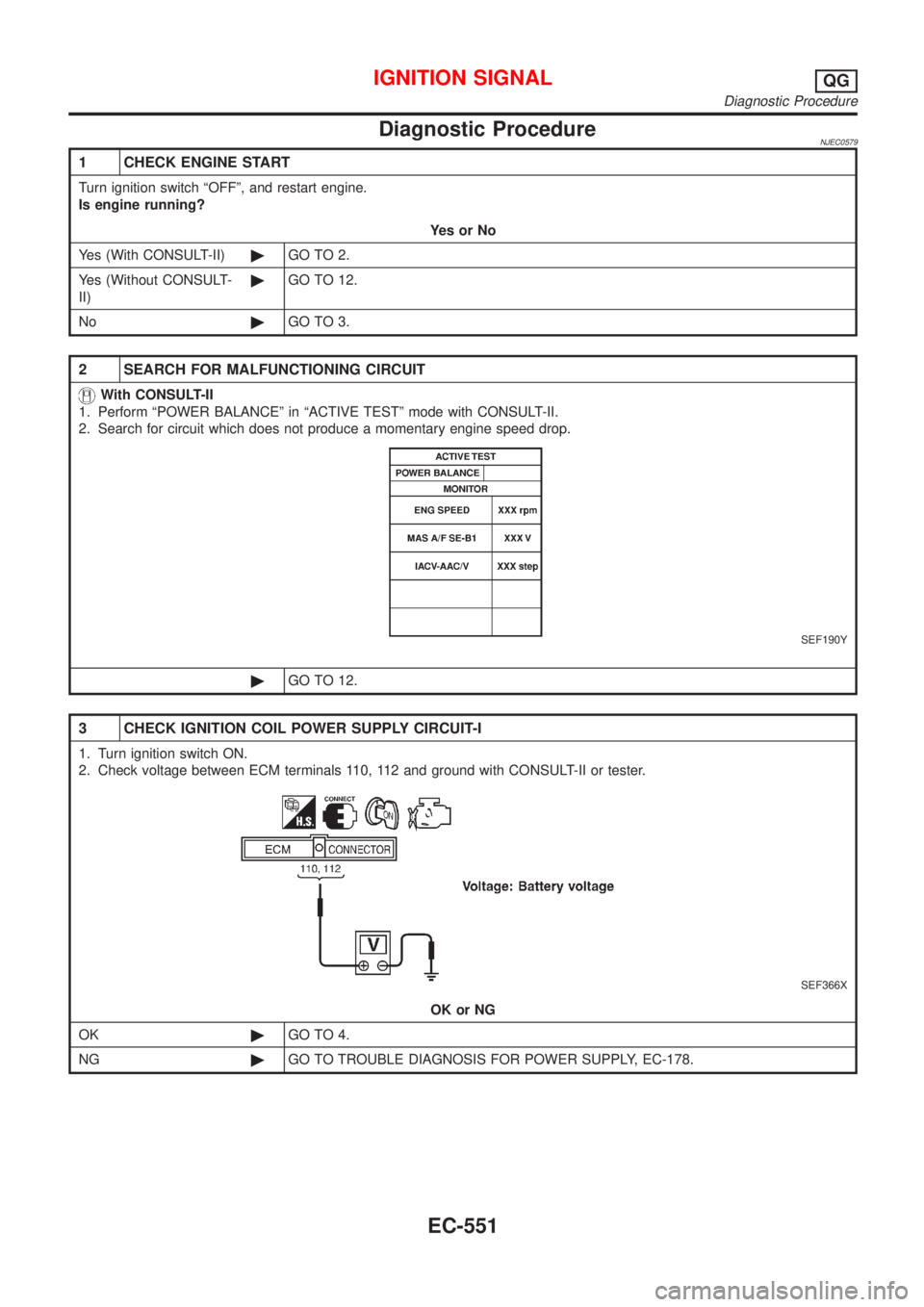

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC0579 1 CHECK ENGINE START Turn ignition switch ªOFFº, and restart engine. Is engine running? YesorNo Yes (With CONSULT-II)©GO TO 2. Yes (Without CONSULT- II)©GO TO 12. No©

Page 1276 of 2898

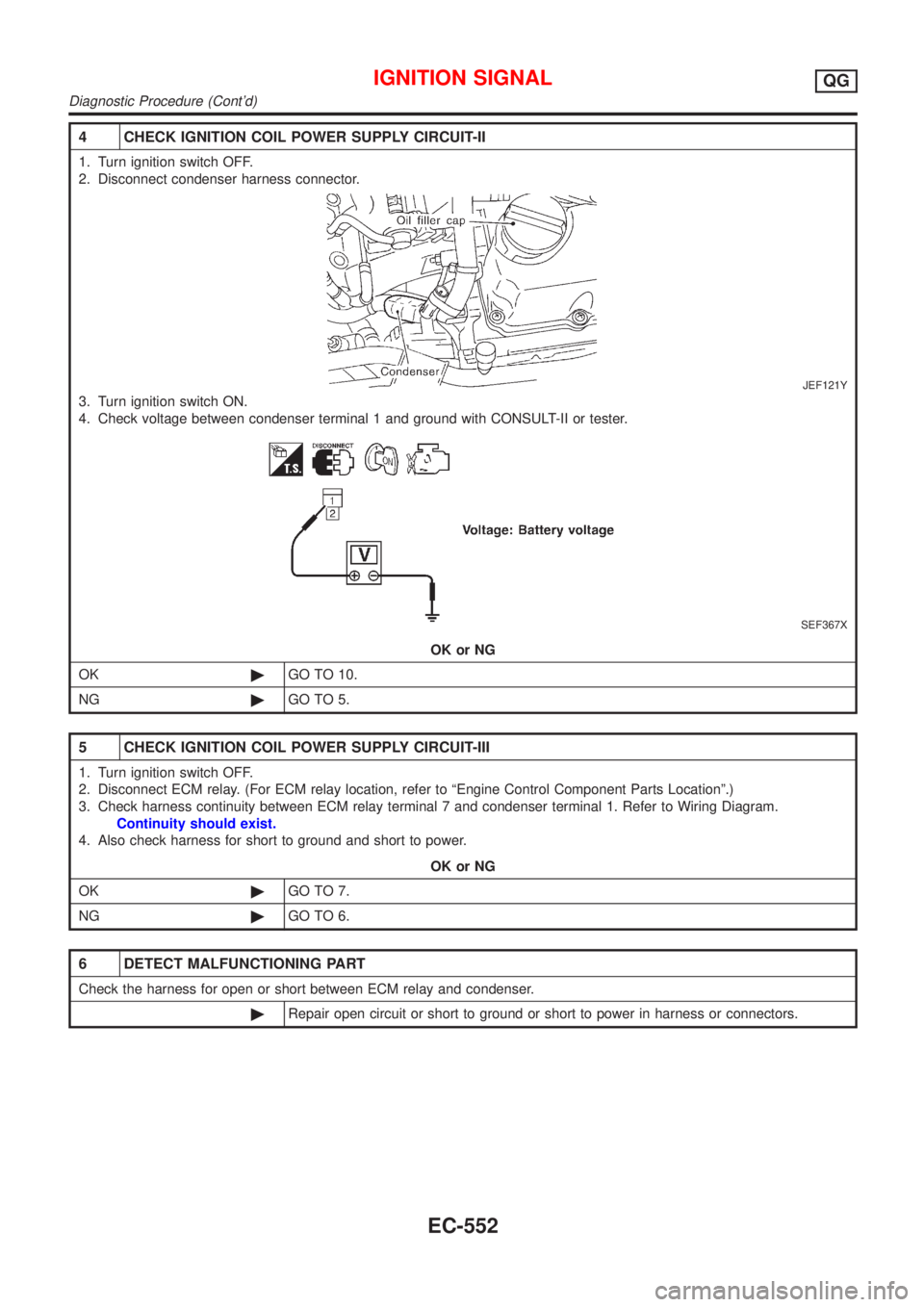

NISSAN ALMERA 2001 Service Manual 4 CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II 1. Turn ignition switch OFF. 2. Disconnect condenser harness connector. JEF121Y 3. Turn ignition switch ON. 4. Check voltage between condenser terminal 1

Page 1277 of 2898

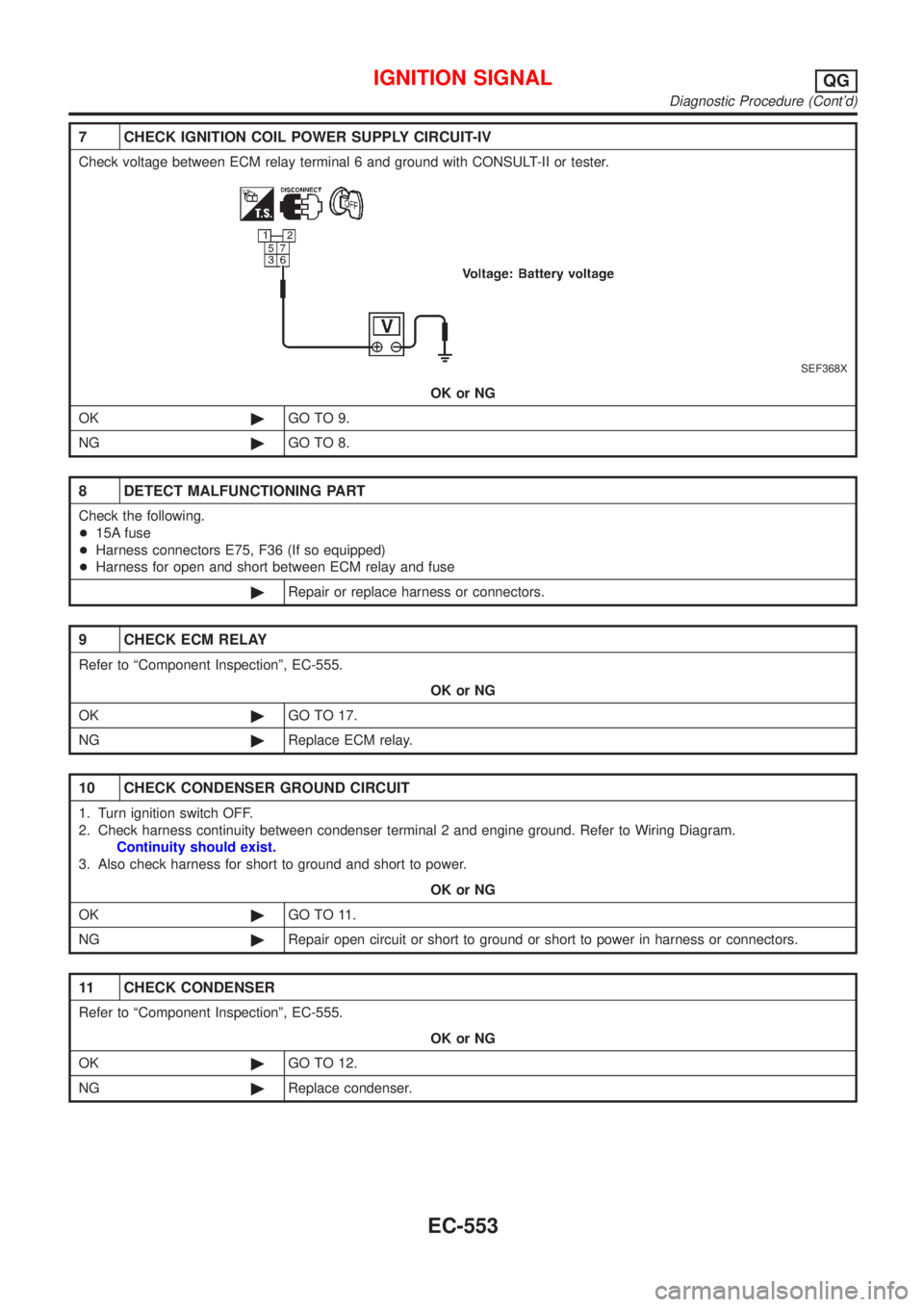

NISSAN ALMERA 2001 Service Manual 7 CHECK IGNITION COIL POWER SUPPLY CIRCUIT-IV Check voltage between ECM relay terminal 6 and ground with CONSULT-II or tester. SEF368X OK or NG OK©GO TO 9. NG©GO TO 8. 8 DETECT MALFUNCTIONING PART C

Page 1278 of 2898

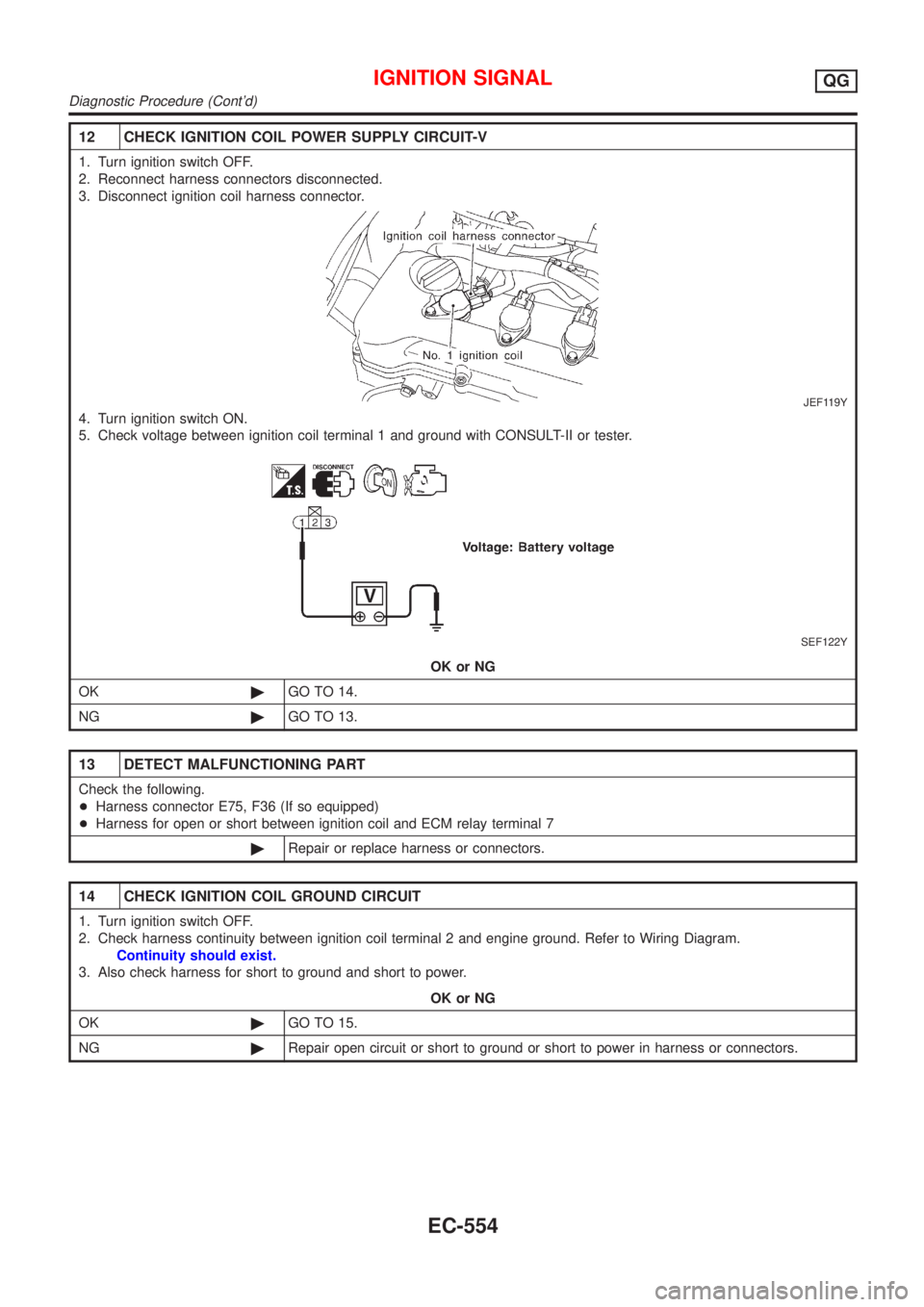

NISSAN ALMERA 2001 Service Manual 12 CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V 1. Turn ignition switch OFF. 2. Reconnect harness connectors disconnected. 3. Disconnect ignition coil harness connector. JEF119Y 4. Turn ignition switch

Page 1279 of 2898

NISSAN ALMERA 2001 Service Manual 15 CHECK IGNITION COIL OUTPUT SIGNAL CIRCUIT 1. Disconnect ECM harness connector. 2. Check harness continuity between ECM terminals 35, 36, 37, 38 and ignition coil terminal 3. Refer to Wiring Diagram

Page 1280 of 2898

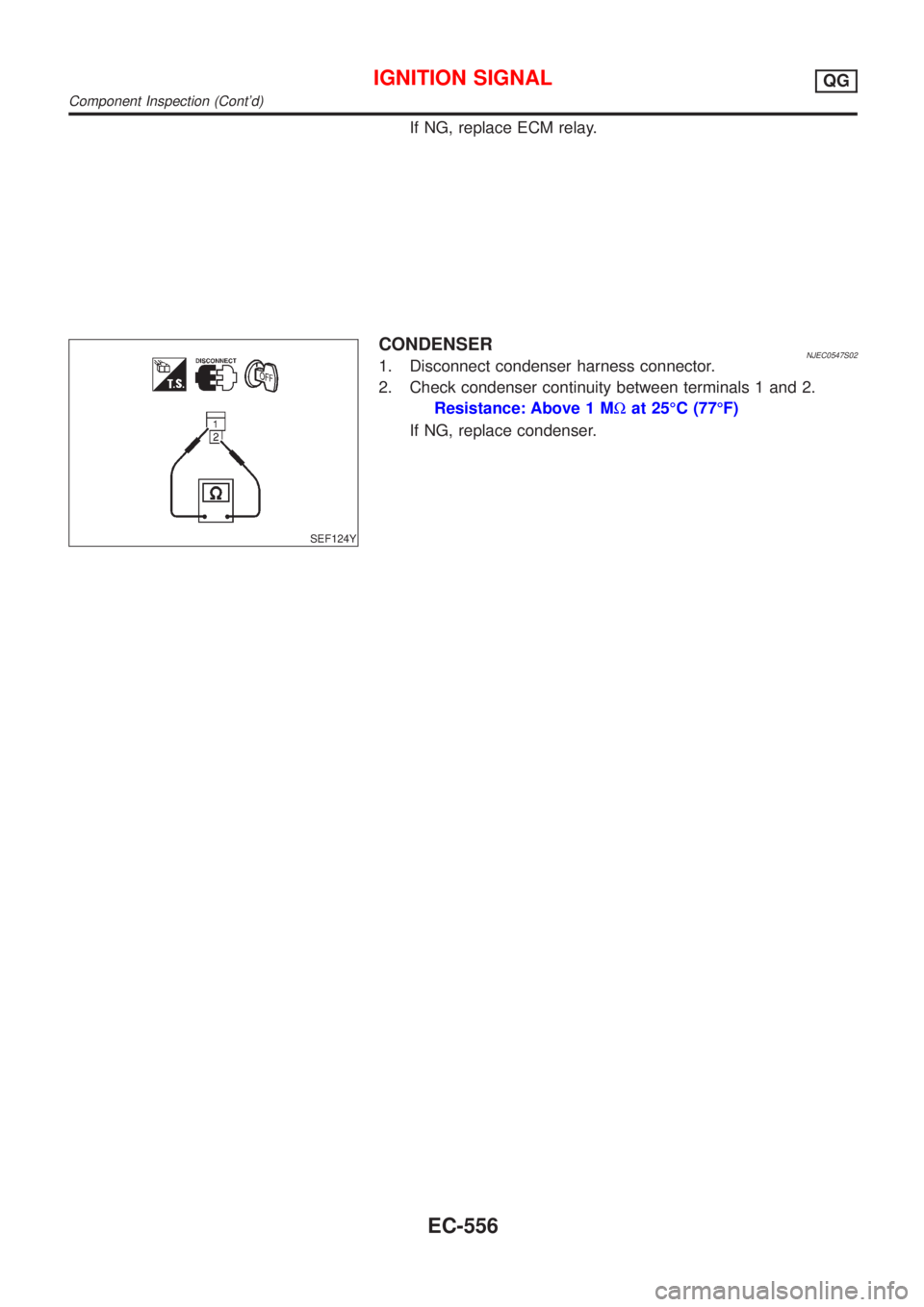

NISSAN ALMERA 2001 Service Manual If NG, replace ECM relay. SEF124Y CONDENSERNJEC0547S021. Disconnect condenser harness connector. 2. Check condenser continuity between terminals 1 and 2. Resistance: Above 1 MWat 25ÉC (77ÉF) If NG,
