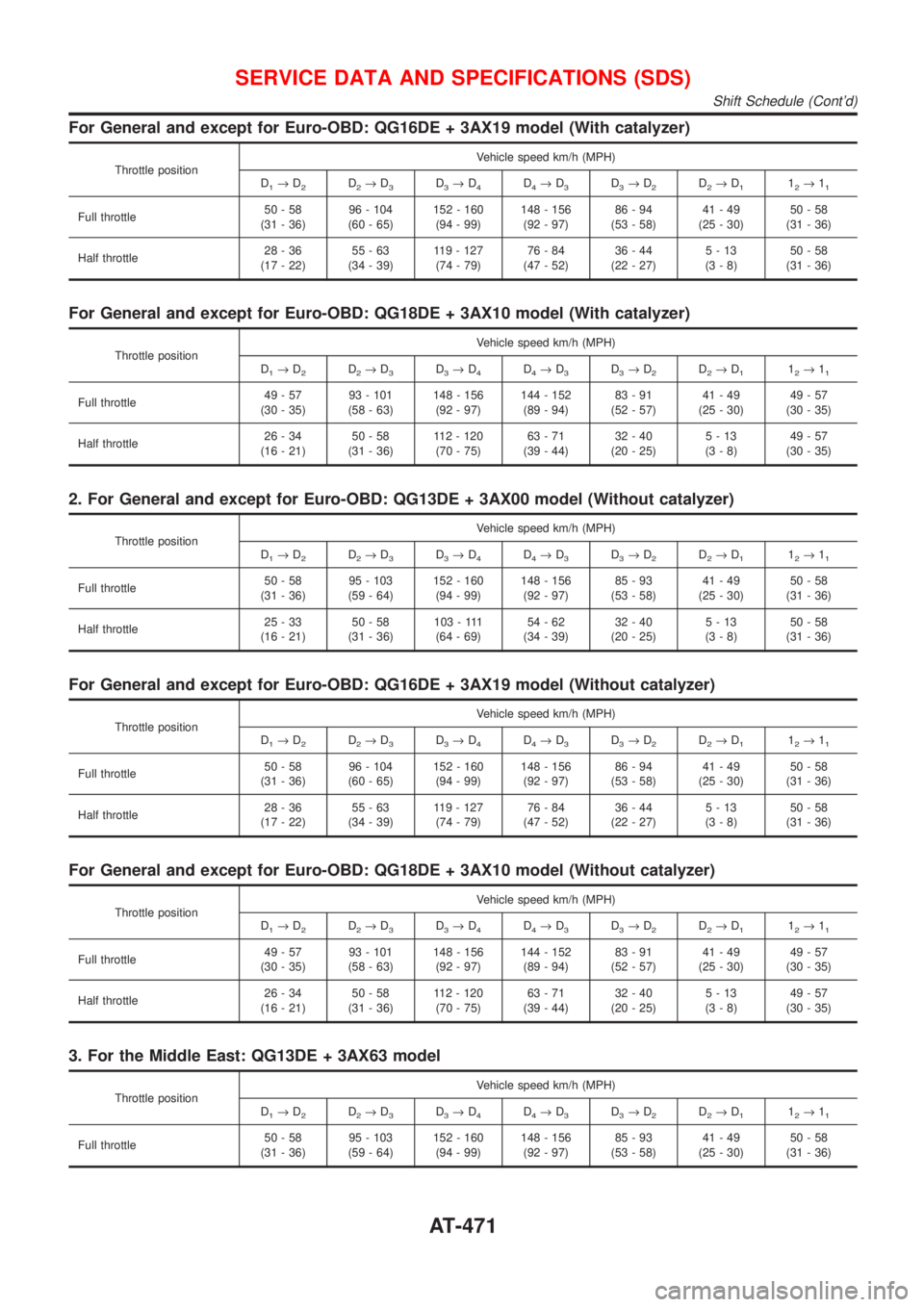

NISSAN ALMERA 2001 Service Manual For General and except for Euro-OBD: QG16DE + 3AX19 model (With catalyzer)
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle50-58
(31 - 36)96 - 104
(6

For General and except for Euro-OBD: QG16DE + 3AX19 model (With catalyzer)
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle50-58
(31 - 36)96 - 104
(60 - 65)152 - 160
(94 - 99)148 - 156
(92 - 97)86-94
(53 - 58)41-49
(25 - 30)50-58
(31 - 36)
Half throttle28-36
(17 - 22)55-63
(34 - 39)119 - 127
(74 - 79)76-84
(47 - 52)36-44
(22 - 27)5-13
(3-8)50-58
(31 - 36)
For General and except for Euro-OBD: QG18DE + 3AX10 model (With catalyzer)
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle49-57
(30 - 35)93 - 101
(58 - 63)148 - 156
(92 - 97)144 - 152
(89 - 94)83-91
(52 - 57)41-49
(25 - 30)49-57
(30 - 35)
Half throttle26-34
(16 - 21)50-58
(31 - 36)112 - 120
(70 - 75)63-71
(39 - 44)32-40
(20 - 25)5-13
(3-8)49-57
(30 - 35)
2. For General and except for Euro-OBD: QG13DE + 3AX00 model (Without catalyzer)
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle50-58
(31 - 36)95 - 103
(59 - 64)152 - 160
(94 - 99)148 - 156
(92 - 97)85-93
(53 - 58)41-49
(25 - 30)50-58
(31 - 36)
Half throttle25-33
(16 - 21)50-58
(31 - 36)1 0 3 - 111
(64 - 69)54-62
(34 - 39)32-40
(20 - 25)5-13
(3-8)50-58
(31 - 36)
For General and except for Euro-OBD: QG16DE + 3AX19 model (Without catalyzer)
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle50-58
(31 - 36)96 - 104
(60 - 65)152 - 160
(94 - 99)148 - 156
(92 - 97)86-94
(53 - 58)41-49
(25 - 30)50-58
(31 - 36)
Half throttle28-36
(17 - 22)55-63
(34 - 39)119 - 127
(74 - 79)76-84
(47 - 52)36-44
(22 - 27)5-13
(3-8)50-58
(31 - 36)
For General and except for Euro-OBD: QG18DE + 3AX10 model (Without catalyzer)
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle49-57
(30 - 35)93 - 101
(58 - 63)148 - 156
(92 - 97)144 - 152
(89 - 94)83-91
(52 - 57)41-49
(25 - 30)49-57
(30 - 35)
Half throttle26-34
(16 - 21)50-58
(31 - 36)112 - 120
(70 - 75)63-71
(39 - 44)32-40
(20 - 25)5-13
(3-8)49-57
(30 - 35)
3. For the Middle East: QG13DE + 3AX63 model
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle50-58
(31 - 36)95 - 103
(59 - 64)152 - 160
(94 - 99)148 - 156
(92 - 97)85-93
(53 - 58)41-49
(25 - 30)50-58
(31 - 36)
SERVICE DATA AND SPECIFICATIONS (SDS)
Shift Schedule (Cont'd)
AT-471

Page 474 of 2898

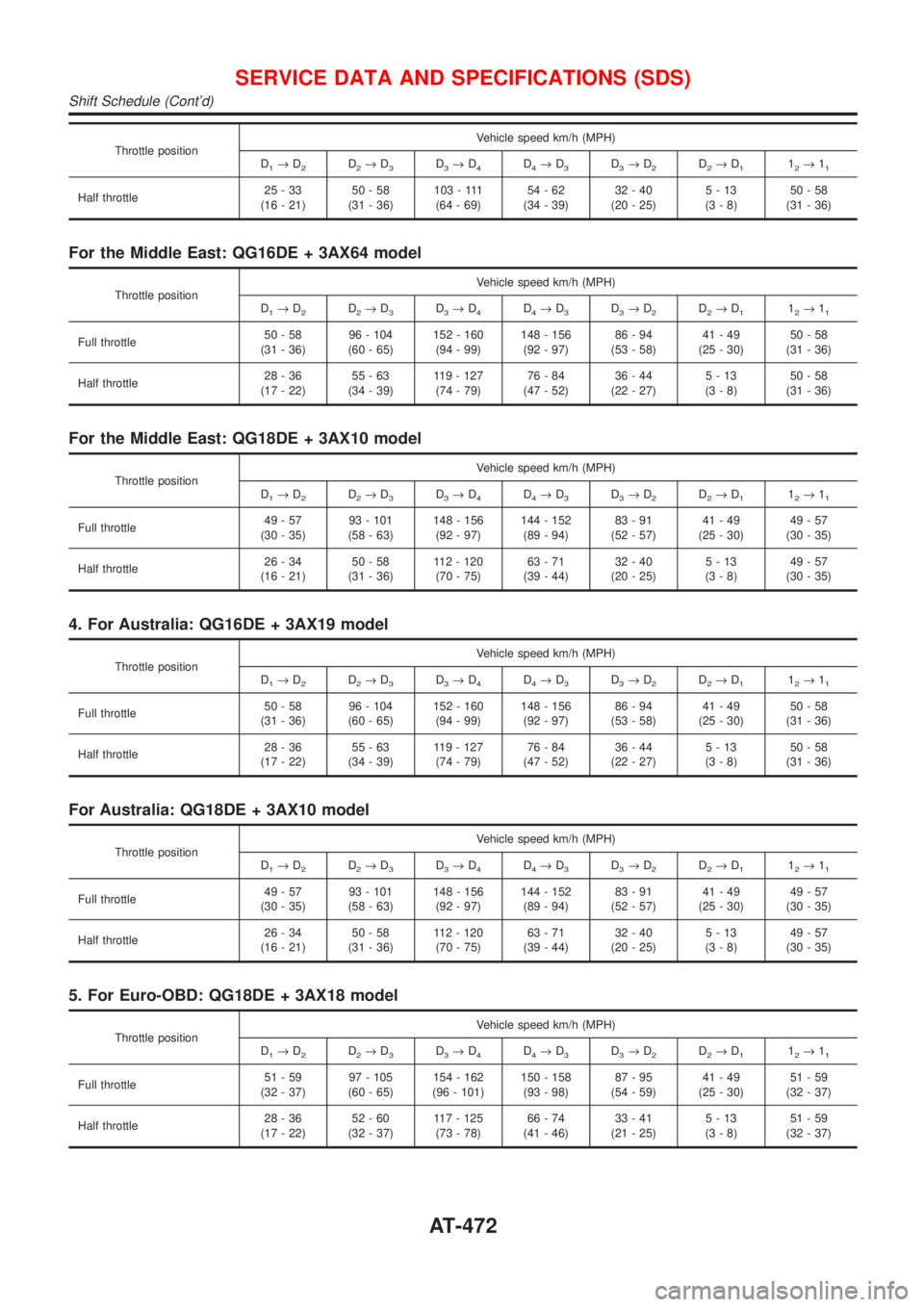

NISSAN ALMERA 2001 Service Manual Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Half throttle25-33
(16 - 21)50-58
(31 - 36)1 0 3 - 111
(64 - 69)54-62
(34 - 39)32-40
(20 - 25)5-13
(3-8)50-58
(31

Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Half throttle25-33
(16 - 21)50-58
(31 - 36)1 0 3 - 111
(64 - 69)54-62
(34 - 39)32-40
(20 - 25)5-13
(3-8)50-58
(31 - 36)
For the Middle East: QG16DE + 3AX64 model
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle50-58
(31 - 36)96 - 104
(60 - 65)152 - 160
(94 - 99)148 - 156
(92 - 97)86-94
(53 - 58)41-49
(25 - 30)50-58
(31 - 36)
Half throttle28-36
(17 - 22)55-63
(34 - 39)119 - 127
(74 - 79)76-84
(47 - 52)36-44
(22 - 27)5-13
(3-8)50-58
(31 - 36)
For the Middle East: QG18DE + 3AX10 model
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle49-57
(30 - 35)93 - 101
(58 - 63)148 - 156
(92 - 97)144 - 152
(89 - 94)83-91
(52 - 57)41-49
(25 - 30)49-57
(30 - 35)
Half throttle26-34
(16 - 21)50-58
(31 - 36)112 - 120
(70 - 75)63-71
(39 - 44)32-40
(20 - 25)5-13
(3-8)49-57
(30 - 35)
4. For Australia: QG16DE + 3AX19 model
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle50-58
(31 - 36)96 - 104
(60 - 65)152 - 160
(94 - 99)148 - 156
(92 - 97)86-94
(53 - 58)41-49
(25 - 30)50-58
(31 - 36)
Half throttle28-36
(17 - 22)55-63
(34 - 39)119 - 127
(74 - 79)76-84
(47 - 52)36-44
(22 - 27)5-13
(3-8)50-58
(31 - 36)
For Australia: QG18DE + 3AX10 model
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle49-57
(30 - 35)93 - 101
(58 - 63)148 - 156
(92 - 97)144 - 152
(89 - 94)83-91
(52 - 57)41-49
(25 - 30)49-57
(30 - 35)
Half throttle26-34
(16 - 21)50-58
(31 - 36)112 - 120
(70 - 75)63-71
(39 - 44)32-40
(20 - 25)5-13
(3-8)49-57
(30 - 35)
5. For Euro-OBD: QG18DE + 3AX18 model
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle51-59
(32 - 37)97 - 105
(60 - 65)154 - 162
(96 - 101)150 - 158
(93 - 98)87-95
(54 - 59)41-49
(25 - 30)51-59
(32 - 37)
Half throttle28-36
(17 - 22)52-60
(32 - 37)117 - 125
(73 - 78)66-74
(41 - 46)33-41
(21 - 25)5-13
(3-8)51-59
(32 - 37)
SERVICE DATA AND SPECIFICATIONS (SDS)
Shift Schedule (Cont'd)
AT-472

Page 475 of 2898

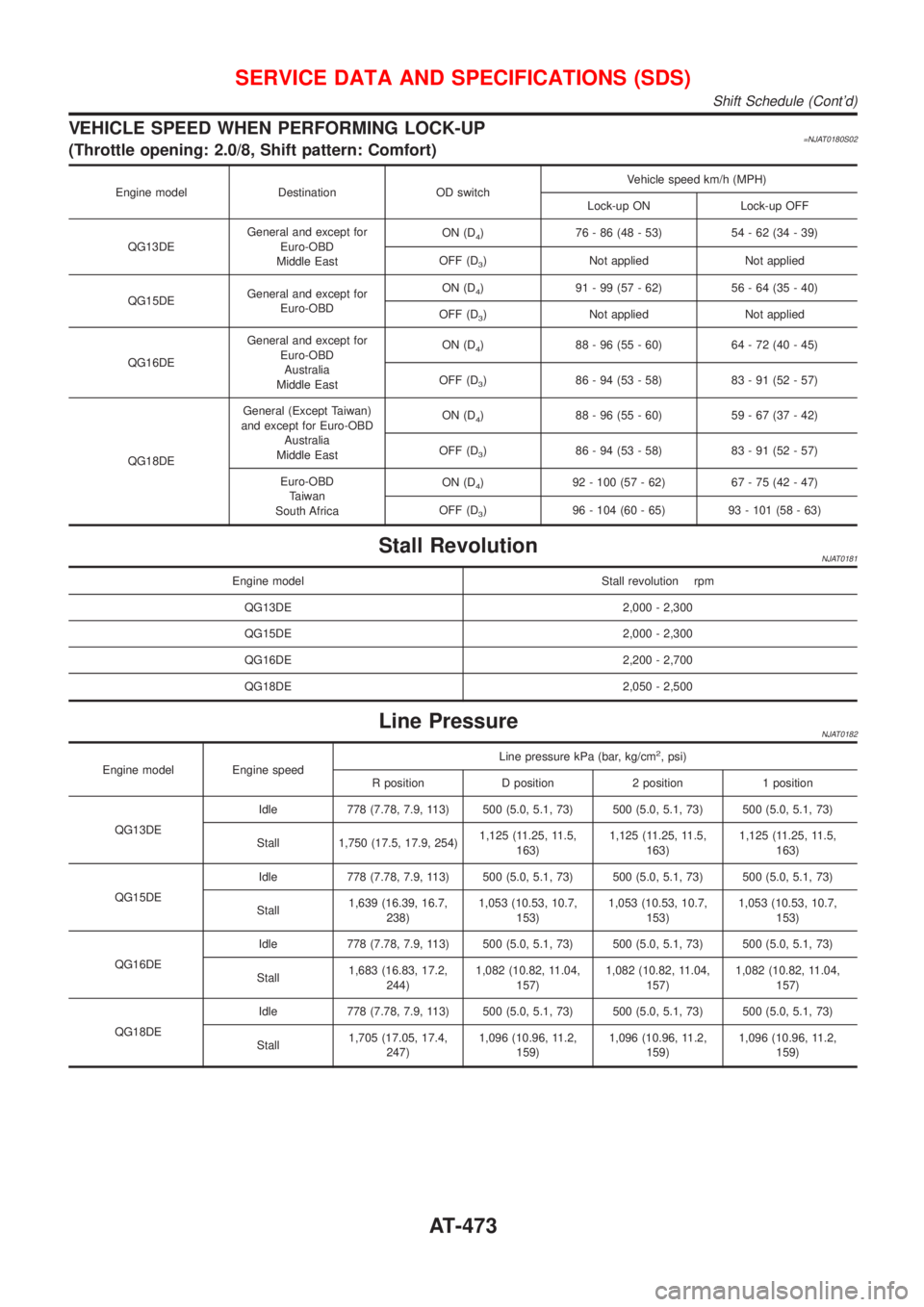

NISSAN ALMERA 2001 Service Manual VEHICLE SPEED WHEN PERFORMING LOCK-UP=NJAT0180S02(Throttle opening: 2.0/8, Shift pattern: Comfort)
Engine model Destination OD switchVehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
QG13DEGeneral and e

Page 476 of 2898

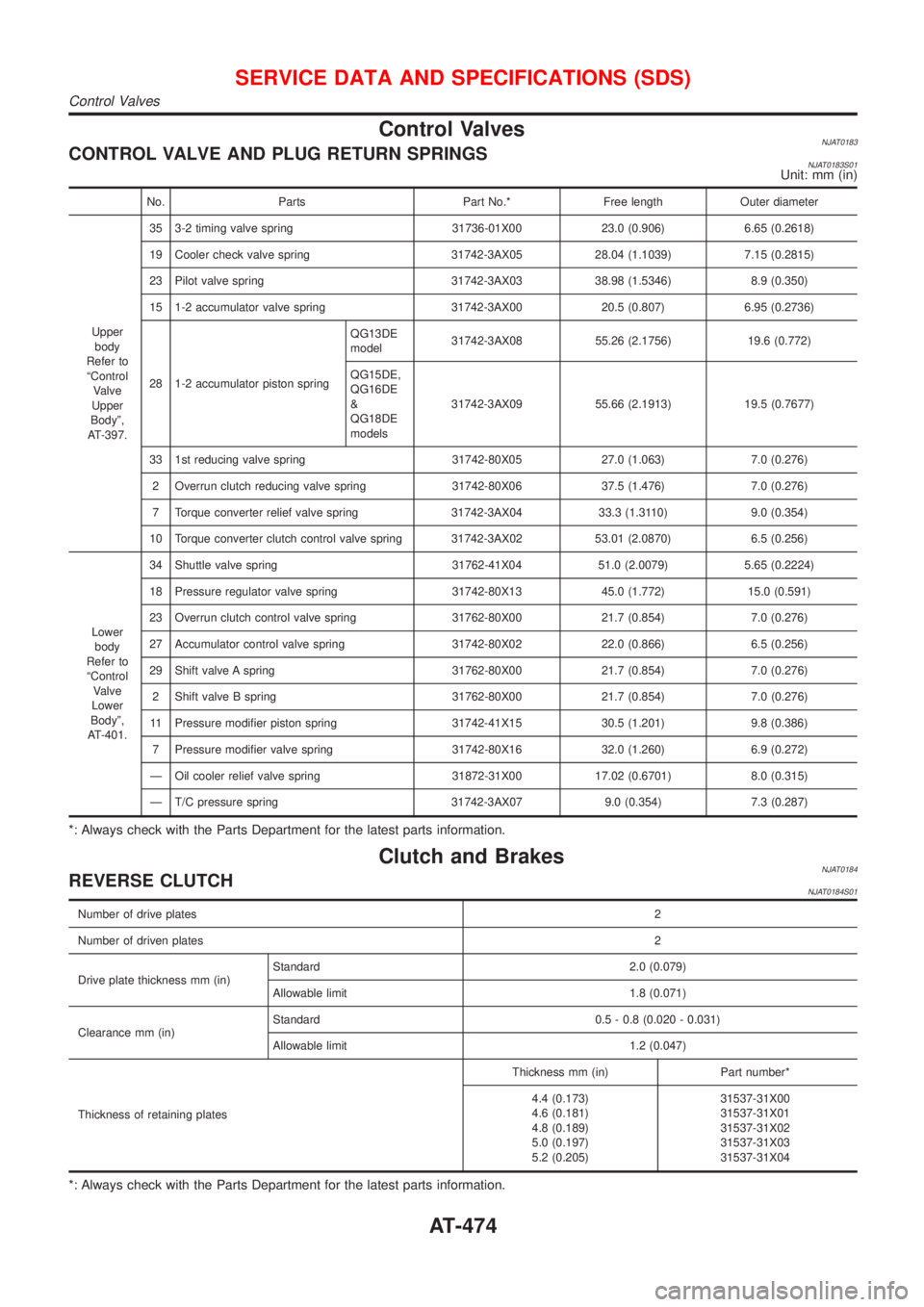

NISSAN ALMERA 2001 Service Manual Control ValvesNJAT0183CONTROL VALVE AND PLUG RETURN SPRINGSNJAT0183S01Unit: mm (in)
No. Parts Part No.* Free length Outer diameter
Upper
body
Refer to
ªControl
Valve
Upper
Bodyº,
AT-397.35 3-2 timin

Control ValvesNJAT0183CONTROL VALVE AND PLUG RETURN SPRINGSNJAT0183S01Unit: mm (in)
No. Parts Part No.* Free length Outer diameter
Upper
body
Refer to
ªControl
Valve
Upper
Bodyº,
AT-397.35 3-2 timing valve spring 31736-01X00 23.0 (0.906) 6.65 (0.2618)
19 Cooler check valve spring 31742-3AX05 28.04 (1.1039) 7.15 (0.2815)
23 Pilot valve spring 31742-3AX03 38.98 (1.5346) 8.9 (0.350)
15 1-2 accumulator valve spring 31742-3AX00 20.5 (0.807) 6.95 (0.2736)
28 1-2 accumulator piston springQG13DE
model31742-3AX08 55.26 (2.1756) 19.6 (0.772)
QG15DE,
QG16DE
&
QG18DE
models31742-3AX09 55.66 (2.1913) 19.5 (0.7677)
33 1st reducing valve spring 31742-80X05 27.0 (1.063) 7.0 (0.276)
2 Overrun clutch reducing valve spring 31742-80X06 37.5 (1.476) 7.0 (0.276)
7 Torque converter relief valve spring 31742-3AX04 33.3 (1.3110) 9.0 (0.354)
10 Torque converter clutch control valve spring 31742-3AX02 53.01 (2.0870) 6.5 (0.256)
Lower
body
Refer to
ªControl
Valve
Lower
Bodyº,
AT-401.34 Shuttle valve spring 31762-41X04 51.0 (2.0079) 5.65 (0.2224)
18 Pressure regulator valve spring 31742-80X13 45.0 (1.772) 15.0 (0.591)
23 Overrun clutch control valve spring 31762-80X00 21.7 (0.854) 7.0 (0.276)
27 Accumulator control valve spring 31742-80X02 22.0 (0.866) 6.5 (0.256)
29 Shift valve A spring 31762-80X00 21.7 (0.854) 7.0 (0.276)
2 Shift valve B spring 31762-80X00 21.7 (0.854) 7.0 (0.276)
11 Pressure modifier piston spring 31742-41X15 30.5 (1.201) 9.8 (0.386)
7 Pressure modifier valve spring 31742-80X16 32.0 (1.260) 6.9 (0.272)
Ð Oil cooler relief valve spring 31872-31X00 17.02 (0.6701) 8.0 (0.315)
Ð T/C pressure spring 31742-3AX07 9.0 (0.354) 7.3 (0.287)
*: Always check with the Parts Department for the latest parts information.
Clutch and BrakesNJAT0184REVERSE CLUTCHNJAT0184S01
Number of drive plates2
Number of driven plates2
Drive plate thickness mm (in)Standard 2.0 (0.079)
Allowable limit 1.8 (0.071)
Clearance mm (in)Standard 0.5 - 0.8 (0.020 - 0.031)
Allowable limit 1.2 (0.047)
Thickness of retaining platesThickness mm (in) Part number*
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)31537-31X00
31537-31X01
31537-31X02
31537-31X03
31537-31X04
*: Always check with the Parts Department for the latest parts information.
SERVICE DATA AND SPECIFICATIONS (SDS)
Control Valves
AT-474

Page 477 of 2898

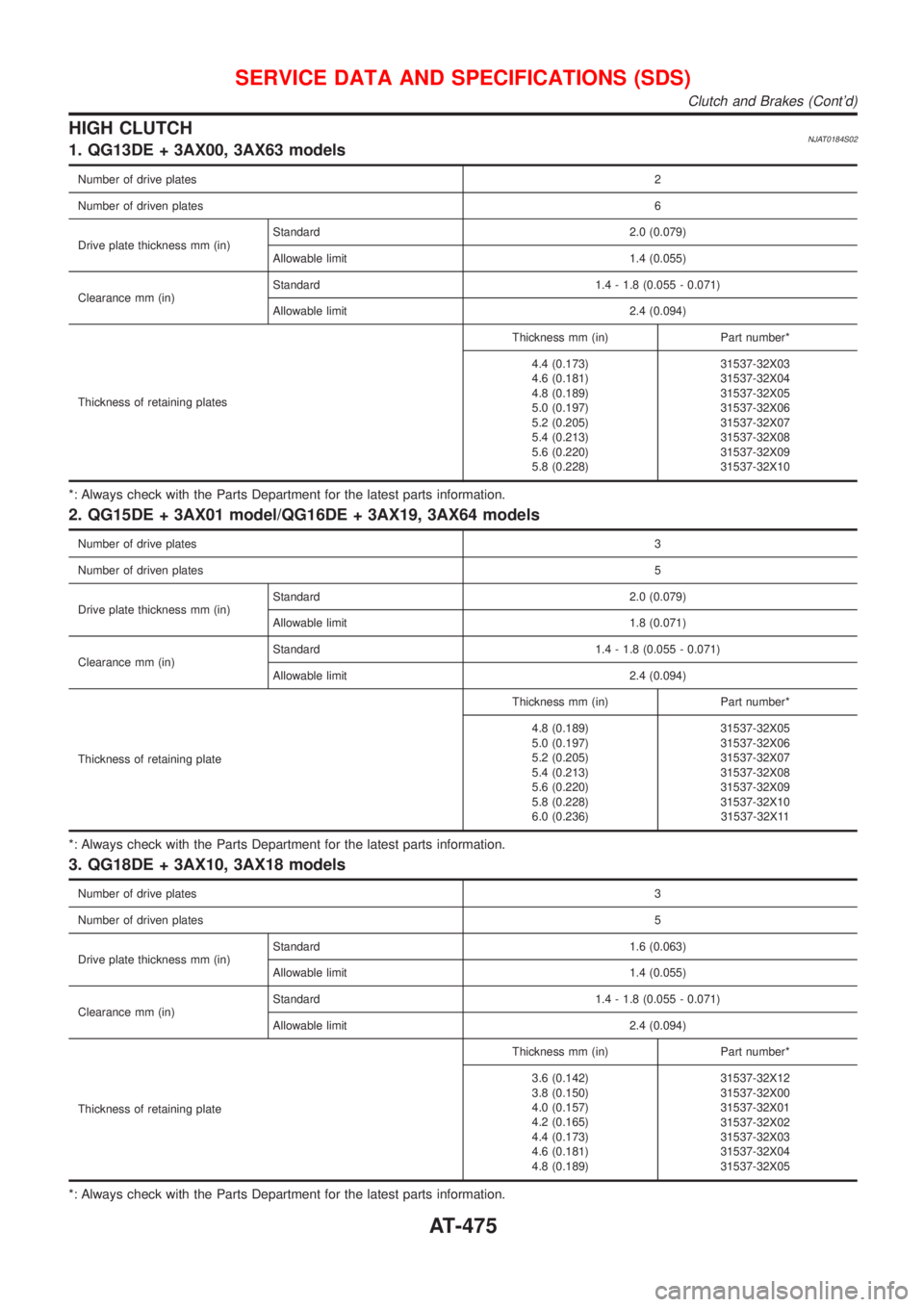

NISSAN ALMERA 2001 Service Manual HIGH CLUTCHNJAT0184S021. QG13DE + 3AX00, 3AX63 models
Number of drive plates2
Number of driven plates6
Drive plate thickness mm (in)Standard 2.0 (0.079)
Allowable limit 1.4 (0.055)
Clearance mm (in)St

Page 478 of 2898

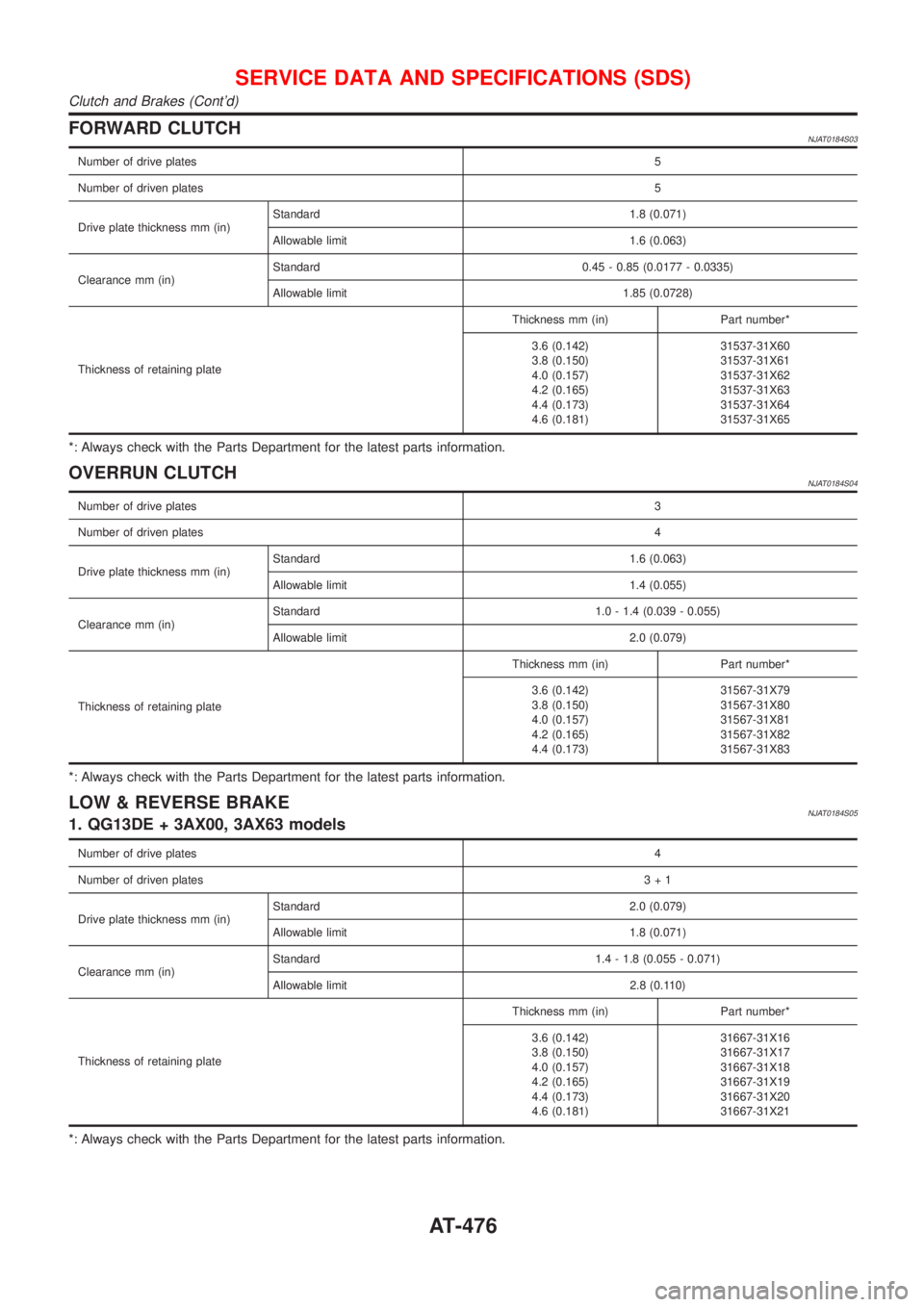

NISSAN ALMERA 2001 Service Manual FORWARD CLUTCHNJAT0184S03
Number of drive plates5
Number of driven plates5
Drive plate thickness mm (in)Standard 1.8 (0.071)
Allowable limit 1.6 (0.063)
Clearance mm (in)Standard 0.45 - 0.85 (0.0177 -

Page 479 of 2898

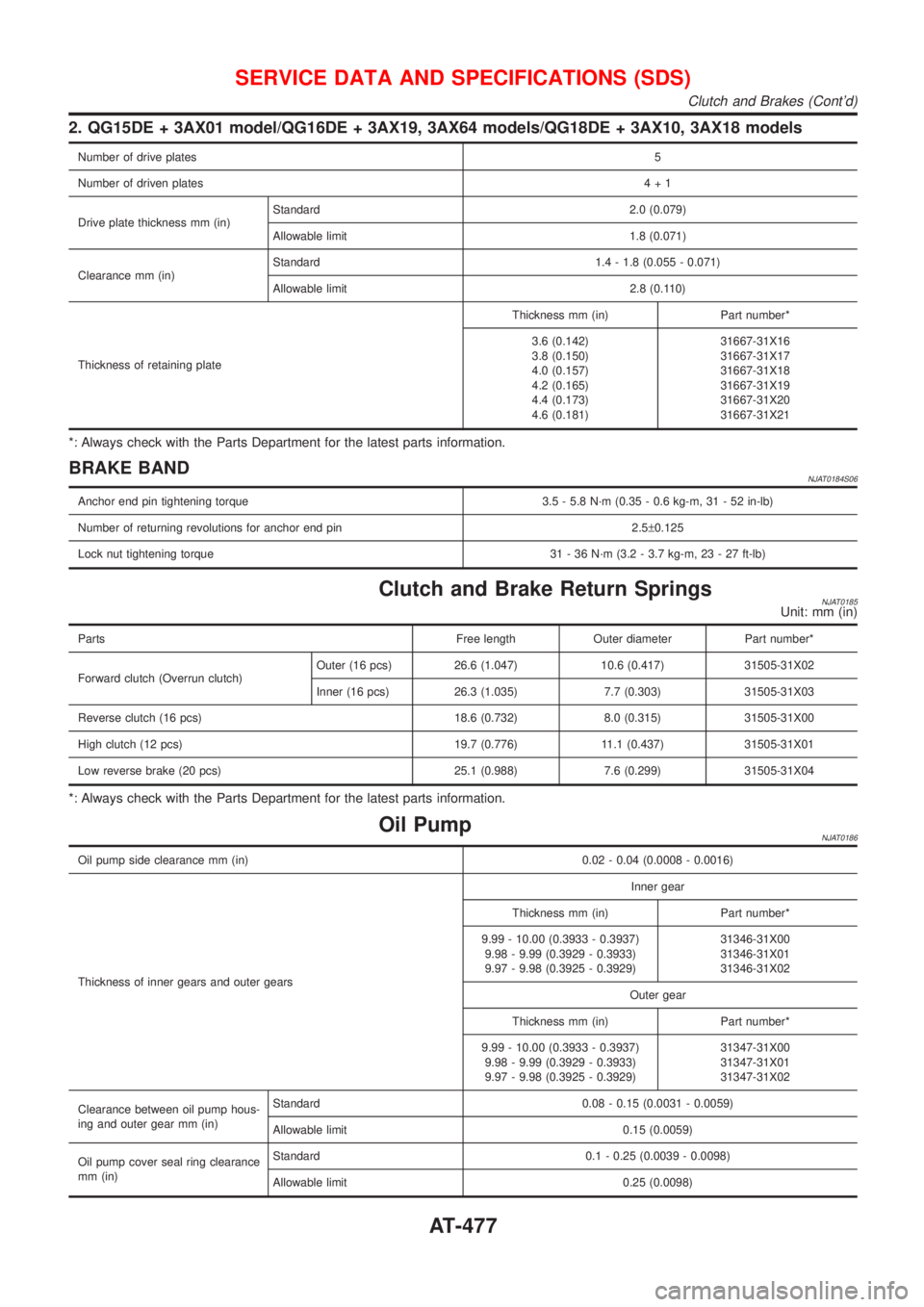

NISSAN ALMERA 2001 Service Manual 2. QG15DE + 3AX01 model/QG16DE + 3AX19, 3AX64 models/QG18DE + 3AX10, 3AX18 models
Number of drive plates5
Number of driven plates4+1
Drive plate thickness mm (in)Standard 2.0 (0.079)
Allowable limit 1

2. QG15DE + 3AX01 model/QG16DE + 3AX19, 3AX64 models/QG18DE + 3AX10, 3AX18 models
Number of drive plates5
Number of driven plates4+1
Drive plate thickness mm (in)Standard 2.0 (0.079)
Allowable limit 1.8 (0.071)
Clearance mm (in)Standard 1.4 - 1.8 (0.055 - 0.071)
Allowable limit 2.8 (0.110)
Thickness of retaining plateThickness mm (in) Part number*
3.6 (0.142)
3.8 (0.150)
4.0 (0.157)
4.2 (0.165)
4.4 (0.173)
4.6 (0.181)31667-31X16
31667-31X17
31667-31X18
31667-31X19
31667-31X20
31667-31X21
*: Always check with the Parts Department for the latest parts information.
BRAKE BANDNJAT0184S06
Anchor end pin tightening torque 3.5 - 5.8 N´m (0.35 - 0.6 kg-m, 31 - 52 in-lb)
Number of returning revolutions for anchor end pin 2.5±0.125
Lock nut tightening torque 31 - 36 N´m (3.2 - 3.7 kg-m, 23 - 27 ft-lb)
Clutch and Brake Return SpringsNJAT0185Unit: mm (in)
Parts Free length Outer diameter Part number*
Forward clutch (Overrun clutch)Outer (16 pcs) 26.6 (1.047) 10.6 (0.417) 31505-31X02
Inner (16 pcs) 26.3 (1.035) 7.7 (0.303) 31505-31X03
Reverse clutch (16 pcs) 18.6 (0.732) 8.0 (0.315) 31505-31X00
High clutch (12 pcs) 19.7 (0.776) 11.1 (0.437) 31505-31X01
Low reverse brake (20 pcs) 25.1 (0.988) 7.6 (0.299) 31505-31X04
*: Always check with the Parts Department for the latest parts information.
Oil PumpNJAT0186
Oil pump side clearance mm (in) 0.02 - 0.04 (0.0008 - 0.0016)
Thickness of inner gears and outer gearsInner gear
Thickness mm (in) Part number*
9.99 - 10.00 (0.3933 - 0.3937)
9.98 - 9.99 (0.3929 - 0.3933)
9.97 - 9.98 (0.3925 - 0.3929)31346-31X00
31346-31X01
31346-31X02
Outer gear
Thickness mm (in) Part number*
9.99 - 10.00 (0.3933 - 0.3937)
9.98 - 9.99 (0.3929 - 0.3933)
9.97 - 9.98 (0.3925 - 0.3929)31347-31X00
31347-31X01
31347-31X02
Clearance between oil pump hous-
ing and outer gear mm (in)Standard 0.08 - 0.15 (0.0031 - 0.0059)
Allowable limit 0.15 (0.0059)
Oil pump cover seal ring clearance
mm (in)Standard 0.1 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
SERVICE DATA AND SPECIFICATIONS (SDS)
Clutch and Brakes (Cont'd)
AT-477

Page 480 of 2898

NISSAN ALMERA 2001 Service Manual *: Always check with the Parts Department for the latest parts information.

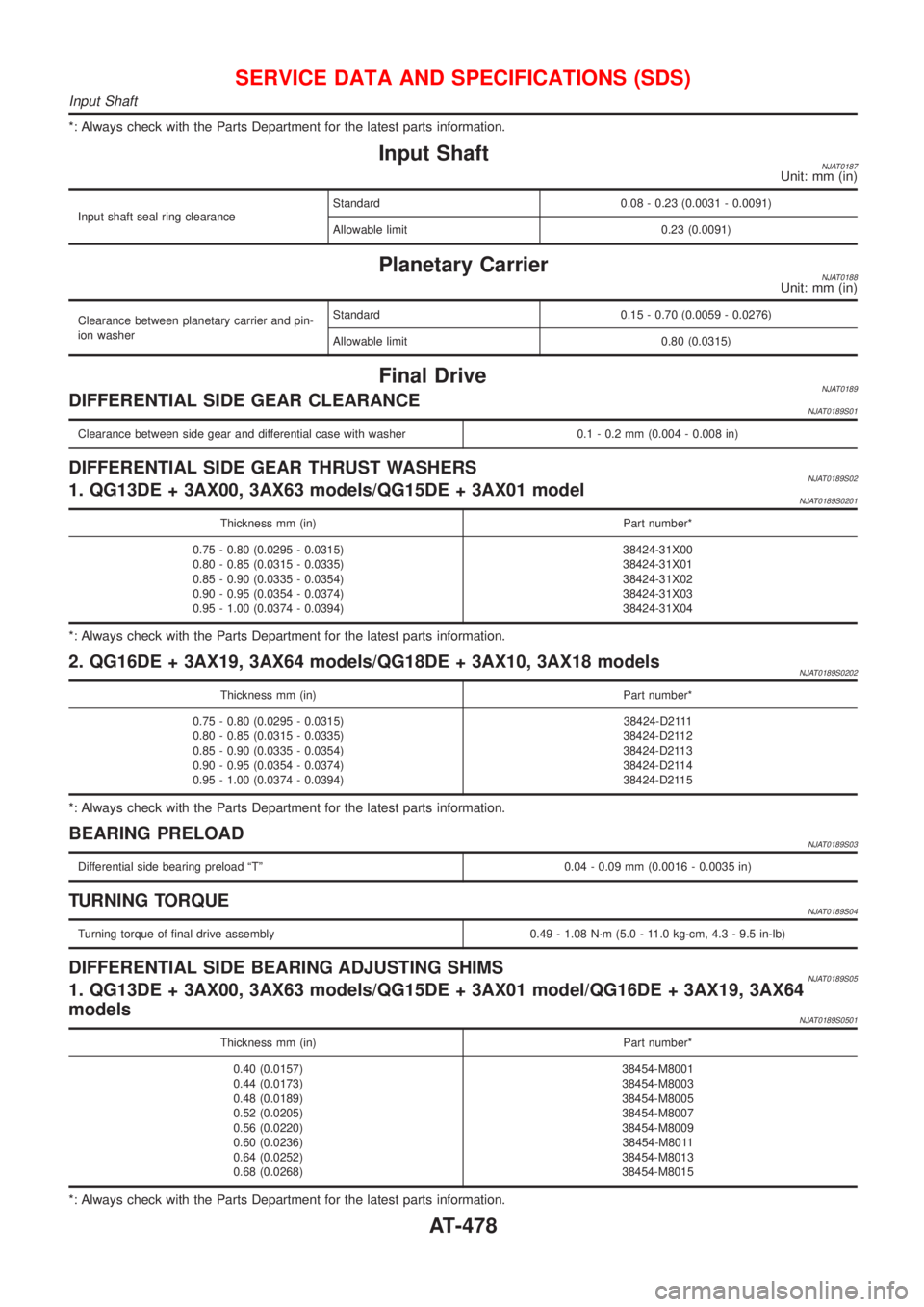

Input ShaftNJAT0187Unit: mm (in)
Input shaft seal ring clearanceStandard 0.08 - 0.23 (0.0031 - 0.0091)
Allowable limit 0.23

*: Always check with the Parts Department for the latest parts information.
Input ShaftNJAT0187Unit: mm (in)
Input shaft seal ring clearanceStandard 0.08 - 0.23 (0.0031 - 0.0091)
Allowable limit 0.23 (0.0091)
Planetary CarrierNJAT0188Unit: mm (in)
Clearance between planetary carrier and pin-
ion washerStandard 0.15 - 0.70 (0.0059 - 0.0276)
Allowable limit 0.80 (0.0315)
Final DriveNJAT0189DIFFERENTIAL SIDE GEAR CLEARANCENJAT0189S01
Clearance between side gear and differential case with washer 0.1 - 0.2 mm (0.004 - 0.008 in)
DIFFERENTIAL SIDE GEAR THRUST WASHERSNJAT0189S021. QG13DE + 3AX00, 3AX63 models/QG15DE + 3AX01 modelNJAT0189S0201
Thickness mm (in) Part number*
0.75 - 0.80 (0.0295 - 0.0315)
0.80 - 0.85 (0.0315 - 0.0335)
0.85 - 0.90 (0.0335 - 0.0354)
0.90 - 0.95 (0.0354 - 0.0374)
0.95 - 1.00 (0.0374 - 0.0394)38424-31X00
38424-31X01
38424-31X02
38424-31X03
38424-31X04
*: Always check with the Parts Department for the latest parts information.
2. QG16DE + 3AX19, 3AX64 models/QG18DE + 3AX10, 3AX18 modelsNJAT0189S0202
Thickness mm (in) Part number*
0.75 - 0.80 (0.0295 - 0.0315)
0.80 - 0.85 (0.0315 - 0.0335)
0.85 - 0.90 (0.0335 - 0.0354)
0.90 - 0.95 (0.0354 - 0.0374)
0.95 - 1.00 (0.0374 - 0.0394)38424-D2111
38424-D2112
38424-D2113
38424-D2114
38424-D2115
*: Always check with the Parts Department for the latest parts information.
BEARING PRELOADNJAT0189S03
Differential side bearing preload ªTº 0.04 - 0.09 mm (0.0016 - 0.0035 in)
TURNING TORQUENJAT0189S04
Turning torque of final drive assembly 0.49 - 1.08 N´m (5.0 - 11.0 kg-cm, 4.3 - 9.5 in-lb)
DIFFERENTIAL SIDE BEARING ADJUSTING SHIMSNJAT0189S051. QG13DE + 3AX00, 3AX63 models/QG15DE + 3AX01 model/QG16DE + 3AX19, 3AX64
models
NJAT0189S0501
Thickness mm (in) Part number*
0.40 (0.0157)
0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)38454-M8001
38454-M8003
38454-M8005
38454-M8007
38454-M8009
38454-M8011
38454-M8013
38454-M8015
*: Always check with the Parts Department for the latest parts information.
SERVICE DATA AND SPECIFICATIONS (SDS)
Input Shaft
AT-478

Load next 8 pages

Page: < prev 1-10 ... 441-448 449-456 457-464 465-472 473-480 481-488 489-496 497-504 505-512 ... 2904 next >

ECO mode gas type air conditioning fuel tank removal diagnostic menu key fob battery
