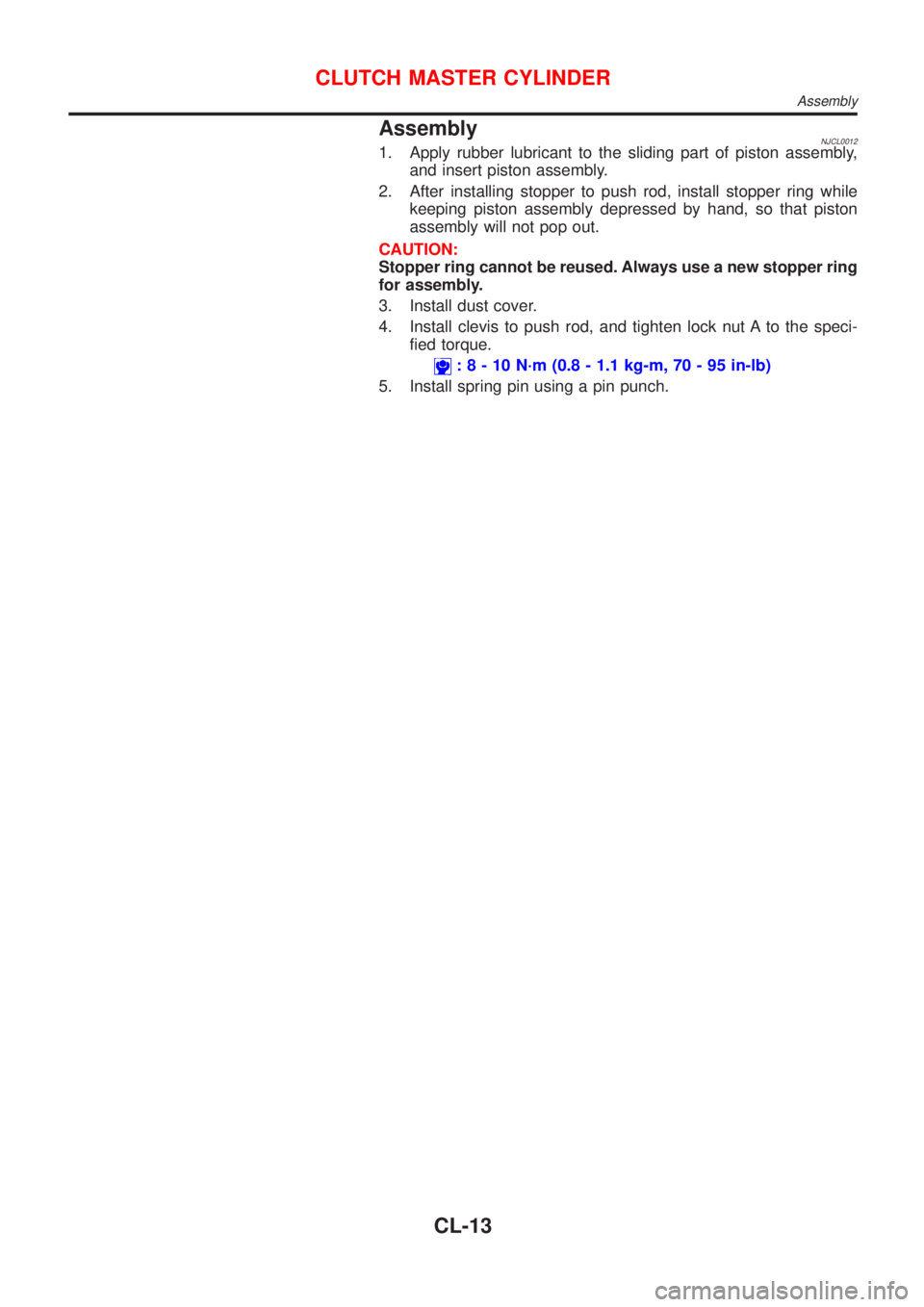

2001 NISSAN ALMERA Service Manual

Page 713 of 2898

NISSAN ALMERA 2001  Service Manual AssemblyNJCL00121. Apply rubber lubricant to the sliding part of piston assembly,
and insert piston assembly.
2. After installing stopper to push rod, install stopper ring while
keeping piston assembl

Page 714 of 2898

NISSAN ALMERA 2001  Service Manual ComponentsNJCL0019
YCL003
RemovalNJCL00201. Drain brake fluid.
CAUTION:
Be careful not to splash brake fluid on painted areas; it may
cause paint damage. If brake fluid is splashed on painted
areas, w

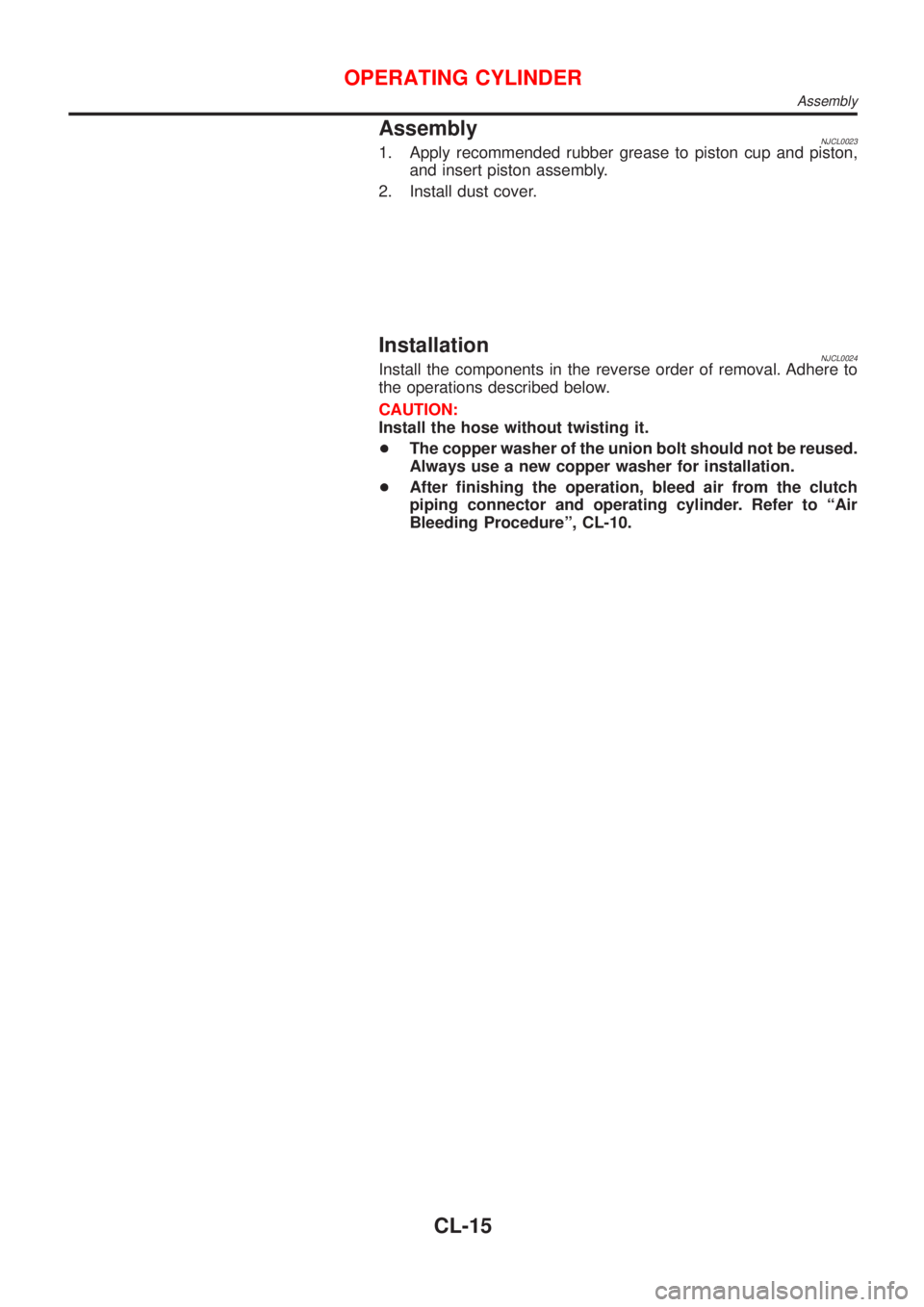

Page 715 of 2898

NISSAN ALMERA 2001  Service Manual AssemblyNJCL00231. Apply recommended rubber grease to piston cup and piston,
and insert piston assembly.
2. Install dust cover.
InstallationNJCL0024Install the components in the reverse order of remov

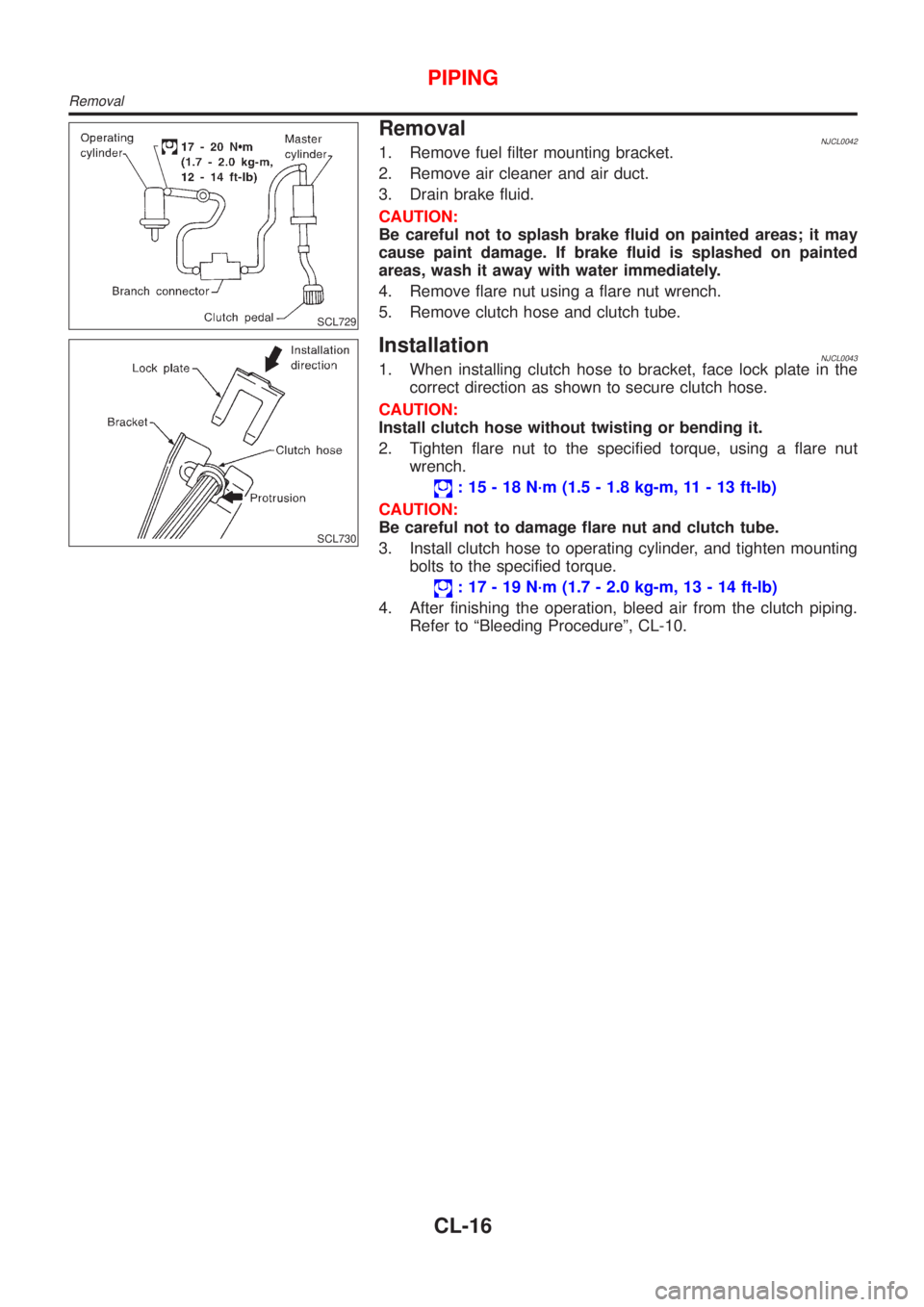

Page 716 of 2898

NISSAN ALMERA 2001  Service Manual SCL729
RemovalNJCL00421. Remove fuel filter mounting bracket.
2. Remove air cleaner and air duct.
3. Drain brake fluid.
CAUTION:
Be careful not to splash brake fluid on painted areas; it may
cause pai

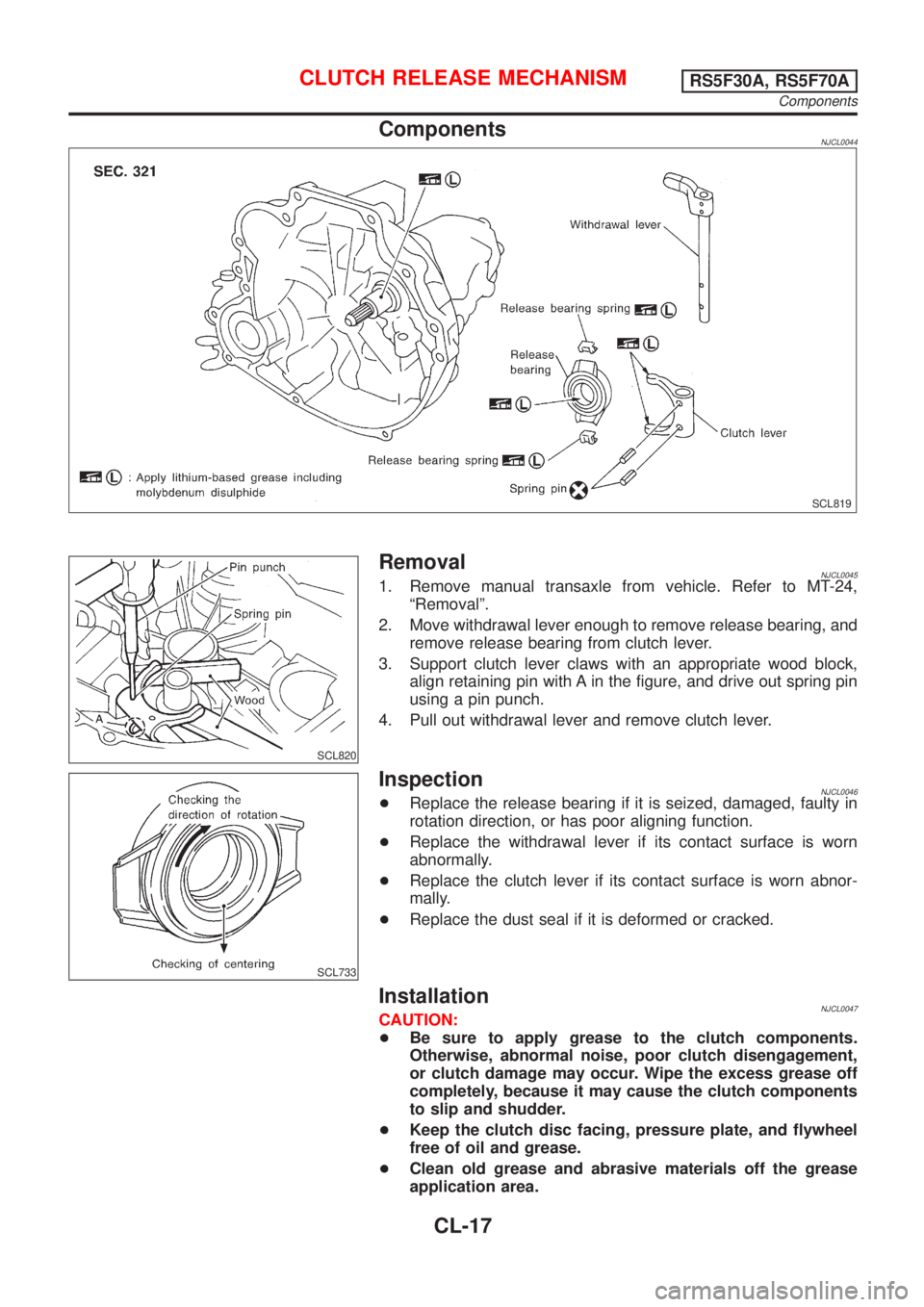

Page 717 of 2898

NISSAN ALMERA 2001  Service Manual ComponentsNJCL0044
SCL819
SCL820
RemovalNJCL00451. Remove manual transaxle from vehicle. Refer to MT-24,
ªRemovalº.
2. Move withdrawal lever enough to remove release bearing, and
remove release bear

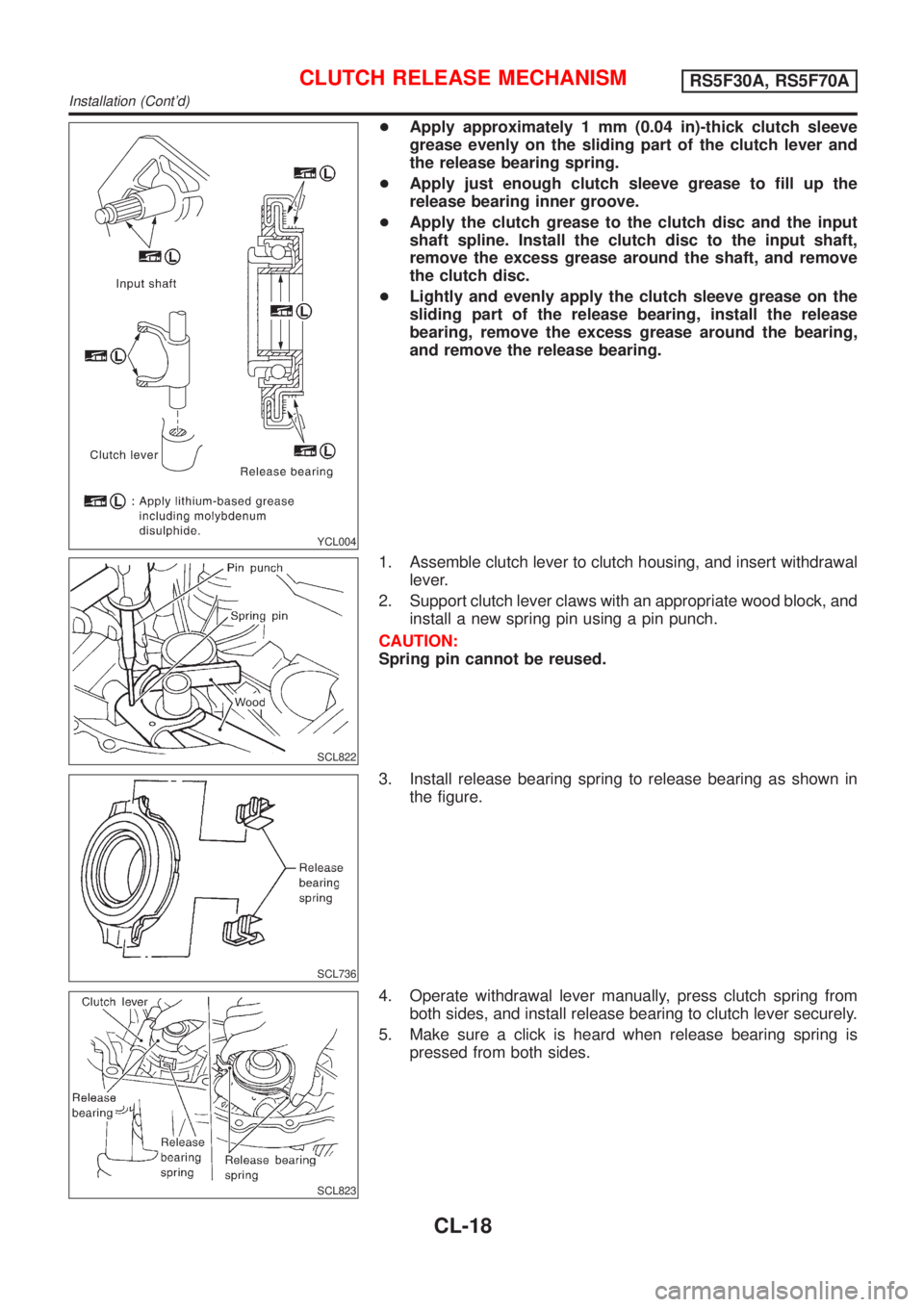

Page 718 of 2898

NISSAN ALMERA 2001  Service Manual YCL004
+Apply approximately 1 mm (0.04 in)-thick clutch sleeve
grease evenly on the sliding part of the clutch lever and
the release bearing spring.
+Apply just enough clutch sleeve grease to fill up

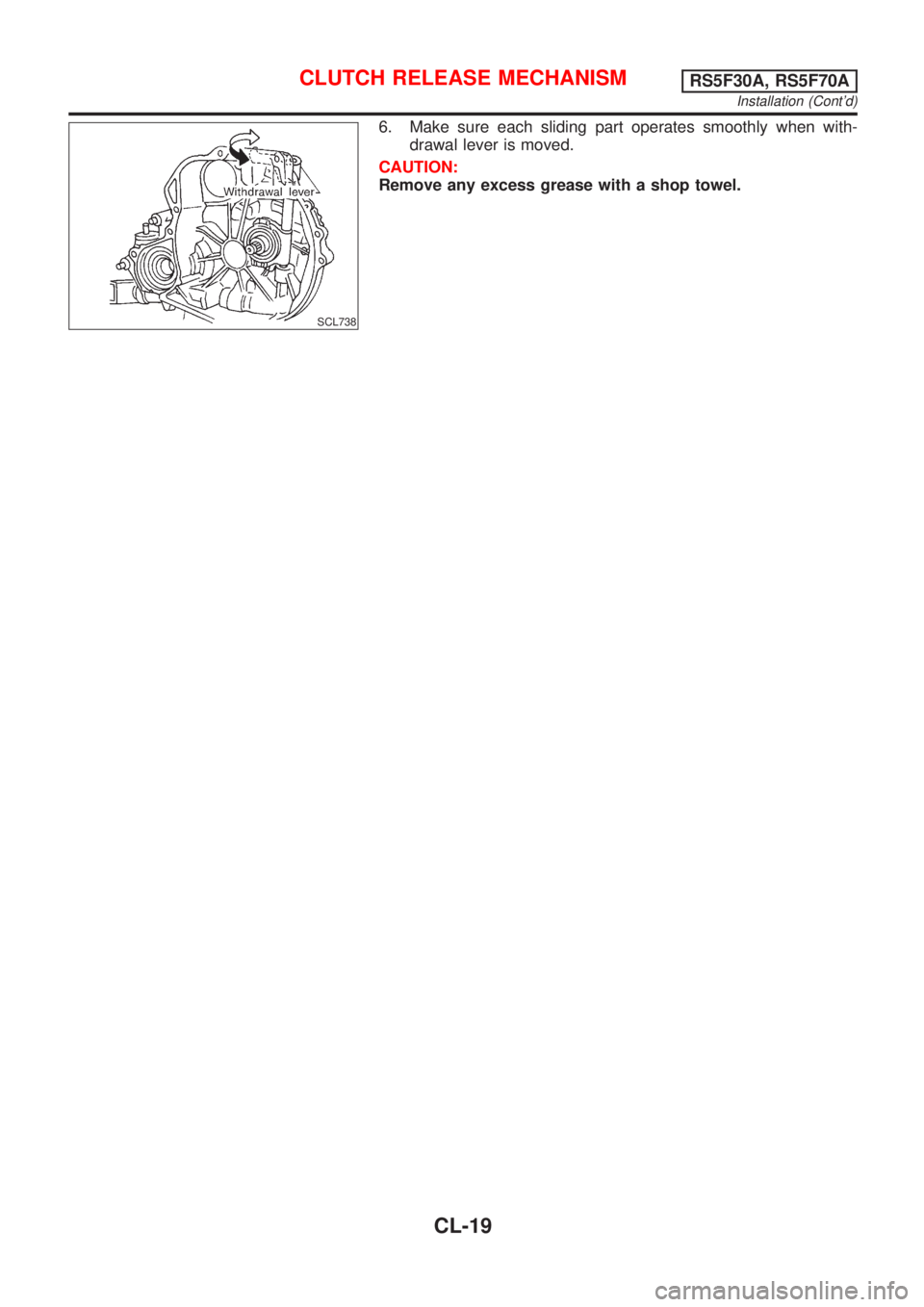

Page 719 of 2898

NISSAN ALMERA 2001  Service Manual SCL738
6. Make sure each sliding part operates smoothly when with-
drawal lever is moved.
CAUTION:
Remove any excess grease with a shop towel.
CLUTCH RELEASE MECHANISMRS5F30A, RS5F70A
Installation (Co

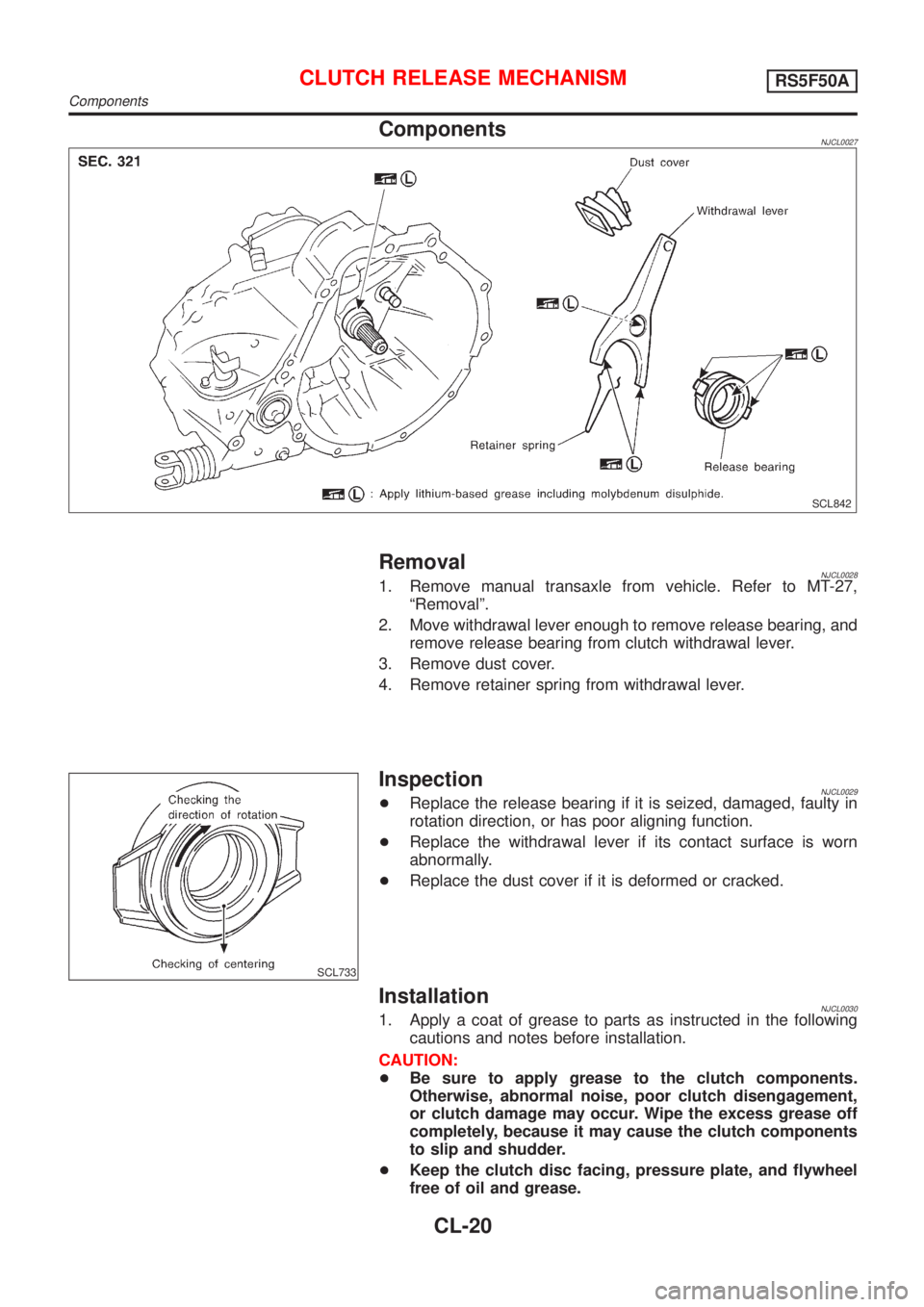

Page 720 of 2898

NISSAN ALMERA 2001  Service Manual ComponentsNJCL0027
SCL842
RemovalNJCL00281. Remove manual transaxle from vehicle. Refer to MT-27,
ªRemovalº.
2. Move withdrawal lever enough to remove release bearing, and
remove release bearing fro
