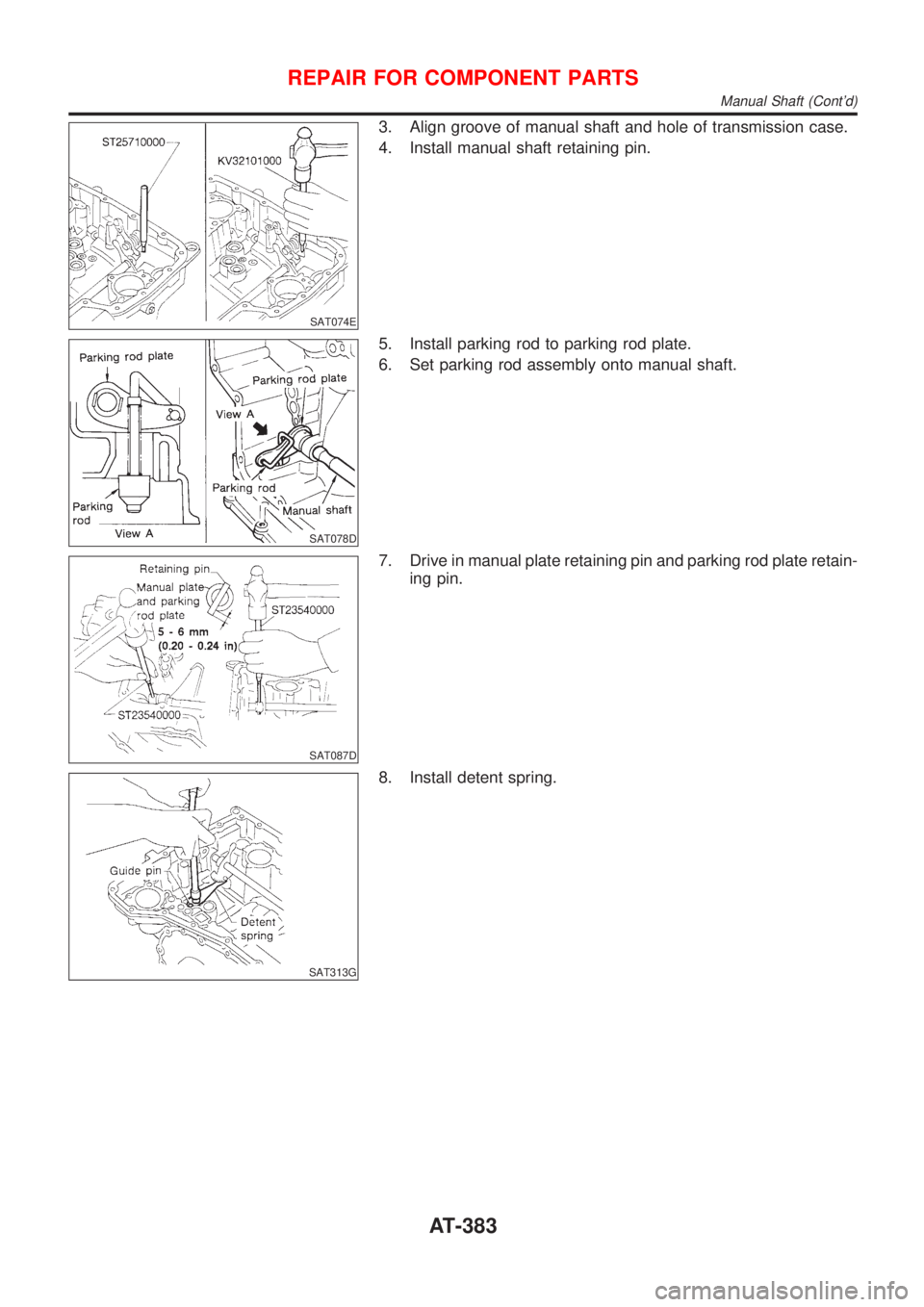

Page 385 of 2898

NISSAN ALMERA 2001 Service Manual SAT074E 3. Align groove of manual shaft and hole of transmission case. 4. Install manual shaft retaining pin. SAT078D 5. Install parking rod to parking rod plate. 6. Set parking rod assembly onto manu

Page 386 of 2898

NISSAN ALMERA 2001 Service Manual Oil Pump COMPONENTSNJAT0125 SAT931J SAT699H DISASSEMBLYNJAT01261. Remove seal rings. SAT091D 2. Loosen bolts in numerical order and remove oil pump cover. SAT092D 3. Remove inner and outer gear from o

Page 387 of 2898

NISSAN ALMERA 2001 Service Manual SAT093D 4. Remove O-ring from oil pump housing. SAT094D 5. Remove oil pump housing oil seal. INSPECTIONNJAT0127Oil Pump Housing, Oil Pump Cover, Inner Gear and Outer Gear NJAT0127S01+Check for wear or

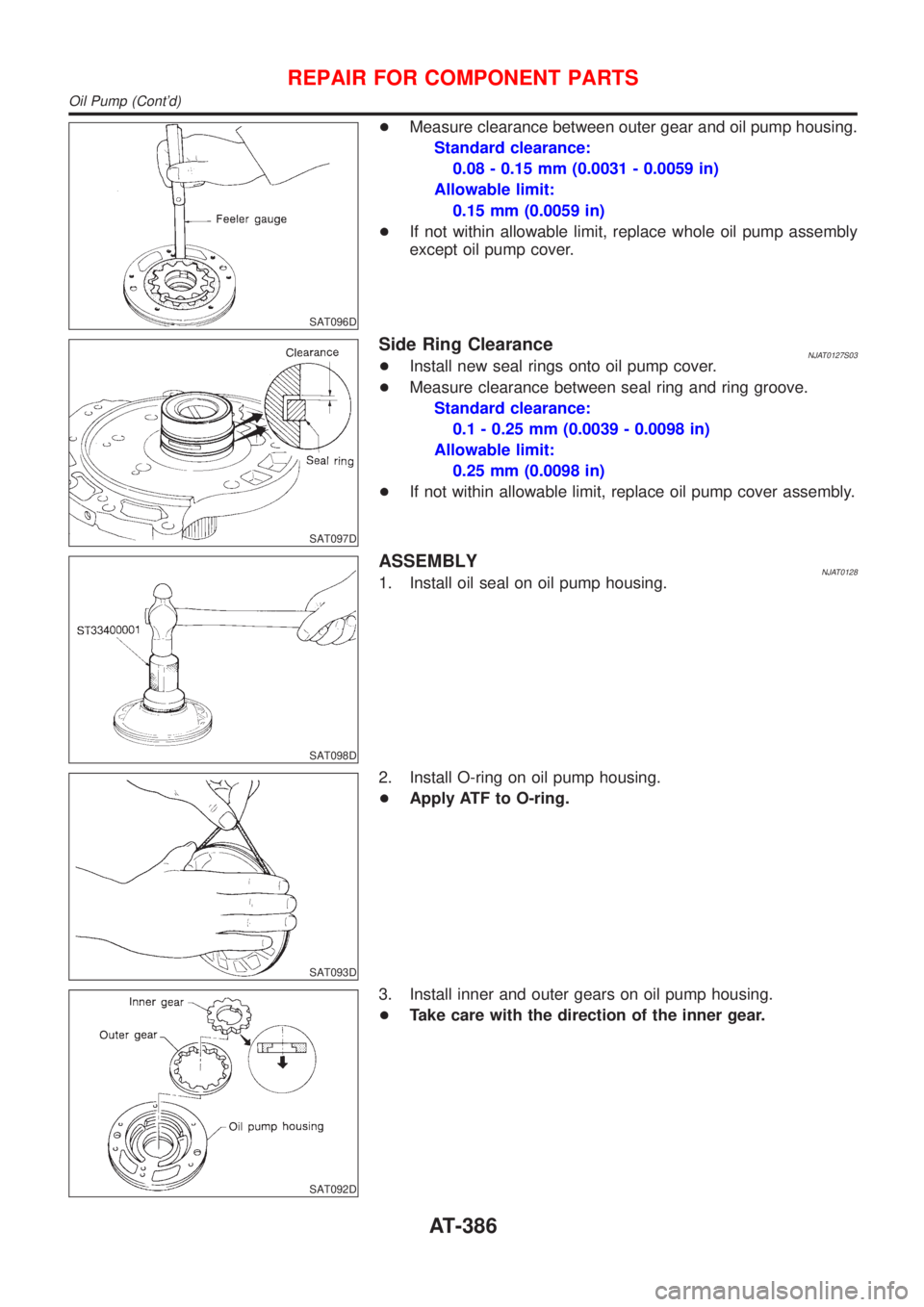

Page 388 of 2898

NISSAN ALMERA 2001 Service Manual SAT096D +Measure clearance between outer gear and oil pump housing. Standard clearance: 0.08 - 0.15 mm (0.0031 - 0.0059 in) Allowable limit: 0.15 mm (0.0059 in) +If not within allowable limit, replace

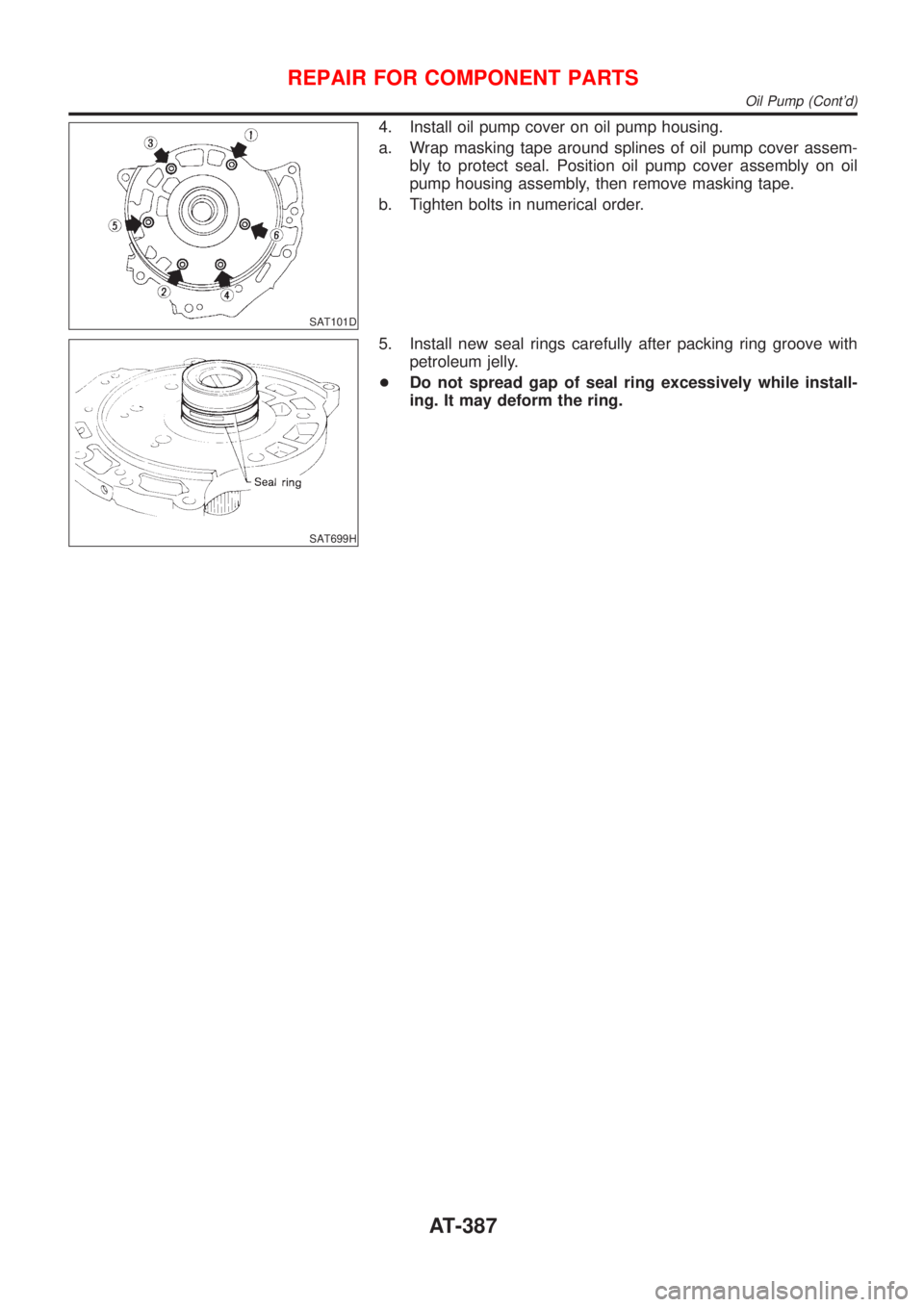

Page 389 of 2898

NISSAN ALMERA 2001 Service Manual SAT101D 4. Install oil pump cover on oil pump housing. a. Wrap masking tape around splines of oil pump cover assem- bly to protect seal. Position oil pump cover assembly on oil pump housing assembly,

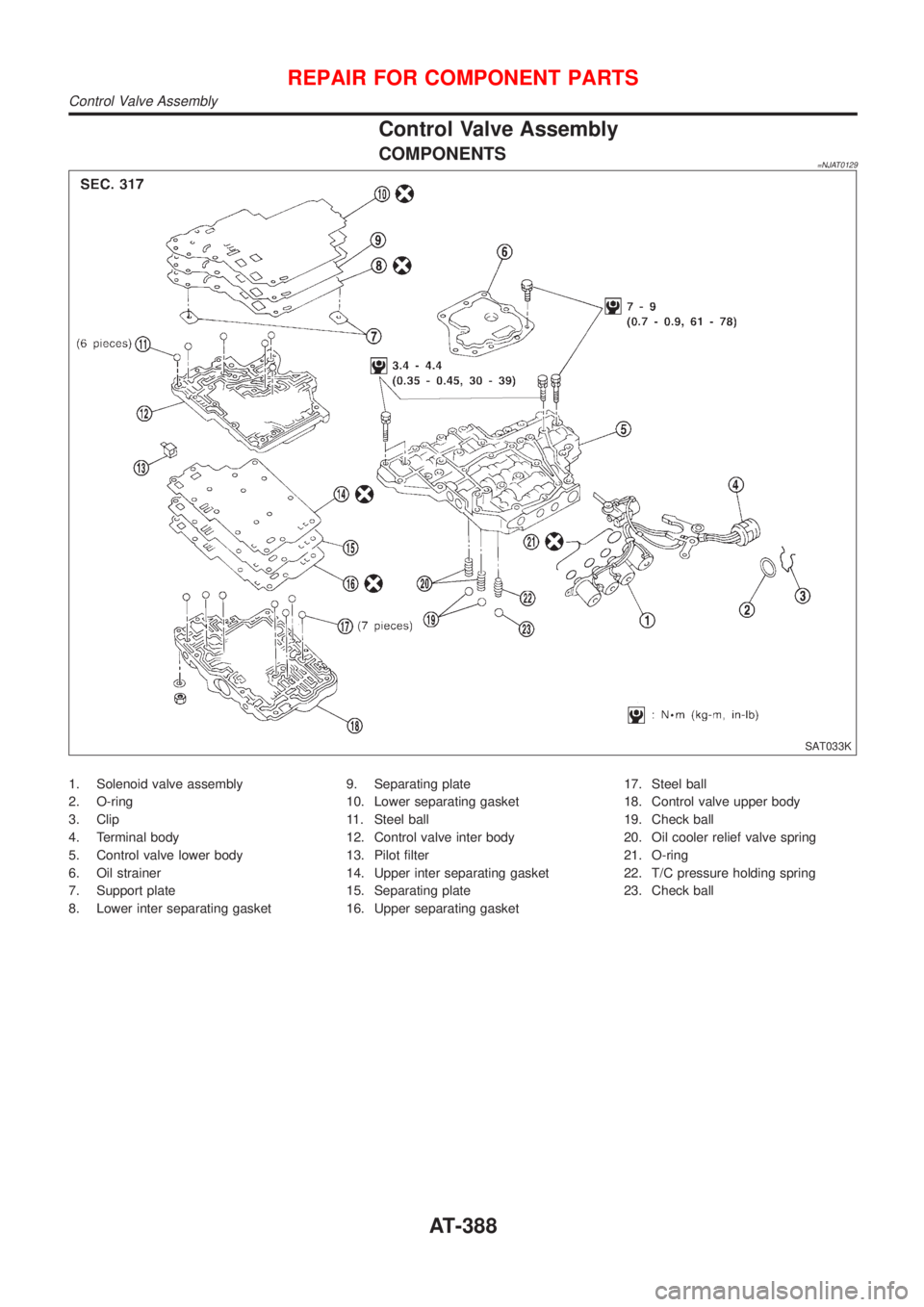

Page 390 of 2898

NISSAN ALMERA 2001 Service Manual Control Valve Assembly COMPONENTS=NJAT0129 SAT033K 1. Solenoid valve assembly 2. O-ring 3. Clip 4. Terminal body 5. Control valve lower body 6. Oil strainer 7. Support plate 8. Lower inter separating

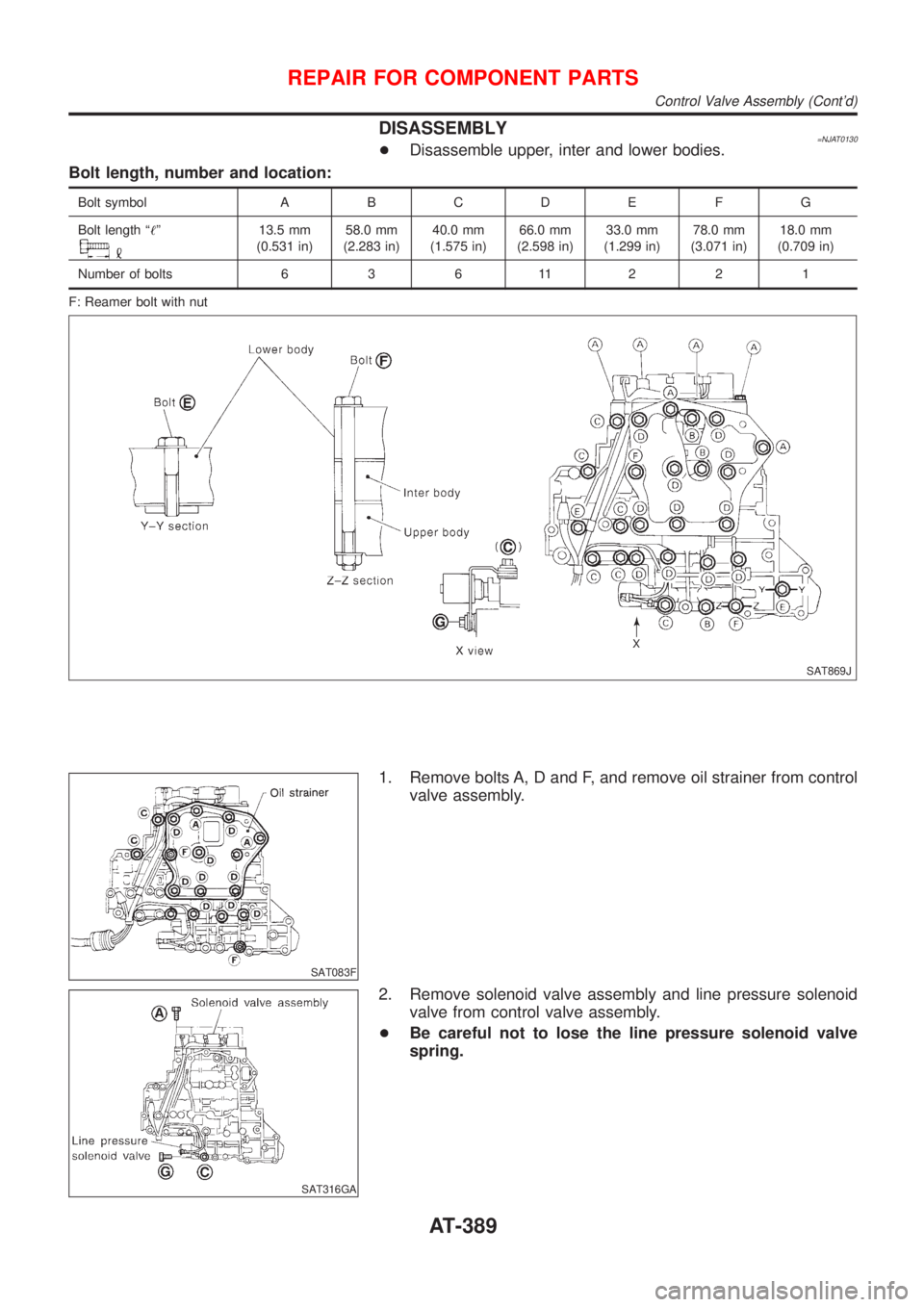

Page 391 of 2898

NISSAN ALMERA 2001 Service Manual DISASSEMBLY=NJAT0130+Disassemble upper, inter and lower bodies. Bolt length, number and location: Bolt symbol A B C D E F G Bolt length ª!º 13.5 mm (0.531 in)58.0 mm (2.283 in)40.0 mm (1.575 in)66.0

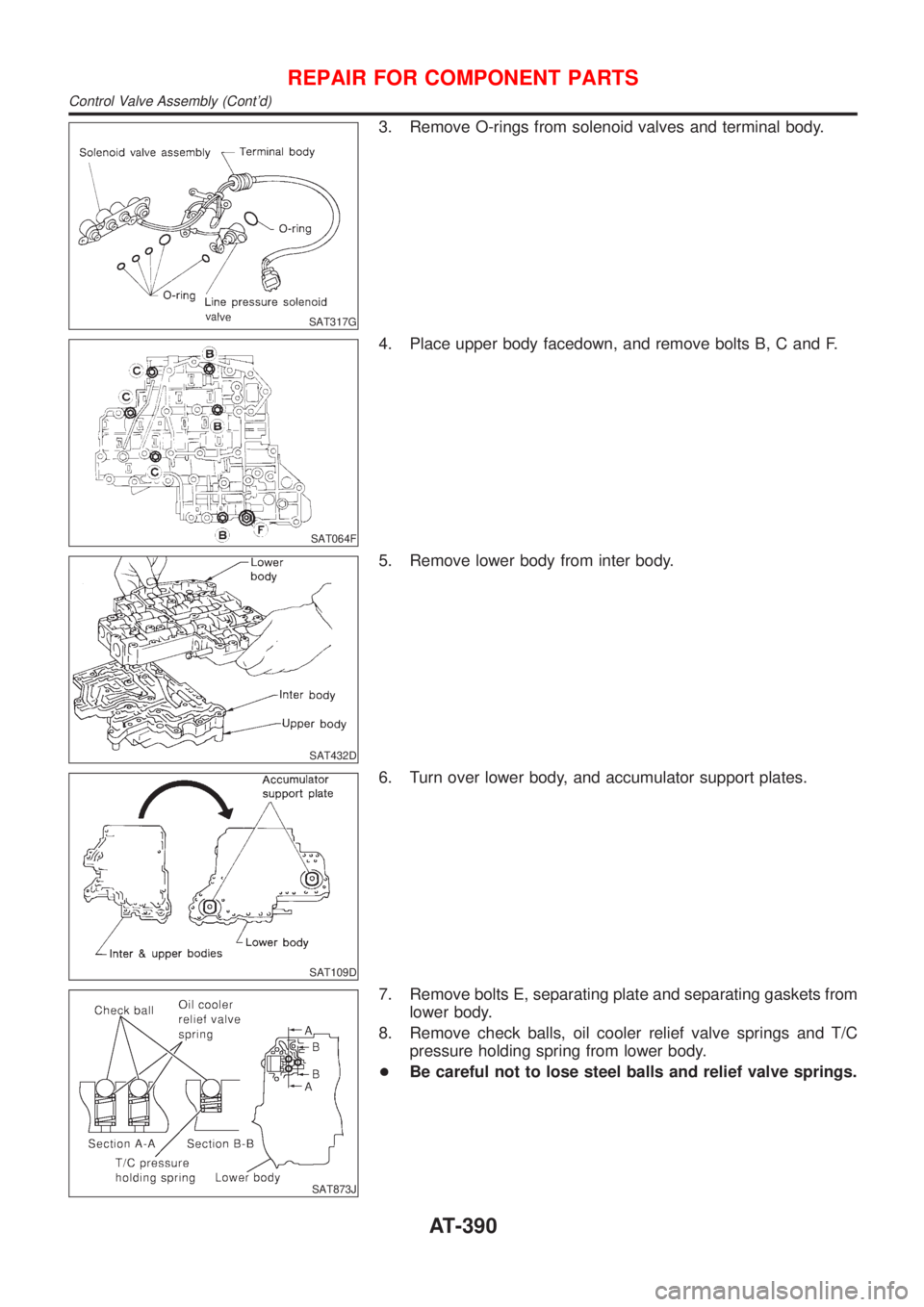

Page 392 of 2898

NISSAN ALMERA 2001 Service Manual SAT317G 3. Remove O-rings from solenoid valves and terminal body. SAT064F 4. Place upper body facedown, and remove bolts B, C and F. SAT432D 5. Remove lower body from inter body. SAT109D 6. Turn over
