Page 153 of 2898

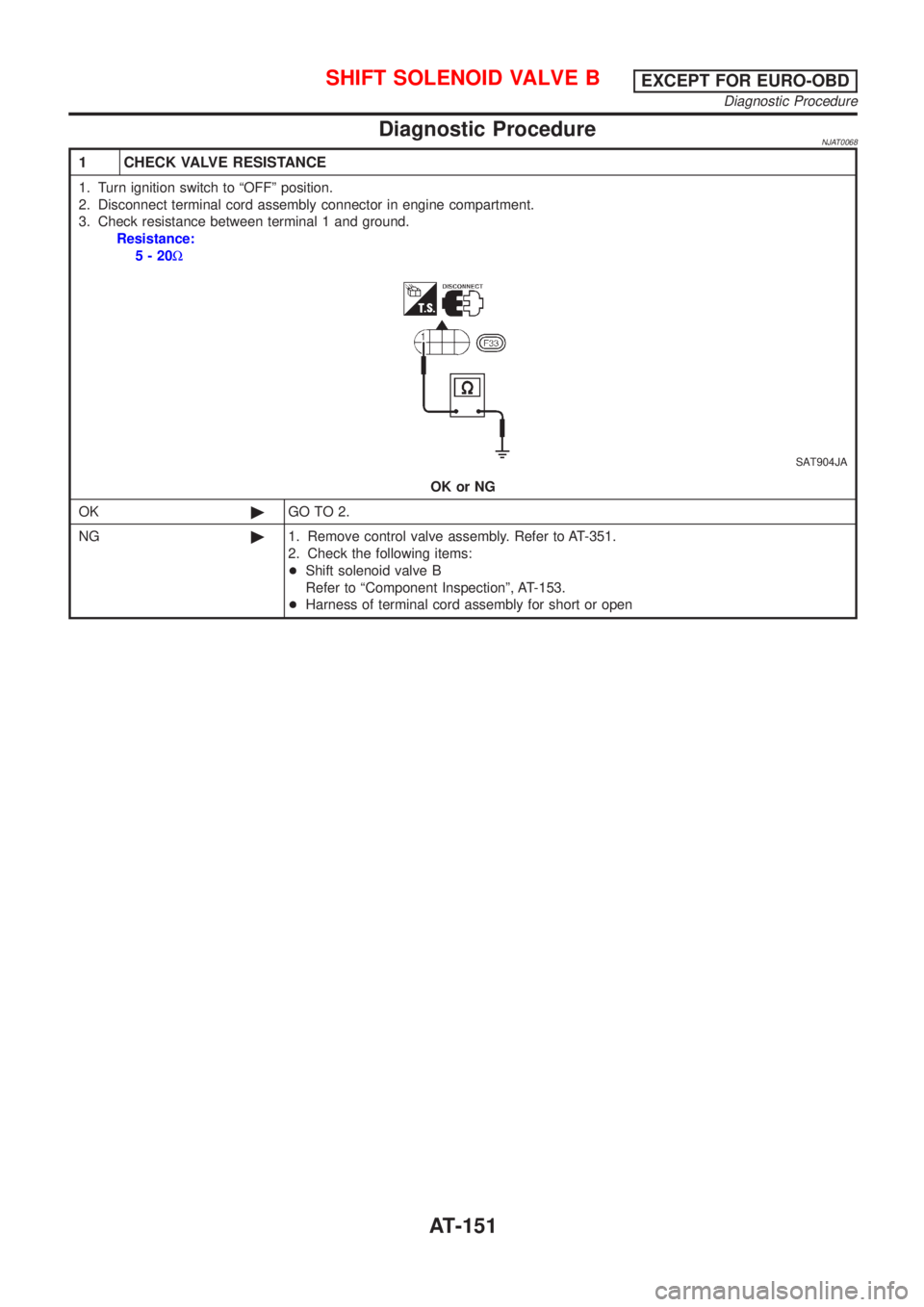

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJAT0068 1 CHECK VALVE RESISTANCE 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine compartment. 3. Check resistance between ter

Page 154 of 2898

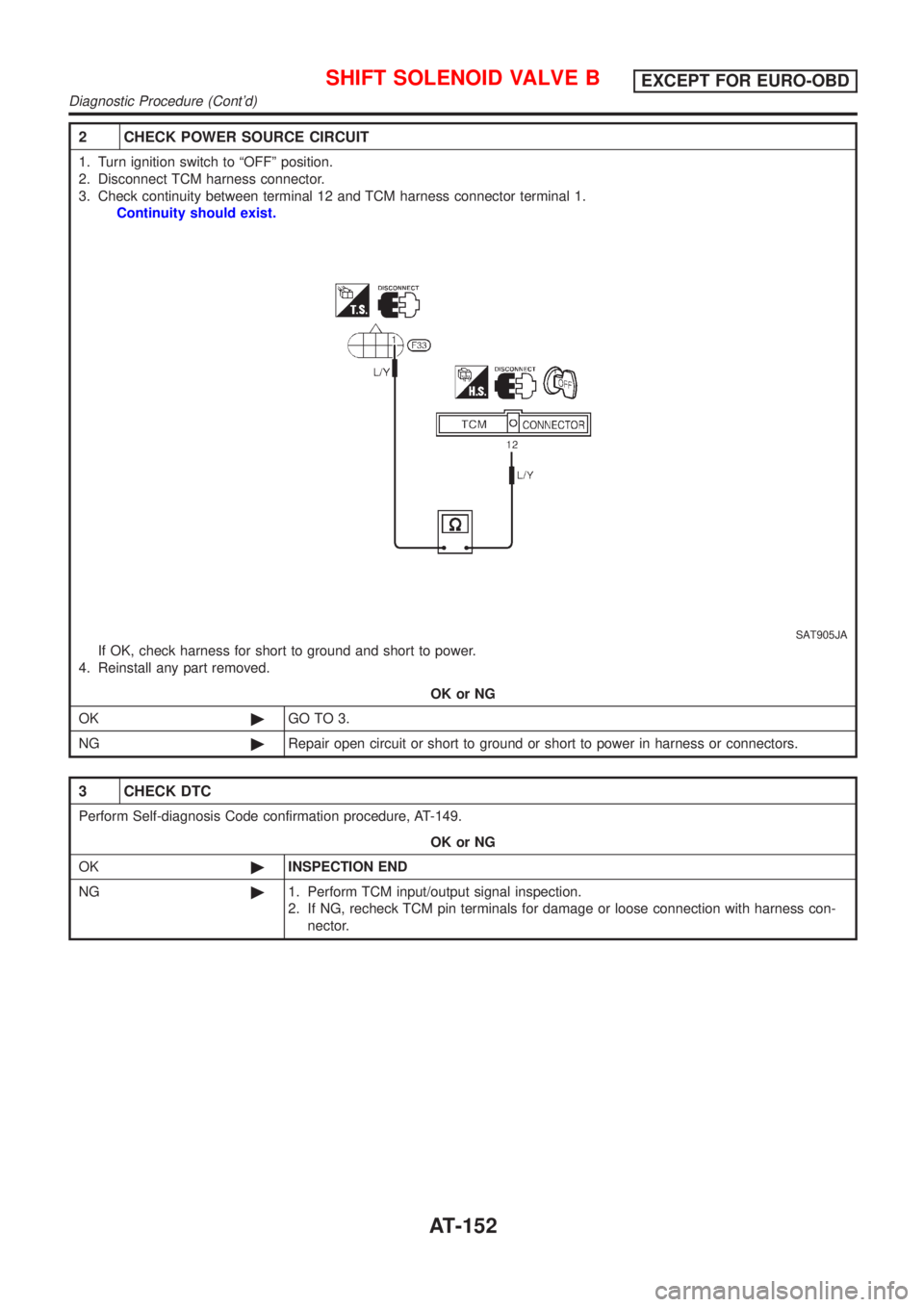

NISSAN ALMERA 2001 Service Manual 2 CHECK POWER SOURCE CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Disconnect TCM harness connector. 3. Check continuity between terminal 12 and TCM harness connector terminal 1. Continuity

Page 155 of 2898

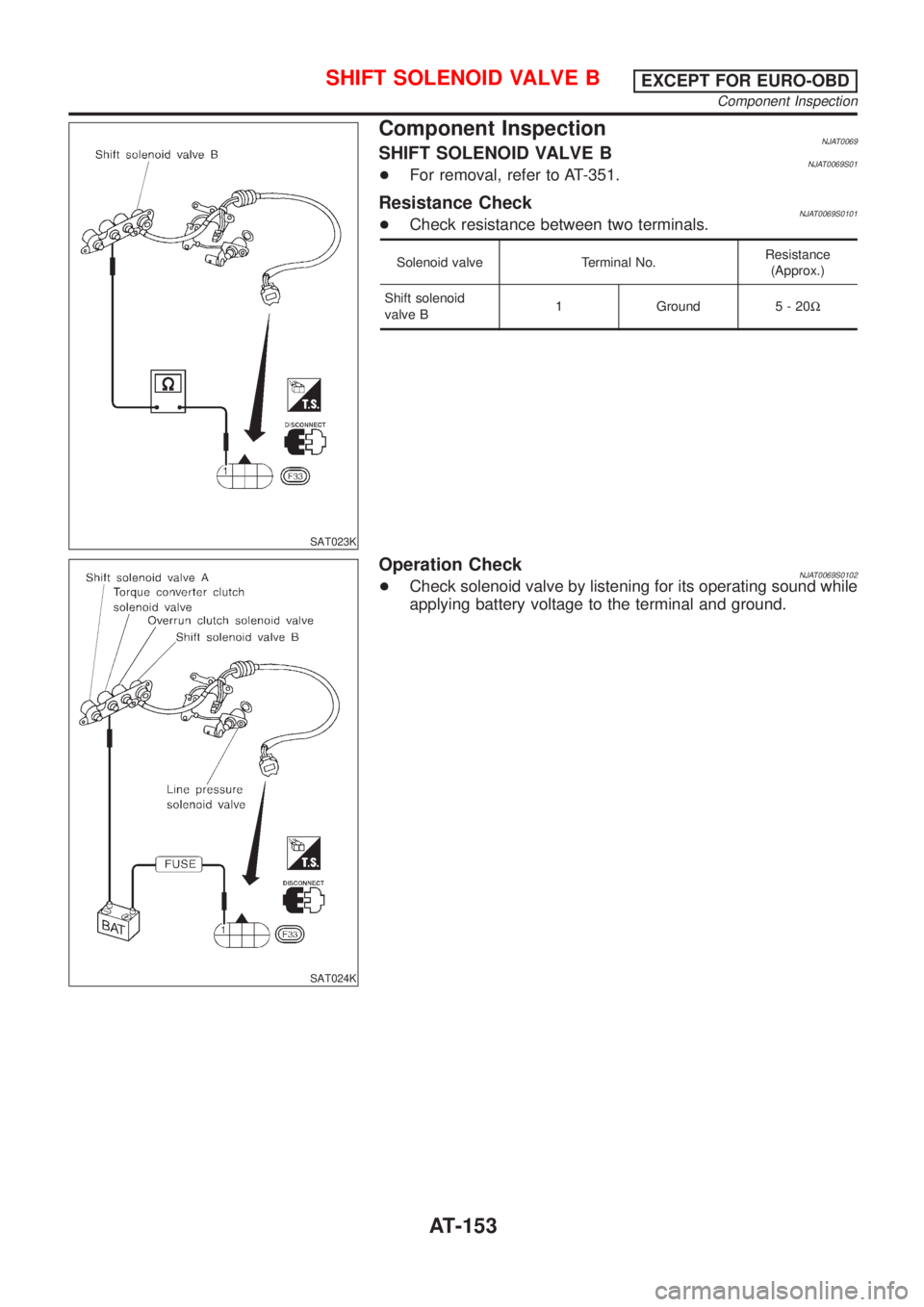

NISSAN ALMERA 2001 Service Manual SAT023K Component InspectionNJAT0069SHIFT SOLENOID VALVE BNJAT0069S01+For removal, refer to AT-351. Resistance CheckNJAT0069S0101+Check resistance between two terminals. Solenoid valve Terminal No.Res

Page 156 of 2898

NISSAN ALMERA 2001 Service Manual SAT322GC DescriptionNJAT0073The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the inhibitor switch, overdrive con- trol switch, vehicle speed and throttle posi

Page 157 of 2898

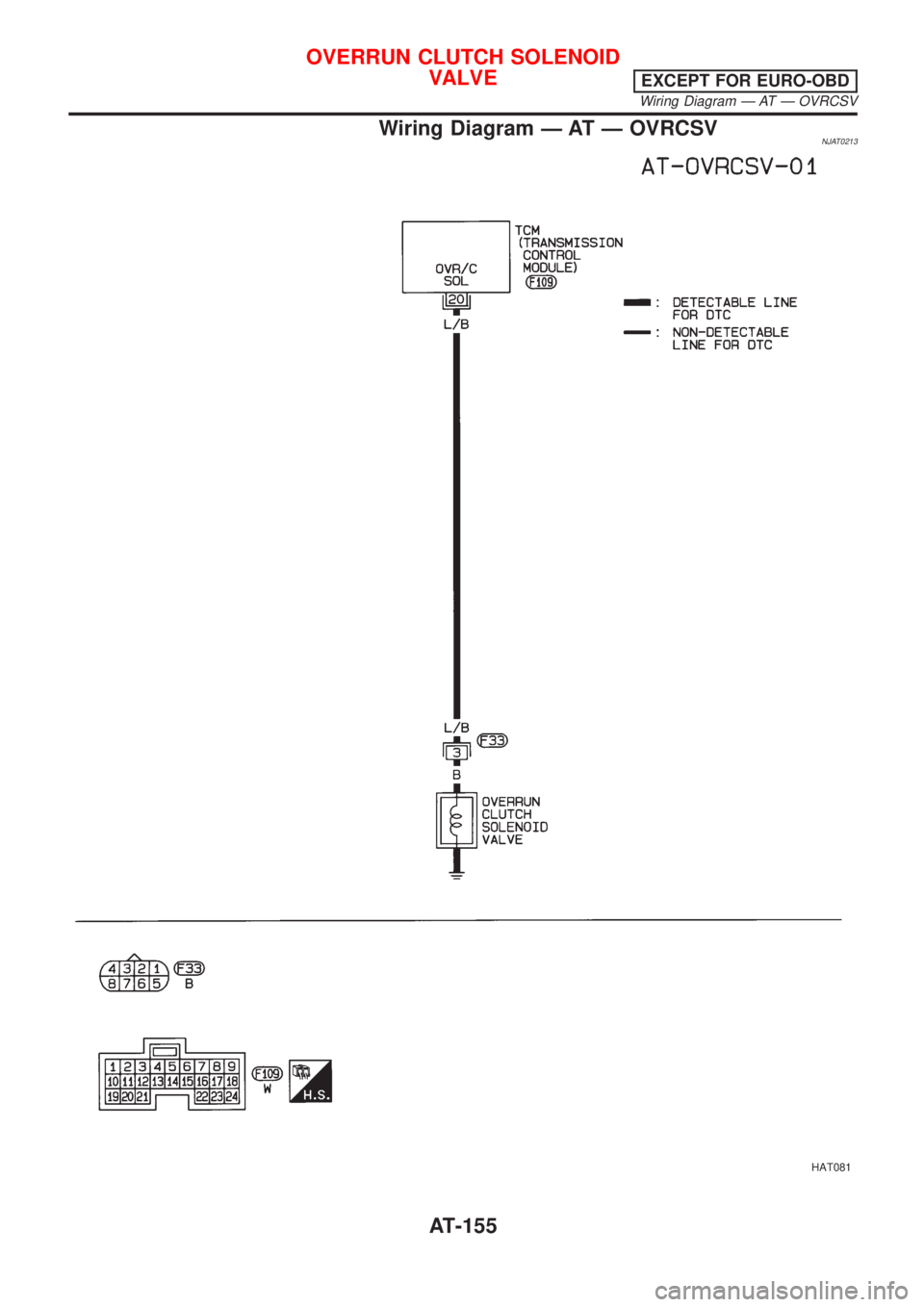

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð AT Ð OVRCSVNJAT0213 HAT081 OVERRUN CLUTCH SOLENOID VALVE EXCEPT FOR EURO-OBD Wiring Diagram Ð AT Ð OVRCSV AT-155

Page 158 of 2898

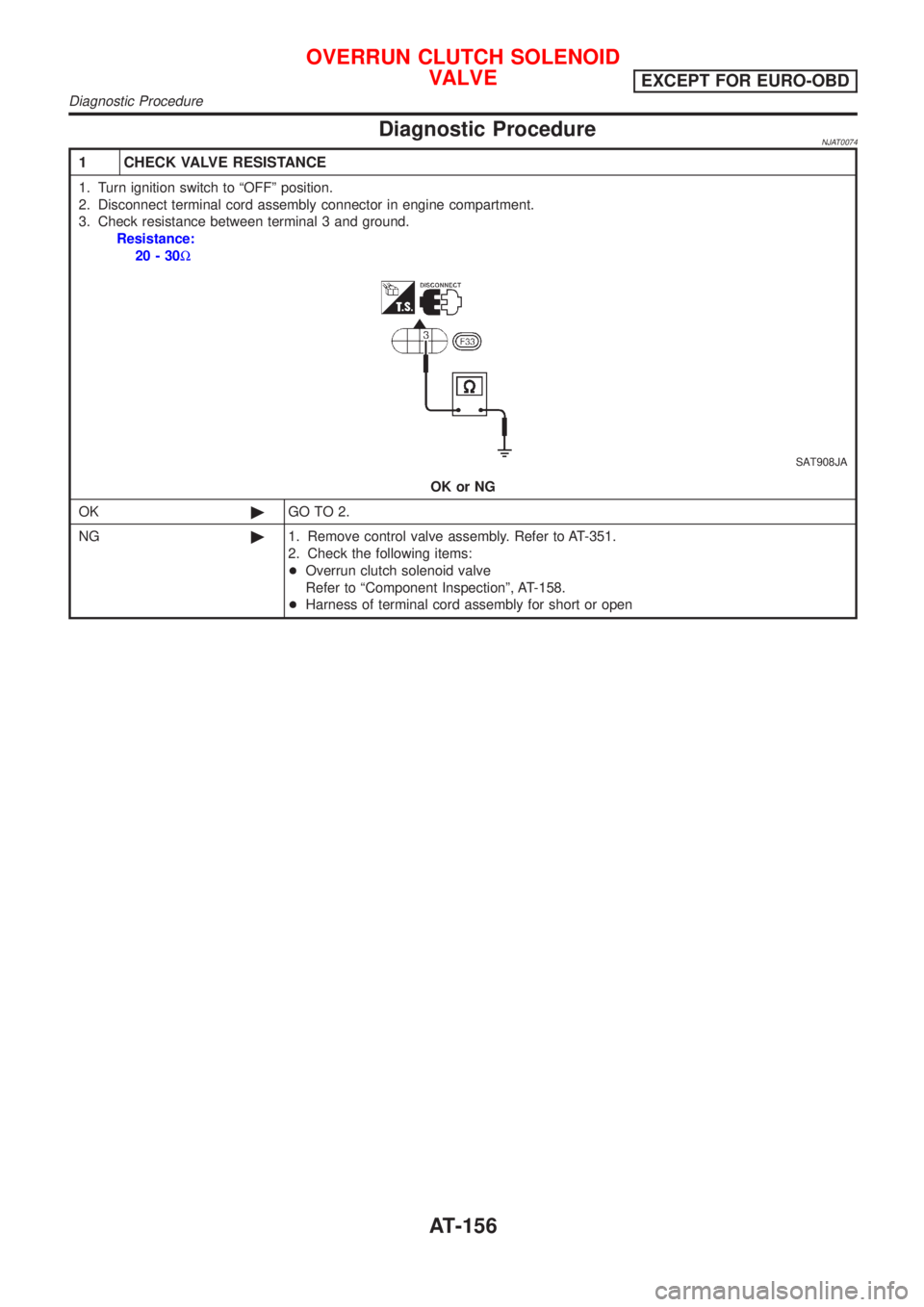

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJAT0074 1 CHECK VALVE RESISTANCE 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine compartment. 3. Check resistance between ter

Page 159 of 2898

NISSAN ALMERA 2001 Service Manual 2 CHECK POWER SOURCE CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Disconnect TCM harness connector. 3. Check continuity between terminal 3 and TCM harness connector terminal 20. Continuity

Page 160 of 2898

NISSAN ALMERA 2001 Service Manual SAT910JA Component InspectionNJAT0075OVERRUN CLUTCH SOLENOID VALVENJAT0075S01+For removal, refer to AT-351. Resistance CheckNJAT0075S0101+Check resistance between two terminals. Solenoid valve Termina
