Page 2889 of 2898

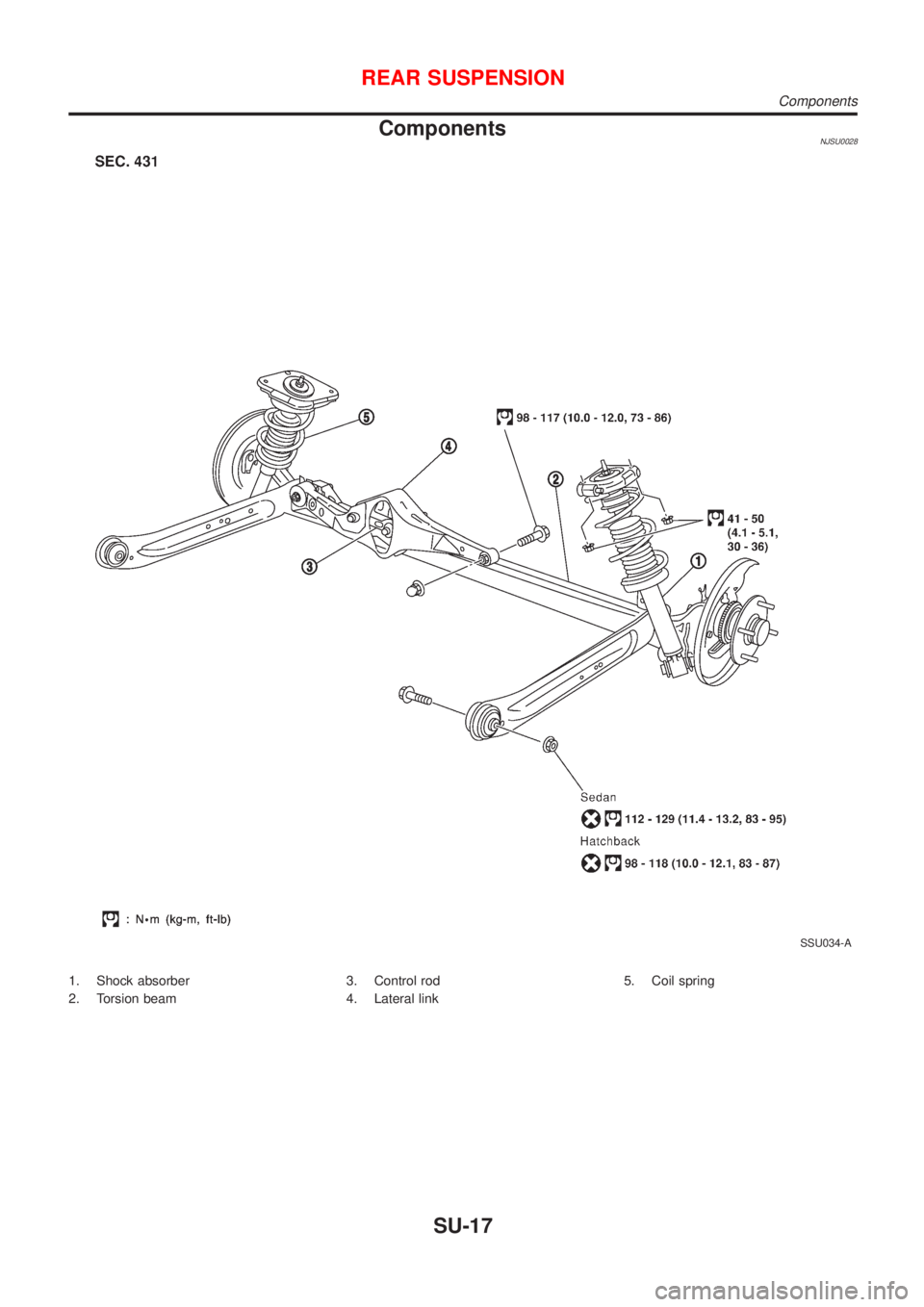

NISSAN ALMERA 2001 Service Manual ComponentsNJSU0028 SSU034-A 1. Shock absorber 2. Torsion beam3. Control rod 4. Lateral link5. Coil spring REAR SUSPENSION Components SU-17

Page 2890 of 2898

NISSAN ALMERA 2001 Service Manual SMA525A On-vehicle Service REAR SUSPENSION PARTSNJSU0029Check axle and suspension parts for excessive play, wear or dam- age. +Shake each rear wheel to check for excessive play. SSU036 +Retighten all

Page 2891 of 2898

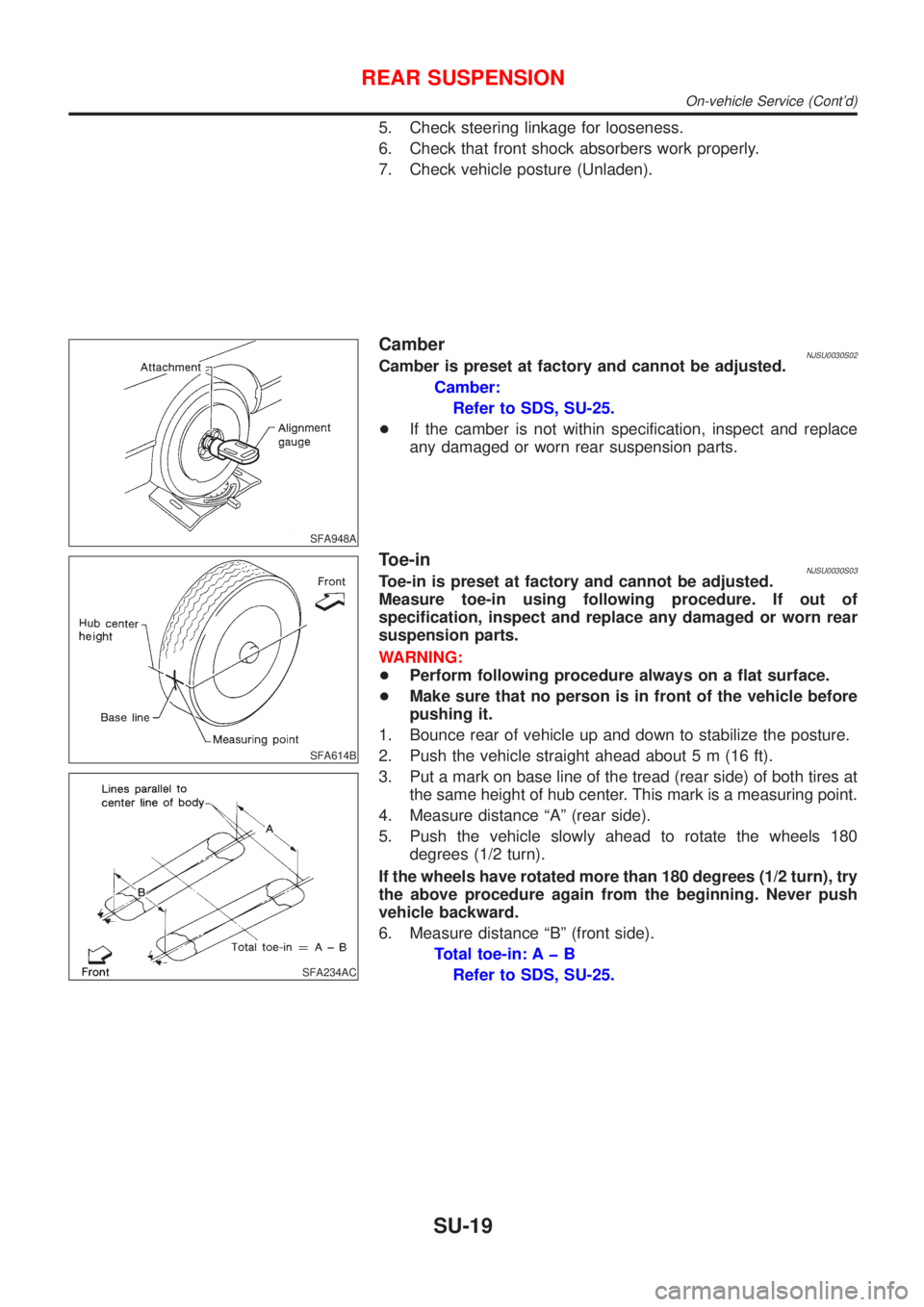

NISSAN ALMERA 2001 Service Manual 5. Check steering linkage for looseness. 6. Check that front shock absorbers work properly. 7. Check vehicle posture (Unladen). SFA948A CamberNJSU0030S02Camber is preset at factory and cannot be adjus

Page 2892 of 2898

NISSAN ALMERA 2001 Service Manual Removal and InstallationNJSU0031 SSU040-A 1. Washer 2. Bushing 3. Shock absorber mounting bracket 4. Collar 5. Bushing6. Bound bumper cover 7. Bound bumper 8. Coil spring 9. Shock absorber10. Torsion

Page 2893 of 2898

NISSAN ALMERA 2001 Service Manual SRA695A SSU038 REMOVALNJSU0031S01CAUTION: +Before removing the rear suspension assembly, discon- nect the ABS wheel sensor from the assembly. Failure to do so may result in damage to the sensor wires

Page 2894 of 2898

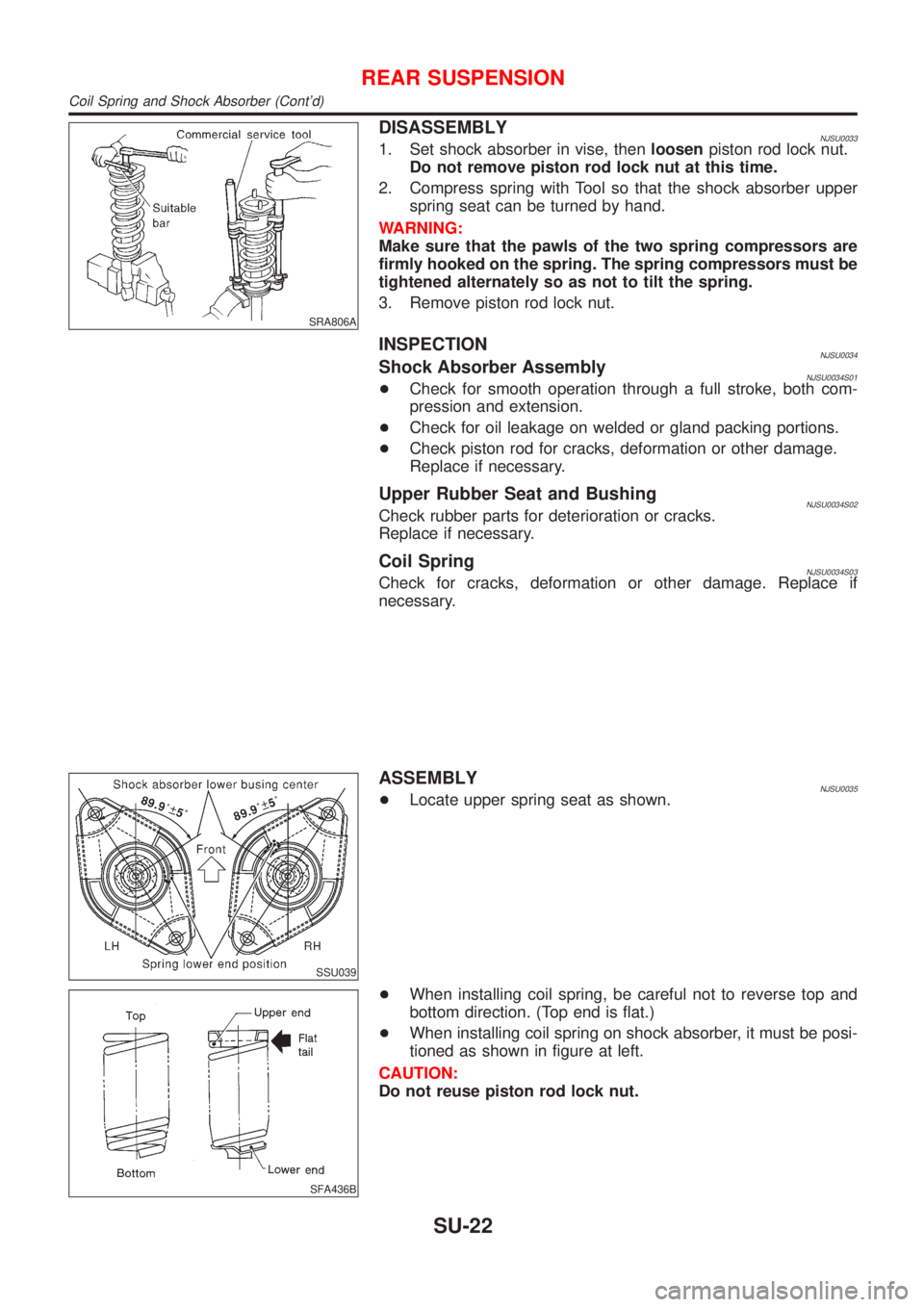

NISSAN ALMERA 2001 Service Manual SRA806A DISASSEMBLYNJSU00331. Set shock absorber in vise, thenloosenpiston rod lock nut. Do not remove piston rod lock nut at this time. 2. Compress spring with Tool so that the shock absorber upper s

Page 2895 of 2898

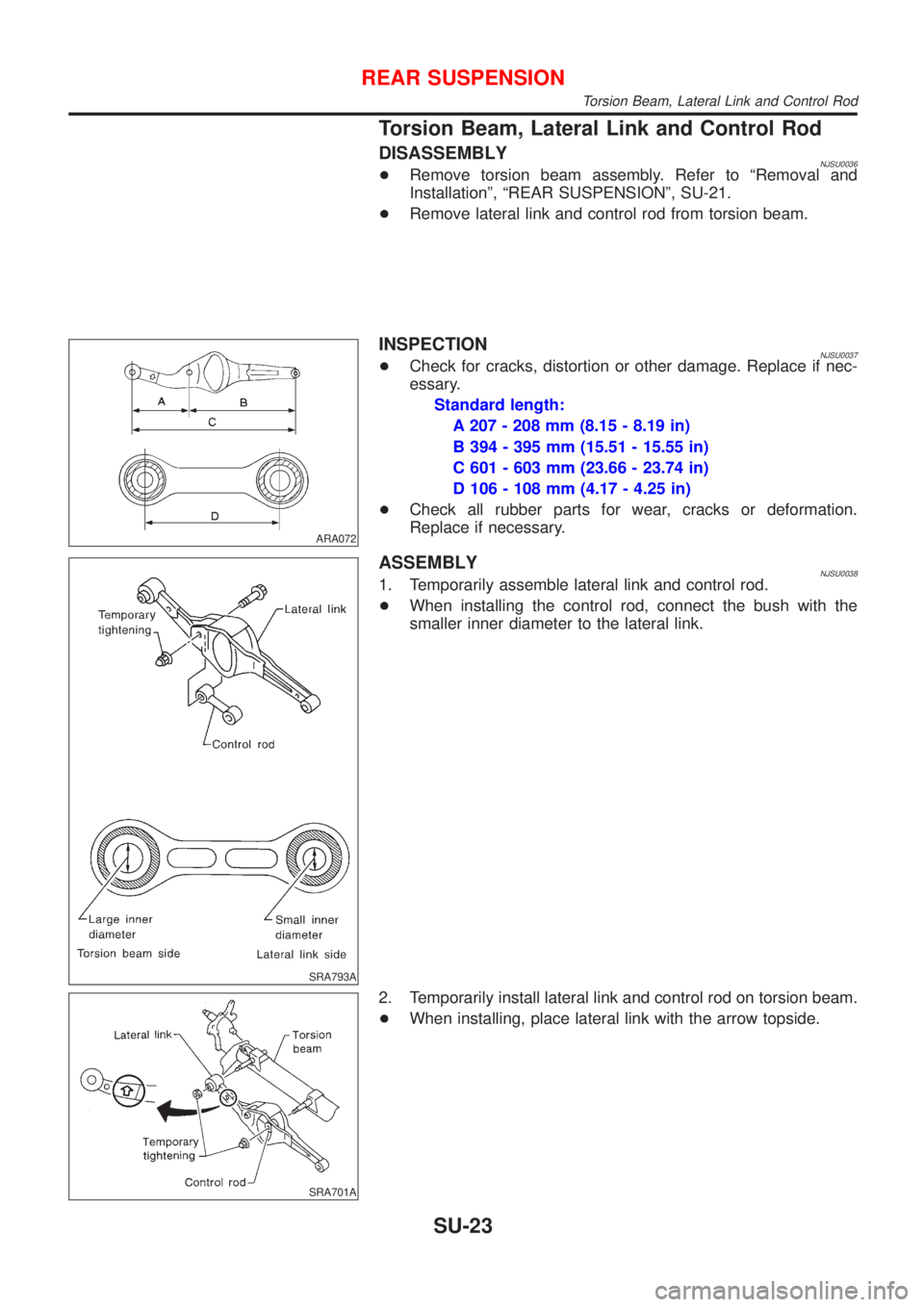

NISSAN ALMERA 2001 Service Manual Torsion Beam, Lateral Link and Control Rod DISASSEMBLYNJSU0036+Remove torsion beam assembly. Refer to ªRemoval and Installationº, ªREAR SUSPENSIONº, SU-21. +Remove lateral link and control rod fro

Page 2896 of 2898

NISSAN ALMERA 2001 Service Manual SRA702A 3. Place lateral link and control rod horizontally against torsion beam, and tighten to the specified torque. 4. Install torsion beam assembly. Refer to ªRemoval and Installationº, ªREAR SU
