Page 2225 of 2898

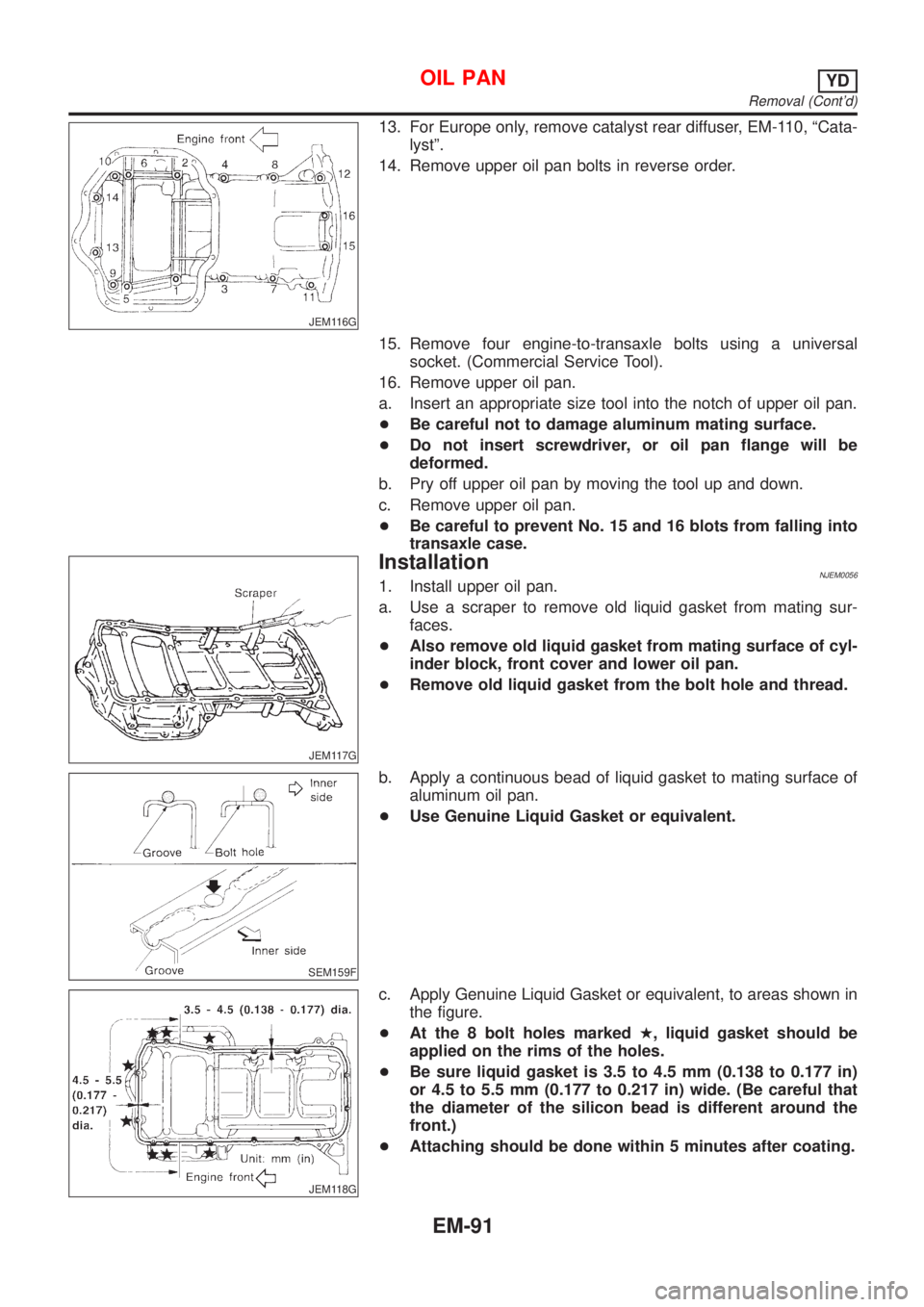

NISSAN ALMERA 2001 Service Manual JEM116G 13. For Europe only, remove catalyst rear diffuser, EM-110, ªCata- lystº. 14. Remove upper oil pan bolts in reverse order. 15. Remove four engine-to-transaxle bolts using a universal socket.

Page 2226 of 2898

NISSAN ALMERA 2001 Service Manual JEM116G d. Install upper oil pan. +Tighten bolts in numerical order. +Bolt dimensions vary depending on the installation location. Refer to the following and use appropriate bolts. M6 x 30 mm: Bolt No

Page 2227 of 2898

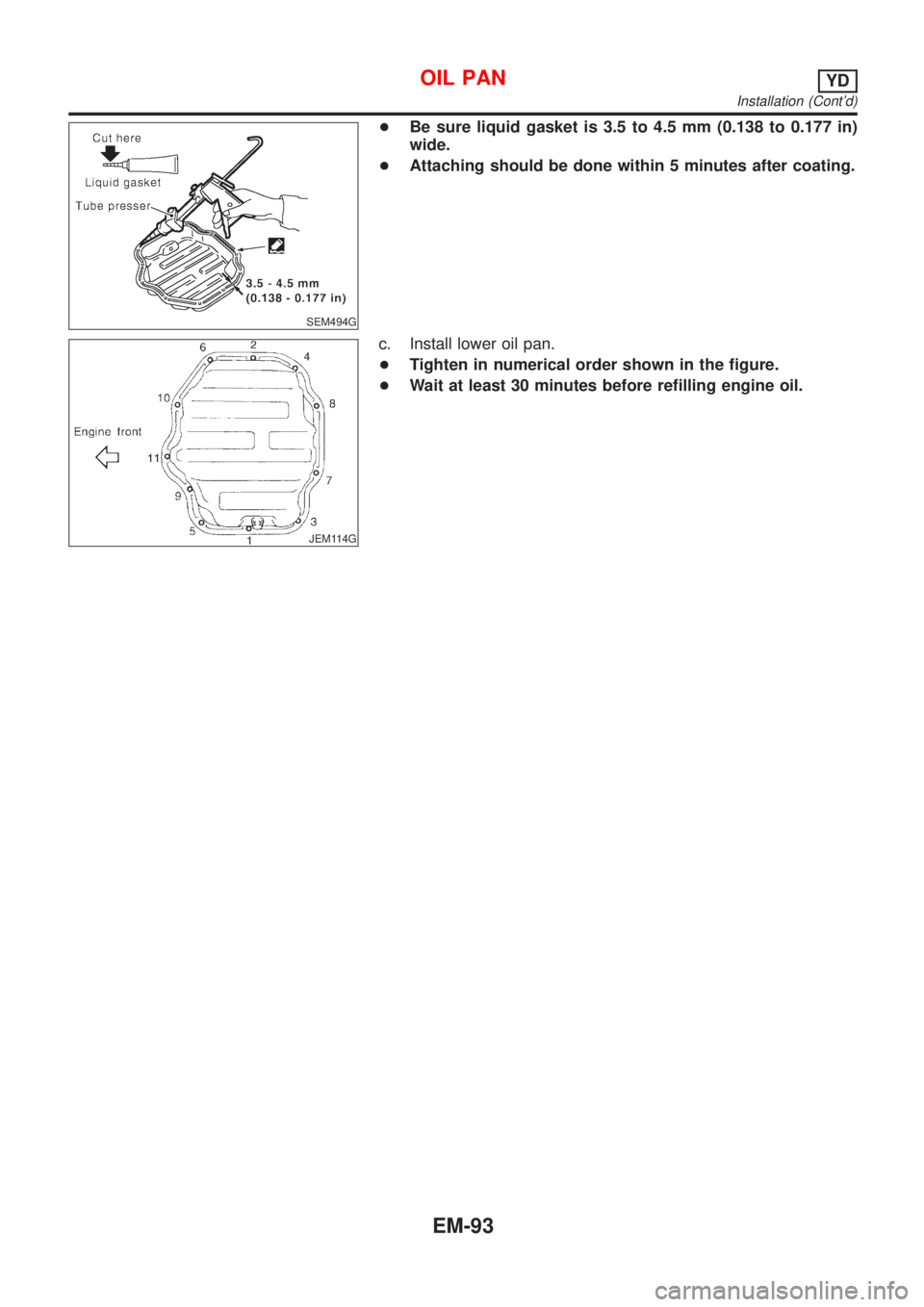

NISSAN ALMERA 2001 Service Manual SEM494G +Be sure liquid gasket is 3.5 to 4.5 mm (0.138 to 0.177 in) wide. +Attaching should be done within 5 minutes after coating. JEM114G c. Install lower oil pan. +Tighten in numerical order shown

Page 2228 of 2898

NISSAN ALMERA 2001 Service Manual Secondary Timing ChainNJEM0093CAUTION: +After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike piston heads. +When installing camshafts, chain tensioners, o

Page 2229 of 2898

NISSAN ALMERA 2001 Service Manual JEM121G 3. Remove front chain case. +Move power steering fluid reservoir tank from the bracket. +Loosen fixing bolts in the reverse order of that shown in the figure and remove them. +Remove No. 6, 10

Page 2230 of 2898

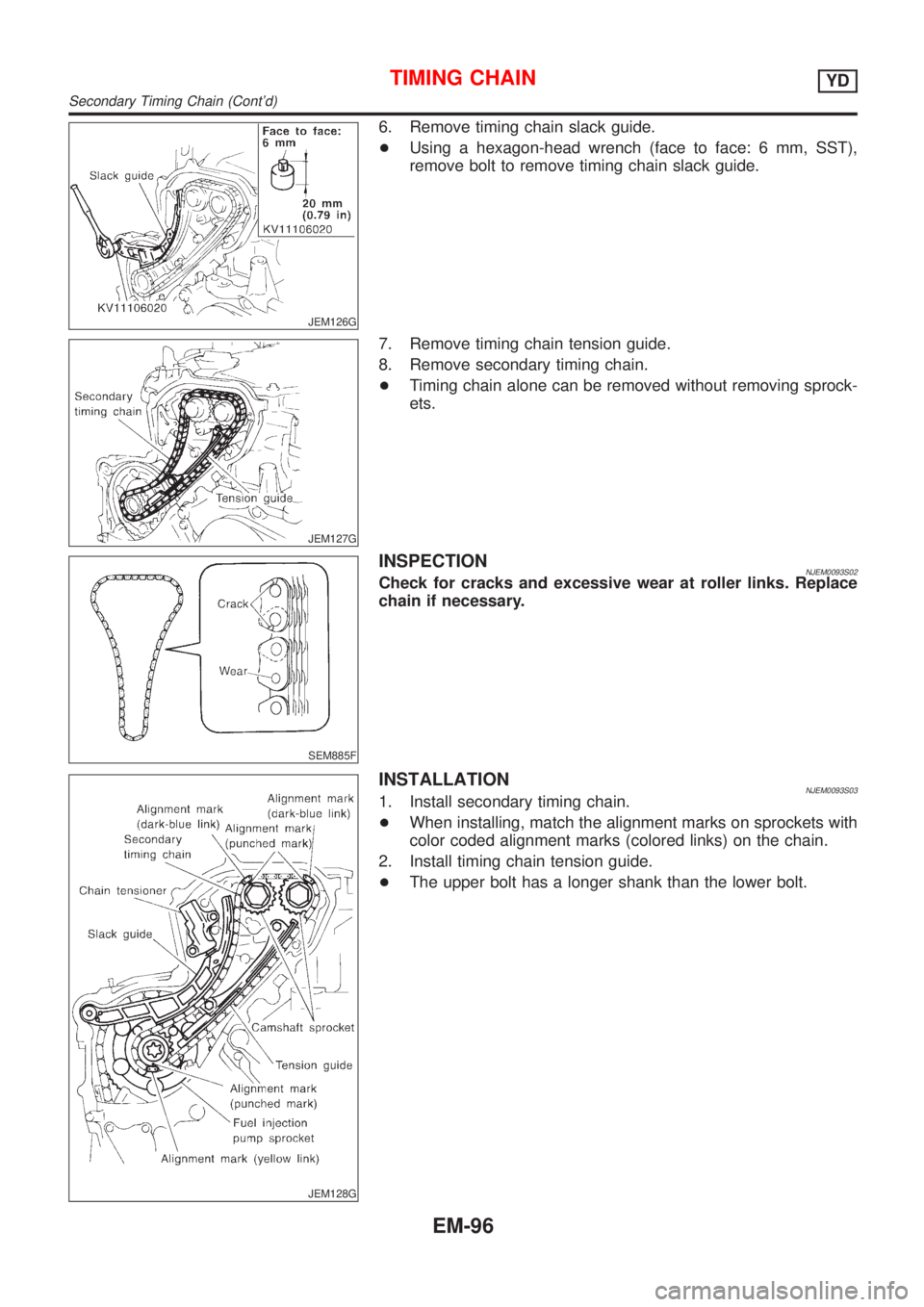

NISSAN ALMERA 2001 Service Manual JEM126G 6. Remove timing chain slack guide. +Using a hexagon-head wrench (face to face: 6 mm, SST), remove bolt to remove timing chain slack guide. JEM127G 7. Remove timing chain tension guide. 8. Rem

Page 2231 of 2898

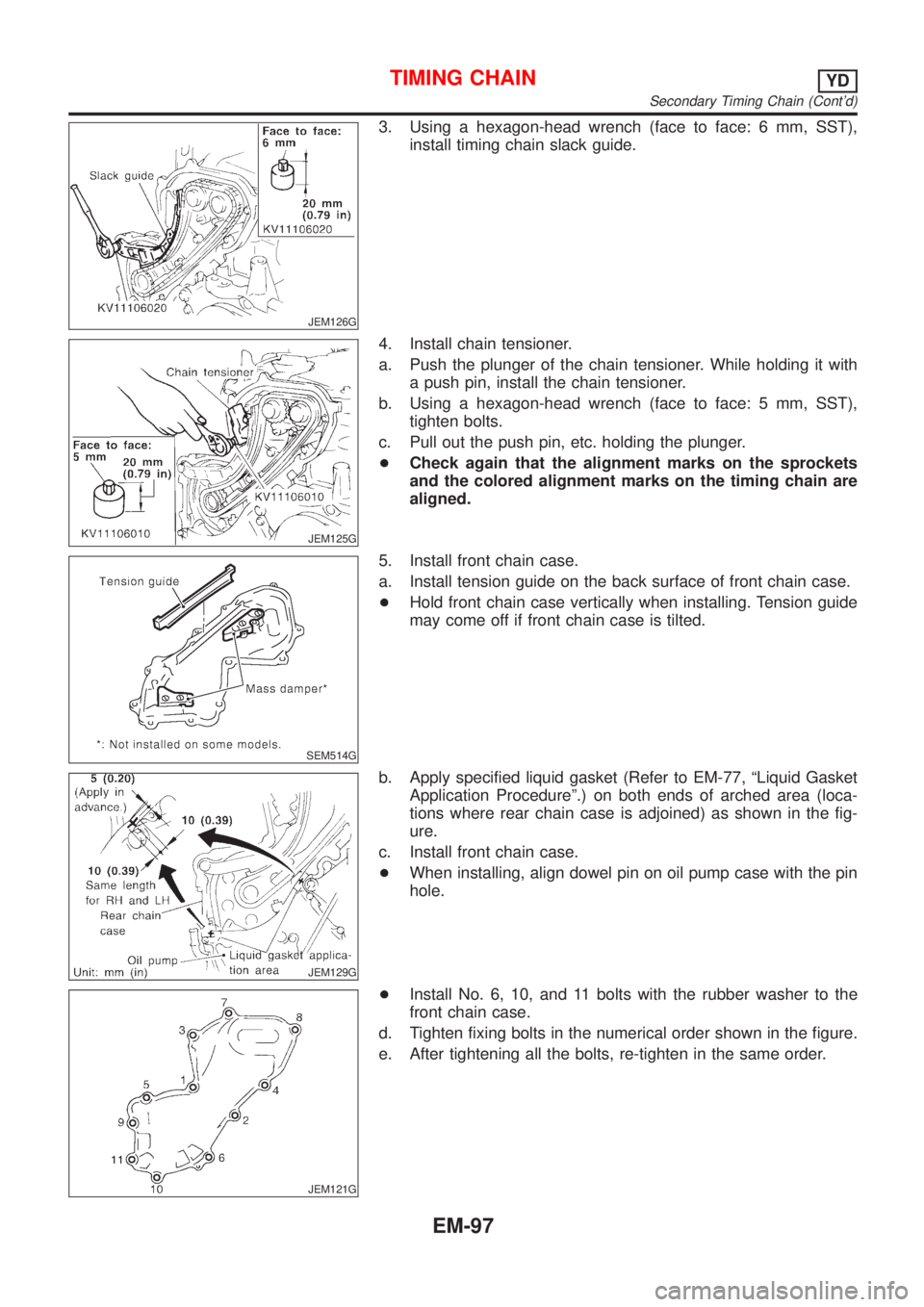

NISSAN ALMERA 2001 Service Manual JEM126G 3. Using a hexagon-head wrench (face to face: 6 mm, SST), install timing chain slack guide. JEM125G 4. Install chain tensioner. a. Push the plunger of the chain tensioner. While holding it wit

Page 2232 of 2898

NISSAN ALMERA 2001 Service Manual 6. Hereafter, install in the reverse order of removal. TIMING CHAINYD Secondary Timing Chain (Contd) EM-98
