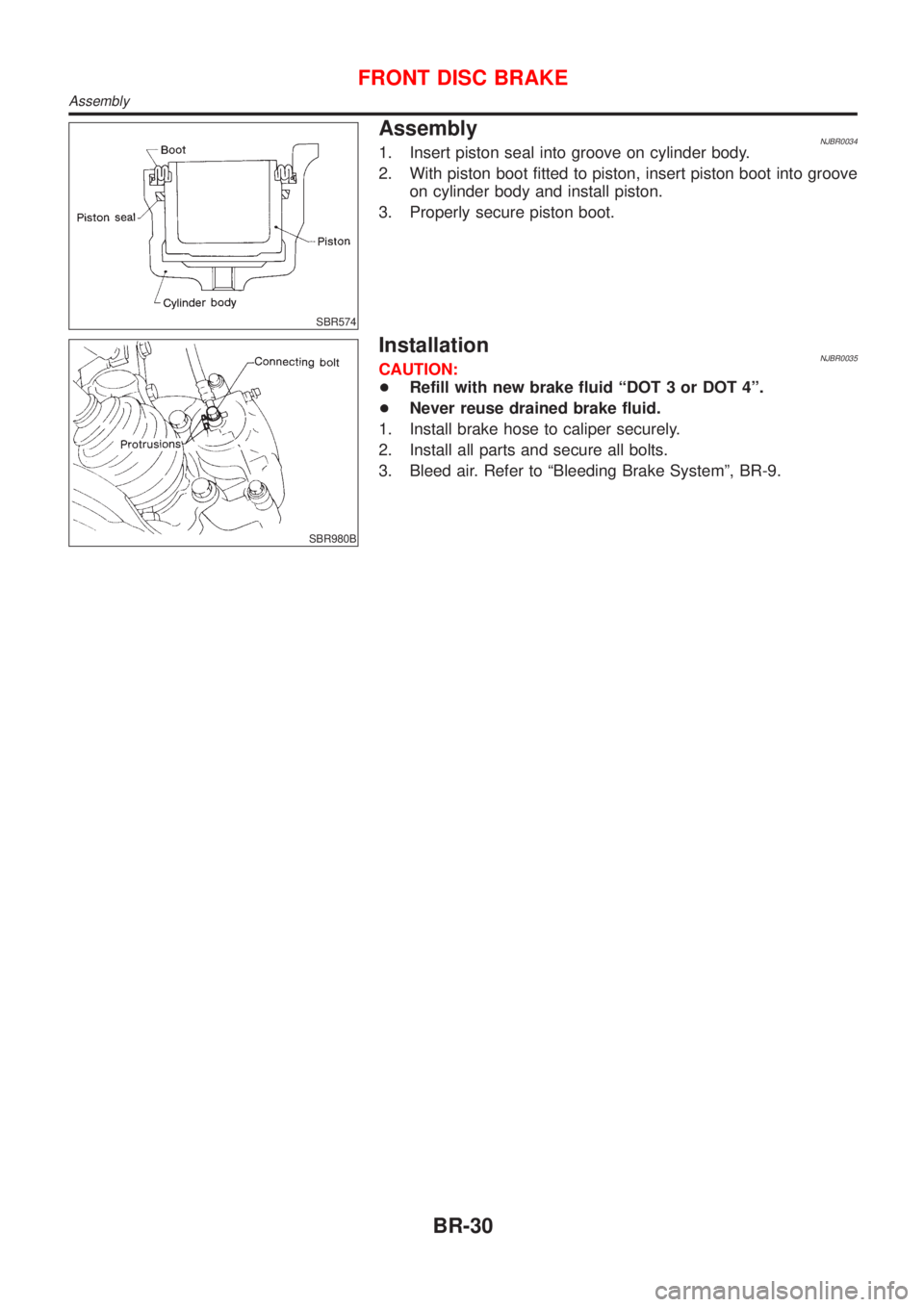

Page 545 of 2898

NISSAN ALMERA 2001 Service Manual PistonNJBR0033S0102CAUTION: Piston sliding surface is plated. Do not polish with emery paper even if rust or foreign materials are stuck to sliding surface. Check piston for score, rust, wear, damage

Page 546 of 2898

NISSAN ALMERA 2001 Service Manual SBR574 AssemblyNJBR00341. Insert piston seal into groove on cylinder body. 2. With piston boot fitted to piston, insert piston boot into groove on cylinder body and install piston. 3. Properly secure

Page 547 of 2898

NISSAN ALMERA 2001 Service Manual ComponentsNJBR0128 SBR616E 1. Boot 2. Piston 3. Piston cap 4. Spring 5. Wheel cylinder6. Shoe hold-down pin 7. Plug 8. Brake drum 9. Shoe hold-down spring 10. Adjuster11. Retainer ring 12. Return spri

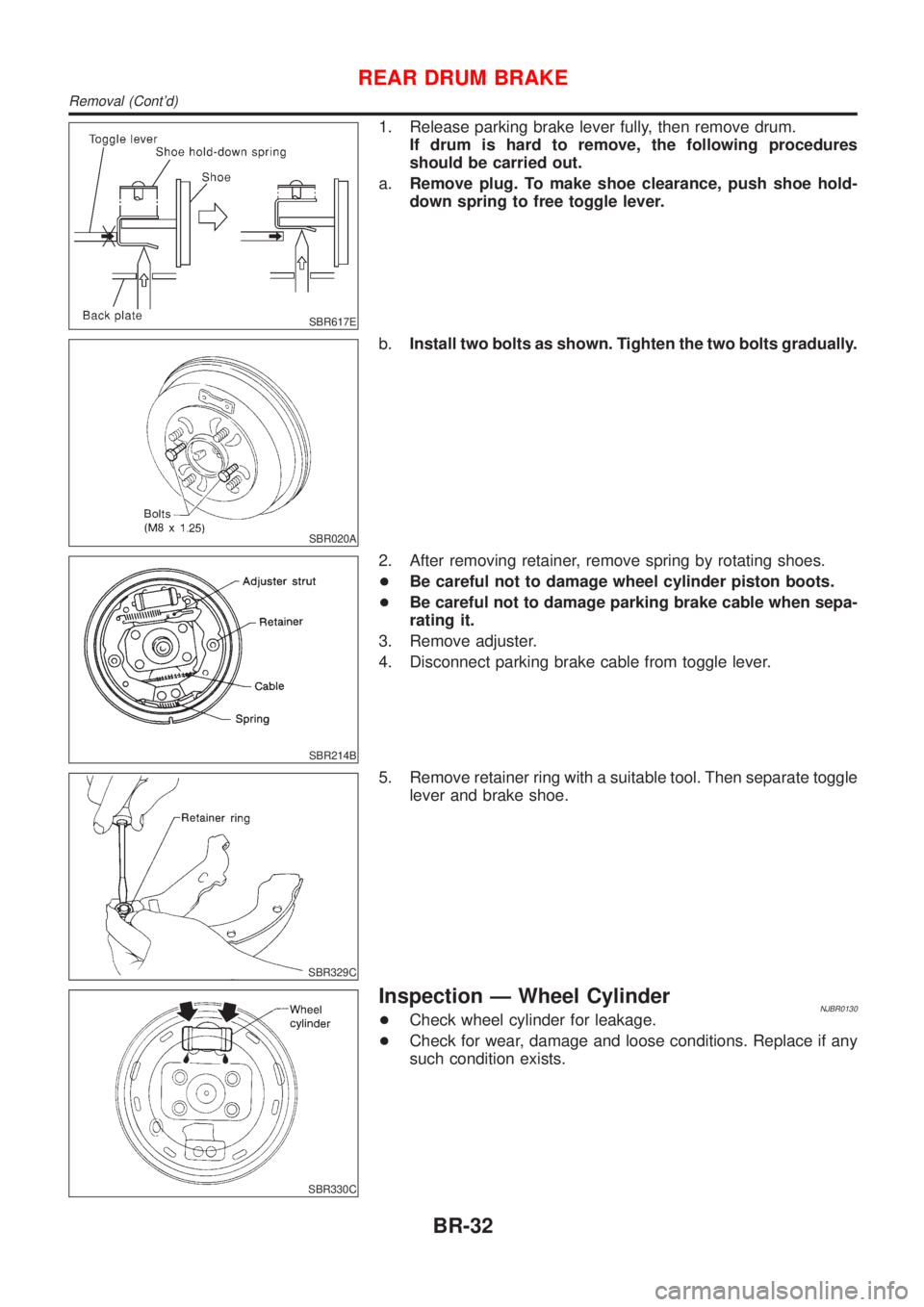

Page 548 of 2898

NISSAN ALMERA 2001 Service Manual SBR617E 1. Release parking brake lever fully, then remove drum. If drum is hard to remove, the following procedures should be carried out. a.Remove plug. To make shoe clearance, push shoe hold- down s

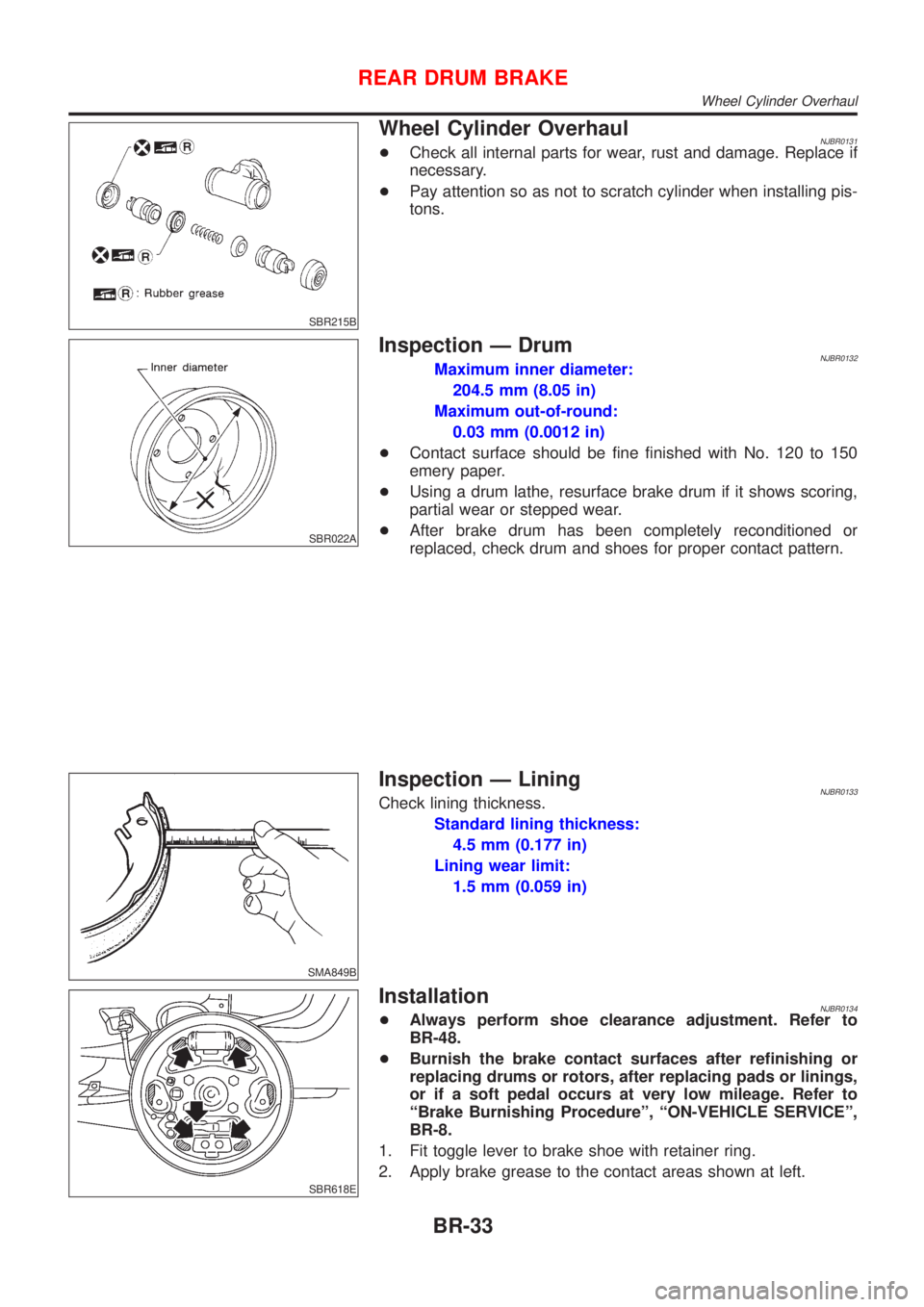

Page 549 of 2898

NISSAN ALMERA 2001 Service Manual SBR215B Wheel Cylinder OverhaulNJBR0131+Check all internal parts for wear, rust and damage. Replace if necessary. +Pay attention so as not to scratch cylinder when installing pis- tons. SBR022A Inspec

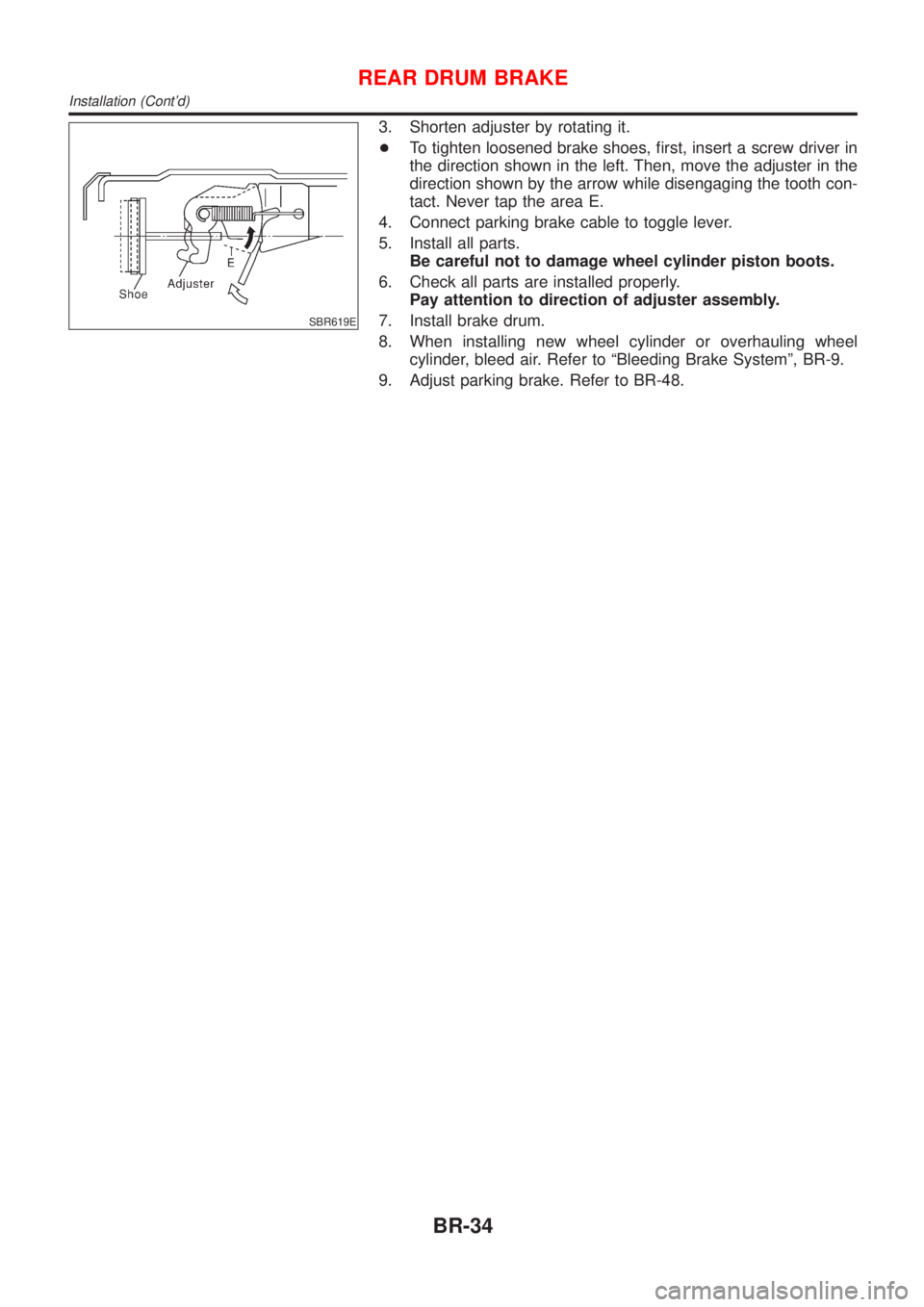

Page 550 of 2898

NISSAN ALMERA 2001 Service Manual SBR619E 3. Shorten adjuster by rotating it. +To tighten loosened brake shoes, first, insert a screw driver in the direction shown in the left. Then, move the adjuster in the direction shown by the arr

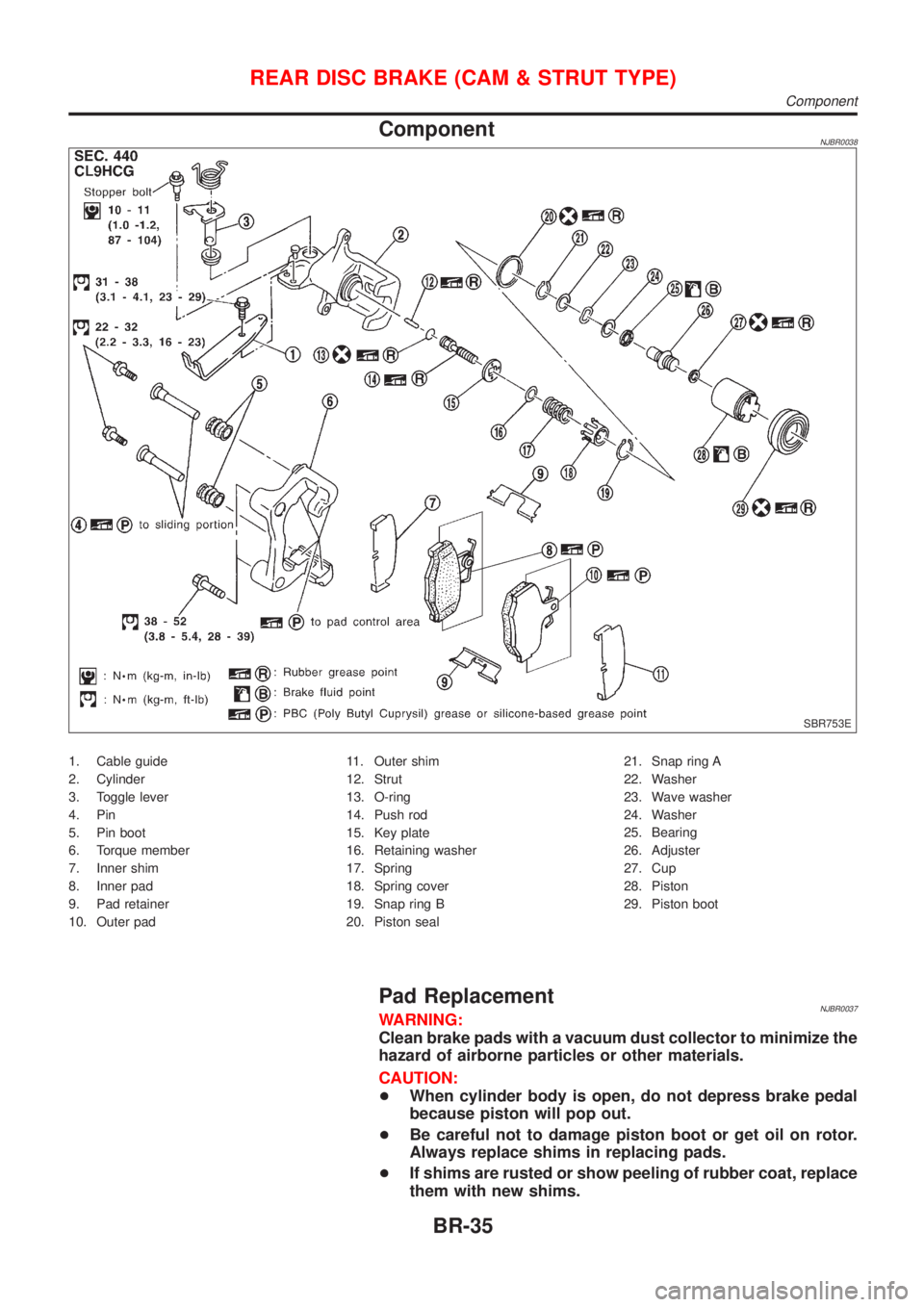

Page 551 of 2898

NISSAN ALMERA 2001 Service Manual ComponentNJBR0038 SBR753E 1. Cable guide 2. Cylinder 3. Toggle lever 4. Pin 5. Pin boot 6. Torque member 7. Inner shim 8. Inner pad 9. Pad retainer 10. Outer pad11. Outer shim 12. Strut 13. O-ring 14.

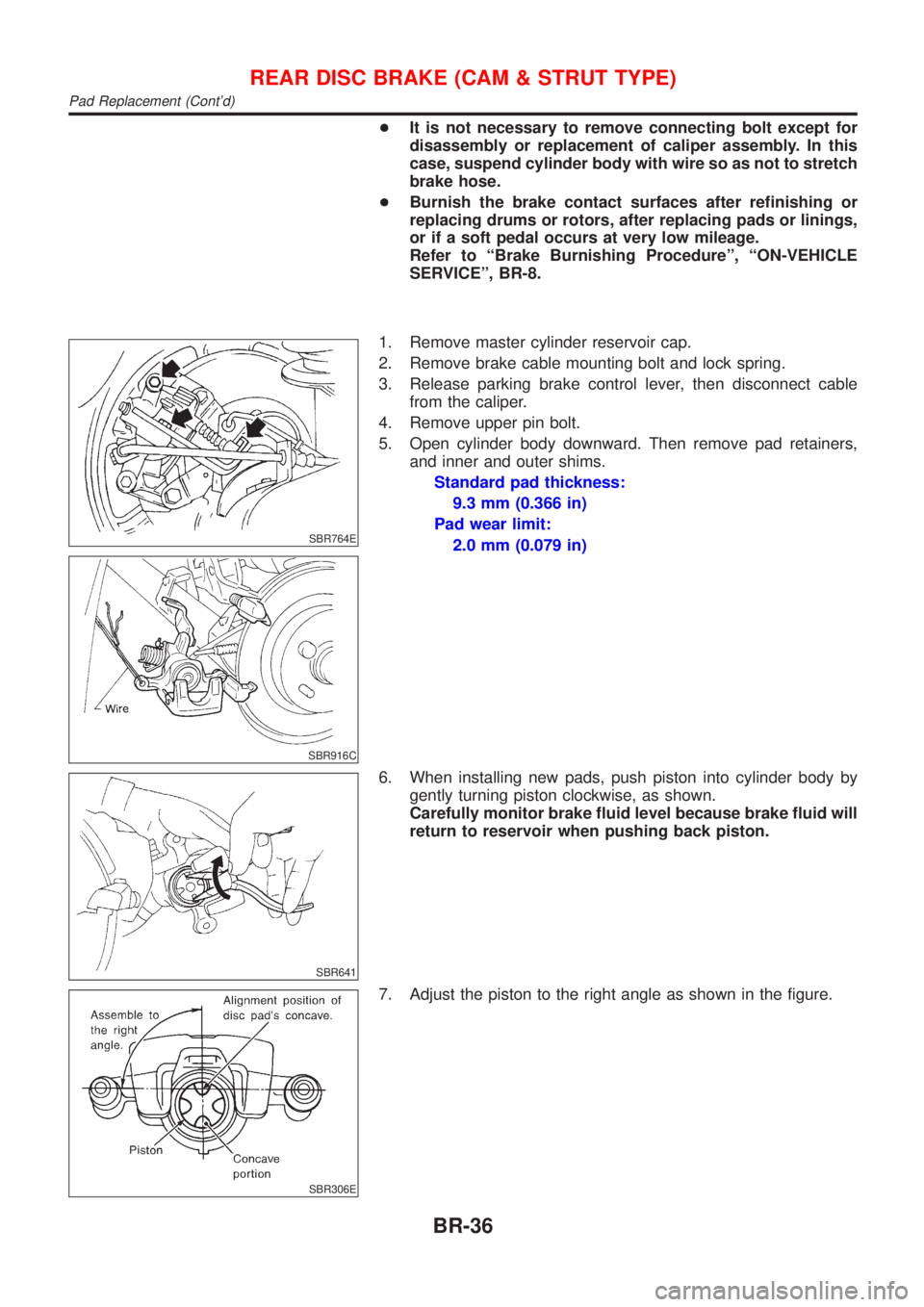

Page 552 of 2898

NISSAN ALMERA 2001 Service Manual +It is not necessary to remove connecting bolt except for disassembly or replacement of caliper assembly. In this case, suspend cylinder body with wire so as not to stretch brake hose. +Burnish the br
