Components-2 3AX00, 3AX01, 3AX19, 3AX63
and 3AX64 models
NJAT0233
SAT102K
OVERHAUL
Components-2 3AX00, 3AX01, 3AX19, 3AX63 and 3AX64 models
AT-359
Page 362 of 2898
Components-2 3AX10 and 3AX18 modelsNJAT0234
SAT936J
OVERHAUL
Components-2 3AX10 and 3AX18 models
AT-360
Page 363 of 2898
Components-3 3AX00, 3AX01, 3AX19, 3AX63
and 3AX64 models
NJAT0235
SAT061K
OVERHAUL

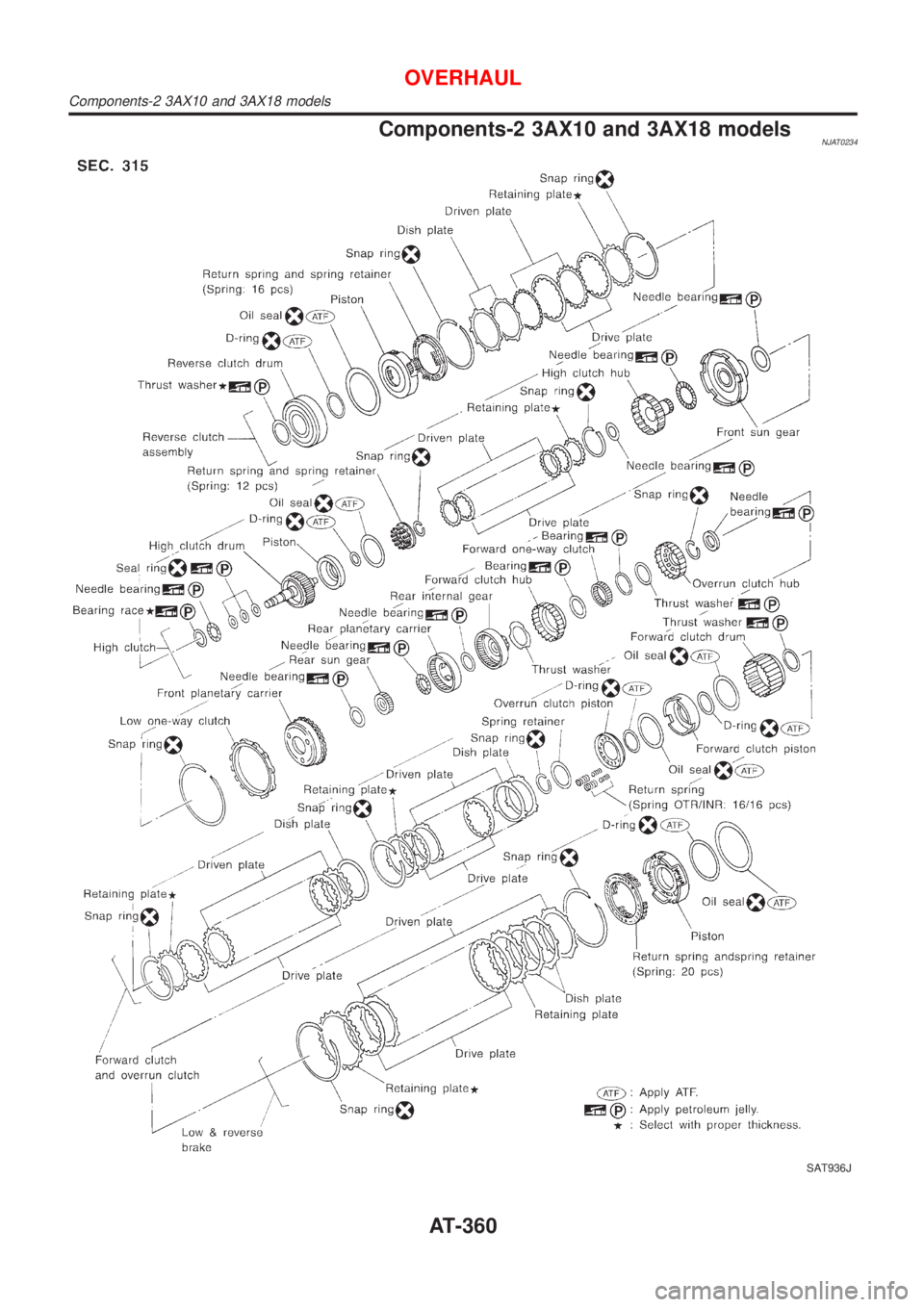

Components-3 3AX00, 3AX01, 3AX19, 3AX63 and 3AX64 models
AT-361
Page 364 of 2898
Components-3 3AX10 and 3AX18 modelsNJAT0236
SAT103K
OVERHAUL

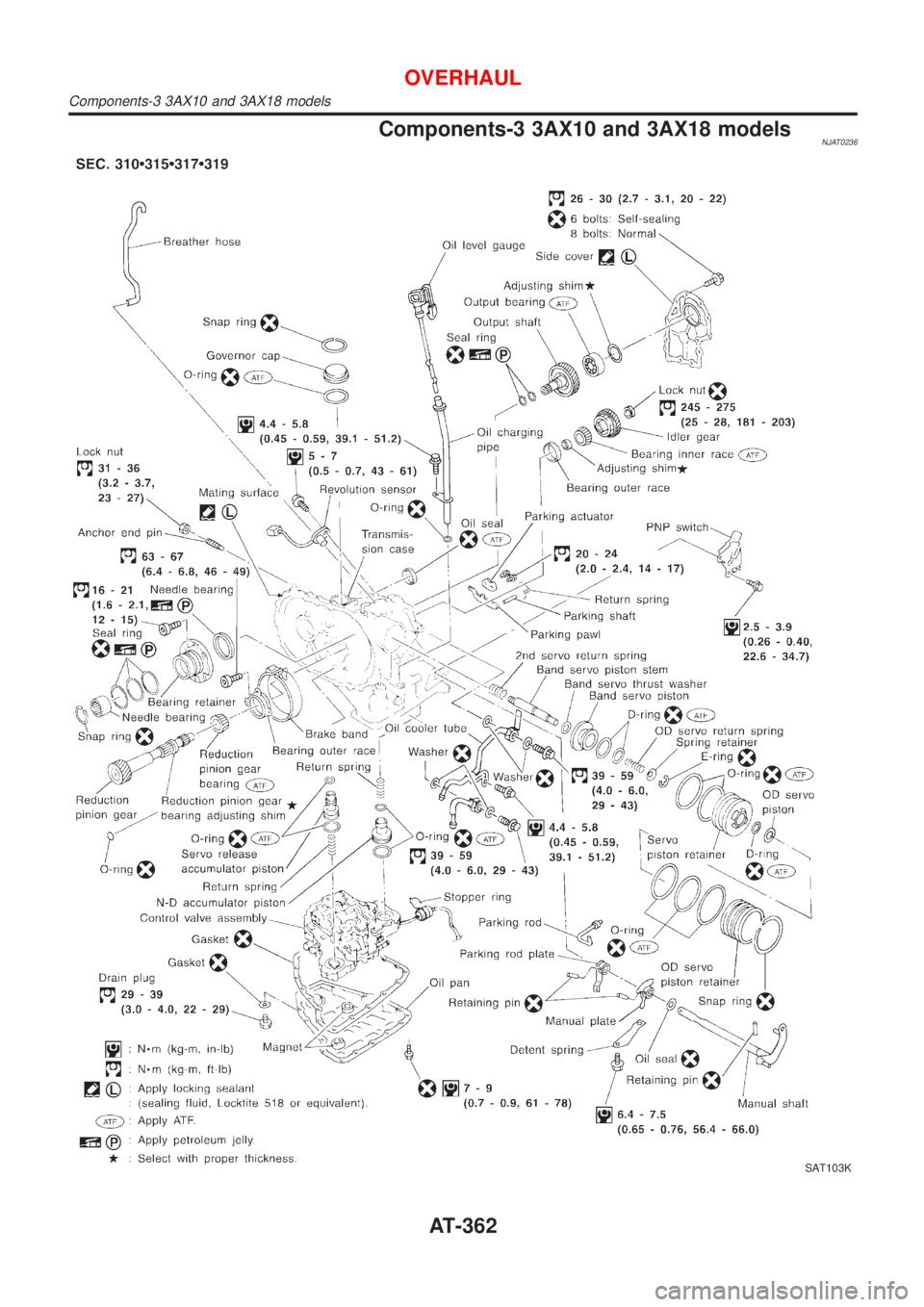

Components-3 3AX10 and 3AX18 models
AT-362
Page 365 of 2898
Oil ChannelNJAT0118
SAT032K
OVERHAUL

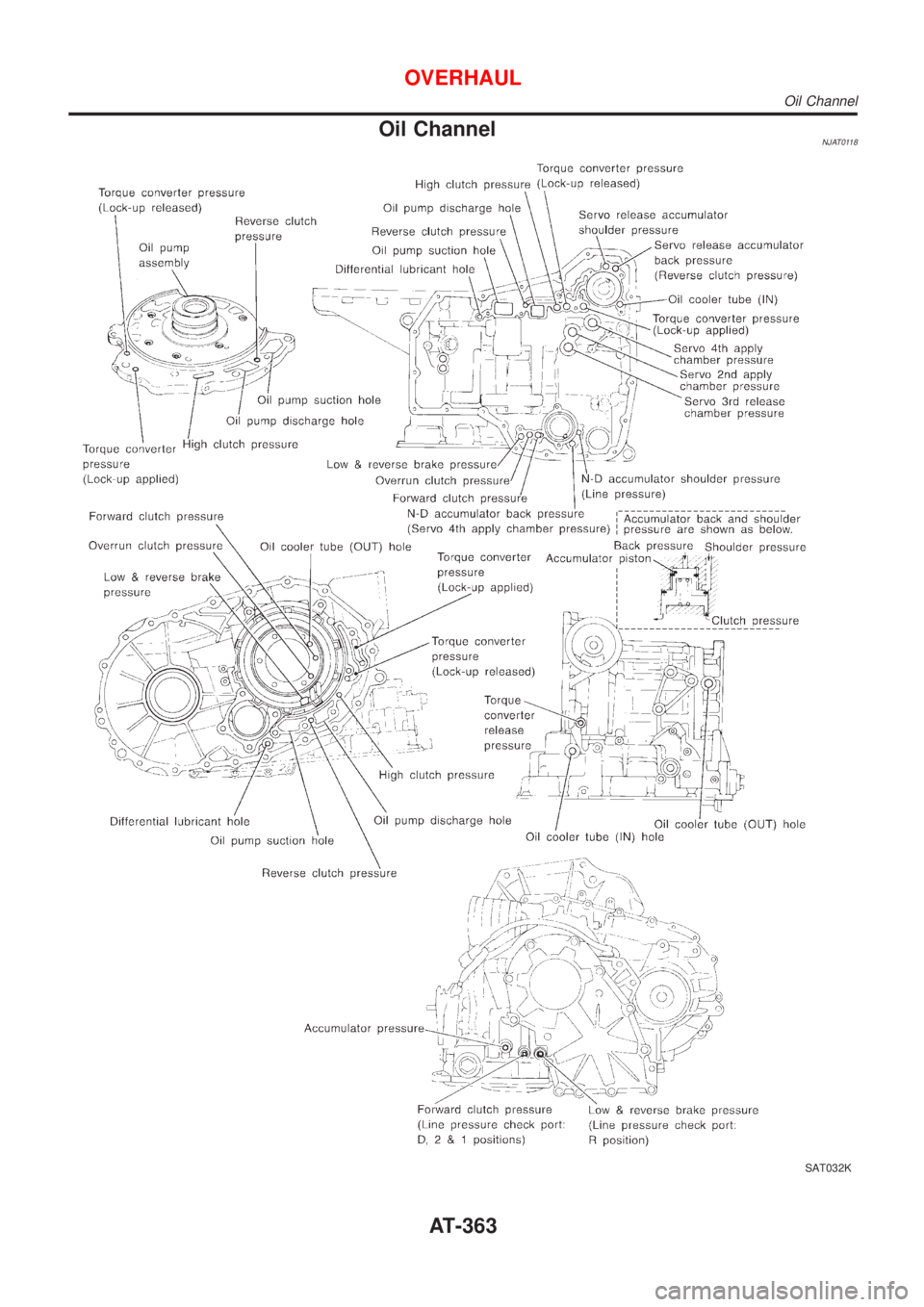

Oil Channel
AT-363
Page 366 of 2898
Locations of Adjusting Shims, Needle
Bearings, Thrust Washers and Snap Rings Ð
3AX00, 01, 19, 63 and 64 models
NJAT0117
AAT416A
OVERHAUL

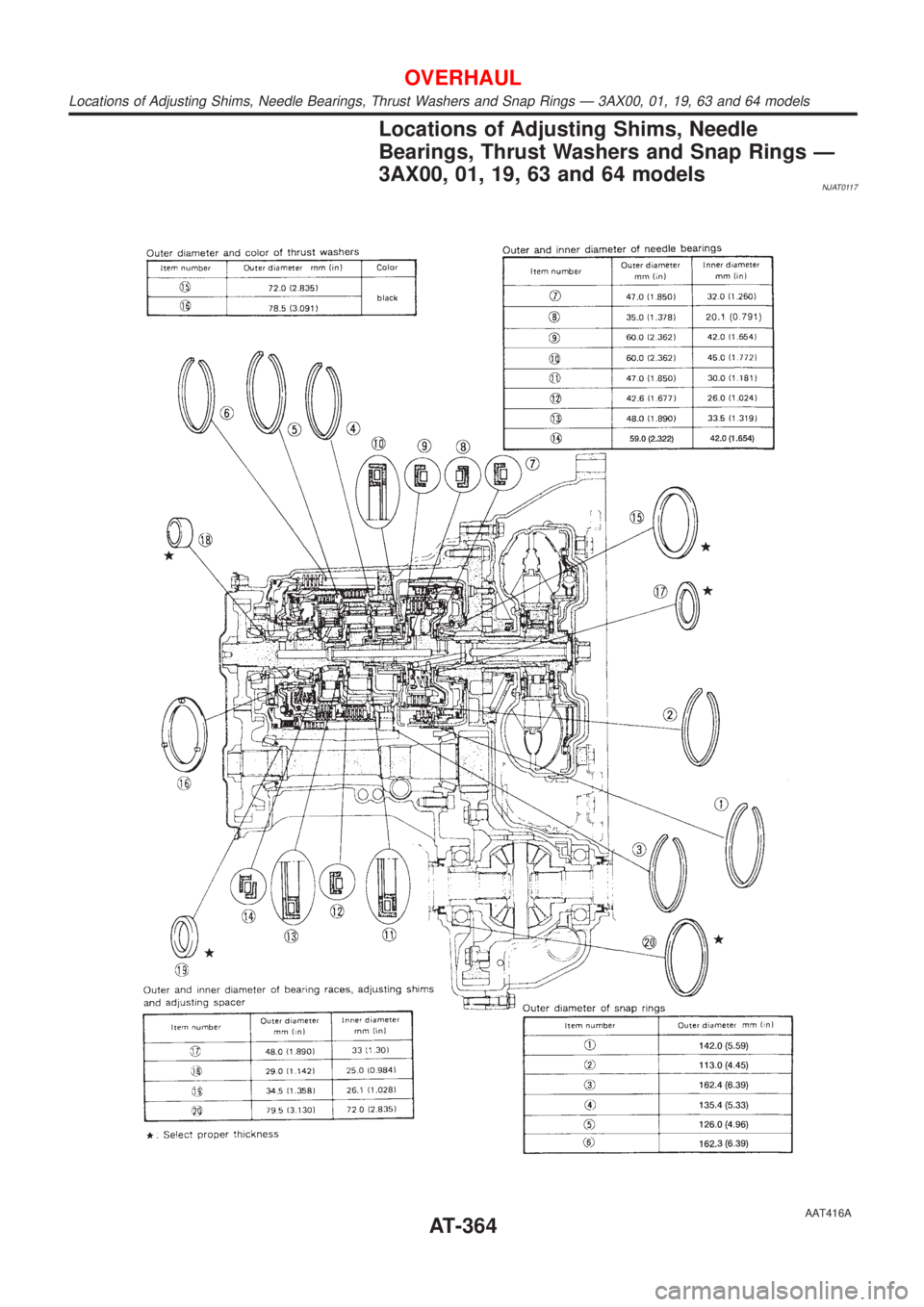

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings Ð 3AX00, 01, 19, 63 and 64 models
AT-364
Page 367 of 2898
Locations of Adjusting Shims, Needle
Bearings, Thrust Washers and Snap Rings Ð
3AX10 and 3AX18 models
NJAT0237
SAT067K
OVERHAUL

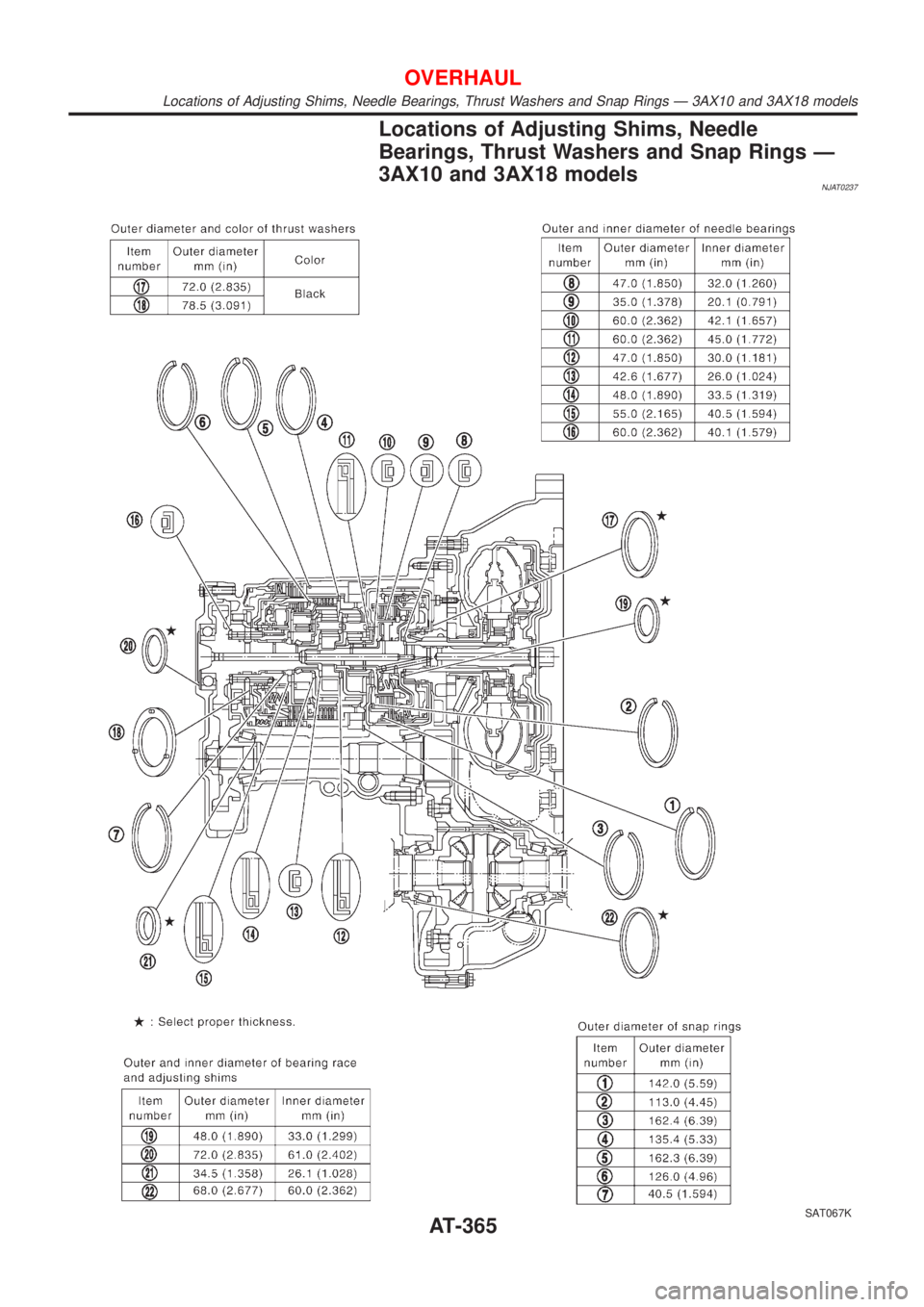

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings Ð 3AX10 and 3AX18 models
AT-365
Page 368 of 2898
NJAT0120
SAT049K

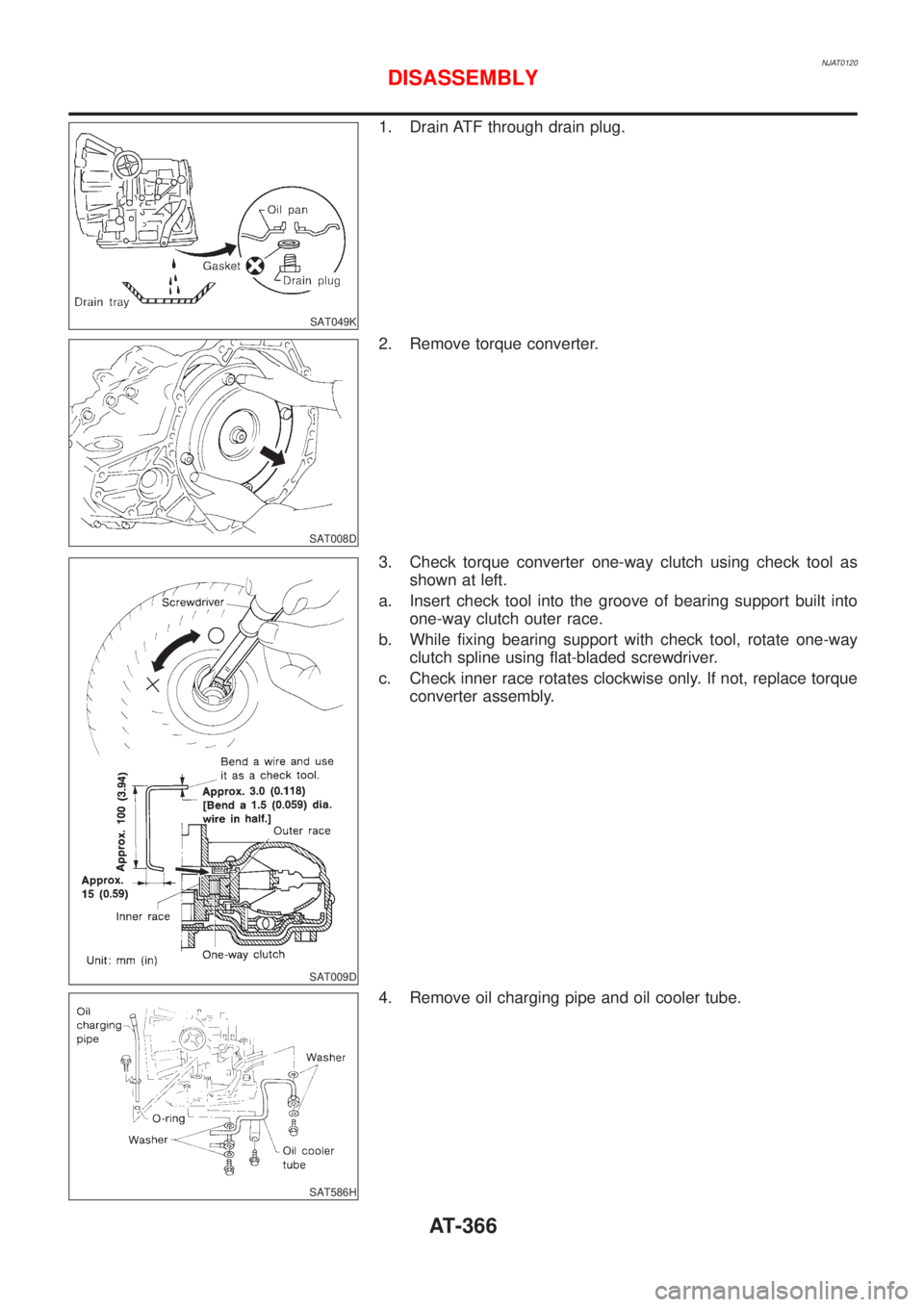

1. Drain ATF through drain plug.
SAT008D
2. Remove torque converter.
SAT009D
3. Check torque converter one-way clutch using check tool as
shown at left.
a. Insert check tool into the groove of bearing support built into
one-way clutch outer race.
b. While fixing bearing support with check tool, rotate one-way
clutch spline using flat-bladed screwdriver.
c. Check inner race rotates clockwise only. If not, replace torque
converter assembly.
SAT586H
4. Remove oil charging pipe and oil cooler tube.
DISASSEMBLY
AT-366
