Page 1753 of 2898

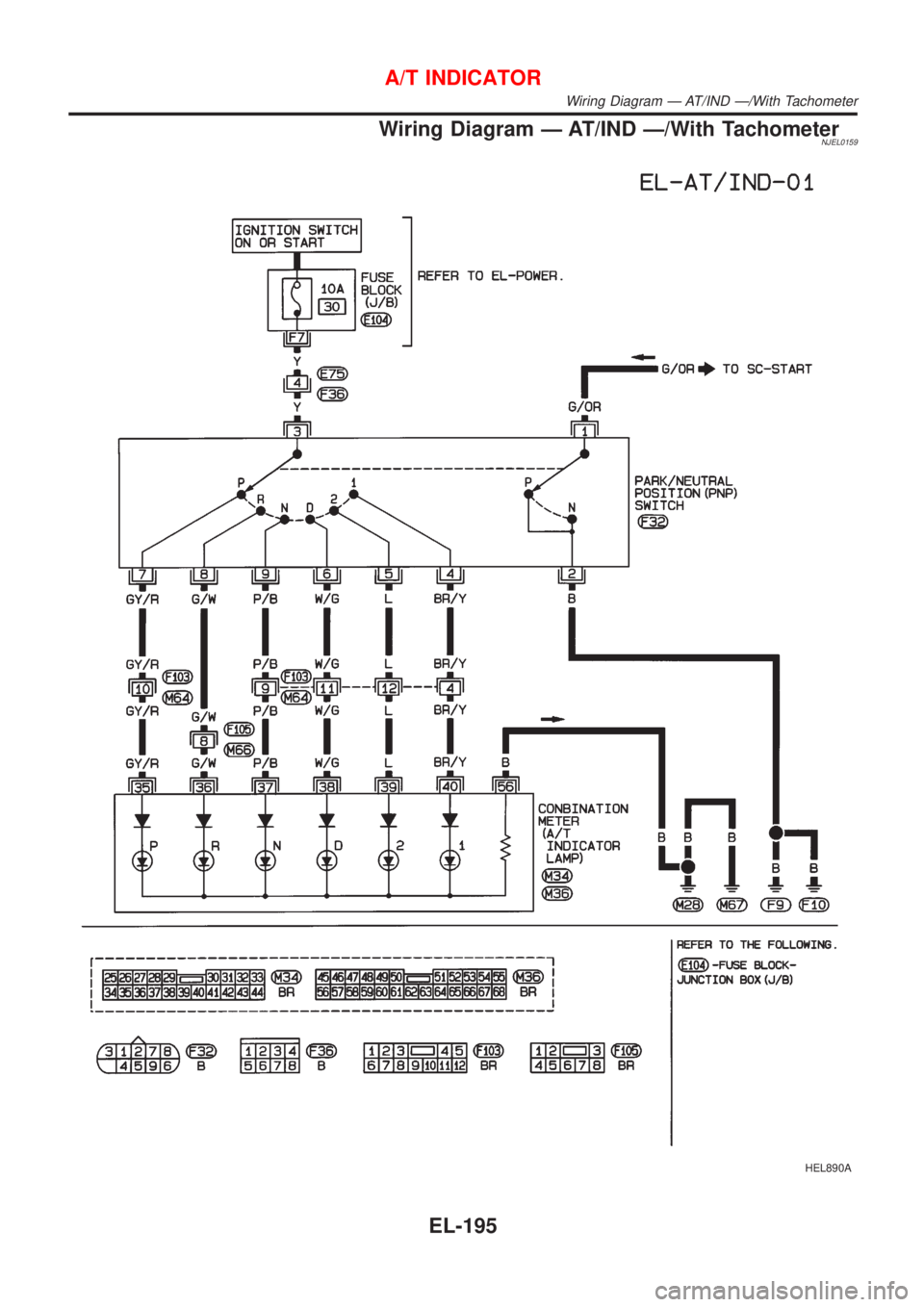

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð AT/IND Ð/With TachometerNJEL0159 HEL890A A/T INDICATOR Wiring Diagram Ð AT/IND Ð/With Tachometer EL-195

Page 1754 of 2898

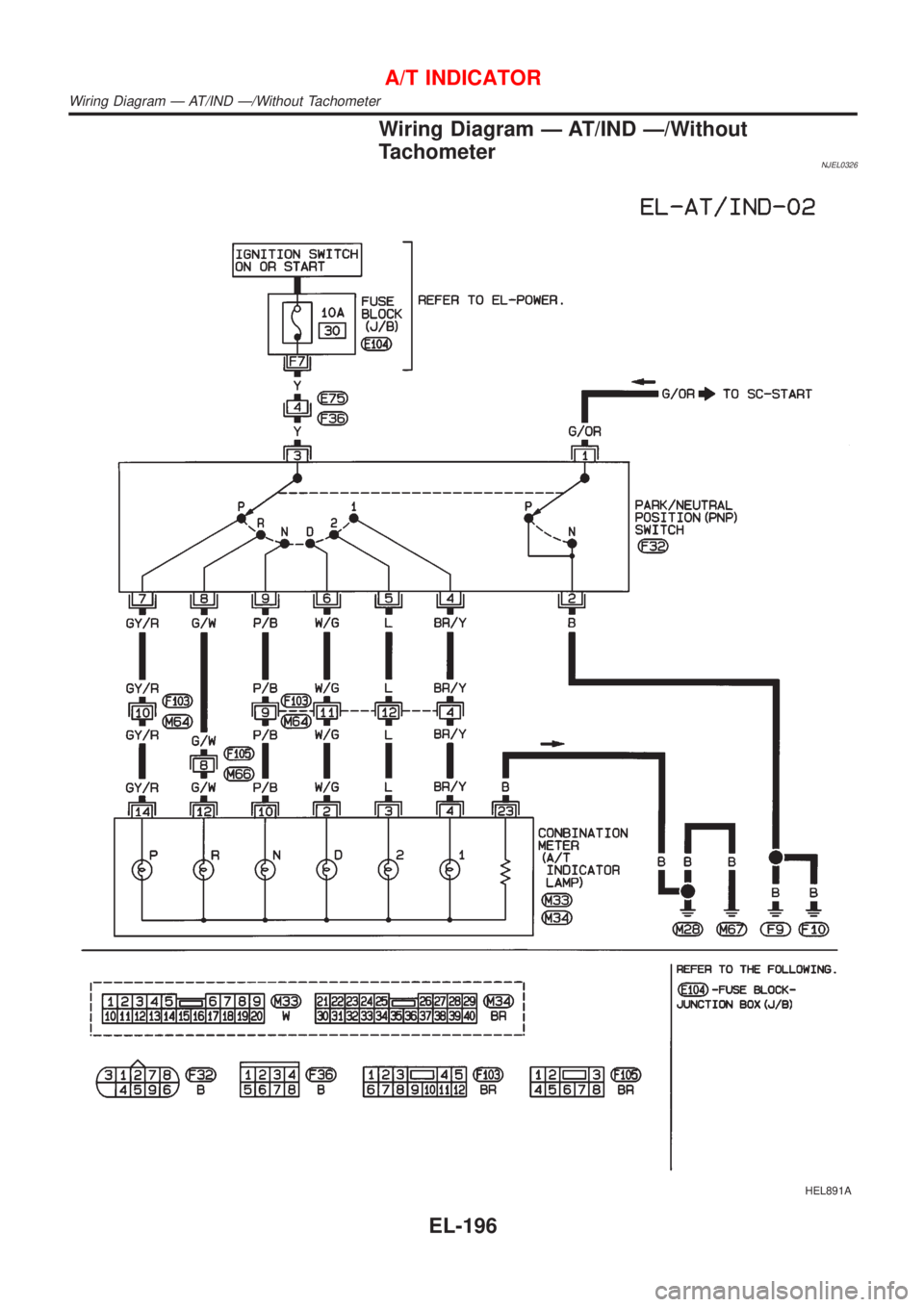

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð AT/IND Ð/Without Tachometer NJEL0326 HEL891A A/T INDICATOR Wiring Diagram Ð AT/IND Ð/Without Tachometer EL-196

Page 1755 of 2898

NISSAN ALMERA 2001 Service Manual Component Parts and Harness Connector Location/Sedan NJEL0371 SEL011XA WARNING CHIME Component Parts and Harness Connector Location/Sedan EL-197

Page 1756 of 2898

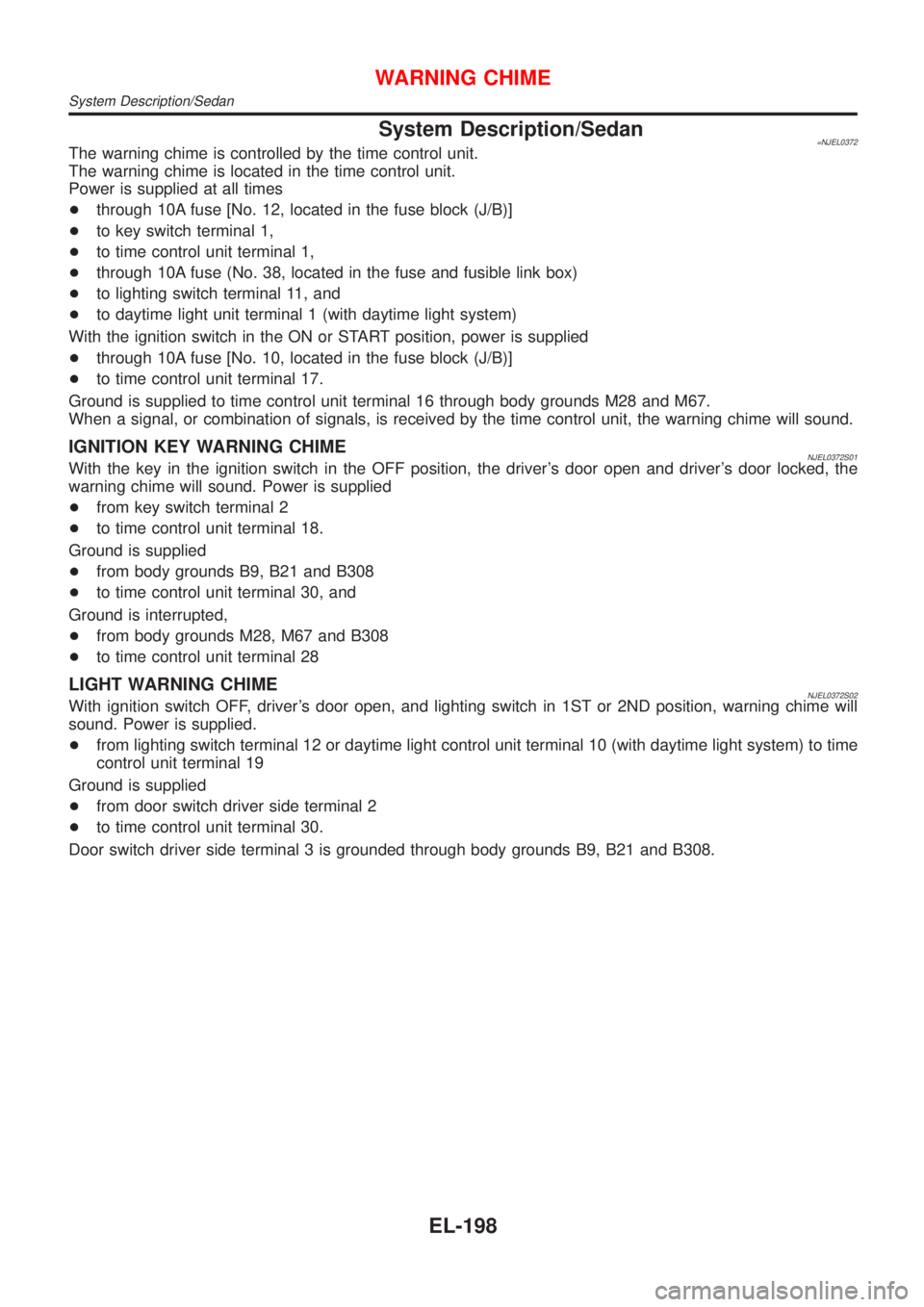

NISSAN ALMERA 2001 Service Manual System Description/Sedan=NJEL0372The warning chime is controlled by the time control unit. The warning chime is located in the time control unit. Power is supplied at all times +through 10A fuse [No.

Page 1757 of 2898

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð CHIME Ð/SedanNJEL0373 HEL389B WARNING CHIME Wiring Diagram Ð CHIME Ð/Sedan EL-199

Page 1758 of 2898

NISSAN ALMERA 2001 Service Manual Trouble Diagnoses/SedanNJEL0374SYMPTOM CHARTNJEL0374S01 REFERENCE PAGE (EL- ) 200 201 202 203 204 SYMPTOM POWER SUPPLY AND GROUND CIRCUIT CHECK DIAGNOSTIC PROCEDURE 1 (LIGHTING SWITCH INPUT SIGNAL CHE

Page 1759 of 2898

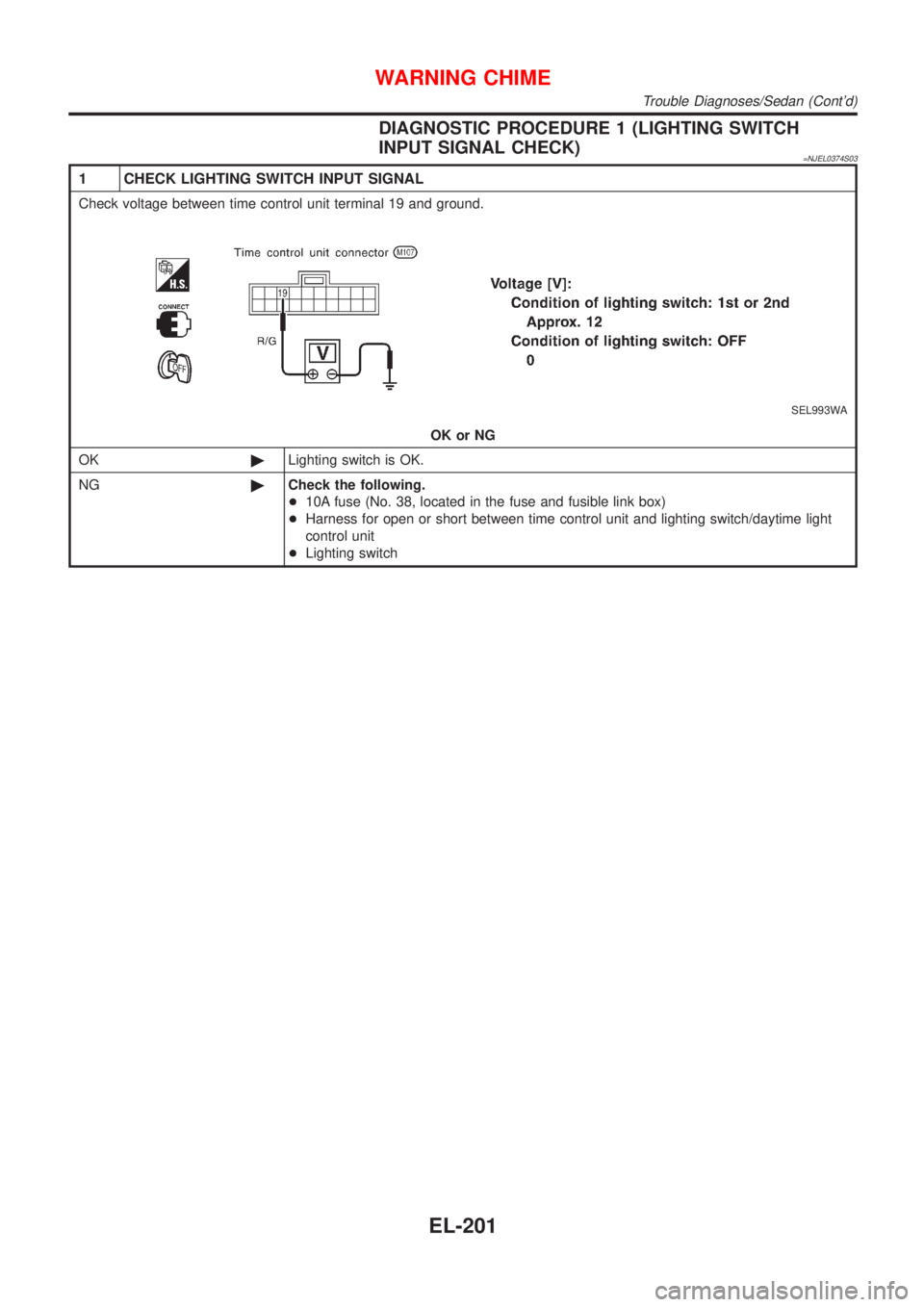

NISSAN ALMERA 2001 Service Manual DIAGNOSTIC PROCEDURE 1 (LIGHTING SWITCH INPUT SIGNAL CHECK) =NJEL0374S03 1 CHECK LIGHTING SWITCH INPUT SIGNAL Check voltage between time control unit terminal 19 and ground. SEL993WA OK or NG OK©Ligh

Page 1760 of 2898

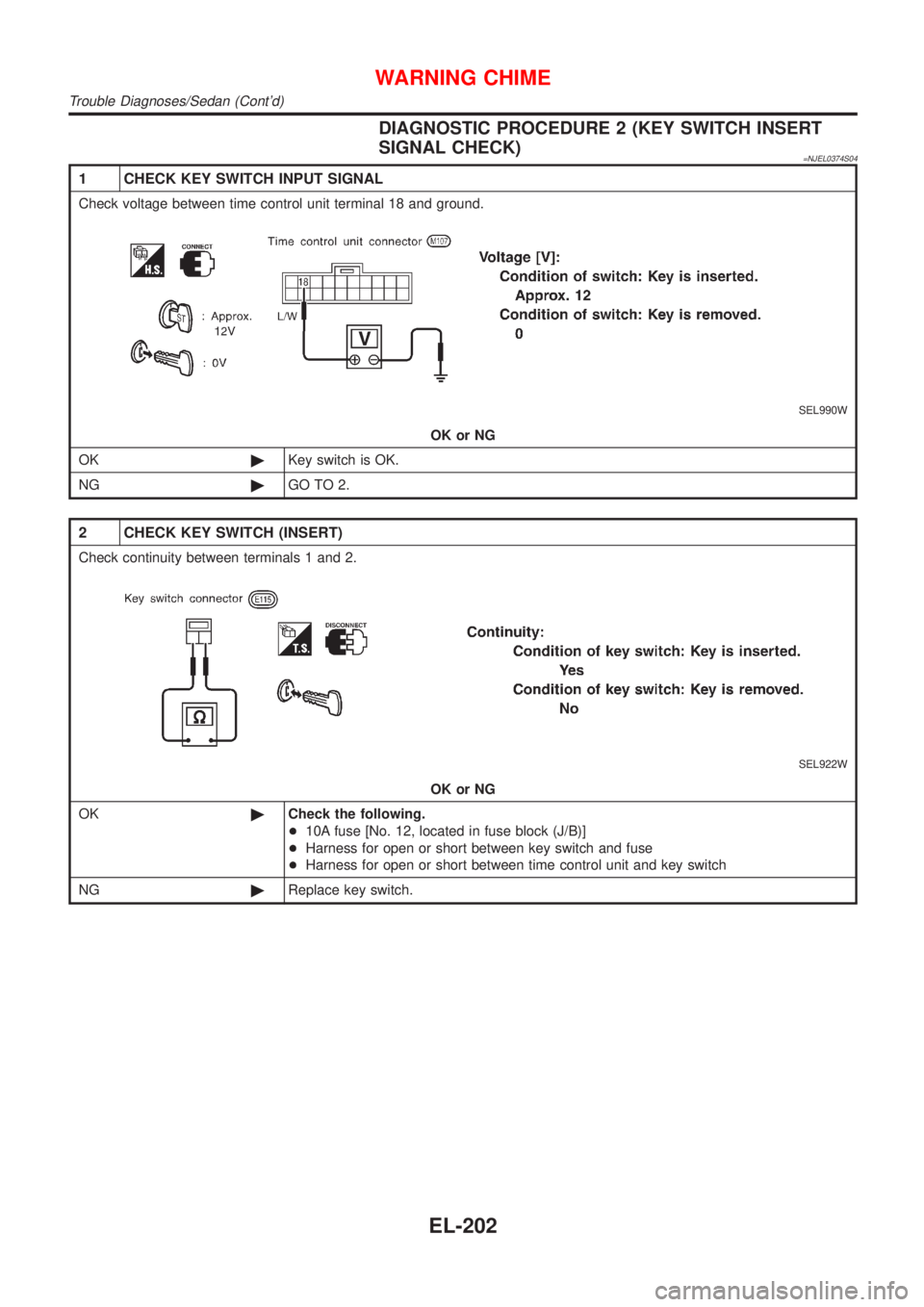

NISSAN ALMERA 2001 Service Manual DIAGNOSTIC PROCEDURE 2 (KEY SWITCH INSERT SIGNAL CHECK) =NJEL0374S04 1 CHECK KEY SWITCH INPUT SIGNAL Check voltage between time control unit terminal 18 and ground. SEL990W OK or NG OK©Key switch is
